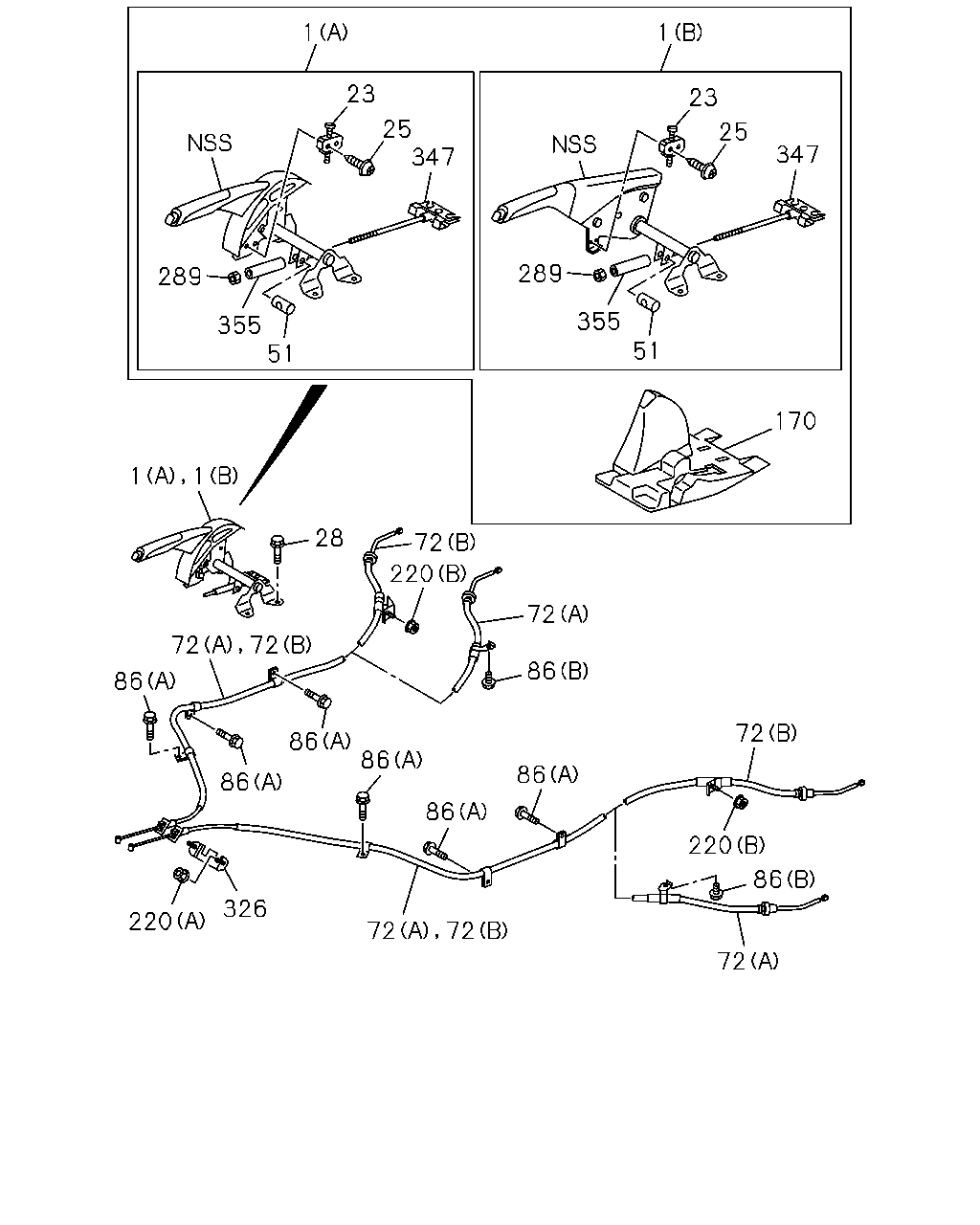

3-11 — PARKING BRAKE CONTROL (#148458) — 51 parça

72 86 220 72 86 86 86 86 86 220 326 72 72 86 72 220 72 28 72 72 86 1 1 51 355 289 1 23 25 347 51 355 289 1 23 25 347 170

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	04.592 STEM ASM; PARKING BRK FRONT SEAT SPLIT BENCH<AM6> (B)	8-98160-175-1	01	1	1412-	●	●	●	●
1	04.592 STEM ASM; PARKING BRK (A)	8-98061-827-0	01	1	1409-1411	●	●	●	●	●	●
1	04.592 STEM ASM; PARKING BRK (A)	8-98061-827-0	01	1	1412-					●	●
1	04.592 STEM ASM; PARKING BRK FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (A)	8-98061-827-0	01	1	1412-	●	●	●	●
23	04.589 SWITCH; PARKING BRK	8-97947-494-0	01	1	1409-	●	●	●	●	●	●
25	04.589 SCREW; SW,PARKING BRK	8-97103-556-0	01	1	1409-	●	●	●	●	●	●
28	04.594 BOLT; HAND BRK LEVER 01.531 M8X20 FLANGE	0-28650-820-0	04	1	1409-1505	●	●	●	●	●	●
28	04.594 BOLT; HAND BRK LEVER 01.531 M8X20 FLANGE	0-28650-820-0	04	1	1506-	●	●	●	●	●	●
51	04.785 PIN; JOINT,RELAY LEVER	8-97947-496-0	01	1	1409-	●	●	●	●	●	●
72	04.779 CABLE; PARKING BRK EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0),HIGH RIDE SUSPENSION(7YC) (B)	8-98067-046-1	01	1	1412-	●	●
72	04.779 CABLE; PARKING BRK EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0),HIGH RIDE SUSPENSION(7YC) (B)	8-98067-047-1	01	1	1412-	●	●
72	04.779 CABLE; PARKING BRK EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-98102-140-1	01	1	1409-1411	●	●			●
72	04.779 CABLE; PARKING BRK (B)	8-98102-140-1	01	1	1412-1509					●
72	04.779 CABLE; PARKING BRK AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-98102-140-1	01	1	1412-1509	●	●
72	04.779 CABLE; PARKING BRK EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-98102-140-1	01	1	1510-					●
72	04.779 CABLE; PARKING BRK AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-98102-140-1	01	1	1510-	●	●
72	04.779 CABLE; PARKING BRK EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-98102-141-1	01	1	1409-1411	●	●			●
72	04.779 CABLE; PARKING BRK (B)	8-98102-141-1	01	1	1412-1509					●
72	04.779 CABLE; PARKING BRK AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-98102-141-1	01	1	1412-1509	●	●
72	04.779 CABLE; PARKING BRK EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-98102-141-1	01	1	1510-					●
72	04.779 CABLE; PARKING BRK AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-98102-141-1	01	1	1510-	●	●
72	04.779 CABLE; PARKING BRK REAR SPRING HEAVY DUTY(G50) HIGH RIDE SUSPENSION(7YC) (A)	8-98102-148-1	01	1	1409-1509	●	●
72	04.779 CABLE; PARKING BRK REAR SPRING HEAVY DUTY(G50) (A)	8-98102-148-1	01	1	1409-1509			●	●		●
72	04.779 CABLE; PARKING BRK REAR SPRING HEAVY DUTY(G50) HIGH RIDE SUSPENSION(7YC) (A)	8-98102-148-1	01	1	1510-	●	●			●
72	04.779 CABLE; PARKING BRK REAR SPRING HEAVY DUTY(G50) (A)	8-98102-148-1	01	1	1510-			●	●		●
72	04.779 CABLE; PARKING BRK REAR SPRING HEAVY DUTY(G50) HIGH RIDE SUSPENSION(7YC) (A)	8-98102-149-1	01	1	1409-1509	●	●
72	04.779 CABLE; PARKING BRK REAR SPRING HEAVY DUTY(G50) (A)	8-98102-149-1	01	1	1409-1509			●	●		●
72	04.779 CABLE; PARKING BRK REAR SPRING HEAVY DUTY(G50) HIGH RIDE SUSPENSION(7YC) (A)	8-98102-149-1	01	1	1510-	●	●			●
72	04.779 CABLE; PARKING BRK REAR SPRING HEAVY DUTY(G50) (A)	8-98102-149-1	01	1	1510-			●	●		●
72	04.779 CABLE; PARKING BRK HIGH RIDE SUSPENSION(7YC) EXC. REAR SPRING HEAVY DUTY(G50) (A)	8-98067-048-1	01	1	1409-1509	●	●
72	04.779 CABLE; PARKING BRK EXC. REAR SPRING HEAVY DUTY(G50) (A)	8-98067-048-1	01	1	1409-1509			●	●		●
72	04.779 CABLE; PARKING BRK HIGH RIDE SUSPENSION(7YC) EXC. REAR SPRING HEAVY DUTY(G50) (A)	8-98067-048-1	01	1	1510-	●	●			●
72	04.779 CABLE; PARKING BRK EXC. REAR SPRING HEAVY DUTY(G50) (A)	8-98067-048-1	01	1	1510-			●	●		●
72	04.779 CABLE; PARKING BRK HIGH RIDE SUSPENSION(7YC) EXC. REAR SPRING HEAVY DUTY(G50) (A)	8-98067-049-1	01	1	1409-1509	●	●
72	04.779 CABLE; PARKING BRK EXC. REAR SPRING HEAVY DUTY(G50) (A)	8-98067-049-1	01	1	1409-1509			●	●		●
72	04.779 CABLE; PARKING BRK HIGH RIDE SUSPENSION(7YC) EXC. REAR SPRING HEAVY DUTY(G50) (A)	8-98067-049-1	01	1	1510-	●	●			●
72	04.779 CABLE; PARKING BRK EXC. REAR SPRING HEAVY DUTY(G50) (A)	8-98067-049-1	01	1	1510-			●	●		●
86	04.785 BOLT 03.162 (A) M6X20 FLANGE	0-28650-620-0	06	1	1409-	●	●	●	●	●	●
86	04.785 BOLT HIGH RIDE SUSPENSION(7YC) 02.343 (B) M8X12 FLANGE	0-28050-812-0	02	1	1409-1509	●	●
86	04.785 BOLT 02.343 (B) M8X12 FLANGE	0-28050-812-0	02	1	1409-1509			●	●		●
86	04.785 BOLT HIGH RIDE SUSPENSION(7YC) 02.343 (B) M8X12 FLANGE	0-28050-812-0	02	1	1510-	●	●			●
86	04.785 BOLT 02.343 (B) M8X12 FLANGE	0-28050-812-0	02	1	1510-			●	●		●
170	04.595 COVER; PARKING BRK LEVER FRONT SEAT SPLIT BENCH<AM6>	8-97948-802-0	01	1	1412-	●	●	●	●
220	04.785 NUT; CLIP,PARKING CONT CABLE 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1409-	●	●	●	●	●	●
220	04.785 NUT; CLIP,PARKING CONT CABLE 01.062 (B) M6 FLANGE	0-91180-106-0	02	1	1409-1509					●
220	04.785 NUT; CLIP,PARKING CONT CABLE EXC. HIGH RIDE SUSPENSION(7YC) 01.062 (B) M6 FLANGE	0-91180-106-0	02	1	1409-1509	●	●
220	04.785 NUT; CLIP,PARKING CONT CABLE EXC. HIGH RIDE SUSPENSION(7YC) 01.062 (B) M6 FLANGE	0-91180-106-0	02	1	1510-	●	●			●
289	04.594 NUT; PARKING BRK 04.785	8-98017-654-0	01	1	1409-	●	●	●	●	●	●
326	04.785 RETAINER; PARK CABLE	8-98134-214-1	01	1	1409-	●	●	●	●	●	●
347	04.675 EQUALIZER; HAND BRK	8-97947-495-0	01	1	1409-	●	●	●	●	●	●
355	04.594 SPACER; HAND BRK LEVER	8-97947-497-0	01	1	1409-	●	●	●	●	●	●
