3-10 — BRAKE PEDAL AND CONTROL (#148457) — 34 parça

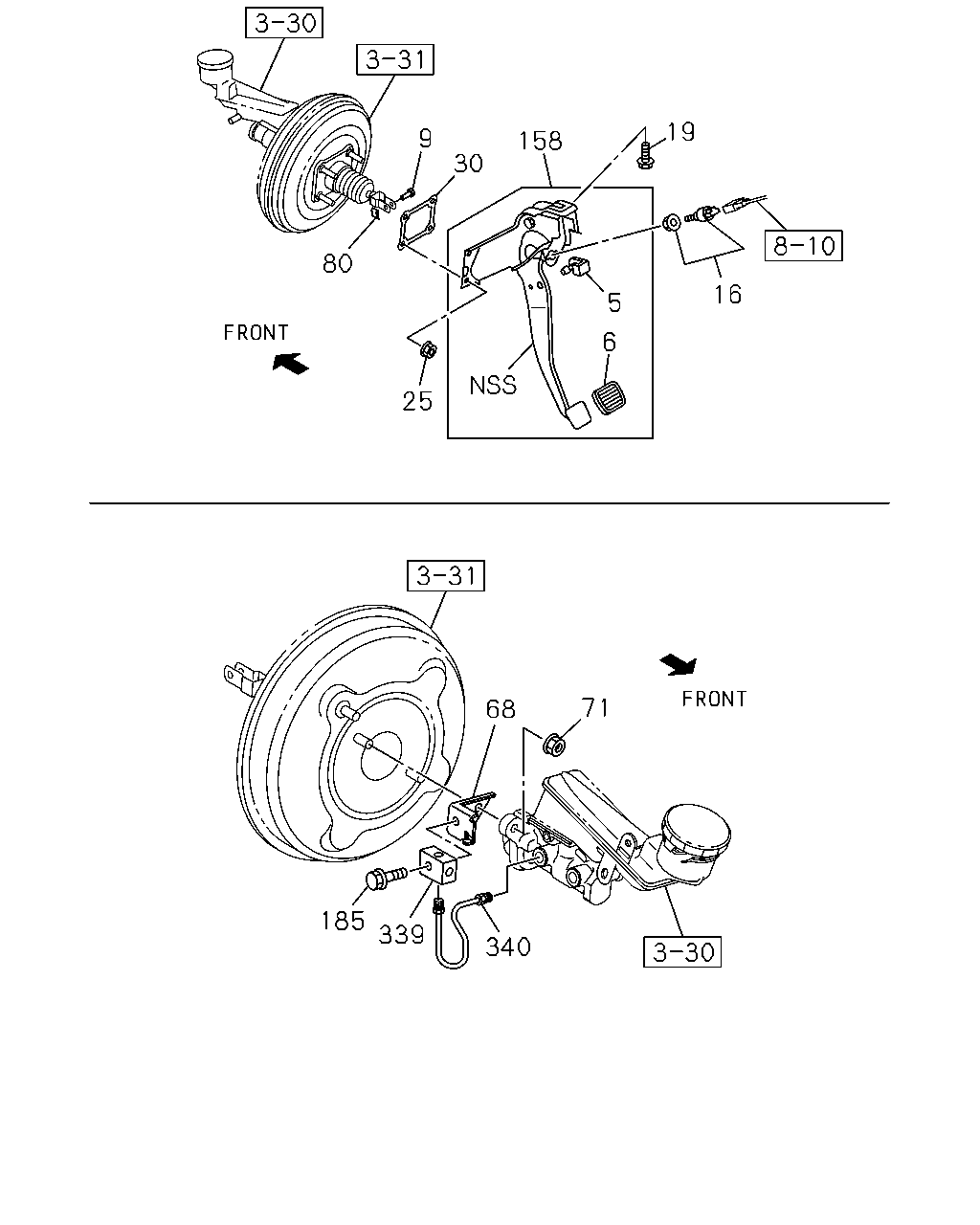

çizim 443570
16 19 158 30 9 80 25 6 5 71 68 185 339 340
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
5 04.634 STOPPER; BRK PEDAL 1-73996-231-1 01 1 1409- ● ● ● ● ● ●
6 04.630 COVER; BRK PEDAL
M/T MUX 5 SPEED 5S(MZJ) 		8-97318-799-0 01 1 1409-1411 ● ● ● ● ● ●
6 04.630 COVER; BRK PEDAL
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 		8-97318-799-0 01 1 1412- ● ● ● ● ● ●
6 04.630 COVER; BRK PEDAL
A/T 5 SPEED-AISIN(MA1) 		8-97263-035-0 01 1 1409-1509 ● ● ● ● ●
6 04.630 COVER; BRK PEDAL
A/T 5 SPEED-AISIN(MA1) 		8-97263-035-0 01 1 1510- ● ● ● ● ● ●
9 04.634 PIN; JAW JOINT
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) 		8-97311-602-0 01 1 1409-1411 ● ● ● ● ● ●
9 04.634 PIN; JAW JOINT
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 		8-97311-602-0 01 1 1412-1505 ● ● ● ● ● ●
9 04.634 PIN; JAW JOINT 8-97311-602-0 01 1 1506- ● ● ● ● ● ●
16 02.447 SWITCH; STOP LAMP
AUTO CRUISE CONT<K30> 		8-98140-487-0 01 1 1409-1411 ● ● ● ● ● ●
16 02.447 SWITCH; STOP LAMP
AUTO CRUISE CONT<K30> 		8-98140-487-0 01 1 1412- ● ● ● ● ● ●
16 02.447 SWITCH; STOP LAMP
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) EXC. AUTO CRUISE CONT<K30> 		8-98140-487-0 01 1 1412- ● ● ● ● ●
16 02.447 SWITCH; STOP LAMP
4JK1-TCY ENG(RDX) M/T AISIN 6 SPEED(RNU) EXC. AUTO CRUISE CONT<K30> 		8-98140-487-0 01 1 1412- ● ● ● ●
16 02.447 SWITCH; STOP LAMP
EXC. AUTO CRUISE CONT<K30> 		8-98140-486-0 01 1 1409-1411 ● ● ● ● ● ●
16 02.447 SWITCH; STOP LAMP
4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JJ1-TCX ENG(LS0) EXC. AUTO CRUISE CONT<K30> 		8-98140-486-0 01 1 1412- ● ● ● ● ● ●
16 02.447 SWITCH; STOP LAMP
4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1) EXC. AUTO CRUISE CONT<K30> 		8-98140-486-0 01 1 1412- ● ● ● ● ●
19 04.634 BOLT; BRKT
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) M8X22.5 W/PL WASHER 		8-97947-104-1 01 1 1409-1411 ● ● ● ● ● ●
19 04.634 BOLT; BRKT
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) M8X22.5 W/PL WASHER 		8-97947-104-1 01 1 1412-1505 ● ● ● ● ● ●
19 04.634 BOLT; BRKT
M8X22.5 W/PL WASHER 		8-97947-104-1 01 1 1506- ● ● ● ● ● ●
25 04.634 NUT; FLANGE,MTG BRKT TO BODY
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) M8 FLANGE 		8-97581-233-0 04 1 1409-1411 ● ● ● ● ● ●
25 04.634 NUT; FLANGE,MTG BRKT TO BODY
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) M8 FLANGE 		8-97581-233-0 04 1 1412-1505 ● ● ● ● ● ●
25 04.634 NUT; FLANGE,MTG BRKT TO BODY
M8 FLANGE 		8-97581-233-0 04 1 1506- ● ● ● ● ● ●
30 04.910 GASKET; M/VAC TO BODY 8-97943-457-0 01 1 1409- ● ● ● ● ● ●
68 04.634 BRACKET; SERVO TO DASH PANEL
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98163-234-0 01 1 1412- ● ● ● ● ●
71 04.650 NUT; BRK M/CYL 8-98031-675-0 02 1 1409- ● ● ● ● ● ●
80 04.634 PIN; SNAP,BRK PEDAL
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) 00.833 		8-98007-161-0 01 1 1409-1411 ● ● ● ● ● ●
80 04.634 PIN; SNAP,BRK PEDAL
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 00.833 		8-98007-161-0 01 1 1412-1505 ● ● ● ● ● ●
80 04.634 PIN; SNAP,BRK PEDAL
00.833 		8-98007-161-0 01 1 1506- ● ● ● ● ● ●
158 04.625 PEDAL ASM; BRK
M/T MUX 5 SPEED 5S(MZJ) 		8-98061-817-1 01 1 1409-1411 ● ● ● ● ● ●
158 04.625 PEDAL ASM; BRK
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 		8-98061-817-1 01 1 1412- ● ● ● ● ● ●
158 04.625 PEDAL ASM; BRK
A/T 5 SPEED-AISIN(MA1) 		8-98061-818-1 01 1 1409-1509 ● ● ● ● ●
158 04.625 PEDAL ASM; BRK
A/T 5 SPEED-AISIN(MA1) 		8-98061-818-1 01 1 1510- ● ● ● ● ● ●
185 04.634 BOLT; BRKT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M8X35 FLANGE 		8-97947-755-0 01 1 1412- ● ● ● ● ●
339 04.685 CONNECTOR; OIL PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98163-269-0 01 1 1412- ● ● ● ● ●
340 04.685 PIPE; BRK M/CYL
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97947-756-0 01 1 1412- ● ● ● ● ●
