◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51580 - TFR/TFS RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-66 - MANUAL TRANSFER GEAR; OUTPUT ▶
2-66 — MANUAL TRANSFER GEAR; OUTPUT (#148454) — 46 parça

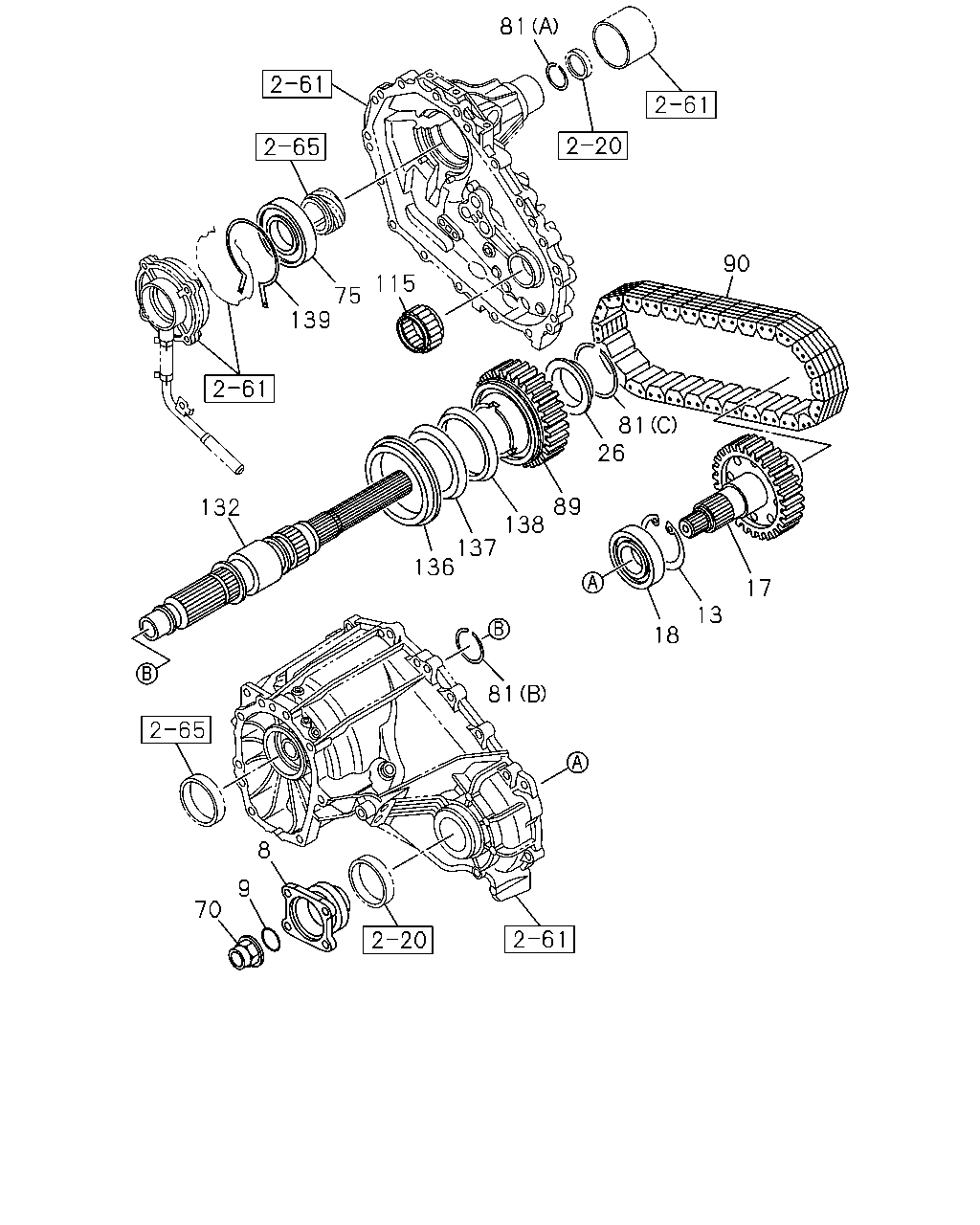

çizim 443436
70 8 9 132 136 81 18 13 17 81 26 89 138 137 90 115 75 139 81
BalonParca AdiParca NoAdetTipApplied Date A B C
8 04.535 FLANGE; OUTPUT
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) 		8-97319-825-2 01 1 1409-1411 ● ● ●
8 04.535 FLANGE; OUTPUT
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) 		8-97319-825-2 01 1 1412- ● ● ●
9 04.164 GASKET; SHAFT
ALSO INCLUDED IN GASKET SET(M/T). A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) 04.552 ID=29.7 OD=36.1 		8-94483-035-0 01 1 1409-1411 ● ● ●
9 04.164 GASKET; SHAFT
ALSO INCLUDED IN GASKET SET(M/T). A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) 04.552 ID=29.7 OD=36.1 		8-94483-035-0 01 1 1412- ● ● ●
13 04.545 RING; SNAP,OUTPUT,FRT
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) ID=67 		8-97305-402-0 01 1 1409-1411 ● ● ●
13 04.545 RING; SNAP,OUTPUT,FRT
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) ID=67 		8-97305-402-0 01 1 1412- ● ● ●
17 04.555 SHAFT; OUTPUT
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) 		8-97231-853-0 01 1 1409-1411 ● ● ●
17 04.555 SHAFT; OUTPUT
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) 		8-97231-853-0 01 1 1412- ● ● ●
18 04.520 BEARING; BALL,OUTPUT,FRT
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) NSK 		8-94422-172-1 01 1 1409-1411 ● ● ●
18 04.520 BEARING; BALL,OUTPUT,FRT
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) NSK 		8-94422-172-1 01 1 1412- ● ● ●
26 04.533 WASHER; THRUST
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) 		8-97239-774-0 01 1 1409-1411 ● ● ●
26 04.533 WASHER; THRUST
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) 		8-97239-774-0 01 1 1412- ● ● ●
70 04.164 NUT; RR OUTPUT SHAFT,TRANSFER
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) M36 FLANGE 		8-97358-603-0 01 1 1409-1411 ● ● ●
70 04.164 NUT; RR OUTPUT SHAFT,TRANSFER
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) M36 FLANGE 		8-97358-603-0 01 1 1412- ● ● ●
75 04.520 BEARING; BALL,RR OUTPUT
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) 		8-97234-737-0 01 1 1409-1411 ● ● ●
75 04.520 BEARING; BALL,RR OUTPUT
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) 		8-97234-737-0 01 1 1412- ● ● ●
81 04.545 RING; SNAP
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) (A) T=1.9 		8-97305-404-1 01 1 1409-1411 ● ● ●
81 04.545 RING; SNAP
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) (A) T=1.9 		8-97305-404-1 01 1 1412- ● ● ●
81 04.545 RING; SNAP
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) (B) T=1.4 		8-97305-405-0 01 1 1409-1411 ● ● ●
81 04.545 RING; SNAP
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) (B) T=1.4 		8-97305-405-0 01 1 1412- ● ● ●
81 04.545 RING; SNAP
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) (C) T=2.15 RED 		8-97305-407-0 01 1 1409-1411 ● ● ●
81 04.545 RING; SNAP
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) (C) T=2.15 RED 		8-97305-407-0 01 1 1412- ● ● ●
81 04.545 RING; SNAP
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) (C) T=2.10 NON COLOR 		8-97305-408-0 01 1 1409-1411 ● ● ●
81 04.545 RING; SNAP
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) (C) T=2.10 NON COLOR 		8-97305-408-0 01 1 1412- ● ● ●
81 04.545 RING; SNAP
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) (C) T=2.05 BLUE 		8-97305-409-0 01 1 1409-1411 ● ● ●
81 04.545 RING; SNAP
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) (C) T=2.05 BLUE 		8-97305-409-0 01 1 1412- ● ● ●
81 04.545 RING; SNAP
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) (C) T=2.00 WHITE 		8-97305-410-0 01 1 1409-1411 ● ● ●
81 04.545 RING; SNAP
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) (C) T=2.00 WHITE 		8-97305-410-0 01 1 1412- ● ● ●
89 04.535 SPROCKET; DRIVE
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) Z=48 		8-98013-525-0 01 1 1409-1411 ● ● ●
89 04.535 SPROCKET; DRIVE
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) Z=48 		8-98013-525-0 01 1 1412- ● ● ●
90 04.535 CHAIN; DRIVE
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) 		8-98275-645-0 01 1 1409-1411 ● ● ●
90 04.535 CHAIN; DRIVE
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) 		8-98275-645-0 01 1 1412- ● ● ●
115 04.520 BEARING; NEEDLE
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) 		8-97234-747-0 01 1 1409-1411 ● ● ●
115 04.520 BEARING; NEEDLE
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) 		8-97234-747-0 01 1 1412- ● ● ●
132 05.544 SHAFT; MAIN,TRANSFER
A/T 5 SPEED-AISIN(MA1) Z=34-36-26-27 		8-98316-370-0 01 1 1509- ● ● ●
132 05.544 SHAFT; MAIN,TRANSFER
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) Z=34-36-26-27 		8-98013-925-1 01 1 1409-1411 ● ● ●
132 05.544 SHAFT; MAIN,TRANSFER
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) Z=34-36-26-27 		8-98013-925-1 01 1 1412-1508 ● ● ●
132 05.544 SHAFT; MAIN,TRANSFER
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) Z=34-36-26-27 		8-98013-925-1 01 1 1509- ● ● ●
136 04.545 BLOCK RING; 2-4
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) 04.383 Z=48 		8-94363-054-1 01 1 1409-1411 ● ● ●
136 04.545 BLOCK RING; 2-4
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) 04.383 Z=48 		8-94363-054-1 01 1 1412- ● ● ●
137 04.545 RING; OUTSIDE,2-4
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) 04.383 OD=90.0 		8-94363-055-1 01 1 1409-1411 ● ● ●
137 04.545 RING; OUTSIDE,2-4
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) 04.383 OD=90.0 		8-94363-055-1 01 1 1412- ● ● ●
138 04.545 RING; INSIDE,2-4
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) 04.383 OD=95.8 		8-94363-056-0 01 1 1409-1411 ● ● ●
138 04.545 RING; INSIDE,2-4
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) 04.383 OD=95.8 		8-94363-056-0 01 1 1412- ● ● ●
139 04.545 RING; RETAINING,RR OUTPUT
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) ID=76 		8-97305-012-0 01 1 1409-1411 ● ● ●
139 04.545 RING; RETAINING,RR OUTPUT
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) ID=76 		8-97305-012-0 01 1 1412- ● ● ●
