◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51580 - TFR/TFS RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-65 - MANUAL TRANSFER GEAR; INPUT AND IDLE ▶
2-65 — MANUAL TRANSFER GEAR; INPUT AND IDLE (#148453) — 35 parça

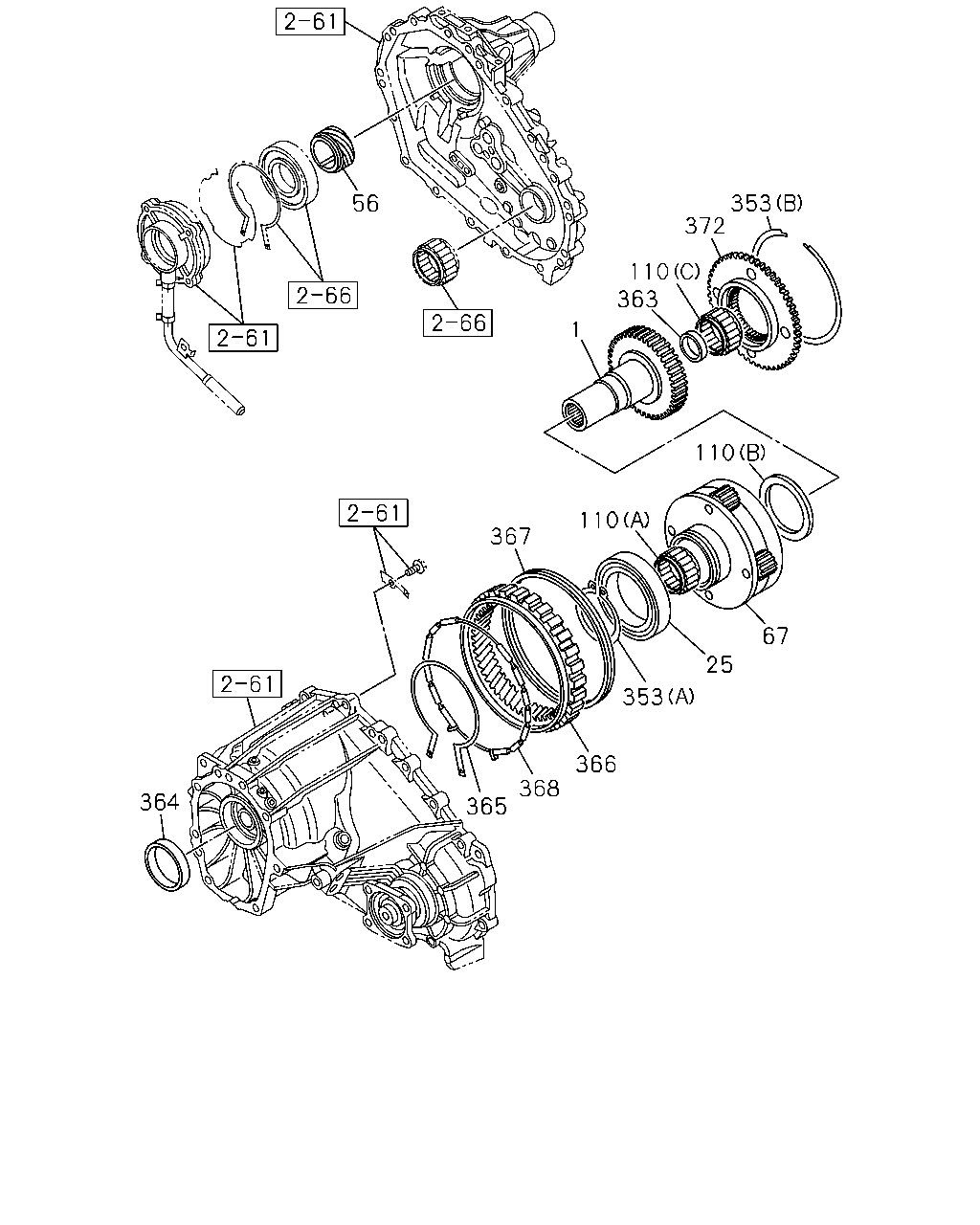

çizim 443362
353 372 110 363 1 56 364 365 368 366 353 67 25 110 110 367
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.162 SHAFT; GEAR,INPUT
M/T AISIN 6 SPEED(RNU) 		8-98156-637-1 01 1 1412- ● ●
1 04.162 SHAFT; GEAR,INPUT
A/T 5 SPEED-AISIN(MA1) 		8-98118-924-1 01 1 1409- ● ● ●
1 04.162 SHAFT; GEAR,INPUT
M/T MUX 5 SPEED 5S(MZJ) 		8-97373-467-0 01 1 1409-1411 ● ● ●
1 04.162 SHAFT; GEAR,INPUT
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) 		8-97373-467-0 01 1 1412- ● ● ●
25 04.164 BEARING; BALL,INPUT SHAFT
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) NSK 		8-97234-735-0 01 1 1409-1411 ● ● ●
25 04.164 BEARING; BALL,INPUT SHAFT
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) NSK 		8-97234-735-0 01 1 1412- ● ● ●
56 04.343 GEAR; SPD DRIVE,TRANSFER
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) Z=6 		8-97238-581-0 01 1 1409-1411 ● ● ●
56 04.343 GEAR; SPD DRIVE,TRANSFER
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) Z=6 		8-97238-581-0 01 1 1412- ● ● ●
67 04.532 CARRIER; TRANSFER
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) 		8-98158-116-0 01 1 1409-1411 ● ● ●
67 04.532 CARRIER; TRANSFER
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) 		8-98158-116-0 01 1 1412- ● ● ●
110 04.532 BEARING; NEEDLE
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) (A) 		8-97234-739-0 01 1 1409-1411 ● ● ●
110 04.532 BEARING; NEEDLE
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) (A) 		8-97234-739-0 01 1 1412- ● ● ●
110 04.532 BEARING; NEEDLE
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) (B) 		8-97234-741-0 01 1 1409-1411 ● ● ●
110 04.532 BEARING; NEEDLE
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) (B) 		8-97234-741-0 01 1 1412- ● ● ●
110 04.532 BEARING; NEEDLE
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) (C) 		8-97234-743-0 01 1 1409-1411 ● ● ●
110 04.532 BEARING; NEEDLE
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) (C) 		8-97234-743-0 01 1 1412- ● ● ●
353 04.545 RING; SNAP,CARRIER
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) (A) ID=65.5 		8-97305-403-0 01 1 1409-1411 ● ● ●
353 04.545 RING; SNAP,CARRIER
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) (A) ID=65.5 		8-97305-403-0 01 1 1412- ● ● ●
353 04.545 RING; SNAP,CARRIER
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) (B) ID=137 		8-97305-406-0 01 1 1409-1411 ● ● ●
353 04.545 RING; SNAP,CARRIER
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) (B) ID=137 		8-97305-406-0 01 1 1412- ● ● ●
363 04.545 CAP; SEAL,INPUT SHAFT
M/T AISIN 6 SPEED(RNU) 		8-98156-632-0 01 1 1412- ● ●
363 04.545 CAP; SEAL,INPUT SHAFT
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) 		8-97238-725-0 01 1 1409-1411 ● ● ●
363 04.545 CAP; SEAL,INPUT SHAFT
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) 		8-97238-725-0 01 1 1412- ● ● ●
364 04.545 SEAL; OIL,COVER,INPUT
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) 04.510 NOK 		8-97238-999-0 01 1 1409-1411 ● ● ●
364 04.545 SEAL; OIL,COVER,INPUT
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) 04.510 NOK 		8-97238-999-0 01 1 1412- ● ● ●
365 04.545 RING; RETAINING,OUTER INPUT
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) ID=97 		8-97305-010-1 01 1 1409-1411 ● ● ●
365 04.545 RING; RETAINING,OUTER INPUT
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) ID=97 		8-97305-010-1 01 1 1412- ● ● ●
366 04.532 GEAR; INTERNAL,HIGH-LOW
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) Z=27 		8-97231-831-2 01 1 1409-1411 ● ● ●
366 04.532 GEAR; INTERNAL,HIGH-LOW
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) Z=27 		8-97231-831-2 01 1 1412- ● ● ●
367 04.545 RING; RETAINING,SPIRAL TYPE
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) ID=162 OD=176 		8-97247-459-0 01 1 1409-1411 ● ● ●
367 04.545 RING; RETAINING,SPIRAL TYPE
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) ID=162 OD=176 		8-97247-459-0 01 1 1412- ● ● ●
368 04.545 RING; DAMPER,TRANSFER
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) ID=168.4 OD=178 		8-97320-914-0 01 1 1409-1411 ● ● ●
368 04.545 RING; DAMPER,TRANSFER
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) ID=168.4 OD=178 		8-97320-914-0 01 1 1412- ● ● ●
372 04.162 TEETH; DOG,PLANETARY
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) 01.462 Z=56 		8-97358-244-0 01 1 1409-1411 ● ● ●
372 04.162 TEETH; DOG,PLANETARY
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) 01.462 Z=56 		8-97358-244-0 01 1 1412- ● ● ●
