◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51580 - TFR/TFS RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-62 - TRANSFER SIDE CASE AND SHIFT LEVER ▶
2-62 — TRANSFER SIDE CASE AND SHIFT LEVER (#148452) — 52 parça

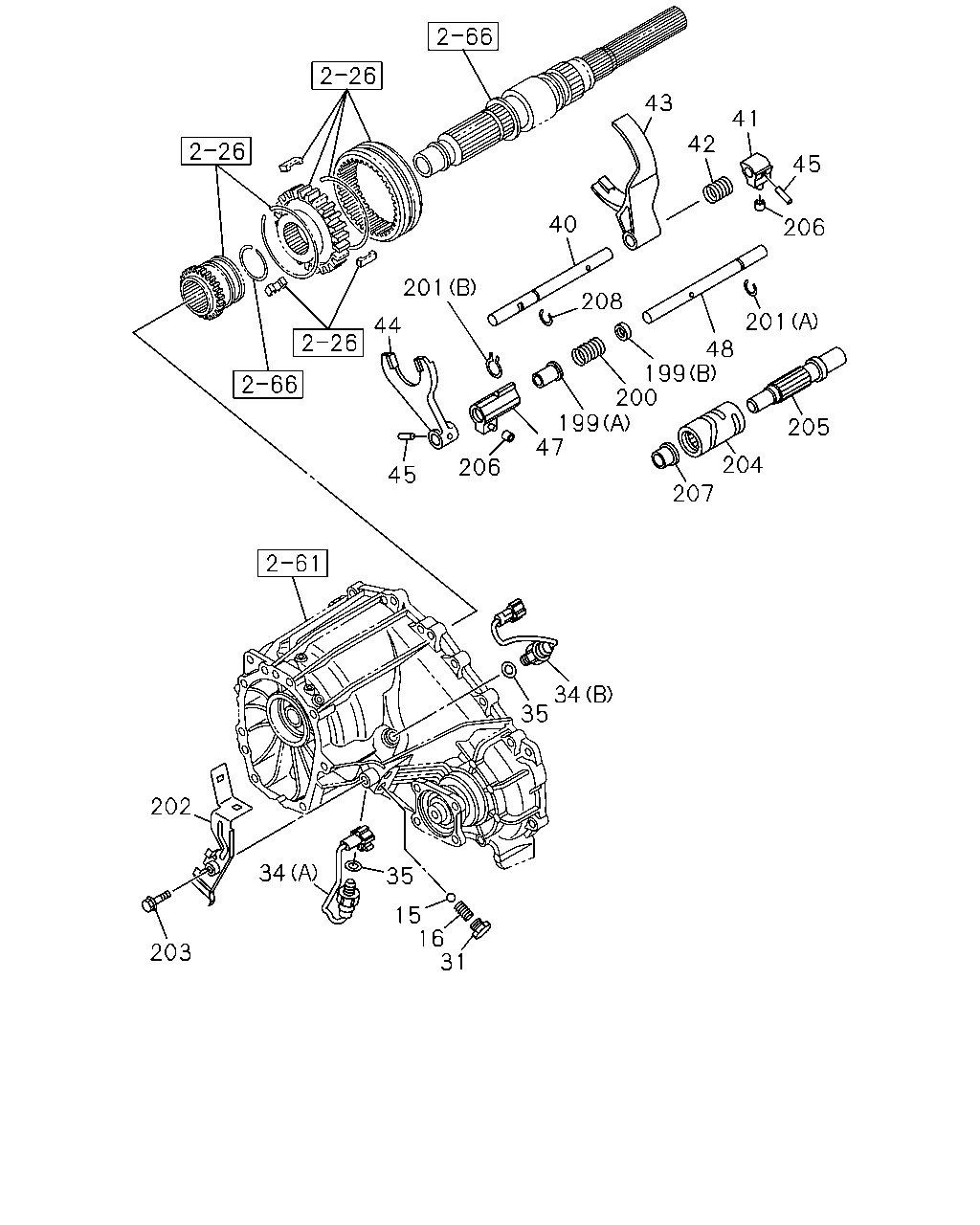

çizim 443568
31 16 15 35 34 203 202 35 34 207 204 205 201 48 199 200 199 47 206 45 44 201 40 43 42 41 45 206 208
BalonParca AdiParca NoAdetTipApplied Date A B C
15 04.311 BALL; DETENT,SHIFT ROD,TRANSFER
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) 		8-94435-335-0 02 1 1409-1411 ● ● ●
15 04.311 BALL; DETENT,SHIFT ROD,TRANSFER
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) 		8-94435-335-0 02 1 1412- ● ● ●
16 04.515 SPRING; DETENT,SHIFT ROD,TRANSFE
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) L=23.4 		8-97145-374-0 02 1 1409-1411 ● ● ●
16 04.515 SPRING; DETENT,SHIFT ROD,TRANSFE
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) L=23.4 		8-97145-374-0 02 1 1412- ● ● ●
31 04.520 PLUG; DETENT BALL,TRANSFER
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) M12X9 		0-92002-412-0 02 1 1409-1411 ● ● ●
31 04.520 PLUG; DETENT BALL,TRANSFER
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) M12X9 		0-92002-412-0 02 1 1412- ● ● ●
34 04.075 SWITCH; TRANSFER INDICATOR
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) (A) 		8-98181-233-0 01 1 1409-1411 ● ● ●
34 04.075 SWITCH; TRANSFER INDICATOR
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) (A) 		8-98181-233-0 01 1 1412- ● ● ●
34 04.075 SWITCH; TRANSFER INDICATOR
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) (B) 		8-98181-234-0 01 1 1409-1411 ● ● ●
34 04.075 SWITCH; TRANSFER INDICATOR
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) (B) 		8-98181-234-0 01 1 1412- ● ● ●
35 04.075 GASKET; INDICATOR SWITCH,TRANSFE
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) 08.955 ID=14.2 OD=20.0 		9-09571-414-0 02 1 1409-1411 ● ● ●
35 04.075 GASKET; INDICATOR SWITCH,TRANSFE
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) 08.955 ID=14.2 OD=20.0 		9-09571-414-0 02 1 1412- ● ● ●
40 04.309 ROD; SHIFT,4X2-4X4,TRANSFER
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) 		8-97234-229-0 01 1 1409-1411 ● ● ●
40 04.309 ROD; SHIFT,4X2-4X4,TRANSFER
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) 		8-97234-229-0 01 1 1412- ● ● ●
41 04.555 BLOCK; SHIFT,4X2-4X4,TRANSFER
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) 		8-97234-233-1 01 1 1409-1411 ● ● ●
41 04.555 BLOCK; SHIFT,4X2-4X4,TRANSFER
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) 		8-97234-233-1 01 1 1412- ● ● ●
42 04.515 SPRING; GEAR LOCK RELEASE,TRANSF
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) 		8-97239-010-1 01 1 1409-1411 ● ● ●
42 04.515 SPRING; GEAR LOCK RELEASE,TRANSF
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) 		8-97239-010-1 01 1 1412- ● ● ●
43 04.555 ARM; SHIFT,4X2-4X4,TRANSFER
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) 		8-97234-231-0 01 1 1409-1411 ● ● ●
43 04.555 ARM; SHIFT,4X2-4X4,TRANSFER
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) 		8-97234-231-0 01 1 1412- ● ● ●
44 04.555 ARM; SHIFT,HIGH-LOW,TRANSFER
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) 		8-97300-106-1 01 1 1409-1411 ● ● ●
44 04.555 ARM; SHIFT,HIGH-LOW,TRANSFER
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) 		8-97300-106-1 01 1 1412- ● ● ●
45 04.303 PIN; SPR,SHIFT ARM TO ROD
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) D=4.2 L=25 		8-94171-541-0 02 1 1409-1411 ● ● ●
45 04.303 PIN; SPR,SHIFT ARM TO ROD
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) D=4.2 L=25 		8-94171-541-0 02 1 1412- ● ● ●
47 04.555 BLOCK; SHIFT,LOW-HIGH,TRANSFER
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) 		8-98161-034-0 01 1 1409-1411 ● ● ●
47 04.555 BLOCK; SHIFT,LOW-HIGH,TRANSFER
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) 		8-98161-034-0 01 1 1412- ● ● ●
48 04.309 ROD; SHIFT,HIGH-LOW,TRANSFER
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) 		8-97234-230-0 01 1 1409-1411 ● ● ●
48 04.309 ROD; SHIFT,HIGH-LOW,TRANSFER
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) 		8-97234-230-0 01 1 1412- ● ● ●
199 04.419 COLLAR; TRANSFER CONTROL
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) (A) 		8-97234-662-1 01 1 1409-1411 ● ● ●
199 04.419 COLLAR; TRANSFER CONTROL
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) (A) 		8-97234-662-1 01 1 1412- ● ● ●
199 04.419 COLLAR; TRANSFER CONTROL
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) (B) 		8-97234-663-1 01 1 1409-1411 ● ● ●
199 04.419 COLLAR; TRANSFER CONTROL
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) (B) 		8-97234-663-1 01 1 1412- ● ● ●
200 04.198 SPRING; SHIFT HIGH-LOW
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) 		8-97239-011-0 01 1 1409-1411 ● ● ●
200 04.198 SPRING; SHIFT HIGH-LOW
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) 		8-97239-011-0 01 1 1412- ● ● ●
201 04.525 RING; SNAP,SHIFT
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) 04.307 (A) ID=12 		8-94460-357-0 01 1 1409-1411 ● ● ●
201 04.525 RING; SNAP,SHIFT
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) 04.307 (A) ID=12 		8-94460-357-0 01 1 1412- ● ● ●
201 04.525 RING; SNAP,SHIFT
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) (B) ID=23 		8-97305-011-1 01 1 1409-1411 ● ● ●
201 04.525 RING; SNAP,SHIFT
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) (B) ID=23 		8-97305-011-1 01 1 1412- ● ● ●
202 04.525 BRACKET; SWITCH
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) 		8-98118-922-1 01 1 1409-1411 ● ● ●
202 04.525 BRACKET; SWITCH
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) 		8-98118-922-1 01 1 1412- ● ● ●
203 04.570 BOLT; BRACKET,SWITCH
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1409-1411 ● ● ●
203 04.570 BOLT; BRACKET,SWITCH
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1412- ● ● ●
204 05.555 DRUM; SHIFT
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) 		8-98158-123-0 01 1 1409-1411 ● ● ●
204 05.555 DRUM; SHIFT
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) 		8-98158-123-0 01 1 1412- ● ● ●
205 05.555 SHAFT; SHIFT DRUM
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) 		8-98063-364-1 01 1 1409-1411 ● ● ●
205 05.555 SHAFT; SHIFT DRUM
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) 		8-98063-364-1 01 1 1412- ● ● ●
206 05.555 ROLLER; GUIDE,SHIFT
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) 		8-97234-499-0 02 1 1409-1411 ● ● ●
206 05.555 ROLLER; GUIDE,SHIFT
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) 		8-97234-499-0 02 1 1412- ● ● ●
207 04.570 BUSH; CONTROL SHAFT
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) 		8-98158-124-0 01 1 1409-1411 ● ● ●
207 04.570 BUSH; CONTROL SHAFT
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) 		8-98158-124-0 01 1 1412- ● ● ●
208 04.525 RING; SNAP,SHIFT
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) 04.307 ID=12 		8-94460-357-0 01 1 1409-1411 ● ● ●
208 04.525 RING; SNAP,SHIFT
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) 04.307 ID=12 		8-94460-357-0 01 1 1412- ● ● ●
