◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51580 - TFR/TFS RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-61 - TRANSFER CASE AND GEAR SHIFTER ▶
2-61 — TRANSFER CASE AND GEAR SHIFTER (#148451) — 42 parça

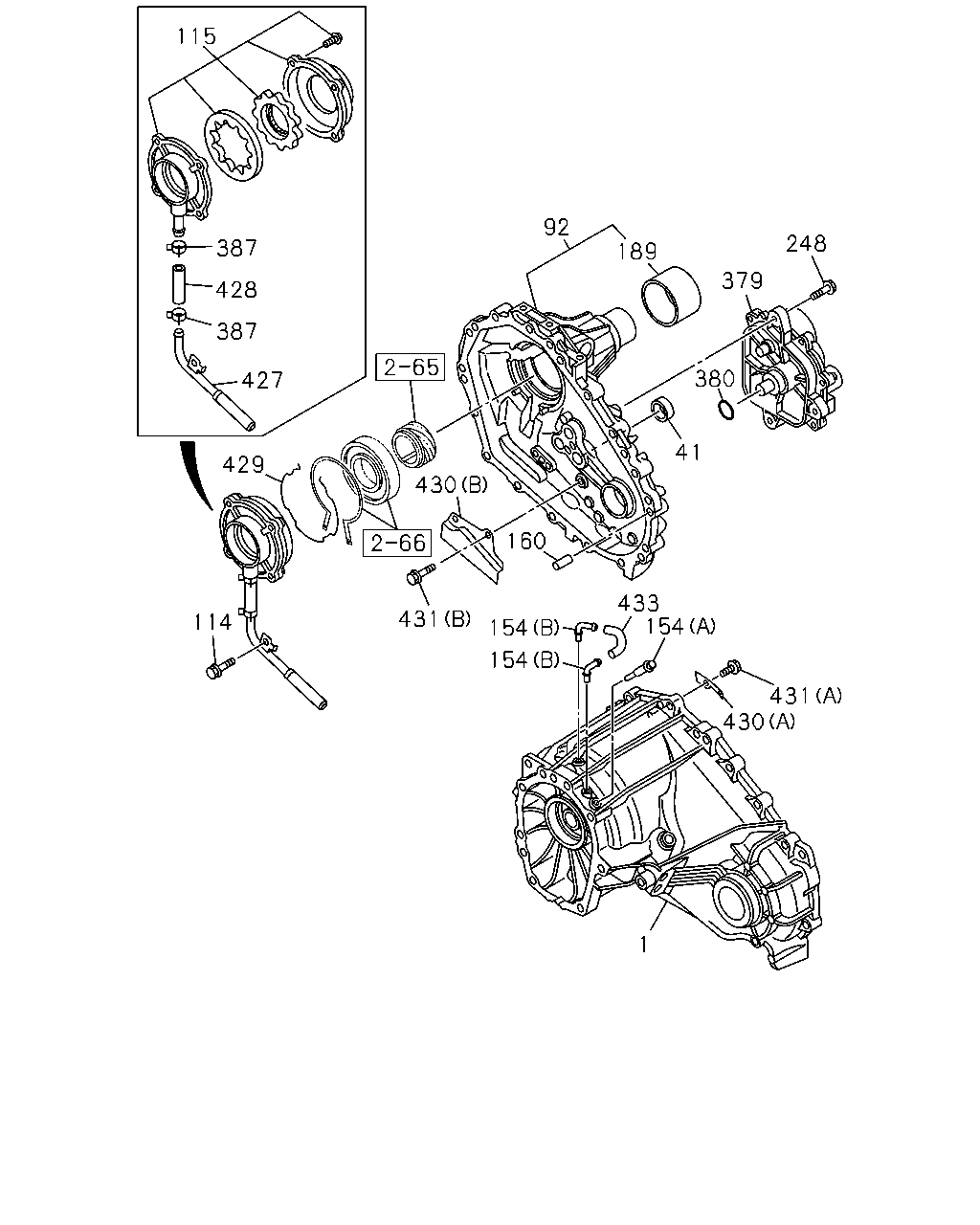

çizim 443457
115 387 428 387 427 429 114 92 189 379 248 380 41 430 160 433 154 431 430 1 154 154 431
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.510 CASE; TRANSFER
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) 		8-98177-505-0 01 1 1409-1411 ● ● ●
1 04.510 CASE; TRANSFER
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) 		8-98177-505-0 01 1 1412- ● ● ●
41 04.515 SEAL; OIL,SHIFT ROD
ALSO INCLUDED IN REPAIR KIT(T/F). A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) 		8-97238-998-0 01 1 1409-1411 ● ● ●
41 04.515 SEAL; OIL,SHIFT ROD
ALSO INCLUDED IN REPAIR KIT(T/F). A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) 		8-97238-998-0 01 1 1412- ● ● ●
92 04.552 COVER; RR,TRANSFER
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) 		8-98118-921-0 01 1 1409-1411 ● ● ●
92 04.552 COVER; RR,TRANSFER
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) 		8-98118-921-0 01 1 1412- ● ● ●
114 04.200 BOLT; OIL PUMP,TRANSFER
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 1409-1411 ● ● ●
114 04.200 BOLT; OIL PUMP,TRANSFER
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 1412- ● ● ●
115 04.200 PUMP ASM; OIL,TRANSFER
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) 		8-98029-157-0 01 1 1409-1411 ● ● ●
115 04.200 PUMP ASM; OIL,TRANSFER
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) 		8-98029-157-0 01 1 1412- ● ● ●
154 04.510 PIPE; BREATHER
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) (B) 		8-97358-318-0 02 1 1409-1411 ● ● ●
154 04.510 PIPE; BREATHER
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) (B) 		8-97358-318-0 02 1 1412- ● ● ●
154 04.510 PIPE; BREATHER
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) (A) 		8-97358-319-0 01 1 1409-1411 ● ● ●
154 04.510 PIPE; BREATHER
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) (A) 		8-97358-319-0 01 1 1412- ● ● ●
160 04.107 PIN; KNOCK,SHIFT CASE
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) 04.510 OD=10 L=20 		8-97135-423-0 02 1 1409-1411 ● ● ●
160 04.107 PIN; KNOCK,SHIFT CASE
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) 04.510 OD=10 L=20 		8-97135-423-0 02 1 1412- ● ● ●
189 04.510 COVER; DUST,OIL SEAL
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) 		8-98173-748-0 01 1 1409-1411 ● ● ●
189 04.510 COVER; DUST,OIL SEAL
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) 		8-98173-748-0 01 1 1412- ● ● ●
248 04.105 BOLT
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) 03.403 M8X30 FLANGE 		0-28650-830-0 03 1 1409-1411 ● ● ●
248 04.105 BOLT
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) 03.403 M8X30 FLANGE 		0-28650-830-0 03 1 1412- ● ● ●
379 04.505 ACTUATOR; TRANSFER,2-4 SHIFT
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) 		8-98196-415-0 01 1 1409-1411 ● ● ●
379 04.505 ACTUATOR; TRANSFER,2-4 SHIFT
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) 		8-98196-415-0 01 1 1412- ● ● ●
380 04.505 GASKET; ACTUATOR
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) ID=29.7 OD=36.7 		8-97318-475-0 01 1 1409-1411 ● ● ●
380 04.505 GASKET; ACTUATOR
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) ID=29.7 OD=36.7 		8-97318-475-0 01 1 1412- ● ● ●
387 04.319 CLAMP; HOSE
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) 01.097 ID=16 		8-97329-628-0 02 1 1409-1411 ● ● ●
387 04.319 CLAMP; HOSE
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) 01.097 ID=16 		8-97329-628-0 02 1 1412- ● ● ●
427 04.510 SCREEN; OIL PUMP
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) 		8-98063-358-0 01 1 1409-1411 ● ● ●
427 04.510 SCREEN; OIL PUMP
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) 		8-98063-358-0 01 1 1412- ● ● ●
428 04.510 HOSE; OIL PUMP
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) L=50 		8-98064-220-0 01 1 1409-1411 ● ● ●
428 04.510 HOSE; OIL PUMP
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) L=50 		8-98064-220-0 01 1 1412- ● ● ●
429 04.525 RING; SNAP,OIL PUMP
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) 		8-97240-666-0 01 1 1409-1411 ● ● ●
429 04.525 RING; SNAP,OIL PUMP
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) 		8-97240-666-0 01 1 1412- ● ● ●
430 04.500 PLATE; BAFFLE
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) (A) 		8-97239-130-0 01 1 1409-1411 ● ● ●
430 04.500 PLATE; BAFFLE
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) (A) 		8-97239-130-0 01 1 1412- ● ● ●
430 04.500 PLATE; BAFFLE
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) (B) 		8-98063-360-0 01 1 1409-1411 ● ● ●
430 04.500 PLATE; BAFFLE
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) (B) 		8-98063-360-0 01 1 1412- ● ● ●
431 04.200 BOLT; BAFFLE PLATE
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) 02.343 (A) M6X16 FLANGE 		0-28650-616-0 01 1 1409-1411 ● ● ●
431 04.200 BOLT; BAFFLE PLATE
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) 02.343 (A) M6X16 FLANGE 		0-28650-616-0 01 1 1412- ● ● ●
431 04.200 BOLT; BAFFLE PLATE
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) 01.531 (B) M8X20 FLANGE 		0-28650-820-0 02 1 1409-1411 ● ● ●
431 04.200 BOLT; BAFFLE PLATE
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) 01.531 (B) M8X20 FLANGE 		0-28650-820-0 02 1 1412- ● ● ●
433 04.510 HOSE; AIR,TRANSFER
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) 		8-97236-080-0 01 1 1409-1411 ● ● ●
433 04.510 HOSE; AIR,TRANSFER
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) 		8-97236-080-0 01 1 1412- ● ● ●
