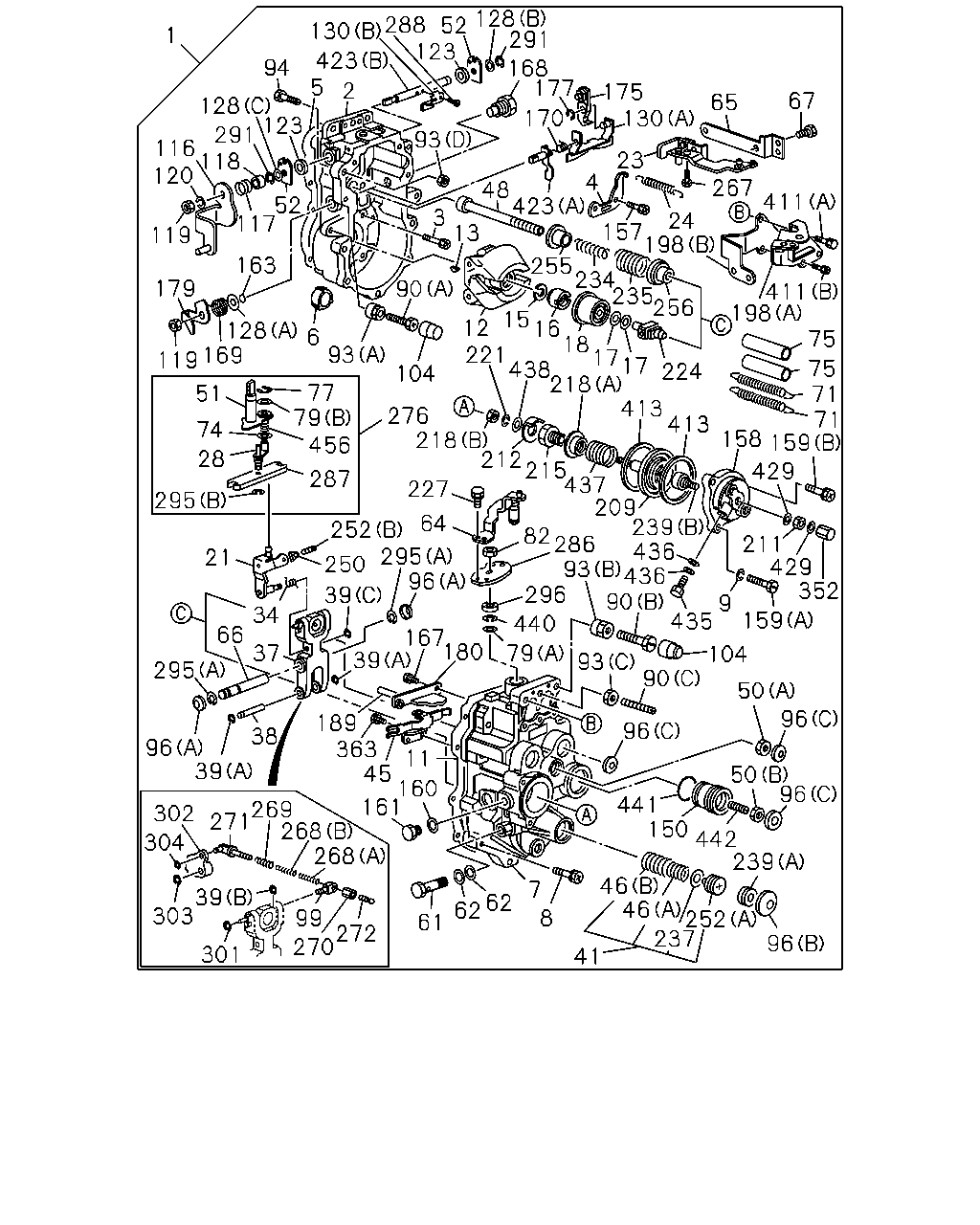

1 |
GOVERNOR ASM; INJ PUMP
ASM PART: A = 1-15603-264-3
|
1-15770-945-1 |
01 |
1 |
- |
| |
1 |
GOVERNOR ASM; INJ PUMP
ASM PART: B = 1-15603-276-4
|
1-15790-016-0 |
01 |
1 |
- |
| |
2 |
HOUSING; GOV,INJ PUMP
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15721-345-0 |
01 |
1 |
- |
| |
3 |
BOLT; GOV HSG,INJ PUMP
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15779-226-0 |
08 |
1 |
- |
| |
4 |
PLATE; START SPRING,GOV
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15779-294-0 |
01 |
1 |
- |
| |
5 |
GASKET; GOV TO INJ PUMP HSG
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15779-529-0 |
01 |
1 |
- |
| |
6 |
IMPELLER; GOV HSG,INJ PUMP
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
9-81315-207-0 |
01 |
1 |
- |
| |
7 |
COVER; GOV HSG,INJ PUMP
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15721-325-0 |
01 |
1 |
- |
| |
8 |
BOLT; GOV COVER,INJ PUMP
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
5-15729-033-0 |
09 |
1 |
- |
| |
9 |
WASHER; LK,GOV COVER
ID=6.1, IDN
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
9-09150-506-0 |
02 |
1 |
- |
| |
11 |
GASKET; COVER TO HSG,GOV
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15779-251-0 |
01 |
1 |
- |
| |
12 |
FLYWEIGHT ASM; GOV
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15722-018-0 |
01 |
1 |
- |
| |
13 |
KEY; FLYWEIGHT,GOV
13MM ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
9-81325-030-0 |
01 |
1 |
- |
| |
15 |
WASHER; LK,FLYWEIGHT FIX,GOV
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
5-15729-034-0 |
01 |
1 |
- |
| |
16 |
NUT; FLYWEIGHT FIX,GOV
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
9-81325-086-0 |
01 |
1 |
- |
| |
17 |
SHIM; FLYWEIGHT SLEEVE,GOV
T=2.00
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15729-891-0 |
AR |
1 |
- |
| |
17 |
SHIM; FLYWEIGHT SLEEVE,GOV
T=3.00
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15729-892-0 |
AR |
1 |
- |
| |
17 |
SHIM; FLYWEIGHT SLEEVE,GOV
T=4.00
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15729-893-0 |
AR |
1 |
- |
| |
17 |
SHIM; FLYWEIGHT SLEEVE,GOV
T=0.50
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
5-15729-286-0 |
AR |
1 |
- |
| |
17 |
SHIM; FLYWEIGHT SLEEVE,GOV
T=1.50
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
5-15729-287-0 |
AR |
1 |
- |
| |
17 |
SHIM; FLYWEIGHT SLEEVE,GOV
T=0.20
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
9-81325-088-0 |
AR |
1 |
- |
| |
17 |
SHIM; FLYWEIGHT SLEEVE,GOV
T=0.30
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
9-81325-551-0 |
AR |
1 |
- |
| |
17 |
SHIM; FLYWEIGHT SLEEVE,GOV
T=0.40
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
9-81325-552-0 |
AR |
1 |
- |
| |
17 |
SHIM; FLYWEIGHT SLEEVE,GOV
T=1.00
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
9-81325-553-0 |
AR |
1 |
- |
| |
18 |
SLEEVE; GOV
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
5-15729-372-0 |
01 |
1 |
- |
| |
21 |
LEVER ASM; GUIDE,GOV
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15725-779-1 |
01 |
1 |
- |
| |
23 |
LINK; LEVER TO CONT RACK,GOV
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15725-865-0 |
01 |
1 |
- |
| |
24 |
SPRING; START,GOV,INJ PUMP
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15723-450-0 |
01 |
1 |
- |
| |
28 |
LEVER; SUPPORTING,GOV
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15725-780-0 |
01 |
1 |
- |
| |
34 |
SPRING; SPD CONT LEVER,GOV
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15723-444-1 |
01 |
1 |
- |
| |
37 |
LEVER ASM; TENSION,GOV
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15725-874-0 |
01 |
1 |
- |
| |
38 |
PIN; TENSION LEVER,GOV
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15779-271-0 |
01 |
1 |
- |
| |
39 |
RING; SNAP,LEVER PIN,GOV
(B) ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-09588-170-0 |
01 |
1 |
- |
| |
39 |
RING; SNAP,LEVER PIN,GOV
(A) ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
8-94244-599-0 |
02 |
1 |
- |
| |
39 |
RING; SNAP,LEVER PIN,GOV
(C), ID=4
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
9-09185-404-0 |
01 |
1 |
- |
| |
41 |
SPRING CAPSULE; IDLE CONT,GOV
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15723-510-0 |
01 |
1 |
- |
| |
45 |
LEVER ASM; GOV,INJ PUMP
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15725-860-0 |
01 |
1 |
- |
| |
46 |
SPRING; GOV,INJ PUMP
(A) ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15723-460-0 |
01 |
1 |
- |
| |
46 |
SPRING; GOV,INJ PUMP
(B) ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15723-513-0 |
01 |
1 |
- |
| |
48 |
SHAFT; GOV,INJ PUMP
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15779-240-0 |
01 |
1 |
- |
| |
50 |
NUT; GOV SHAFT,INJ PUMP
(A) ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
8-94171-147-0 |
01 |
1 |
- |
| |
50 |
NUT; GOV SHAFT,INJ PUMP
(B), M5
ASM PART: B = 1-15603-276-4
|
9-99110-405-0 |
01 |
1 |
- |
| |
51 |
SHAFT; LOAD CONT LEVER,GOV
ASM PART: A = 1-15603-264-3
|
1-15779-243-0 |
01 |
1 |
- |
| |
51 |
SHAFT; LOAD CONT LEVER,GOV
ASM PART: B = 1-15603-276-4
|
1-15779-480-0 |
01 |
1 |
- |
| |
52 |
WASHER; CONT SHAFT,GOV
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15779-269-0 |
02 |
1 |
- |
| |
61 |
BOLT; EYE,OIL RETURN,INJ PUMP
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15619-091-0 |
01 |
1 |
- |
| |
62 |
GASKET; EYE BOLT,OIL RETURN,INJ PUMP
L=96 ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15729-066-0 |
02 |
1 |
- |
| |
64 |
LEVER; LOAD CONT,GOV
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15725-858-0 |
01 |
1 |
- |
| |
65 |
BRACKET; RETURN SPRING,GOV
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15779-535-0 |
01 |
1 |
- |
| |
66 |
SHAFT; LEVER
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15779-234-0 |
01 |
1 |
- |
| |
67 |
BOLT; SPRING BRKT,GOV
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
9-02341-012-0 |
01 |
1 |
- |
| |
71 |
SPRING; CONT LEVER,GOV
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15723-482-0 |
02 |
1 |
- |
| |
74 |
WASHER; LEVER SPR
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15779-232-0 |
01 |
1 |
- |
| |
75 |
TUBE; RETURN SPRING,STOPPER LEVER,GOV
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
5-15729-013-0 |
02 |
1 |
- |
| |
77 |
RING; SNAP,CONT LEVER,GOV
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
5-15729-023-0 |
01 |
1 |
- |
| |
79 |
SHIM; LEVER SETTING,GOV
(A) ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15729-988-0 |
01 |
1 |
- |
| |
79 |
SHIM; LEVER SETTING,GOV
(B) ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15779-232-0 |
01 |
1 |
- |
| |
82 |
NUT; CONT LEVER FIX,GOV
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15729-236-0 |
01 |
1 |
- |
| |
90 |
SCREW; FULL LOAD ADJ,GOV
(A), M8X45
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15779-244-0 |
01 |
1 |
- |
| |
90 |
SCREW; FULL LOAD ADJ,GOV
(A), M8X49
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15779-245-0 |
01 |
1 |
- |
| |
90 |
SCREW; FULL LOAD ADJ,GOV
(B), M8X53
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15779-246-0 |
01 |
1 |
- |
| |
90 |
SCREW; FULL LOAD ADJ,GOV
(B) ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15779-247-0 |
01 |
1 |
- |
| |
90 |
SCREW; FULL LOAD ADJ,GOV
(C), M10X70
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15779-248-0 |
01 |
1 |
- |
| |
93 |
NUT; ADJ SCREW LK,INJ PUMP GOV
(A) ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15779-277-0 |
01 |
1 |
- |
| |
93 |
NUT; ADJ SCREW LK,INJ PUMP GOV
(B) ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15779-278-0 |
01 |
1 |
- |
| |
93 |
NUT; ADJ SCREW LK,INJ PUMP GOV
(C), M10
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
9-09111-410-0 |
01 |
1 |
- |
| |
93 |
NUT; ADJ SCREW LK,INJ PUMP GOV
(D) ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
9-88410-525-0 |
01 |
1 |
- |
| |
94 |
SCREW; ADJ,CONT LEVER,GOV
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15779-233-0 |
01 |
1 |
- |
| |
96 |
PLUG; LEVER SHAFT,GOV
(B) ASM PART: B = 1-15603-276-4
|
1-15779-293-0 |
01 |
1 |
- |
| |
96 |
PLUG; LEVER SHAFT,GOV
(B) ASM PART: A = 1-15603-264-3
|
1-15779-293-0 |
02 |
1 |
- |
| |
96 |
PLUG; LEVER SHAFT,GOV
(A) ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
5-15729-076-0 |
02 |
1 |
- |
| |
96 |
PLUG; LEVER SHAFT,GOV
(C) ASM PART: A = 1-15603-264-3
|
8-94171-148-0 |
03 |
1 |
- |
| |
96 |
PLUG; LEVER SHAFT,GOV
(C) ASM PART: B = 1-15603-276-4
|
8-94171-148-0 |
04 |
1 |
- |
| |
99 |
PIN; TENSION LEVER,GOV
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15779-286-1 |
01 |
1 |
- |
| |
104 |
CAP; LOCK NUT,ADJ SCREW
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
8-97085-022-0 |
02 |
1 |
- |
| |
116 |
LEVER; ENG STOP,GOV
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15725-857-0 |
01 |
1 |
- |
| |
117 |
SPRING; STOP LEVER,GOV
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15723-443-0 |
01 |
1 |
- |
| |
118 |
COLLAR; CONT SHAFT,GOV
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15779-389-0 |
01 |
1 |
- |
| |
119 |
NUT; ENG STOP LEVER,GOV
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15729-236-0 |
02 |
1 |
- |
| |
120 |
WASHER; LK,SPD ADJ LEVER,GOV
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-83579-492-0 |
01 |
1 |
- |
| |
123 |
SEAL; OIL,CONT SHAFT,GOV
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15779-282-0 |
02 |
1 |
- |
| |
128 |
SHIM; CONT SHAFT,GOV
(A), T=0.60
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15729-897-0 |
AR |
1 |
- |
| |
128 |
SHIM; CONT SHAFT,GOV
(A), T=0.80
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15729-898-0 |
AR |
1 |
- |
| |
128 |
SHIM; CONT SHAFT,GOV
(B), T=0.90
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15729-899-0 |
AR |
1 |
- |
| |
128 |
SHIM; CONT SHAFT,GOV
(B), T=0.50
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15779-230-0 |
AR |
1 |
- |
| |
128 |
SHIM; CONT SHAFT,GOV
(C), T=0.20
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15779-231-0 |
AR |
1 |
- |
| |
128 |
SHIM; CONT SHAFT,GOV
(A) ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15779-388-0 |
01 |
1 |
- |
| |
128 |
SHIM; CONT SHAFT,GOV
(A), T=0.50
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
9-81325-556-0 |
AR |
1 |
- |
| |
128 |
SHIM; CONT SHAFT,GOV
(A), T=0.30
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
9-81325-557-0 |
AR |
1 |
- |
| |
128 |
SHIM; CONT SHAFT,GOV
(A), T=0.40
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
9-81325-558-0 |
AR |
1 |
- |
| |
128 |
SHIM; CONT SHAFT,GOV
(A), T=0.25
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
9-81325-559-0 |
AR |
1 |
- |
| |
128 |
SHIM; CONT SHAFT,GOV
(A), T=0.35
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
9-81325-560-0 |
AR |
1 |
- |
| |
128 |
SHIM; CONT SHAFT,GOV
(A), T=0.20
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
9-88410-421-0 |
AR |
1 |
- |
| |
130 |
LEVER; CONT,GOV
(B) ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15725-775-0 |
01 |
1 |
- |
| |
130 |
LEVER; CONT,GOV
(A) ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15725-877-0 |
01 |
1 |
- |
| |
150 |
ADAPTER; GOV HSG,INJ PUMP
ASM PART: B = 1-15603-276-4
|
1-15779-370-0 |
01 |
1 |
- |
| |
157 |
BOLT; START SPRING PLATE,GOV
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15779-226-0 |
02 |
1 |
- |
| |
158 |
COVER; GOV HSG
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15721-303-0 |
01 |
1 |
- |
| |
159 |
BOLT; COVER
(A) ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15779-202-0 |
02 |
1 |
- |
| |
159 |
BOLT; COVER
(B), M6X20
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
9-81325-187-0 |
01 |
1 |
- |
| |
160 |
GASKET; PLUG TO HSG
L=96 ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15729-066-0 |
01 |
1 |
- |
| |
161 |
PLUG; HSG
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
8-97037-288-0 |
01 |
1 |
- |
| |
163 |
GASKET; CONT SHAFT,GOV
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15779-227-0 |
01 |
1 |
- |
| |
167 |
BOLT; PLATE
M6X16
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
5-15729-071-0 |
02 |
1 |
- |
| |
168 |
PLUG; CONT SHAFT,GOV HSG
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15779-285-0 |
01 |
1 |
- |
| |
169 |
SPRING; LEVER SET,GOV
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15723-458-0 |
01 |
1 |
- |
| |
170 |
SPRING; LEVER TO LEVER,GOV
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15723-132-0 |
01 |
1 |
- |
| |
175 |
LEVER; GOV,INJ PUMP
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15725-854-0 |
01 |
1 |
- |
| |
177 |
RING; SNAP,GOV LEVER,INJ PUMP
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
8-94324-735-0 |
01 |
1 |
- |
| |
179 |
LEVER; SPD ADJ,GOV
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15725-876-0 |
01 |
1 |
- |
| |
180 |
PLATE; GOV COVER
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15779-335-0 |
01 |
1 |
- |
| |
189 |
ROD; PUSH,GOV
L=72.5
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15779-336-0 |
01 |
1 |
- |
| |
189 |
ROD; PUSH,GOV
L=73.0
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15779-337-0 |
01 |
1 |
- |
| |
189 |
ROD; PUSH,GOV
L=73.5
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15779-338-0 |
01 |
1 |
- |
| |
189 |
ROD; PUSH,GOV
L=74.0
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15779-339-0 |
01 |
1 |
- |
| |
189 |
ROD; PUSH,GOV
L=74.5
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15779-340-0 |
01 |
1 |
- |
| |
189 |
ROD; PUSH,GOV
L=75.0
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15779-341-0 |
01 |
1 |
- |
| |
189 |
ROD; PUSH,GOV
L=75.5
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15779-342-0 |
01 |
1 |
- |
| |
189 |
ROD; PUSH,GOV
L=76.0
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15779-343-0 |
01 |
1 |
- |
| |
189 |
ROD; PUSH,GOV
L=76.5
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15779-344-0 |
01 |
1 |
- |
| |
189 |
ROD; PUSH,GOV
L=77.0
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15779-345-0 |
01 |
1 |
- |
| |
189 |
ROD; PUSH,GOV
L=77.5
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15779-346-0 |
01 |
1 |
- |
| |
189 |
ROD; PUSH,GOV
L=78.0
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15779-347-0 |
01 |
1 |
- |
| |
189 |
ROD; PUSH,GOV
L=78.5
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15779-348-0 |
01 |
1 |
- |
| |
189 |
ROD; PUSH,GOV
L=79.0
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15779-349-0 |
01 |
1 |
- |
| |
189 |
ROD; PUSH,GOV
L=79.5
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15779-350-0 |
01 |
1 |
- |
| |
189 |
ROD; PUSH,GOV
L=80.0
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15779-351-0 |
01 |
1 |
- |
| |
189 |
ROD; PUSH,GOV
L=80.5
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15779-352-0 |
01 |
1 |
- |
| |
189 |
ROD; PUSH,GOV
L=81.0
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15779-353-0 |
01 |
1 |
- |
| |
189 |
ROD; PUSH,GOV
L=81.5
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15779-354-0 |
01 |
1 |
- |
| |
189 |
ROD; PUSH,GOV
L=82.0
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15779-355-0 |
01 |
1 |
- |
| |
189 |
ROD; PUSH,GOV
L=82.5
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15779-356-0 |
01 |
1 |
- |
| |
189 |
ROD; PUSH,GOV
L=83.0
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15779-426-0 |
01 |
1 |
- |
| |
189 |
ROD; PUSH,GOV
L=83.5
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15779-427-0 |
01 |
1 |
- |
| |
189 |
ROD; PUSH,GOV
L=84.0
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15779-428-0 |
01 |
1 |
- |
| |
189 |
ROD; PUSH,GOV
L=84.5
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15779-429-0 |
01 |
1 |
- |
| |
189 |
ROD; PUSH,GOV
L=85.0
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15779-430-0 |
01 |
1 |
- |
| |
189 |
ROD; PUSH,GOV
L=85.5
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15779-431-0 |
01 |
1 |
- |
| |
189 |
ROD; PUSH,GOV
L=86.0
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15779-432-0 |
01 |
1 |
- |
| |
189 |
ROD; PUSH,GOV
L=86.5
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15779-433-0 |
01 |
1 |
- |
| |
189 |
ROD; PUSH,GOV
L=87.0
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15779-434-0 |
01 |
1 |
- |
| |
189 |
ROD; PUSH,GOV
L=87.5
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15779-435-0 |
01 |
1 |
- |
| |
189 |
ROD; PUSH,GOV
L=88.0
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15779-436-0 |
01 |
1 |
- |
| |
189 |
ROD; PUSH,GOV
L=88.5
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15779-437-0 |
01 |
1 |
- |
| |
189 |
ROD; PUSH,GOV
L=89.0
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15779-438-0 |
01 |
1 |
- |
| |
189 |
ROD; PUSH,GOV
L=89.5
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15779-439-0 |
01 |
1 |
- |
| |
189 |
ROD; PUSH,GOV
L=90.0
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15779-440-0 |
01 |
1 |
- |
| |
198 |
BRACKET; COVER
(A) ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15779-453-0 |
01 |
1 |
- |
| |
198 |
BRACKET; COVER
(B) ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15779-470-0 |
01 |
1 |
- |
| |
209 |
DIAPHRAGM; GOV
ASM PART: A = 1-15603-264-3
|
1-15713-005-0 |
01 |
1 |
- |
| |
209 |
DIAPHRAGM; GOV
ASM PART: B = 1-15603-276-4
|
1-15713-006-0 |
01 |
1 |
- |
| |
211 |
NUT; LOCK,GOV
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
9-88410-525-0 |
01 |
1 |
- |
| |
212 |
PLATE; GOV
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
8-94122-719-0 |
01 |
1 |
- |
| |
215 |
BOLT; DIAPH
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
8-97104-945-0 |
01 |
1 |
- |
| |
218 |
NUT; DIAPH
(A) ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
8-97104-978-0 |
01 |
1 |
- |
| |
218 |
NUT; DIAPH
(B) ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
9-88410-525-0 |
01 |
1 |
- |
| |
221 |
WASHER; LK,DIAPH
ID=6.1, IDN
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
9-09150-506-0 |
01 |
1 |
- |
| |
224 |
SHIFTER; TENSION LEVER,GOV
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15779-334-0 |
01 |
1 |
- |
| |
227 |
BOLT; GOV LEVER
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15719-005-0 |
02 |
1 |
- |
| |
234 |
SPRING; INNER,GOV,INJ PUMP
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15723-479-0 |
01 |
1 |
- |
| |
235 |
SPRING; OUTER,GOV,INJ PUMP
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15723-555-0 |
01 |
1 |
- |
| |
237 |
SHIM; SPR CAPSULE,TIMER,INJ PUMP
T=2.00
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15729-891-0 |
AR |
1 |
- |
| |
237 |
SHIM; SPR CAPSULE,TIMER,INJ PUMP
T=3.00
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15729-892-0 |
AR |
1 |
- |
| |
237 |
SHIM; SPR CAPSULE,TIMER,INJ PUMP
T=4.00
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15729-893-0 |
AR |
1 |
- |
| |
237 |
SHIM; SPR CAPSULE,TIMER,INJ PUMP
T=0.50
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
5-15729-286-0 |
AR |
1 |
- |
| |
237 |
SHIM; SPR CAPSULE,TIMER,INJ PUMP
T=1.50
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
5-15729-287-0 |
AR |
1 |
- |
| |
237 |
SHIM; SPR CAPSULE,TIMER,INJ PUMP
T=0.20
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
9-81325-088-0 |
AR |
1 |
- |
| |
237 |
SHIM; SPR CAPSULE,TIMER,INJ PUMP
T=0.30
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
9-81325-551-0 |
AR |
1 |
- |
| |
237 |
SHIM; SPR CAPSULE,TIMER,INJ PUMP
T=0.40
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
9-81325-552-0 |
AR |
1 |
- |
| |
237 |
SHIM; SPR CAPSULE,TIMER,INJ PUMP
T=1.00
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
9-81325-553-0 |
AR |
1 |
- |
| |
239 |
SCREW; GOV
(B) ASM PART: A = 1-15603-264-3
|
1-15729-386-0 |
01 |
1 |
- |
| |
239 |
SCREW; GOV
(A) ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15779-239-0 |
01 |
1 |
- |
| |
239 |
SCREW; GOV
(B) ASM PART: B = 1-15603-276-4
|
8-97037-287-0 |
01 |
1 |
- |
| |
250 |
NUT; GUIDE SCREW,GOV SHAFT
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15779-287-0 |
01 |
1 |
- |
| |
252 |
SCREW; GUIDE
(A) ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15779-238-0 |
01 |
1 |
- |
| |
252 |
SCREW; GUIDE
(B) ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15779-288-0 |
01 |
1 |
- |
| |
255 |
SEAT; GOV SPRING,INJ PUMP
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15779-241-0 |
01 |
1 |
- |
| |
256 |
SEAT; GOV SPRING
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15779-242-0 |
01 |
1 |
- |
| |
267 |
BOLT; CONN,CONT RACK,GOV
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15749-747-0 |
01 |
1 |
- |
| |
268 |
SPRING; ROD INNER,TORQUE CAM,GOV
(A) ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15723-445-0 |
01 |
1 |
- |
| |
268 |
SPRING; ROD INNER,TORQUE CAM,GOV
(B) ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15723-446-0 |
01 |
1 |
- |
| |
269 |
SPRING; ROD OUTER,TORQUE CAM,GOV
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15723-459-0 |
01 |
1 |
- |
| |
270 |
NUT; TORQUE ROD LK,GOV
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15779-272-0 |
01 |
1 |
- |
| |
271 |
ROD; TORQUE CAM,GOV
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15779-235-1 |
01 |
1 |
- |
| |
272 |
SCREW; ADJ,TORQUE CAM ROD,GOV
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15779-289-0 |
01 |
1 |
- |
| |
276 |
LEVER ASM; LOAD CONT,GOV
ASM PART: A = 1-15603-264-3
|
1-15725-788-0 |
01 |
1 |
- |
| |
276 |
LEVER ASM; LOAD CONT,GOV
ASM PART: B = 1-15603-276-4
|
1-15725-883-0 |
01 |
1 |
- |
| |
286 |
LEVER; GOV
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15725-782-0 |
01 |
1 |
- |
| |
287 |
LEVER; GOV
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15725-781-0 |
01 |
1 |
- |
| |
288 |
BOLT; LEVER
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15729-197-0 |
02 |
1 |
- |
| |
291 |
RING; SNAP,CONT SHAFT,GOV
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15779-196-0 |
02 |
1 |
- |
| |
295 |
RING; SNAP
(A) ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15779-273-0 |
02 |
1 |
- |
| |
295 |
RING; SNAP
(B) ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
5-15729-023-0 |
01 |
1 |
- |
| |
296 |
SEAL; OIL,CONT SHAFT,GOV
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
8-97024-879-0 |
01 |
1 |
- |
| |
301 |
RING; SNAP
ID=4 ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
9-09185-404-0 |
01 |
1 |
- |
| |
302 |
PLATE; CAM,GOV
ASM PART: A = 1-15603-264-3
|
1-15779-538-0 |
01 |
1 |
- |
| |
302 |
PLATE; CAM,GOV
ASM PART: B = 1-15603-276-4
|
1-15779-611-0 |
01 |
1 |
- |
| |
303 |
RING; SNAP,CAM PLATE,GOV
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
5-15729-023-0 |
01 |
1 |
- |
| |
304 |
RING; SNAP,LINK TO CAM PLATE,GOV
ID=4 ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
9-09185-404-0 |
01 |
1 |
- |
| |
352 |
NUT; CAP
CAP NUT
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15729-093-0 |
01 |
1 |
- |
| |
363 |
BOLT; LEVER FIX
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
8-94247-029-0 |
02 |
1 |
- |
| |
411 |
BOLT; BRKT
(A) ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15779-415-0 |
01 |
1 |
- |
| |
411 |
BOLT; BRKT
(B), M6X18
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
9-81325-186-0 |
02 |
1 |
- |
| |
413 |
GASKET; GOV COVER
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15779-129-0 |
02 |
1 |
- |
| |
423 |
SHAFT; CONT,GOV HSG,INJ PUMP
(A) ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15779-228-0 |
01 |
1 |
- |
| |
423 |
SHAFT; CONT,GOV HSG,INJ PUMP
(B) ASM PART: A = 1-15603-264-3
|
1-15779-387-0 |
01 |
1 |
- |
| |
423 |
SHAFT; CONT,GOV HSG,INJ PUMP
(B) ASM PART: B = 1-15603-276-4
|
1-15779-607-0 |
01 |
1 |
- |
| |
429 |
GASKET; CAP NUT
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15729-868-0 |
02 |
1 |
- |
| |
435 |
BOLT; EYE,GOV COVER
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15729-325-0 |
01 |
1 |
- |
| |
436 |
GASKET; EYE BOLT
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15729-849-0 |
02 |
1 |
- |
| |
437 |
SPRING; DIAPHRAGM
ASM PART: A = 1-15603-264-3
|
1-15723-557-0 |
01 |
1 |
- |
| |
437 |
SPRING; DIAPHRAGM
ASM PART: B = 1-15603-276-4
|
8-94339-969-0 |
01 |
1 |
- |
| |
438 |
DISK; DIAPHRAGM
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15779-333-0 |
01 |
1 |
- |
| |
440 |
RING; SNAP,LEVER
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15729-989-0 |
01 |
1 |
- |
| |
441 |
GASKET; ADAPTER
ASM PART: B = 1-15603-276-4
|
8-97037-290-0 |
01 |
1 |
- |
| |
442 |
SCREW; ADJ
ASM PART: B = 1-15603-276-4
|
1-15779-416-0 |
01 |
1 |
- |
| |
456 |
SPRING; LEVER,GOV
ASM PART: A = 1-15603-264-3, B = 1-15603-276-4
|
1-15723-452-0 |
01 |
1 |
- |
