Sayfa 1-40 - Isuzu EPC

1-40 — FUEL TANK (#148425) — 282 parça

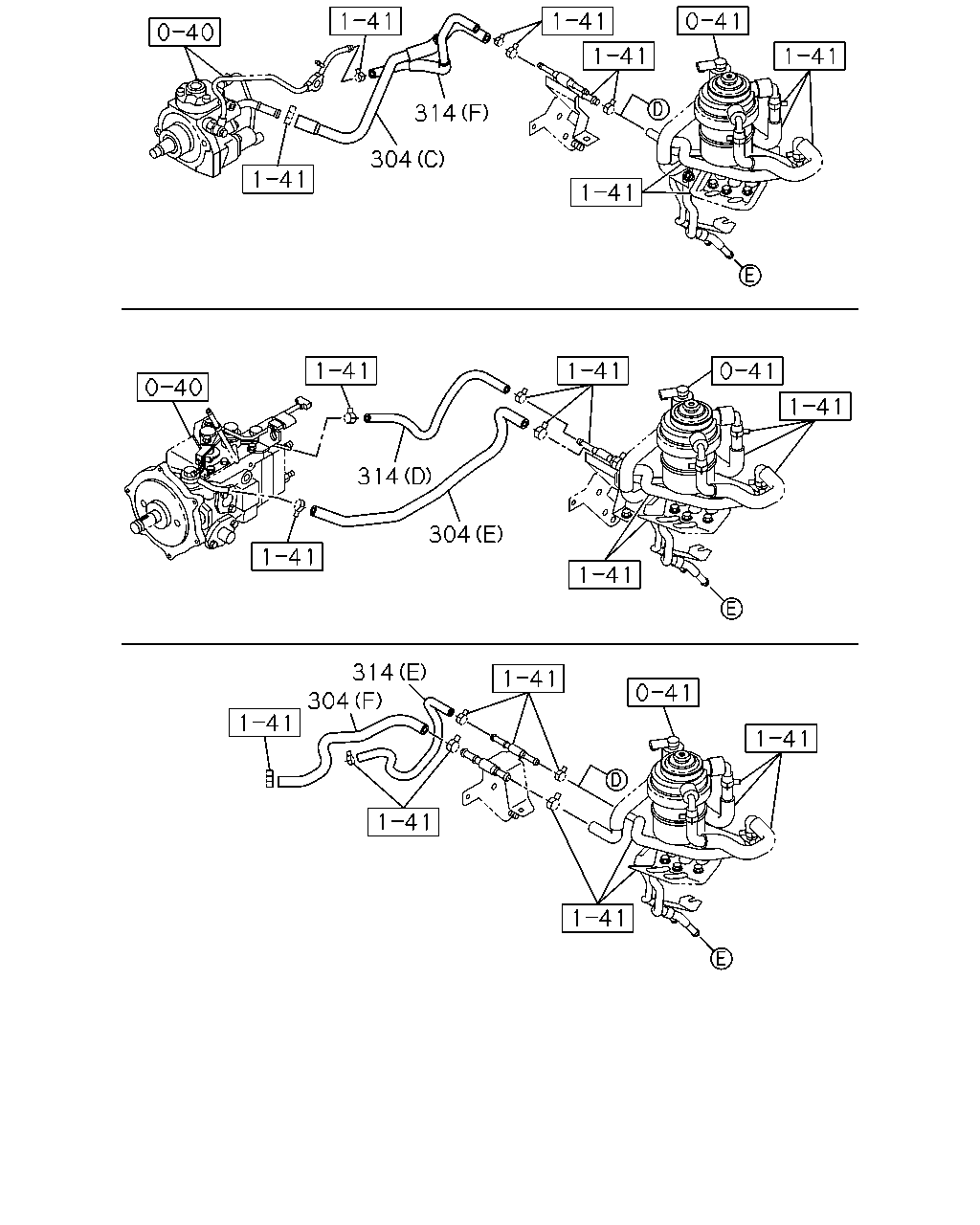

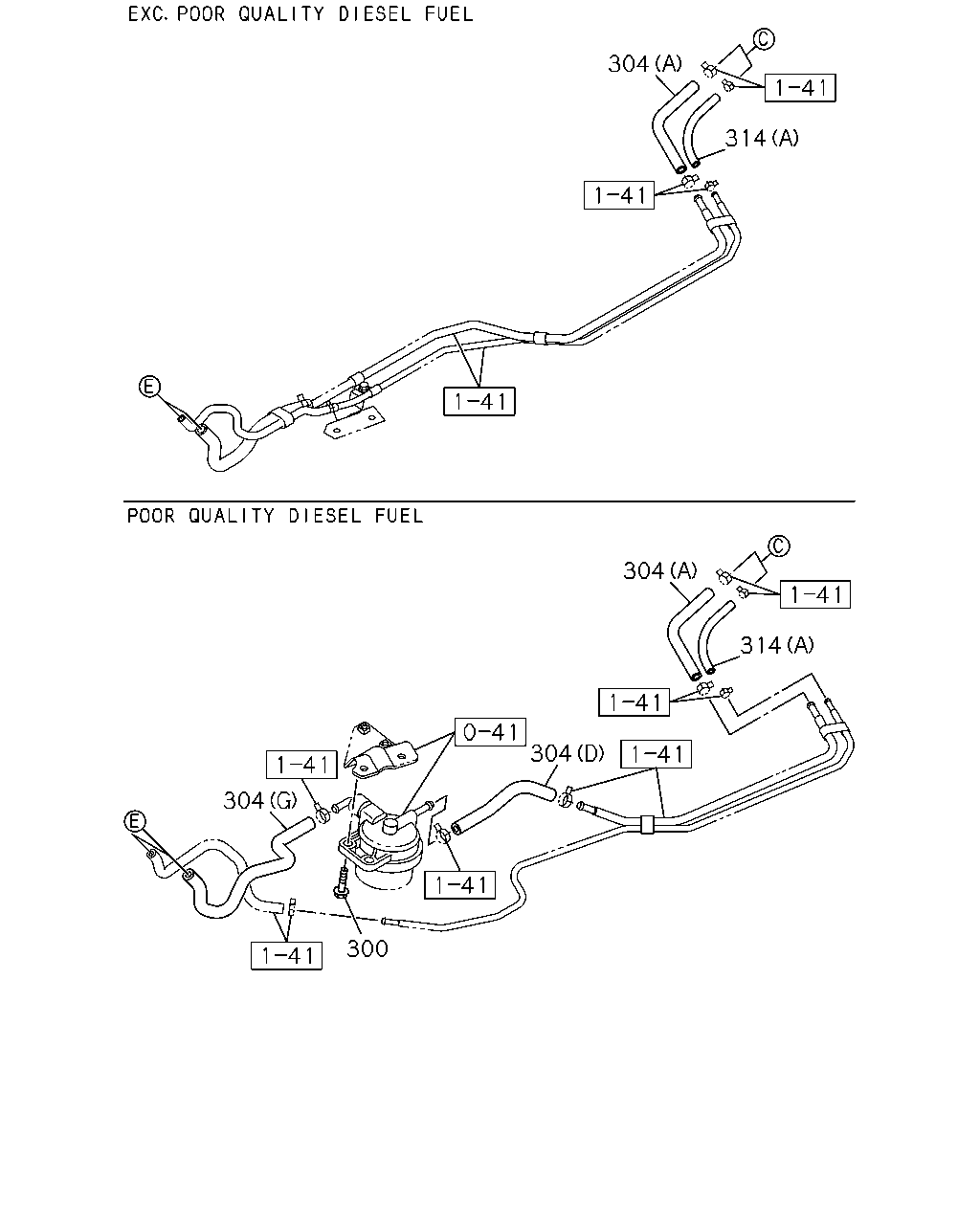

304 314 304 314 314 304

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ PROVISIONAL PACKAGE SPEC(BCC) EXC. INDONESIA EQUIPMENT(B00), AUSTRALIA EQUIPMENT(B13) (B)	8-98222-042-1	01	1	1412-	●	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ POOR QUALITY DIESEL FUEL<KF0> EXC. PROVISIONAL PACKAGE SPEC(BCC), INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPM ENT(B13) (C)	8-98100-728-6	01	1	1412-	●	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ 4X2(TFB***) POOR QUALITY DIESEL FUEL<KF0> EXC. INDONESIA EQUIPMENT(B00), AUSTRALIA EQUIPMENT(B13) (D)	8-98196-949-0	01	1	1412-	●	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ POOR QUALITY DIESEL FUEL<KF0> EXC. INDONESIA EQUIPMENT(B00), AUSTRALIA EQUIPMENT(B13) (G)	8-98248-704-0	01	1	1412-	●	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ (E)	8-98100-730-1	01	1	1412-				●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ INDONESIA EQUIPMENT(B00) RETURN FUEL RECIRCULATION VALVE FUEL F ILTER(V10) (F)	8-98206-274-0	01	1	1412-					●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ EXC. INDONESIA EQUIPMENT(B00) (F)	8-98155-795-3	01	1	1412-					●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ 4X4(TFS***) INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPMENT(B13) POOR QUALITY DIESEL FUEL<KF0> (D)	8-98206-449-0	01	1	1412-	●	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ 4X4(TFS***) INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPMENT(B13) POOR QUALITY DIESEL FUEL<KF0> (G)	8-98248-708-0	01	1	1412-	●	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ 4X4(TFS***) INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPMENT(B13) POOR QUALITY DIESEL FUEL<KF0> EXC. PROVISIONAL PACKAGE SPEC(BCC) (C)	8-98206-275-1	01	1	1412-	●	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ 4X4(TFS***) POOR QUALITY DIESEL FUEL<KF0> EXC. INDONESIA EQUIPMENT(B00), AUSTRALIA EQUIPMENT(B13) (D)	8-97351-313-0	01	1	1412-	●	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ PROVISIONAL PACKAGE SPEC(BCC) EXC. INDONESIA EQUIPMENT(B00), AUSTRALIA EQUIPMENT(B13) (A)	8-98164-019-0	01	1	1412-1505	●	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ POOR QUALITY DIESEL FUEL<KF0> EXC. PROVISIONAL PACKAGE SPEC(BCC), INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPM ENT(B13) (A)	8-98164-019-0	01	1	1412-1505	●	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ (A)	8-98164-019-0	01	1	1412-1505				●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ EXC. INDONESIA EQUIPMENT(B00), AUSTRALIA EQUIPMENT(B13) (A)	8-98164-019-0	01	1	1506-	●	●	●	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ (A)	8-98217-428-0	01	1	1409-1411			●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ 4X2(TFB***) PROVISIONAL PACKAGE SPEC(BCC) INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPMENT(B13) EXC. POOR QUALITY DIESEL FUEL<KF0> (A)	8-98217-428-0	01	1	1412-1505	●	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ 4X4(TFS***) PROVISIONAL PACKAGE SPEC(BCC) INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPMENT(B13) (A)	8-98217-428-0	01	1	1412-1505	●	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ 4X4(TFS***) PROVISIONAL PACKAGE SPEC(BCC) INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPMENT(B13) (A)	8-98217-428-0	01	1	1412-1505	●	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ 4X4(TFS***) INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPMENT(B13) POOR QUALITY DIESEL FUEL<KF0> EXC. PROVISIONAL PACKAGE SPEC(BCC) (A)	8-98217-428-0	01	1	1412-1505	●	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ 4X4(TFS***) INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPMENT(B13) POOR QUALITY DIESEL FUEL<KF0> EXC. PROVISIONAL PACKAGE SPEC(BCC) (A)	8-98217-428-0	01	1	1412-1505	●	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPMENT(B13) (A)	8-98217-428-0	01	1	1506-	●	●	●	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ (B)	8-98222-044-1	01	1	1409-1411			●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ 4X2(TFB***) PROVISIONAL PACKAGE SPEC(BCC) INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPMENT(B13) EXC. POOR QUALITY DIESEL FUEL<KF0> (B)	8-98222-044-1	01	1	1412-	●	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ 4X4(TFS***) PROVISIONAL PACKAGE SPEC(BCC) INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPMENT(B13) (B)	8-98222-044-1	01	1	1412-	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN PROVISIONAL PACKAGE SPEC(BCC) RETURN FUEL RECIRCULATION VALVE FUEL F ILTER(V10) EXC. INDONESIA EQUIPMENT(B00), AUSTRALIA EQUIPMENT(B13) (C)	8-98100-723-2	01	1	1412-	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN POOR QUALITY DIESEL FUEL<KF0> RETURN FUEL RECIRCULATION VALVE FUEL F ILTER(V10) EXC. PROVISIONAL PACKAGE SPEC(BCC), INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPM ENT(B13) (C)	8-98100-723-2	01	1	1412-	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN PROVISIONAL PACKAGE SPEC(BCC) EXC. INDONESIA EQUIPMENT(B00), AUSTRALIA EQUIPMENT(B13) (B)	8-98222-040-0	01	1	1412-	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN POOR QUALITY DIESEL FUEL<KF0> EXC. PROVISIONAL PACKAGE SPEC(BCC), INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPM ENT(B13) (F)	8-98113-329-4	01	1	1412-	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN (D)	8-98100-721-1	01	1	1412-				●
314	03.163 HOSE; RUBBER,FUEL RETURN INDONESIA EQUIPMENT(B00) RETURN FUEL RECIRCULATION VALVE FUEL F ILTER(V10) (E)	8-98206-270-0	01	1	1412-					●
314	03.163 HOSE; RUBBER,FUEL RETURN INDONESIA EQUIPMENT(B00) RETURN FUEL RECIRCULATION VALVE FUEL F ILTER(V10) (C)	8-98206-272-0	01	1	1412-					●
314	03.163 HOSE; RUBBER,FUEL RETURN RETURN FUEL RECIRCULATION VALVE FUEL F ILTER(V10) EXC. INDONESIA EQUIPMENT(B00) (C)	8-98155-793-1	01	1	1412-					●
314	03.163 HOSE; RUBBER,FUEL RETURN EXC. INDONESIA EQUIPMENT(B00) (E)	8-98155-791-2	01	1	1412-					●
314	03.163 HOSE; RUBBER,FUEL RETURN 4X4(TFS***) INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPMENT(B13) POOR QUALITY DIESEL FUEL<KF0> EXC. PROVISIONAL PACKAGE SPEC(BCC) (F)	8-98206-271-1	01	1	1412-	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN PROVISIONAL PACKAGE SPEC(BCC) EXC. INDONESIA EQUIPMENT(B00), AUSTRALIA EQUIPMENT(B13) (A)	8-98258-246-0	01	1	1412-1505	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN POOR QUALITY DIESEL FUEL<KF0> EXC. PROVISIONAL PACKAGE SPEC(BCC), INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPM ENT(B13) (A)	8-98258-246-0	01	1	1412-1505	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN (A)	8-98258-246-0	01	1	1412-1505				●	●
314	03.163 HOSE; RUBBER,FUEL RETURN EXC. INDONESIA EQUIPMENT(B00), AUSTRALIA EQUIPMENT(B13) (A)	8-98258-246-0	01	1	1506-	●	●	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN RETURN FUEL RECIRCULATION VALVE FUEL F ILTER(V10) (C)	8-98206-273-0	01	1	1409-1411			●
314	03.163 HOSE; RUBBER,FUEL RETURN 4X2(TFB***) PROVISIONAL PACKAGE SPEC(BCC) INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPMENT(B13) RETURN FUEL RECIRCULATION VALVE FUEL F ILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> (C)	8-98206-273-0	01	1	1412-	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN 4X4(TFS***) PROVISIONAL PACKAGE SPEC(BCC) INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPMENT(B13) RETURN FUEL RECIRCULATION VALVE FUEL F ILTER(V10) (C)	8-98206-273-0	01	1	1412-	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN 4X4(TFS***) INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPMENT(B13) POOR QUALITY DIESEL FUEL<KF0> RETURN FUEL RECIRCULATION VALVE FUEL F ILTER(V10) EXC. PROVISIONAL PACKAGE SPEC(BCC) (C)	8-98206-273-0	01	1	1412-	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN (A)	8-98206-450-0	01	1	1409-1411			●
314	03.163 HOSE; RUBBER,FUEL RETURN 4X2(TFB***) PROVISIONAL PACKAGE SPEC(BCC) INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPMENT(B13) EXC. POOR QUALITY DIESEL FUEL<KF0> (A)	8-98206-450-0	01	1	1412-1505	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN 4X4(TFS***) PROVISIONAL PACKAGE SPEC(BCC) INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPMENT(B13) (A)	8-98206-450-0	01	1	1412-1505	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN 4X4(TFS***) PROVISIONAL PACKAGE SPEC(BCC) INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPMENT(B13) (A)	8-98206-450-0	01	1	1412-1505	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN 4X4(TFS***) INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPMENT(B13) POOR QUALITY DIESEL FUEL<KF0> EXC. PROVISIONAL PACKAGE SPEC(BCC) (A)	8-98206-450-0	01	1	1412-1505	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN 4X4(TFS***) INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPMENT(B13) POOR QUALITY DIESEL FUEL<KF0> EXC. PROVISIONAL PACKAGE SPEC(BCC) (A)	8-98206-450-0	01	1	1412-1505	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPMENT(B13) (A)	8-98206-450-0	01	1	1506-	●	●	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN (B)	8-98222-041-0	01	1	1409-1411			●
314	03.163 HOSE; RUBBER,FUEL RETURN 4X2(TFB***) PROVISIONAL PACKAGE SPEC(BCC) INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPMENT(B13) EXC. POOR QUALITY DIESEL FUEL<KF0> (B)	8-98222-041-0	01	1	1412-	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN 4X4(TFS***) PROVISIONAL PACKAGE SPEC(BCC) INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPMENT(B13) (B)	8-98222-041-0	01	1	1412-	●	●	●

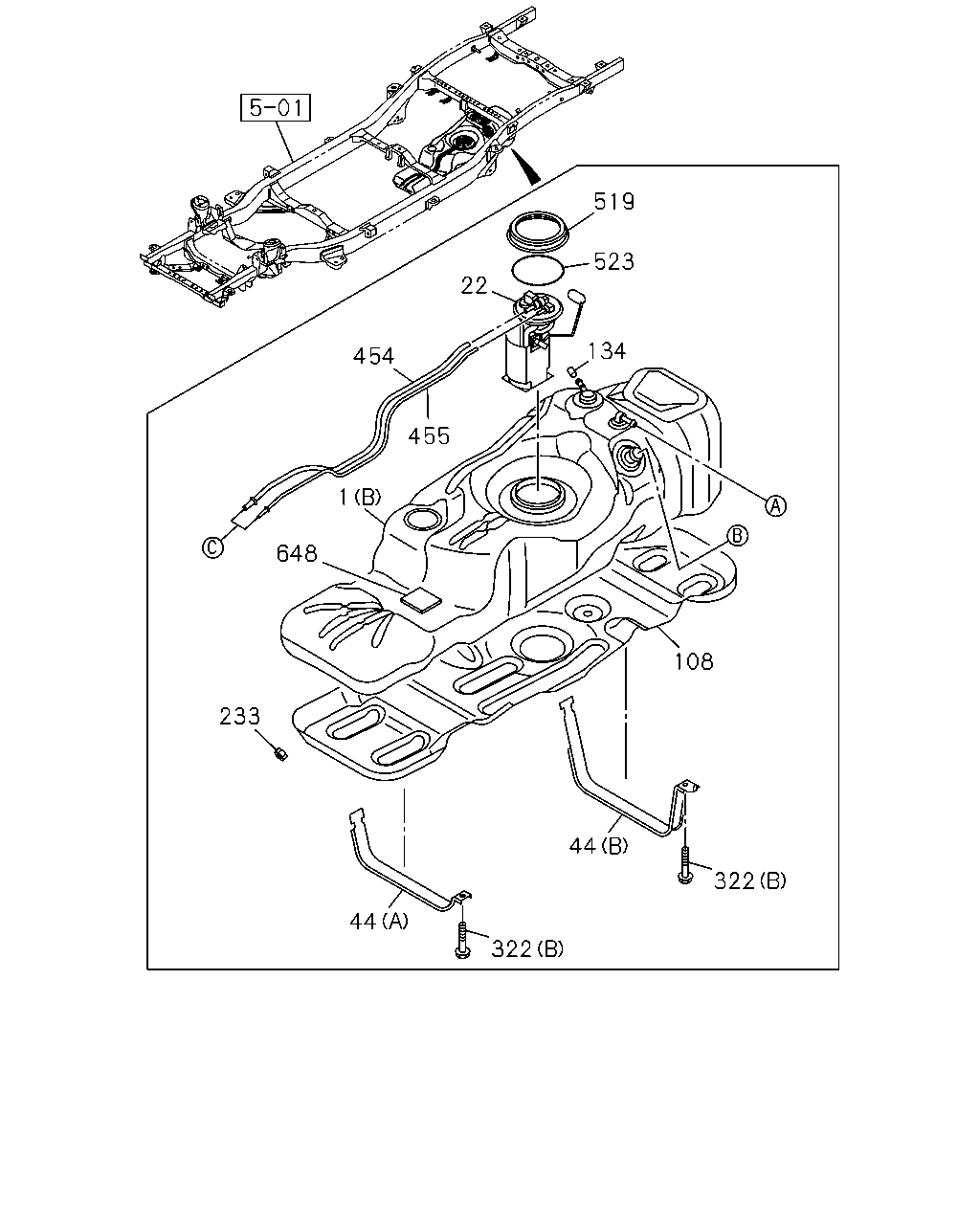

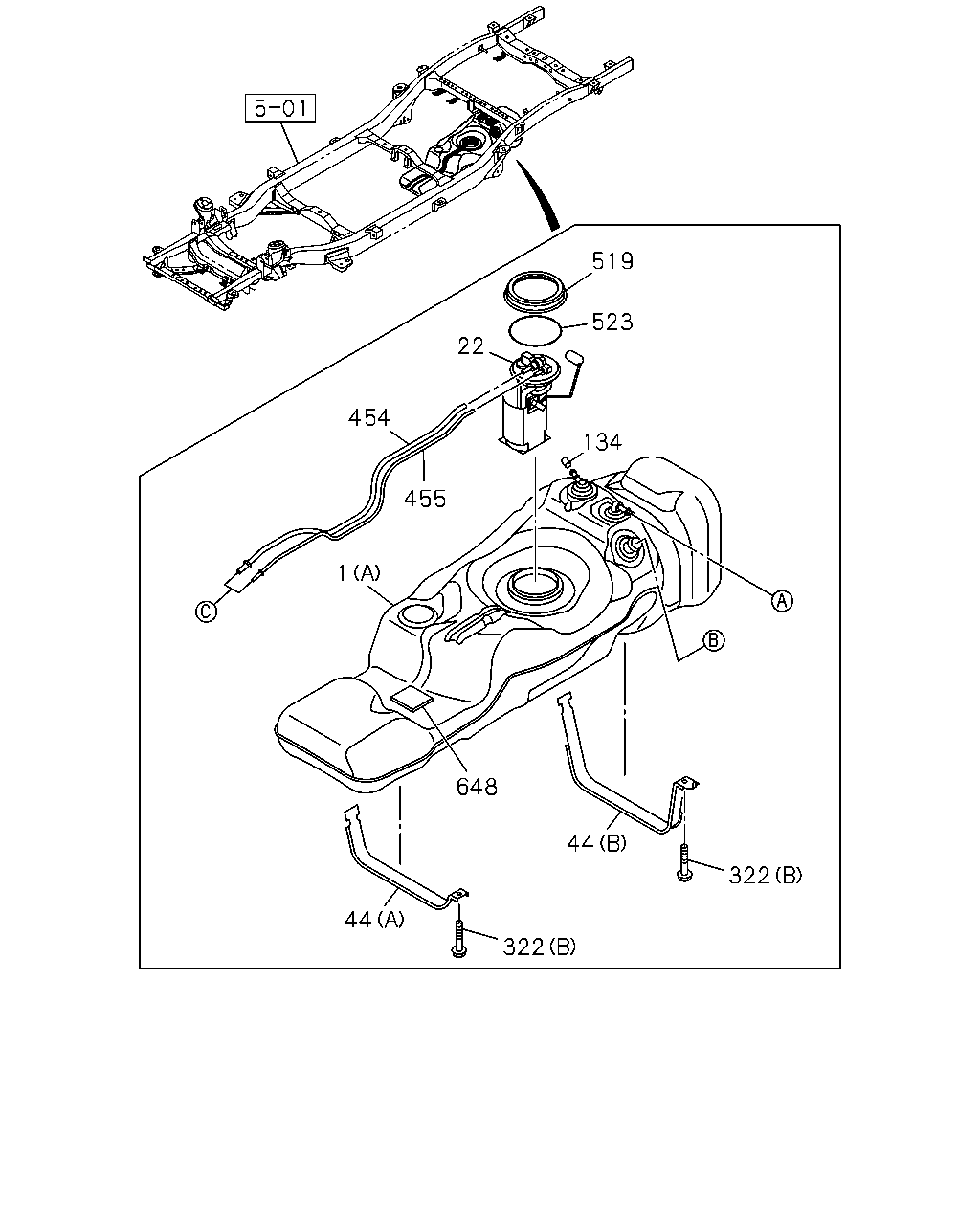

454 22 519 523 134 455 1 44 648 322 44 322

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.001 TANK; FUEL HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) (A) 69L	8-98152-318-1	01	1	1412-	●	●	●	●	●
1	03.001 TANK; FUEL 4X2(TFB***) (A) 76L	8-97947-077-3	01	1	1409-1411			●
1	03.001 TANK; FUEL 4X2(TFB***) EXC. HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) (A) 76L	8-97947-077-3	01	1	1412-	●	●	●	●	●
1	03.001 TANK; FUEL 4X4(TFS***) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF), SINGAPORE EQUIPMENT(2G0) (A) 76L	8-97947-077-3	01	1	1412-	●	●	●	●	●
1	03.001 TANK; FUEL 4X4(TFS***) (B) 76L	8-97947-758-0	01	1	1409-1411			●
1	03.001 TANK; FUEL 4X2(TFB***) CONGO EQUIPMENT(CDF) (B) 76L	8-97947-758-0	01	1	1412-	●	●	●	●	●
1	03.001 TANK; FUEL 4X4(TFS***) AUSTRALIA EQUIPMENT(B13),CONGO EQUIPMENT(CDF) (B) 76L	8-97947-758-0	01	1	1412-	●	●	●	●	●
22	03.107 UNIT; FUEL TANK HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0)	8-98152-317-1	01	1	1412-	●	●	●	●	●
22	03.107 UNIT; FUEL TANK	8-97947-151-3	01	1	1409-1411			●
22	03.107 UNIT; FUEL TANK EXC. HONG KONG EQUIPMENT(B14), SINGAPORE EQUIPMENT(2G0)	8-97947-151-3	01	1	1412-	●	●	●	●	●
44	03.023 BAND; FUEL TANK (A)	8-97947-085-4	01	1	1409-1411			●
44	03.023 BAND; FUEL TANK (A)	8-97947-085-4	01	1	1412-	●	●	●	●	●
44	03.023 BAND; FUEL TANK (B)	8-97947-086-2	01	1	1409-1411			●
44	03.023 BAND; FUEL TANK (B)	8-97947-086-2	01	1	1412-	●	●	●	●	●
134	03.164 CAP; VALVE,FUEL TANK	8-98223-574-0	01	1	1409-1411			●
134	03.164 CAP; VALVE,FUEL TANK	8-98223-574-0	01	1	1412-	●	●	●	●	●
322	03.895 BOLT; BRKT FIX 4X2 EXTENDED CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) 4X4 EXTENDED CAB LONG(TFS5CF) 4X4 REGULAR CAB LONG(TFS5SF) REAR BODY DELETE(8HH) 00.685 (A) M12X40 FLANGE	0-28051-240-0	01	1	1409-1411			●
322	03.895 BOLT; BRKT FIX 4X2 EXTENDED CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) 4X4 EXTENDED CAB LONG(TFS5CF) 4X4 REGULAR CAB LONG(TFS5SF) REAR BODY DELETE(8HH) 00.685 (A) M12X40 FLANGE	0-28051-240-0	01	1	1412-	●	●	●	●	●
322	03.895 BOLT; BRKT FIX 03.023 (B) M10X50 FLANGE	8-97301-165-0	02	1	1409-1411			●
322	03.895 BOLT; BRKT FIX 03.023 (B) M10X50 FLANGE	8-97301-165-0	02	1	1412-	●	●	●	●	●
322	03.895 BOLT; BRKT FIX CREW CAB(TF*W) REAR BODY DELETE(8HH) (C) M12X25 FLANGE	0-28651-225-0	01	1	1409-1411			●
322	03.895 BOLT; BRKT FIX CREW CAB(TF*W) REAR BODY DELETE(8HH) (C) M12X25 FLANGE	0-28651-225-0	01	1	1412-	●	●	●	●	●
454	03.163 PIPE; FUEL,DELIVERY	8-97947-152-0	01	1	1409-1411			●
454	03.163 PIPE; FUEL,DELIVERY	8-97947-152-0	01	1	1412-	●	●	●	●	●
455	03.163 PIPE; FUEL,RETURN	8-97947-153-0	01	1	1409-1411			●
455	03.163 PIPE; FUEL,RETURN	8-97947-153-0	01	1	1412-	●	●	●	●	●
519	03.107 RETAINER; FUEL PUMP	8-97947-157-0	01	1	1409-1411			●
519	03.107 RETAINER; FUEL PUMP	8-97947-157-0	01	1	1412-	●	●	●	●	●
523	03.008 SEAL; FUEL SENSOR ID=125 OD=135	8-97947-154-0	01	1	1409-1411			●
523	03.008 SEAL; FUEL SENSOR ID=125 OD=135	8-97947-154-0	01	1	1412-	●	●	●	●	●
648	03.001 RUBBER	8-98191-468-0	01	1	1409-1411			●
648	03.001 RUBBER	8-98191-468-0	01	1	1412-	●	●	●	●	●

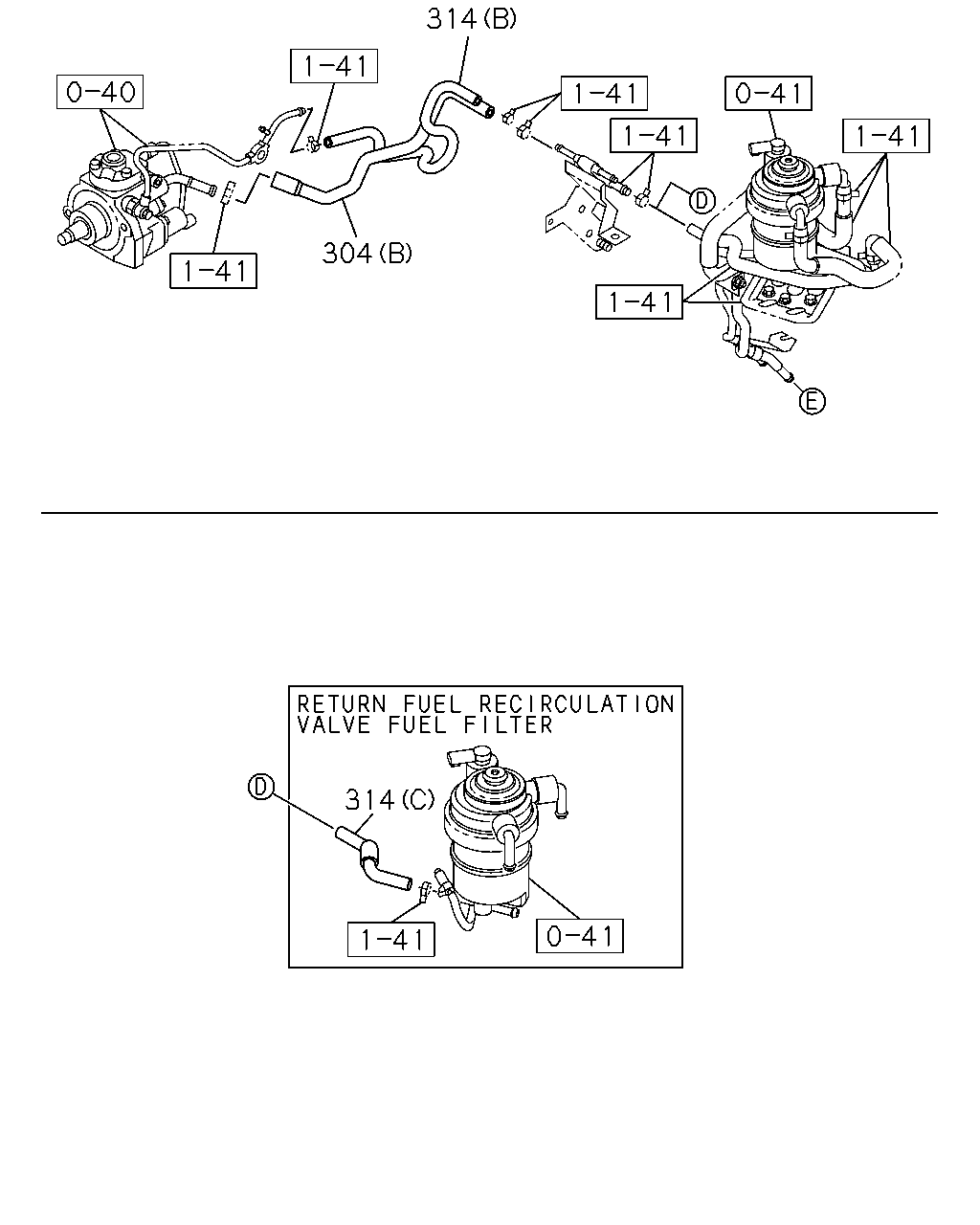

314 304 314

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ PROVISIONAL PACKAGE SPEC(BCC) EXC. INDONESIA EQUIPMENT(B00), AUSTRALIA EQUIPMENT(B13) (B)	8-98222-042-1	01	1	1412-	●	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ POOR QUALITY DIESEL FUEL<KF0> EXC. PROVISIONAL PACKAGE SPEC(BCC), INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPM ENT(B13) (C)	8-98100-728-6	01	1	1412-	●	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ 4X2(TFB***) POOR QUALITY DIESEL FUEL<KF0> EXC. INDONESIA EQUIPMENT(B00), AUSTRALIA EQUIPMENT(B13) (D)	8-98196-949-0	01	1	1412-	●	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ POOR QUALITY DIESEL FUEL<KF0> EXC. INDONESIA EQUIPMENT(B00), AUSTRALIA EQUIPMENT(B13) (G)	8-98248-704-0	01	1	1412-	●	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ (E)	8-98100-730-1	01	1	1412-				●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ INDONESIA EQUIPMENT(B00) RETURN FUEL RECIRCULATION VALVE FUEL F ILTER(V10) (F)	8-98206-274-0	01	1	1412-					●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ EXC. INDONESIA EQUIPMENT(B00) (F)	8-98155-795-3	01	1	1412-					●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ 4X4(TFS***) INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPMENT(B13) POOR QUALITY DIESEL FUEL<KF0> (D)	8-98206-449-0	01	1	1412-	●	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ 4X4(TFS***) INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPMENT(B13) POOR QUALITY DIESEL FUEL<KF0> (G)	8-98248-708-0	01	1	1412-	●	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ 4X4(TFS***) INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPMENT(B13) POOR QUALITY DIESEL FUEL<KF0> EXC. PROVISIONAL PACKAGE SPEC(BCC) (C)	8-98206-275-1	01	1	1412-	●	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ 4X4(TFS***) POOR QUALITY DIESEL FUEL<KF0> EXC. INDONESIA EQUIPMENT(B00), AUSTRALIA EQUIPMENT(B13) (D)	8-97351-313-0	01	1	1412-	●	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ PROVISIONAL PACKAGE SPEC(BCC) EXC. INDONESIA EQUIPMENT(B00), AUSTRALIA EQUIPMENT(B13) (A)	8-98164-019-0	01	1	1412-1505	●	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ POOR QUALITY DIESEL FUEL<KF0> EXC. PROVISIONAL PACKAGE SPEC(BCC), INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPM ENT(B13) (A)	8-98164-019-0	01	1	1412-1505	●	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ (A)	8-98164-019-0	01	1	1412-1505				●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ EXC. INDONESIA EQUIPMENT(B00), AUSTRALIA EQUIPMENT(B13) (A)	8-98164-019-0	01	1	1506-	●	●	●	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ (A)	8-98217-428-0	01	1	1409-1411			●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ 4X2(TFB***) PROVISIONAL PACKAGE SPEC(BCC) INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPMENT(B13) EXC. POOR QUALITY DIESEL FUEL<KF0> (A)	8-98217-428-0	01	1	1412-1505	●	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ 4X4(TFS***) PROVISIONAL PACKAGE SPEC(BCC) INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPMENT(B13) (A)	8-98217-428-0	01	1	1412-1505	●	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ 4X4(TFS***) PROVISIONAL PACKAGE SPEC(BCC) INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPMENT(B13) (A)	8-98217-428-0	01	1	1412-1505	●	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ 4X4(TFS***) INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPMENT(B13) POOR QUALITY DIESEL FUEL<KF0> EXC. PROVISIONAL PACKAGE SPEC(BCC) (A)	8-98217-428-0	01	1	1412-1505	●	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ 4X4(TFS***) INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPMENT(B13) POOR QUALITY DIESEL FUEL<KF0> EXC. PROVISIONAL PACKAGE SPEC(BCC) (A)	8-98217-428-0	01	1	1412-1505	●	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPMENT(B13) (A)	8-98217-428-0	01	1	1506-	●	●	●	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ (B)	8-98222-044-1	01	1	1409-1411			●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ 4X2(TFB***) PROVISIONAL PACKAGE SPEC(BCC) INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPMENT(B13) EXC. POOR QUALITY DIESEL FUEL<KF0> (B)	8-98222-044-1	01	1	1412-	●	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ 4X4(TFS***) PROVISIONAL PACKAGE SPEC(BCC) INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPMENT(B13) (B)	8-98222-044-1	01	1	1412-	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN PROVISIONAL PACKAGE SPEC(BCC) RETURN FUEL RECIRCULATION VALVE FUEL F ILTER(V10) EXC. INDONESIA EQUIPMENT(B00), AUSTRALIA EQUIPMENT(B13) (C)	8-98100-723-2	01	1	1412-	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN POOR QUALITY DIESEL FUEL<KF0> RETURN FUEL RECIRCULATION VALVE FUEL F ILTER(V10) EXC. PROVISIONAL PACKAGE SPEC(BCC), INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPM ENT(B13) (C)	8-98100-723-2	01	1	1412-	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN PROVISIONAL PACKAGE SPEC(BCC) EXC. INDONESIA EQUIPMENT(B00), AUSTRALIA EQUIPMENT(B13) (B)	8-98222-040-0	01	1	1412-	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN POOR QUALITY DIESEL FUEL<KF0> EXC. PROVISIONAL PACKAGE SPEC(BCC), INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPM ENT(B13) (F)	8-98113-329-4	01	1	1412-	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN (D)	8-98100-721-1	01	1	1412-				●
314	03.163 HOSE; RUBBER,FUEL RETURN INDONESIA EQUIPMENT(B00) RETURN FUEL RECIRCULATION VALVE FUEL F ILTER(V10) (E)	8-98206-270-0	01	1	1412-					●
314	03.163 HOSE; RUBBER,FUEL RETURN INDONESIA EQUIPMENT(B00) RETURN FUEL RECIRCULATION VALVE FUEL F ILTER(V10) (C)	8-98206-272-0	01	1	1412-					●
314	03.163 HOSE; RUBBER,FUEL RETURN RETURN FUEL RECIRCULATION VALVE FUEL F ILTER(V10) EXC. INDONESIA EQUIPMENT(B00) (C)	8-98155-793-1	01	1	1412-					●
314	03.163 HOSE; RUBBER,FUEL RETURN EXC. INDONESIA EQUIPMENT(B00) (E)	8-98155-791-2	01	1	1412-					●
314	03.163 HOSE; RUBBER,FUEL RETURN 4X4(TFS***) INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPMENT(B13) POOR QUALITY DIESEL FUEL<KF0> EXC. PROVISIONAL PACKAGE SPEC(BCC) (F)	8-98206-271-1	01	1	1412-	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN PROVISIONAL PACKAGE SPEC(BCC) EXC. INDONESIA EQUIPMENT(B00), AUSTRALIA EQUIPMENT(B13) (A)	8-98258-246-0	01	1	1412-1505	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN POOR QUALITY DIESEL FUEL<KF0> EXC. PROVISIONAL PACKAGE SPEC(BCC), INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPM ENT(B13) (A)	8-98258-246-0	01	1	1412-1505	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN (A)	8-98258-246-0	01	1	1412-1505				●	●
314	03.163 HOSE; RUBBER,FUEL RETURN EXC. INDONESIA EQUIPMENT(B00), AUSTRALIA EQUIPMENT(B13) (A)	8-98258-246-0	01	1	1506-	●	●	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN RETURN FUEL RECIRCULATION VALVE FUEL F ILTER(V10) (C)	8-98206-273-0	01	1	1409-1411			●
314	03.163 HOSE; RUBBER,FUEL RETURN 4X2(TFB***) PROVISIONAL PACKAGE SPEC(BCC) INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPMENT(B13) RETURN FUEL RECIRCULATION VALVE FUEL F ILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> (C)	8-98206-273-0	01	1	1412-	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN 4X4(TFS***) PROVISIONAL PACKAGE SPEC(BCC) INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPMENT(B13) RETURN FUEL RECIRCULATION VALVE FUEL F ILTER(V10) (C)	8-98206-273-0	01	1	1412-	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN 4X4(TFS***) INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPMENT(B13) POOR QUALITY DIESEL FUEL<KF0> RETURN FUEL RECIRCULATION VALVE FUEL F ILTER(V10) EXC. PROVISIONAL PACKAGE SPEC(BCC) (C)	8-98206-273-0	01	1	1412-	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN (A)	8-98206-450-0	01	1	1409-1411			●
314	03.163 HOSE; RUBBER,FUEL RETURN 4X2(TFB***) PROVISIONAL PACKAGE SPEC(BCC) INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPMENT(B13) EXC. POOR QUALITY DIESEL FUEL<KF0> (A)	8-98206-450-0	01	1	1412-1505	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN 4X4(TFS***) PROVISIONAL PACKAGE SPEC(BCC) INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPMENT(B13) (A)	8-98206-450-0	01	1	1412-1505	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN 4X4(TFS***) PROVISIONAL PACKAGE SPEC(BCC) INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPMENT(B13) (A)	8-98206-450-0	01	1	1412-1505	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN 4X4(TFS***) INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPMENT(B13) POOR QUALITY DIESEL FUEL<KF0> EXC. PROVISIONAL PACKAGE SPEC(BCC) (A)	8-98206-450-0	01	1	1412-1505	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN 4X4(TFS***) INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPMENT(B13) POOR QUALITY DIESEL FUEL<KF0> EXC. PROVISIONAL PACKAGE SPEC(BCC) (A)	8-98206-450-0	01	1	1412-1505	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPMENT(B13) (A)	8-98206-450-0	01	1	1506-	●	●	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN (B)	8-98222-041-0	01	1	1409-1411			●
314	03.163 HOSE; RUBBER,FUEL RETURN 4X2(TFB***) PROVISIONAL PACKAGE SPEC(BCC) INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPMENT(B13) EXC. POOR QUALITY DIESEL FUEL<KF0> (B)	8-98222-041-0	01	1	1412-	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN 4X4(TFS***) PROVISIONAL PACKAGE SPEC(BCC) INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPMENT(B13) (B)	8-98222-041-0	01	1	1412-	●	●	●

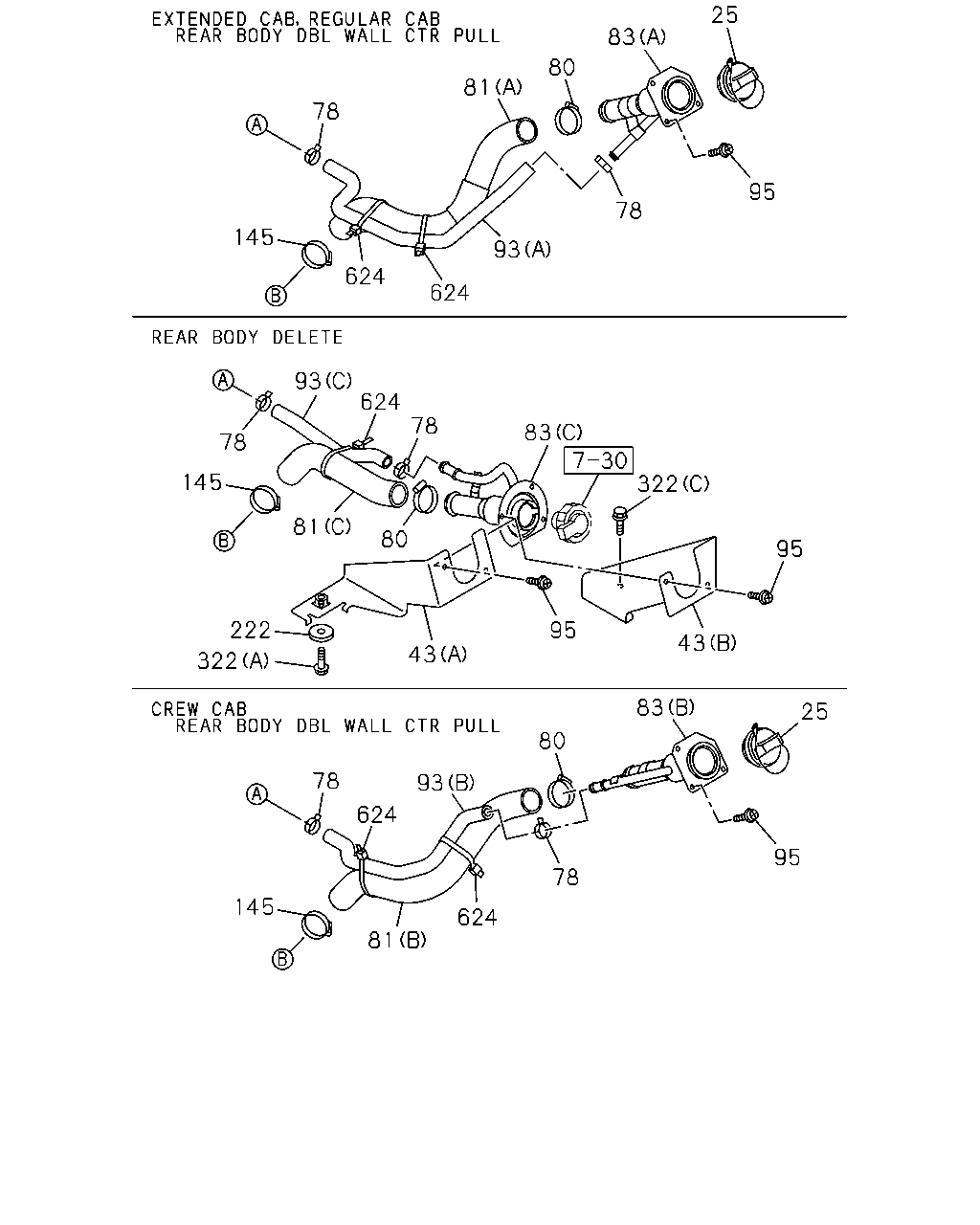

78 81 80 83 25 95 78 93 624 624 145 93 624 83 78 80 81 145 78 222 322 43 95 43 95 322 83 25 95 78 80 93 78 624 624 81 145

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
25	03.028 CAP; FILLER,FUEL TANK REAR BODY DBL WALL CTR PULL(E63) EXC. FUEL TANK CAP W/LOCK<N05>	8-98088-024-0	01	1	1409-1510	●	●	●	●	●
25	03.028 CAP; FILLER,FUEL TANK REAR BODY DBL WALL CTR PULL(E63) EXC. FUEL TANK CAP W/LOCK<N05>	8-98327-664-0	01	1	1511-	●	●	●	●	●
43	03.015 BRACKET; FUEL TANK 4X2 EXTENDED CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) 4X4 EXTENDED CAB LONG(TFS5CF) 4X4 REGULAR CAB LONG(TFS5SF) REAR BODY DELETE(8HH) (A)	8-97947-120-0	01	1	1409-1411			●
43	03.015 BRACKET; FUEL TANK 4X2 EXTENDED CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) 4X4 EXTENDED CAB LONG(TFS5CF) 4X4 REGULAR CAB LONG(TFS5SF) REAR BODY DELETE(8HH) (A)	8-97947-120-0	01	1	1412-	●	●	●	●	●
43	03.015 BRACKET; FUEL TANK CREW CAB(TF*W) REAR BODY DELETE(8HH) (B)	8-97947-478-2	01	1	1409-1411			●
43	03.015 BRACKET; FUEL TANK CREW CAB(TF*W) REAR BODY DELETE(8HH) (B)	8-97947-478-2	01	1	1412-	●	●	●	●	●
78	03.003 CLIP; BREATHER HOSE 08.846 ID=20.8	8-97944-127-0	01	1	1409-1411			●
78	03.003 CLIP; BREATHER HOSE 08.846 ID=20.8	8-97944-127-0	01	1	1409-1411			●
78	03.003 CLIP; BREATHER HOSE 08.846 ID=20.8	8-97944-127-0	01	1	1412-	●	●	●	●	●
78	03.003 CLIP; BREATHER HOSE 08.846 ID=20.8	8-97944-127-0	01	1	1412-	●	●	●	●	●
80	03.008 CLIP; FILLER HOSE ID=30-45	8-98115-807-0	01	1	1409-1411			●
80	03.008 CLIP; FILLER HOSE ID=30-45	8-98115-807-0	01	1	1412-	●	●	●	●	●
81	03.003 HOSE; FUEL FILLER 4X2 EXTENDED CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) 4X4 EXTENDED CAB LONG(TFS5CF) 4X4 REGULAR CAB LONG(TFS5SF) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97947-177-2	01	1	1409-1411			●
81	03.003 HOSE; FUEL FILLER 4X2 EXTENDED CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) 4X4 EXTENDED CAB LONG(TFS5CF) 4X4 REGULAR CAB LONG(TFS5SF) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97947-177-2	01	1	1412-	●	●	●	●	●
81	03.003 HOSE; FUEL FILLER 4X2 EXTENDED CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) 4X4 EXTENDED CAB LONG(TFS5CF) 4X4 REGULAR CAB LONG(TFS5SF) REAR BODY DELETE(8HH) (C)	8-97947-481-0	01	1	1409-1411			●
81	03.003 HOSE; FUEL FILLER 4X2 EXTENDED CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) 4X4 EXTENDED CAB LONG(TFS5CF) 4X4 REGULAR CAB LONG(TFS5SF) REAR BODY DELETE(8HH) (C)	8-97947-481-0	01	1	1412-	●	●	●	●	●
81	03.003 HOSE; FUEL FILLER CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (B)	8-97947-192-0	01	1	1409-1411			●
81	03.003 HOSE; FUEL FILLER CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (B)	8-97947-192-0	01	1	1412-	●	●	●	●	●
81	03.003 HOSE; FUEL FILLER CREW CAB(TF*W) REAR BODY DELETE(8HH) (C)	8-97947-482-0	01	1	1409-1411			●
81	03.003 HOSE; FUEL FILLER CREW CAB(TF*W) REAR BODY DELETE(8HH) (C)	8-97947-482-0	01	1	1412-	●	●	●	●	●
83	03.003 NECK; FUEL FILLER 4X2 EXTENDED CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) 4X4 EXTENDED CAB LONG(TFS5CF) 4X4 REGULAR CAB LONG(TFS5SF) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97947-175-1	01	1	1409-1411			●
83	03.003 NECK; FUEL FILLER 4X2 EXTENDED CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) 4X4 EXTENDED CAB LONG(TFS5CF) 4X4 REGULAR CAB LONG(TFS5SF) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97947-175-1	01	1	1412-	●	●	●	●	●
83	03.003 NECK; FUEL FILLER REAR BODY DELETE(8HH) (C)	8-97947-479-2	01	1	1409-1411			●
83	03.003 NECK; FUEL FILLER REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (C)	8-97947-479-2	01	1	1412-	●	●	●	●	●
83	03.003 NECK; FUEL FILLER CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (B)	8-97947-181-0	01	1	1409-1411			●
83	03.003 NECK; FUEL FILLER CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (B)	8-97947-181-0	01	1	1412-	●	●	●	●	●
93	03.003 HOSE; BREATHER,FUEL TANK 4X2 EXTENDED CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) 4X4 EXTENDED CAB LONG(TFS5CF) 4X4 REGULAR CAB LONG(TFS5SF) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97947-176-2	01	1	1409-1411			●
93	03.003 HOSE; BREATHER,FUEL TANK 4X2 EXTENDED CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) 4X4 EXTENDED CAB LONG(TFS5CF) 4X4 REGULAR CAB LONG(TFS5SF) REAR BODY DBL WALL CTR PULL(E63) (A)	8-97947-176-2	01	1	1412-	●	●	●	●	●
93	03.003 HOSE; BREATHER,FUEL TANK REAR BODY DELETE(8HH) (C)	8-97947-480-1	01	1	1409-1411			●
93	03.003 HOSE; BREATHER,FUEL TANK REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (C)	8-97947-480-1	01	1	1412-	●	●	●	●	●
93	03.003 HOSE; BREATHER,FUEL TANK CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (B)	8-97947-193-0	01	1	1409-1411			●
93	03.003 HOSE; BREATHER,FUEL TANK CREW CAB(TF*W) REAR BODY DBL WALL CTR PULL(E63) (B)	8-97947-193-0	01	1	1412-	●	●	●	●	●
95	03.028 SCREW; FILLER NECK REAR BODY DBL WALL CTR PULL(E63)	8-98139-595-0	03	1	1409-1411			●
95	03.028 SCREW; FILLER NECK REAR BODY FLAT BED(E39),REAR BODY DBL WALL CTR PULL(E63)	8-98139-595-0	03	1	1412-	●	●	●	●	●
95	03.028 SCREW; FILLER NECK REAR BODY DELETE(8HH)	8-98139-595-0	02	1	1409-1411			●
95	03.028 SCREW; FILLER NECK REAR BODY DELETE(8HH)	8-98139-595-0	02	1	1412-	●	●	●	●	●
145	03.162 CLIP; HOSE,FILLER NECK REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) ID=30-45	8-97947-244-0	01	1	1409-1411			●
145	03.162 CLIP; HOSE,FILLER NECK ID=30-45	8-97947-244-0	01	1	1412-1505	●	●	●	●	●
145	03.162 CLIP; HOSE,FILLER NECK ID=30-45	8-97947-244-0	01	1	1506-	●	●	●	●	●
222	03.023 WASHER; BRKT,FUEL TANK 4X2 EXTENDED CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) 4X4 EXTENDED CAB LONG(TFS5CF) 4X4 REGULAR CAB LONG(TFS5SF) REAR BODY DELETE(8HH) ID=13 OD=40 T=6	8-98098-458-0	01	1	1409-1411			●
222	03.023 WASHER; BRKT,FUEL TANK 4X2 EXTENDED CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) 4X4 EXTENDED CAB LONG(TFS5CF) 4X4 REGULAR CAB LONG(TFS5SF) REAR BODY DELETE(8HH) ID=13 OD=40 T=6	8-98098-458-0	01	1	1412-	●	●	●	●	●
322	03.895 BOLT; BRKT FIX 4X2 EXTENDED CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) 4X4 EXTENDED CAB LONG(TFS5CF) 4X4 REGULAR CAB LONG(TFS5SF) REAR BODY DELETE(8HH) 00.685 (A) M12X40 FLANGE	0-28051-240-0	01	1	1409-1411			●
322	03.895 BOLT; BRKT FIX 4X2 EXTENDED CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) 4X4 EXTENDED CAB LONG(TFS5CF) 4X4 REGULAR CAB LONG(TFS5SF) REAR BODY DELETE(8HH) 00.685 (A) M12X40 FLANGE	0-28051-240-0	01	1	1412-	●	●	●	●	●
322	03.895 BOLT; BRKT FIX 03.023 (B) M10X50 FLANGE	8-97301-165-0	02	1	1409-1411			●
322	03.895 BOLT; BRKT FIX 03.023 (B) M10X50 FLANGE	8-97301-165-0	02	1	1412-	●	●	●	●	●
322	03.895 BOLT; BRKT FIX CREW CAB(TF*W) REAR BODY DELETE(8HH) (C) M12X25 FLANGE	0-28651-225-0	01	1	1409-1411			●
322	03.895 BOLT; BRKT FIX CREW CAB(TF*W) REAR BODY DELETE(8HH) (C) M12X25 FLANGE	0-28651-225-0	01	1	1412-	●	●	●	●	●
624	03.162 CLIP; BAND REAR BODY DBL WALL CTR PULL(E63) 03.008 L=330	5-09709-118-0	02	1	1409-1411			●
624	03.162 CLIP; BAND REAR BODY DBL WALL CTR PULL(E63) 03.008 L=330	5-09709-118-0	02	1	1412-	●	●	●	●	●
624	03.162 CLIP; BAND REAR BODY DELETE(8HH) 03.008 L=330	5-09709-118-0	01	1	1409-1411			●
624	03.162 CLIP; BAND REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) 03.008 L=330	5-09709-118-0	01	1	1412-	●	●	●	●	●

22 519 523 134 454 455 1 648 233 44 322 44 322 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.001 TANK; FUEL HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) (A) 69L	8-98152-318-1	01	1	1412-	●	●	●	●	●
1	03.001 TANK; FUEL 4X2(TFB***) (A) 76L	8-97947-077-3	01	1	1409-1411			●
1	03.001 TANK; FUEL 4X2(TFB***) EXC. HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) (A) 76L	8-97947-077-3	01	1	1412-	●	●	●	●	●
1	03.001 TANK; FUEL 4X4(TFS***) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF), SINGAPORE EQUIPMENT(2G0) (A) 76L	8-97947-077-3	01	1	1412-	●	●	●	●	●
1	03.001 TANK; FUEL 4X4(TFS***) (B) 76L	8-97947-758-0	01	1	1409-1411			●
1	03.001 TANK; FUEL 4X2(TFB***) CONGO EQUIPMENT(CDF) (B) 76L	8-97947-758-0	01	1	1412-	●	●	●	●	●
1	03.001 TANK; FUEL 4X4(TFS***) AUSTRALIA EQUIPMENT(B13),CONGO EQUIPMENT(CDF) (B) 76L	8-97947-758-0	01	1	1412-	●	●	●	●	●
22	03.107 UNIT; FUEL TANK HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0)	8-98152-317-1	01	1	1412-	●	●	●	●	●
22	03.107 UNIT; FUEL TANK	8-97947-151-3	01	1	1409-1411			●
22	03.107 UNIT; FUEL TANK EXC. HONG KONG EQUIPMENT(B14), SINGAPORE EQUIPMENT(2G0)	8-97947-151-3	01	1	1412-	●	●	●	●	●
44	03.023 BAND; FUEL TANK (A)	8-97947-085-4	01	1	1409-1411			●
44	03.023 BAND; FUEL TANK (A)	8-97947-085-4	01	1	1412-	●	●	●	●	●
44	03.023 BAND; FUEL TANK (B)	8-97947-086-2	01	1	1409-1411			●
44	03.023 BAND; FUEL TANK (B)	8-97947-086-2	01	1	1412-	●	●	●	●	●
108	03.015 PROTECTOR; FUEL TANK 4X4(TFS***)	8-97947-155-2	01	1	1409-1411			●
108	03.015 PROTECTOR; FUEL TANK 4X2(TFB***) CONGO EQUIPMENT(CDF)	8-97947-155-2	01	1	1412-	●	●	●	●	●
108	03.015 PROTECTOR; FUEL TANK 4X4(TFS***) AUSTRALIA EQUIPMENT(B13),CONGO EQUIPMENT(CDF)	8-97947-155-2	01	1	1412-	●	●	●	●	●
134	03.164 CAP; VALVE,FUEL TANK	8-98223-574-0	01	1	1409-1411			●
134	03.164 CAP; VALVE,FUEL TANK	8-98223-574-0	01	1	1412-	●	●	●	●	●
233	03.023 NUT; UNDER COVER 4X4(TFS***)	8-97947-757-0	02	1	1409-1411			●
233	03.023 NUT; UNDER COVER 4X2(TFB***) CONGO EQUIPMENT(CDF)	8-97947-757-0	02	1	1412-	●	●	●	●	●
233	03.023 NUT; UNDER COVER 4X4(TFS***) AUSTRALIA EQUIPMENT(B13),CONGO EQUIPMENT(CDF)	8-97947-757-0	02	1	1412-	●	●	●	●	●
322	03.895 BOLT; BRKT FIX 4X2 EXTENDED CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) 4X4 EXTENDED CAB LONG(TFS5CF) 4X4 REGULAR CAB LONG(TFS5SF) REAR BODY DELETE(8HH) 00.685 (A) M12X40 FLANGE	0-28051-240-0	01	1	1409-1411			●
322	03.895 BOLT; BRKT FIX 4X2 EXTENDED CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) 4X4 EXTENDED CAB LONG(TFS5CF) 4X4 REGULAR CAB LONG(TFS5SF) REAR BODY DELETE(8HH) 00.685 (A) M12X40 FLANGE	0-28051-240-0	01	1	1412-	●	●	●	●	●
322	03.895 BOLT; BRKT FIX 03.023 (B) M10X50 FLANGE	8-97301-165-0	02	1	1409-1411			●
322	03.895 BOLT; BRKT FIX 03.023 (B) M10X50 FLANGE	8-97301-165-0	02	1	1412-	●	●	●	●	●
322	03.895 BOLT; BRKT FIX CREW CAB(TF*W) REAR BODY DELETE(8HH) (C) M12X25 FLANGE	0-28651-225-0	01	1	1409-1411			●
322	03.895 BOLT; BRKT FIX CREW CAB(TF*W) REAR BODY DELETE(8HH) (C) M12X25 FLANGE	0-28651-225-0	01	1	1412-	●	●	●	●	●
454	03.163 PIPE; FUEL,DELIVERY	8-97947-152-0	01	1	1409-1411			●
454	03.163 PIPE; FUEL,DELIVERY	8-97947-152-0	01	1	1412-	●	●	●	●	●
455	03.163 PIPE; FUEL,RETURN	8-97947-153-0	01	1	1409-1411			●
455	03.163 PIPE; FUEL,RETURN	8-97947-153-0	01	1	1412-	●	●	●	●	●
519	03.107 RETAINER; FUEL PUMP	8-97947-157-0	01	1	1409-1411			●
519	03.107 RETAINER; FUEL PUMP	8-97947-157-0	01	1	1412-	●	●	●	●	●
523	03.008 SEAL; FUEL SENSOR ID=125 OD=135	8-97947-154-0	01	1	1409-1411			●
523	03.008 SEAL; FUEL SENSOR ID=125 OD=135	8-97947-154-0	01	1	1412-	●	●	●	●	●
648	03.001 RUBBER	8-98191-468-0	01	1	1409-1411			●
648	03.001 RUBBER	8-98191-468-0	01	1	1412-	●	●	●	●	●

304 314 304 314 304 304 300

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
300	03.162 BOLT; BRKT TO BODY POOR QUALITY DIESEL FUEL<KF0> 03.403 M8X30 FLANGE	0-28650-830-0	02	1	1412-	●	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ PROVISIONAL PACKAGE SPEC(BCC) EXC. INDONESIA EQUIPMENT(B00), AUSTRALIA EQUIPMENT(B13) (B)	8-98222-042-1	01	1	1412-	●	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ POOR QUALITY DIESEL FUEL<KF0> EXC. PROVISIONAL PACKAGE SPEC(BCC), INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPM ENT(B13) (C)	8-98100-728-6	01	1	1412-	●	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ 4X2(TFB***) POOR QUALITY DIESEL FUEL<KF0> EXC. INDONESIA EQUIPMENT(B00), AUSTRALIA EQUIPMENT(B13) (D)	8-98196-949-0	01	1	1412-	●	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ POOR QUALITY DIESEL FUEL<KF0> EXC. INDONESIA EQUIPMENT(B00), AUSTRALIA EQUIPMENT(B13) (G)	8-98248-704-0	01	1	1412-	●	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ (E)	8-98100-730-1	01	1	1412-				●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ INDONESIA EQUIPMENT(B00) RETURN FUEL RECIRCULATION VALVE FUEL F ILTER(V10) (F)	8-98206-274-0	01	1	1412-					●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ EXC. INDONESIA EQUIPMENT(B00) (F)	8-98155-795-3	01	1	1412-					●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ 4X4(TFS***) INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPMENT(B13) POOR QUALITY DIESEL FUEL<KF0> (D)	8-98206-449-0	01	1	1412-	●	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ 4X4(TFS***) INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPMENT(B13) POOR QUALITY DIESEL FUEL<KF0> (G)	8-98248-708-0	01	1	1412-	●	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ 4X4(TFS***) INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPMENT(B13) POOR QUALITY DIESEL FUEL<KF0> EXC. PROVISIONAL PACKAGE SPEC(BCC) (C)	8-98206-275-1	01	1	1412-	●	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ 4X4(TFS***) POOR QUALITY DIESEL FUEL<KF0> EXC. INDONESIA EQUIPMENT(B00), AUSTRALIA EQUIPMENT(B13) (D)	8-97351-313-0	01	1	1412-	●	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ PROVISIONAL PACKAGE SPEC(BCC) EXC. INDONESIA EQUIPMENT(B00), AUSTRALIA EQUIPMENT(B13) (A)	8-98164-019-0	01	1	1412-1505	●	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ POOR QUALITY DIESEL FUEL<KF0> EXC. PROVISIONAL PACKAGE SPEC(BCC), INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPM ENT(B13) (A)	8-98164-019-0	01	1	1412-1505	●	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ (A)	8-98164-019-0	01	1	1412-1505				●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ EXC. INDONESIA EQUIPMENT(B00), AUSTRALIA EQUIPMENT(B13) (A)	8-98164-019-0	01	1	1506-	●	●	●	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ (A)	8-98217-428-0	01	1	1409-1411			●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ 4X2(TFB***) PROVISIONAL PACKAGE SPEC(BCC) INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPMENT(B13) EXC. POOR QUALITY DIESEL FUEL<KF0> (A)	8-98217-428-0	01	1	1412-1505	●	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ 4X4(TFS***) PROVISIONAL PACKAGE SPEC(BCC) INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPMENT(B13) (A)	8-98217-428-0	01	1	1412-1505	●	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ 4X4(TFS***) PROVISIONAL PACKAGE SPEC(BCC) INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPMENT(B13) (A)	8-98217-428-0	01	1	1412-1505	●	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ 4X4(TFS***) INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPMENT(B13) POOR QUALITY DIESEL FUEL<KF0> EXC. PROVISIONAL PACKAGE SPEC(BCC) (A)	8-98217-428-0	01	1	1412-1505	●	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ 4X4(TFS***) INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPMENT(B13) POOR QUALITY DIESEL FUEL<KF0> EXC. PROVISIONAL PACKAGE SPEC(BCC) (A)	8-98217-428-0	01	1	1412-1505	●	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPMENT(B13) (A)	8-98217-428-0	01	1	1506-	●	●	●	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ (B)	8-98222-044-1	01	1	1409-1411			●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ 4X2(TFB***) PROVISIONAL PACKAGE SPEC(BCC) INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPMENT(B13) EXC. POOR QUALITY DIESEL FUEL<KF0> (B)	8-98222-044-1	01	1	1412-	●	●	●
304	03.163 HOSE; RUBBER,FUEL FILTER TO INJ 4X4(TFS***) PROVISIONAL PACKAGE SPEC(BCC) INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPMENT(B13) (B)	8-98222-044-1	01	1	1412-	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN PROVISIONAL PACKAGE SPEC(BCC) RETURN FUEL RECIRCULATION VALVE FUEL F ILTER(V10) EXC. INDONESIA EQUIPMENT(B00), AUSTRALIA EQUIPMENT(B13) (C)	8-98100-723-2	01	1	1412-	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN POOR QUALITY DIESEL FUEL<KF0> RETURN FUEL RECIRCULATION VALVE FUEL F ILTER(V10) EXC. PROVISIONAL PACKAGE SPEC(BCC), INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPM ENT(B13) (C)	8-98100-723-2	01	1	1412-	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN PROVISIONAL PACKAGE SPEC(BCC) EXC. INDONESIA EQUIPMENT(B00), AUSTRALIA EQUIPMENT(B13) (B)	8-98222-040-0	01	1	1412-	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN POOR QUALITY DIESEL FUEL<KF0> EXC. PROVISIONAL PACKAGE SPEC(BCC), INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPM ENT(B13) (F)	8-98113-329-4	01	1	1412-	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN (D)	8-98100-721-1	01	1	1412-				●
314	03.163 HOSE; RUBBER,FUEL RETURN INDONESIA EQUIPMENT(B00) RETURN FUEL RECIRCULATION VALVE FUEL F ILTER(V10) (E)	8-98206-270-0	01	1	1412-					●
314	03.163 HOSE; RUBBER,FUEL RETURN INDONESIA EQUIPMENT(B00) RETURN FUEL RECIRCULATION VALVE FUEL F ILTER(V10) (C)	8-98206-272-0	01	1	1412-					●
314	03.163 HOSE; RUBBER,FUEL RETURN RETURN FUEL RECIRCULATION VALVE FUEL F ILTER(V10) EXC. INDONESIA EQUIPMENT(B00) (C)	8-98155-793-1	01	1	1412-					●
314	03.163 HOSE; RUBBER,FUEL RETURN EXC. INDONESIA EQUIPMENT(B00) (E)	8-98155-791-2	01	1	1412-					●
314	03.163 HOSE; RUBBER,FUEL RETURN 4X4(TFS***) INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPMENT(B13) POOR QUALITY DIESEL FUEL<KF0> EXC. PROVISIONAL PACKAGE SPEC(BCC) (F)	8-98206-271-1	01	1	1412-	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN PROVISIONAL PACKAGE SPEC(BCC) EXC. INDONESIA EQUIPMENT(B00), AUSTRALIA EQUIPMENT(B13) (A)	8-98258-246-0	01	1	1412-1505	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN POOR QUALITY DIESEL FUEL<KF0> EXC. PROVISIONAL PACKAGE SPEC(BCC), INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPM ENT(B13) (A)	8-98258-246-0	01	1	1412-1505	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN (A)	8-98258-246-0	01	1	1412-1505				●	●
314	03.163 HOSE; RUBBER,FUEL RETURN EXC. INDONESIA EQUIPMENT(B00), AUSTRALIA EQUIPMENT(B13) (A)	8-98258-246-0	01	1	1506-	●	●	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN RETURN FUEL RECIRCULATION VALVE FUEL F ILTER(V10) (C)	8-98206-273-0	01	1	1409-1411			●
314	03.163 HOSE; RUBBER,FUEL RETURN 4X2(TFB***) PROVISIONAL PACKAGE SPEC(BCC) INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPMENT(B13) RETURN FUEL RECIRCULATION VALVE FUEL F ILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> (C)	8-98206-273-0	01	1	1412-	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN 4X4(TFS***) PROVISIONAL PACKAGE SPEC(BCC) INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPMENT(B13) RETURN FUEL RECIRCULATION VALVE FUEL F ILTER(V10) (C)	8-98206-273-0	01	1	1412-	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN 4X4(TFS***) INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPMENT(B13) POOR QUALITY DIESEL FUEL<KF0> RETURN FUEL RECIRCULATION VALVE FUEL F ILTER(V10) EXC. PROVISIONAL PACKAGE SPEC(BCC) (C)	8-98206-273-0	01	1	1412-	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN (A)	8-98206-450-0	01	1	1409-1411			●
314	03.163 HOSE; RUBBER,FUEL RETURN 4X2(TFB***) PROVISIONAL PACKAGE SPEC(BCC) INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPMENT(B13) EXC. POOR QUALITY DIESEL FUEL<KF0> (A)	8-98206-450-0	01	1	1412-1505	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN 4X4(TFS***) PROVISIONAL PACKAGE SPEC(BCC) INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPMENT(B13) (A)	8-98206-450-0	01	1	1412-1505	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN 4X4(TFS***) PROVISIONAL PACKAGE SPEC(BCC) INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPMENT(B13) (A)	8-98206-450-0	01	1	1412-1505	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN 4X4(TFS***) INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPMENT(B13) POOR QUALITY DIESEL FUEL<KF0> EXC. PROVISIONAL PACKAGE SPEC(BCC) (A)	8-98206-450-0	01	1	1412-1505	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN 4X4(TFS***) INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPMENT(B13) POOR QUALITY DIESEL FUEL<KF0> EXC. PROVISIONAL PACKAGE SPEC(BCC) (A)	8-98206-450-0	01	1	1412-1505	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPMENT(B13) (A)	8-98206-450-0	01	1	1506-	●	●	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN (B)	8-98222-041-0	01	1	1409-1411			●
314	03.163 HOSE; RUBBER,FUEL RETURN 4X2(TFB***) PROVISIONAL PACKAGE SPEC(BCC) INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPMENT(B13) EXC. POOR QUALITY DIESEL FUEL<KF0> (B)	8-98222-041-0	01	1	1412-	●	●	●
314	03.163 HOSE; RUBBER,FUEL RETURN 4X4(TFS***) PROVISIONAL PACKAGE SPEC(BCC) INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPMENT(B13) (B)	8-98222-041-0	01	1	1412-	●	●	●

422

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
	422	03.023 PLUG; FUEL TANK REAR BODY DBL WALL CTR PULL(E63)	8-98154-084-0	01	1	1409-	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
