Sayfa 1-30 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51580 - TFR/TFS RHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-30 - AIR CLEANER ▶

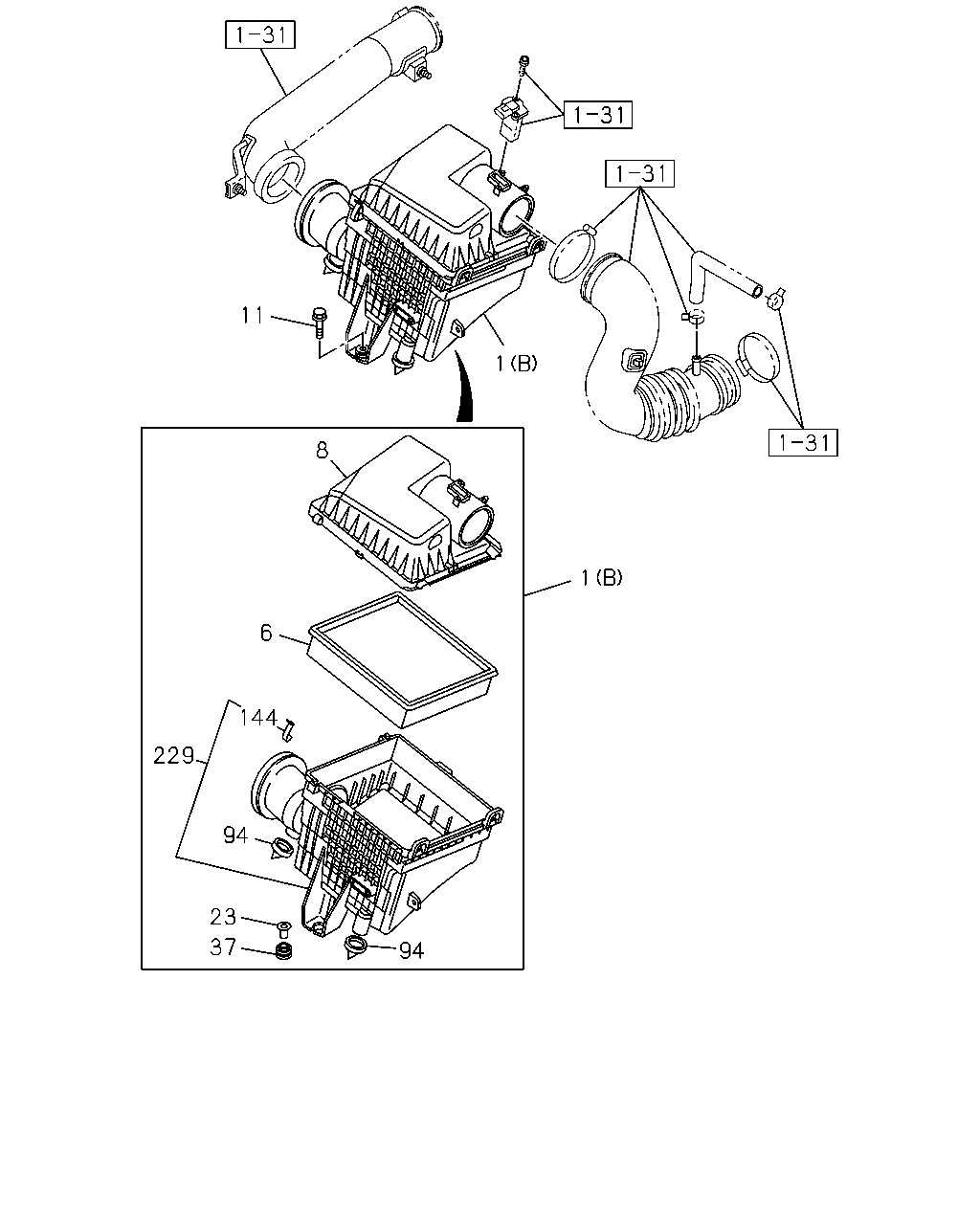

1-30 — AIR CLEANER (#148422) — 82 parça

94 37 229 23 144 6 8 1 1 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.402 CLEANER ASM; AIR HEAVY DUTY AIR CLEANER<K46> (B)	8-98272-514-0	01	1	1412-	●
1	03.402 CLEANER ASM; AIR HEAVY DUTY AIR CLEANER<K46> (B)	8-98103-917-4	01	1	1412-		●
1	03.402 CLEANER ASM; AIR EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98103-916-5	01	1	1412-		●
1	03.402 CLEANER ASM; AIR HEAVY DUTY AIR CLEANER<K46> (B)	8-98140-259-3	01	1	1412-			●
1	03.402 CLEANER ASM; AIR EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98140-257-2	01	1	1412-			●
1	03.402 CLEANER ASM; AIR HEAVY DUTY AIR CLEANER<K46> (B)	8-98114-220-4	01	1	1412-				●
1	03.402 CLEANER ASM; AIR EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98114-219-5	01	1	1412-				●
1	03.402 CLEANER ASM; AIR EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98179-138-0	01	1	1412-	●
1	03.402 CLEANER ASM; AIR HEAVY DUTY AIR CLEANER<K46> (B)	8-98104-506-4	01	1	1409-					●
1	03.402 CLEANER ASM; AIR EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98104-505-5	01	1	1409-					●
6	03.410 FILTER; ACL	8-98140-266-0	01	1	1412-		●	●	●
6	03.410 FILTER; ACL	8-98140-265-0	01	1	1409-1411					●
6	03.410 FILTER; ACL	8-98140-265-0	01	1	1412-	●				●
8	03.410 COVER ASM; ACL HEAVY DUTY AIR CLEANER<K46>	8-98281-551-0	01	1	1412-	●
8	03.410 COVER ASM; ACL HEAVY DUTY AIR CLEANER<K46>	8-98141-389-0	01	1	1412-		●
8	03.410 COVER ASM; ACL EXC. HEAVY DUTY AIR CLEANER<K46>	8-98140-264-0	01	1	1412-		●
8	03.410 COVER ASM; ACL HEAVY DUTY AIR CLEANER<K46>	8-98141-390-0	01	1	1412-			●
8	03.410 COVER ASM; ACL EXC. HEAVY DUTY AIR CLEANER<K46>	8-98141-386-0	01	1	1412-			●
8	03.410 COVER ASM; ACL HEAVY DUTY AIR CLEANER<K46>	8-98141-388-0	01	1	1412-				●
8	03.410 COVER ASM; ACL EXC. HEAVY DUTY AIR CLEANER<K46>	8-98141-385-0	01	1	1412-				●
8	03.410 COVER ASM; ACL EXC. HEAVY DUTY AIR CLEANER<K46>	8-98189-413-0	01	1	1412-	●
8	03.410 COVER ASM; ACL HEAVY DUTY AIR CLEANER<K46>	8-98141-387-0	01	1	1409-					●
8	03.410 COVER ASM; ACL EXC. HEAVY DUTY AIR CLEANER<K46>	8-98140-261-0	01	1	1409-					●
11	03.403 BOLT; ACL 01.060 M8X35 FLANGE	0-28650-835-0	03	1	1409-1411					●
11	03.403 BOLT; ACL 01.060 M8X35 FLANGE	0-28650-835-0	03	1	1412-	●	●	●	●	●
23	03.405 COLLAR; ACL STAY	8-98140-270-0	03	1	1409-1411					●
23	03.405 COLLAR; ACL STAY	8-98140-270-0	03	1	1412-	●	●	●	●	●
37	03.406 RUBBER; MTG,ACL	8-98140-269-0	03	1	1409-1411					●
37	03.406 RUBBER; MTG,ACL	8-98140-269-0	03	1	1412-	●	●	●	●	●
94	03.415 VALVE; VACUATOR HEAVY DUTY AIR CLEANER<K46>	8-94447-157-0	02	1	1409-1411					●
94	03.415 VALVE; VACUATOR EXC. HEAVY DUTY AIR CLEANER<K46>	8-94447-157-0	01	1	1409-1411					●
94	03.415 VALVE; VACUATOR EXC. HEAVY DUTY AIR CLEANER<K46>	8-94447-157-0	01	1	1412-	●	●	●	●	●
94	03.415 VALVE; VACUATOR HEAVY DUTY AIR CLEANER<K46>	8-94447-157-0	02	1	1412-	●	●	●	●	●
144	03.403 CLIP; ACL	8-97324-624-0	02	1	1409-1411					●
144	03.403 CLIP; ACL	8-97324-624-0	02	1	1412-	●	●	●	●	●
229	03.406 BODY ASM; ACL HEAVY DUTY AIR CLEANER<K46>	8-98277-106-0	01	1	1412-	●
229	03.406 BODY ASM; ACL HEAVY DUTY AIR CLEANER<K46>	8-98141-391-0	01	1	1412-		●	●	●
229	03.406 BODY ASM; ACL EXC. HEAVY DUTY AIR CLEANER<K46>	8-98140-267-0	01	1	1412-		●	●	●
229	03.406 BODY ASM; ACL EXC. HEAVY DUTY AIR CLEANER<K46>	8-98189-414-0	01	1	1412-	●
229	03.406 BODY ASM; ACL HEAVY DUTY AIR CLEANER<K46>	8-98141-392-0	01	1	1409-					●
229	03.406 BODY ASM; ACL EXC. HEAVY DUTY AIR CLEANER<K46>	8-98140-268-0	01	1	1409-					●

11 1 1 8 6 144 229 94 23 37 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.402 CLEANER ASM; AIR HEAVY DUTY AIR CLEANER<K46> (B)	8-98272-514-0	01	1	1412-	●
1	03.402 CLEANER ASM; AIR HEAVY DUTY AIR CLEANER<K46> (B)	8-98103-917-4	01	1	1412-		●
1	03.402 CLEANER ASM; AIR EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98103-916-5	01	1	1412-		●
1	03.402 CLEANER ASM; AIR HEAVY DUTY AIR CLEANER<K46> (B)	8-98140-259-3	01	1	1412-			●
1	03.402 CLEANER ASM; AIR EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98140-257-2	01	1	1412-			●
1	03.402 CLEANER ASM; AIR HEAVY DUTY AIR CLEANER<K46> (B)	8-98114-220-4	01	1	1412-				●
1	03.402 CLEANER ASM; AIR EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98114-219-5	01	1	1412-				●
1	03.402 CLEANER ASM; AIR EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98179-138-0	01	1	1412-	●
1	03.402 CLEANER ASM; AIR HEAVY DUTY AIR CLEANER<K46> (B)	8-98104-506-4	01	1	1409-					●
1	03.402 CLEANER ASM; AIR EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-98104-505-5	01	1	1409-					●
6	03.410 FILTER; ACL	8-98140-266-0	01	1	1412-		●	●	●
6	03.410 FILTER; ACL	8-98140-265-0	01	1	1409-1411					●
6	03.410 FILTER; ACL	8-98140-265-0	01	1	1412-	●				●
8	03.410 COVER ASM; ACL HEAVY DUTY AIR CLEANER<K46>	8-98281-551-0	01	1	1412-	●
8	03.410 COVER ASM; ACL HEAVY DUTY AIR CLEANER<K46>	8-98141-389-0	01	1	1412-		●
8	03.410 COVER ASM; ACL EXC. HEAVY DUTY AIR CLEANER<K46>	8-98140-264-0	01	1	1412-		●
8	03.410 COVER ASM; ACL HEAVY DUTY AIR CLEANER<K46>	8-98141-390-0	01	1	1412-			●
8	03.410 COVER ASM; ACL EXC. HEAVY DUTY AIR CLEANER<K46>	8-98141-386-0	01	1	1412-			●
8	03.410 COVER ASM; ACL HEAVY DUTY AIR CLEANER<K46>	8-98141-388-0	01	1	1412-				●
8	03.410 COVER ASM; ACL EXC. HEAVY DUTY AIR CLEANER<K46>	8-98141-385-0	01	1	1412-				●
8	03.410 COVER ASM; ACL EXC. HEAVY DUTY AIR CLEANER<K46>	8-98189-413-0	01	1	1412-	●
8	03.410 COVER ASM; ACL HEAVY DUTY AIR CLEANER<K46>	8-98141-387-0	01	1	1409-					●
8	03.410 COVER ASM; ACL EXC. HEAVY DUTY AIR CLEANER<K46>	8-98140-261-0	01	1	1409-					●
11	03.403 BOLT; ACL 01.060 M8X35 FLANGE	0-28650-835-0	03	1	1409-1411					●
11	03.403 BOLT; ACL 01.060 M8X35 FLANGE	0-28650-835-0	03	1	1412-	●	●	●	●	●
23	03.405 COLLAR; ACL STAY	8-98140-270-0	03	1	1409-1411					●
23	03.405 COLLAR; ACL STAY	8-98140-270-0	03	1	1412-	●	●	●	●	●
37	03.406 RUBBER; MTG,ACL	8-98140-269-0	03	1	1409-1411					●
37	03.406 RUBBER; MTG,ACL	8-98140-269-0	03	1	1412-	●	●	●	●	●
94	03.415 VALVE; VACUATOR HEAVY DUTY AIR CLEANER<K46>	8-94447-157-0	02	1	1409-1411					●
94	03.415 VALVE; VACUATOR EXC. HEAVY DUTY AIR CLEANER<K46>	8-94447-157-0	01	1	1409-1411					●
94	03.415 VALVE; VACUATOR EXC. HEAVY DUTY AIR CLEANER<K46>	8-94447-157-0	01	1	1412-	●	●	●	●	●
94	03.415 VALVE; VACUATOR HEAVY DUTY AIR CLEANER<K46>	8-94447-157-0	02	1	1412-	●	●	●	●	●
144	03.403 CLIP; ACL	8-97324-624-0	02	1	1409-1411					●
144	03.403 CLIP; ACL	8-97324-624-0	02	1	1412-	●	●	●	●	●
229	03.406 BODY ASM; ACL HEAVY DUTY AIR CLEANER<K46>	8-98277-106-0	01	1	1412-	●
229	03.406 BODY ASM; ACL HEAVY DUTY AIR CLEANER<K46>	8-98141-391-0	01	1	1412-		●	●	●
229	03.406 BODY ASM; ACL EXC. HEAVY DUTY AIR CLEANER<K46>	8-98140-267-0	01	1	1412-		●	●	●
229	03.406 BODY ASM; ACL EXC. HEAVY DUTY AIR CLEANER<K46>	8-98189-414-0	01	1	1412-	●
229	03.406 BODY ASM; ACL HEAVY DUTY AIR CLEANER<K46>	8-98141-392-0	01	1	1409-					●
229	03.406 BODY ASM; ACL EXC. HEAVY DUTY AIR CLEANER<K46>	8-98140-268-0	01	1	1409-					●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
