0-65 — STARTER (#148417) — 84 parça

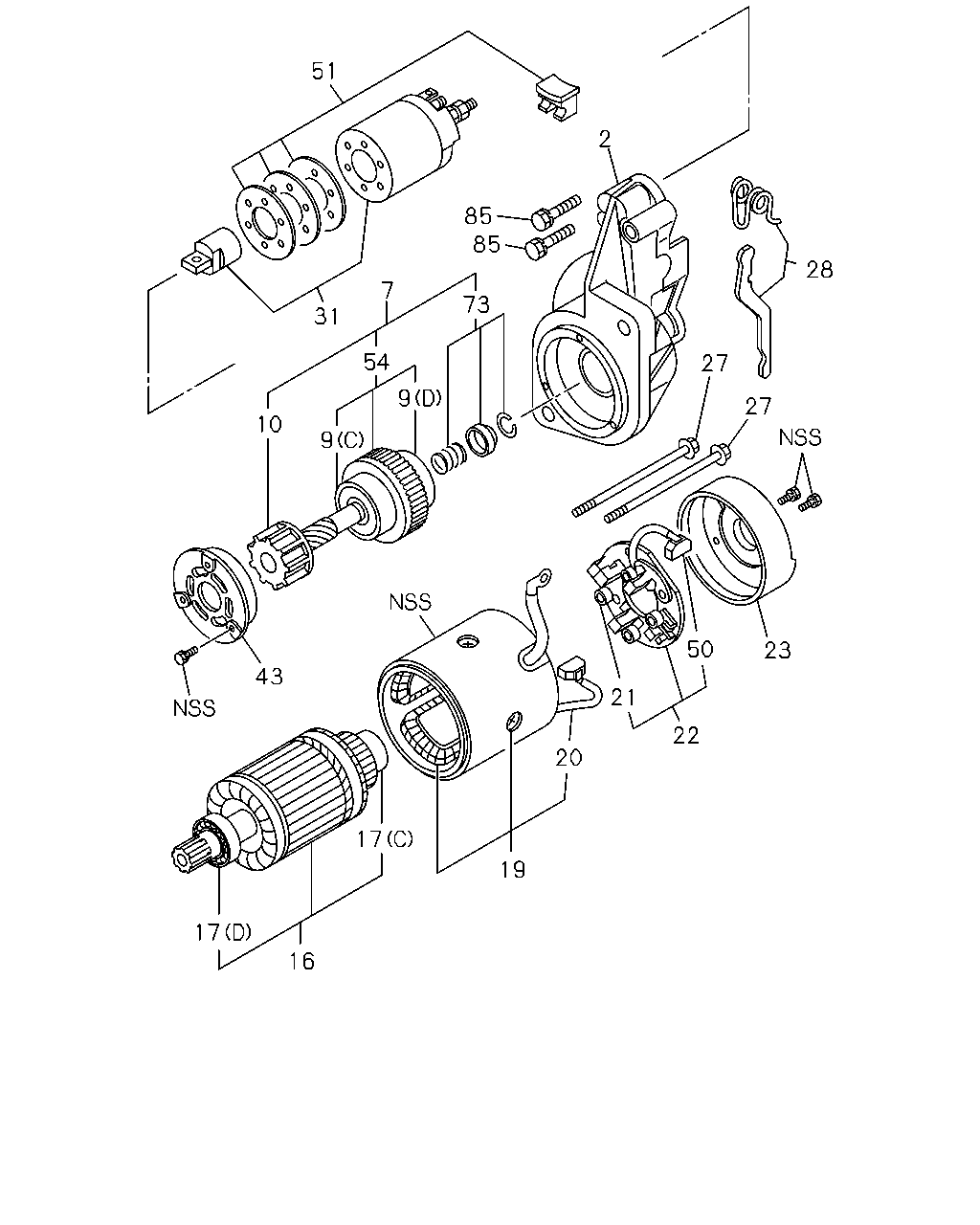

2 85 51 31 73 7 54 9 10 9 27 28 27 23 50 22 21 20 19 17 16 17 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	02.085 CASE; PINION,STARTER ASM PART: B = 8-98028-199-0, 98028199	8-97368-562-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: A = 8-98028-198-0, 98028198	8-97941-668-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: C = 8-98183-655-0, 98183655	8-98186-664-0	01	1	-
7	02.086 CLUTCH ASM; PINION,STARTER ASM PART: B = 8-98028-199-0, 98028199, C = 8-98183-655-0, 98183655	8-97229-910-0	01	1	-
7	02.086 CLUTCH ASM; PINION,STARTER ASM PART: A = 8-98028-198-0, 98028198	8-97941-664-0	01	1	-
9	02.083 BEARING; GEAR SHAFT STARTER (A) ASM PART: B = 8-98028-199-0, 98028199, C = 8-98183-655-0, 98183655	8-97047-549-0	01	1	-
9	02.083 BEARING; GEAR SHAFT STARTER (B) ASM PART: B = 8-98028-199-0, 98028199, C = 8-98183-655-0, 98183655	8-97047-550-0	01	1	-
9	02.083 BEARING; GEAR SHAFT STARTER (C) ASM PART: A = 8-98028-198-0, 98028198	8-97941-659-0	01	1	-
9	02.083 BEARING; GEAR SHAFT STARTER (D) ASM PART: A = 8-98028-198-0, 98028198	8-97941-660-0	01	1	-
10	02.086 SHAFT; GEAR STARTER ASM PART: A = 8-98028-198-0, 98028198, B = 8-98028-199-0, 98028199, C = 8-98183-655-0, 98183655	8-97130-189-1	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: B = 8-98028-199-0, 98028199, C = 8-98183-655-0, 98183655	8-97262-027-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: A = 8-98028-198-0, 98028198	8-97941-656-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (A) ASM PART: B = 8-98028-199-0, 98028199, C = 8-98183-655-0, 98183655	8-94228-436-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (B) ASM PART: B = 8-98028-199-0, 98028199, C = 8-98183-655-0, 98183655	8-94228-437-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (C) ASM PART: A = 8-98028-198-0, 98028198	8-97941-657-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (D) ASM PART: A = 8-98028-198-0, 98028198	8-97941-658-0	01	1	-
19	02.049 COIL; FIELD,STARTER ASM PART: A = 8-98028-198-0, 98028198	8-97357-783-1	01	1	-
19	02.049 COIL; FIELD,STARTER ASM PART: B = 8-98028-199-0, 98028199, C = 8-98183-655-0, 98183655	8-97376-957-1	01	1	-
20	02.051 BRUSH; (+),STARTER ASM PART: A = 8-98028-198-0, 98028198	8-97112-557-0	02	1	-
20	02.051 BRUSH; (+),STARTER ASM PART: B = 8-98028-199-0, 98028199, C = 8-98183-655-0, 98183655	8-97113-286-0	02	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: A = 8-98028-198-0, 98028198, B = 8-98028-199-0, 98028199, C = 8-98183-655-0, 98183655	8-94242-064-0	04	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: B = 8-98028-199-0, 98028199, C = 8-98183-655-0, 98183655	8-97112-559-1	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: A = 8-98028-198-0, 98028198	8-97941-663-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: A = 8-98028-198-0, 98028198	8-97227-901-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: B = 8-98028-199-0, 98028199, C = 8-98183-655-0, 98183655	8-97319-418-0	01	1	-
27	02.077 BOLT; THROUGH,STARTER ASM PART: A = 8-98028-198-0, 98028198	8-97262-497-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER ASM PART: B = 8-98028-199-0, 98028199, C = 8-98183-655-0, 98183655	8-97319-423-0	02	1	-
28	02.108 LEVER; SHIFT,STARTER ASM PART: B = 8-98028-199-0, 98028199, C = 8-98183-655-0, 98183655	8-97351-967-0	01	1	-
28	02.108 LEVER; SHIFT,STARTER ASM PART: A = 8-98028-198-0, 98028198	8-97941-670-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: A = 8-98028-198-0, 98028198	8-97365-923-1	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: B = 8-98028-199-0, 98028199	8-97368-561-1	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: C = 8-98183-655-0, 98183655	8-98187-413-0	01	1	-
45	02.042 RETAINER; BEARING,STARTER 02.086 ASM PART: B = 8-98028-199-0, 98028199, C = 8-98183-655-0, 98183655	8-94435-570-0	01	1	-
50	02.051 BRUSH; (-),STARTER ASM PART: A = 8-98028-198-0, 98028198	8-97112-557-0	02	1	-
50	02.051 BRUSH; (-),STARTER ASM PART: B = 8-98028-199-0, 98028199, C = 8-98183-655-0, 98183655	8-97113-286-0	02	1	-
51	02.104 COVER SET; DUST ENGAGE SW STARTE ASM PART: B = 8-98028-199-0, 98028199, C = 8-98183-655-0, 98183655	8-97368-563-0	01	1	-
51	02.104 COVER SET; DUST ENGAGE SW STARTE ASM PART: A = 8-98028-198-0, 98028198	8-97941-671-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: B = 8-98028-199-0, 98028199, C = 8-98183-655-0, 98183655	8-97229-911-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: A = 8-98028-198-0, 98028198	8-97941-665-0	01	1	-
73	02.063 STOPPER SET; PINION ASM PART: A = 8-98028-198-0, 98028198, B = 8-98028-199-0, 98028199, C = 8-98183-655-0, 98183655	8-94228-450-0	01	1	-
85	02.102 BOLT; ENGAGE SW FIX,STARTER ASM PART: B = 8-98028-199-0, 98028199, C = 8-98183-655-0, 98183655	8-94408-500-0	02	1	-
85	02.102 BOLT; ENGAGE SW FIX,STARTER ASM PART: A = 8-98028-198-0, 98028198	8-97941-672-0	02	1	-

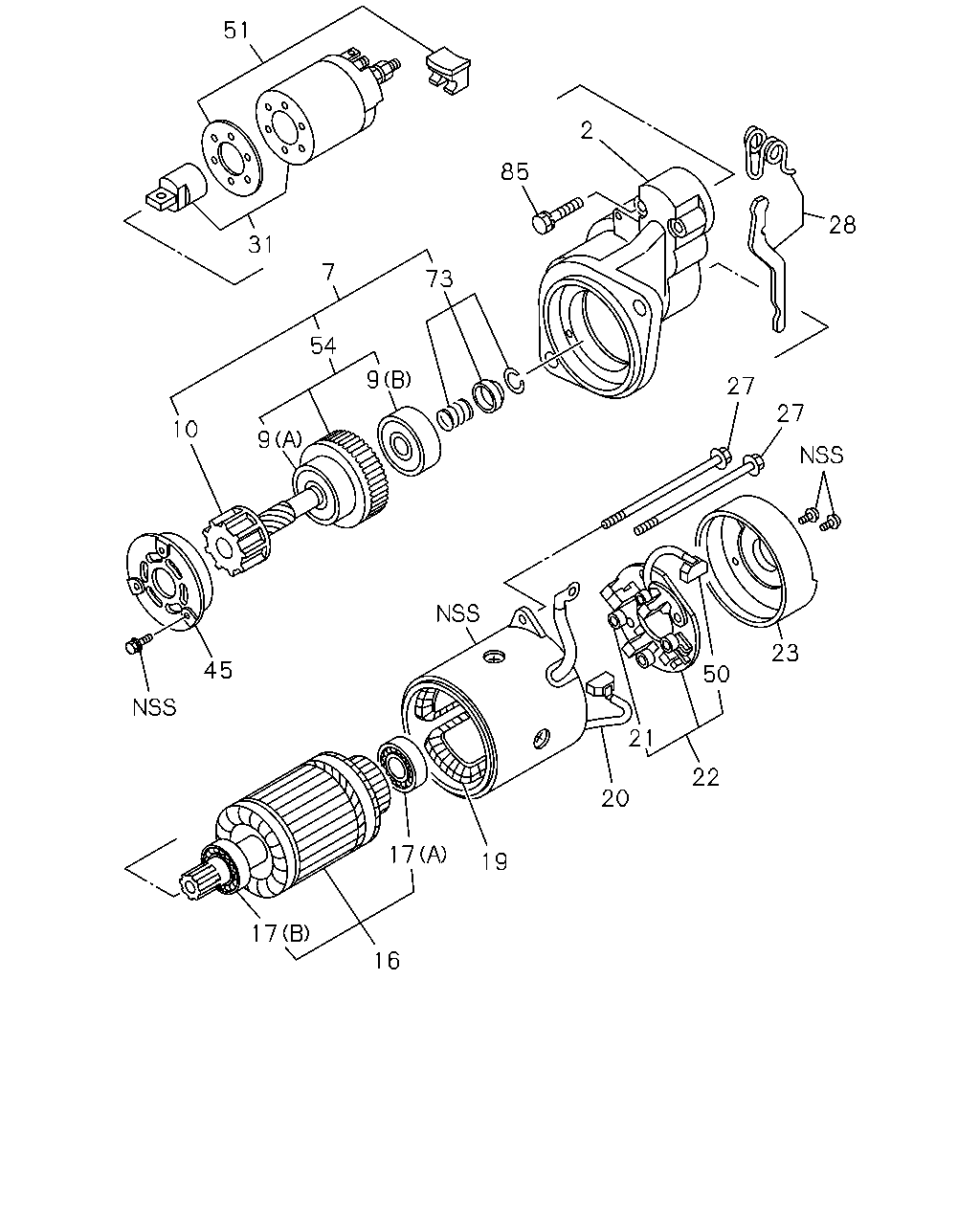

51 85 2 28 27 27 73 85 7 31 9 54 10 9 43 17 19 20 21 50 23 22 16 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	02.085 CASE; PINION,STARTER ASM PART: B = 8-98028-199-0, 98028199	8-97368-562-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: A = 8-98028-198-0, 98028198	8-97941-668-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: C = 8-98183-655-0, 98183655	8-98186-664-0	01	1	-
7	02.086 CLUTCH ASM; PINION,STARTER ASM PART: B = 8-98028-199-0, 98028199, C = 8-98183-655-0, 98183655	8-97229-910-0	01	1	-
7	02.086 CLUTCH ASM; PINION,STARTER ASM PART: A = 8-98028-198-0, 98028198	8-97941-664-0	01	1	-
9	02.083 BEARING; GEAR SHAFT STARTER (A) ASM PART: B = 8-98028-199-0, 98028199, C = 8-98183-655-0, 98183655	8-97047-549-0	01	1	-
9	02.083 BEARING; GEAR SHAFT STARTER (B) ASM PART: B = 8-98028-199-0, 98028199, C = 8-98183-655-0, 98183655	8-97047-550-0	01	1	-
9	02.083 BEARING; GEAR SHAFT STARTER (C) ASM PART: A = 8-98028-198-0, 98028198	8-97941-659-0	01	1	-
9	02.083 BEARING; GEAR SHAFT STARTER (D) ASM PART: A = 8-98028-198-0, 98028198	8-97941-660-0	01	1	-
10	02.086 SHAFT; GEAR STARTER ASM PART: A = 8-98028-198-0, 98028198, B = 8-98028-199-0, 98028199, C = 8-98183-655-0, 98183655	8-97130-189-1	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: B = 8-98028-199-0, 98028199, C = 8-98183-655-0, 98183655	8-97262-027-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: A = 8-98028-198-0, 98028198	8-97941-656-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (A) ASM PART: B = 8-98028-199-0, 98028199, C = 8-98183-655-0, 98183655	8-94228-436-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (B) ASM PART: B = 8-98028-199-0, 98028199, C = 8-98183-655-0, 98183655	8-94228-437-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (C) ASM PART: A = 8-98028-198-0, 98028198	8-97941-657-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (D) ASM PART: A = 8-98028-198-0, 98028198	8-97941-658-0	01	1	-
19	02.049 COIL; FIELD,STARTER ASM PART: A = 8-98028-198-0, 98028198	8-97357-783-1	01	1	-
19	02.049 COIL; FIELD,STARTER ASM PART: B = 8-98028-199-0, 98028199, C = 8-98183-655-0, 98183655	8-97376-957-1	01	1	-
20	02.051 BRUSH; (+),STARTER ASM PART: A = 8-98028-198-0, 98028198	8-97112-557-0	02	1	-
20	02.051 BRUSH; (+),STARTER ASM PART: B = 8-98028-199-0, 98028199, C = 8-98183-655-0, 98183655	8-97113-286-0	02	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: A = 8-98028-198-0, 98028198, B = 8-98028-199-0, 98028199, C = 8-98183-655-0, 98183655	8-94242-064-0	04	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: B = 8-98028-199-0, 98028199, C = 8-98183-655-0, 98183655	8-97112-559-1	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: A = 8-98028-198-0, 98028198	8-97941-663-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: A = 8-98028-198-0, 98028198	8-97227-901-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: B = 8-98028-199-0, 98028199, C = 8-98183-655-0, 98183655	8-97319-418-0	01	1	-
27	02.077 BOLT; THROUGH,STARTER ASM PART: A = 8-98028-198-0, 98028198	8-97262-497-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER ASM PART: B = 8-98028-199-0, 98028199, C = 8-98183-655-0, 98183655	8-97319-423-0	02	1	-
28	02.108 LEVER; SHIFT,STARTER ASM PART: B = 8-98028-199-0, 98028199, C = 8-98183-655-0, 98183655	8-97351-967-0	01	1	-
28	02.108 LEVER; SHIFT,STARTER ASM PART: A = 8-98028-198-0, 98028198	8-97941-670-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: A = 8-98028-198-0, 98028198	8-97365-923-1	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: B = 8-98028-199-0, 98028199	8-97368-561-1	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: C = 8-98183-655-0, 98183655	8-98187-413-0	01	1	-
43	02.086 RETAINER; PINION STARTER ASM PART: A = 8-98028-198-0, 98028198	8-97941-669-0	01	1	-
50	02.051 BRUSH; (-),STARTER ASM PART: A = 8-98028-198-0, 98028198	8-97112-557-0	02	1	-
50	02.051 BRUSH; (-),STARTER ASM PART: B = 8-98028-199-0, 98028199, C = 8-98183-655-0, 98183655	8-97113-286-0	02	1	-
51	02.104 COVER SET; DUST ENGAGE SW STARTE ASM PART: B = 8-98028-199-0, 98028199, C = 8-98183-655-0, 98183655	8-97368-563-0	01	1	-
51	02.104 COVER SET; DUST ENGAGE SW STARTE ASM PART: A = 8-98028-198-0, 98028198	8-97941-671-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: B = 8-98028-199-0, 98028199, C = 8-98183-655-0, 98183655	8-97229-911-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: A = 8-98028-198-0, 98028198	8-97941-665-0	01	1	-
73	02.063 STOPPER SET; PINION ASM PART: A = 8-98028-198-0, 98028198, B = 8-98028-199-0, 98028199, C = 8-98183-655-0, 98183655	8-94228-450-0	01	1	-
85	02.102 BOLT; ENGAGE SW FIX,STARTER ASM PART: B = 8-98028-199-0, 98028199, C = 8-98183-655-0, 98183655	8-94408-500-0	02	1	-
85	02.102 BOLT; ENGAGE SW FIX,STARTER ASM PART: A = 8-98028-198-0, 98028198	8-97941-672-0	02	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
