0-50 — OIL COOLER AND OIL FILTER (#148411) — 130 parça

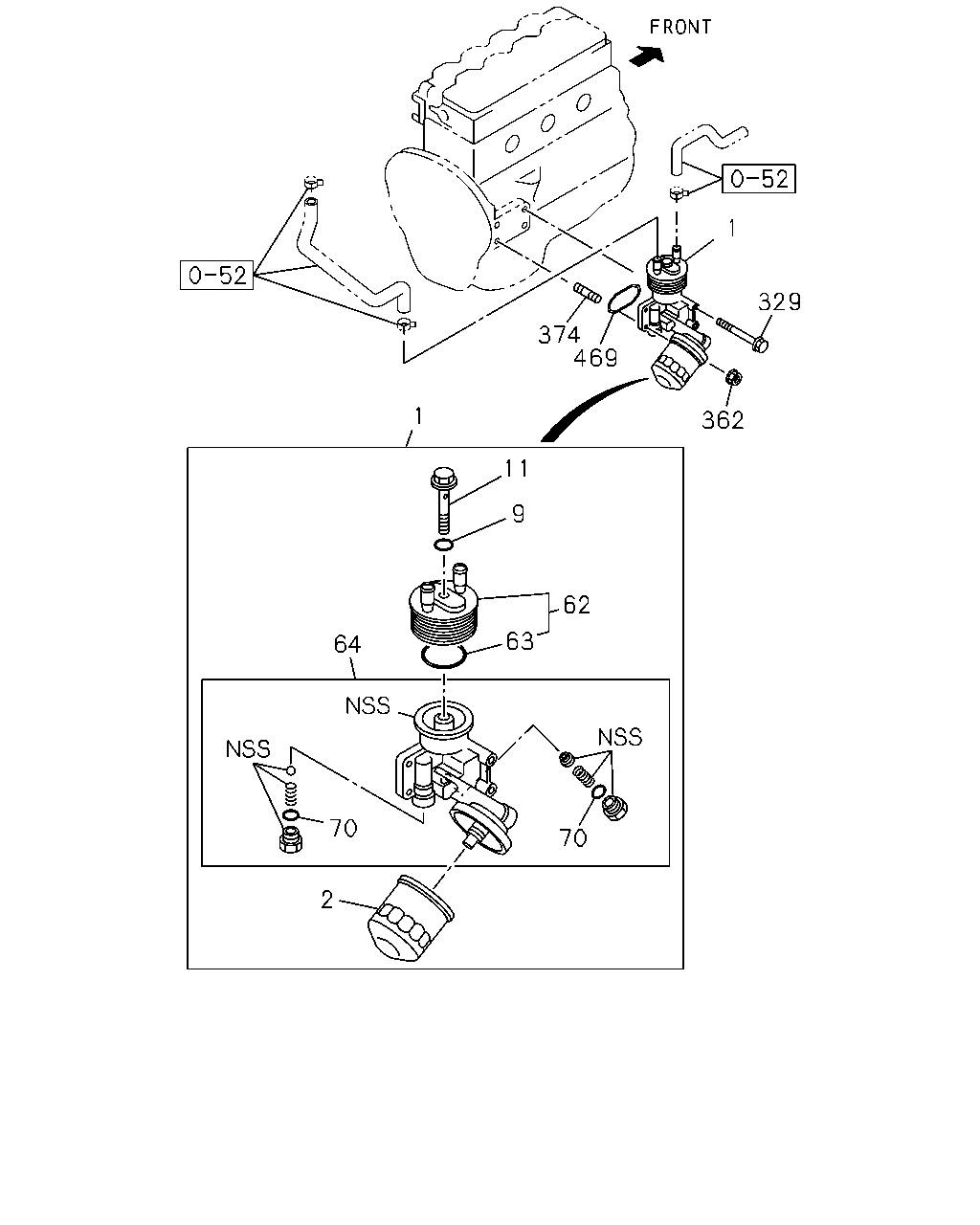

2 70 70 63 64 9 11 1 374 362 469 329 62 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	01.540 FILTER & COOLER ASM; OIL	8-97373-137-1	01	1	1412-	●
2	01.836 ELEMENT; OIL FILTER	8-97309-927-0	01	1	1412-	●
2	01.836 ELEMENT; OIL FILTER	8-98165-071-0	01	1	1409-1411		●
2	01.836 ELEMENT; OIL FILTER	8-98165-071-0	01	1	1412-		●	●	●	●
9	01.840 GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97288-938-0	01	1	1412-	●
9	01.840 GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). 01.550 ID=26.2	9-09566-226-0	02	1	1409-1411		●
9	01.840 GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). 01.550 ID=26.2	9-09566-226-0	02	1	1412-		●	●	●	●
11	01.840 BOLT; CENTER	8-97288-935-0	01	1	1412-	●
62	01.540 COOLER ASM; OIL	8-98124-173-1	01	1	1412-			●
62	01.540 COOLER ASM; OIL	8-97319-556-1	01	1	1412-	●
62	01.540 COOLER ASM; OIL	8-98226-843-0	01	1	1412-				●
62	01.540 COOLER ASM; OIL	8-98185-691-0	01	1	1412-					●
62	01.540 COOLER ASM; OIL	8-98251-175-0	01	1	1409-		●
63	01.550 GASKET; COOLER TO BRKT	8-94450-917-0	01	1	1412-	●
64	01.540 BODY; OIL FILTER & OIL COOLER	8-97373-138-0	01	1	1412-	●
70	01.844 GASKET; PLUG,OIL FILTER	8-97914-706-0	02	1	1412-	●
329	01.840 BOLT; OIL FILTER 01.062 M8X95 FLANGE	1-09044-075-1	02	1	1412-	●
362	01.837 NUT; OIL FILTER 01.062 M8 FLANGE	0-91180-108-0	02	1	1412-	●
362	01.837 NUT; OIL FILTER 01.540 M8 FLANGE	0-91180-208-0	02	1	1409-1411		●
362	01.837 NUT; OIL FILTER 01.540 M8 FLANGE	0-91180-208-0	02	1	1412-		●	●	●	●
374	01.840 STUD; OIL FILTER 03.275 M8X25 L=37	0-41010-825-0	02	1	1412-	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-98087-965-0	01	1	1412-	●

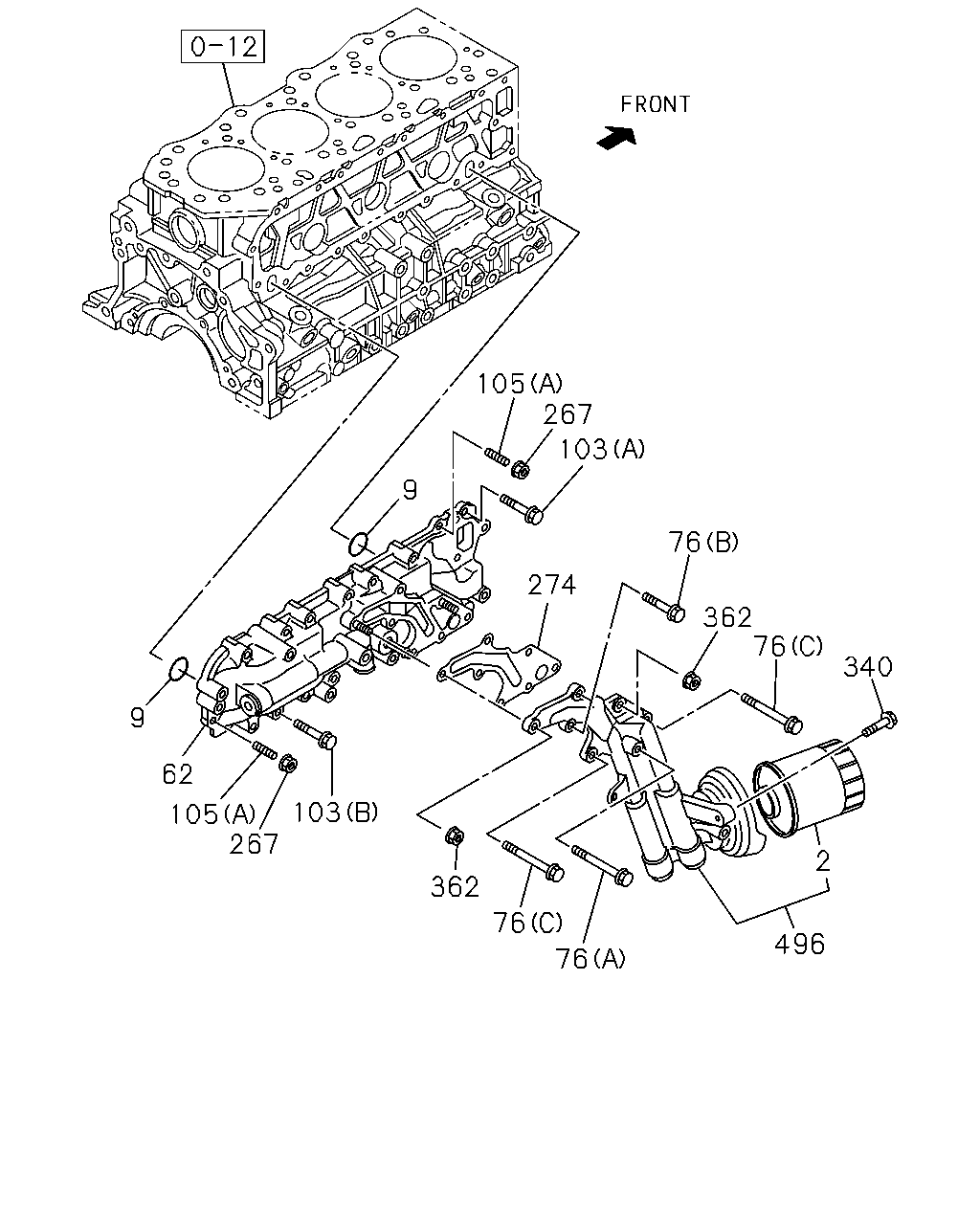

105 103 267 76 362 76 340 274 9 9 62 105 103 267 362 76 76 496 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
2	01.836 ELEMENT; OIL FILTER	8-97309-927-0	01	1	1412-	●
2	01.836 ELEMENT; OIL FILTER	8-98165-071-0	01	1	1409-1411		●
2	01.836 ELEMENT; OIL FILTER	8-98165-071-0	01	1	1412-		●	●	●	●
9	01.840 GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97288-938-0	01	1	1412-	●
9	01.840 GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). 01.550 ID=26.2	9-09566-226-0	02	1	1409-1411		●
9	01.840 GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). 01.550 ID=26.2	9-09566-226-0	02	1	1412-		●	●	●	●
62	01.540 COOLER ASM; OIL	8-98124-173-1	01	1	1412-			●
62	01.540 COOLER ASM; OIL	8-97319-556-1	01	1	1412-	●
62	01.540 COOLER ASM; OIL	8-98226-843-0	01	1	1412-				●
62	01.540 COOLER ASM; OIL	8-98185-691-0	01	1	1412-					●
62	01.540 COOLER ASM; OIL	8-98251-175-0	01	1	1409-		●
76	01.840 BOLT; OIL FILTER 09.173 (D) M8X45 FLANGE	0-28050-845-0	01	1	1412-			●		●
76	01.840 BOLT; OIL FILTER 04.686 (E) M8X60 FLANGE	0-28050-860-0	01	1	1412-			●		●
76	01.840 BOLT; OIL FILTER 03.275 (B) M8X25 FLANGE	0-28050-825-0	07	1	1412-			●
76	01.840 BOLT; OIL FILTER 03.275 (B) M8X25 FLANGE	0-28050-825-0	06	1	1412-					●
76	01.840 BOLT; OIL FILTER 00.386 (A) M8X100 FLANGE	0-28050-800-0	01	1	1409-1411		●
76	01.840 BOLT; OIL FILTER 00.386 (A) M8X100 FLANGE	0-28050-800-0	01	1	1412-		●		●
76	01.840 BOLT; OIL FILTER 03.275 (B) M8X25 FLANGE	0-28050-825-0	02	1	1409-1411		●
76	01.840 BOLT; OIL FILTER 03.275 (B) M8X25 FLANGE	0-28050-825-0	02	1	1412-		●		●
76	01.840 BOLT; OIL FILTER 01.252 (C) M8X80 FLANGE	0-28050-880-0	02	1	1409-1411		●
76	01.840 BOLT; OIL FILTER 01.252 (C) M8X80 FLANGE	0-28050-880-0	02	1	1412-		●		●
103	01.540 BOLT; OIL COOLER 09.173 (B) M8X45 FLANGE	0-28050-845-0	15	1	1412-			●		●
103	01.540 BOLT; OIL COOLER 04.338 (A) M8X20 FLANGE	0-28050-820-0	01	1	1409-1411		●
103	01.540 BOLT; OIL COOLER 04.338 (A) M8X20 FLANGE	0-28050-820-0	01	1	1412-		●		●
103	01.540 BOLT; OIL COOLER 09.173 (B) M8X45 FLANGE	0-28050-845-0	13	1	1409-1411		●
103	01.540 BOLT; OIL COOLER 09.173 (B) M8X45 FLANGE	0-28050-845-0	13	1	1412-		●		●
105	01.540 STUD; OIL COOLER 02.510 (A) M8X20 L=32	0-41010-820-0	01	1	1412-			●		●
105	01.540 STUD; OIL COOLER 01.252 (B) M8X45 L=57	0-41010-845-0	01	1	1412-			●		●
105	01.540 STUD; OIL COOLER 02.510 (A) M8X20 L=32	0-41010-820-0	02	1	1409-1411		●
105	01.540 STUD; OIL COOLER 02.510 (A) M8X20 L=32	0-41010-820-0	02	1	1412-		●		●
267	01.840 NUT; OIL COOLER 01.540 M8 FLANGE	0-91180-208-0	02	1	1409-1411		●
267	01.840 NUT; OIL COOLER 01.540 M8 FLANGE	0-91180-208-0	02	1	1412-		●	●	●	●
274	01.844 GASKET; OIL FILTER	8-98124-080-1	01	1	1412-			●		●
274	01.844 GASKET; OIL FILTER	8-98226-841-0	01	1	1409-1411		●
274	01.844 GASKET; OIL FILTER	8-98226-841-0	01	1	1412-		●		●
340	01.840 BOLT; BRKT 02.343 M8X16 FLANGE	0-28050-816-0	03	1	1412-			●		●
340	01.840 BOLT; BRKT 00.685 M8X40 FLANGE	0-28650-840-0	01	1	1409-1411		●
340	01.840 BOLT; BRKT 00.685 M8X40 FLANGE	0-28650-840-0	01	1	1412-		●		●
362	01.837 NUT; OIL FILTER 01.062 M8 FLANGE	0-91180-108-0	02	1	1412-	●
362	01.837 NUT; OIL FILTER 01.540 M8 FLANGE	0-91180-208-0	02	1	1409-1411		●
362	01.837 NUT; OIL FILTER 01.540 M8 FLANGE	0-91180-208-0	02	1	1412-		●	●	●	●
496	01.835 FILTER ASM; OIL	8-98186-452-1	01	1	1412-			●		●
496	01.835 FILTER ASM; OIL	8-98226-423-1	01	1	1409-1411		●
496	01.835 FILTER ASM; OIL	8-98226-423-1	01	1	1412-		●		●

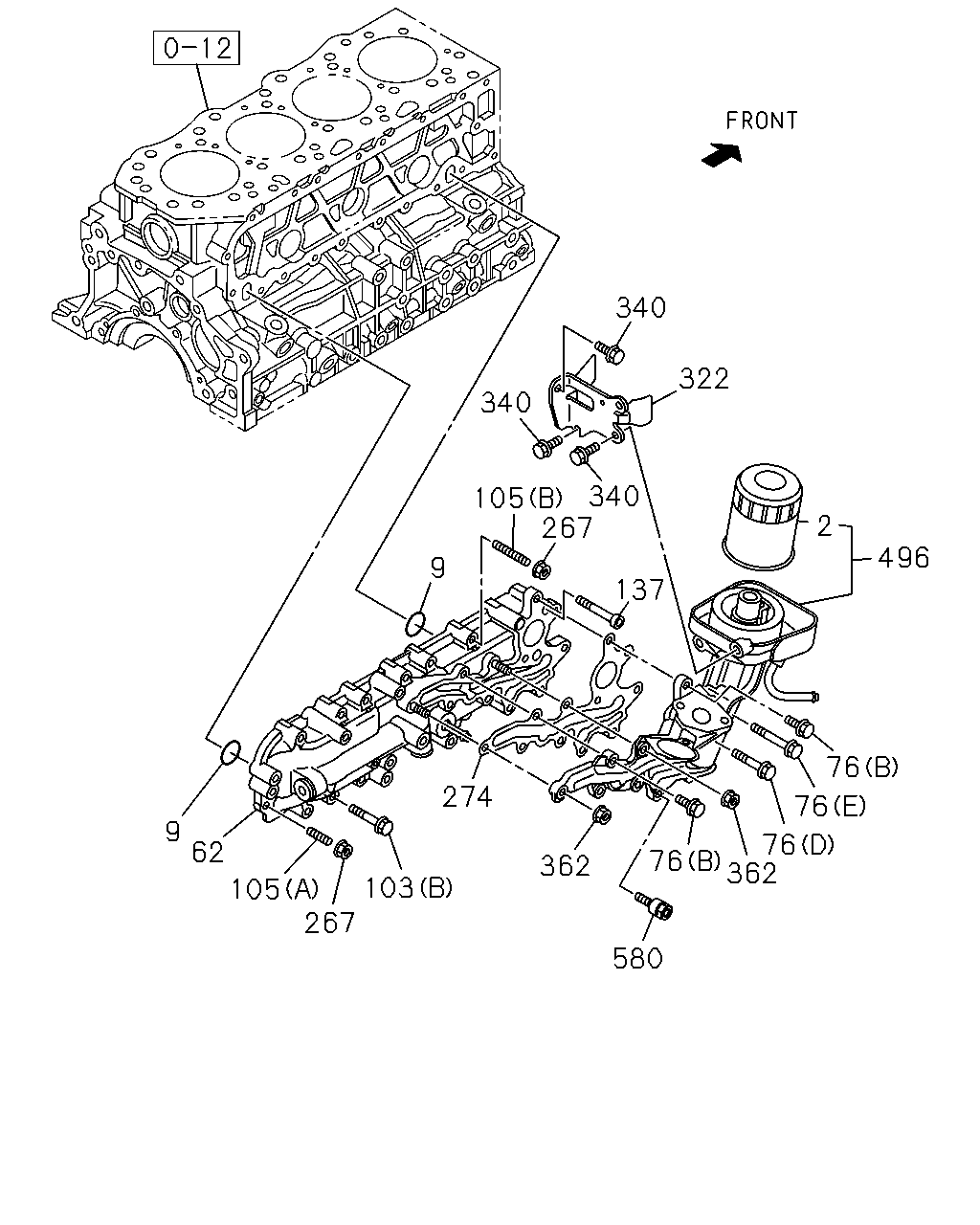

340 322 340 340 105 2 137 267 9 274 9 62 105 267 362 103 580 76 362 76 76 76 496

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
2	01.836 ELEMENT; OIL FILTER	8-97309-927-0	01	1	1412-	●
2	01.836 ELEMENT; OIL FILTER	8-98165-071-0	01	1	1409-1411		●
2	01.836 ELEMENT; OIL FILTER	8-98165-071-0	01	1	1412-		●	●	●	●
9	01.840 GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97288-938-0	01	1	1412-	●
9	01.840 GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). 01.550 ID=26.2	9-09566-226-0	02	1	1409-1411		●
9	01.840 GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). 01.550 ID=26.2	9-09566-226-0	02	1	1412-		●	●	●	●
62	01.540 COOLER ASM; OIL	8-98124-173-1	01	1	1412-			●
62	01.540 COOLER ASM; OIL	8-97319-556-1	01	1	1412-	●
62	01.540 COOLER ASM; OIL	8-98226-843-0	01	1	1412-				●
62	01.540 COOLER ASM; OIL	8-98185-691-0	01	1	1412-					●
62	01.540 COOLER ASM; OIL	8-98251-175-0	01	1	1409-		●
76	01.840 BOLT; OIL FILTER 09.173 (D) M8X45 FLANGE	0-28050-845-0	01	1	1412-			●		●
76	01.840 BOLT; OIL FILTER 04.686 (E) M8X60 FLANGE	0-28050-860-0	01	1	1412-			●		●
76	01.840 BOLT; OIL FILTER 03.275 (B) M8X25 FLANGE	0-28050-825-0	07	1	1412-			●
76	01.840 BOLT; OIL FILTER 03.275 (B) M8X25 FLANGE	0-28050-825-0	06	1	1412-					●
76	01.840 BOLT; OIL FILTER 00.386 (A) M8X100 FLANGE	0-28050-800-0	01	1	1409-1411		●
76	01.840 BOLT; OIL FILTER 00.386 (A) M8X100 FLANGE	0-28050-800-0	01	1	1412-		●		●
76	01.840 BOLT; OIL FILTER 03.275 (B) M8X25 FLANGE	0-28050-825-0	02	1	1409-1411		●
76	01.840 BOLT; OIL FILTER 03.275 (B) M8X25 FLANGE	0-28050-825-0	02	1	1412-		●		●
76	01.840 BOLT; OIL FILTER 01.252 (C) M8X80 FLANGE	0-28050-880-0	02	1	1409-1411		●
76	01.840 BOLT; OIL FILTER 01.252 (C) M8X80 FLANGE	0-28050-880-0	02	1	1412-		●		●
103	01.540 BOLT; OIL COOLER 09.173 (B) M8X45 FLANGE	0-28050-845-0	15	1	1412-			●		●
103	01.540 BOLT; OIL COOLER 04.338 (A) M8X20 FLANGE	0-28050-820-0	01	1	1409-1411		●
103	01.540 BOLT; OIL COOLER 04.338 (A) M8X20 FLANGE	0-28050-820-0	01	1	1412-		●		●
103	01.540 BOLT; OIL COOLER 09.173 (B) M8X45 FLANGE	0-28050-845-0	13	1	1409-1411		●
103	01.540 BOLT; OIL COOLER 09.173 (B) M8X45 FLANGE	0-28050-845-0	13	1	1412-		●		●
105	01.540 STUD; OIL COOLER 02.510 (A) M8X20 L=32	0-41010-820-0	01	1	1412-			●		●
105	01.540 STUD; OIL COOLER 01.252 (B) M8X45 L=57	0-41010-845-0	01	1	1412-			●		●
105	01.540 STUD; OIL COOLER 02.510 (A) M8X20 L=32	0-41010-820-0	02	1	1409-1411		●
105	01.540 STUD; OIL COOLER 02.510 (A) M8X20 L=32	0-41010-820-0	02	1	1412-		●		●
137	01.840 BOLT 00.206 M8X60 HEX SOCKET	0-58330-860-0	03	1	1412-			●		●
267	01.840 NUT; OIL COOLER 01.540 M8 FLANGE	0-91180-208-0	02	1	1409-1411		●
267	01.840 NUT; OIL COOLER 01.540 M8 FLANGE	0-91180-208-0	02	1	1412-		●	●	●	●
274	01.844 GASKET; OIL FILTER	8-98124-080-1	01	1	1412-			●		●
274	01.844 GASKET; OIL FILTER	8-98226-841-0	01	1	1409-1411		●
274	01.844 GASKET; OIL FILTER	8-98226-841-0	01	1	1412-		●		●
322	01.840 BRACKET; OIL FILTER	8-98132-020-1	01	1	1412-			●		●
340	01.840 BOLT; BRKT 02.343 M8X16 FLANGE	0-28050-816-0	03	1	1412-			●		●
340	01.840 BOLT; BRKT 00.685 M8X40 FLANGE	0-28650-840-0	01	1	1409-1411		●
340	01.840 BOLT; BRKT 00.685 M8X40 FLANGE	0-28650-840-0	01	1	1412-		●		●
362	01.837 NUT; OIL FILTER 01.062 M8 FLANGE	0-91180-108-0	02	1	1412-	●
362	01.837 NUT; OIL FILTER 01.540 M8 FLANGE	0-91180-208-0	02	1	1409-1411		●
362	01.837 NUT; OIL FILTER 01.540 M8 FLANGE	0-91180-208-0	02	1	1412-		●	●	●	●
496	01.835 FILTER ASM; OIL	8-98186-452-1	01	1	1412-			●		●
496	01.835 FILTER ASM; OIL	8-98226-423-1	01	1	1409-1411		●
496	01.835 FILTER ASM; OIL	8-98226-423-1	01	1	1412-		●		●
580	01.540 ADAPTER	8-98181-435-0	01	1	1412-					●

462 342 278 201 278 343 343 343 343 342 496

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C	D	E
201	01.540 PIPE; VINYL,OIL DRAIN EXC. PROVISIONAL PACKAGE SPEC(BCC)	8-98199-904-0	01	1	1412-	●	●	●
278	01.540 CLAMP; RUBBER HOSE EXC. PROVISIONAL PACKAGE SPEC(BCC) 03.162 ID=14	8-97173-221-0	02	1	1412-	●	●	●
342	03.675 HOSE; OIL DRAIN (B)	8-98200-230-1	01	1	1412-		●
342	03.675 HOSE; OIL DRAIN EXC. PROVISIONAL PACKAGE SPEC(BCC) (A)	8-98199-910-0	01	1	1412-	●	●	●
343	01.540 CLIP; HOSE,OIL DRAIN 02.559 (A) ID=16	8-97040-812-0	01	1	1412-		●
343	01.540 CLIP; HOSE,OIL DRAIN (B)	8-98074-648-0	02	1	1412-		●
343	01.540 CLIP; HOSE,OIL DRAIN (C)	8-98074-650-0	01	1	1412-		●
462	01.540 CLIP; HOSE,DRAIN EXC. PROVISIONAL PACKAGE SPEC(BCC) 04.681	8-97025-737-1	01	1	1412-	●	●	●
496	01.835 FILTER ASM; OIL	8-98186-452-1	01	1	1412-		●		●
496	01.835 FILTER ASM; OIL	8-98226-423-1	01	1	1409-1411	●
496	01.835 FILTER ASM; OIL	8-98226-423-1	01	1	1412-	●		●

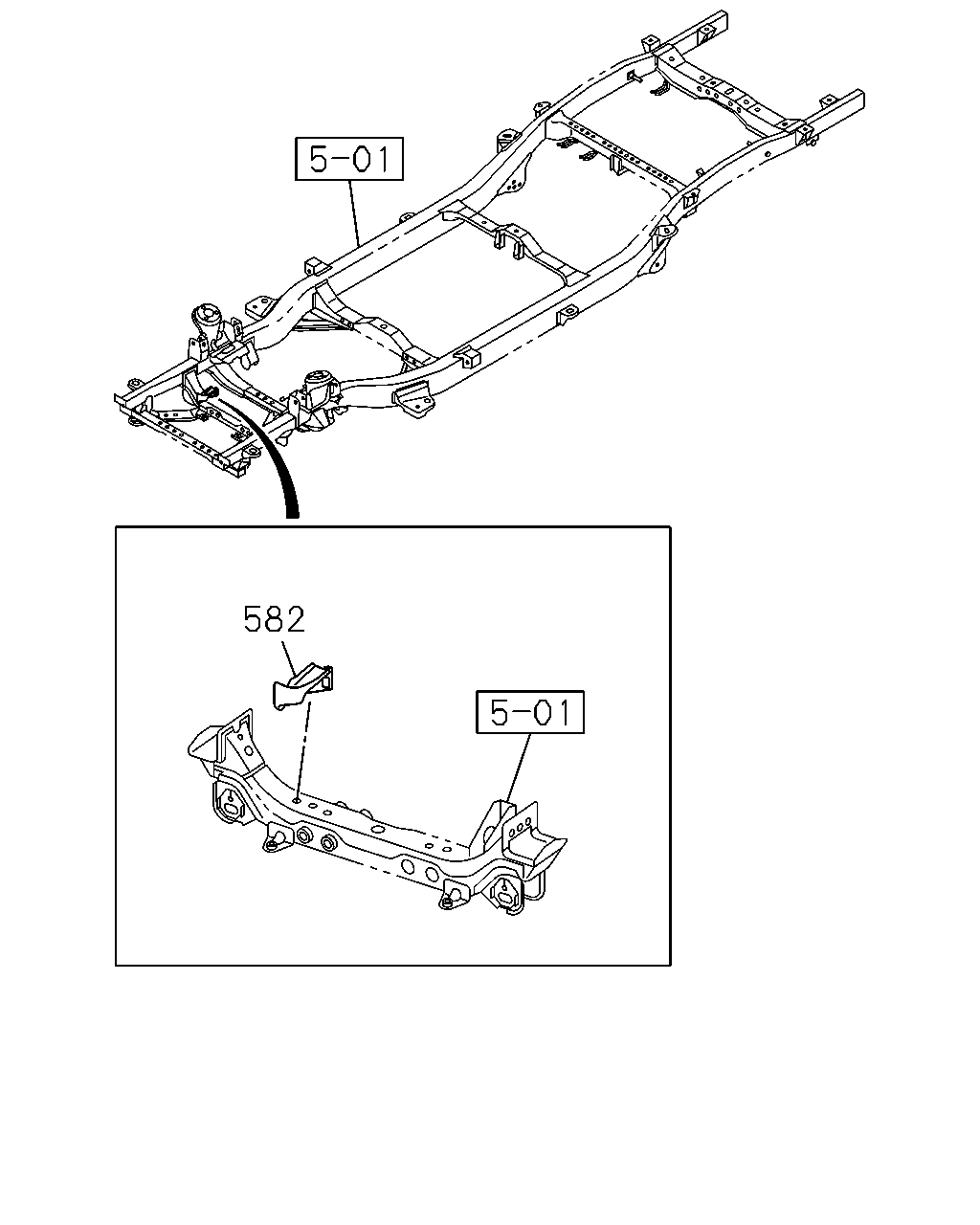

582

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C	D	E
582	01.540 TRAY; OIL 4X2(TFB***) EXC. HIGH RIDE SUSPENSION(7YC)	8-98236-507-2	01	1	1409-1411	●
582	01.540 TRAY; OIL 4X2(TFB***) PROVISIONAL PACKAGE SPEC(BCC) EXC. HIGH RIDE SUSPENSION(7YC)	8-98236-507-2	01	1	1412-	●	●	●	●
582	01.540 TRAY; OIL 4X2(TFB***) HIGH RIDE SUSPENSION(7YC)	8-98235-616-3	01	1	1409-1411	●
582	01.540 TRAY; OIL 4X4(TFS***)	8-98235-616-3	01	1	1409-1411	●
582	01.540 TRAY; OIL 4X2(TFB***) PROVISIONAL PACKAGE SPEC(BCC) HIGH RIDE SUSPENSION(7YC)	8-98235-616-3	01	1	1412-	●	●	●	●
582	01.540 TRAY; OIL 4X4(TFS***) PROVISIONAL PACKAGE SPEC(BCC)	8-98235-616-3	01	1	1412-	●	●	●	●
