0-40 — FUEL INJECTION SYSTEM (#148409) — 570 parça

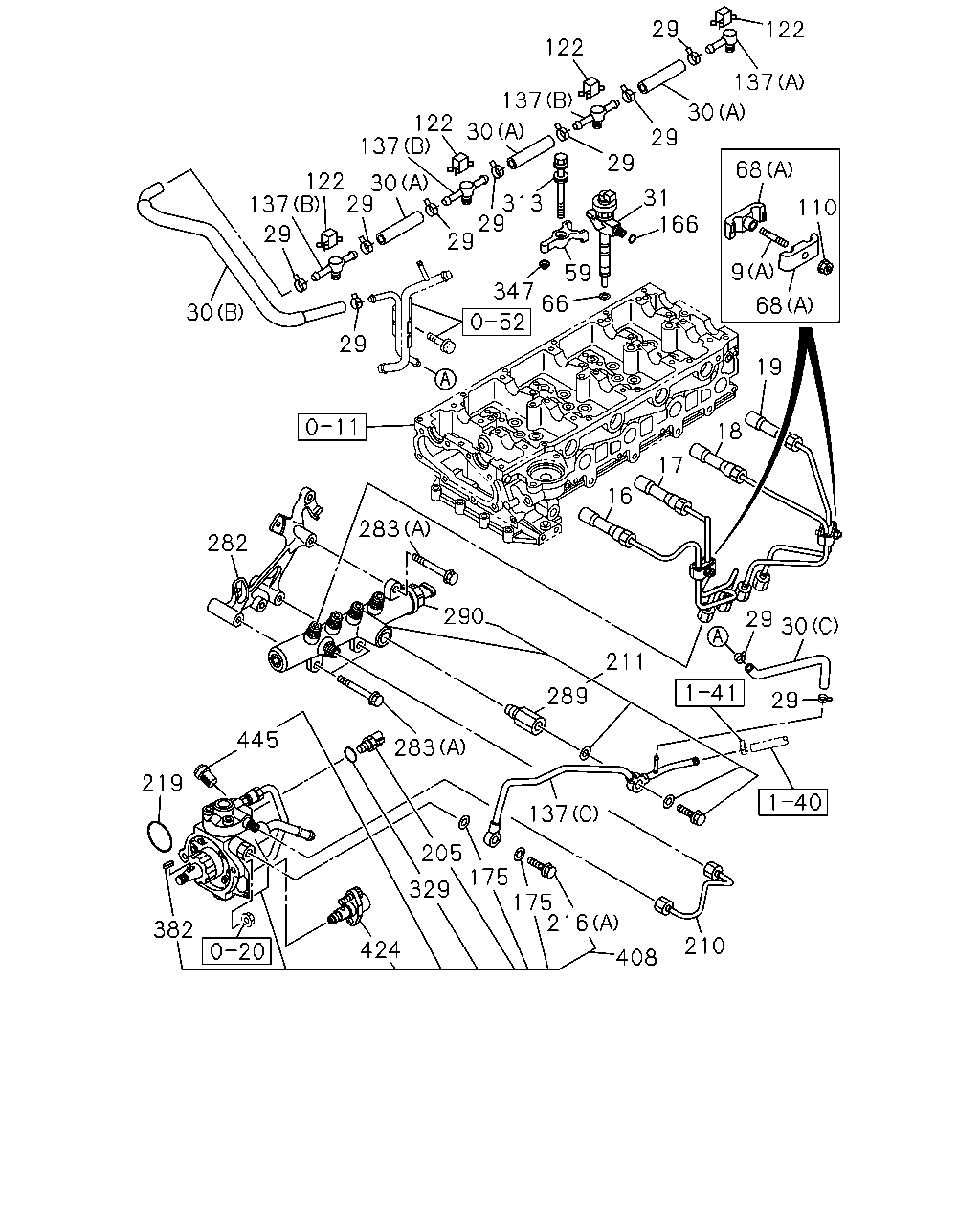

çizim 443987
29 122 122 137 137 30 29 29 30 122 137 122 137 30 29 29 30 29 29 29 313 31 59 347 66 166 68 110 9 68 19 18 17 16 29 30 29 283 282 290 211 137 445 219 382 424 283 205 329 175 216 408 289 210 175
BalonParca AdiParca NoAdetTipApplied Date A B C D E
9 03.340 STUD; CLIP
00.413 (A) M6X30 L=38 		0-41010-630-0 02 1 1412- ● ● ●
9 03.340 STUD; CLIP
00.413 (A) M6X30 L=38 		0-41010-630-0 02 1 1409-1411 ●
9 03.340 STUD; CLIP
03.162 (B) M6X25 L=36 		8-97214-234-1 02 1 1412- ●
16 03.330 PIPE; INJ NO.1 8-98011-606-0 01 1 1412- ●
16 03.330 PIPE; INJ NO.1 8-97373-733-0 01 1 1412- ●
16 03.330 PIPE; INJ NO.1 8-98158-729-0 01 1 1412- ●
16 03.330 PIPE; INJ NO.1 8-98223-194-0 01 1 1409-1411 ●
16 03.330 PIPE; INJ NO.1 8-98223-194-0 01 1 1412- ● ●
17 03.330 PIPE; INJ NO.2 8-98043-684-0 01 1 1412- ●
17 03.330 PIPE; INJ NO.2 8-97365-210-0 01 1 1412- ●
17 03.330 PIPE; INJ NO.2 8-98158-730-0 01 1 1412- ●
17 03.330 PIPE; INJ NO.2 8-98223-195-1 01 1 1409-1411 ●
17 03.330 PIPE; INJ NO.2 8-98223-195-1 01 1 1412- ● ●
18 03.330 PIPE; INJ NO.3 8-98011-608-0 01 1 1412- ●
18 03.330 PIPE; INJ NO.3 8-97373-734-0 01 1 1412- ●
18 03.330 PIPE; INJ NO.3 8-98158-731-0 01 1 1412- ●
18 03.330 PIPE; INJ NO.3 8-98223-196-0 01 1 1409-1411 ●
18 03.330 PIPE; INJ NO.3 8-98223-196-0 01 1 1412- ● ●
19 03.330 PIPE; INJ NO.4 8-98011-609-0 01 1 1412- ●
19 03.330 PIPE; INJ NO.4 8-97373-735-0 01 1 1412- ●
19 03.330 PIPE; INJ NO.4 8-98158-732-0 01 1 1412- ●
19 03.330 PIPE; INJ NO.4 8-98223-197-0 01 1 1409-1411 ●
19 03.330 PIPE; INJ NO.4 8-98223-197-0 01 1 1412- ● ●
29 03.162 CLIP; HOSE
03.163 ID=11 		8-97173-219-0 02 1 1412- ●
29 03.162 CLIP; HOSE
ID=10.5 		8-97944-126-0 10 1 1409-1411 ●
29 03.162 CLIP; HOSE
ID=10.5 		8-97944-126-0 10 1 1412- ● ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(D) 		8-98168-394-0 01 1 1412- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=320 		8-98135-263-1 01 1 1412- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=96 		8-98053-693-0 03 1 1412- ● ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=96 		8-98053-693-0 03 1 1409-1411 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=96 		8-98053-693-0 01 1 1412- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(C) 		8-98179-014-0 01 1 1409-1411 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(C) 		8-98179-014-0 01 1 1412- ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(B) 		8-98189-998-0 01 1 1409-1411 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(B) 		8-98189-998-0 01 1 1412- ● ● ●
31 03.332 NOZZLE ASM; INJ
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98119-228-3 04 1 1412- ●
31 03.332 NOZZLE ASM; INJ
COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) 		8-98106-694-1 04 1 1412- ●
31 03.332 NOZZLE ASM; INJ 8-97382-946-0 04 1 1412- ●
31 03.332 NOZZLE ASM; INJ 8-98246-130-0 04 1 1412- ●
31 03.332 NOZZLE ASM; INJ 8-98260-109-0 04 1 1412- ●
31 03.332 NOZZLE ASM; INJ 8-98106-693-2 04 1 1409- ●
59 03.332 CLAMP; NOZZLE HOLDER 8-97259-884-0 04 1 1412- ●
59 03.332 CLAMP; NOZZLE HOLDER 8-98092-539-0 04 1 1409-1411 ●
59 03.332 CLAMP; NOZZLE HOLDER 8-98092-539-0 04 1 1412- ● ● ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=7.2 OD=15.0 T=6.6 		8-97171-331-0 04 1 1412- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 		8-98181-540-0 04 1 1409-1411 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 		8-98181-540-0 04 1 1412- ● ● ● ●
68 03.162 CLIP; INJ PIPE
(F) 		8-97213-481-0 04 1 1412- ●
68 03.162 CLIP; INJ PIPE
03.634 (D) 		1-09701-240-0 04 1 1412- ●
68 03.162 CLIP; INJ PIPE
(E) 		8-98227-926-0 01 1 1412- ●
68 03.162 CLIP; INJ PIPE
(C) ID=7 & 7 L=22 		8-97330-118-3 02 1 1412- ●
68 03.162 CLIP; INJ PIPE
(B) ID=7 & 7 L=22 		8-97330-119-3 02 1 1412- ●
68 03.162 CLIP; INJ PIPE
(A) ID=11 & 11 L=19 		8-98148-996-2 04 1 1409-1411 ●
68 03.162 CLIP; INJ PIPE
(A) ID=11 & 11 L=19 		8-98148-996-2 04 1 1412- ● ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 1409-1411 ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 1412- ● ● ● ● ●
122 03.162 CLIP; LEAK OFF PIPE 8-97315-286-0 04 1 1409-1411 ●
122 03.162 CLIP; LEAK OFF PIPE 8-97315-286-0 04 1 1412- ● ● ● ●
137 03.163 PIPE ASM; LEAK OFF
(D) 		8-98132-085-0 01 1 1412- ●
137 03.163 PIPE ASM; LEAK OFF
(C) 		8-98158-737-1 01 1 1409-1411 ●
137 03.163 PIPE ASM; LEAK OFF
(C) 		8-98158-737-1 01 1 1412- ● ● ●
137 03.163 PIPE ASM; LEAK OFF
(B) 		8-98211-775-0 03 1 1409-1411 ●
137 03.163 PIPE ASM; LEAK OFF
(B) 		8-98211-775-0 03 1 1412- ● ● ● ●
137 03.163 PIPE ASM; LEAK OFF
(A) 		8-98211-776-0 01 1 1409-1411 ●
137 03.163 PIPE ASM; LEAK OFF
(A) 		8-98211-776-0 01 1 1412- ● ● ● ●
166 03.304 GASKET; FUEL INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 03.332 ID=11 OD=14.8 		9-09566-111-0 04 1 1409-1411 ●
166 03.304 GASKET; FUEL INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 03.332 ID=11 OD=14.8 		9-09566-111-0 04 1 1412- ● ● ● ●
175 03.162 GASKET; EYE BOLT,OUTLET,FUEL FEE
01.531 ID=10.2 OD=15.2 		1-09630-083-0 02 1 1409-1411 ●
175 03.162 GASKET; EYE BOLT,OUTLET,FUEL FEE
01.531 ID=10.2 OD=15.2 		1-09630-083-0 02 1 1412-1505 ● ● ● ●
175 03.162 GASKET; EYE BOLT,OUTLET,FUEL FEE 1-15619-508-0 02 1 1506- ● ● ● ●
205 03.320 SENSOR; FUEL TEMP 8-98023-581-0 01 1 1409-1411 ●
205 03.320 SENSOR; FUEL TEMP 8-98023-581-0 01 1 1412- ● ● ● ●
210 03.330 PIPE; INJ,C/R 8-97388-902-0 01 1 1412- ●
210 03.330 PIPE; INJ,C/R 8-98158-733-0 01 1 1412- ●
210 03.330 PIPE; INJ,C/R 8-98233-237-0 01 1 1409-1411 ●
210 03.330 PIPE; INJ,C/R 8-98233-237-0 01 1 1412- ● ●
211 03.331 RAIL ASM; COMMON 8-98132-055-1 01 1 1412- ●
211 03.331 RAIL ASM; COMMON 8-98151-214-0 01 1 1412- ●
211 03.331 RAIL ASM; COMMON 8-98228-475-0 01 1 1409-1411 ●
211 03.331 RAIL ASM; COMMON 8-98228-475-0 01 1 1412- ● ●
216 03.162 BOLT; EYE
(A) 		8-98209-777-0 01 1 1412- ● ● ● ●
216 03.162 BOLT; EYE
03.280 (A) 		9-88130-088-0 01 1 1409-1409 ●
216 03.162 BOLT; EYE
(A) 		8-98209-777-0 01 1 1410-1411 ●
216 03.162 BOLT; EYE
(B) 		8-98043-033-0 01 1 1412- ●
219 03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49.7 		1-09623-541-0 01 1 1409-1411 ●
219 03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49.7 		1-09623-541-0 01 1 1412- ● ● ● ●
282 03.163 BRACKET; COMMON RAIL 8-98132-056-0 01 1 1412- ●
282 03.163 BRACKET; COMMON RAIL 8-98158-715-2 01 1 1412- ●
282 03.163 BRACKET; COMMON RAIL 8-98205-942-0 01 1 1409-1411 ●
282 03.163 BRACKET; COMMON RAIL 8-98205-942-0 01 1 1412- ● ●
283 03.330 BOLT; COMMON RAIL
00.206 (E) M8X70 FLANGE 		0-28050-870-0 02 1 1412- ●
283 03.330 BOLT; COMMON RAIL
(B) M8X81 FLANGE 		8-97354-584-0 02 1 1412- ●
283 03.330 BOLT; COMMON RAIL
(C) M8X25 FLANGE 		8-98174-080-0 03 1 1412- ●
283 03.330 BOLT; COMMON RAIL
(D) M8X40 FLANGE 		8-98174-180-0 04 1 1412- ●
283 03.330 BOLT; COMMON RAIL
(A) M8X66 FLANGE 		8-98228-566-0 03 1 1409-1411 ●
283 03.330 BOLT; COMMON RAIL
(A) M8X66 FLANGE 		8-98228-566-0 03 1 1412- ● ●
289 03.331 LIMITER; FUEL PRESS 8-98032-549-0 01 1 1412- ● ● ●
289 03.331 LIMITER; FUEL PRESS 8-98032-549-0 01 1 1409-1411 ●
289 03.331 LIMITER; FUEL PRESS 8-98138-695-0 01 1 1412- ●
290 03.331 SENSOR; PRESS 8-98181-616-0 01 1 1412- ● ● ●
290 03.331 SENSOR; PRESS 8-98181-616-0 01 1 1409-1411 ●
290 03.331 SENSOR; PRESS 8-98178-706-0 01 1 1412- ●
313 03.330 BOLT; BRKT,INJ NOZZLE
M8X50 W/WASHER 		8-98095-575-0 04 1 1412- ● ●
313 03.330 BOLT; BRKT,INJ NOZZLE
M8X85 W/WASHER 		8-98228-637-0 04 1 1409-1411 ●
313 03.330 BOLT; BRKT,INJ NOZZLE
M8X85 W/WASHER 		8-98228-637-0 04 1 1412- ● ●
329 03.335 GASKET; SENSOR,FUEL TEMP
03.304 ID=9.8 OD=11.7 		9-09566-110-0 01 1 1409-1409 ●
347 03.332 PIN 8-98165-035-0 04 1 1409-1411 ●
347 03.332 PIN 8-98165-035-0 04 1 1412- ● ● ● ●
382 03.162 KEY; DRIVE SHAFT 8-97375-384-0 01 1 1409-1409 ●
382 03.162 KEY; DRIVE SHAFT 8-98161-995-0 01 1 1410-1411 ●
382 03.162 KEY; DRIVE SHAFT 8-98161-995-0 01 1 1412- ● ● ● ●
408 03.306 PUMP ASM; FUEL,SUPPLY 8-98155-988-3 01 1 1412- ● ● ●
408 03.306 PUMP ASM; FUEL,SUPPLY 8-98155-988-2 01 1 1409-1411 ●
408 03.306 PUMP ASM; FUEL,SUPPLY 8-98151-213-2 01 1 1412- ●
424 03.332 OVERHAUL KIT; SUPPLY PUMP 8-98145-455-1 01 1 1409-1411 ●
424 03.332 OVERHAUL KIT; SUPPLY PUMP 8-98145-455-1 01 1 1412- ● ● ● ●
445 03.330 SCREW; FILTER,INLET 8-98209-778-0 01 1 1409-1411 ●
445 03.330 SCREW; FILTER,INLET 8-98209-778-0 01 1 1412- ● ● ● ●

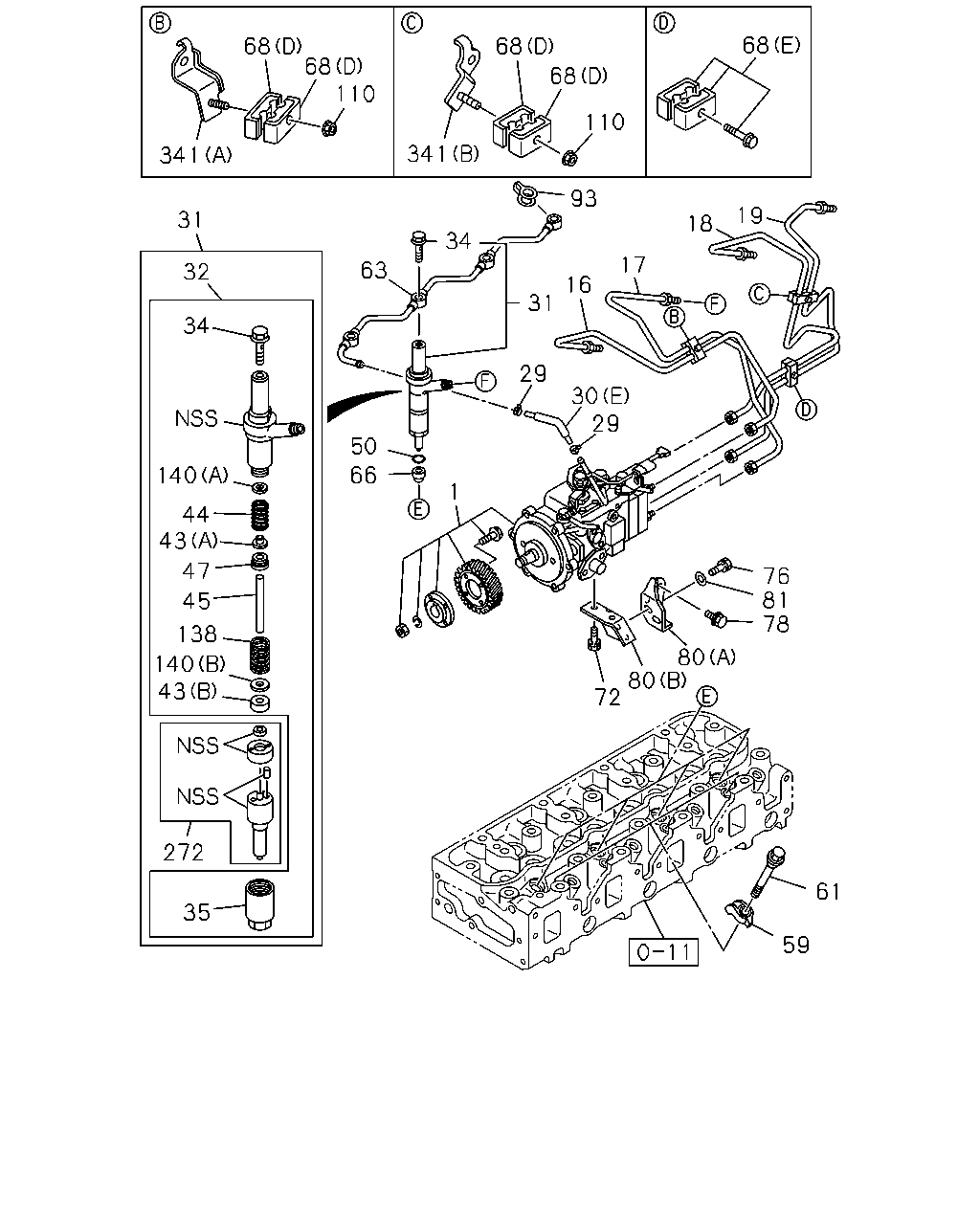

çizim 459178
68 341 68 341 68 110 68 93 17 16 31 29 29 50 31 32 34 140 43 47 45 138 140 43 272 35 63 66 30 18 19 76 81 78 80 80 72 61 59 68 110 1 34 44
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EMISSION SYSTEM R15-04<K75> HEATER & DEFROSTER(C42) 		8-97350-394-3 01 1 1412- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EURO1 SPECIFICATION<NT1> HEATER & DEFROSTER(C42) 		8-97350-398-3 01 1 1412- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EMISSION SYSTEM R15-04<K75> AIR CONDITIONER MANUAL CONT(C60) 		8-97350-393-4 01 1 1412- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EURO1 SPECIFICATION<NT1> AIR CONDITIONER MANUAL CONT(C60) 		8-97350-396-4 01 1 1412- ●
16 03.330 PIPE; INJ NO.1 8-98011-606-0 01 1 1412- ●
16 03.330 PIPE; INJ NO.1 8-97373-733-0 01 1 1412- ●
16 03.330 PIPE; INJ NO.1 8-98158-729-0 01 1 1412- ●
16 03.330 PIPE; INJ NO.1 8-98223-194-0 01 1 1409-1411 ●
16 03.330 PIPE; INJ NO.1 8-98223-194-0 01 1 1412- ● ●
17 03.330 PIPE; INJ NO.2 8-98043-684-0 01 1 1412- ●
17 03.330 PIPE; INJ NO.2 8-97365-210-0 01 1 1412- ●
17 03.330 PIPE; INJ NO.2 8-98158-730-0 01 1 1412- ●
17 03.330 PIPE; INJ NO.2 8-98223-195-1 01 1 1409-1411 ●
17 03.330 PIPE; INJ NO.2 8-98223-195-1 01 1 1412- ● ●
18 03.330 PIPE; INJ NO.3 8-98011-608-0 01 1 1412- ●
18 03.330 PIPE; INJ NO.3 8-97373-734-0 01 1 1412- ●
18 03.330 PIPE; INJ NO.3 8-98158-731-0 01 1 1412- ●
18 03.330 PIPE; INJ NO.3 8-98223-196-0 01 1 1409-1411 ●
18 03.330 PIPE; INJ NO.3 8-98223-196-0 01 1 1412- ● ●
19 03.330 PIPE; INJ NO.4 8-98011-609-0 01 1 1412- ●
19 03.330 PIPE; INJ NO.4 8-97373-735-0 01 1 1412- ●
19 03.330 PIPE; INJ NO.4 8-98158-732-0 01 1 1412- ●
19 03.330 PIPE; INJ NO.4 8-98223-197-0 01 1 1409-1411 ●
19 03.330 PIPE; INJ NO.4 8-98223-197-0 01 1 1412- ● ●
29 03.162 CLIP; HOSE
03.163 ID=11 		8-97173-219-0 02 1 1412- ●
29 03.162 CLIP; HOSE
ID=10.5 		8-97944-126-0 10 1 1409-1411 ●
29 03.162 CLIP; HOSE
ID=10.5 		8-97944-126-0 10 1 1412- ● ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(D) 		8-98168-394-0 01 1 1412- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=320 		8-98135-263-1 01 1 1412- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=96 		8-98053-693-0 03 1 1412- ● ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=96 		8-98053-693-0 03 1 1409-1411 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=96 		8-98053-693-0 01 1 1412- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(C) 		8-98179-014-0 01 1 1409-1411 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(C) 		8-98179-014-0 01 1 1412- ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(B) 		8-98189-998-0 01 1 1409-1411 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(B) 		8-98189-998-0 01 1 1412- ● ● ●
31 03.332 NOZZLE ASM; INJ
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98119-228-3 04 1 1412- ●
31 03.332 NOZZLE ASM; INJ
COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) 		8-98106-694-1 04 1 1412- ●
31 03.332 NOZZLE ASM; INJ 8-97382-946-0 04 1 1412- ●
31 03.332 NOZZLE ASM; INJ 8-98246-130-0 04 1 1412- ●
31 03.332 NOZZLE ASM; INJ 8-98260-109-0 04 1 1412- ●
31 03.332 NOZZLE ASM; INJ 8-98106-693-2 04 1 1409- ●
32 03.332 HOLDER ASM; NOZZLE 8-97217-835-0 04 1 1412- ●
34 03.330 BOLT; EYE,NOZZLE HOLDER
03.306 		8-94320-307-0 04 1 1412- ●
35 03.330 NUT; NOZZLE RET,NOZZLE HOLDER 1-15349-041-0 04 1 1412- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.00 		8-97223-343-0 04 1 1412- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.02 		8-97223-344-0 04 1 1412- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.04 		8-97223-345-0 04 1 1412- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.06 		8-97223-346-0 04 1 1412- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.08 		8-97223-347-0 04 1 1412- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.10 		8-97223-348-0 04 1 1412- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.12 		8-97223-349-0 04 1 1412- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.14 		8-97223-350-0 04 1 1412- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.16 		8-97223-351-0 04 1 1412- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.18 		8-97223-352-0 04 1 1412- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.20 		8-97223-353-0 04 1 1412- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.22 		8-97223-354-0 04 1 1412- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.24 		8-97223-355-0 04 1 1412- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.26 		8-97223-356-0 04 1 1412- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.28 		8-97223-357-0 04 1 1412- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.30 		8-97223-358-0 04 1 1412- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.32 		8-97223-359-0 04 1 1412- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.34 		8-97223-360-0 04 1 1412- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.36 		8-97223-361-0 04 1 1412- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.38 		8-97223-362-0 04 1 1412- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.40 		8-97223-363-0 04 1 1412- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.42 		8-97223-364-0 04 1 1412- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.44 		8-97223-365-0 04 1 1412- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.46 		8-97223-366-0 04 1 1412- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.48 		8-97223-367-0 04 1 1412- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.50 		8-97223-368-0 04 1 1412- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.52 		8-97223-369-0 04 1 1412- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.54 		8-97223-370-0 04 1 1412- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.56 		8-97223-371-0 04 1 1412- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.58 		8-97223-372-0 04 1 1412- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.60 		8-97223-373-0 04 1 1412- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.62 		8-97223-374-0 04 1 1412- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.64 		8-97223-375-0 04 1 1412- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.66 		8-97223-376-0 04 1 1412- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.68 		8-97223-377-0 04 1 1412- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.70 		8-97223-378-0 04 1 1412- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.72 		8-97223-379-0 04 1 1412- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.74 		8-97223-380-0 04 1 1412- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.76 		8-97223-381-0 04 1 1412- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.78 		8-97223-382-0 04 1 1412- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.80 		8-97223-383-0 04 1 1412- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.82 		8-97223-384-0 04 1 1412- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.84 		8-97223-385-0 04 1 1412- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.86 		8-97223-386-0 04 1 1412- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.88 		8-97223-387-0 04 1 1412- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.90 		8-97223-388-0 04 1 1412- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.92 		8-97223-389-0 04 1 1412- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.94 		8-97223-390-0 04 1 1412- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.96 		8-97223-391-0 04 1 1412- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.98 		8-97223-392-0 04 1 1412- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=3.00 		8-97223-393-0 04 1 1412- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(A) 		8-97361-697-0 04 1 1412- ●
44 03.330 SPRING; NOZZLE,NOZZLE HOLDER 1-15343-003-0 04 1 1412- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.25 		8-97355-112-0 04 1 1412- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.26 		8-97355-113-0 04 1 1412- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.27 		8-97355-114-0 04 1 1412- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.28 		8-97355-115-0 04 1 1412- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.29 		8-97355-116-0 04 1 1412- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.30 		8-97355-117-0 04 1 1412- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.31 		8-97355-118-0 04 1 1412- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.32 		8-97355-119-0 04 1 1412- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.33 		8-97355-120-0 04 1 1412- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.34 		8-97355-121-0 04 1 1412- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.35 		8-97355-122-0 04 1 1412- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.36 		8-97355-123-0 04 1 1412- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.37 		8-97355-124-0 04 1 1412- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.38 		8-97355-125-0 04 1 1412- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.39 		8-97355-126-0 04 1 1412- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.40 		8-97355-127-0 04 1 1412- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.41 		8-97355-128-0 04 1 1412- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.42 		8-97355-129-0 04 1 1412- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.43 		8-97355-130-0 04 1 1412- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.44 		8-97355-131-0 04 1 1412- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.45 		8-97355-132-0 04 1 1412- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.46 		8-97355-133-0 04 1 1412- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.47 		8-97355-134-0 04 1 1412- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.48 		8-97355-135-0 04 1 1412- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.49 		8-97355-136-0 04 1 1412- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.50 		8-97355-137-0 04 1 1412- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.51 		8-97355-138-0 04 1 1412- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.52 		8-97355-139-0 04 1 1412- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.53 		8-97355-140-0 04 1 1412- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.54 		8-97355-141-0 04 1 1412- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.55 		8-97355-142-0 04 1 1412- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.56 		8-97355-143-0 04 1 1412- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.57 		8-97355-144-0 04 1 1412- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.58 		8-97355-145-0 04 1 1412- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.59 		8-97355-146-0 04 1 1412- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.60 		8-97355-147-0 04 1 1412- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.61 		8-97355-148-0 04 1 1412- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.62 		8-97355-149-0 04 1 1412- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.63 		8-97355-150-0 04 1 1412- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.64 		8-97355-151-0 04 1 1412- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.65 		8-97355-152-0 04 1 1412- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.66 		8-97355-153-0 04 1 1412- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.67 		8-97355-154-0 04 1 1412- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.68 		8-97355-155-0 04 1 1412- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.69 		8-97355-156-0 04 1 1412- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.70 		8-97355-157-0 04 1 1412- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.71 		8-97355-158-0 04 1 1412- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.72 		8-97355-159-0 04 1 1412- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.73 		8-97355-160-0 04 1 1412- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.74 		8-97355-161-0 04 1 1412- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.75 		8-97355-162-0 04 1 1412- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.76 		8-97355-163-0 04 1 1412- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.77 		8-97355-164-0 04 1 1412- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.78 		8-97355-165-0 04 1 1412- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.79 		8-97355-166-0 04 1 1412- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.80 		8-97355-167-0 04 1 1412- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.81 		8-97355-168-0 04 1 1412- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.82 		8-97355-169-0 04 1 1412- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.83 		8-97355-170-0 04 1 1412- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.84 		8-97355-171-0 04 1 1412- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.85 		8-97355-172-0 04 1 1412- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.86 		8-97355-173-0 04 1 1412- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.87 		8-97355-174-0 04 1 1412- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.88 		8-97355-175-0 04 1 1412- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.89 		8-97355-176-0 04 1 1412- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.90 		8-97355-177-0 04 1 1412- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.91 		8-97355-178-0 04 1 1412- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.92 		8-97355-179-0 04 1 1412- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.93 		8-97355-180-0 04 1 1412- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.94 		8-97355-182-0 04 1 1412- ●
47 03.332 SPACER; NOZZLE SPRING,NOZZLE HOL 8-97223-340-0 04 1 1412- ●
50 03.332 GASKET; NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 		8-97287-402-2 04 1 1412- ●
59 03.332 CLAMP; NOZZLE HOLDER 8-97259-884-0 04 1 1412- ●
59 03.332 CLAMP; NOZZLE HOLDER 8-98092-539-0 04 1 1409-1411 ●
59 03.332 CLAMP; NOZZLE HOLDER 8-98092-539-0 04 1 1412- ● ● ● ●
61 03.332 BOLT; CLAMP NOZZLE HOLDER 8-94468-020-2 04 1 1412- ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-94467-727-3 01 1 1412- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=7.2 OD=15.0 T=6.6 		8-97171-331-0 04 1 1412- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 		8-98181-540-0 04 1 1409-1411 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 		8-98181-540-0 04 1 1412- ● ● ● ●
68 03.162 CLIP; INJ PIPE
(F) 		8-97213-481-0 04 1 1412- ●
68 03.162 CLIP; INJ PIPE
03.634 (D) 		1-09701-240-0 04 1 1412- ●
68 03.162 CLIP; INJ PIPE
(E) 		8-98227-926-0 01 1 1412- ●
68 03.162 CLIP; INJ PIPE
(C) ID=7 & 7 L=22 		8-97330-118-3 02 1 1412- ●
68 03.162 CLIP; INJ PIPE
(B) ID=7 & 7 L=22 		8-97330-119-3 02 1 1412- ●
68 03.162 CLIP; INJ PIPE
(A) ID=11 & 11 L=19 		8-98148-996-2 04 1 1409-1411 ●
68 03.162 CLIP; INJ PIPE
(A) ID=11 & 11 L=19 		8-98148-996-2 04 1 1412- ● ●
72 03.330 BOLT; BRKT TO INJ PUMP
M10X20 W/LK WASHER 		0-50551-020-0 02 1 1412- ●
76 03.330 BOLT; BRKT TO BRKT
09.008 M8X25 W/LK WASHER 		0-50540-825-0 02 1 1412- ●
78 03.330 BOLT; BRKT TO C/BL
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1412- ●
80 03.306 BRACKET; PUMP
(A) 		8-97368-670-0 01 1 1412- ●
80 03.306 BRACKET; PUMP
(B) 		8-97368-671-0 01 1 1412- ●
81 03.330 WASHER; PL,BRKT TO PUMP
02.277 ID=8.4 OD=22 		0-91614-708-0 02 1 1412- ●
93 03.162 GASKET; LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97375-236-0 04 1 1412- ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 1409-1411 ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 1412- ● ● ● ● ●
138 03.330 SPRING; NOZZLE LWR,NOZZLE HOLDER 8-94174-141-0 04 1 1412- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=1.20 		1-15349-004-0 AR 1 1412- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.52 		1-15349-044-0 AR 1 1412- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.54 		1-15349-045-0 AR 1 1412- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.56 		1-15349-046-0 AR 1 1412- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.58 		1-15349-047-0 AR 1 1412- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.60 		1-15349-048-0 AR 1 1412- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.70 		1-15349-049-0 AR 1 1412- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.10 		8-97116-029-0 AR 1 1412- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.20 		8-97116-032-0 AR 1 1412- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.30 		8-97116-033-0 AR 1 1412- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.40 		8-97116-034-0 AR 1 1412- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.50 		8-97116-035-0 AR 1 1412- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.51 		8-97116-036-0 AR 1 1412- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.52 		8-97116-037-0 AR 1 1412- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.53 		8-97116-038-0 AR 1 1412- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.54 		8-97116-039-0 AR 1 1412- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.55 		8-97116-040-0 AR 1 1412- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.56 		8-97116-041-0 AR 1 1412- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.57 		8-97116-042-0 AR 1 1412- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.58 		8-97116-043-0 AR 1 1412- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.59 		8-97116-044-0 AR 1 1412- ●
272 03.332 NOZZLE KIT; INJ 8-97362-572-0 04 1 1412- ●
341 03.330 BRACKET; CLIP,INJ PIPE
(B) 		8-97333-806-1 01 1 1412- ●
341 03.330 BRACKET; CLIP,INJ PIPE
(A) 		8-97365-211-1 01 1 1412- ●

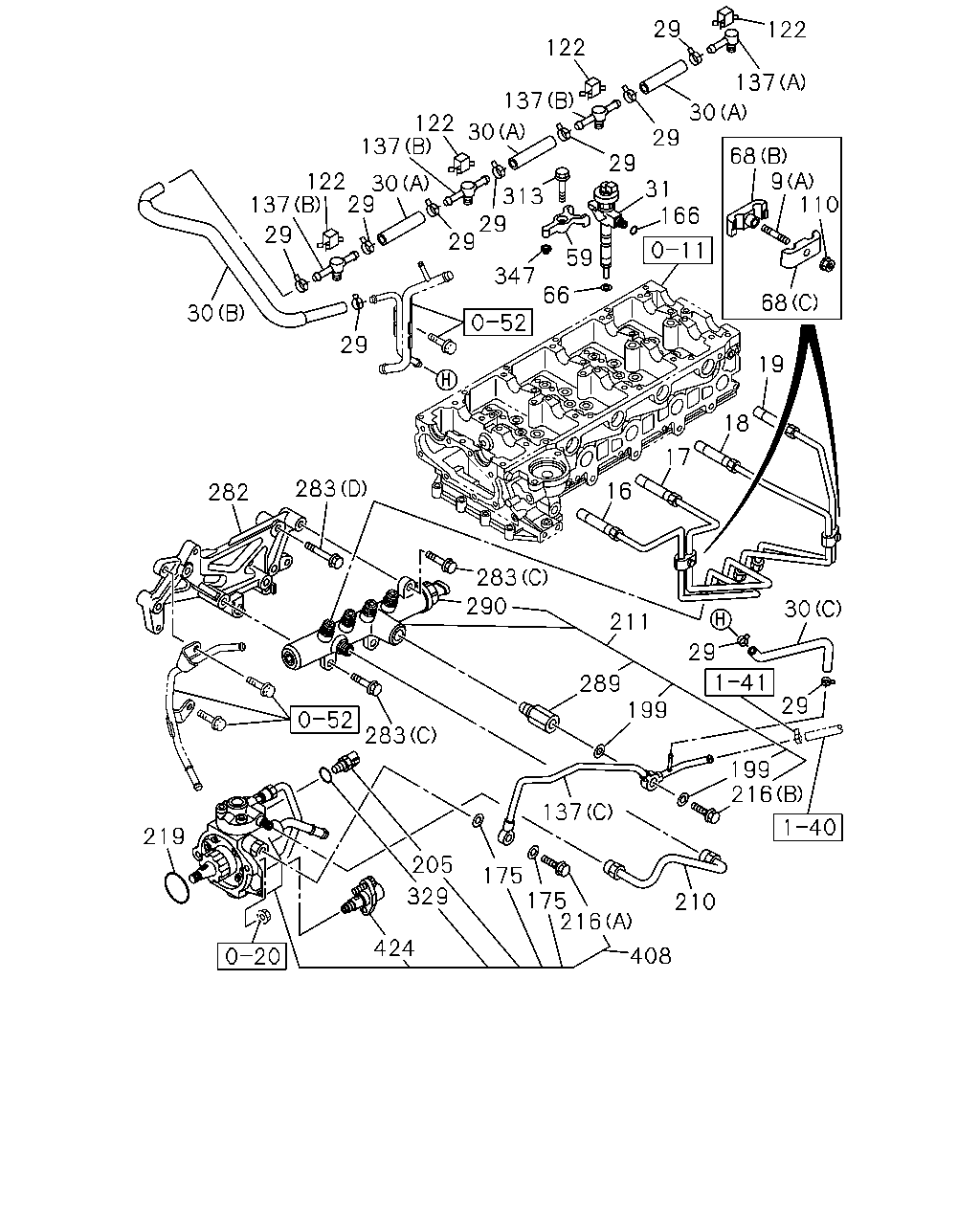

çizim 459393
122 29 122 137 30 122 137 30 29 122 137 29 30 29 29 29 313 29 29 30 137 68 9 110 68 19 18 17 16 166 31 59 66 347 283 282 283 290 211 289 29 199 30 29 199 216 210 408 216 175 175 205 329 424 137 283 219
BalonParca AdiParca NoAdetTipApplied Date A B C D E
9 03.340 STUD; CLIP
00.413 (A) M6X30 L=38 		0-41010-630-0 02 1 1412- ● ● ●
9 03.340 STUD; CLIP
00.413 (A) M6X30 L=38 		0-41010-630-0 02 1 1409-1411 ●
9 03.340 STUD; CLIP
03.162 (B) M6X25 L=36 		8-97214-234-1 02 1 1412- ●
16 03.330 PIPE; INJ NO.1 8-98011-606-0 01 1 1412- ●
16 03.330 PIPE; INJ NO.1 8-97373-733-0 01 1 1412- ●
16 03.330 PIPE; INJ NO.1 8-98158-729-0 01 1 1412- ●
16 03.330 PIPE; INJ NO.1 8-98223-194-0 01 1 1409-1411 ●
16 03.330 PIPE; INJ NO.1 8-98223-194-0 01 1 1412- ● ●
17 03.330 PIPE; INJ NO.2 8-98043-684-0 01 1 1412- ●
17 03.330 PIPE; INJ NO.2 8-97365-210-0 01 1 1412- ●
17 03.330 PIPE; INJ NO.2 8-98158-730-0 01 1 1412- ●
17 03.330 PIPE; INJ NO.2 8-98223-195-1 01 1 1409-1411 ●
17 03.330 PIPE; INJ NO.2 8-98223-195-1 01 1 1412- ● ●
18 03.330 PIPE; INJ NO.3 8-98011-608-0 01 1 1412- ●
18 03.330 PIPE; INJ NO.3 8-97373-734-0 01 1 1412- ●
18 03.330 PIPE; INJ NO.3 8-98158-731-0 01 1 1412- ●
18 03.330 PIPE; INJ NO.3 8-98223-196-0 01 1 1409-1411 ●
18 03.330 PIPE; INJ NO.3 8-98223-196-0 01 1 1412- ● ●
19 03.330 PIPE; INJ NO.4 8-98011-609-0 01 1 1412- ●
19 03.330 PIPE; INJ NO.4 8-97373-735-0 01 1 1412- ●
19 03.330 PIPE; INJ NO.4 8-98158-732-0 01 1 1412- ●
19 03.330 PIPE; INJ NO.4 8-98223-197-0 01 1 1409-1411 ●
19 03.330 PIPE; INJ NO.4 8-98223-197-0 01 1 1412- ● ●
29 03.162 CLIP; HOSE
03.163 ID=11 		8-97173-219-0 02 1 1412- ●
29 03.162 CLIP; HOSE
ID=10.5 		8-97944-126-0 10 1 1409-1411 ●
29 03.162 CLIP; HOSE
ID=10.5 		8-97944-126-0 10 1 1412- ● ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(D) 		8-98168-394-0 01 1 1412- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=320 		8-98135-263-1 01 1 1412- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=96 		8-98053-693-0 03 1 1412- ● ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=96 		8-98053-693-0 03 1 1409-1411 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=96 		8-98053-693-0 01 1 1412- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(C) 		8-98179-014-0 01 1 1409-1411 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(C) 		8-98179-014-0 01 1 1412- ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(B) 		8-98189-998-0 01 1 1409-1411 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(B) 		8-98189-998-0 01 1 1412- ● ● ●
31 03.332 NOZZLE ASM; INJ
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98119-228-3 04 1 1412- ●
31 03.332 NOZZLE ASM; INJ
COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) 		8-98106-694-1 04 1 1412- ●
31 03.332 NOZZLE ASM; INJ 8-97382-946-0 04 1 1412- ●
31 03.332 NOZZLE ASM; INJ 8-98246-130-0 04 1 1412- ●
31 03.332 NOZZLE ASM; INJ 8-98260-109-0 04 1 1412- ●
31 03.332 NOZZLE ASM; INJ 8-98106-693-2 04 1 1409- ●
59 03.332 CLAMP; NOZZLE HOLDER 8-97259-884-0 04 1 1412- ●
59 03.332 CLAMP; NOZZLE HOLDER 8-98092-539-0 04 1 1409-1411 ●
59 03.332 CLAMP; NOZZLE HOLDER 8-98092-539-0 04 1 1412- ● ● ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=7.2 OD=15.0 T=6.6 		8-97171-331-0 04 1 1412- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 		8-98181-540-0 04 1 1409-1411 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 		8-98181-540-0 04 1 1412- ● ● ● ●
68 03.162 CLIP; INJ PIPE
(F) 		8-97213-481-0 04 1 1412- ●
68 03.162 CLIP; INJ PIPE
03.634 (D) 		1-09701-240-0 04 1 1412- ●
68 03.162 CLIP; INJ PIPE
(E) 		8-98227-926-0 01 1 1412- ●
68 03.162 CLIP; INJ PIPE
(C) ID=7 & 7 L=22 		8-97330-118-3 02 1 1412- ●
68 03.162 CLIP; INJ PIPE
(B) ID=7 & 7 L=22 		8-97330-119-3 02 1 1412- ●
68 03.162 CLIP; INJ PIPE
(A) ID=11 & 11 L=19 		8-98148-996-2 04 1 1409-1411 ●
68 03.162 CLIP; INJ PIPE
(A) ID=11 & 11 L=19 		8-98148-996-2 04 1 1412- ● ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 1409-1411 ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 1412- ● ● ● ● ●
122 03.162 CLIP; LEAK OFF PIPE 8-97315-286-0 04 1 1409-1411 ●
122 03.162 CLIP; LEAK OFF PIPE 8-97315-286-0 04 1 1412- ● ● ● ●
137 03.163 PIPE ASM; LEAK OFF
(D) 		8-98132-085-0 01 1 1412- ●
137 03.163 PIPE ASM; LEAK OFF
(C) 		8-98158-737-1 01 1 1409-1411 ●
137 03.163 PIPE ASM; LEAK OFF
(C) 		8-98158-737-1 01 1 1412- ● ● ●
137 03.163 PIPE ASM; LEAK OFF
(B) 		8-98211-775-0 03 1 1409-1411 ●
137 03.163 PIPE ASM; LEAK OFF
(B) 		8-98211-775-0 03 1 1412- ● ● ● ●
137 03.163 PIPE ASM; LEAK OFF
(A) 		8-98211-776-0 01 1 1409-1411 ●
137 03.163 PIPE ASM; LEAK OFF
(A) 		8-98211-776-0 01 1 1412- ● ● ● ●
166 03.304 GASKET; FUEL INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 03.332 ID=11 OD=14.8 		9-09566-111-0 04 1 1409-1411 ●
166 03.304 GASKET; FUEL INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 03.332 ID=11 OD=14.8 		9-09566-111-0 04 1 1412- ● ● ● ●
175 03.162 GASKET; EYE BOLT,OUTLET,FUEL FEE
01.531 ID=10.2 OD=15.2 		1-09630-083-0 02 1 1409-1411 ●
175 03.162 GASKET; EYE BOLT,OUTLET,FUEL FEE
01.531 ID=10.2 OD=15.2 		1-09630-083-0 02 1 1412-1505 ● ● ● ●
175 03.162 GASKET; EYE BOLT,OUTLET,FUEL FEE 1-15619-508-0 02 1 1506- ● ● ● ●
199 03.332 GASKET; EYE BOLT 8-97602-218-0 02 1 1412- ●
205 03.320 SENSOR; FUEL TEMP 8-98023-581-0 01 1 1409-1411 ●
205 03.320 SENSOR; FUEL TEMP 8-98023-581-0 01 1 1412- ● ● ● ●
210 03.330 PIPE; INJ,C/R 8-97388-902-0 01 1 1412- ●
210 03.330 PIPE; INJ,C/R 8-98158-733-0 01 1 1412- ●
210 03.330 PIPE; INJ,C/R 8-98233-237-0 01 1 1409-1411 ●
210 03.330 PIPE; INJ,C/R 8-98233-237-0 01 1 1412- ● ●
211 03.331 RAIL ASM; COMMON 8-98132-055-1 01 1 1412- ●
211 03.331 RAIL ASM; COMMON 8-98151-214-0 01 1 1412- ●
211 03.331 RAIL ASM; COMMON 8-98228-475-0 01 1 1409-1411 ●
211 03.331 RAIL ASM; COMMON 8-98228-475-0 01 1 1412- ● ●
216 03.162 BOLT; EYE
(A) 		8-98209-777-0 01 1 1412- ● ● ● ●
216 03.162 BOLT; EYE
03.280 (A) 		9-88130-088-0 01 1 1409-1409 ●
216 03.162 BOLT; EYE
(A) 		8-98209-777-0 01 1 1410-1411 ●
216 03.162 BOLT; EYE
(B) 		8-98043-033-0 01 1 1412- ●
219 03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49.7 		1-09623-541-0 01 1 1409-1411 ●
219 03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49.7 		1-09623-541-0 01 1 1412- ● ● ● ●
282 03.163 BRACKET; COMMON RAIL 8-98132-056-0 01 1 1412- ●
282 03.163 BRACKET; COMMON RAIL 8-98158-715-2 01 1 1412- ●
282 03.163 BRACKET; COMMON RAIL 8-98205-942-0 01 1 1409-1411 ●
282 03.163 BRACKET; COMMON RAIL 8-98205-942-0 01 1 1412- ● ●
283 03.330 BOLT; COMMON RAIL
00.206 (E) M8X70 FLANGE 		0-28050-870-0 02 1 1412- ●
283 03.330 BOLT; COMMON RAIL
(B) M8X81 FLANGE 		8-97354-584-0 02 1 1412- ●
283 03.330 BOLT; COMMON RAIL
(C) M8X25 FLANGE 		8-98174-080-0 03 1 1412- ●
283 03.330 BOLT; COMMON RAIL
(D) M8X40 FLANGE 		8-98174-180-0 04 1 1412- ●
283 03.330 BOLT; COMMON RAIL
(A) M8X66 FLANGE 		8-98228-566-0 03 1 1409-1411 ●
283 03.330 BOLT; COMMON RAIL
(A) M8X66 FLANGE 		8-98228-566-0 03 1 1412- ● ●
289 03.331 LIMITER; FUEL PRESS 8-98032-549-0 01 1 1412- ● ● ●
289 03.331 LIMITER; FUEL PRESS 8-98032-549-0 01 1 1409-1411 ●
289 03.331 LIMITER; FUEL PRESS 8-98138-695-0 01 1 1412- ●
290 03.331 SENSOR; PRESS 8-98181-616-0 01 1 1412- ● ● ●
290 03.331 SENSOR; PRESS 8-98181-616-0 01 1 1409-1411 ●
290 03.331 SENSOR; PRESS 8-98178-706-0 01 1 1412- ●
313 03.330 BOLT; BRKT,INJ NOZZLE
M8X50 W/WASHER 		8-98095-575-0 04 1 1412- ● ●
313 03.330 BOLT; BRKT,INJ NOZZLE
M8X85 W/WASHER 		8-98228-637-0 04 1 1409-1411 ●
313 03.330 BOLT; BRKT,INJ NOZZLE
M8X85 W/WASHER 		8-98228-637-0 04 1 1412- ● ●
329 03.335 GASKET; SENSOR,FUEL TEMP
03.304 ID=9.8 OD=11.7 		9-09566-110-0 01 1 1409-1409 ●
347 03.332 PIN 8-98165-035-0 04 1 1409-1411 ●
347 03.332 PIN 8-98165-035-0 04 1 1412- ● ● ● ●
408 03.306 PUMP ASM; FUEL,SUPPLY 8-98155-988-3 01 1 1412- ● ● ●
408 03.306 PUMP ASM; FUEL,SUPPLY 8-98155-988-2 01 1 1409-1411 ●
408 03.306 PUMP ASM; FUEL,SUPPLY 8-98151-213-2 01 1 1412- ●
424 03.332 OVERHAUL KIT; SUPPLY PUMP 8-98145-455-1 01 1 1409-1411 ●
424 03.332 OVERHAUL KIT; SUPPLY PUMP 8-98145-455-1 01 1 1412- ● ● ● ●

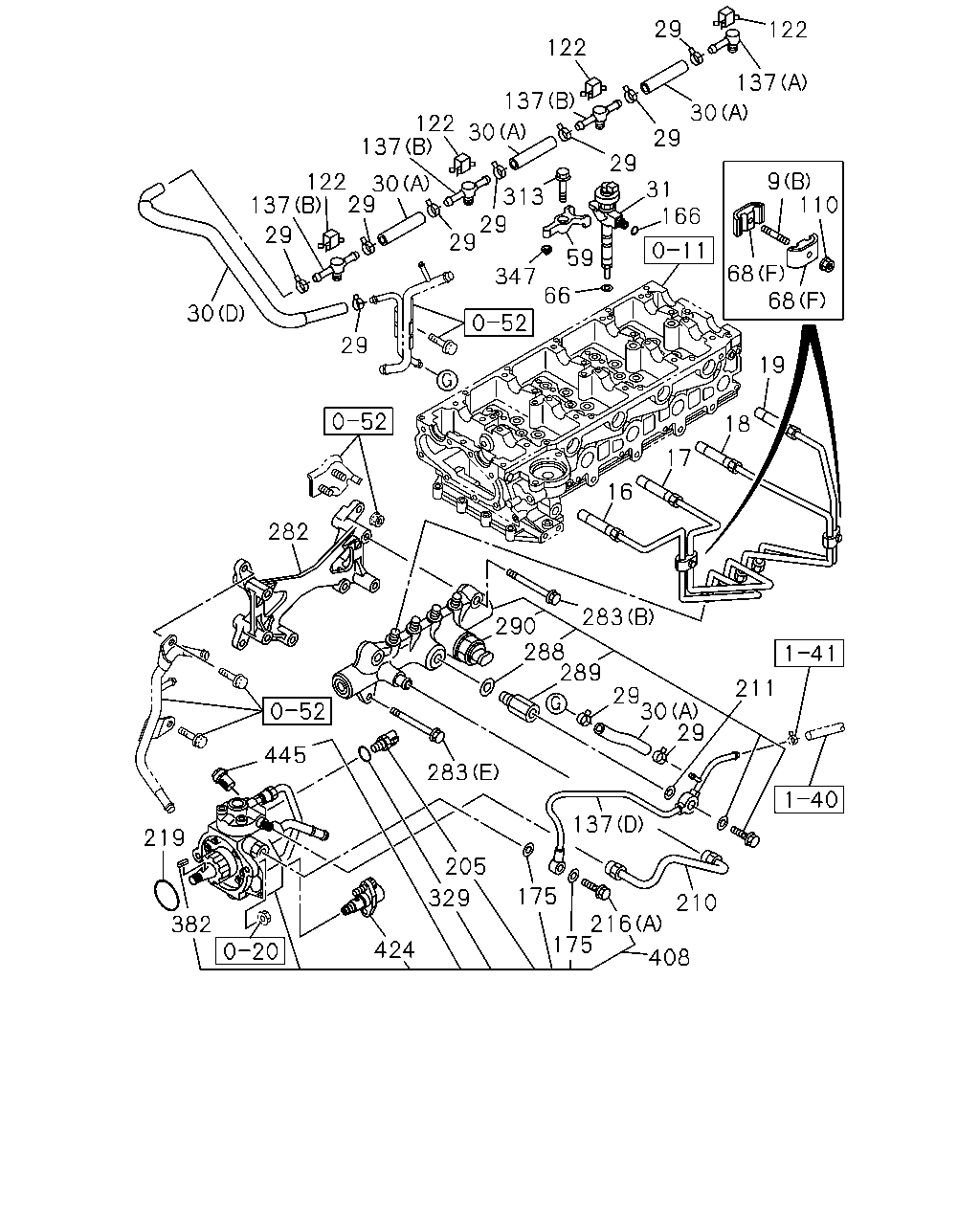

çizim 459537
29 122 137 30 29 122 137 29 30 122 137 122 137 29 30 29 29 29 313 31 59 347 166 66 29 30 9 68 110 68 19 18 17 16 282 283 290 288 289 29 30 29 211 137 210 175 216 175 408 205 329 424 382 219 445 283
BalonParca AdiParca NoAdetTipApplied Date A B C D E
9 03.340 STUD; CLIP
00.413 (A) M6X30 L=38 		0-41010-630-0 02 1 1412- ● ● ●
9 03.340 STUD; CLIP
00.413 (A) M6X30 L=38 		0-41010-630-0 02 1 1409-1411 ●
9 03.340 STUD; CLIP
03.162 (B) M6X25 L=36 		8-97214-234-1 02 1 1412- ●
16 03.330 PIPE; INJ NO.1 8-98011-606-0 01 1 1412- ●
16 03.330 PIPE; INJ NO.1 8-97373-733-0 01 1 1412- ●
16 03.330 PIPE; INJ NO.1 8-98158-729-0 01 1 1412- ●
16 03.330 PIPE; INJ NO.1 8-98223-194-0 01 1 1409-1411 ●
16 03.330 PIPE; INJ NO.1 8-98223-194-0 01 1 1412- ● ●
17 03.330 PIPE; INJ NO.2 8-98043-684-0 01 1 1412- ●
17 03.330 PIPE; INJ NO.2 8-97365-210-0 01 1 1412- ●
17 03.330 PIPE; INJ NO.2 8-98158-730-0 01 1 1412- ●
17 03.330 PIPE; INJ NO.2 8-98223-195-1 01 1 1409-1411 ●
17 03.330 PIPE; INJ NO.2 8-98223-195-1 01 1 1412- ● ●
18 03.330 PIPE; INJ NO.3 8-98011-608-0 01 1 1412- ●
18 03.330 PIPE; INJ NO.3 8-97373-734-0 01 1 1412- ●
18 03.330 PIPE; INJ NO.3 8-98158-731-0 01 1 1412- ●
18 03.330 PIPE; INJ NO.3 8-98223-196-0 01 1 1409-1411 ●
18 03.330 PIPE; INJ NO.3 8-98223-196-0 01 1 1412- ● ●
19 03.330 PIPE; INJ NO.4 8-98011-609-0 01 1 1412- ●
19 03.330 PIPE; INJ NO.4 8-97373-735-0 01 1 1412- ●
19 03.330 PIPE; INJ NO.4 8-98158-732-0 01 1 1412- ●
19 03.330 PIPE; INJ NO.4 8-98223-197-0 01 1 1409-1411 ●
19 03.330 PIPE; INJ NO.4 8-98223-197-0 01 1 1412- ● ●
29 03.162 CLIP; HOSE
03.163 ID=11 		8-97173-219-0 02 1 1412- ●
29 03.162 CLIP; HOSE
ID=10.5 		8-97944-126-0 10 1 1409-1411 ●
29 03.162 CLIP; HOSE
ID=10.5 		8-97944-126-0 10 1 1412- ● ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(D) 		8-98168-394-0 01 1 1412- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=320 		8-98135-263-1 01 1 1412- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=96 		8-98053-693-0 03 1 1412- ● ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=96 		8-98053-693-0 03 1 1409-1411 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=96 		8-98053-693-0 01 1 1412- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(C) 		8-98179-014-0 01 1 1409-1411 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(C) 		8-98179-014-0 01 1 1412- ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(B) 		8-98189-998-0 01 1 1409-1411 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(B) 		8-98189-998-0 01 1 1412- ● ● ●
31 03.332 NOZZLE ASM; INJ
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98119-228-3 04 1 1412- ●
31 03.332 NOZZLE ASM; INJ
COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) 		8-98106-694-1 04 1 1412- ●
31 03.332 NOZZLE ASM; INJ 8-97382-946-0 04 1 1412- ●
31 03.332 NOZZLE ASM; INJ 8-98246-130-0 04 1 1412- ●
31 03.332 NOZZLE ASM; INJ 8-98260-109-0 04 1 1412- ●
31 03.332 NOZZLE ASM; INJ 8-98106-693-2 04 1 1409- ●
59 03.332 CLAMP; NOZZLE HOLDER 8-97259-884-0 04 1 1412- ●
59 03.332 CLAMP; NOZZLE HOLDER 8-98092-539-0 04 1 1409-1411 ●
59 03.332 CLAMP; NOZZLE HOLDER 8-98092-539-0 04 1 1412- ● ● ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=7.2 OD=15.0 T=6.6 		8-97171-331-0 04 1 1412- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 		8-98181-540-0 04 1 1409-1411 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 		8-98181-540-0 04 1 1412- ● ● ● ●
68 03.162 CLIP; INJ PIPE
(F) 		8-97213-481-0 04 1 1412- ●
68 03.162 CLIP; INJ PIPE
03.634 (D) 		1-09701-240-0 04 1 1412- ●
68 03.162 CLIP; INJ PIPE
(E) 		8-98227-926-0 01 1 1412- ●
68 03.162 CLIP; INJ PIPE
(C) ID=7 & 7 L=22 		8-97330-118-3 02 1 1412- ●
68 03.162 CLIP; INJ PIPE
(B) ID=7 & 7 L=22 		8-97330-119-3 02 1 1412- ●
68 03.162 CLIP; INJ PIPE
(A) ID=11 & 11 L=19 		8-98148-996-2 04 1 1409-1411 ●
68 03.162 CLIP; INJ PIPE
(A) ID=11 & 11 L=19 		8-98148-996-2 04 1 1412- ● ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 1409-1411 ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 1412- ● ● ● ● ●
122 03.162 CLIP; LEAK OFF PIPE 8-97315-286-0 04 1 1409-1411 ●
122 03.162 CLIP; LEAK OFF PIPE 8-97315-286-0 04 1 1412- ● ● ● ●
137 03.163 PIPE ASM; LEAK OFF
(D) 		8-98132-085-0 01 1 1412- ●
137 03.163 PIPE ASM; LEAK OFF
(C) 		8-98158-737-1 01 1 1409-1411 ●
137 03.163 PIPE ASM; LEAK OFF
(C) 		8-98158-737-1 01 1 1412- ● ● ●
137 03.163 PIPE ASM; LEAK OFF
(B) 		8-98211-775-0 03 1 1409-1411 ●
137 03.163 PIPE ASM; LEAK OFF
(B) 		8-98211-775-0 03 1 1412- ● ● ● ●
137 03.163 PIPE ASM; LEAK OFF
(A) 		8-98211-776-0 01 1 1409-1411 ●
137 03.163 PIPE ASM; LEAK OFF
(A) 		8-98211-776-0 01 1 1412- ● ● ● ●
166 03.304 GASKET; FUEL INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 03.332 ID=11 OD=14.8 		9-09566-111-0 04 1 1409-1411 ●
166 03.304 GASKET; FUEL INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 03.332 ID=11 OD=14.8 		9-09566-111-0 04 1 1412- ● ● ● ●
175 03.162 GASKET; EYE BOLT,OUTLET,FUEL FEE
01.531 ID=10.2 OD=15.2 		1-09630-083-0 02 1 1409-1411 ●
175 03.162 GASKET; EYE BOLT,OUTLET,FUEL FEE
01.531 ID=10.2 OD=15.2 		1-09630-083-0 02 1 1412-1505 ● ● ● ●
175 03.162 GASKET; EYE BOLT,OUTLET,FUEL FEE 1-15619-508-0 02 1 1506- ● ● ● ●
205 03.320 SENSOR; FUEL TEMP 8-98023-581-0 01 1 1409-1411 ●
205 03.320 SENSOR; FUEL TEMP 8-98023-581-0 01 1 1412- ● ● ● ●
210 03.330 PIPE; INJ,C/R 8-97388-902-0 01 1 1412- ●
210 03.330 PIPE; INJ,C/R 8-98158-733-0 01 1 1412- ●
210 03.330 PIPE; INJ,C/R 8-98233-237-0 01 1 1409-1411 ●
210 03.330 PIPE; INJ,C/R 8-98233-237-0 01 1 1412- ● ●
211 03.331 RAIL ASM; COMMON 8-98132-055-1 01 1 1412- ●
211 03.331 RAIL ASM; COMMON 8-98151-214-0 01 1 1412- ●
211 03.331 RAIL ASM; COMMON 8-98228-475-0 01 1 1409-1411 ●
211 03.331 RAIL ASM; COMMON 8-98228-475-0 01 1 1412- ● ●
216 03.162 BOLT; EYE
(A) 		8-98209-777-0 01 1 1412- ● ● ● ●
216 03.162 BOLT; EYE
03.280 (A) 		9-88130-088-0 01 1 1409-1409 ●
216 03.162 BOLT; EYE
(A) 		8-98209-777-0 01 1 1410-1411 ●
216 03.162 BOLT; EYE
(B) 		8-98043-033-0 01 1 1412- ●
219 03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49.7 		1-09623-541-0 01 1 1409-1411 ●
219 03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49.7 		1-09623-541-0 01 1 1412- ● ● ● ●
282 03.163 BRACKET; COMMON RAIL 8-98132-056-0 01 1 1412- ●
282 03.163 BRACKET; COMMON RAIL 8-98158-715-2 01 1 1412- ●
282 03.163 BRACKET; COMMON RAIL 8-98205-942-0 01 1 1409-1411 ●
282 03.163 BRACKET; COMMON RAIL 8-98205-942-0 01 1 1412- ● ●
283 03.330 BOLT; COMMON RAIL
00.206 (E) M8X70 FLANGE 		0-28050-870-0 02 1 1412- ●
283 03.330 BOLT; COMMON RAIL
(B) M8X81 FLANGE 		8-97354-584-0 02 1 1412- ●
283 03.330 BOLT; COMMON RAIL
(C) M8X25 FLANGE 		8-98174-080-0 03 1 1412- ●
283 03.330 BOLT; COMMON RAIL
(D) M8X40 FLANGE 		8-98174-180-0 04 1 1412- ●
283 03.330 BOLT; COMMON RAIL
(A) M8X66 FLANGE 		8-98228-566-0 03 1 1409-1411 ●
283 03.330 BOLT; COMMON RAIL
(A) M8X66 FLANGE 		8-98228-566-0 03 1 1412- ● ●
288 03.331 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 1412- ●
289 03.331 LIMITER; FUEL PRESS 8-98032-549-0 01 1 1412- ● ● ●
289 03.331 LIMITER; FUEL PRESS 8-98032-549-0 01 1 1409-1411 ●
289 03.331 LIMITER; FUEL PRESS 8-98138-695-0 01 1 1412- ●
290 03.331 SENSOR; PRESS 8-98181-616-0 01 1 1412- ● ● ●
290 03.331 SENSOR; PRESS 8-98181-616-0 01 1 1409-1411 ●
290 03.331 SENSOR; PRESS 8-98178-706-0 01 1 1412- ●
313 03.330 BOLT; BRKT,INJ NOZZLE
M8X50 W/WASHER 		8-98095-575-0 04 1 1412- ● ●
313 03.330 BOLT; BRKT,INJ NOZZLE
M8X85 W/WASHER 		8-98228-637-0 04 1 1409-1411 ●
313 03.330 BOLT; BRKT,INJ NOZZLE
M8X85 W/WASHER 		8-98228-637-0 04 1 1412- ● ●
329 03.335 GASKET; SENSOR,FUEL TEMP
03.304 ID=9.8 OD=11.7 		9-09566-110-0 01 1 1409-1409 ●
347 03.332 PIN 8-98165-035-0 04 1 1409-1411 ●
347 03.332 PIN 8-98165-035-0 04 1 1412- ● ● ● ●
382 03.162 KEY; DRIVE SHAFT 8-97375-384-0 01 1 1409-1409 ●
382 03.162 KEY; DRIVE SHAFT 8-98161-995-0 01 1 1410-1411 ●
382 03.162 KEY; DRIVE SHAFT 8-98161-995-0 01 1 1412- ● ● ● ●
408 03.306 PUMP ASM; FUEL,SUPPLY 8-98155-988-3 01 1 1412- ● ● ●
408 03.306 PUMP ASM; FUEL,SUPPLY 8-98155-988-2 01 1 1409-1411 ●
408 03.306 PUMP ASM; FUEL,SUPPLY 8-98151-213-2 01 1 1412- ●
424 03.332 OVERHAUL KIT; SUPPLY PUMP 8-98145-455-1 01 1 1409-1411 ●
424 03.332 OVERHAUL KIT; SUPPLY PUMP 8-98145-455-1 01 1 1412- ● ● ● ●
445 03.330 SCREW; FILTER,INLET 8-98209-778-0 01 1 1409-1411 ●
445 03.330 SCREW; FILTER,INLET 8-98209-778-0 01 1 1412- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
