0-32 — WATER PIPING; ENGINE (#148406) — 72 parça
çizim 443090

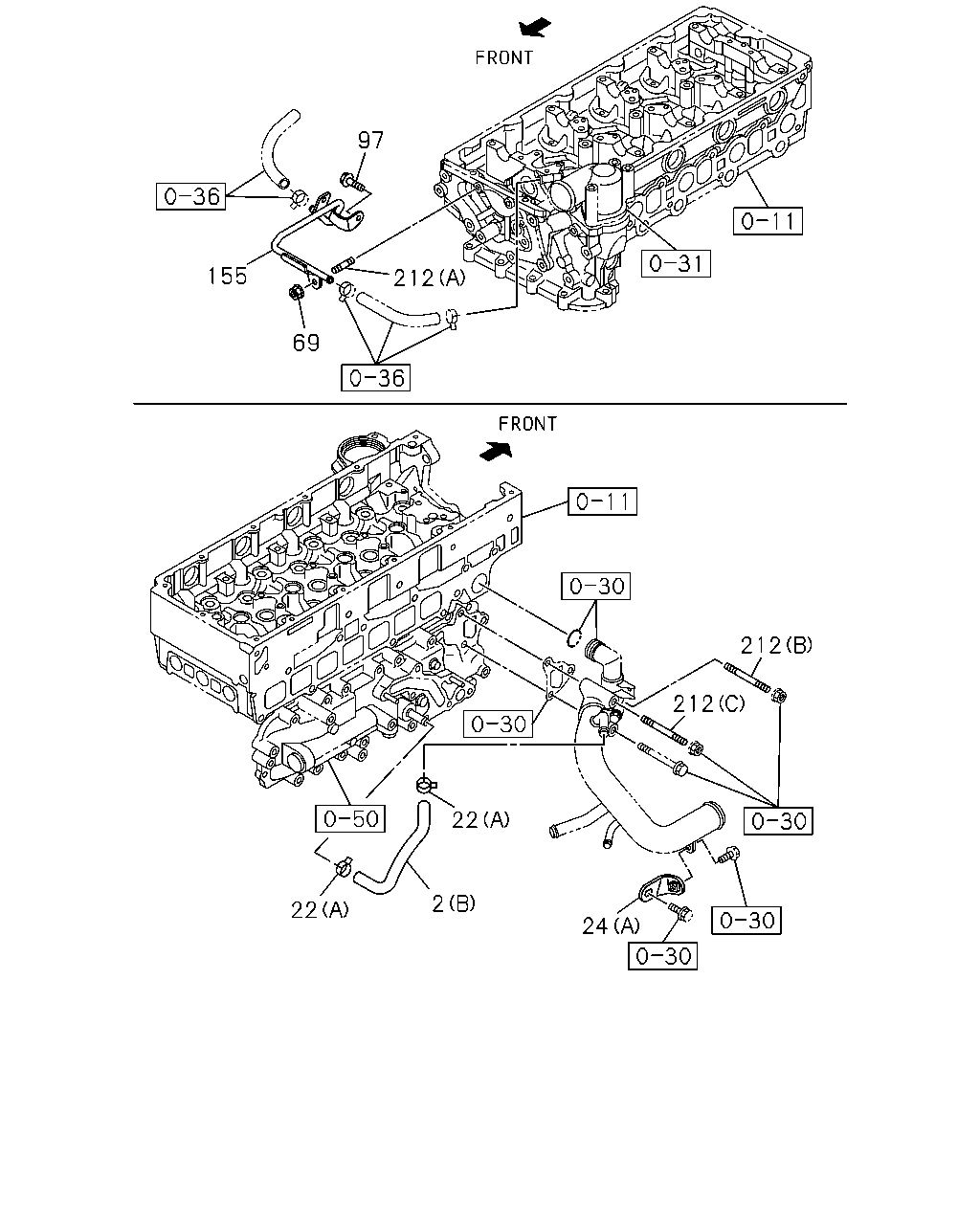

97 212 155 69 22 22 2 24 212 212
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 01.097 HOSE; WATER,BY-PASS
(A) 		8-98168-393-1 01 1 1412- ●
2 01.097 HOSE; WATER,BY-PASS
(B) 		8-98225-143-0 01 1 1412- ●
22 01.153 CLIP; WATER HOSE
03.342 (A) ID=15.1 		8-98179-581-0 02 1 1412-1503 ● ●
22 01.153 CLIP; WATER HOSE
03.342 (A) ID=15.1 		8-98179-581-0 02 1 1504- ● ● ●
22 01.153 CLIP; WATER HOSE
03.342 (C) ID=12.8 		8-97944-125-0 02 1 1412- ●
22 01.153 CLIP; WATER HOSE
03.330 (B) ID=11.5 		8-98051-892-0 02 1 1412- ●
24 01.166 BRACKET; WATER PIPE
(C) 		8-97375-053-2 01 1 1412- ● ●
24 01.166 BRACKET; WATER PIPE
(B) 		8-98132-031-0 01 1 1412- ● ●
24 01.166 BRACKET; WATER PIPE
(A) 		8-98228-424-1 01 1 1409-1411 ●
24 01.166 BRACKET; WATER PIPE
(A) 		8-98228-424-1 01 1 1412- ● ●
69 01.153 NUT; WATER PIPE
01.540 M6 FLANGE 		0-91180-206-0 01 1 1409-1411 ●
69 01.153 NUT; WATER PIPE
01.540 M6 FLANGE 		0-91180-206-0 01 1 1412- ● ● ● ●
97 04.866 BOLT; WATER PIPE
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 1409-1411 ●
97 04.866 BOLT; WATER PIPE
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 1412- ● ● ● ●
155 01.153 PIPE ASM; WATER 8-98132-032-0 01 1 1412- ●
155 01.153 PIPE ASM; WATER 8-98151-199-1 01 1 1412- ●
155 01.153 PIPE ASM; WATER 8-98205-964-0 01 1 1409-1411 ●
155 01.153 PIPE ASM; WATER 8-98205-964-0 01 1 1412- ● ●
212 01.153 STUD; PIPE
01.453 (A) M6X12 L=21 		0-41010-612-0 01 1 1409-1411 ●
212 01.153 STUD; PIPE
01.453 (A) M6X12 L=21 		0-41010-612-0 01 1 1412- ● ●
212 01.153 STUD; PIPE
01.540 (B) M8X40 L=52 		0-41010-840-0 01 1 1409-1411 ●
212 01.153 STUD; PIPE
01.540 (B) M8X40 L=52 		0-41010-840-0 01 1 1412- ● ●
212 01.153 STUD; PIPE
03.275 (C) M8X75 L=87 		9-04110-875-0 01 1 1409-1411 ●
212 01.153 STUD; PIPE
03.275 (C) M8X75 L=87 		9-04110-875-0 01 1 1412- ● ●
çizim 458241

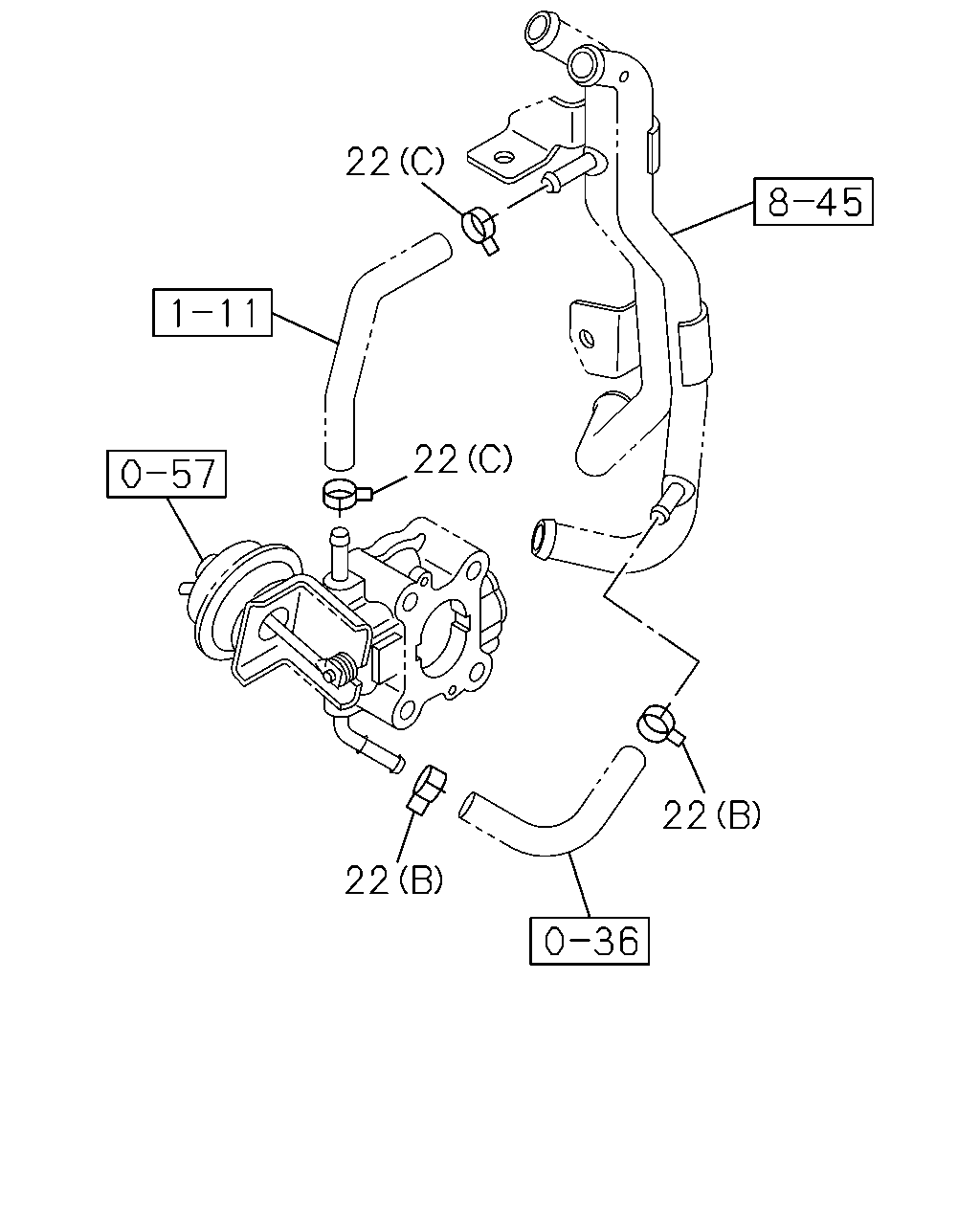

22 22 22 22
BalonParca AdiParca NoAdetTipApplied Date A B C D E
22 01.153 CLIP; WATER HOSE
03.342 (A) ID=15.1 		8-98179-581-0 02 1 1412-1503 ● ●
22 01.153 CLIP; WATER HOSE
03.342 (A) ID=15.1 		8-98179-581-0 02 1 1504- ● ● ●
22 01.153 CLIP; WATER HOSE
03.342 (C) ID=12.8 		8-97944-125-0 02 1 1412- ●
22 01.153 CLIP; WATER HOSE
03.330 (B) ID=11.5 		8-98051-892-0 02 1 1412- ●
çizim 458242

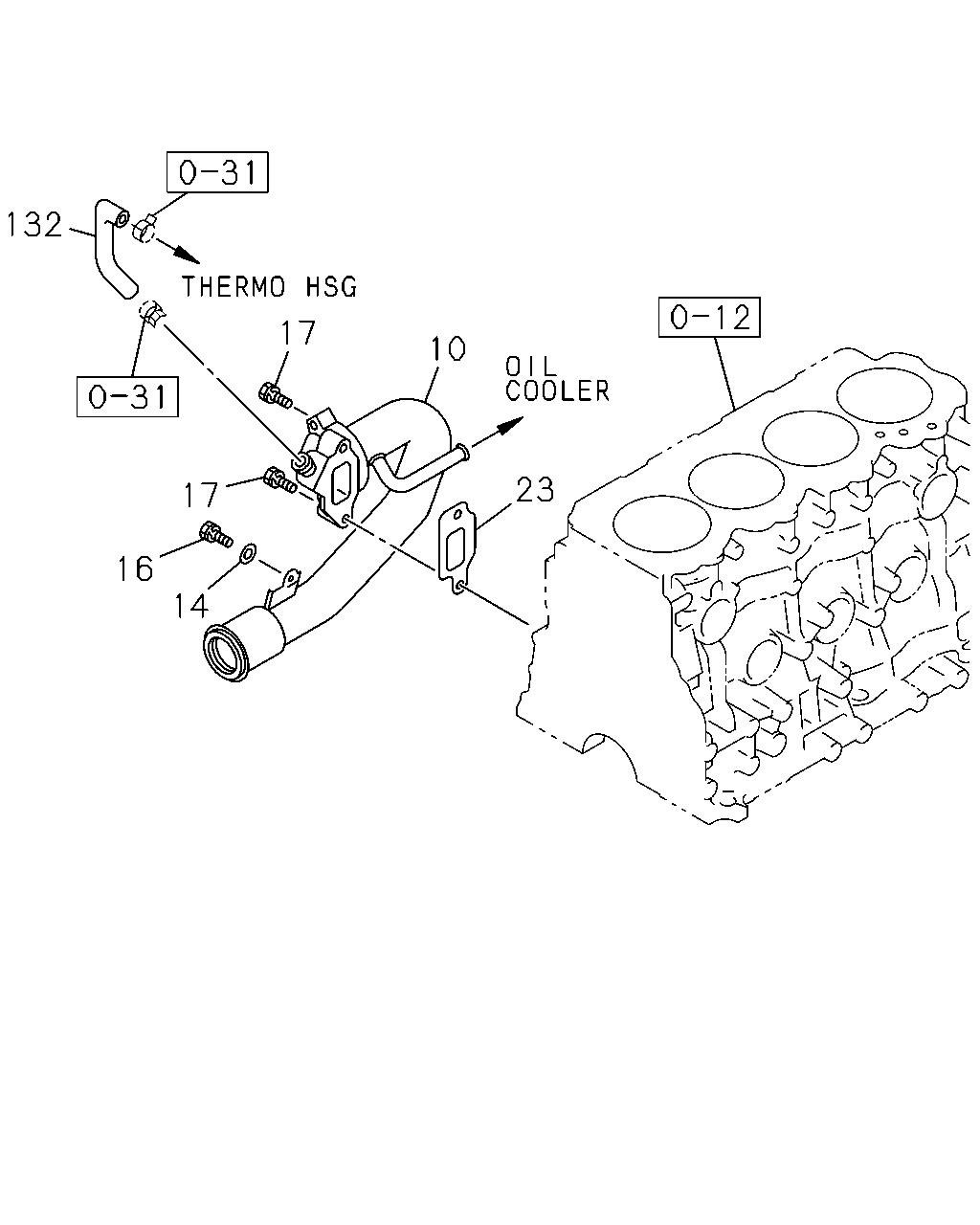

132 17 10 23 17 16 14
BalonParca AdiParca NoAdetTipApplied Date A B C D E
10 01.153 PIPE; SUCTION 8-97381-633-0 01 1 1412- ●
14 01.159 WASHER; PL,INL PIPE TO BRKT
03.613 ID=8 OD=18 T=3 		8-94174-537-0 01 1 1412- ●
16 01.097 BOLT; INL PIPE
00.206 M8X20 W/LK WASHER 		0-50540-820-0 01 1 1412- ●
17 01.153 BOLT; SUCTION PIPE
00.206 M8X50 W/LK WASHER 		0-50540-850-0 02 1 1412- ●
23 01.079 GASKET; SUCTION PIPE TO BLOCK
ALSO INCLUDED IN GASKET SET(ENGINE). 		0-95690-338-0 01 1 1412- ● ●
23 01.079 GASKET; SUCTION PIPE TO BLOCK
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94365-676-3 01 1 1412- ●
132 01.153 HOSE; WATER PIPE
01.097 		8-94382-246-0 01 1 1412- ●
çizim 458244

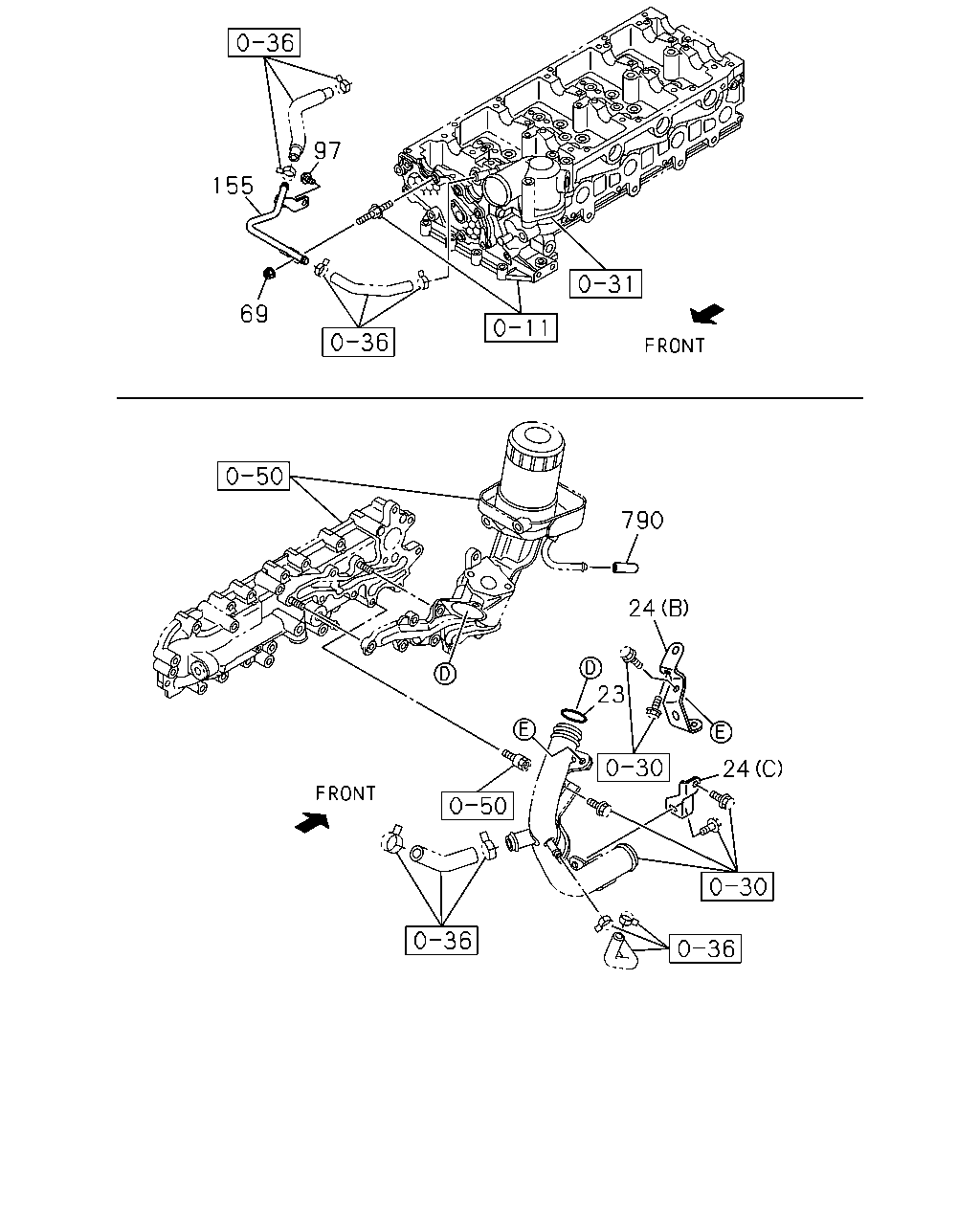

24 790 23 24 97 155 69
BalonParca AdiParca NoAdetTipApplied Date A B C D E
23 01.079 GASKET; SUCTION PIPE TO BLOCK
ALSO INCLUDED IN GASKET SET(ENGINE). 		0-95690-338-0 01 1 1412- ● ●
23 01.079 GASKET; SUCTION PIPE TO BLOCK
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94365-676-3 01 1 1412- ●
24 01.166 BRACKET; WATER PIPE
(C) 		8-97375-053-2 01 1 1412- ● ●
24 01.166 BRACKET; WATER PIPE
(B) 		8-98132-031-0 01 1 1412- ● ●
24 01.166 BRACKET; WATER PIPE
(A) 		8-98228-424-1 01 1 1409-1411 ●
24 01.166 BRACKET; WATER PIPE
(A) 		8-98228-424-1 01 1 1412- ● ●
69 01.153 NUT; WATER PIPE
01.540 M6 FLANGE 		0-91180-206-0 01 1 1409-1411 ●
69 01.153 NUT; WATER PIPE
01.540 M6 FLANGE 		0-91180-206-0 01 1 1412- ● ● ● ●
97 04.866 BOLT; WATER PIPE
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 1409-1411 ●
97 04.866 BOLT; WATER PIPE
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 1412- ● ● ● ●
155 01.153 PIPE ASM; WATER 8-98132-032-0 01 1 1412- ●
155 01.153 PIPE ASM; WATER 8-98151-199-1 01 1 1412- ●
155 01.153 PIPE ASM; WATER 8-98205-964-0 01 1 1409-1411 ●
155 01.153 PIPE ASM; WATER 8-98205-964-0 01 1 1412- ● ●
790 01.097 CAP 8-98158-433-0 01 1 1412- ●
çizim 459565

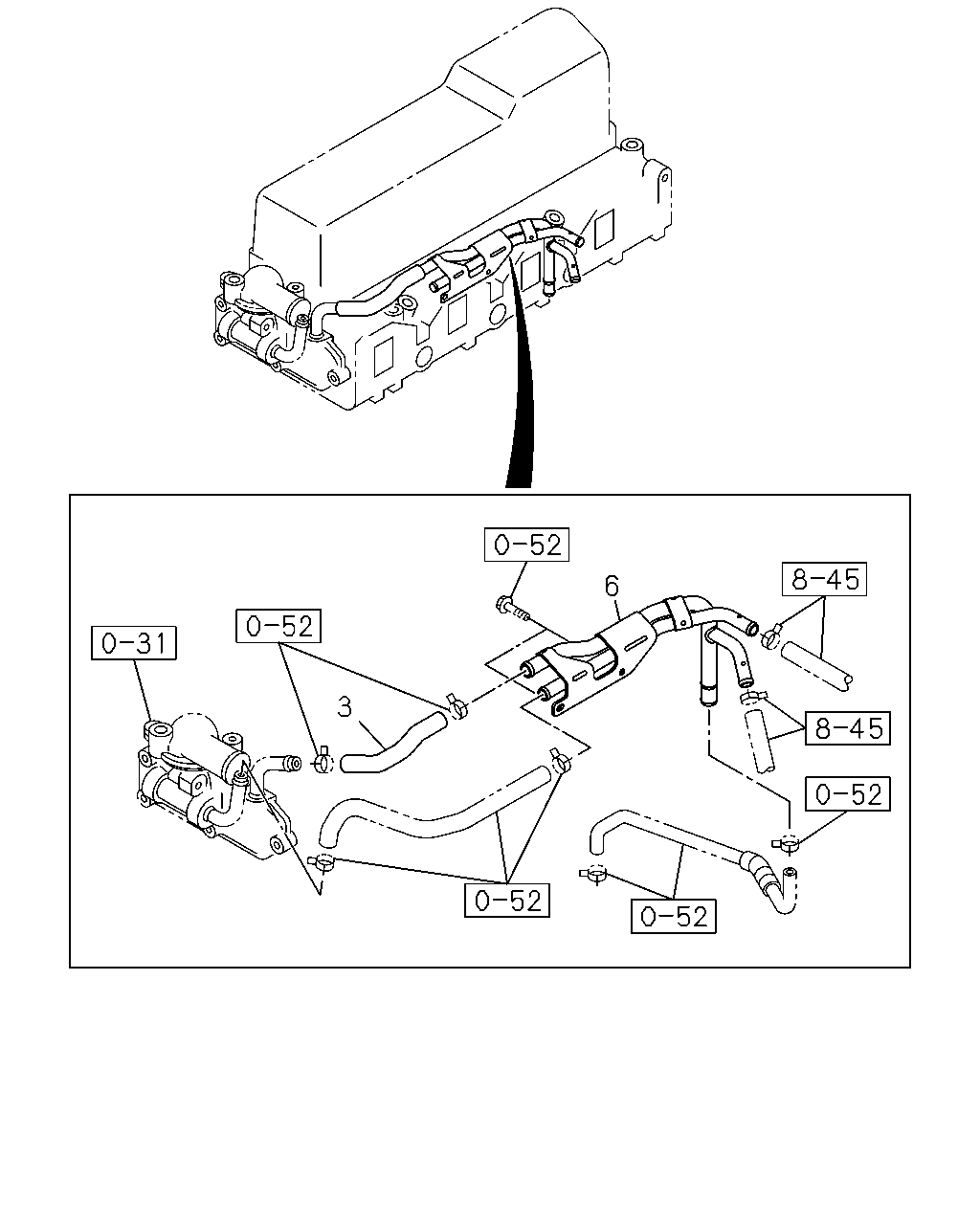

3 6
BalonParca AdiParca NoAdetTipApplied Date A B C D E
3 01.540 HOSE; WATER,OIL COOLER 8-97354-155-1 01 1 1412- ●
6 09.190 CONNECTOR; HTR & COOLER HOSE 8-98200-080-2 01 1 1412- ●
çizim 459615

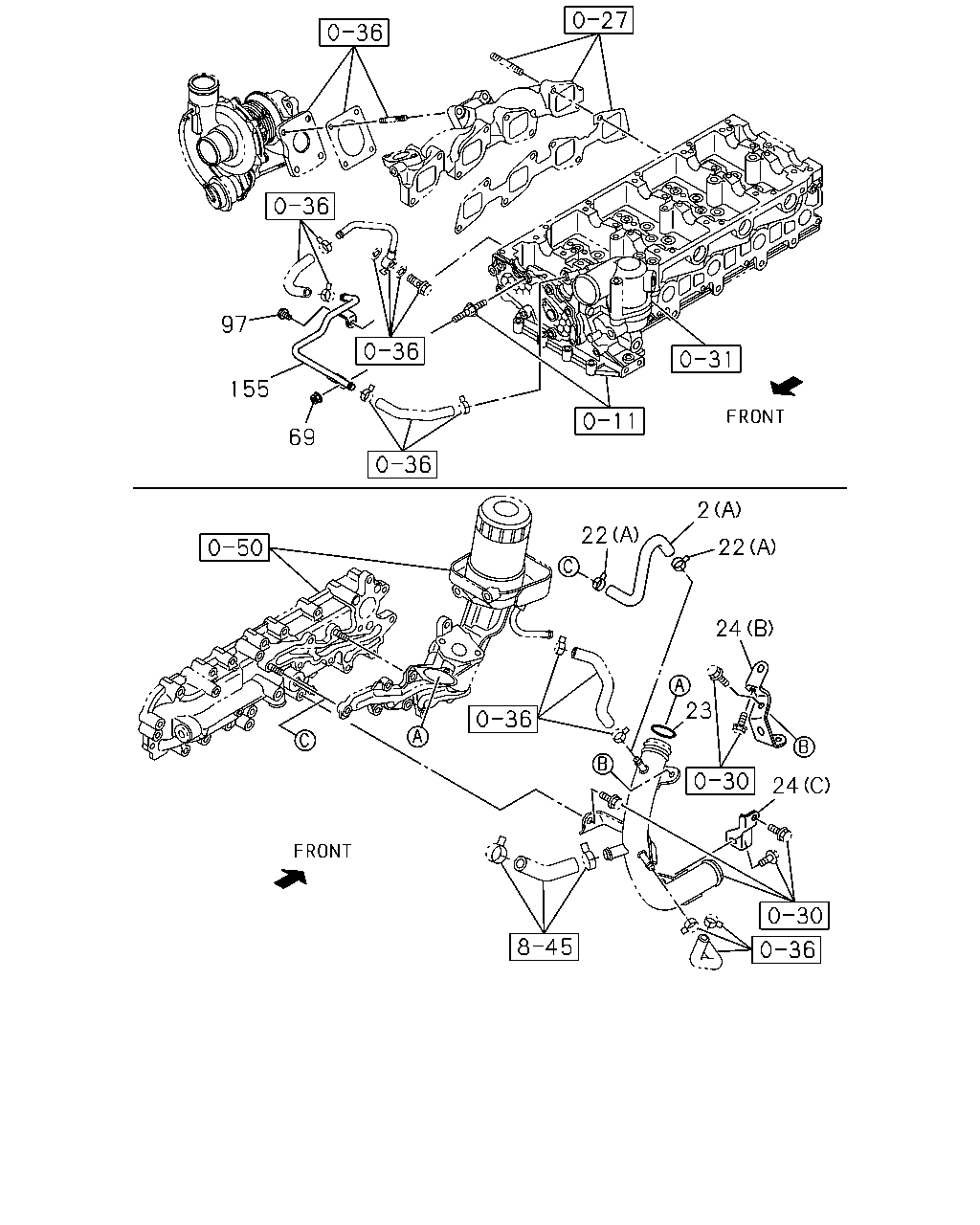

22 2 22 24 23 24 97 155 69
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 01.097 HOSE; WATER,BY-PASS
(A) 		8-98168-393-1 01 1 1412- ●
2 01.097 HOSE; WATER,BY-PASS
(B) 		8-98225-143-0 01 1 1412- ●
22 01.153 CLIP; WATER HOSE
03.342 (A) ID=15.1 		8-98179-581-0 02 1 1412-1503 ● ●
22 01.153 CLIP; WATER HOSE
03.342 (A) ID=15.1 		8-98179-581-0 02 1 1504- ● ● ●
22 01.153 CLIP; WATER HOSE
03.342 (C) ID=12.8 		8-97944-125-0 02 1 1412- ●
22 01.153 CLIP; WATER HOSE
03.330 (B) ID=11.5 		8-98051-892-0 02 1 1412- ●
23 01.079 GASKET; SUCTION PIPE TO BLOCK
ALSO INCLUDED IN GASKET SET(ENGINE). 		0-95690-338-0 01 1 1412- ● ●
23 01.079 GASKET; SUCTION PIPE TO BLOCK
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94365-676-3 01 1 1412- ●
24 01.166 BRACKET; WATER PIPE
(C) 		8-97375-053-2 01 1 1412- ● ●
24 01.166 BRACKET; WATER PIPE
(B) 		8-98132-031-0 01 1 1412- ● ●
24 01.166 BRACKET; WATER PIPE
(A) 		8-98228-424-1 01 1 1409-1411 ●
24 01.166 BRACKET; WATER PIPE
(A) 		8-98228-424-1 01 1 1412- ● ●
69 01.153 NUT; WATER PIPE
01.540 M6 FLANGE 		0-91180-206-0 01 1 1409-1411 ●
69 01.153 NUT; WATER PIPE
01.540 M6 FLANGE 		0-91180-206-0 01 1 1412- ● ● ● ●
97 04.866 BOLT; WATER PIPE
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 1409-1411 ●
97 04.866 BOLT; WATER PIPE
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 1412- ● ● ● ●
155 01.153 PIPE ASM; WATER 8-98132-032-0 01 1 1412- ●
155 01.153 PIPE ASM; WATER 8-98151-199-1 01 1 1412- ●
155 01.153 PIPE ASM; WATER 8-98205-964-0 01 1 1409-1411 ●
155 01.153 PIPE ASM; WATER 8-98205-964-0 01 1 1412- ● ●
