Sayfa 0-25 - Isuzu EPC

0-25 — INLET MANIFOLD (#148402) — 244 parça

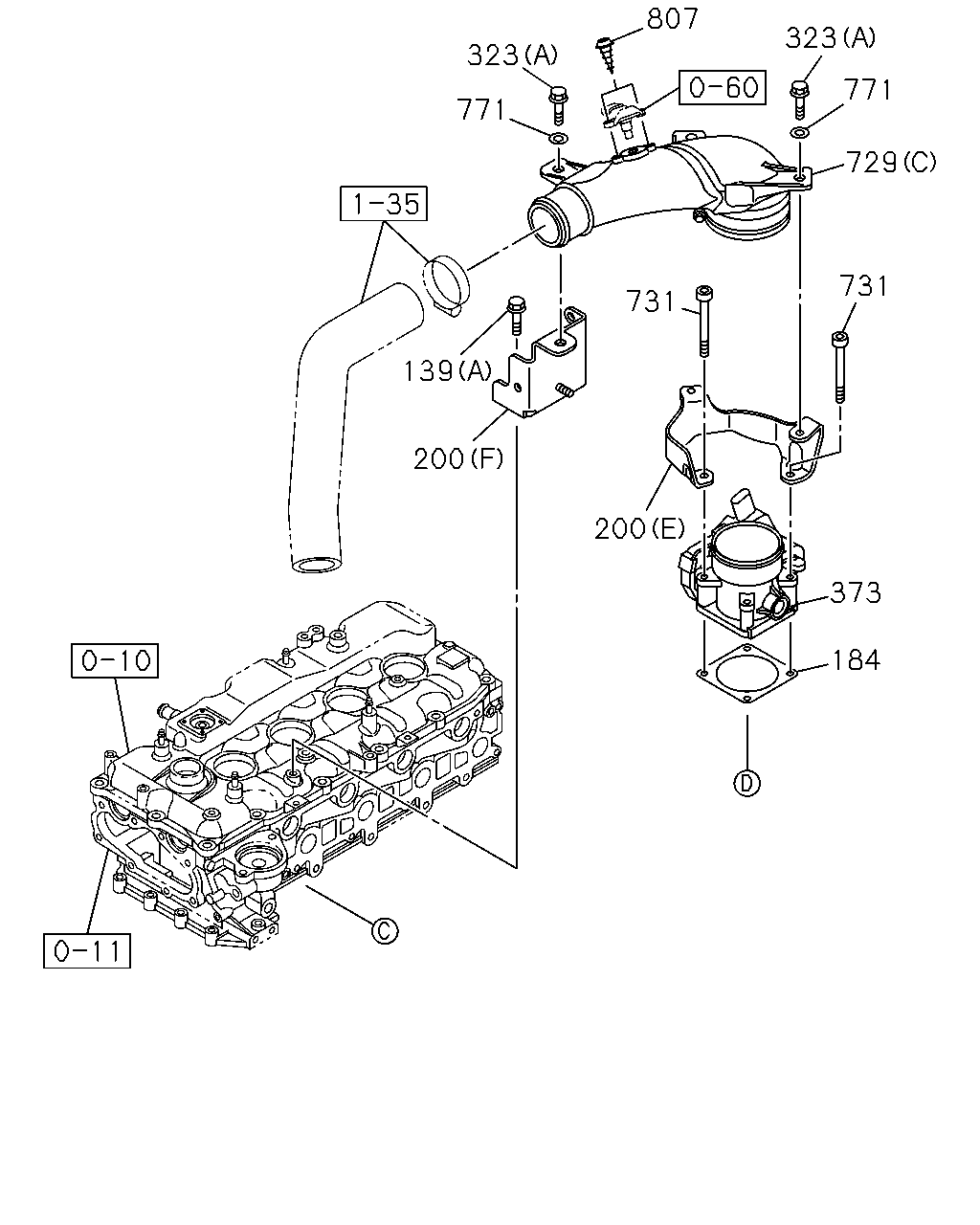

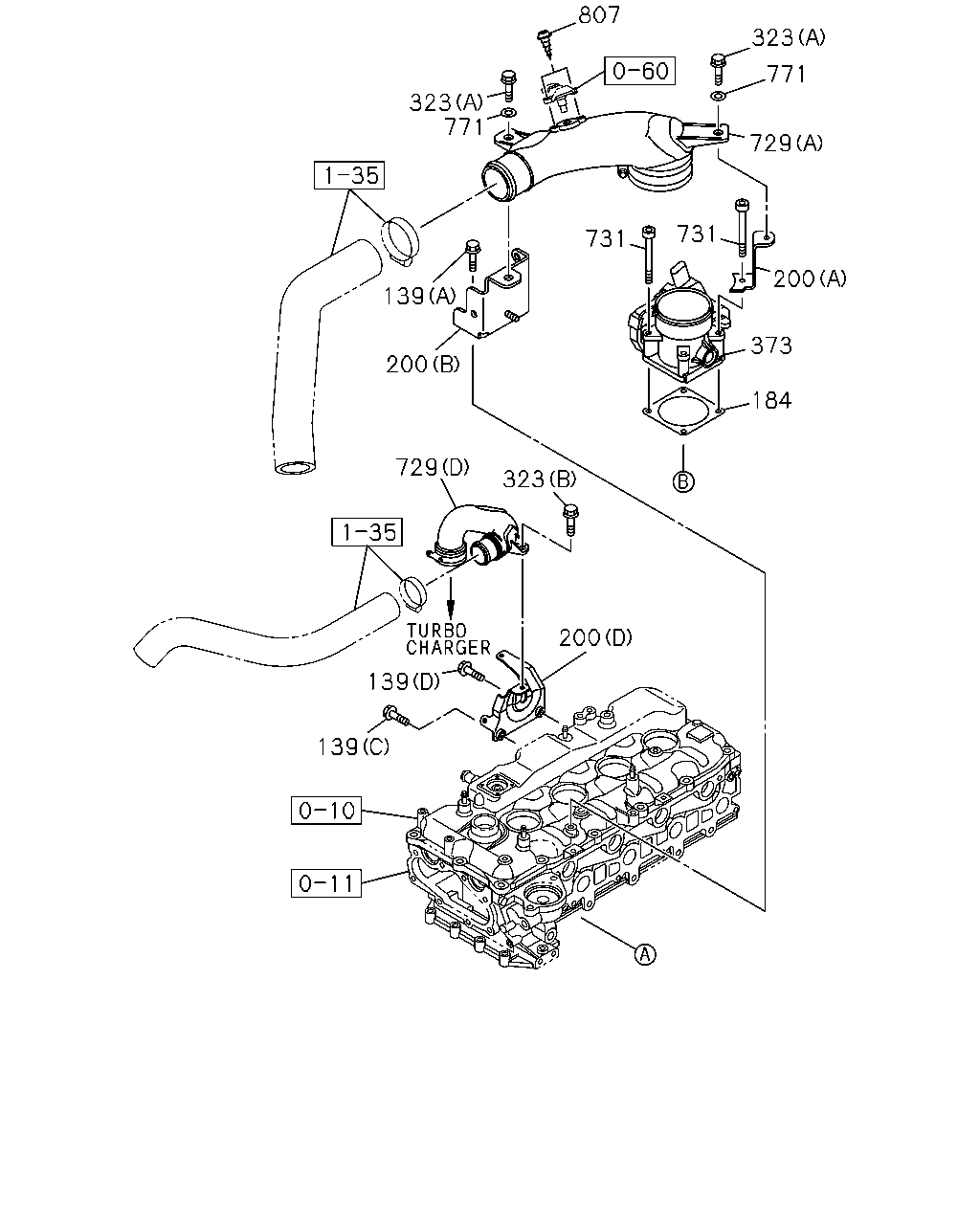

200 139 139 729 323 200 139 771 323 807 731 731 373 184 200 729 771 323

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
139	03.162 BOLT; BRKT FIX 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	1412-	●	●
139	03.162 BOLT; BRKT FIX 00.386 (D) M6X20 FLANGE	0-28050-620-0	01	1	1412-	●
139	03.162 BOLT; BRKT FIX 02.042 (C) M10X25 FLANGE	0-28151-025-0	01	1	1412-	●
139	03.162 BOLT; BRKT FIX 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1409-1411			●
139	03.162 BOLT; BRKT FIX 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1412-			●	●
139	03.162 BOLT; BRKT FIX 01.531 (B) M8X20 FLANGE	0-28650-820-0	03	1	1409-1411			●
139	03.162 BOLT; BRKT FIX 01.531 (B) M8X20 FLANGE	0-28650-820-0	03	1	1412-			●	●
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-98096-968-0	01	1	1409-1411			●
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-98096-968-0	01	1	1412-	●	●	●	●
200	03.407 BRACKET; AIR DUCT (F)	8-98184-529-0	01	1	1412-	●	●
200	03.407 BRACKET; AIR DUCT (D)	8-98167-223-0	01	1	1412-	●
200	03.407 BRACKET; AIR DUCT (C)	8-98228-445-2	01	1	1412-				●
200	03.407 BRACKET; AIR DUCT (E)	8-98184-895-0	01	1	1412-		●
200	03.407 BRACKET; AIR DUCT (A)	8-98154-158-2	01	1	1409-1411			●
200	03.407 BRACKET; AIR DUCT (A)	8-98154-158-2	01	1	1412-	●		●	●
200	03.407 BRACKET; AIR DUCT (B)	8-98228-262-0	01	1	1409-1411			●
200	03.407 BRACKET; AIR DUCT (B)	8-98228-262-0	01	1	1412-			●	●
200	03.407 BRACKET; AIR DUCT (C)	8-98239-288-1	01	1	1409-			●
323	03.275 BOLT; DUCT (B) M8X25 FLANGE	0-28050-825-0	02	1	1412-	●
323	03.275 BOLT; DUCT 09.242 (A) M6X16 FLANGE	0-28050-616-0	02	1	1412-	●		●	●
323	03.275 BOLT; DUCT 09.242 (A) M6X16 FLANGE	0-28050-616-0	02	1	1409-1411			●
323	03.275 BOLT; DUCT 09.242 (A) M6X16 FLANGE	0-28050-616-0	03	1	1412-		●
323	03.275 BOLT; DUCT (B) M8X25 FLANGE	0-28050-825-0	01	1	1409-1411			●
323	03.275 BOLT; DUCT (B) M8X25 FLANGE	0-28050-825-0	01	1	1412-			●	●
373	03.265 THROTTLE ASM; INT	8-98131-738-3	01	1	1409-1411			●
373	03.265 THROTTLE ASM; INT	8-98131-738-3	01	1	1412-	●	●	●	●
729	03.265 DUCT; INLET (A)	8-98117-650-1	01	1	1412-	●
729	03.265 DUCT; INLET (D)	8-98167-113-3	01	1	1412-	●
729	03.265 DUCT; INLET (C)	8-98180-253-0	01	1	1412-		●
729	03.265 DUCT; INLET (A)	8-98117-651-1	01	1	1409-1411			●
729	03.265 DUCT; INLET (A)	8-98117-651-1	01	1	1412-			●	●
729	03.265 DUCT; INLET (B)	8-98228-260-1	01	1	1409-1411			●
729	03.265 DUCT; INLET (B)	8-98228-260-1	01	1	1412-			●	●
731	02.559 BOLT; THROTTLE ASM M6X50 HEX SOCKET	0-58330-650-0	04	1	1409-1411			●
731	02.559 BOLT; THROTTLE ASM M6X50 HEX SOCKET	0-58330-650-0	04	1	1412-	●	●	●	●
771	03.417 WASHER; DUCT 00.413 ID=6.4 OD=18	0-91610-706-0	02	1	1412-	●		●	●
771	03.417 WASHER; DUCT 00.413 ID=6.4 OD=18	0-91610-706-0	02	1	1409-1411			●
771	03.417 WASHER; DUCT 00.413 ID=6.4 OD=18	0-91610-706-0	03	1	1412-		●
807	03.278 SCREW; SENSOR 02.510 M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1409-1411			●
807	03.278 SCREW; SENSOR 02.510 M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1412-		●	●	●

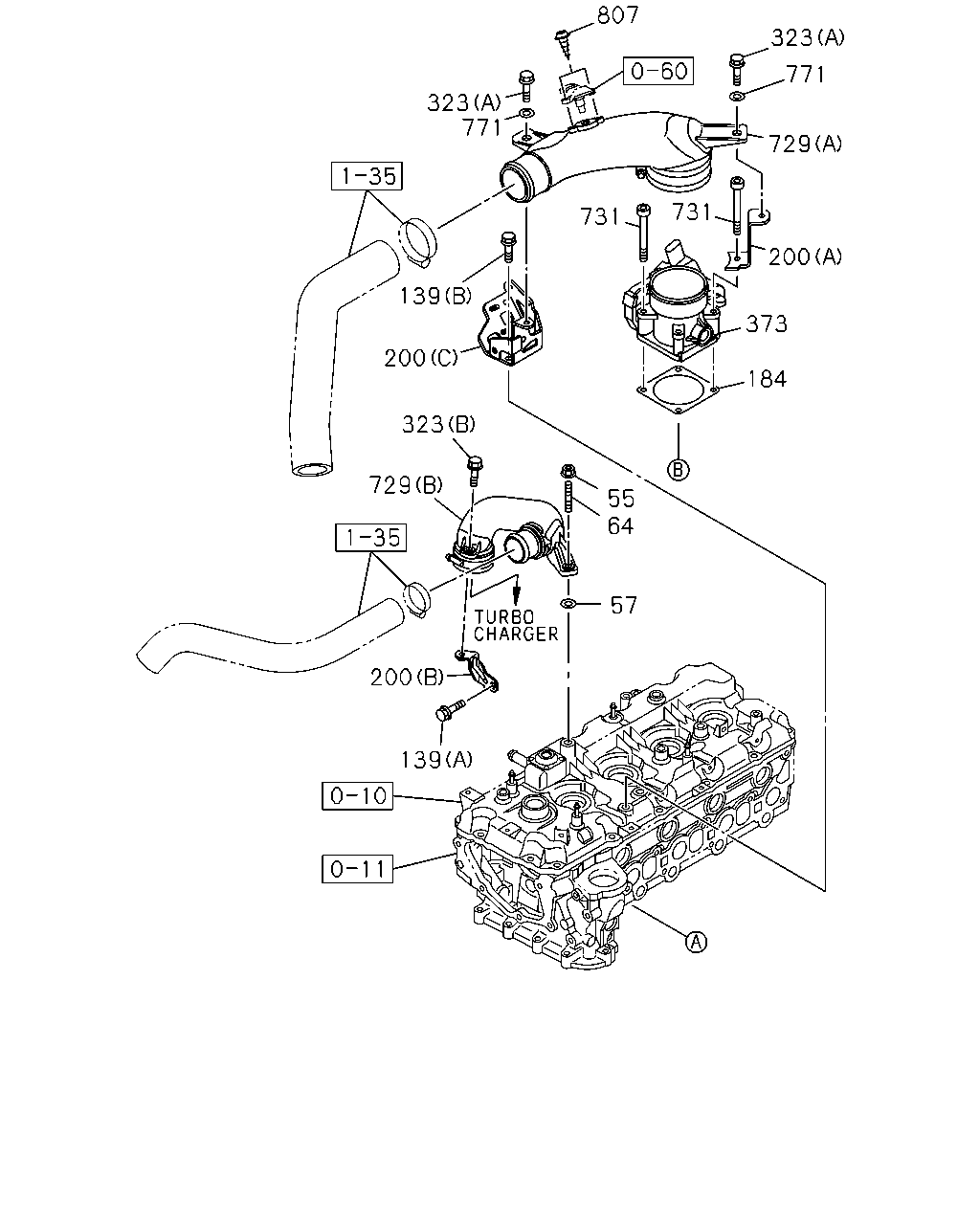

57 55 64 200 139 729 323 200 139 323 771 731 731 184 373 200 729 771 323 807

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
55	03.407 NUT; INL PIPE 01.540 M8 FLANGE	0-91180-208-0	01	1	1409-1411			●
55	03.407 NUT; INL PIPE 01.540 M8 FLANGE	0-91180-208-0	01	1	1412-			●	●
57	03.275 WASHER; PL 02.277 ID=8.4 OD=22	0-91614-708-0	01	1	1409-1411			●
57	03.275 WASHER; PL 02.277 ID=8.4 OD=22	0-91614-708-0	01	1	1412-			●	●
64	03.275 STUD; INL PIPE 02.042 M8X30 L=41	0-41010-830-0	01	1	1409-1411			●
64	03.275 STUD; INL PIPE 02.042 M8X30 L=41	0-41010-830-0	01	1	1412-			●	●
139	03.162 BOLT; BRKT FIX 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	1412-	●	●
139	03.162 BOLT; BRKT FIX 00.386 (D) M6X20 FLANGE	0-28050-620-0	01	1	1412-	●
139	03.162 BOLT; BRKT FIX 02.042 (C) M10X25 FLANGE	0-28151-025-0	01	1	1412-	●
139	03.162 BOLT; BRKT FIX 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1409-1411			●
139	03.162 BOLT; BRKT FIX 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1412-			●	●
139	03.162 BOLT; BRKT FIX 01.531 (B) M8X20 FLANGE	0-28650-820-0	03	1	1409-1411			●
139	03.162 BOLT; BRKT FIX 01.531 (B) M8X20 FLANGE	0-28650-820-0	03	1	1412-			●	●
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-98096-968-0	01	1	1409-1411			●
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-98096-968-0	01	1	1412-	●	●	●	●
200	03.407 BRACKET; AIR DUCT (F)	8-98184-529-0	01	1	1412-	●	●
200	03.407 BRACKET; AIR DUCT (D)	8-98167-223-0	01	1	1412-	●
200	03.407 BRACKET; AIR DUCT (C)	8-98228-445-2	01	1	1412-				●
200	03.407 BRACKET; AIR DUCT (E)	8-98184-895-0	01	1	1412-		●
200	03.407 BRACKET; AIR DUCT (A)	8-98154-158-2	01	1	1409-1411			●
200	03.407 BRACKET; AIR DUCT (A)	8-98154-158-2	01	1	1412-	●		●	●
200	03.407 BRACKET; AIR DUCT (B)	8-98228-262-0	01	1	1409-1411			●
200	03.407 BRACKET; AIR DUCT (B)	8-98228-262-0	01	1	1412-			●	●
200	03.407 BRACKET; AIR DUCT (C)	8-98239-288-1	01	1	1409-			●
323	03.275 BOLT; DUCT (B) M8X25 FLANGE	0-28050-825-0	02	1	1412-	●
323	03.275 BOLT; DUCT 09.242 (A) M6X16 FLANGE	0-28050-616-0	02	1	1412-	●		●	●
323	03.275 BOLT; DUCT 09.242 (A) M6X16 FLANGE	0-28050-616-0	02	1	1409-1411			●
323	03.275 BOLT; DUCT 09.242 (A) M6X16 FLANGE	0-28050-616-0	03	1	1412-		●
323	03.275 BOLT; DUCT (B) M8X25 FLANGE	0-28050-825-0	01	1	1409-1411			●
323	03.275 BOLT; DUCT (B) M8X25 FLANGE	0-28050-825-0	01	1	1412-			●	●
373	03.265 THROTTLE ASM; INT	8-98131-738-3	01	1	1409-1411			●
373	03.265 THROTTLE ASM; INT	8-98131-738-3	01	1	1412-	●	●	●	●
729	03.265 DUCT; INLET (A)	8-98117-650-1	01	1	1412-	●
729	03.265 DUCT; INLET (D)	8-98167-113-3	01	1	1412-	●
729	03.265 DUCT; INLET (C)	8-98180-253-0	01	1	1412-		●
729	03.265 DUCT; INLET (A)	8-98117-651-1	01	1	1409-1411			●
729	03.265 DUCT; INLET (A)	8-98117-651-1	01	1	1412-			●	●
729	03.265 DUCT; INLET (B)	8-98228-260-1	01	1	1409-1411			●
729	03.265 DUCT; INLET (B)	8-98228-260-1	01	1	1412-			●	●
731	02.559 BOLT; THROTTLE ASM M6X50 HEX SOCKET	0-58330-650-0	04	1	1409-1411			●
731	02.559 BOLT; THROTTLE ASM M6X50 HEX SOCKET	0-58330-650-0	04	1	1412-	●	●	●	●
771	03.417 WASHER; DUCT 00.413 ID=6.4 OD=18	0-91610-706-0	02	1	1412-	●		●	●
771	03.417 WASHER; DUCT 00.413 ID=6.4 OD=18	0-91610-706-0	02	1	1409-1411			●
771	03.417 WASHER; DUCT 00.413 ID=6.4 OD=18	0-91610-706-0	03	1	1412-		●
807	03.278 SCREW; SENSOR 02.510 M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1409-1411			●
807	03.278 SCREW; SENSOR 02.510 M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1412-		●	●	●

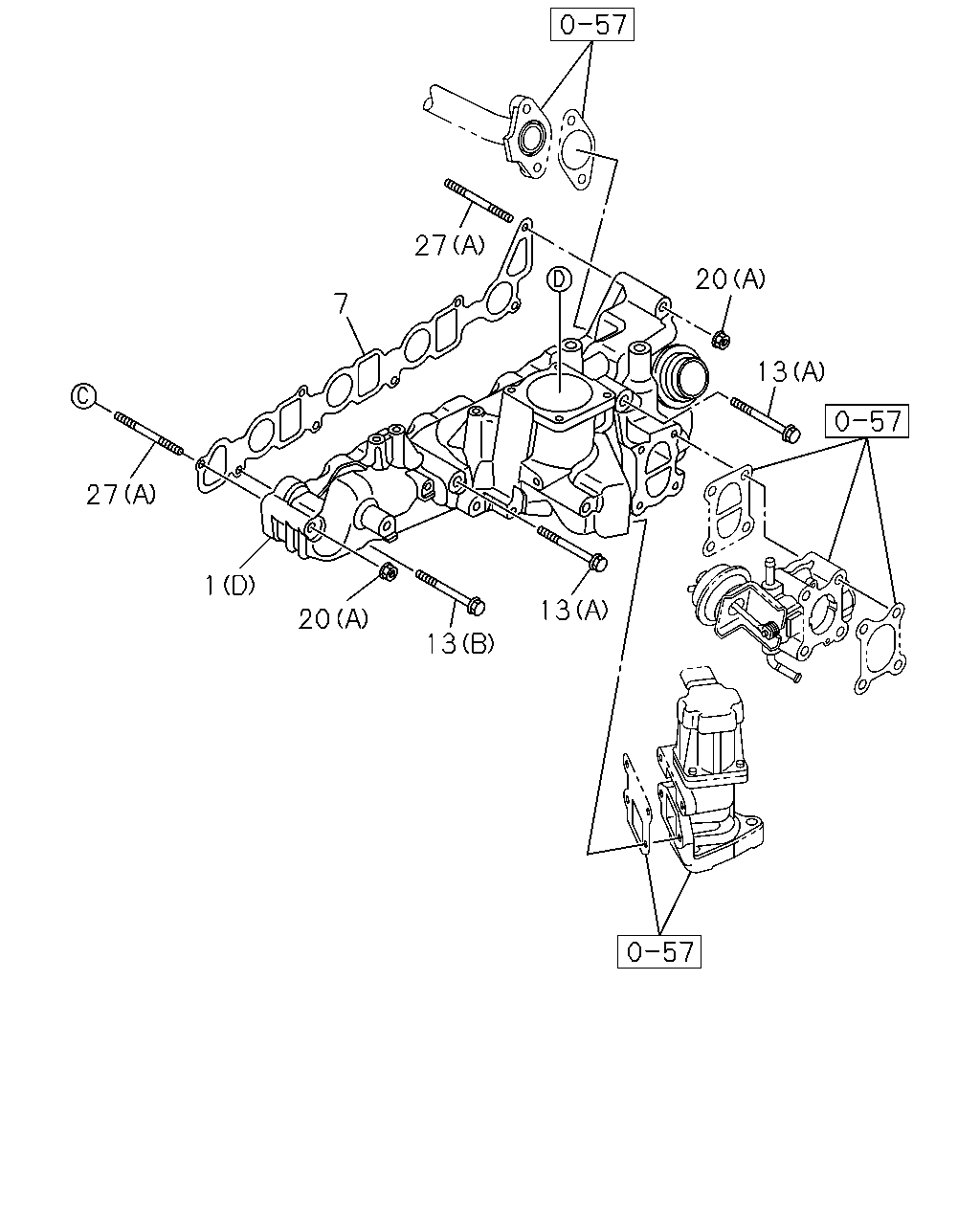

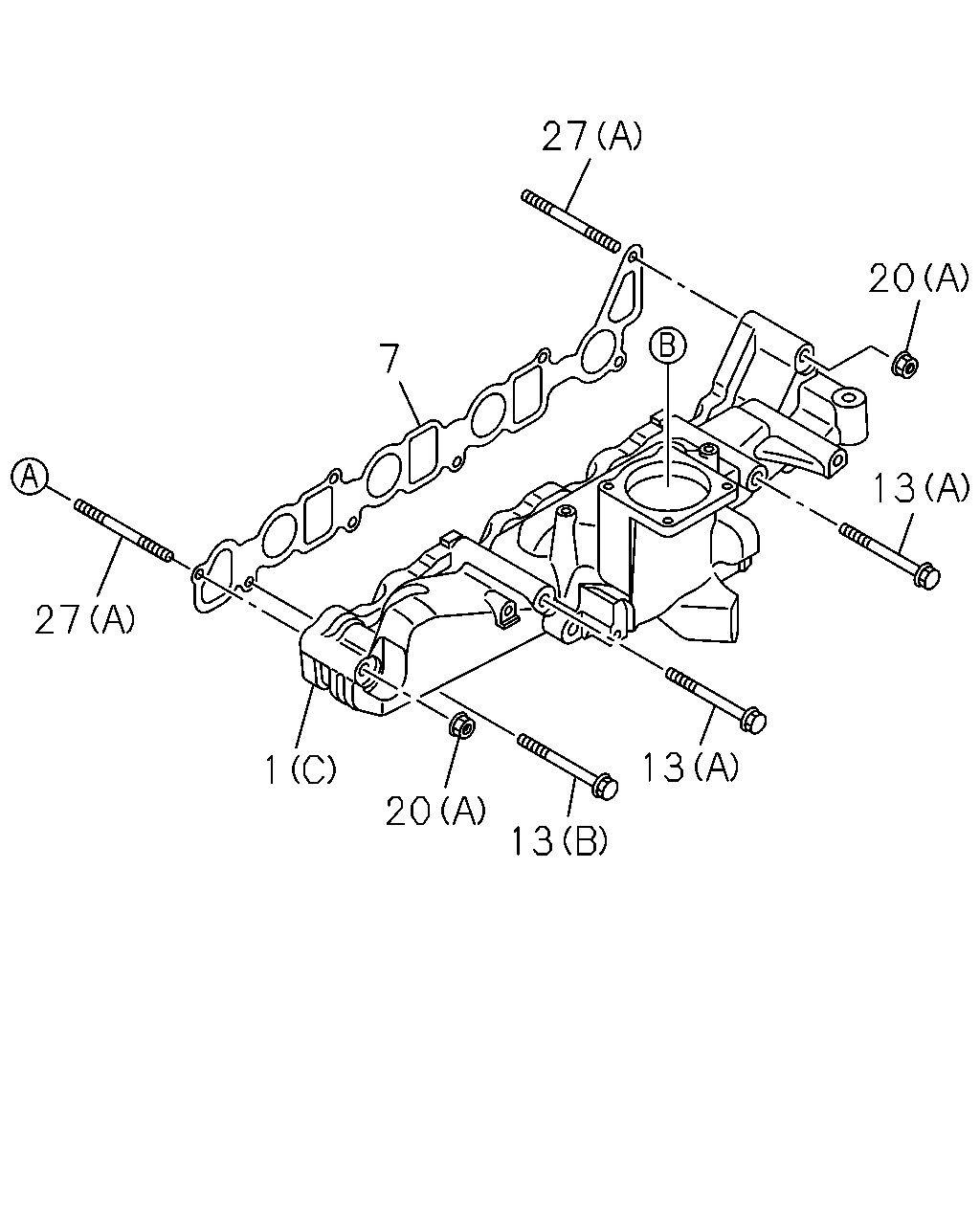

13 20 27 7 1 27 20 13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.265 MANIFOLD; INL EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> (C)	8-98228-254-0	01	1	1412-1503	●
1	03.265 MANIFOLD; INL EMISSION SYSTEM R15-04<K75> (C)	8-98228-254-0	01	1	1412-1503				●
1	03.265 MANIFOLD; INL EMISSION SYSTEM R15-04<K75> (C)	8-98228-254-0	01	1	1504-			●	●
1	03.265 MANIFOLD; INL EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> (C)	8-98228-254-0	01	1	1504-	●
1	03.265 MANIFOLD; INL EURO2 SPECIFICATION<NT2> (B)	8-98228-252-0	01	1	1412-1503	●
1	03.265 MANIFOLD; INL EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (B)	8-98228-252-0	01	1	1412-1503				●
1	03.265 MANIFOLD; INL EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (B)	8-98228-252-0	01	1	1504-			●	●
1	03.265 MANIFOLD; INL EURO2 SPECIFICATION<NT2> (B)	8-98228-252-0	01	1	1504-	●
1	03.265 MANIFOLD; INL EMISSION SYSTEM R15-04<K75> (F)	8-97350-916-0	01	1	1412-					●
1	03.265 MANIFOLD; INL EURO1 SPECIFICATION<NT1> (E)	8-97253-952-0	01	1	1412-					●
1	03.265 MANIFOLD; INL (D)	8-98151-203-1	01	1	1412-		●
1	03.265 MANIFOLD; INL (A)	8-98228-251-0	01	1	1409-			●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-98063-396-0	01	1	1412-	●	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97301-838-1	01	1	1412-					●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-98212-999-0	01	1	1409-1411			●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-98212-999-0	01	1	1412-			●	●
13	03.275 BOLT; INL MANIF (C) M8X25 FLANGE	0-28050-825-0	04	1	1412-					●
13	03.275 BOLT; INL MANIF 00.206 (D) M8X30 FLANGE	0-28050-830-0	02	1	1412-					●
13	03.275 BOLT; INL MANIF (A) M8X110 FLANGE	0-28055-811-0	02	1	1409-1411			●
13	03.275 BOLT; INL MANIF (A) M8X110 FLANGE	0-28055-811-0	02	1	1412-	●	●	●	●
13	03.275 BOLT; INL MANIF (B) M8X70 12-POINT HEAD	8-97101-065-0	04	1	1409-1411			●
13	03.275 BOLT; INL MANIF (B) M8X70 12-POINT HEAD	8-97101-065-0	04	1	1412-	●	●	●	●
20	03.275 NUT; INL MANIF 04.634 (B) M8 FLANGE	8-97581-233-0	02	1	1412-					●
20	03.275 NUT; INL MANIF 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1409-1411			●
20	03.275 NUT; INL MANIF 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1412-	●	●	●	●
27	03.275 STUD; INL MANIF (B) M8X25 L=37	0-41010-825-0	02	1	1412-					●
27	03.275 STUD; INL MANIF (A) M8X71 L=83	8-97367-083-0	02	1	1409-1411			●
27	03.275 STUD; INL MANIF (A) M8X71 L=83	8-97367-083-0	02	1	1412-	●	●	●	●

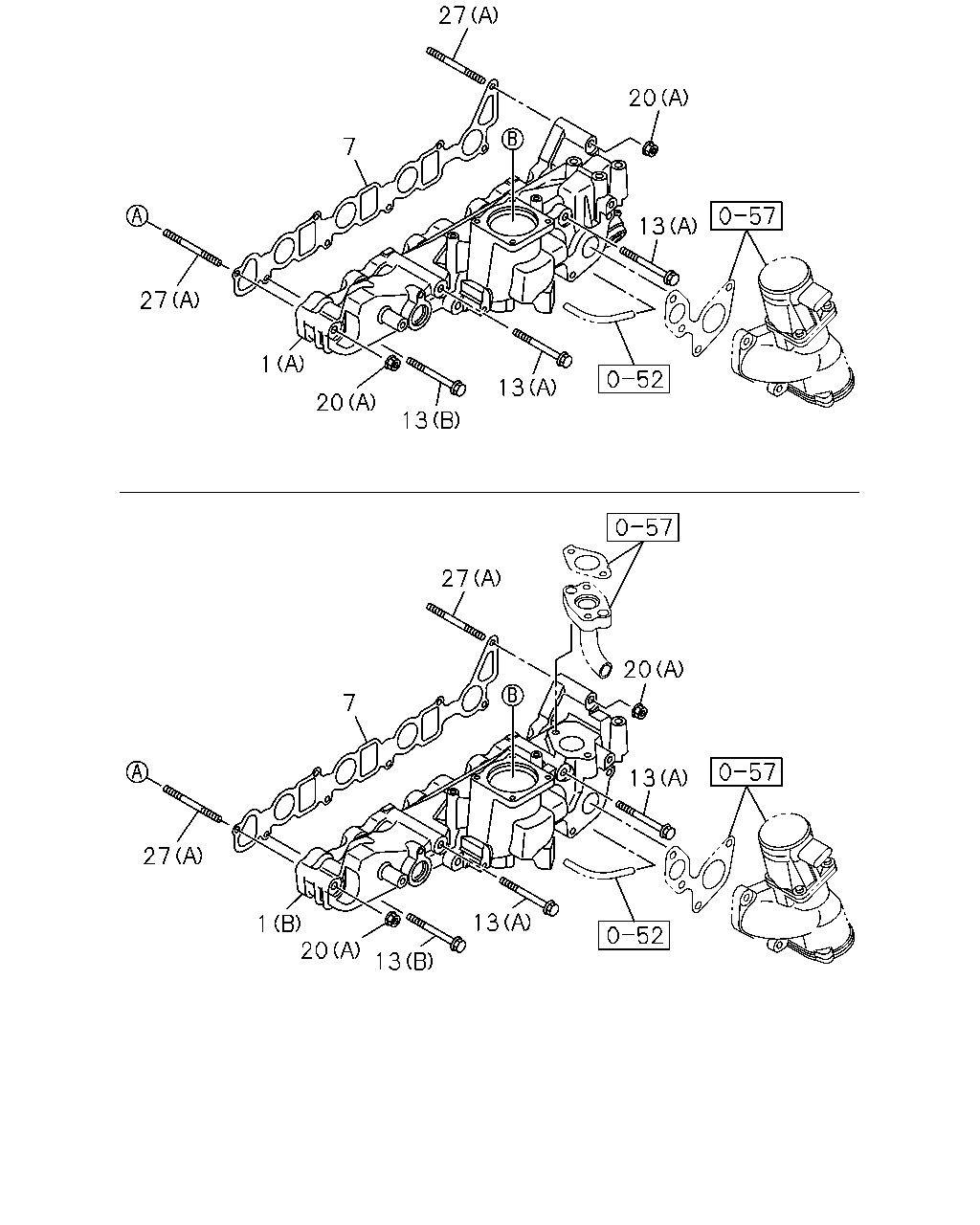

13 20 27 7 27 1 20 13 13 27 20 7 27 1 20 13 13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.265 MANIFOLD; INL EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> (C)	8-98228-254-0	01	1	1412-1503	●
1	03.265 MANIFOLD; INL EMISSION SYSTEM R15-04<K75> (C)	8-98228-254-0	01	1	1412-1503				●
1	03.265 MANIFOLD; INL EMISSION SYSTEM R15-04<K75> (C)	8-98228-254-0	01	1	1504-			●	●
1	03.265 MANIFOLD; INL EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> (C)	8-98228-254-0	01	1	1504-	●
1	03.265 MANIFOLD; INL EURO2 SPECIFICATION<NT2> (B)	8-98228-252-0	01	1	1412-1503	●
1	03.265 MANIFOLD; INL EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (B)	8-98228-252-0	01	1	1412-1503				●
1	03.265 MANIFOLD; INL EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (B)	8-98228-252-0	01	1	1504-			●	●
1	03.265 MANIFOLD; INL EURO2 SPECIFICATION<NT2> (B)	8-98228-252-0	01	1	1504-	●
1	03.265 MANIFOLD; INL EMISSION SYSTEM R15-04<K75> (F)	8-97350-916-0	01	1	1412-					●
1	03.265 MANIFOLD; INL EURO1 SPECIFICATION<NT1> (E)	8-97253-952-0	01	1	1412-					●
1	03.265 MANIFOLD; INL (D)	8-98151-203-1	01	1	1412-		●
1	03.265 MANIFOLD; INL (A)	8-98228-251-0	01	1	1409-			●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-98063-396-0	01	1	1412-	●	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97301-838-1	01	1	1412-					●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-98212-999-0	01	1	1409-1411			●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-98212-999-0	01	1	1412-			●	●
13	03.275 BOLT; INL MANIF (C) M8X25 FLANGE	0-28050-825-0	04	1	1412-					●
13	03.275 BOLT; INL MANIF 00.206 (D) M8X30 FLANGE	0-28050-830-0	02	1	1412-					●
13	03.275 BOLT; INL MANIF (A) M8X110 FLANGE	0-28055-811-0	02	1	1409-1411			●
13	03.275 BOLT; INL MANIF (A) M8X110 FLANGE	0-28055-811-0	02	1	1412-	●	●	●	●
13	03.275 BOLT; INL MANIF (B) M8X70 12-POINT HEAD	8-97101-065-0	04	1	1409-1411			●
13	03.275 BOLT; INL MANIF (B) M8X70 12-POINT HEAD	8-97101-065-0	04	1	1412-	●	●	●	●
20	03.275 NUT; INL MANIF 04.634 (B) M8 FLANGE	8-97581-233-0	02	1	1412-					●
20	03.275 NUT; INL MANIF 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1409-1411			●
20	03.275 NUT; INL MANIF 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1412-	●	●	●	●
27	03.275 STUD; INL MANIF (B) M8X25 L=37	0-41010-825-0	02	1	1412-					●
27	03.275 STUD; INL MANIF (A) M8X71 L=83	8-97367-083-0	02	1	1409-1411			●
27	03.275 STUD; INL MANIF (A) M8X71 L=83	8-97367-083-0	02	1	1412-	●	●	●	●

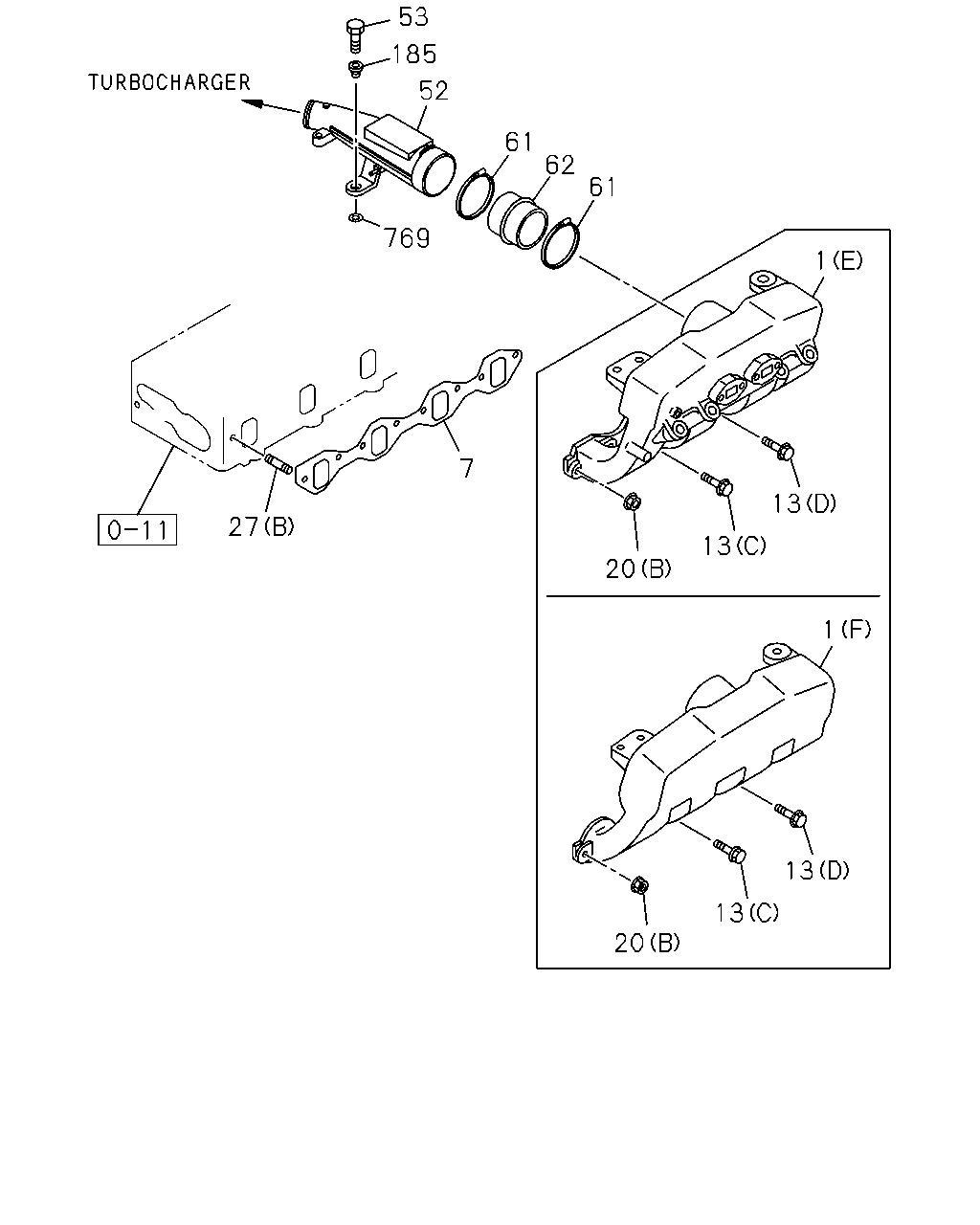

13 20 13 1 1 13 13 20 61 62 61 52 185 53 769 7 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.265 MANIFOLD; INL EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> (C)	8-98228-254-0	01	1	1412-1503	●
1	03.265 MANIFOLD; INL EMISSION SYSTEM R15-04<K75> (C)	8-98228-254-0	01	1	1412-1503				●
1	03.265 MANIFOLD; INL EMISSION SYSTEM R15-04<K75> (C)	8-98228-254-0	01	1	1504-			●	●
1	03.265 MANIFOLD; INL EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> (C)	8-98228-254-0	01	1	1504-	●
1	03.265 MANIFOLD; INL EURO2 SPECIFICATION<NT2> (B)	8-98228-252-0	01	1	1412-1503	●
1	03.265 MANIFOLD; INL EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (B)	8-98228-252-0	01	1	1412-1503				●
1	03.265 MANIFOLD; INL EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (B)	8-98228-252-0	01	1	1504-			●	●
1	03.265 MANIFOLD; INL EURO2 SPECIFICATION<NT2> (B)	8-98228-252-0	01	1	1504-	●
1	03.265 MANIFOLD; INL EMISSION SYSTEM R15-04<K75> (F)	8-97350-916-0	01	1	1412-					●
1	03.265 MANIFOLD; INL EURO1 SPECIFICATION<NT1> (E)	8-97253-952-0	01	1	1412-					●
1	03.265 MANIFOLD; INL (D)	8-98151-203-1	01	1	1412-		●
1	03.265 MANIFOLD; INL (A)	8-98228-251-0	01	1	1409-			●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-98063-396-0	01	1	1412-	●	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97301-838-1	01	1	1412-					●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-98212-999-0	01	1	1409-1411			●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-98212-999-0	01	1	1412-			●	●
13	03.275 BOLT; INL MANIF (C) M8X25 FLANGE	0-28050-825-0	04	1	1412-					●
13	03.275 BOLT; INL MANIF 00.206 (D) M8X30 FLANGE	0-28050-830-0	02	1	1412-					●
13	03.275 BOLT; INL MANIF (A) M8X110 FLANGE	0-28055-811-0	02	1	1409-1411			●
13	03.275 BOLT; INL MANIF (A) M8X110 FLANGE	0-28055-811-0	02	1	1412-	●	●	●	●
13	03.275 BOLT; INL MANIF (B) M8X70 12-POINT HEAD	8-97101-065-0	04	1	1409-1411			●
13	03.275 BOLT; INL MANIF (B) M8X70 12-POINT HEAD	8-97101-065-0	04	1	1412-	●	●	●	●
20	03.275 NUT; INL MANIF 04.634 (B) M8 FLANGE	8-97581-233-0	02	1	1412-					●
20	03.275 NUT; INL MANIF 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1409-1411			●
20	03.275 NUT; INL MANIF 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1412-	●	●	●	●
27	03.275 STUD; INL MANIF (B) M8X25 L=37	0-41010-825-0	02	1	1412-					●
27	03.275 STUD; INL MANIF (A) M8X71 L=83	8-97367-083-0	02	1	1409-1411			●
27	03.275 STUD; INL MANIF (A) M8X71 L=83	8-97367-083-0	02	1	1412-	●	●	●	●
52	01.097 PIPE; INL	8-98208-882-0	01	1	1412-					●
53	03.602 BOLT; INL PIPE 09.171 M8X30 W/LK WASHER	0-50540-830-0	02	1	1412-					●
61	03.273 CLIP; CONNECTOR HOSE ID=65-82	8-97131-942-0	02	1	1412-					●
62	03.265 HOSE; CONNECTOR	8-94386-164-2	01	1	1412-					●
185	03.273 RUBBER; MTG,INL MANIF,UPR	8-94434-927-0	02	1	1412-					●
769	03.273 RUBBER; MTG,INL MANIF,LWR ID=11 OD=24 T=4.5	8-97384-128-0	02	1	1412-					●

373 184 731 729 771 323 807 323 771 731 139 200 200

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
139	03.162 BOLT; BRKT FIX 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	1412-	●	●
139	03.162 BOLT; BRKT FIX 00.386 (D) M6X20 FLANGE	0-28050-620-0	01	1	1412-	●
139	03.162 BOLT; BRKT FIX 02.042 (C) M10X25 FLANGE	0-28151-025-0	01	1	1412-	●
139	03.162 BOLT; BRKT FIX 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1409-1411			●
139	03.162 BOLT; BRKT FIX 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1412-			●	●
139	03.162 BOLT; BRKT FIX 01.531 (B) M8X20 FLANGE	0-28650-820-0	03	1	1409-1411			●
139	03.162 BOLT; BRKT FIX 01.531 (B) M8X20 FLANGE	0-28650-820-0	03	1	1412-			●	●
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-98096-968-0	01	1	1409-1411			●
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-98096-968-0	01	1	1412-	●	●	●	●
200	03.407 BRACKET; AIR DUCT (F)	8-98184-529-0	01	1	1412-	●	●
200	03.407 BRACKET; AIR DUCT (D)	8-98167-223-0	01	1	1412-	●
200	03.407 BRACKET; AIR DUCT (C)	8-98228-445-2	01	1	1412-				●
200	03.407 BRACKET; AIR DUCT (E)	8-98184-895-0	01	1	1412-		●
200	03.407 BRACKET; AIR DUCT (A)	8-98154-158-2	01	1	1409-1411			●
200	03.407 BRACKET; AIR DUCT (A)	8-98154-158-2	01	1	1412-	●		●	●
200	03.407 BRACKET; AIR DUCT (B)	8-98228-262-0	01	1	1409-1411			●
200	03.407 BRACKET; AIR DUCT (B)	8-98228-262-0	01	1	1412-			●	●
200	03.407 BRACKET; AIR DUCT (C)	8-98239-288-1	01	1	1409-			●
323	03.275 BOLT; DUCT (B) M8X25 FLANGE	0-28050-825-0	02	1	1412-	●
323	03.275 BOLT; DUCT 09.242 (A) M6X16 FLANGE	0-28050-616-0	02	1	1412-	●		●	●
323	03.275 BOLT; DUCT 09.242 (A) M6X16 FLANGE	0-28050-616-0	02	1	1409-1411			●
323	03.275 BOLT; DUCT 09.242 (A) M6X16 FLANGE	0-28050-616-0	03	1	1412-		●
323	03.275 BOLT; DUCT (B) M8X25 FLANGE	0-28050-825-0	01	1	1409-1411			●
323	03.275 BOLT; DUCT (B) M8X25 FLANGE	0-28050-825-0	01	1	1412-			●	●
373	03.265 THROTTLE ASM; INT	8-98131-738-3	01	1	1409-1411			●
373	03.265 THROTTLE ASM; INT	8-98131-738-3	01	1	1412-	●	●	●	●
729	03.265 DUCT; INLET (A)	8-98117-650-1	01	1	1412-	●
729	03.265 DUCT; INLET (D)	8-98167-113-3	01	1	1412-	●
729	03.265 DUCT; INLET (C)	8-98180-253-0	01	1	1412-		●
729	03.265 DUCT; INLET (A)	8-98117-651-1	01	1	1409-1411			●
729	03.265 DUCT; INLET (A)	8-98117-651-1	01	1	1412-			●	●
729	03.265 DUCT; INLET (B)	8-98228-260-1	01	1	1409-1411			●
729	03.265 DUCT; INLET (B)	8-98228-260-1	01	1	1412-			●	●
731	02.559 BOLT; THROTTLE ASM M6X50 HEX SOCKET	0-58330-650-0	04	1	1409-1411			●
731	02.559 BOLT; THROTTLE ASM M6X50 HEX SOCKET	0-58330-650-0	04	1	1412-	●	●	●	●
771	03.417 WASHER; DUCT 00.413 ID=6.4 OD=18	0-91610-706-0	02	1	1412-	●		●	●
771	03.417 WASHER; DUCT 00.413 ID=6.4 OD=18	0-91610-706-0	02	1	1409-1411			●
771	03.417 WASHER; DUCT 00.413 ID=6.4 OD=18	0-91610-706-0	03	1	1412-		●
807	03.278 SCREW; SENSOR 02.510 M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1409-1411			●
807	03.278 SCREW; SENSOR 02.510 M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1412-		●	●	●

13 20 27 7 27 1 20 13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.265 MANIFOLD; INL EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> (C)	8-98228-254-0	01	1	1412-1503	●
1	03.265 MANIFOLD; INL EMISSION SYSTEM R15-04<K75> (C)	8-98228-254-0	01	1	1412-1503				●
1	03.265 MANIFOLD; INL EMISSION SYSTEM R15-04<K75> (C)	8-98228-254-0	01	1	1504-			●	●
1	03.265 MANIFOLD; INL EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> (C)	8-98228-254-0	01	1	1504-	●
1	03.265 MANIFOLD; INL EURO2 SPECIFICATION<NT2> (B)	8-98228-252-0	01	1	1412-1503	●
1	03.265 MANIFOLD; INL EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (B)	8-98228-252-0	01	1	1412-1503				●
1	03.265 MANIFOLD; INL EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (B)	8-98228-252-0	01	1	1504-			●	●
1	03.265 MANIFOLD; INL EURO2 SPECIFICATION<NT2> (B)	8-98228-252-0	01	1	1504-	●
1	03.265 MANIFOLD; INL EMISSION SYSTEM R15-04<K75> (F)	8-97350-916-0	01	1	1412-					●
1	03.265 MANIFOLD; INL EURO1 SPECIFICATION<NT1> (E)	8-97253-952-0	01	1	1412-					●
1	03.265 MANIFOLD; INL (D)	8-98151-203-1	01	1	1412-		●
1	03.265 MANIFOLD; INL (A)	8-98228-251-0	01	1	1409-			●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-98063-396-0	01	1	1412-	●	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97301-838-1	01	1	1412-					●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-98212-999-0	01	1	1409-1411			●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-98212-999-0	01	1	1412-			●	●
13	03.275 BOLT; INL MANIF (C) M8X25 FLANGE	0-28050-825-0	04	1	1412-					●
13	03.275 BOLT; INL MANIF 00.206 (D) M8X30 FLANGE	0-28050-830-0	02	1	1412-					●
13	03.275 BOLT; INL MANIF (A) M8X110 FLANGE	0-28055-811-0	02	1	1409-1411			●
13	03.275 BOLT; INL MANIF (A) M8X110 FLANGE	0-28055-811-0	02	1	1412-	●	●	●	●
13	03.275 BOLT; INL MANIF (B) M8X70 12-POINT HEAD	8-97101-065-0	04	1	1409-1411			●
13	03.275 BOLT; INL MANIF (B) M8X70 12-POINT HEAD	8-97101-065-0	04	1	1412-	●	●	●	●
20	03.275 NUT; INL MANIF 04.634 (B) M8 FLANGE	8-97581-233-0	02	1	1412-					●
20	03.275 NUT; INL MANIF 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1409-1411			●
20	03.275 NUT; INL MANIF 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1412-	●	●	●	●
27	03.275 STUD; INL MANIF (B) M8X25 L=37	0-41010-825-0	02	1	1412-					●
27	03.275 STUD; INL MANIF (A) M8X71 L=83	8-97367-083-0	02	1	1409-1411			●
27	03.275 STUD; INL MANIF (A) M8X71 L=83	8-97367-083-0	02	1	1412-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
