◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51580 - TFR/TFS RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-22 - ENGINE MOUNTING ▶
0-22 — ENGINE MOUNTING (#148401) — 160 parça

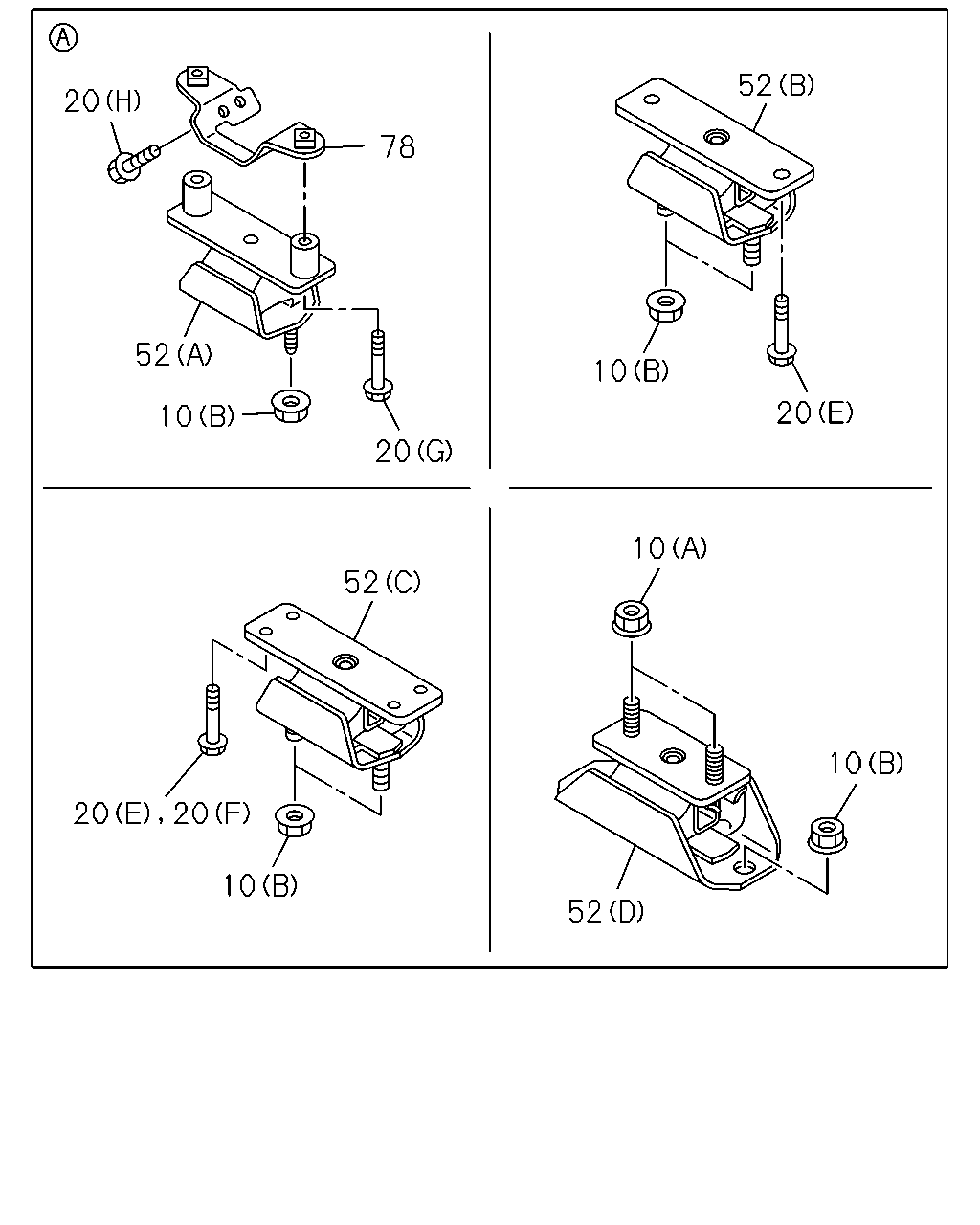

çizim 443056
20 78 52 10 20 52 20 20 10 52 10 10 20 10 52
BalonParca AdiParca NoAdetTipApplied Date A B C D E
10 04.085 NUT; MTG RUBBER
(A) M10 FLANGE 		0-91180-210-0 04 1 1412- ● ● ● ● ●
10 04.085 NUT; MTG RUBBER
05.816 (B) M12 FLANGE 		0-91180-212-0 02 1 1409-1411 ●
10 04.085 NUT; MTG RUBBER
05.816 (B) M12 FLANGE 		0-91180-212-0 02 1 1412- ● ● ● ● ●
10 04.085 NUT; MTG RUBBER
(A) M10 FLANGE 		0-91180-210-0 04 1 1409-1411 ●
10 04.085 NUT; MTG RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 1412- ●
10 04.085 NUT; MTG RUBBER
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ),M/T AISIN 6 SPEED(RNU) (A) M10 FLANGE 		0-91180-210-0 02 1 1412- ● ● ●
20 00.029 BOLT; ENG FOOT
00.685 (I) M10X40 FLANGE 		0-28051-040-0 01 1 1412- ●
20 00.029 BOLT; ENG FOOT
(A) M10X20 FLANGE 		0-28051-020-0 06 1 1412- ● ● ● ●
20 00.029 BOLT; ENG FOOT
4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ) (E) M10X35 FLANGE 		0-28751-035-0 02 1 1409-1411 ●
20 00.029 BOLT; ENG FOOT
4X4(TFS***) A/T 5 SPEED-AISIN(MA1) (E) M10X35 FLANGE 		0-28751-035-0 02 1 1409-1411 ●
20 00.029 BOLT; ENG FOOT
4X4(TFS***) A/T 5 SPEED-AISIN(MA1) (E) M10X35 FLANGE 		0-28751-035-0 02 1 1412- ● ● ●
20 00.029 BOLT; ENG FOOT
4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ) (E) M10X35 FLANGE 		0-28751-035-0 02 1 1412- ●
20 00.029 BOLT; ENG FOOT
4X4(TFS***) (E) M10X35 FLANGE 		0-28751-035-0 02 1 1412- ●
20 00.029 BOLT; ENG FOOT
(A) M10X20 FLANGE 		0-28051-020-0 06 1 1409-1411 ●
20 00.029 BOLT; ENG FOOT
(A) M10X20 FLANGE 		0-28051-020-0 07 1 1412- ●
20 00.029 BOLT; ENG FOOT
09.171 (C) M14X20 FLANGE 		0-28851-420-0 01 1 1409-1411 ●
20 00.029 BOLT; ENG FOOT
09.171 (C) M14X20 FLANGE 		0-28851-420-0 01 1 1412- ● ● ● ● ●
20 00.029 BOLT; ENG FOOT
(D) M10X35 W/LK WASHER 		0-50741-035-0 01 1 1409-1411 ●
20 00.029 BOLT; ENG FOOT
(D) M10X35 W/LK WASHER 		0-50741-035-0 01 1 1412- ● ● ● ● ●
20 00.029 BOLT; ENG FOOT
(B) M10X30 FLANGE 		8-98013-800-0 04 1 1409-1411 ●
20 00.029 BOLT; ENG FOOT
(B) M10X30 FLANGE 		8-98013-800-0 04 1 1412- ● ● ● ● ●
20 00.029 BOLT; ENG FOOT
4X2 REGULAR CAB(TFB*S*) A/T 5 SPEED-AISIN(MA1) (H) M10X25 FLANGE 		0-28651-025-0 04 1 1409-1411 ●
20 00.029 BOLT; ENG FOOT
4X2 CREW CAB(TFB*W*) A/T 5 SPEED-AISIN(MA1) HIGH RIDE SUSPENSION(7YC) (H) M10X25 FLANGE 		0-28651-025-0 04 1 1409-1411 ●
20 00.029 BOLT; ENG FOOT
4X2 REGULAR CAB(TFB*S*) A/T 5 SPEED-AISIN(MA1) (H) M10X25 FLANGE 		0-28651-025-0 04 1 1412-1509 ● ● ●
20 00.029 BOLT; ENG FOOT
4X2 CREW CAB(TFB*W*) A/T 5 SPEED-AISIN(MA1) LAOS EQUIPMENT(CF0) EXC. HIGH RIDE SUSPENSION(7YC) (H) M10X25 FLANGE 		0-28651-025-0 04 1 1412-1509 ● ●
20 00.029 BOLT; ENG FOOT
4X2 CREW CAB(TFB*W*) A/T 5 SPEED-AISIN(MA1) HIGH RIDE SUSPENSION(7YC) (H) M10X25 FLANGE 		0-28651-025-0 04 1 1412-1509 ● ●
20 00.029 BOLT; ENG FOOT
4X2 CREW CAB(TFB*W*) A/T 5 SPEED-AISIN(MA1) LAOS EQUIPMENT(CF0) EXC. HIGH RIDE SUSPENSION(7YC) (H) M10X25 FLANGE 		0-28651-025-0 04 1 1510- ● ●
20 00.029 BOLT; ENG FOOT
4X2 CREW CAB(TFB*W*) A/T 5 SPEED-AISIN(MA1) HIGH RIDE SUSPENSION(7YC) (H) M10X25 FLANGE 		0-28651-025-0 04 1 1510- ● ●
20 00.029 BOLT; ENG FOOT
4X2 EXTENDED CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) A/T 5 SPEED-AISIN(MA1) (H) M10X25 FLANGE 		0-28651-025-0 04 1 1510- ●
20 00.029 BOLT; ENG FOOT
4X2 REGULAR CAB(TFB*S*) A/T 5 SPEED-AISIN(MA1) (H) M10X25 FLANGE 		0-28651-025-0 04 1 1510- ● ●
20 00.029 BOLT; ENG FOOT
4X2 REGULAR CAB(TFB*S*) A/T 5 SPEED-AISIN(MA1) 04.317 (G) M10X55 FLANGE 		8-98035-672-0 02 1 1409-1411 ●
20 00.029 BOLT; ENG FOOT
4X2 CREW CAB(TFB*W*) A/T 5 SPEED-AISIN(MA1) HIGH RIDE SUSPENSION(7YC) 04.317 (G) M10X55 FLANGE 		8-98035-672-0 02 1 1409-1411 ●
20 00.029 BOLT; ENG FOOT
4X2 REGULAR CAB(TFB*S*) A/T 5 SPEED-AISIN(MA1) 04.317 (G) M10X55 FLANGE 		8-98035-672-0 02 1 1412-1509 ● ● ●
20 00.029 BOLT; ENG FOOT
4X2 CREW CAB(TFB*W*) A/T 5 SPEED-AISIN(MA1) LAOS EQUIPMENT(CF0) EXC. HIGH RIDE SUSPENSION(7YC) 04.317 (G) M10X55 FLANGE 		8-98035-672-0 02 1 1412-1509 ● ●
20 00.029 BOLT; ENG FOOT
4X2 CREW CAB(TFB*W*) A/T 5 SPEED-AISIN(MA1) HIGH RIDE SUSPENSION(7YC) 04.317 (G) M10X55 FLANGE 		8-98035-672-0 02 1 1412-1509 ● ●
20 00.029 BOLT; ENG FOOT
4X2 CREW CAB(TFB*W*) A/T 5 SPEED-AISIN(MA1) LAOS EQUIPMENT(CF0) EXC. HIGH RIDE SUSPENSION(7YC) 04.317 (G) M10X55 FLANGE 		8-98035-672-0 02 1 1510- ● ●
20 00.029 BOLT; ENG FOOT
4X2 CREW CAB(TFB*W*) A/T 5 SPEED-AISIN(MA1) HIGH RIDE SUSPENSION(7YC) 04.317 (G) M10X55 FLANGE 		8-98035-672-0 02 1 1510- ● ●
20 00.029 BOLT; ENG FOOT
4X2 EXTENDED CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) A/T 5 SPEED-AISIN(MA1) 04.317 (G) M10X55 FLANGE 		8-98035-672-0 02 1 1510- ●
20 00.029 BOLT; ENG FOOT
4X2 REGULAR CAB(TFB*S*) A/T 5 SPEED-AISIN(MA1) 04.317 (G) M10X55 FLANGE 		8-98035-672-0 02 1 1510- ● ●
20 00.029 BOLT; ENG FOOT
4X4(TFS***) M/T MUX 5 SPEED 5S(MZJ) 01.060 (F) M8X35 FLANGE 		0-28650-835-0 04 1 1409-1411 ●
20 00.029 BOLT; ENG FOOT
4X4(TFS***) M/T MUX 5 SPEED 5S(MZJ) 01.060 (F) M8X35 FLANGE 		0-28650-835-0 04 1 1412- ●
20 00.029 BOLT; ENG FOOT
4X4 REGULAR CAB(TFS*S*) M/T AISIN 6 SPEED(RNU) EXC. INDONESIA EQUIPMENT(B00),LAOS EQUIPMENT(CF0) 01.060 (F) M8X35 FLANGE 		0-28650-835-0 04 1 1412- ●
20 00.029 BOLT; ENG FOOT
4X4 CREW CAB(TFS*W*) M/T AISIN 6 SPEED(RNU) EXC. INDONESIA EQUIPMENT(B00), AUSTRALIA EQUIPMENT(B13),LAOS EQUIPMENT(CF0) 01.060 (F) M8X35 FLANGE 		0-28650-835-0 04 1 1412- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
(D) 		8-98193-626-0 01 1 1412- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. INDONESIA EQUIPMENT(B00),LAOS EQUIPMENT(CF0) (D) 		8-98193-626-0 01 1 1412- ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2 REGULAR CAB(TFB*S*) A/T 5 SPEED-AISIN(MA1) (A) 		8-98181-069-1 01 1 1412- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2(TFB***) M/T AISIN 6 SPEED(RNU) (D) 		8-98178-330-2 01 1 1412- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) INDONESIA EQUIPMENT(B00),LAOS EQUIPMENT(CF0) (D) 		8-98270-984-0 01 1 1412- ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ) EXC. INDONESIA EQUIPMENT(B00),LAOS EQUIPMENT(CF0) (B) 		8-98193-344-0 01 1 1412- ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ) INDONESIA EQUIPMENT(B00),LAOS EQUIPMENT(CF0) (B) 		8-98270-985-0 01 1 1412- ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X4(TFS***) A/T 5 SPEED-AISIN(MA1) EXC. INDONESIA EQUIPMENT(B00),LAOS EQUIPMENT(CF0) (B) 		8-98181-071-1 01 1 1412- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X4(TFS***) M/T AISIN 6 SPEED(RNU) EXC. INDONESIA EQUIPMENT(B00),LAOS EQUIPMENT(CF0) (C) 		8-98181-072-2 01 1 1412- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2 EXTENDED CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) M/T MUX 5 SPEED 5S(MZJ) (B) 		8-98193-343-0 01 1 1409-1411 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2 CREW CAB(TFB*W*) M/T MUX 5 SPEED 5S(MZJ) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98193-343-0 01 1 1409-1411 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2 EXTENDED CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) M/T MUX 5 SPEED 5S(MZJ) (B) 		8-98193-343-0 01 1 1412- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2 CREW CAB(TFB*W*) M/T MUX 5 SPEED 5S(MZJ) EXC. LAOS EQUIPMENT(CF0),HIGH RIDE SUSPENSION(7YC) (B) 		8-98193-343-0 01 1 1412- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2 CREW CAB(TFB*W*) M/T MUX 5 SPEED 5S(MZJ) HIGH RIDE SUSPENSION(7YC) EXC. AUSTRALIA EQUIPMENT(B13),LAOS EQUIPMENT(CF0) (B) 		8-98193-343-0 01 1 1412- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2 REGULAR CAB(TFB*S*) A/T 5 SPEED-AISIN(MA1) (A) 		8-98193-342-0 01 1 1409-1411 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2 REGULAR CAB(TFB*S*) A/T 5 SPEED-AISIN(MA1) (A) 		8-98193-342-0 01 1 1412-1509 ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2 CREW CAB(TFB*W*) A/T 5 SPEED-AISIN(MA1) HIGH RIDE SUSPENSION(7YC) EXC. AUSTRALIA EQUIPMENT(B13),LAOS EQUIPMENT(CF0) (A) 		8-98193-342-0 01 1 1412-1509 ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2 CREW CAB(TFB*W*) A/T 5 SPEED-AISIN(MA1) HIGH RIDE SUSPENSION(7YC) EXC. AUSTRALIA EQUIPMENT(B13),LAOS EQUIPMENT(CF0) (A) 		8-98193-342-0 01 1 1510- ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2 EXTENDED CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) A/T 5 SPEED-AISIN(MA1) (A) 		8-98193-342-0 01 1 1510- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2 REGULAR CAB(TFB*S*) A/T 5 SPEED-AISIN(MA1) (A) 		8-98193-342-0 01 1 1510- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2 CREW CAB(TFB*W*) A/T 5 SPEED-AISIN(MA1) HIGH RIDE SUSPENSION(7YC) (B) 		8-98270-987-0 01 1 1409-1411 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2 CREW CAB(TFB*W*) A/T 5 SPEED-AISIN(MA1) AUSTRALIA EQUIPMENT(B13),LAOS EQUIPMENT(CF0) HIGH RIDE SUSPENSION(7YC) (B) 		8-98270-987-0 01 1 1412- ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2 CREW CAB(TFB*W*) A/T 5 SPEED-AISIN(MA1) LAOS EQUIPMENT(CF0) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98270-987-0 01 1 1412- ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2 CREW CAB(TFB*W*) M/T MUX 5 SPEED 5S(MZJ) HIGH RIDE SUSPENSION(7YC) (B) 		8-98270-988-0 01 1 1409-1411 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2 CREW CAB(TFB*W*) M/T MUX 5 SPEED 5S(MZJ) AUSTRALIA EQUIPMENT(B13),LAOS EQUIPMENT(CF0) HIGH RIDE SUSPENSION(7YC) (B) 		8-98270-988-0 01 1 1412- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X4 EXTENDED CAB LONG(TFS5CF) 4X4 REGULAR CAB LONG(TFS5SF) A/T 5 SPEED-AISIN(MA1) (B) 		8-98193-346-0 01 1 1409-1411 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X4 EXTENDED CAB(TFS*C*) A/T 5 SPEED-AISIN(MA1) (B) 		8-98193-346-0 01 1 1412- ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X4 REGULAR CAB(TFS*S*) A/T 5 SPEED-AISIN(MA1) EXC. INDONESIA EQUIPMENT(B00),LAOS EQUIPMENT(CF0) (B) 		8-98193-346-0 01 1 1412- ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X4 CREW CAB(TFS*W*) A/T 5 SPEED-AISIN(MA1) EXC. INDONESIA EQUIPMENT(B00), AUSTRALIA EQUIPMENT(B13),LAOS EQUIPMENT(CF0) (B) 		8-98193-346-0 01 1 1412- ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X4 EXTENDED CAB LONG(TFS5CF) 4X4 REGULAR CAB LONG(TFS5SF) M/T MUX 5 SPEED 5S(MZJ) (C) 		8-98193-345-0 01 1 1409-1411 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X4 EXTENDED CAB(TFS*C*) M/T MUX 5 SPEED 5S(MZJ) (C) 		8-98193-345-0 01 1 1412- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X4 REGULAR CAB(TFS*S*) M/T MUX 5 SPEED 5S(MZJ) EXC. INDONESIA EQUIPMENT(B00),LAOS EQUIPMENT(CF0) (C) 		8-98193-345-0 01 1 1412- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X4 CREW CAB(TFS*W*) M/T MUX 5 SPEED 5S(MZJ) EXC. INDONESIA EQUIPMENT(B00), AUSTRALIA EQUIPMENT(B13),LAOS EQUIPMENT(CF0) (C) 		8-98193-345-0 01 1 1412- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X4 CREW CAB(TFS*W*) A/T 5 SPEED-AISIN(MA1) (B) 		8-98238-913-0 01 1 1409-1411 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X4 REGULAR CAB(TFS*S*) A/T 5 SPEED-AISIN(MA1) INDONESIA EQUIPMENT(B00),LAOS EQUIPMENT(CF0) (B) 		8-98238-913-0 01 1 1412- ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X4 CREW CAB(TFS*W*) A/T 5 SPEED-AISIN(MA1) INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPMENT(B13),LAOS EQUIPMENT(CF0) (B) 		8-98238-913-0 01 1 1412- ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X4 CREW CAB(TFS*W*) M/T MUX 5 SPEED 5S(MZJ) (C) 		8-98238-912-0 01 1 1409-1411 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X4 REGULAR CAB(TFS*S*) M/T MUX 5 SPEED 5S(MZJ) INDONESIA EQUIPMENT(B00),LAOS EQUIPMENT(CF0) (C) 		8-98238-912-0 01 1 1412- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X4 CREW CAB(TFS*W*) M/T MUX 5 SPEED 5S(MZJ) INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPMENT(B13),LAOS EQUIPMENT(CF0) (C) 		8-98238-912-0 01 1 1412- ●
78 00.029 BRACKET; ENG MTG,RR
4X2 REGULAR CAB(TFB*S*) A/T 5 SPEED-AISIN(MA1) 		8-98164-580-2 01 1 1409-1411 ●
78 00.029 BRACKET; ENG MTG,RR
4X2 CREW CAB(TFB*W*) A/T 5 SPEED-AISIN(MA1) HIGH RIDE SUSPENSION(7YC) 		8-98164-580-2 01 1 1409-1411 ●
78 00.029 BRACKET; ENG MTG,RR
4X2 REGULAR CAB(TFB*S*) A/T 5 SPEED-AISIN(MA1) 		8-98164-580-2 01 1 1412-1509 ● ● ●
78 00.029 BRACKET; ENG MTG,RR
4X2 CREW CAB(TFB*W*) A/T 5 SPEED-AISIN(MA1) LAOS EQUIPMENT(CF0) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98164-580-2 01 1 1412-1509 ● ●
78 00.029 BRACKET; ENG MTG,RR
4X2 CREW CAB(TFB*W*) A/T 5 SPEED-AISIN(MA1) HIGH RIDE SUSPENSION(7YC) 		8-98164-580-2 01 1 1412-1509 ● ●
78 00.029 BRACKET; ENG MTG,RR
4X2 CREW CAB(TFB*W*) A/T 5 SPEED-AISIN(MA1) LAOS EQUIPMENT(CF0) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98164-580-2 01 1 1510- ● ●
78 00.029 BRACKET; ENG MTG,RR
4X2 CREW CAB(TFB*W*) A/T 5 SPEED-AISIN(MA1) HIGH RIDE SUSPENSION(7YC) 		8-98164-580-2 01 1 1510- ● ●
78 00.029 BRACKET; ENG MTG,RR
4X2 EXTENDED CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) A/T 5 SPEED-AISIN(MA1) 		8-98164-580-2 01 1 1510- ●
78 00.029 BRACKET; ENG MTG,RR
4X2 REGULAR CAB(TFB*S*) A/T 5 SPEED-AISIN(MA1) 		8-98164-580-2 01 1 1510- ● ●

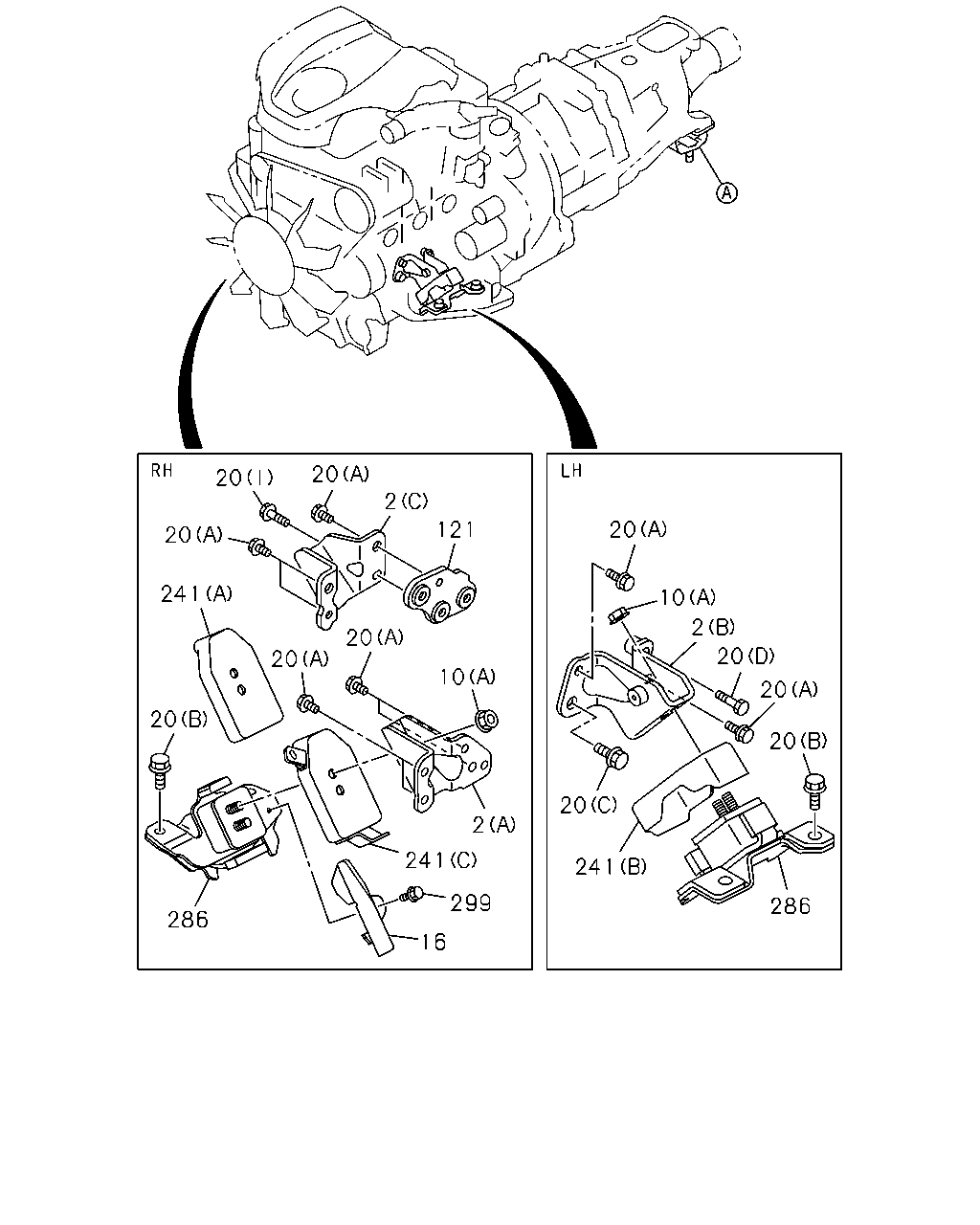

çizim 443061
286 241 20 20 20 20 2 10 20 16 299 241 2 10 121 2 20 20 20 20 20 241 20 286
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 00.029 FOOT; ENG
(C) 		8-98208-226-0 01 1 1412- ●
2 00.029 FOOT; ENG
(A) 		8-98132-100-0 01 1 1409-1411 ●
2 00.029 FOOT; ENG
(A) 		8-98132-100-0 01 1 1412- ● ● ● ●
2 00.029 FOOT; ENG
(B) 		8-98132-101-0 01 1 1409-1411 ●
2 00.029 FOOT; ENG
(B) 		8-98132-101-0 01 1 1412- ● ● ● ● ●
10 04.085 NUT; MTG RUBBER
(A) M10 FLANGE 		0-91180-210-0 04 1 1412- ● ● ● ● ●
10 04.085 NUT; MTG RUBBER
05.816 (B) M12 FLANGE 		0-91180-212-0 02 1 1409-1411 ●
10 04.085 NUT; MTG RUBBER
05.816 (B) M12 FLANGE 		0-91180-212-0 02 1 1412- ● ● ● ● ●
10 04.085 NUT; MTG RUBBER
(A) M10 FLANGE 		0-91180-210-0 04 1 1409-1411 ●
10 04.085 NUT; MTG RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 1412- ●
10 04.085 NUT; MTG RUBBER
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ),M/T AISIN 6 SPEED(RNU) (A) M10 FLANGE 		0-91180-210-0 02 1 1412- ● ● ●
16 07.039 PROTECTOR; HEAT,ENG MTG,FRT 8-98215-263-0 01 1 1412- ●
16 07.039 PROTECTOR; HEAT,ENG MTG,FRT 8-98182-916-1 01 1 1409-1411 ●
16 07.039 PROTECTOR; HEAT,ENG MTG,FRT 8-98182-916-1 01 1 1412- ● ● ● ●
20 00.029 BOLT; ENG FOOT
00.685 (I) M10X40 FLANGE 		0-28051-040-0 01 1 1412- ●
20 00.029 BOLT; ENG FOOT
(A) M10X20 FLANGE 		0-28051-020-0 06 1 1412- ● ● ● ●
20 00.029 BOLT; ENG FOOT
4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ) (E) M10X35 FLANGE 		0-28751-035-0 02 1 1409-1411 ●
20 00.029 BOLT; ENG FOOT
4X4(TFS***) A/T 5 SPEED-AISIN(MA1) (E) M10X35 FLANGE 		0-28751-035-0 02 1 1409-1411 ●
20 00.029 BOLT; ENG FOOT
4X4(TFS***) A/T 5 SPEED-AISIN(MA1) (E) M10X35 FLANGE 		0-28751-035-0 02 1 1412- ● ● ●
20 00.029 BOLT; ENG FOOT
4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ) (E) M10X35 FLANGE 		0-28751-035-0 02 1 1412- ●
20 00.029 BOLT; ENG FOOT
4X4(TFS***) (E) M10X35 FLANGE 		0-28751-035-0 02 1 1412- ●
20 00.029 BOLT; ENG FOOT
(A) M10X20 FLANGE 		0-28051-020-0 06 1 1409-1411 ●
20 00.029 BOLT; ENG FOOT
(A) M10X20 FLANGE 		0-28051-020-0 07 1 1412- ●
20 00.029 BOLT; ENG FOOT
09.171 (C) M14X20 FLANGE 		0-28851-420-0 01 1 1409-1411 ●
20 00.029 BOLT; ENG FOOT
09.171 (C) M14X20 FLANGE 		0-28851-420-0 01 1 1412- ● ● ● ● ●
20 00.029 BOLT; ENG FOOT
(D) M10X35 W/LK WASHER 		0-50741-035-0 01 1 1409-1411 ●
20 00.029 BOLT; ENG FOOT
(D) M10X35 W/LK WASHER 		0-50741-035-0 01 1 1412- ● ● ● ● ●
20 00.029 BOLT; ENG FOOT
(B) M10X30 FLANGE 		8-98013-800-0 04 1 1409-1411 ●
20 00.029 BOLT; ENG FOOT
(B) M10X30 FLANGE 		8-98013-800-0 04 1 1412- ● ● ● ● ●
20 00.029 BOLT; ENG FOOT
4X2 REGULAR CAB(TFB*S*) A/T 5 SPEED-AISIN(MA1) (H) M10X25 FLANGE 		0-28651-025-0 04 1 1409-1411 ●
20 00.029 BOLT; ENG FOOT
4X2 CREW CAB(TFB*W*) A/T 5 SPEED-AISIN(MA1) HIGH RIDE SUSPENSION(7YC) (H) M10X25 FLANGE 		0-28651-025-0 04 1 1409-1411 ●
20 00.029 BOLT; ENG FOOT
4X2 REGULAR CAB(TFB*S*) A/T 5 SPEED-AISIN(MA1) (H) M10X25 FLANGE 		0-28651-025-0 04 1 1412-1509 ● ● ●
20 00.029 BOLT; ENG FOOT
4X2 CREW CAB(TFB*W*) A/T 5 SPEED-AISIN(MA1) LAOS EQUIPMENT(CF0) EXC. HIGH RIDE SUSPENSION(7YC) (H) M10X25 FLANGE 		0-28651-025-0 04 1 1412-1509 ● ●
20 00.029 BOLT; ENG FOOT
4X2 CREW CAB(TFB*W*) A/T 5 SPEED-AISIN(MA1) HIGH RIDE SUSPENSION(7YC) (H) M10X25 FLANGE 		0-28651-025-0 04 1 1412-1509 ● ●
20 00.029 BOLT; ENG FOOT
4X2 CREW CAB(TFB*W*) A/T 5 SPEED-AISIN(MA1) LAOS EQUIPMENT(CF0) EXC. HIGH RIDE SUSPENSION(7YC) (H) M10X25 FLANGE 		0-28651-025-0 04 1 1510- ● ●
20 00.029 BOLT; ENG FOOT
4X2 CREW CAB(TFB*W*) A/T 5 SPEED-AISIN(MA1) HIGH RIDE SUSPENSION(7YC) (H) M10X25 FLANGE 		0-28651-025-0 04 1 1510- ● ●
20 00.029 BOLT; ENG FOOT
4X2 EXTENDED CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) A/T 5 SPEED-AISIN(MA1) (H) M10X25 FLANGE 		0-28651-025-0 04 1 1510- ●
20 00.029 BOLT; ENG FOOT
4X2 REGULAR CAB(TFB*S*) A/T 5 SPEED-AISIN(MA1) (H) M10X25 FLANGE 		0-28651-025-0 04 1 1510- ● ●
20 00.029 BOLT; ENG FOOT
4X2 REGULAR CAB(TFB*S*) A/T 5 SPEED-AISIN(MA1) 04.317 (G) M10X55 FLANGE 		8-98035-672-0 02 1 1409-1411 ●
20 00.029 BOLT; ENG FOOT
4X2 CREW CAB(TFB*W*) A/T 5 SPEED-AISIN(MA1) HIGH RIDE SUSPENSION(7YC) 04.317 (G) M10X55 FLANGE 		8-98035-672-0 02 1 1409-1411 ●
20 00.029 BOLT; ENG FOOT
4X2 REGULAR CAB(TFB*S*) A/T 5 SPEED-AISIN(MA1) 04.317 (G) M10X55 FLANGE 		8-98035-672-0 02 1 1412-1509 ● ● ●
20 00.029 BOLT; ENG FOOT
4X2 CREW CAB(TFB*W*) A/T 5 SPEED-AISIN(MA1) LAOS EQUIPMENT(CF0) EXC. HIGH RIDE SUSPENSION(7YC) 04.317 (G) M10X55 FLANGE 		8-98035-672-0 02 1 1412-1509 ● ●
20 00.029 BOLT; ENG FOOT
4X2 CREW CAB(TFB*W*) A/T 5 SPEED-AISIN(MA1) HIGH RIDE SUSPENSION(7YC) 04.317 (G) M10X55 FLANGE 		8-98035-672-0 02 1 1412-1509 ● ●
20 00.029 BOLT; ENG FOOT
4X2 CREW CAB(TFB*W*) A/T 5 SPEED-AISIN(MA1) LAOS EQUIPMENT(CF0) EXC. HIGH RIDE SUSPENSION(7YC) 04.317 (G) M10X55 FLANGE 		8-98035-672-0 02 1 1510- ● ●
20 00.029 BOLT; ENG FOOT
4X2 CREW CAB(TFB*W*) A/T 5 SPEED-AISIN(MA1) HIGH RIDE SUSPENSION(7YC) 04.317 (G) M10X55 FLANGE 		8-98035-672-0 02 1 1510- ● ●
20 00.029 BOLT; ENG FOOT
4X2 EXTENDED CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) A/T 5 SPEED-AISIN(MA1) 04.317 (G) M10X55 FLANGE 		8-98035-672-0 02 1 1510- ●
20 00.029 BOLT; ENG FOOT
4X2 REGULAR CAB(TFB*S*) A/T 5 SPEED-AISIN(MA1) 04.317 (G) M10X55 FLANGE 		8-98035-672-0 02 1 1510- ● ●
20 00.029 BOLT; ENG FOOT
4X4(TFS***) M/T MUX 5 SPEED 5S(MZJ) 01.060 (F) M8X35 FLANGE 		0-28650-835-0 04 1 1409-1411 ●
20 00.029 BOLT; ENG FOOT
4X4(TFS***) M/T MUX 5 SPEED 5S(MZJ) 01.060 (F) M8X35 FLANGE 		0-28650-835-0 04 1 1412- ●
20 00.029 BOLT; ENG FOOT
4X4 REGULAR CAB(TFS*S*) M/T AISIN 6 SPEED(RNU) EXC. INDONESIA EQUIPMENT(B00),LAOS EQUIPMENT(CF0) 01.060 (F) M8X35 FLANGE 		0-28650-835-0 04 1 1412- ●
20 00.029 BOLT; ENG FOOT
4X4 CREW CAB(TFS*W*) M/T AISIN 6 SPEED(RNU) EXC. INDONESIA EQUIPMENT(B00), AUSTRALIA EQUIPMENT(B13),LAOS EQUIPMENT(CF0) 01.060 (F) M8X35 FLANGE 		0-28650-835-0 04 1 1412- ●
121 00.029 BRACKET; ENG FOOT,FRT 8-98208-227-0 01 1 1412- ●
241 00.027 COVER; ENG MTG
(C) 		8-98193-431-0 01 1 1412- ●
241 00.027 COVER; ENG MTG
M/T MUX 5 SPEED 5S(MZJ) (A) 		8-98101-956-2 01 1 1409-1411 ●
241 00.027 COVER; ENG MTG
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) (A) 		8-98101-956-2 01 1 1412- ● ● ●
241 00.027 COVER; ENG MTG
(A) 		8-98101-956-2 01 1 1412- ●
241 00.027 COVER; ENG MTG
M/T MUX 5 SPEED 5S(MZJ) (B) 		8-98101-957-1 01 1 1409-1411 ●
241 00.027 COVER; ENG MTG
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) (B) 		8-98101-957-1 01 1 1412- ● ● ●
241 00.027 COVER; ENG MTG
(B) 		8-98101-957-1 01 1 1412- ● ●
241 00.027 COVER; ENG MTG
A/T 5 SPEED-AISIN(MA1) (A) 		8-98194-507-1 01 1 1409-1411 ●
241 00.027 COVER; ENG MTG
A/T 5 SPEED-AISIN(MA1) (A) 		8-98194-507-1 01 1 1412- ● ●
241 00.027 COVER; ENG MTG
A/T 5 SPEED-AISIN(MA1) (B) 		8-98194-508-1 01 1 1409-1411 ●
241 00.027 COVER; ENG MTG
A/T 5 SPEED-AISIN(MA1) (B) 		8-98194-508-1 01 1 1412- ● ●
286 00.027 MOUNTING ASM; ENGINE 8-98075-376-2 01 1 1409-1411 ●
286 00.027 MOUNTING ASM; ENGINE 8-98075-376-2 01 1 1412- ● ● ● ● ●
286 00.027 MOUNTING ASM; ENGINE 8-98250-592-0 01 1 1409-1411 ●
286 00.027 MOUNTING ASM; ENGINE 8-98250-592-0 01 1 1412- ● ● ● ● ●
299 00.029 BOLT
03.671 M6X10 FLANGE 		0-28050-610-0 01 1 1409-1411 ●
299 00.029 BOLT
03.671 M6X10 FLANGE 		0-28050-610-0 01 1 1412- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
