0-10 — CYLINDER HEAD COVER (#148394) — 148 parça

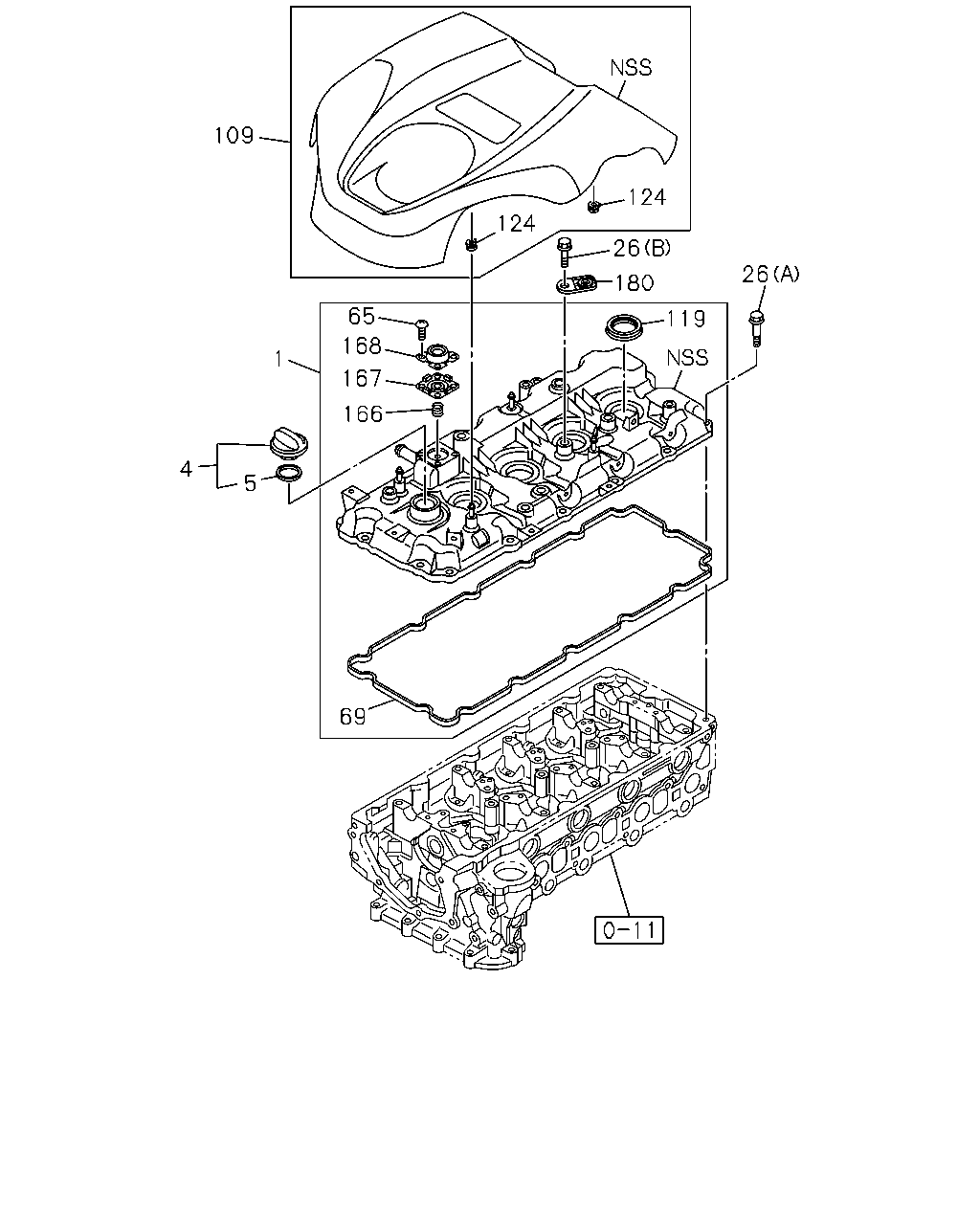

109 124 124 26 180 26 119 166 167 168 65 1 5 4 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	00.386 COVER; CYL HD	8-98136-060-5	01	1	1412-	●
1	00.386 COVER; CYL HD	8-98228-567-0	01	1	1412-		●
1	00.386 COVER; CYL HD	8-94433-742-2	01	1	1412-			●
1	00.386 COVER; CYL HD	8-98228-367-4	01	1	1409-1411				●
1	00.386 COVER; CYL HD	8-98228-367-4	01	1	1412-				●	●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	1412-			●
4	01.758 CAP; OIL FILLER	8-98026-084-0	01	1	1409-1411				●
4	01.758 CAP; OIL FILLER	8-98026-084-0	01	1	1412-	●	●		●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	1412-			●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=32 OD=40	8-97918-298-0	01	1	1409-1411				●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=32 OD=40	8-97918-298-0	01	1	1412-	●	●		●	●
26	08.900 BOLT; CYL HD COVER 03.680 (C) M6X30 FLANGE	0-28650-630-0	13	1	1412-	●	●
26	08.900 BOLT; CYL HD COVER 04.338 (B) M8X20 FLANGE	0-28050-820-0	01	1	1409-1411				●
26	08.900 BOLT; CYL HD COVER 04.338 (B) M8X20 FLANGE	0-28050-820-0	01	1	1412-				●	●
26	08.900 BOLT; CYL HD COVER (A) M6X25.7 FLANGE	8-98228-370-0	15	1	1409-1411				●
26	08.900 BOLT; CYL HD COVER (A) M6X25.7 FLANGE	8-98228-370-0	15	1	1412-				●	●
65	00.413 SCREW; ADAPTER M5X10 W/LK WASHER	8-97366-592-0	04	1	1412-	●	●
65	00.413 SCREW; ADAPTER M4X10	8-98209-387-0	04	1	1409-1411				●
65	00.413 SCREW; ADAPTER M4X10	8-98209-387-0	04	1	1412-				●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97945-338-0	01	1	1412-	●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97349-416-1	01	1	1412-			●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-98228-369-0	01	1	1409-1411				●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-98228-369-0	01	1	1412-				●	●
109	00.386 COVER; ENG ENG SIGHT SHIELD<8LQ>	8-98178-310-0	01	1	1412-		●
109	00.386 COVER; ENG	8-98147-402-0	01	1	1409-1411				●
109	00.386 COVER; ENG ENG SIGHT SHIELD<8LQ>	8-98147-402-0	01	1	1412-	●			●	●
119	00.386 COVER; SEAL,NOZZLE	8-98037-543-0	04	1	1412-	●	●
119	00.386 COVER; SEAL,NOZZLE	8-98228-371-0	04	1	1409-1411				●
119	00.386 COVER; SEAL,NOZZLE	8-98228-371-0	04	1	1412-				●	●
124	00.413 RUBBER; MTG,COVER	8-98269-869-0	04	1	1409-1411				●
124	00.413 RUBBER; MTG,COVER ENG SIGHT SHIELD<8LQ>	8-98269-869-0	04	1	1412-	●	●		●	●
166	00.283 SPRING; VENTILATOR 00.423	8-97365-998-0	01	1	1412-	●	●
166	00.283 SPRING; VENTILATOR 00.423	8-97088-445-0	01	1	1409-1411				●
166	00.283 SPRING; VENTILATOR 00.423	8-97088-445-0	01	1	1412-				●	●
167	00.283 DIAPHRAGM; VENTILATOR	8-98226-101-0	01	1	1412-	●	●
167	00.283 DIAPHRAGM; VENTILATOR	8-98003-164-0	01	1	1409-1411				●
167	00.283 DIAPHRAGM; VENTILATOR	8-98003-164-0	01	1	1412-				●	●
168	00.283 COVER; VENTILATOR 00.269	8-97365-992-0	01	1	1412-	●	●
168	00.283 COVER; VENTILATOR	8-98234-092-0	01	1	1409-1411				●
168	00.283 COVER; VENTILATOR	8-98234-092-0	01	1	1412-				●	●
180	00.413 DAMPENER; CYL HEAD	8-98244-154-0	01	1	1409-1411				●
180	00.413 DAMPENER; CYL HEAD	8-98244-154-0	01	1	1412-				●	●

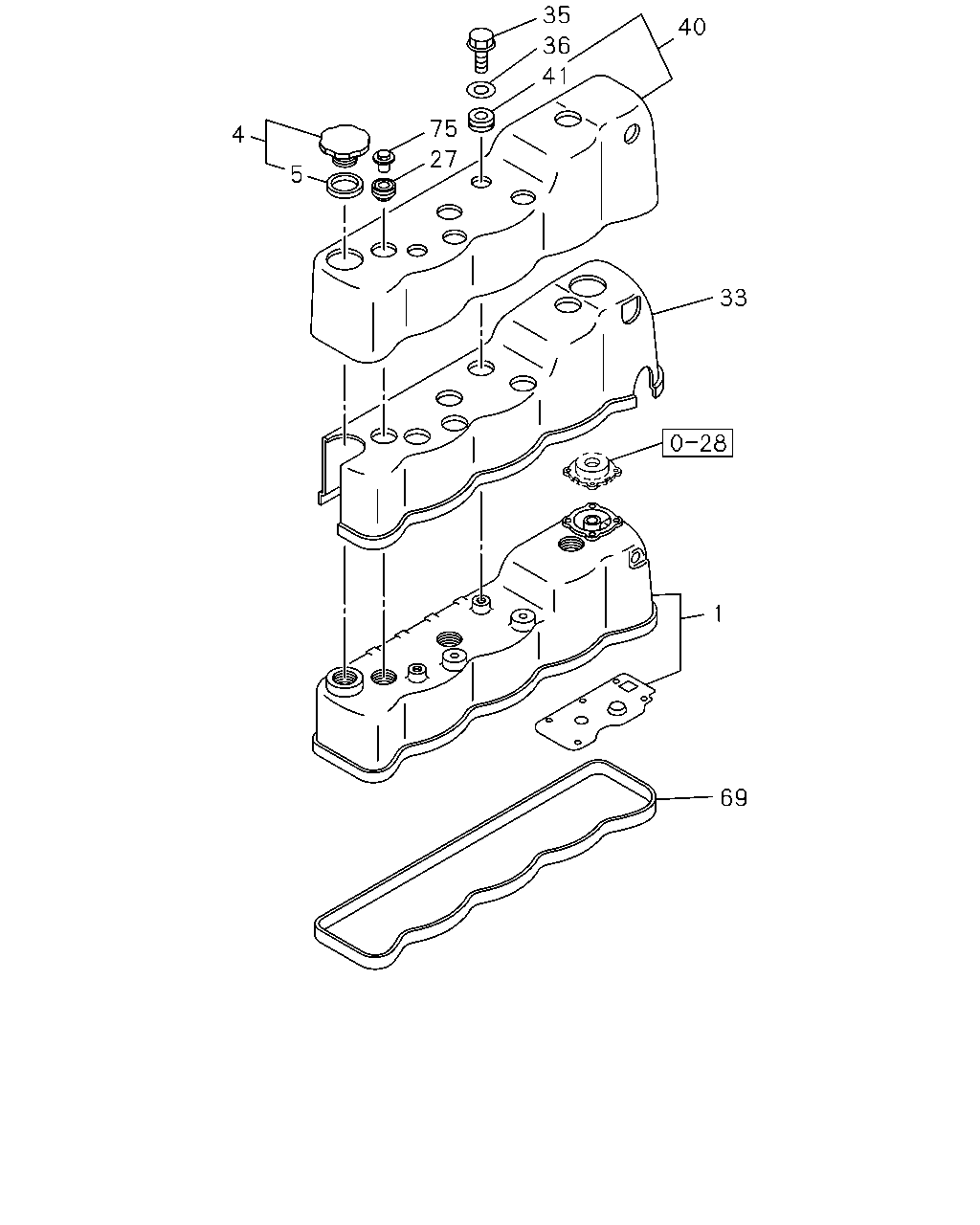

69 1 33 40 35 36 41 75 27 5 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	00.386 COVER; CYL HD	8-98136-060-5	01	1	1412-	●
1	00.386 COVER; CYL HD	8-98228-567-0	01	1	1412-		●
1	00.386 COVER; CYL HD	8-94433-742-2	01	1	1412-			●
1	00.386 COVER; CYL HD	8-98228-367-4	01	1	1409-1411				●
1	00.386 COVER; CYL HD	8-98228-367-4	01	1	1412-				●	●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	1412-			●
4	01.758 CAP; OIL FILLER	8-98026-084-0	01	1	1409-1411				●
4	01.758 CAP; OIL FILLER	8-98026-084-0	01	1	1412-	●	●		●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	1412-			●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=32 OD=40	8-97918-298-0	01	1	1409-1411				●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=32 OD=40	8-97918-298-0	01	1	1412-	●	●		●	●
27	00.423 GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=19.5	8-97263-801-1	03	1	1412-			●
33	00.386 RUBBER; SPACE,CYL HD COVER	8-97365-746-0	01	1	1412-			●
35	00.293 BOLT; NOISE SHIELD COVER 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1412-			●
36	00.413 WASHER; PL,NOISE SHIELD COVER 03.690 ID=8.5 OD=30 T=2.6	9-09651-112-0	02	1	1412-			●
40	00.386 COVER	8-97043-018-0	01	1	1412-			●
41	00.413 GROMMET; HD COVER,OUTER	8-94256-959-0	02	1	1412-			●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97945-338-0	01	1	1412-	●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97349-416-1	01	1	1412-			●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-98228-369-0	01	1	1409-1411				●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-98228-369-0	01	1	1412-				●	●
75	00.413 NUT; CAP,HD COVER M8 OD=19	8-94158-108-0	03	1	1412-			●

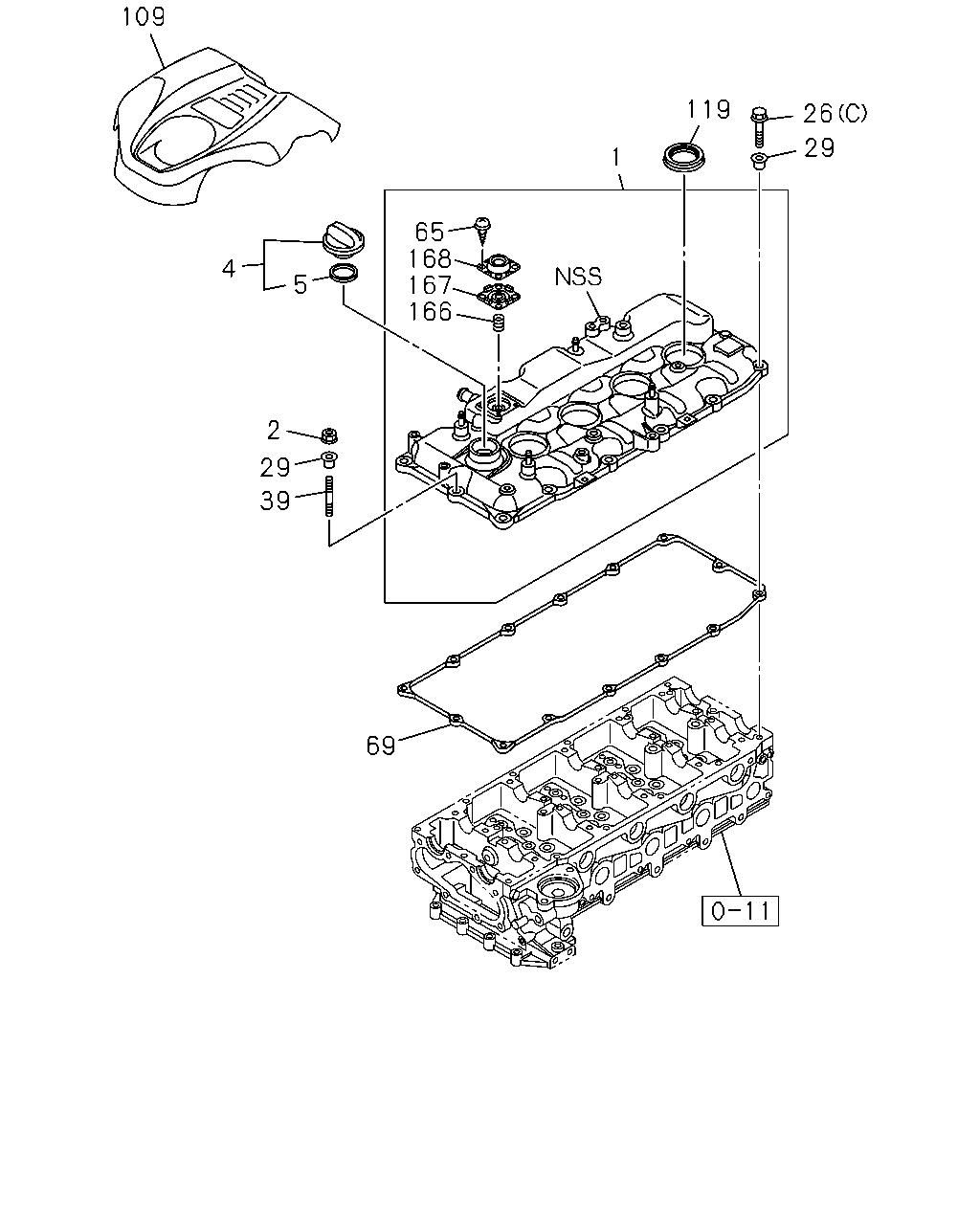

1 29 26 124 124 119 65 166 167 168 5 4 109 2 39 29 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	00.386 COVER; CYL HD	8-98136-060-5	01	1	1412-	●
1	00.386 COVER; CYL HD	8-98228-567-0	01	1	1412-		●
1	00.386 COVER; CYL HD	8-94433-742-2	01	1	1412-			●
1	00.386 COVER; CYL HD	8-98228-367-4	01	1	1409-1411				●
1	00.386 COVER; CYL HD	8-98228-367-4	01	1	1412-				●	●
2	00.413 NUT; COVER,HD 01.540 M6 FLANGE	0-91180-206-0	01	1	1412-	●	●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	1412-			●
4	01.758 CAP; OIL FILLER	8-98026-084-0	01	1	1409-1411				●
4	01.758 CAP; OIL FILLER	8-98026-084-0	01	1	1412-	●	●		●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	1412-			●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=32 OD=40	8-97918-298-0	01	1	1409-1411				●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=32 OD=40	8-97918-298-0	01	1	1412-	●	●		●	●
26	08.900 BOLT; CYL HD COVER 03.680 (C) M6X30 FLANGE	0-28650-630-0	13	1	1412-	●	●
26	08.900 BOLT; CYL HD COVER 04.338 (B) M8X20 FLANGE	0-28050-820-0	01	1	1409-1411				●
26	08.900 BOLT; CYL HD COVER 04.338 (B) M8X20 FLANGE	0-28050-820-0	01	1	1412-				●	●
26	08.900 BOLT; CYL HD COVER (A) M6X25.7 FLANGE	8-98228-370-0	15	1	1409-1411				●
26	08.900 BOLT; CYL HD COVER (A) M6X25.7 FLANGE	8-98228-370-0	15	1	1412-				●	●
29	00.413 RUBBER; MTG,HD COVER	8-97361-811-1	14	1	1412-	●	●
39	00.413 STUD; COVER,HD M6X30 L=38	0-41010-630-0	01	1	1412-	●	●
65	00.413 SCREW; ADAPTER M5X10 W/LK WASHER	8-97366-592-0	04	1	1412-	●	●
65	00.413 SCREW; ADAPTER M4X10	8-98209-387-0	04	1	1409-1411				●
65	00.413 SCREW; ADAPTER M4X10	8-98209-387-0	04	1	1412-				●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97945-338-0	01	1	1412-	●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97349-416-1	01	1	1412-			●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-98228-369-0	01	1	1409-1411				●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-98228-369-0	01	1	1412-				●	●
109	00.386 COVER; ENG ENG SIGHT SHIELD<8LQ>	8-98178-310-0	01	1	1412-		●
109	00.386 COVER; ENG	8-98147-402-0	01	1	1409-1411				●
109	00.386 COVER; ENG ENG SIGHT SHIELD<8LQ>	8-98147-402-0	01	1	1412-	●			●	●
119	00.386 COVER; SEAL,NOZZLE	8-98037-543-0	04	1	1412-	●	●
119	00.386 COVER; SEAL,NOZZLE	8-98228-371-0	04	1	1409-1411				●
119	00.386 COVER; SEAL,NOZZLE	8-98228-371-0	04	1	1412-				●	●
124	00.413 RUBBER; MTG,COVER	8-98269-869-0	04	1	1409-1411				●
124	00.413 RUBBER; MTG,COVER ENG SIGHT SHIELD<8LQ>	8-98269-869-0	04	1	1412-	●	●		●	●
166	00.283 SPRING; VENTILATOR 00.423	8-97365-998-0	01	1	1412-	●	●
166	00.283 SPRING; VENTILATOR 00.423	8-97088-445-0	01	1	1409-1411				●
166	00.283 SPRING; VENTILATOR 00.423	8-97088-445-0	01	1	1412-				●	●
167	00.283 DIAPHRAGM; VENTILATOR	8-98226-101-0	01	1	1412-	●	●
167	00.283 DIAPHRAGM; VENTILATOR	8-98003-164-0	01	1	1409-1411				●
167	00.283 DIAPHRAGM; VENTILATOR	8-98003-164-0	01	1	1412-				●	●
168	00.283 COVER; VENTILATOR 00.269	8-97365-992-0	01	1	1412-	●	●
168	00.283 COVER; VENTILATOR	8-98234-092-0	01	1	1409-1411				●
168	00.283 COVER; VENTILATOR	8-98234-092-0	01	1	1412-				●	●

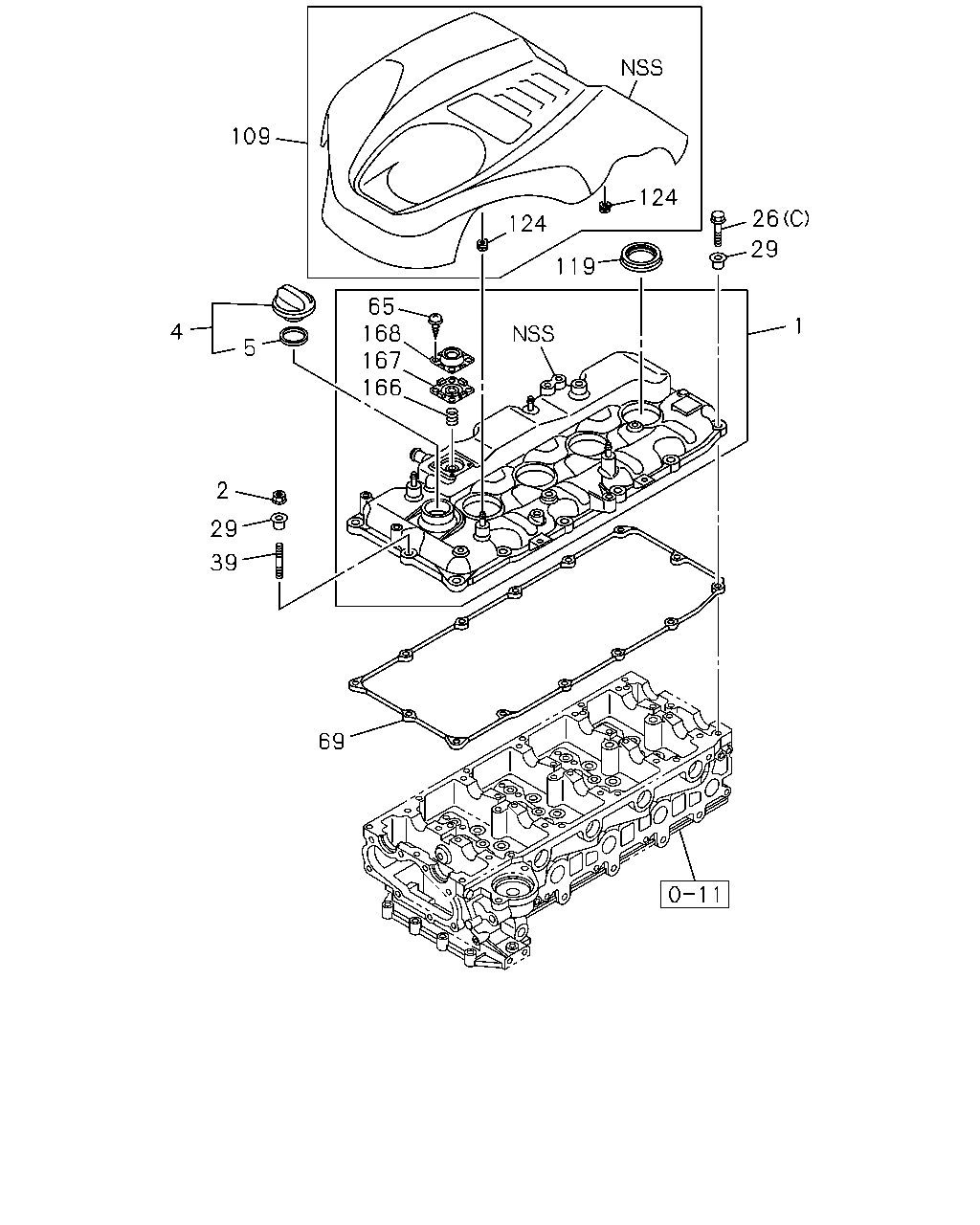

69 39 29 2 4 5 65 168 167 166 1 119 26 29 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	00.386 COVER; CYL HD	8-98136-060-5	01	1	1412-	●
1	00.386 COVER; CYL HD	8-98228-567-0	01	1	1412-		●
1	00.386 COVER; CYL HD	8-94433-742-2	01	1	1412-			●
1	00.386 COVER; CYL HD	8-98228-367-4	01	1	1409-1411				●
1	00.386 COVER; CYL HD	8-98228-367-4	01	1	1412-				●	●
2	00.413 NUT; COVER,HD 01.540 M6 FLANGE	0-91180-206-0	01	1	1412-	●	●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	1412-			●
4	01.758 CAP; OIL FILLER	8-98026-084-0	01	1	1409-1411				●
4	01.758 CAP; OIL FILLER	8-98026-084-0	01	1	1412-	●	●		●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	1412-			●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=32 OD=40	8-97918-298-0	01	1	1409-1411				●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=32 OD=40	8-97918-298-0	01	1	1412-	●	●		●	●
26	08.900 BOLT; CYL HD COVER 03.680 (C) M6X30 FLANGE	0-28650-630-0	13	1	1412-	●	●
26	08.900 BOLT; CYL HD COVER 04.338 (B) M8X20 FLANGE	0-28050-820-0	01	1	1409-1411				●
26	08.900 BOLT; CYL HD COVER 04.338 (B) M8X20 FLANGE	0-28050-820-0	01	1	1412-				●	●
26	08.900 BOLT; CYL HD COVER (A) M6X25.7 FLANGE	8-98228-370-0	15	1	1409-1411				●
26	08.900 BOLT; CYL HD COVER (A) M6X25.7 FLANGE	8-98228-370-0	15	1	1412-				●	●
29	00.413 RUBBER; MTG,HD COVER	8-97361-811-1	14	1	1412-	●	●
39	00.413 STUD; COVER,HD M6X30 L=38	0-41010-630-0	01	1	1412-	●	●
65	00.413 SCREW; ADAPTER M5X10 W/LK WASHER	8-97366-592-0	04	1	1412-	●	●
65	00.413 SCREW; ADAPTER M4X10	8-98209-387-0	04	1	1409-1411				●
65	00.413 SCREW; ADAPTER M4X10	8-98209-387-0	04	1	1412-				●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97945-338-0	01	1	1412-	●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97349-416-1	01	1	1412-			●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-98228-369-0	01	1	1409-1411				●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-98228-369-0	01	1	1412-				●	●
109	00.386 COVER; ENG ENG SIGHT SHIELD<8LQ>	8-98178-310-0	01	1	1412-		●
109	00.386 COVER; ENG	8-98147-402-0	01	1	1409-1411				●
109	00.386 COVER; ENG ENG SIGHT SHIELD<8LQ>	8-98147-402-0	01	1	1412-	●			●	●
119	00.386 COVER; SEAL,NOZZLE	8-98037-543-0	04	1	1412-	●	●
119	00.386 COVER; SEAL,NOZZLE	8-98228-371-0	04	1	1409-1411				●
119	00.386 COVER; SEAL,NOZZLE	8-98228-371-0	04	1	1412-				●	●
166	00.283 SPRING; VENTILATOR 00.423	8-97365-998-0	01	1	1412-	●	●
166	00.283 SPRING; VENTILATOR 00.423	8-97088-445-0	01	1	1409-1411				●
166	00.283 SPRING; VENTILATOR 00.423	8-97088-445-0	01	1	1412-				●	●
167	00.283 DIAPHRAGM; VENTILATOR	8-98226-101-0	01	1	1412-	●	●
167	00.283 DIAPHRAGM; VENTILATOR	8-98003-164-0	01	1	1409-1411				●
167	00.283 DIAPHRAGM; VENTILATOR	8-98003-164-0	01	1	1412-				●	●
168	00.283 COVER; VENTILATOR 00.269	8-97365-992-0	01	1	1412-	●	●
168	00.283 COVER; VENTILATOR	8-98234-092-0	01	1	1409-1411				●
168	00.283 COVER; VENTILATOR	8-98234-092-0	01	1	1412-				●	●
