9-33 — REAR BODY; GATE AND SIDE GUARD (#148391) — 612 parça

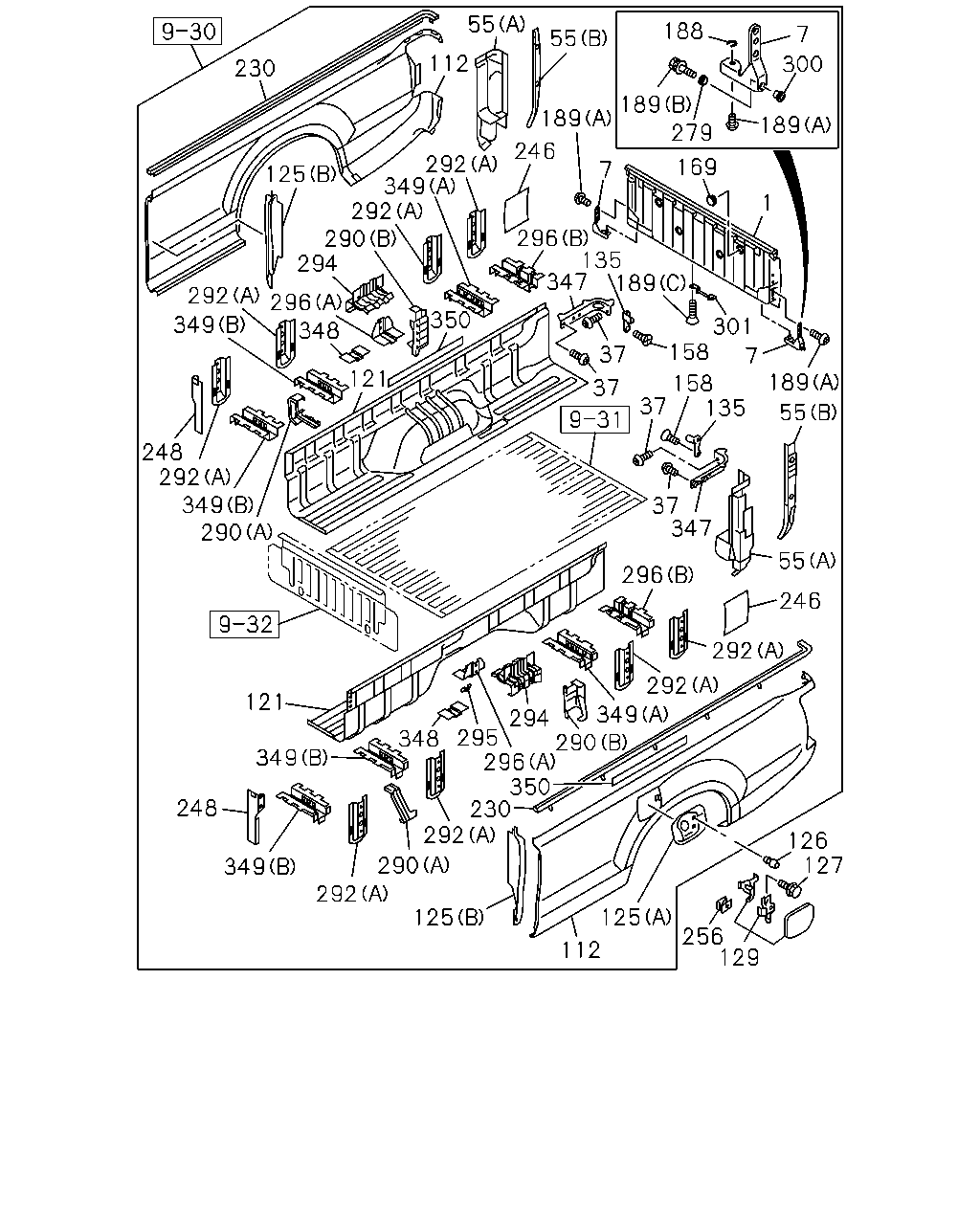

çizim 443742
230 125 55 55 189 112 246 292 349 292 290 294 296 292 349 348 188 7 189 189 279 1 169 189 135 158 158 55 37 37 55 246 347 301 189 135 296 347 300 7 350 121 248 349 290 292 121 349 248 349 292 125 290 348 290 295 296 230 290 350 349 294 112 256 125 127 126 292 292 296 129 7 37 37
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 GATE ASM; RR
THA 		8-98104-332-9 01 1 1409- ● ●
1 GATE ASM; RR
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98198-539-2 01 1 1409- ● ●
1 GATE ASM; RR
THA 		8-98104-362-9 01 1 1409- ● ●
7 HINGE ASM; RR GATE
THA 		8-98180-948-0 01 1 1409- ● ● ● ●
7 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98180-948-0 01 1 1409- ● ●
7 HINGE ASM; RR GATE
THA 		8-98180-949-0 01 1 1409- ● ● ● ●
7 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98180-949-0 01 1 1409- ● ●
37 SCREW
M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 04 1 1409-1409 ● ● ● ●
37 SCREW
M8X16.5 HEXALOBULAR SOCKET THA 		8-98290-484-0 04 1 1409- ● ● ● ●
37 SCREW
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 06 1 1409-1409 ● ●
37 SCREW
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> M8X16.5 HEXALOBULAR SOCKET THA 		8-98290-484-0 06 1 1409-1505 ● ●
37 SCREW
REAR BODY DBL WALL CTR PULL<E63> M8X16.5 HEXALOBULAR SOCKET THA 		8-98290-484-0 06 1 1506- ● ●
55 PANEL; RR CORNER
(A) THA 		8-98104-259-6 01 1 1409- ● ● ● ●
55 PANEL; RR CORNER
(A) THA 		8-98104-261-6 01 1 1409- ● ● ● ●
55 PANEL; RR CORNER
(B) THA 		8-98104-378-7 01 1 1409- ● ● ● ●
55 PANEL; RR CORNER
(B) THA 		8-98104-379-7 01 1 1409- ● ● ● ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-98104-262-5 01 1 1409- ● ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-98104-264-5 01 1 1409- ● ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98104-380-4 01 1 1409- ● ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98104-381-4 01 1 1409- ● ●
112 PANEL; SIDE GATE
HIGH RIDE SUSPENSION<7YC> THA 		8-98104-558-9 01 1 1409- ●
112 PANEL; SIDE GATE
THA 		8-98104-558-9 01 1 1409- ●
112 PANEL; SIDE GATE
HIGH RIDE SUSPENSION<7YC> THA 		8-98205-935-1 01 1 1409- ●
112 PANEL; SIDE GATE
THA 		8-98205-935-1 01 1 1409- ●
112 PANEL; SIDE GATE
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98104-548-9 01 1 1409- ●
112 PANEL; SIDE GATE
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98104-549-7 01 1 1409- ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-553-8 01 1 1409- ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-555-6 01 1 1409- ●
112 PANEL; SIDE GATE
HIGH RIDE SUSPENSION<7YC> THA 		8-98104-560-9 01 1 1409- ●
112 PANEL; SIDE GATE
THA 		8-98104-560-9 01 1 1409- ●
112 PANEL; SIDE GATE
HIGH RIDE SUSPENSION<7YC> THA 		8-98104-561-7 01 1 1409- ●
112 PANEL; SIDE GATE
THA 		8-98104-561-7 01 1 1409- ●
112 PANEL; SIDE GATE
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98104-551-8 01 1 1409- ●
112 PANEL; SIDE GATE
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98104-552-6 01 1 1409- ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98122-518-7 01 1 1409- ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98122-519-9 01 1 1409- ●
121 PANEL; SIDE INNER,RR BODY
THA 		8-98144-608-4 01 1 1409- ● ●
121 PANEL; SIDE INNER,RR BODY
THA 		8-98144-609-4 01 1 1409- ● ●
121 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-927-6 01 1 1409- ● ●
121 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-928-5 01 1 1409- ● ●
121 PANEL; SIDE INNER,RR BODY
THA 		8-98104-294-7 01 1 1409- ● ●
121 PANEL; SIDE INNER,RR BODY
THA 		8-98104-296-7 01 1 1409- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98104-234-7 01 1 1409- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
(A) THA 		8-98104-234-7 01 1 1409- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-98104-234-7 01 1 1409- ●
125 RECESS; FUEL FILLER NECK,RR BODY
(B) THA 		8-98153-868-4 01 1 1409- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
(B) THA 		8-98153-869-4 01 1 1409- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98104-233-7 01 1 1409- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-98104-233-7 01 1 1409- ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98104-180-1 01 1 1409- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98104-181-1 01 1 1409- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
(B) THA 		8-98104-189-4 01 1 1409- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
(B) THA 		8-98104-192-4 01 1 1409- ● ●
126 RUBBER; STOPPER,FUEL FILLER LID
THA 		8-98144-635-1 03 1 1409- ● ● ● ●
126 RUBBER; STOPPER,FUEL FILLER LID
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98144-635-1 03 1 1409- ● ●
127 BOLT; FUEL FILLER LID
M6X16 THA 		8-98056-287-0 02 1 1409- ● ● ● ●
127 BOLT; FUEL FILLER LID
REAR BODY DBL WALL CTR PULL<E63> M6X16 THA 		8-98056-287-0 02 1 1409- ● ●
129 LID ASM; FUEL FILLER,RR BODY
HIGH RIDE SUSPENSION<7YC> THA 		8-98103-298-7 01 1 1409- ● ●
129 LID ASM; FUEL FILLER,RR BODY
THA 		8-98103-298-7 01 1 1409- ● ●
129 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98103-298-7 01 1 1409- ●
129 LID ASM; FUEL FILLER,RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98103-297-6 01 1 1409- ● ●
129 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98103-297-6 01 1 1409- ●
135 STRIKER; TAIL GATE,RR BODY
THA 		8-98050-333-0 01 1 1409- ● ● ● ●
135 STRIKER; TAIL GATE,RR BODY
THA 		8-98050-334-0 01 1 1409- ● ● ● ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98115-656-2 01 1 1409- ● ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98115-657-2 01 1 1409- ● ●
158 SCREW; STRIKER,TAIL GATE
M8X20 FLANGE THA 		0-28650-820-0 04 1 1409- ● ● ● ●
158 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL<E63> M8X22 THA 		8-98050-437-0 04 1 1409- ● ●
169 GROMMET; TAIL GATE INNER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97166-110-0 04 1 1409- ● ●
188 PLATE; HINGE UPR,RR GATE
THA 		8-97329-277-1 AR 1 1409- ● ● ● ●
188 PLATE; HINGE UPR,RR GATE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97329-277-1 AR 1 1409- ● ●
189 BOLT; HINGE,RR GATE
(B) M10X35 W/LK&PL WASHER THA 		0-50641-035-0 02 1 1409- ● ● ● ●
189 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL<E63> (B) M10X35 W/LK&PL WASHER THA 		0-50641-035-0 02 1 1409- ● ●
189 BOLT; HINGE,RR GATE
(A) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 06 1 1409- ● ● ● ●
189 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL<E63> (A) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 06 1 1409- ● ●
189 BOLT; HINGE,RR GATE
(C) M8X22 THA 		8-98050-437-0 02 1 1409- ● ●
189 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL<E63> (C) M8X22 THA 		8-98050-437-0 02 1 1409- ● ●
230 RAIL; SIDE GATE UPR
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-565-2 01 1 1409- ● ●
230 RAIL; SIDE GATE UPR
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-566-2 01 1 1409- ● ●
246 STIFFENER
THA 		8-98184-275-1 02 1 1409- ● ● ● ●
246 STIFFENER
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98184-275-1 02 1 1409- ● ●
248 PATCH; CARGO RR
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-333-0 01 1 1409- ● ●
248 PATCH; CARGO RR
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-336-0 01 1 1409- ● ●
256 SPRING; LID,FUEL FILLER
THA 		8-98141-610-3 01 1 1409- ● ● ● ●
256 SPRING; LID,FUEL FILLER
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98141-610-3 01 1 1409- ● ●
279 SPACER
THA 		8-97357-403-0 02 1 1409- ● ● ● ●
279 SPACER
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97357-403-0 02 1 1409- ● ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98113-244-2 01 1 1409-1505 ● ●
290 BRACE; RR BODY
(B) THA 		8-98113-244-2 01 1 1409-1505 ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98113-244-2 01 1 1409-1505 ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98113-244-2 01 1 1506- ● ●
290 BRACE; RR BODY
(B) THA 		8-98113-244-2 01 1 1506- ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98113-244-2 01 1 1506- ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98113-245-2 01 1 1409-1505 ● ●
290 BRACE; RR BODY
(B) THA 		8-98113-245-2 01 1 1409-1505 ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98113-245-2 01 1 1409-1505 ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98113-245-2 01 1 1506- ● ●
290 BRACE; RR BODY
(B) THA 		8-98113-245-2 01 1 1506- ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98113-245-2 01 1 1506- ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98187-117-0 01 1 1409-1505 ●
290 BRACE; RR BODY
(C) THA 		8-98187-117-0 01 1 1409-1505 ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (C) THA 		8-98187-117-0 01 1 1409-1505 ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98187-117-0 01 1 1506- ●
290 BRACE; RR BODY
(C) THA 		8-98187-117-0 01 1 1506- ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (C) THA 		8-98187-117-0 01 1 1506- ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98187-118-0 01 1 1409-1505 ●
290 BRACE; RR BODY
(C) THA 		8-98187-118-0 01 1 1409-1505 ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (C) THA 		8-98187-118-0 01 1 1409-1505 ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98187-118-0 01 1 1506- ●
290 BRACE; RR BODY
(C) THA 		8-98187-118-0 01 1 1506- ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (C) THA 		8-98187-118-0 01 1 1506- ●
290 BRACE; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98126-543-0 01 1 1409- ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-98126-543-0 01 1 1409- ●
290 BRACE; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98126-544-0 01 1 1409- ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-98126-544-0 01 1 1409- ●
290 BRACE; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98104-062-2 01 1 1409- ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98104-062-2 01 1 1409- ●
290 BRACE; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98104-063-2 01 1 1409- ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98104-063-2 01 1 1409- ●
292 EXTENSION; RR BODY
(A) THA 		8-98104-156-0 04 1 1409- ● ● ● ●
292 EXTENSION; RR BODY
(B) THA 		8-98104-134-1 01 1 1409- ● ●
292 EXTENSION; RR BODY
(B) THA 		8-98156-912-0 01 1 1409- ● ●
292 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-98104-156-0 08 1 1409- ● ●
294 PANEL; OUTER,RR BODY
HIGH RIDE SUSPENSION<7YC> THA 		8-98104-405-3 01 1 1409- ● ●
294 PANEL; OUTER,RR BODY
THA 		8-98104-405-3 01 1 1409- ● ●
294 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-405-3 01 1 1409- ●
294 PANEL; OUTER,RR BODY
HIGH RIDE SUSPENSION<7YC> THA 		8-98104-406-3 01 1 1409- ● ●
294 PANEL; OUTER,RR BODY
THA 		8-98104-406-3 01 1 1409- ● ●
294 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-406-3 01 1 1409- ●
294 PANEL; OUTER,RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98104-392-2 01 1 1409- ● ●
294 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-392-2 01 1 1409- ●
294 PANEL; OUTER,RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98104-393-2 01 1 1409- ● ●
294 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-393-2 01 1 1409- ●
295 BRACKET; FILLER
THA 		8-98104-666-1 01 1 1409- ● ● ● ●
295 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-666-1 01 1 1409- ● ●
296 BRACKET; RR BODY
(A) THA 		8-98104-649-0 02 1 1409- ● ● ● ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-98104-649-0 02 1 1409- ● ●
296 BRACKET; RR BODY
(B) THA 		8-98104-665-1 02 1 1409- ● ● ● ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98104-665-1 02 1 1409- ● ●
296 BRACKET; RR BODY
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98138-642-3 01 1 1409- ●
296 BRACKET; RR BODY
(C) THA 		8-98138-642-3 01 1 1409- ●
296 BRACKET; RR BODY
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98138-643-3 01 1 1409- ●
296 BRACKET; RR BODY
(C) THA 		8-98138-643-3 01 1 1409- ●
296 BRACKET; RR BODY
HIGH RIDE SUSPENSION<7YC> (D) THA 		8-98138-648-3 01 1 1409- ●
296 BRACKET; RR BODY
(D) THA 		8-98138-648-3 01 1 1409- ●
296 BRACKET; RR BODY
HIGH RIDE SUSPENSION<7YC> (D) THA 		8-98138-649-3 01 1 1409- ●
296 BRACKET; RR BODY
(D) THA 		8-98138-649-3 01 1 1409- ●
296 BRACKET; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98138-640-5 01 1 1409- ●
296 BRACKET; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98138-641-5 01 1 1409- ●
296 BRACKET; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (D) THA 		8-98138-646-2 01 1 1409- ●
296 BRACKET; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (D) THA 		8-98138-647-2 01 1 1409- ●
300 COLLAR; GATE HINGE
THA 		8-98057-114-0 02 1 1409- ● ● ● ●
300 COLLAR; GATE HINGE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98057-114-0 02 1 1409- ● ●
301 SUPPORT; TAIL GATE
THA 		8-98053-899-0 01 1 1409- ● ●
301 SUPPORT; TAIL GATE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98053-899-0 01 1 1409- ● ●
347 REINFORCEMENT; RR BODY,SIDE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-603-1 01 1 1409- ● ●
347 REINFORCEMENT; RR BODY,SIDE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-604-1 01 1 1409- ● ●
348 REINFORCEMENT; RR BODY,INRL
THA 		8-98104-619-0 02 1 1409- ● ●
348 REINFORCEMENT; RR BODY,INRL
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-619-0 02 1 1409- ● ●
349 REINFORCEMENT; RR BODY,SILL
(A) THA 		8-98104-614-2 02 1 1409- ● ● ● ●
349 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-98104-614-2 02 1 1409- ● ●
349 REINFORCEMENT; RR BODY,SILL
(B) THA 		8-98104-613-2 02 1 1409- ● ●
349 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98104-613-2 04 1 1409- ● ●
349 REINFORCEMENT; RR BODY,SILL
(C) THA 		8-98139-650-1 01 1 1409- ● ●
349 REINFORCEMENT; RR BODY,SILL
(C) THA 		8-98139-651-1 01 1 1409- ● ●
350 SEAL; TAPE
UPPER THA 		8-98192-937-0 02 1 1409- ● ● ● ●
350 SEAL; TAPE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> UPPER THA 		8-98192-937-0 02 1 1409- ● ●
350 SEAL; TAPE
LOWER THA 		8-98192-940-0 02 1 1409- ● ● ● ●
350 SEAL; TAPE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> LOWER THA 		8-98192-940-0 02 1 1409- ● ●

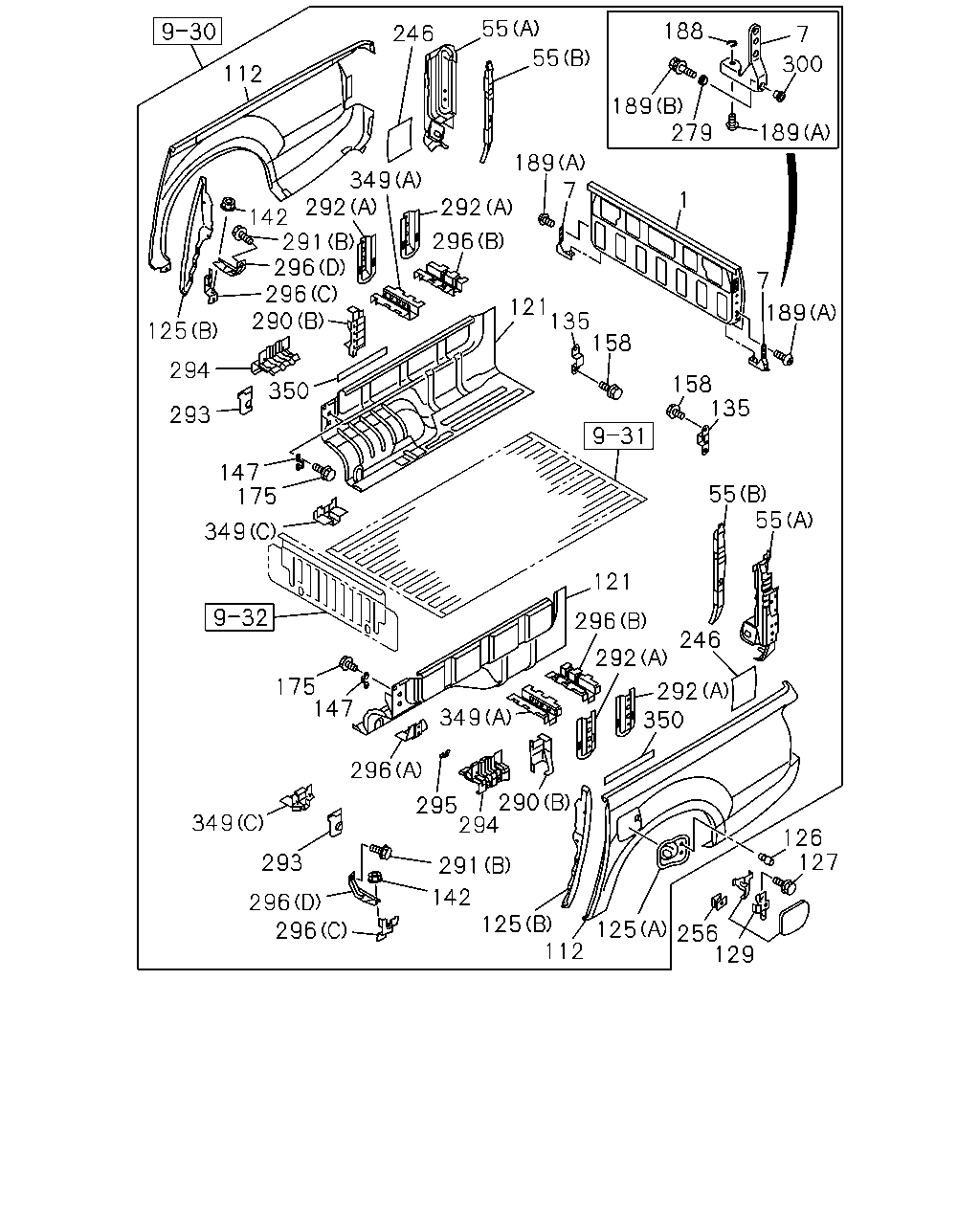

çizim 443932
112 246 55 189 55 188 7 189 189 279 300 349 292 292 142 296 121 1 7 135 158 158 135 189 291 296 296 290 350 125 293 294 147 349 55 175 55 121 296 292 292 350 246 175 147 296 295 294 291 142 125 112 256 125 126 127 129 290 349 349 293 296 296 7
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 GATE ASM; RR
THA 		8-98104-332-9 01 1 1409- ● ●
1 GATE ASM; RR
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98198-539-2 01 1 1409- ● ●
1 GATE ASM; RR
THA 		8-98104-362-9 01 1 1409- ● ●
7 HINGE ASM; RR GATE
THA 		8-98180-948-0 01 1 1409- ● ● ● ●
7 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98180-948-0 01 1 1409- ● ●
7 HINGE ASM; RR GATE
THA 		8-98180-949-0 01 1 1409- ● ● ● ●
7 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98180-949-0 01 1 1409- ● ●
55 PANEL; RR CORNER
(A) THA 		8-98104-259-6 01 1 1409- ● ● ● ●
55 PANEL; RR CORNER
(A) THA 		8-98104-261-6 01 1 1409- ● ● ● ●
55 PANEL; RR CORNER
(B) THA 		8-98104-378-7 01 1 1409- ● ● ● ●
55 PANEL; RR CORNER
(B) THA 		8-98104-379-7 01 1 1409- ● ● ● ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-98104-262-5 01 1 1409- ● ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-98104-264-5 01 1 1409- ● ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98104-380-4 01 1 1409- ● ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98104-381-4 01 1 1409- ● ●
112 PANEL; SIDE GATE
HIGH RIDE SUSPENSION<7YC> THA 		8-98104-558-9 01 1 1409- ●
112 PANEL; SIDE GATE
THA 		8-98104-558-9 01 1 1409- ●
112 PANEL; SIDE GATE
HIGH RIDE SUSPENSION<7YC> THA 		8-98205-935-1 01 1 1409- ●
112 PANEL; SIDE GATE
THA 		8-98205-935-1 01 1 1409- ●
112 PANEL; SIDE GATE
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98104-548-9 01 1 1409- ●
112 PANEL; SIDE GATE
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98104-549-7 01 1 1409- ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-553-8 01 1 1409- ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-555-6 01 1 1409- ●
112 PANEL; SIDE GATE
HIGH RIDE SUSPENSION<7YC> THA 		8-98104-560-9 01 1 1409- ●
112 PANEL; SIDE GATE
THA 		8-98104-560-9 01 1 1409- ●
112 PANEL; SIDE GATE
HIGH RIDE SUSPENSION<7YC> THA 		8-98104-561-7 01 1 1409- ●
112 PANEL; SIDE GATE
THA 		8-98104-561-7 01 1 1409- ●
112 PANEL; SIDE GATE
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98104-551-8 01 1 1409- ●
112 PANEL; SIDE GATE
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98104-552-6 01 1 1409- ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98122-518-7 01 1 1409- ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98122-519-9 01 1 1409- ●
121 PANEL; SIDE INNER,RR BODY
THA 		8-98144-608-4 01 1 1409- ● ●
121 PANEL; SIDE INNER,RR BODY
THA 		8-98144-609-4 01 1 1409- ● ●
121 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-927-6 01 1 1409- ● ●
121 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-928-5 01 1 1409- ● ●
121 PANEL; SIDE INNER,RR BODY
THA 		8-98104-294-7 01 1 1409- ● ●
121 PANEL; SIDE INNER,RR BODY
THA 		8-98104-296-7 01 1 1409- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98104-234-7 01 1 1409- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
(A) THA 		8-98104-234-7 01 1 1409- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-98104-234-7 01 1 1409- ●
125 RECESS; FUEL FILLER NECK,RR BODY
(B) THA 		8-98153-868-4 01 1 1409- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
(B) THA 		8-98153-869-4 01 1 1409- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98104-233-7 01 1 1409- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-98104-233-7 01 1 1409- ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98104-180-1 01 1 1409- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98104-181-1 01 1 1409- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
(B) THA 		8-98104-189-4 01 1 1409- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
(B) THA 		8-98104-192-4 01 1 1409- ● ●
126 RUBBER; STOPPER,FUEL FILLER LID
THA 		8-98144-635-1 03 1 1409- ● ● ● ●
126 RUBBER; STOPPER,FUEL FILLER LID
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98144-635-1 03 1 1409- ● ●
127 BOLT; FUEL FILLER LID
M6X16 THA 		8-98056-287-0 02 1 1409- ● ● ● ●
127 BOLT; FUEL FILLER LID
REAR BODY DBL WALL CTR PULL<E63> M6X16 THA 		8-98056-287-0 02 1 1409- ● ●
129 LID ASM; FUEL FILLER,RR BODY
HIGH RIDE SUSPENSION<7YC> THA 		8-98103-298-7 01 1 1409- ● ●
129 LID ASM; FUEL FILLER,RR BODY
THA 		8-98103-298-7 01 1 1409- ● ●
129 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98103-298-7 01 1 1409- ●
129 LID ASM; FUEL FILLER,RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98103-297-6 01 1 1409- ● ●
129 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98103-297-6 01 1 1409- ●
135 STRIKER; TAIL GATE,RR BODY
THA 		8-98050-333-0 01 1 1409- ● ● ● ●
135 STRIKER; TAIL GATE,RR BODY
THA 		8-98050-334-0 01 1 1409- ● ● ● ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98115-656-2 01 1 1409- ● ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98115-657-2 01 1 1409- ● ●
142 NUT
M8 FLANGE THA 		0-91180-108-0 02 1 1409- ● ●
147 HOOK ASM; ROPE,FRT
THA 		8-98202-587-0 04 1 1409- ● ● ● ●
158 SCREW; STRIKER,TAIL GATE
M8X20 FLANGE THA 		0-28650-820-0 04 1 1409- ● ● ● ●
158 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL<E63> M8X22 THA 		8-98050-437-0 04 1 1409- ● ●
175 BOLT; SET,RR GATE HOOK
M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 08 1 1409- ● ● ● ●
188 PLATE; HINGE UPR,RR GATE
THA 		8-97329-277-1 AR 1 1409- ● ● ● ●
188 PLATE; HINGE UPR,RR GATE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97329-277-1 AR 1 1409- ● ●
189 BOLT; HINGE,RR GATE
(B) M10X35 W/LK&PL WASHER THA 		0-50641-035-0 02 1 1409- ● ● ● ●
189 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL<E63> (B) M10X35 W/LK&PL WASHER THA 		0-50641-035-0 02 1 1409- ● ●
189 BOLT; HINGE,RR GATE
(A) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 06 1 1409- ● ● ● ●
189 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL<E63> (A) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 06 1 1409- ● ●
189 BOLT; HINGE,RR GATE
(C) M8X22 THA 		8-98050-437-0 02 1 1409- ● ●
189 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL<E63> (C) M8X22 THA 		8-98050-437-0 02 1 1409- ● ●
246 STIFFENER
THA 		8-98184-275-1 02 1 1409- ● ● ● ●
246 STIFFENER
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98184-275-1 02 1 1409- ● ●
256 SPRING; LID,FUEL FILLER
THA 		8-98141-610-3 01 1 1409- ● ● ● ●
256 SPRING; LID,FUEL FILLER
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98141-610-3 01 1 1409- ● ●
279 SPACER
THA 		8-97357-403-0 02 1 1409- ● ● ● ●
279 SPACER
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97357-403-0 02 1 1409- ● ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98113-244-2 01 1 1409-1505 ● ●
290 BRACE; RR BODY
(B) THA 		8-98113-244-2 01 1 1409-1505 ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98113-244-2 01 1 1409-1505 ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98113-244-2 01 1 1506- ● ●
290 BRACE; RR BODY
(B) THA 		8-98113-244-2 01 1 1506- ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98113-244-2 01 1 1506- ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98113-245-2 01 1 1409-1505 ● ●
290 BRACE; RR BODY
(B) THA 		8-98113-245-2 01 1 1409-1505 ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98113-245-2 01 1 1409-1505 ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98113-245-2 01 1 1506- ● ●
290 BRACE; RR BODY
(B) THA 		8-98113-245-2 01 1 1506- ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98113-245-2 01 1 1506- ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98187-117-0 01 1 1409-1505 ●
290 BRACE; RR BODY
(C) THA 		8-98187-117-0 01 1 1409-1505 ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (C) THA 		8-98187-117-0 01 1 1409-1505 ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98187-117-0 01 1 1506- ●
290 BRACE; RR BODY
(C) THA 		8-98187-117-0 01 1 1506- ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (C) THA 		8-98187-117-0 01 1 1506- ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98187-118-0 01 1 1409-1505 ●
290 BRACE; RR BODY
(C) THA 		8-98187-118-0 01 1 1409-1505 ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (C) THA 		8-98187-118-0 01 1 1409-1505 ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98187-118-0 01 1 1506- ●
290 BRACE; RR BODY
(C) THA 		8-98187-118-0 01 1 1506- ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (C) THA 		8-98187-118-0 01 1 1506- ●
290 BRACE; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98126-543-0 01 1 1409- ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-98126-543-0 01 1 1409- ●
290 BRACE; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98126-544-0 01 1 1409- ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-98126-544-0 01 1 1409- ●
290 BRACE; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98104-062-2 01 1 1409- ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98104-062-2 01 1 1409- ●
290 BRACE; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98104-063-2 01 1 1409- ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98104-063-2 01 1 1409- ●
291 BOLT; RR BODY
(A) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 02 1 1409-1505 ● ● ● ●
291 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 02 1 1409-1505 ● ●
291 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 02 1 1409-1505 ● ●
291 BOLT; RR BODY
(A) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 02 1 1409-1505 ●
291 BOLT; RR BODY
(A) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 02 1 1506-1506 ● ● ● ●
291 BOLT; RR BODY
(A) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 02 1 1506-1506 ● ●
291 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (A) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 02 1 1506-1506 ● ●
291 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (A) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 02 1 1506-1506 ● ●
291 BOLT; RR BODY
(A) M8X16.5 HEXALOBULAR SOCKET THA 		8-98290-484-0 02 1 1506- ● ● ● ●
291 BOLT; RR BODY
(A) M8X16.5 HEXALOBULAR SOCKET THA 		8-98290-484-0 02 1 1506- ● ●
291 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (A) M8X16.5 HEXALOBULAR SOCKET THA 		8-98290-484-0 02 1 1506- ● ●
291 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (A) M8X16.5 HEXALOBULAR SOCKET THA 		8-98290-484-0 02 1 1506- ● ●
291 BOLT; RR BODY
(B) M8X32.5 W/PL WASHER THA 		8-98136-077-0 02 1 1409- ● ●
292 EXTENSION; RR BODY
(A) THA 		8-98104-156-0 04 1 1409- ● ● ● ●
292 EXTENSION; RR BODY
(B) THA 		8-98104-134-1 01 1 1409- ● ●
292 EXTENSION; RR BODY
(B) THA 		8-98156-912-0 01 1 1409- ● ●
292 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-98104-156-0 08 1 1409- ● ●
293 REINFORCEMENT; RR BODY
THA 		8-98144-610-1 01 1 1409- ● ●
293 REINFORCEMENT; RR BODY
THA 		8-98144-611-1 01 1 1409- ● ●
293 REINFORCEMENT; RR BODY
THA 		8-98104-611-2 01 1 1409- ● ●
293 REINFORCEMENT; RR BODY
THA 		8-98104-612-2 01 1 1409- ● ●
294 PANEL; OUTER,RR BODY
HIGH RIDE SUSPENSION<7YC> THA 		8-98104-405-3 01 1 1409- ● ●
294 PANEL; OUTER,RR BODY
THA 		8-98104-405-3 01 1 1409- ● ●
294 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-405-3 01 1 1409- ●
294 PANEL; OUTER,RR BODY
HIGH RIDE SUSPENSION<7YC> THA 		8-98104-406-3 01 1 1409- ● ●
294 PANEL; OUTER,RR BODY
THA 		8-98104-406-3 01 1 1409- ● ●
294 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-406-3 01 1 1409- ●
294 PANEL; OUTER,RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98104-392-2 01 1 1409- ● ●
294 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-392-2 01 1 1409- ●
294 PANEL; OUTER,RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98104-393-2 01 1 1409- ● ●
294 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-393-2 01 1 1409- ●
295 BRACKET; FILLER
THA 		8-98104-666-1 01 1 1409- ● ● ● ●
295 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-666-1 01 1 1409- ● ●
296 BRACKET; RR BODY
(A) THA 		8-98104-649-0 02 1 1409- ● ● ● ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-98104-649-0 02 1 1409- ● ●
296 BRACKET; RR BODY
(B) THA 		8-98104-665-1 02 1 1409- ● ● ● ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98104-665-1 02 1 1409- ● ●
296 BRACKET; RR BODY
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98138-642-3 01 1 1409- ●
296 BRACKET; RR BODY
(C) THA 		8-98138-642-3 01 1 1409- ●
296 BRACKET; RR BODY
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98138-643-3 01 1 1409- ●
296 BRACKET; RR BODY
(C) THA 		8-98138-643-3 01 1 1409- ●
296 BRACKET; RR BODY
HIGH RIDE SUSPENSION<7YC> (D) THA 		8-98138-648-3 01 1 1409- ●
296 BRACKET; RR BODY
(D) THA 		8-98138-648-3 01 1 1409- ●
296 BRACKET; RR BODY
HIGH RIDE SUSPENSION<7YC> (D) THA 		8-98138-649-3 01 1 1409- ●
296 BRACKET; RR BODY
(D) THA 		8-98138-649-3 01 1 1409- ●
296 BRACKET; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98138-640-5 01 1 1409- ●
296 BRACKET; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98138-641-5 01 1 1409- ●
296 BRACKET; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (D) THA 		8-98138-646-2 01 1 1409- ●
296 BRACKET; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (D) THA 		8-98138-647-2 01 1 1409- ●
300 COLLAR; GATE HINGE
THA 		8-98057-114-0 02 1 1409- ● ● ● ●
300 COLLAR; GATE HINGE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98057-114-0 02 1 1409- ● ●
349 REINFORCEMENT; RR BODY,SILL
(A) THA 		8-98104-614-2 02 1 1409- ● ● ● ●
349 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-98104-614-2 02 1 1409- ● ●
349 REINFORCEMENT; RR BODY,SILL
(B) THA 		8-98104-613-2 02 1 1409- ● ●
349 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98104-613-2 04 1 1409- ● ●
349 REINFORCEMENT; RR BODY,SILL
(C) THA 		8-98139-650-1 01 1 1409- ● ●
349 REINFORCEMENT; RR BODY,SILL
(C) THA 		8-98139-651-1 01 1 1409- ● ●
350 SEAL; TAPE
UPPER THA 		8-98192-937-0 02 1 1409- ● ● ● ●
350 SEAL; TAPE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> UPPER THA 		8-98192-937-0 02 1 1409- ● ●
350 SEAL; TAPE
LOWER THA 		8-98192-940-0 02 1 1409- ● ● ● ●
350 SEAL; TAPE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> LOWER THA 		8-98192-940-0 02 1 1409- ● ●

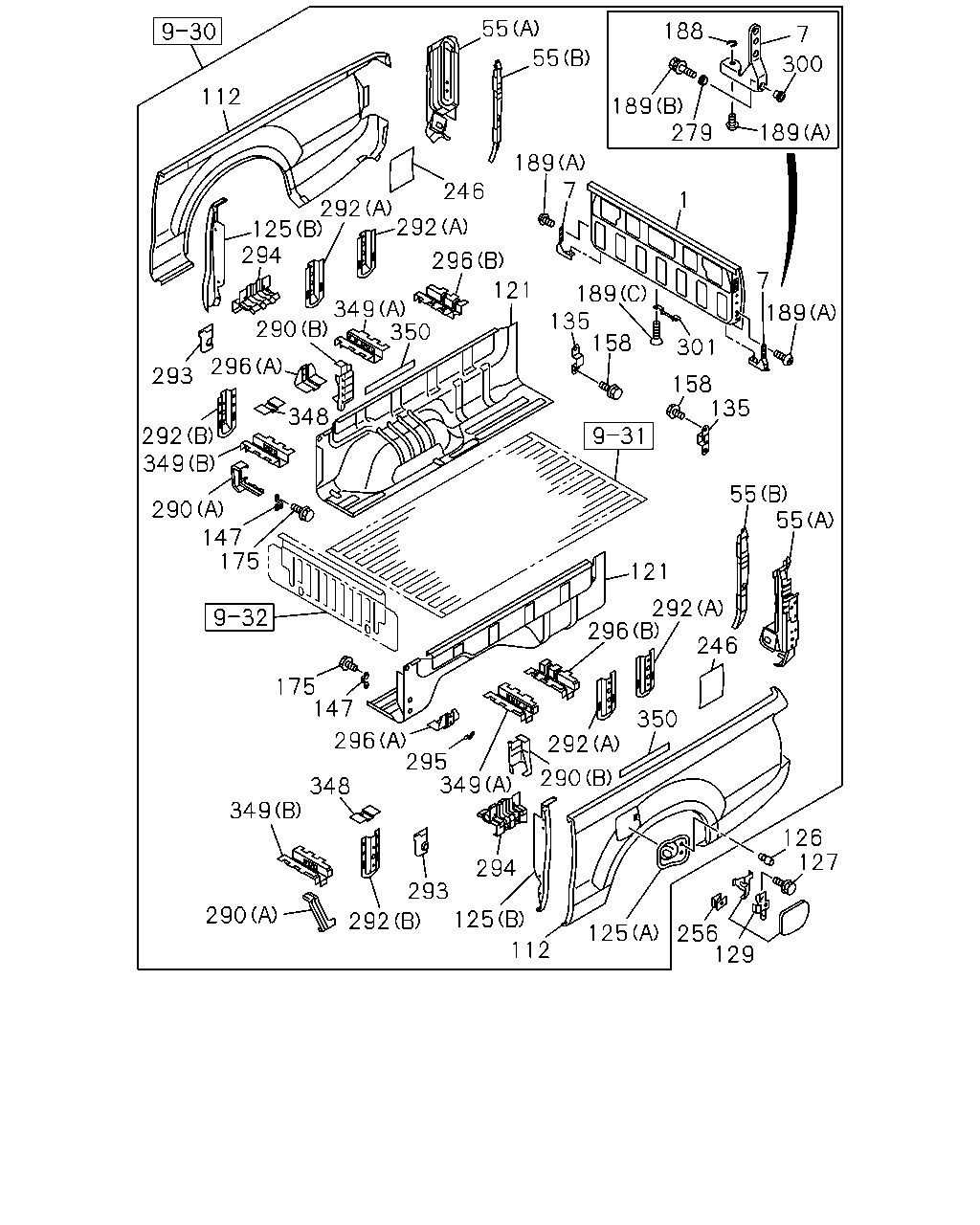

çizim 444040
188 7 189 279 300 189 112 55 189 55 246 292 125 294 293 290 349 292 350 296 296 292 348 349 290 147 175 175 121 189 135 301 158 158 189 135 55 121 55 292 296 246 350 296 290 349 126 127 129 256 125 112 125 294 293 292 290 349 296 348 295 147 1 7 7
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 GATE ASM; RR
THA 		8-98104-332-9 01 1 1409- ● ●
1 GATE ASM; RR
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98198-539-2 01 1 1409- ● ●
1 GATE ASM; RR
THA 		8-98104-362-9 01 1 1409- ● ●
7 HINGE ASM; RR GATE
THA 		8-98180-948-0 01 1 1409- ● ● ● ●
7 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98180-948-0 01 1 1409- ● ●
7 HINGE ASM; RR GATE
THA 		8-98180-949-0 01 1 1409- ● ● ● ●
7 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98180-949-0 01 1 1409- ● ●
55 PANEL; RR CORNER
(A) THA 		8-98104-259-6 01 1 1409- ● ● ● ●
55 PANEL; RR CORNER
(A) THA 		8-98104-261-6 01 1 1409- ● ● ● ●
55 PANEL; RR CORNER
(B) THA 		8-98104-378-7 01 1 1409- ● ● ● ●
55 PANEL; RR CORNER
(B) THA 		8-98104-379-7 01 1 1409- ● ● ● ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-98104-262-5 01 1 1409- ● ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-98104-264-5 01 1 1409- ● ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98104-380-4 01 1 1409- ● ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98104-381-4 01 1 1409- ● ●
112 PANEL; SIDE GATE
HIGH RIDE SUSPENSION<7YC> THA 		8-98104-558-9 01 1 1409- ●
112 PANEL; SIDE GATE
THA 		8-98104-558-9 01 1 1409- ●
112 PANEL; SIDE GATE
HIGH RIDE SUSPENSION<7YC> THA 		8-98205-935-1 01 1 1409- ●
112 PANEL; SIDE GATE
THA 		8-98205-935-1 01 1 1409- ●
112 PANEL; SIDE GATE
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98104-548-9 01 1 1409- ●
112 PANEL; SIDE GATE
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98104-549-7 01 1 1409- ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-553-8 01 1 1409- ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-555-6 01 1 1409- ●
112 PANEL; SIDE GATE
HIGH RIDE SUSPENSION<7YC> THA 		8-98104-560-9 01 1 1409- ●
112 PANEL; SIDE GATE
THA 		8-98104-560-9 01 1 1409- ●
112 PANEL; SIDE GATE
HIGH RIDE SUSPENSION<7YC> THA 		8-98104-561-7 01 1 1409- ●
112 PANEL; SIDE GATE
THA 		8-98104-561-7 01 1 1409- ●
112 PANEL; SIDE GATE
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98104-551-8 01 1 1409- ●
112 PANEL; SIDE GATE
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98104-552-6 01 1 1409- ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98122-518-7 01 1 1409- ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98122-519-9 01 1 1409- ●
121 PANEL; SIDE INNER,RR BODY
THA 		8-98144-608-4 01 1 1409- ● ●
121 PANEL; SIDE INNER,RR BODY
THA 		8-98144-609-4 01 1 1409- ● ●
121 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-927-6 01 1 1409- ● ●
121 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-928-5 01 1 1409- ● ●
121 PANEL; SIDE INNER,RR BODY
THA 		8-98104-294-7 01 1 1409- ● ●
121 PANEL; SIDE INNER,RR BODY
THA 		8-98104-296-7 01 1 1409- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98104-234-7 01 1 1409- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
(A) THA 		8-98104-234-7 01 1 1409- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-98104-234-7 01 1 1409- ●
125 RECESS; FUEL FILLER NECK,RR BODY
(B) THA 		8-98153-868-4 01 1 1409- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
(B) THA 		8-98153-869-4 01 1 1409- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98104-233-7 01 1 1409- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-98104-233-7 01 1 1409- ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98104-180-1 01 1 1409- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98104-181-1 01 1 1409- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
(B) THA 		8-98104-189-4 01 1 1409- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
(B) THA 		8-98104-192-4 01 1 1409- ● ●
126 RUBBER; STOPPER,FUEL FILLER LID
THA 		8-98144-635-1 03 1 1409- ● ● ● ●
126 RUBBER; STOPPER,FUEL FILLER LID
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98144-635-1 03 1 1409- ● ●
127 BOLT; FUEL FILLER LID
M6X16 THA 		8-98056-287-0 02 1 1409- ● ● ● ●
127 BOLT; FUEL FILLER LID
REAR BODY DBL WALL CTR PULL<E63> M6X16 THA 		8-98056-287-0 02 1 1409- ● ●
129 LID ASM; FUEL FILLER,RR BODY
HIGH RIDE SUSPENSION<7YC> THA 		8-98103-298-7 01 1 1409- ● ●
129 LID ASM; FUEL FILLER,RR BODY
THA 		8-98103-298-7 01 1 1409- ● ●
129 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98103-298-7 01 1 1409- ●
129 LID ASM; FUEL FILLER,RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98103-297-6 01 1 1409- ● ●
129 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98103-297-6 01 1 1409- ●
135 STRIKER; TAIL GATE,RR BODY
THA 		8-98050-333-0 01 1 1409- ● ● ● ●
135 STRIKER; TAIL GATE,RR BODY
THA 		8-98050-334-0 01 1 1409- ● ● ● ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98115-656-2 01 1 1409- ● ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98115-657-2 01 1 1409- ● ●
147 HOOK ASM; ROPE,FRT
THA 		8-98202-587-0 04 1 1409- ● ● ● ●
158 SCREW; STRIKER,TAIL GATE
M8X20 FLANGE THA 		0-28650-820-0 04 1 1409- ● ● ● ●
158 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL<E63> M8X22 THA 		8-98050-437-0 04 1 1409- ● ●
175 BOLT; SET,RR GATE HOOK
M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 08 1 1409- ● ● ● ●
188 PLATE; HINGE UPR,RR GATE
THA 		8-97329-277-1 AR 1 1409- ● ● ● ●
188 PLATE; HINGE UPR,RR GATE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97329-277-1 AR 1 1409- ● ●
189 BOLT; HINGE,RR GATE
(B) M10X35 W/LK&PL WASHER THA 		0-50641-035-0 02 1 1409- ● ● ● ●
189 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL<E63> (B) M10X35 W/LK&PL WASHER THA 		0-50641-035-0 02 1 1409- ● ●
189 BOLT; HINGE,RR GATE
(A) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 06 1 1409- ● ● ● ●
189 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL<E63> (A) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 06 1 1409- ● ●
189 BOLT; HINGE,RR GATE
(C) M8X22 THA 		8-98050-437-0 02 1 1409- ● ●
189 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL<E63> (C) M8X22 THA 		8-98050-437-0 02 1 1409- ● ●
246 STIFFENER
THA 		8-98184-275-1 02 1 1409- ● ● ● ●
246 STIFFENER
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98184-275-1 02 1 1409- ● ●
256 SPRING; LID,FUEL FILLER
THA 		8-98141-610-3 01 1 1409- ● ● ● ●
256 SPRING; LID,FUEL FILLER
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98141-610-3 01 1 1409- ● ●
279 SPACER
THA 		8-97357-403-0 02 1 1409- ● ● ● ●
279 SPACER
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97357-403-0 02 1 1409- ● ●

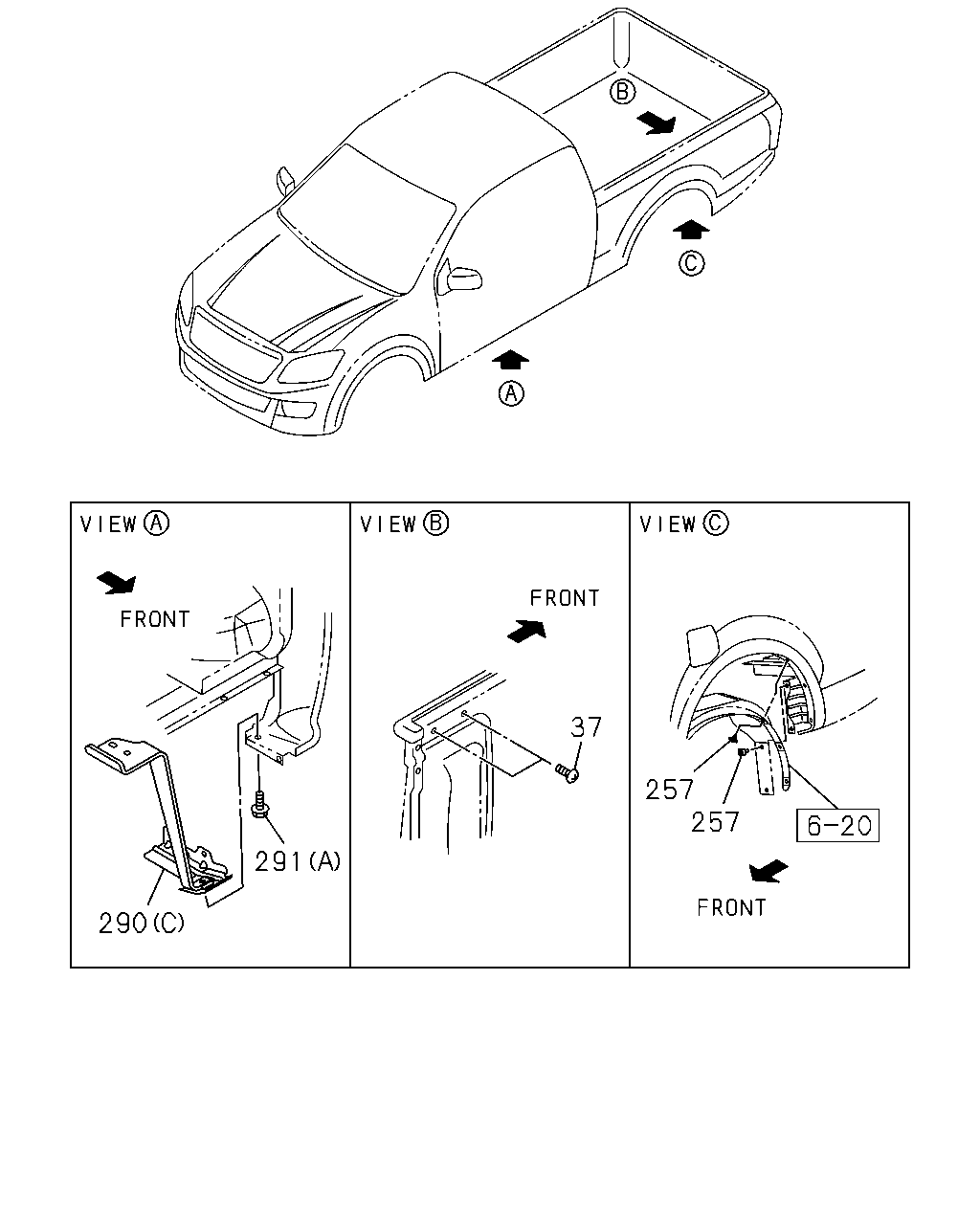

290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98113-244-2 01 1 1409-1505 ● ●
290 BRACE; RR BODY
(B) THA 		8-98113-244-2 01 1 1409-1505 ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98113-244-2 01 1 1409-1505 ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98113-244-2 01 1 1506- ● ●
290 BRACE; RR BODY
(B) THA 		8-98113-244-2 01 1 1506- ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98113-244-2 01 1 1506- ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98113-245-2 01 1 1409-1505 ● ●
290 BRACE; RR BODY
(B) THA 		8-98113-245-2 01 1 1409-1505 ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98113-245-2 01 1 1409-1505 ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98113-245-2 01 1 1506- ● ●
290 BRACE; RR BODY
(B) THA 		8-98113-245-2 01 1 1506- ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98113-245-2 01 1 1506- ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98187-117-0 01 1 1409-1505 ●
290 BRACE; RR BODY
(C) THA 		8-98187-117-0 01 1 1409-1505 ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (C) THA 		8-98187-117-0 01 1 1409-1505 ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98187-117-0 01 1 1506- ●
290 BRACE; RR BODY
(C) THA 		8-98187-117-0 01 1 1506- ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (C) THA 		8-98187-117-0 01 1 1506- ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98187-118-0 01 1 1409-1505 ●
290 BRACE; RR BODY
(C) THA 		8-98187-118-0 01 1 1409-1505 ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (C) THA 		8-98187-118-0 01 1 1409-1505 ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98187-118-0 01 1 1506- ●
290 BRACE; RR BODY
(C) THA 		8-98187-118-0 01 1 1506- ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (C) THA 		8-98187-118-0 01 1 1506- ●
290 BRACE; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98126-543-0 01 1 1409- ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-98126-543-0 01 1 1409- ●
290 BRACE; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98126-544-0 01 1 1409- ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-98126-544-0 01 1 1409- ●
290 BRACE; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98104-062-2 01 1 1409- ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98104-062-2 01 1 1409- ●
290 BRACE; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98104-063-2 01 1 1409- ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98104-063-2 01 1 1409- ●
292 EXTENSION; RR BODY
(A) THA 		8-98104-156-0 04 1 1409- ● ● ● ●
292 EXTENSION; RR BODY
(B) THA 		8-98104-134-1 01 1 1409- ● ●
292 EXTENSION; RR BODY
(B) THA 		8-98156-912-0 01 1 1409- ● ●
292 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-98104-156-0 08 1 1409- ● ●
293 REINFORCEMENT; RR BODY
THA 		8-98144-610-1 01 1 1409- ● ●
293 REINFORCEMENT; RR BODY
THA 		8-98144-611-1 01 1 1409- ● ●
293 REINFORCEMENT; RR BODY
THA 		8-98104-611-2 01 1 1409- ● ●
293 REINFORCEMENT; RR BODY
THA 		8-98104-612-2 01 1 1409- ● ●
294 PANEL; OUTER,RR BODY
HIGH RIDE SUSPENSION<7YC> THA 		8-98104-405-3 01 1 1409- ● ●
294 PANEL; OUTER,RR BODY
THA 		8-98104-405-3 01 1 1409- ● ●
294 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-405-3 01 1 1409- ●
294 PANEL; OUTER,RR BODY
HIGH RIDE SUSPENSION<7YC> THA 		8-98104-406-3 01 1 1409- ● ●
294 PANEL; OUTER,RR BODY
THA 		8-98104-406-3 01 1 1409- ● ●
294 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-406-3 01 1 1409- ●
294 PANEL; OUTER,RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98104-392-2 01 1 1409- ● ●
294 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-392-2 01 1 1409- ●
294 PANEL; OUTER,RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98104-393-2 01 1 1409- ● ●
294 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-393-2 01 1 1409- ●
295 BRACKET; FILLER
THA 		8-98104-666-1 01 1 1409- ● ● ● ●
295 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-666-1 01 1 1409- ● ●
296 BRACKET; RR BODY
(A) THA 		8-98104-649-0 02 1 1409- ● ● ● ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-98104-649-0 02 1 1409- ● ●
296 BRACKET; RR BODY
(B) THA 		8-98104-665-1 02 1 1409- ● ● ● ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98104-665-1 02 1 1409- ● ●
296 BRACKET; RR BODY
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98138-642-3 01 1 1409- ●
296 BRACKET; RR BODY
(C) THA 		8-98138-642-3 01 1 1409- ●
296 BRACKET; RR BODY
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98138-643-3 01 1 1409- ●
296 BRACKET; RR BODY
(C) THA 		8-98138-643-3 01 1 1409- ●
296 BRACKET; RR BODY
HIGH RIDE SUSPENSION<7YC> (D) THA 		8-98138-648-3 01 1 1409- ●
296 BRACKET; RR BODY
(D) THA 		8-98138-648-3 01 1 1409- ●
296 BRACKET; RR BODY
HIGH RIDE SUSPENSION<7YC> (D) THA 		8-98138-649-3 01 1 1409- ●
296 BRACKET; RR BODY
(D) THA 		8-98138-649-3 01 1 1409- ●
296 BRACKET; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98138-640-5 01 1 1409- ●
296 BRACKET; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98138-641-5 01 1 1409- ●
296 BRACKET; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (D) THA 		8-98138-646-2 01 1 1409- ●
296 BRACKET; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (D) THA 		8-98138-647-2 01 1 1409- ●
300 COLLAR; GATE HINGE
THA 		8-98057-114-0 02 1 1409- ● ● ● ●
300 COLLAR; GATE HINGE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98057-114-0 02 1 1409- ● ●
301 SUPPORT; TAIL GATE
THA 		8-98053-899-0 01 1 1409- ● ●
301 SUPPORT; TAIL GATE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98053-899-0 01 1 1409- ● ●
348 REINFORCEMENT; RR BODY,INRL
THA 		8-98104-619-0 02 1 1409- ● ●
348 REINFORCEMENT; RR BODY,INRL
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98104-619-0 02 1 1409- ● ●
349 REINFORCEMENT; RR BODY,SILL
(A) THA 		8-98104-614-2 02 1 1409- ● ● ● ●
349 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-98104-614-2 02 1 1409- ● ●
349 REINFORCEMENT; RR BODY,SILL
(B) THA 		8-98104-613-2 02 1 1409- ● ●
349 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98104-613-2 04 1 1409- ● ●
349 REINFORCEMENT; RR BODY,SILL
(C) THA 		8-98139-650-1 01 1 1409- ● ●
349 REINFORCEMENT; RR BODY,SILL
(C) THA 		8-98139-651-1 01 1 1409- ● ●
350 SEAL; TAPE
UPPER THA 		8-98192-937-0 02 1 1409- ● ● ● ●
350 SEAL; TAPE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> UPPER THA 		8-98192-937-0 02 1 1409- ● ●
350 SEAL; TAPE
LOWER THA 		8-98192-940-0 02 1 1409- ● ● ● ●
350 SEAL; TAPE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> LOWER THA 		8-98192-940-0 02 1 1409- ● ●

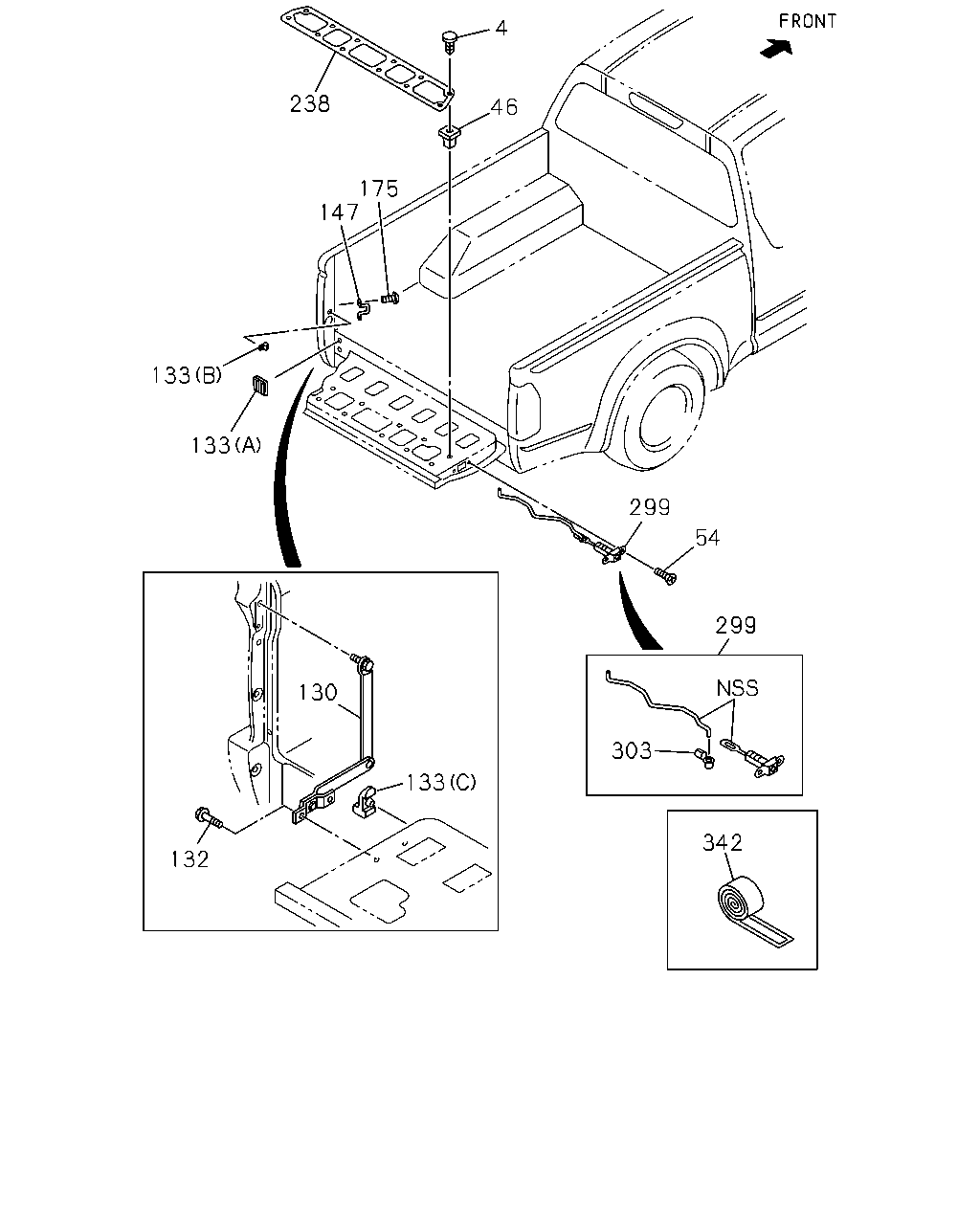

çizim 444324
342 303 299 54 299 133 130 132 133 133 147 175 238 4 46
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
4 SCREW; PANEL,RR GATE
M4X10 THA 		8-97043-528-0 12 1 1409- ● ● ● ●
46 GROMMET; SCREW,TAIL GATE HOLE COVER
THA 		8-98165-002-2 12 1 1409- ● ● ● ●
54 SCREW; TAIL GATE LOCK,RR BODY
M8X20 THA 		8-97247-699-0 04 1 1409- ● ● ● ●
130 LINK ASM; TAIL GATE,RR BODY
THA 		8-98180-461-1 01 1 1409- ● ● ● ●
130 LINK ASM; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98180-461-1 01 1 1409- ● ●
130 LINK ASM; TAIL GATE,RR BODY
THA 		8-98180-462-1 01 1 1409- ● ● ● ●
130 LINK ASM; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98180-462-1 01 1 1409- ● ●
132 BOLT; TAIL GATE LINK,RR BODY
M8X20 FLANGE THA 		0-28650-820-0 04 1 1409- ● ● ● ●
132 BOLT; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL<E63> M8X20 FLANGE THA 		0-28650-820-0 04 1 1409- ● ●
133 STOPPER; TAIL GATE LINK,RR BODY
(C) THA 		8-97302-185-2 02 1 1409- ● ● ● ●
133 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL<E63> (C) THA 		8-97302-185-2 02 1 1409- ● ●
133 STOPPER; TAIL GATE LINK,RR BODY
(B) THA 		8-98110-231-2 02 1 1409- ● ● ● ●
133 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98110-231-2 02 1 1409- ● ●
133 STOPPER; TAIL GATE LINK,RR BODY
EXC. REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43>,SALES PACKAGE SPORTY<XK0> (A) THA 		8-98134-726-1 01 1 1409- ● ●
133 STOPPER; TAIL GATE LINK,RR BODY
EXC. REAR STEP BUMPER CHROME<V42> (A) THA 		8-98134-726-1 01 1 1409- ● ●
133 STOPPER; TAIL GATE LINK,RR BODY
EXC. REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43>,SALES PACKAGE SPORTY<XK0> (A) THA 		8-98134-727-1 01 1 1409- ● ●
133 STOPPER; TAIL GATE LINK,RR BODY
EXC. REAR STEP BUMPER CHROME<V42> (A) THA 		8-98134-727-1 01 1 1409- ● ●
133 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-98126-088-1 01 1 1409- ● ●
133 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-98126-089-1 01 1 1409- ● ●
147 HOOK ASM; ROPE,FRT
THA 		8-98202-587-0 04 1 1409- ● ● ● ●
175 BOLT; SET,RR GATE HOOK
M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 08 1 1409- ● ● ● ●
238 COVER; RR GATE
THA 		8-98181-076-2 01 1 1409- ● ● ● ●
299 LATCH; END GATE
THA 		8-98102-971-3 01 1 1409- ● ● ● ●
299 LATCH; END GATE
THA 		8-98102-972-3 01 1 1409- ● ● ● ●
303 SNAP; LATCH,END GATE
THA 		8-97381-276-0 01 1 1409- ● ● ● ●
303 SNAP; LATCH,END GATE
THA 		8-97381-277-0 01 1 1409- ● ● ● ●
342 TAPE
HIGH RIDE SUSPENSION<7YC> THA 		8-98139-776-4 01 1 1409- ● ●
342 TAPE
THA 		8-98139-776-4 01 1 1409- ● ●
342 TAPE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98139-776-4 01 1 1409- ●
342 TAPE
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98139-775-4 01 1 1409- ● ●
342 TAPE
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98139-775-4 01 1 1409- ●
çizim 444342
215 53 170 50
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
50 LOCK ASM; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98061-099-0 02 1 1409- ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
HANDLE O/S DOOR CHROME<E20> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> THA 		8-98102-968-3 01 1 1409- ● ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
HANDLE O/S DOOR CHROME<E20> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5> THA 		8-98102-968-3 01 1 1409- ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> THA 		8-98202-618-1 01 1 1409- ● ● ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. HANDLE O/S DOOR BODY COLOR<D75>,HANDLE O/S DOOR CHROME<E20> THA 		8-98102-967-3 01 1 1409- ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
REAR BODY DBL WALL CTR PULL<E63> RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-98102-967-3 01 1 1409- ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. HANDLE O/S DOOR CHROME<E20> THA 		8-98102-967-3 01 1 1409- ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5> EXC. HANDLE O/S DOOR CHROME<E20> THA 		8-98102-967-3 01 1 1409- ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR NAUTILUS BLUE MICA<521> HANDLE O/S DOOR BODY COLOR<D75> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> DARK BLUE THA 		8-97416-517-3 01 1 1409- ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR COSMIC BLACK MICA<523> HANDLE O/S DOOR BODY COLOR<D75> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> BLACK THA 		8-97416-519-3 01 1 1409- ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR SPLASH WHITE<527> HANDLE O/S DOOR BODY COLOR<D75> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> WHITE THA 		8-97416-521-3 01 1 1409- ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR TITANIUM SILVER MET<529> HANDLE O/S DOOR BODY COLOR<D75> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> SILVER THA 		8-97416-523-3 01 1 1409- ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR MINERAL GRAY MET<530> HANDLE O/S DOOR BODY COLOR<D75> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> GRAY THA 		8-97416-524-3 01 1 1409- ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR SILKY WHITE PEARL<531> HANDLE O/S DOOR BODY COLOR<D75> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> WHITE THA 		8-97416-525-3 01 1 1409- ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR ASH BEIGE MET<541> HANDLE O/S DOOR BODY COLOR<D75> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> LIGHT BEIGE THA 		8-97421-143-3 01 1 1409- ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR FJORD BLUE MET<545> HANDLE O/S DOOR BODY COLOR<D75> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> LIGHT BLUE THA 		8-97424-561-3 01 1 1409- ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR VENETIAN RED MICA<546> HANDLE O/S DOOR BODY COLOR<D75> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> RED THA 		8-97424-562-3 01 1 1409- ● ●
170 BOLT; TAIL GATE LOCK
REAR BODY DBL WALL CTR PULL<E63> M6X20 W/WASHER THA 		8-98056-282-0 04 1 1409- ● ●
215 BOLT; HANDLE TO GUARD FRAME
M6X8 FLANGE THA 		8-98048-996-0 02 1 1409-1505 ● ● ●
215 BOLT; HANDLE TO GUARD FRAME
REAR BODY DBL WALL CTR PULL<E63> RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. OUTER ROPE HOOKS<7MZ> M6X8 FLANGE THA 		8-98048-996-0 02 1 1409-1505 ● ●
215 BOLT; HANDLE TO GUARD FRAME
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> M6X8 FLANGE THA 		8-98048-996-0 02 1 1409-1505 ●
215 BOLT; HANDLE TO GUARD FRAME
M6X8 FLANGE THA 		8-98048-996-0 02 1 1506- ● ● ● ●
215 BOLT; HANDLE TO GUARD FRAME
REAR BODY DBL WALL CTR PULL<E63> EXC. OUTER ROPE HOOKS<7MZ> M6X8 FLANGE THA 		8-98048-996-0 02 1 1506- ● ●
çizim 444344
291 290 37 257 257
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
37 SCREW
M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 04 1 1409-1409 ● ● ● ●
37 SCREW
M8X16.5 HEXALOBULAR SOCKET THA 		8-98290-484-0 04 1 1409- ● ● ● ●
37 SCREW
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 06 1 1409-1409 ● ●
37 SCREW
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> M8X16.5 HEXALOBULAR SOCKET THA 		8-98290-484-0 06 1 1409-1505 ● ●
37 SCREW
REAR BODY DBL WALL CTR PULL<E63> M8X16.5 HEXALOBULAR SOCKET THA 		8-98290-484-0 06 1 1506- ● ●
257 RIVET
HIGH RIDE SUSPENSION<7YC> THA 		8-98057-864-0 04 1 1409- ● ●
257 RIVET
THA 		8-98057-864-0 04 1 1409- ● ●
257 RIVET
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98057-864-0 04 1 1409- ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98113-244-2 01 1 1409-1505 ● ●
290 BRACE; RR BODY
(B) THA 		8-98113-244-2 01 1 1409-1505 ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98113-244-2 01 1 1409-1505 ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98113-244-2 01 1 1506- ● ●
290 BRACE; RR BODY
(B) THA 		8-98113-244-2 01 1 1506- ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98113-244-2 01 1 1506- ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98113-245-2 01 1 1409-1505 ● ●
290 BRACE; RR BODY
(B) THA 		8-98113-245-2 01 1 1409-1505 ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98113-245-2 01 1 1409-1505 ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98113-245-2 01 1 1506- ● ●
290 BRACE; RR BODY
(B) THA 		8-98113-245-2 01 1 1506- ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98113-245-2 01 1 1506- ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98187-117-0 01 1 1409-1505 ●
290 BRACE; RR BODY
(C) THA 		8-98187-117-0 01 1 1409-1505 ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (C) THA 		8-98187-117-0 01 1 1409-1505 ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98187-117-0 01 1 1506- ●
290 BRACE; RR BODY
(C) THA 		8-98187-117-0 01 1 1506- ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (C) THA 		8-98187-117-0 01 1 1506- ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98187-118-0 01 1 1409-1505 ●
290 BRACE; RR BODY
(C) THA 		8-98187-118-0 01 1 1409-1505 ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (C) THA 		8-98187-118-0 01 1 1409-1505 ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98187-118-0 01 1 1506- ●
290 BRACE; RR BODY
(C) THA 		8-98187-118-0 01 1 1506- ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (C) THA 		8-98187-118-0 01 1 1506- ●
290 BRACE; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98126-543-0 01 1 1409- ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-98126-543-0 01 1 1409- ●
290 BRACE; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98126-544-0 01 1 1409- ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-98126-544-0 01 1 1409- ●
290 BRACE; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98104-062-2 01 1 1409- ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98104-062-2 01 1 1409- ●
290 BRACE; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98104-063-2 01 1 1409- ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98104-063-2 01 1 1409- ●
291 BOLT; RR BODY
(A) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 02 1 1409-1505 ● ● ● ●
291 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 02 1 1409-1505 ● ●
291 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 02 1 1409-1505 ● ●
291 BOLT; RR BODY
(A) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 02 1 1409-1505 ●
291 BOLT; RR BODY
(A) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 02 1 1506-1506 ● ● ● ●
291 BOLT; RR BODY
(A) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 02 1 1506-1506 ● ●
291 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (A) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 02 1 1506-1506 ● ●
291 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (A) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 02 1 1506-1506 ● ●
291 BOLT; RR BODY
(A) M8X16.5 HEXALOBULAR SOCKET THA 		8-98290-484-0 02 1 1506- ● ● ● ●
291 BOLT; RR BODY
(A) M8X16.5 HEXALOBULAR SOCKET THA 		8-98290-484-0 02 1 1506- ● ●
291 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (A) M8X16.5 HEXALOBULAR SOCKET THA 		8-98290-484-0 02 1 1506- ● ●
291 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (A) M8X16.5 HEXALOBULAR SOCKET THA 		8-98290-484-0 02 1 1506- ● ●
291 BOLT; RR BODY
(B) M8X32.5 W/PL WASHER THA 		8-98136-077-0 02 1 1409- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
