9-32 — REAR BODY; GUARD FRAME (#148390) — 42 parça

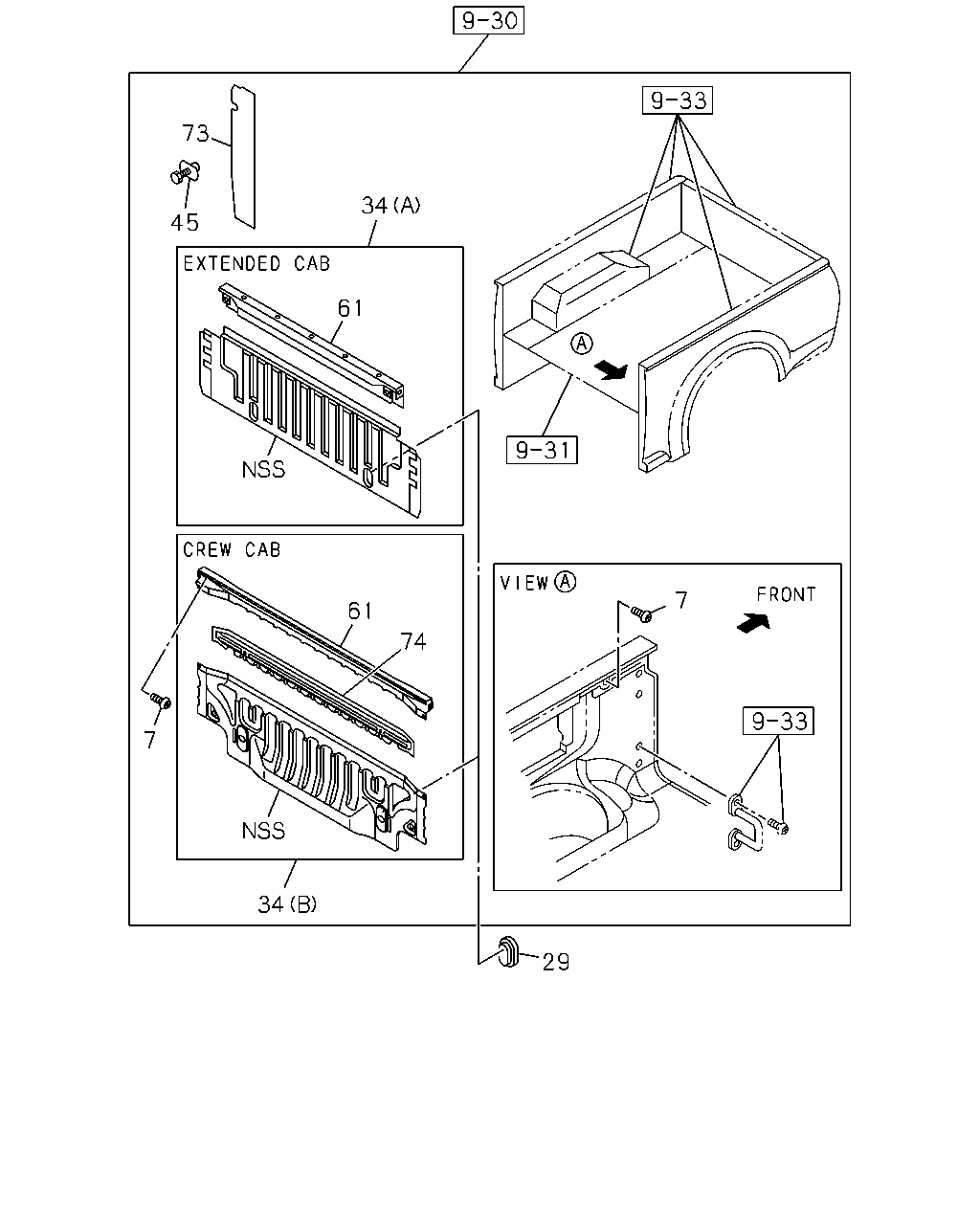

çizim 444285
73 45 61 61 74 34 29 7 34 7
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
7 BOLT; GUARD FRAME STOPPER,RR BODY
M8X16.5 HEXALOBULAR SOCKET THA 		8-98290-484-0 02 1 1409- ● ● ● ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 04 1 1409-1409 ● ● ● ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 02 1 1409-1505 ● ● ● ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
M8X20 THA 		8-98294-857-0 02 1 1506- ● ● ● ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ> M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 06 1 1409-1505 ● ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 06 1 1506- ● ●
29 COVER; GUARD FRAME
THA 		8-97918-416-0 02 1 1409-1505 ● ● ● ●
29 COVER; GUARD FRAME
REAR BODY DBL WALL CTR PULL<E63> GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ> THA 		8-97918-416-0 02 1 1409-1505 ● ●
29 COVER; GUARD FRAME
THA 		8-97918-416-0 02 1 1506- ● ● ● ●
29 COVER; GUARD FRAME
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97918-416-0 02 1 1506- ● ●
34 PANEL; FRT,RR BODY
(A) THA 		8-98103-277-6 01 1 1409- ● ●
34 PANEL; FRT,RR BODY
REAR BODY DBL WALL CTR PULL<E63> GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ> (C) THA 		8-98103-280-7 01 1 1409- ● ●
34 PANEL; FRT,RR BODY
(B) THA 		8-98190-131-1 01 1 1409- ● ●
45 RIVET; DUST SHIELD COVER,RR BODY
THA 		8-94221-150-0 13 1 1409- ● ● ● ●
45 RIVET; DUST SHIELD COVER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-94221-150-0 13 1 1409- ● ●
61 BAR ASM
THA 		8-98104-396-5 01 1 1409- ● ● ● ●
61 BAR ASM
REAR BODY DBL WALL CTR PULL<E63> GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ> THA 		8-98104-382-6 01 1 1409- ● ●
73 PROTECTOR; TAPE
THA 		8-98188-226-0 01 1 1409- ● ●
73 PROTECTOR; TAPE
THA 		8-98188-227-0 01 1 1409- ● ●
74 REINFORCEMENT
THA 		8-98187-068-2 01 1 1409- ● ●

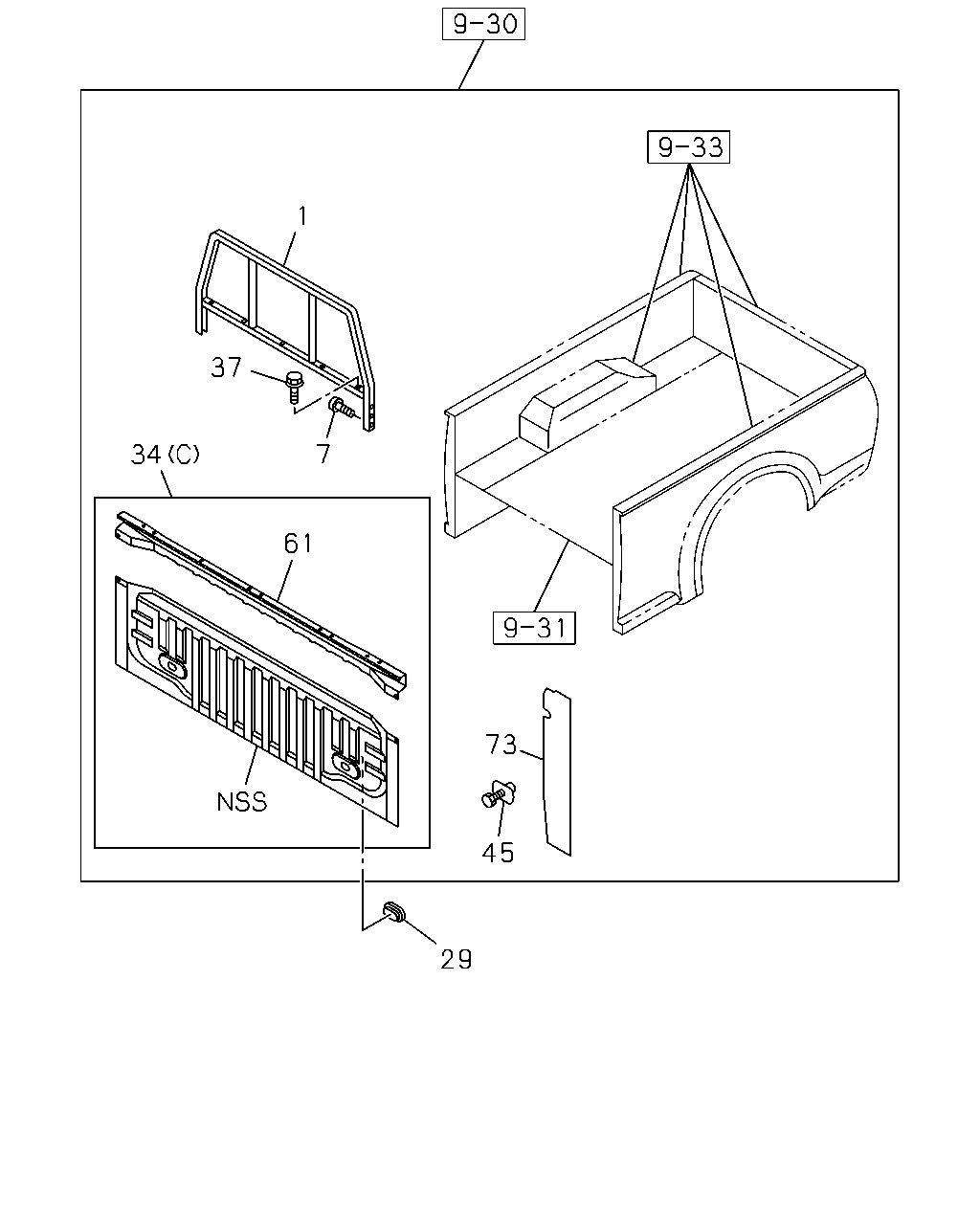

çizim 444303
1 37 34 61 29 45 73 7
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 FRAME; GUARD,RR BODY
REAR BODY DBL WALL CTR PULL<E63> GUARD FRAME BAR CARGO TIE DOWN<V89> THA 		8-98103-983-3 01 1 1409- ● ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
M8X16.5 HEXALOBULAR SOCKET THA 		8-98290-484-0 02 1 1409- ● ● ● ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 04 1 1409-1409 ● ● ● ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 02 1 1409-1505 ● ● ● ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
M8X20 THA 		8-98294-857-0 02 1 1506- ● ● ● ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ> M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 06 1 1409-1505 ● ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 06 1 1506- ● ●
29 COVER; GUARD FRAME
THA 		8-97918-416-0 02 1 1409-1505 ● ● ● ●
29 COVER; GUARD FRAME
REAR BODY DBL WALL CTR PULL<E63> GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ> THA 		8-97918-416-0 02 1 1409-1505 ● ●
29 COVER; GUARD FRAME
THA 		8-97918-416-0 02 1 1506- ● ● ● ●
29 COVER; GUARD FRAME
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97918-416-0 02 1 1506- ● ●
34 PANEL; FRT,RR BODY
(A) THA 		8-98103-277-6 01 1 1409- ● ●
34 PANEL; FRT,RR BODY
REAR BODY DBL WALL CTR PULL<E63> GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ> (C) THA 		8-98103-280-7 01 1 1409- ● ●
34 PANEL; FRT,RR BODY
(B) THA 		8-98190-131-1 01 1 1409- ● ●
37 BOLT; GUARD FRAME
REAR BODY DBL WALL CTR PULL<E63> GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ> M6X12 FLANGE THA 		0-28050-612-0 05 1 1409-1505 ● ●
37 BOLT; GUARD FRAME
REAR BODY DBL WALL CTR PULL<E63> M6X12 FLANGE THA 		0-28050-612-0 05 1 1506- ● ●
45 RIVET; DUST SHIELD COVER,RR BODY
THA 		8-94221-150-0 13 1 1409- ● ● ● ●
45 RIVET; DUST SHIELD COVER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-94221-150-0 13 1 1409- ● ●
61 BAR ASM
THA 		8-98104-396-5 01 1 1409- ● ● ● ●
61 BAR ASM
REAR BODY DBL WALL CTR PULL<E63> GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ> THA 		8-98104-382-6 01 1 1409- ● ●
73 PROTECTOR; TAPE
THA 		8-98188-226-0 01 1 1409- ● ●
73 PROTECTOR; TAPE
THA 		8-98188-227-0 01 1 1409- ● ●
