9-30 — REAR BODY ASM AND MOUNTING (#148388) — 18 parça

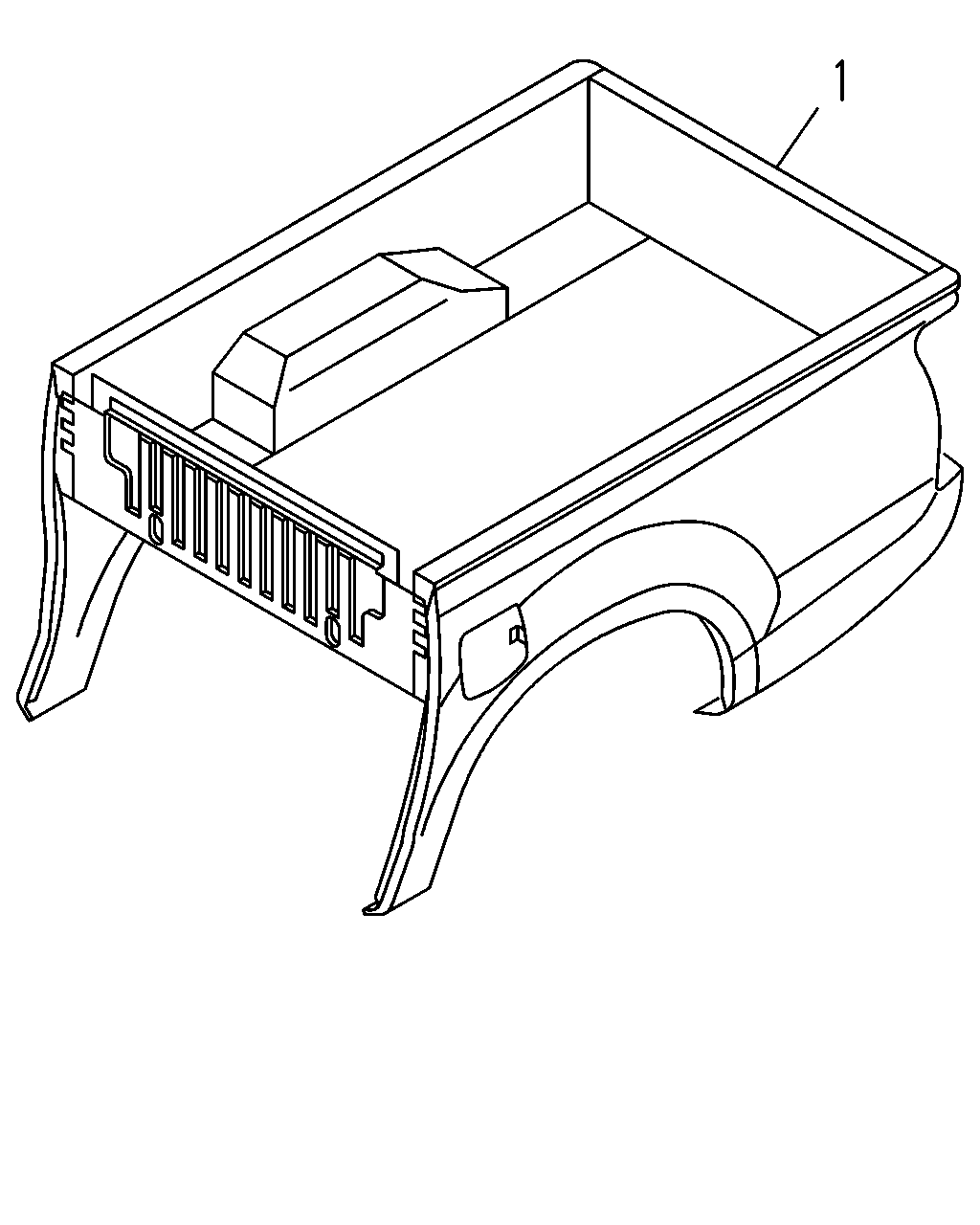

çizim 443760
1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 BODY ASM; REAR
HIGH RIDE SUSPENSION<7YC> THA 		8-98193-766-0 01 1 1409- ●
1 BODY ASM; REAR
THA 		8-98193-766-0 01 1 1409- ●
1 BODY ASM; REAR
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98193-764-0 01 1 1409- ●
1 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98193-763-0 01 1 1409- ●
1 BODY ASM; REAR
HIGH RIDE SUSPENSION<7YC> THA 		8-98193-770-0 01 1 1409- ●
1 BODY ASM; REAR
THA 		8-98193-770-0 01 1 1409- ●
1 BODY ASM; REAR
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98193-768-0 01 1 1409- ●
1 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> THA 		8-98260-910-0 01 1 1409- ●

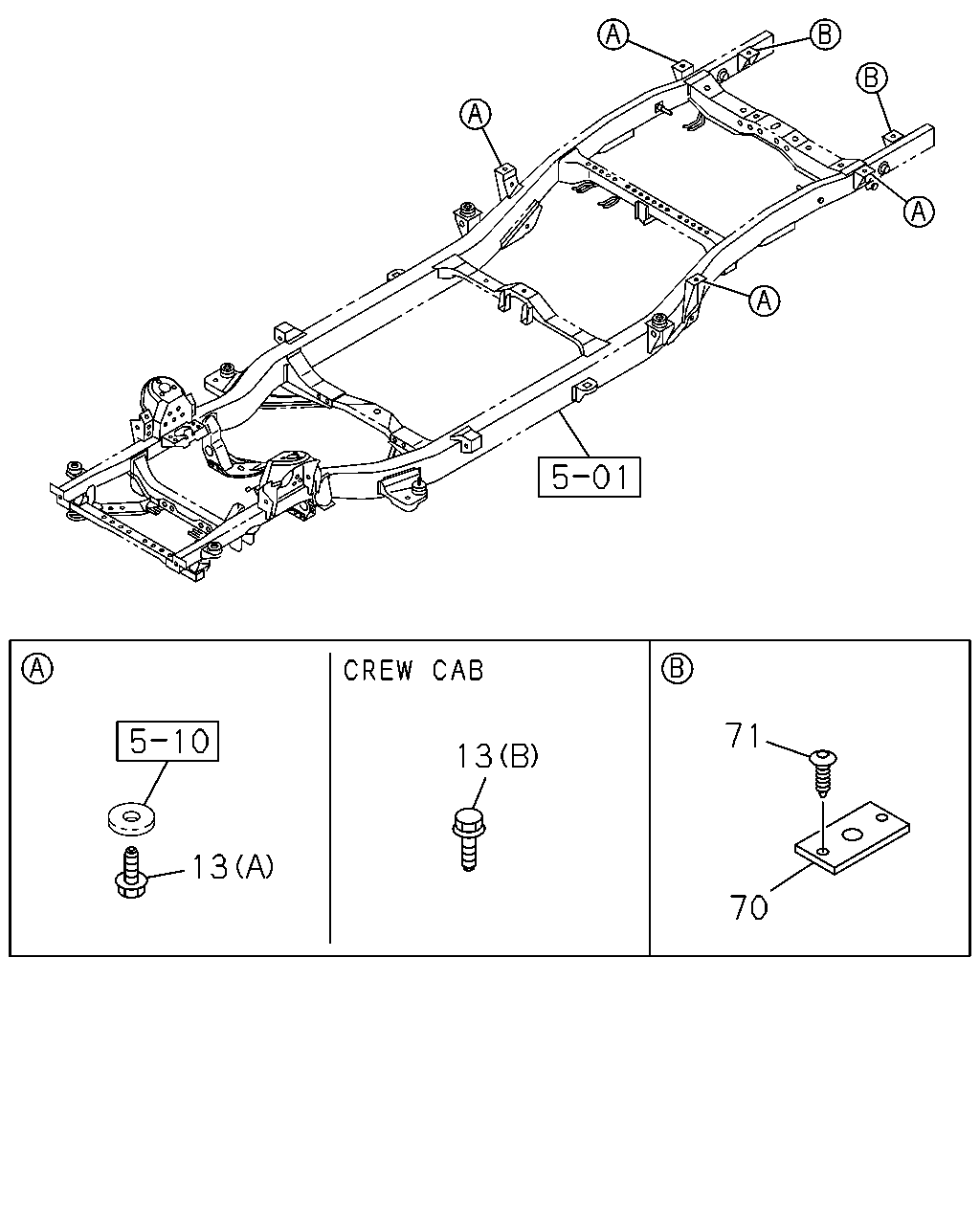

çizim 443946
13 13 71 70
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
13 BOLT; RR BODY MTG
(A) M12X35 FLANGE THA 		0-28651-235-0 06 1 1409- ● ●
13 BOLT; RR BODY MTG
REAR BODY DBL WALL CTR PULL<E63> (A) M12X35 FLANGE THA 		0-28651-235-0 08 1 1409- ● ●
13 BOLT; RR BODY MTG
(A) M12X35 FLANGE THA 		0-28651-235-0 04 1 1409- ● ●
13 BOLT; RR BODY MTG
(B) M12X35 FLANGE THA 		8-98176-522-0 02 1 1409- ● ●
70 CUSHION; RR BODY MTG
THA 		8-98090-512-0 04 1 1409- ● ●
70 CUSHION; RR BODY MTG
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98090-512-0 04 1 1409- ● ●
70 CUSHION; RR BODY MTG
THA 		8-98090-512-0 02 1 1409- ● ●
71 CLIP; CUSHION
ID=6 OD=16 L=18 IMA 		8-94178-705-0 08 1 1409- ● ●
71 CLIP; CUSHION
REAR BODY DBL WALL CTR PULL<E63> ID=6 OD=16 L=18 IMA 		8-94178-705-0 08 1 1409- ● ●
71 CLIP; CUSHION
ID=6 OD=16 L=18 IMA 		8-94178-705-0 04 1 1409- ● ●
