8-90 — RADIO AND TV (#148386) — 96 parça

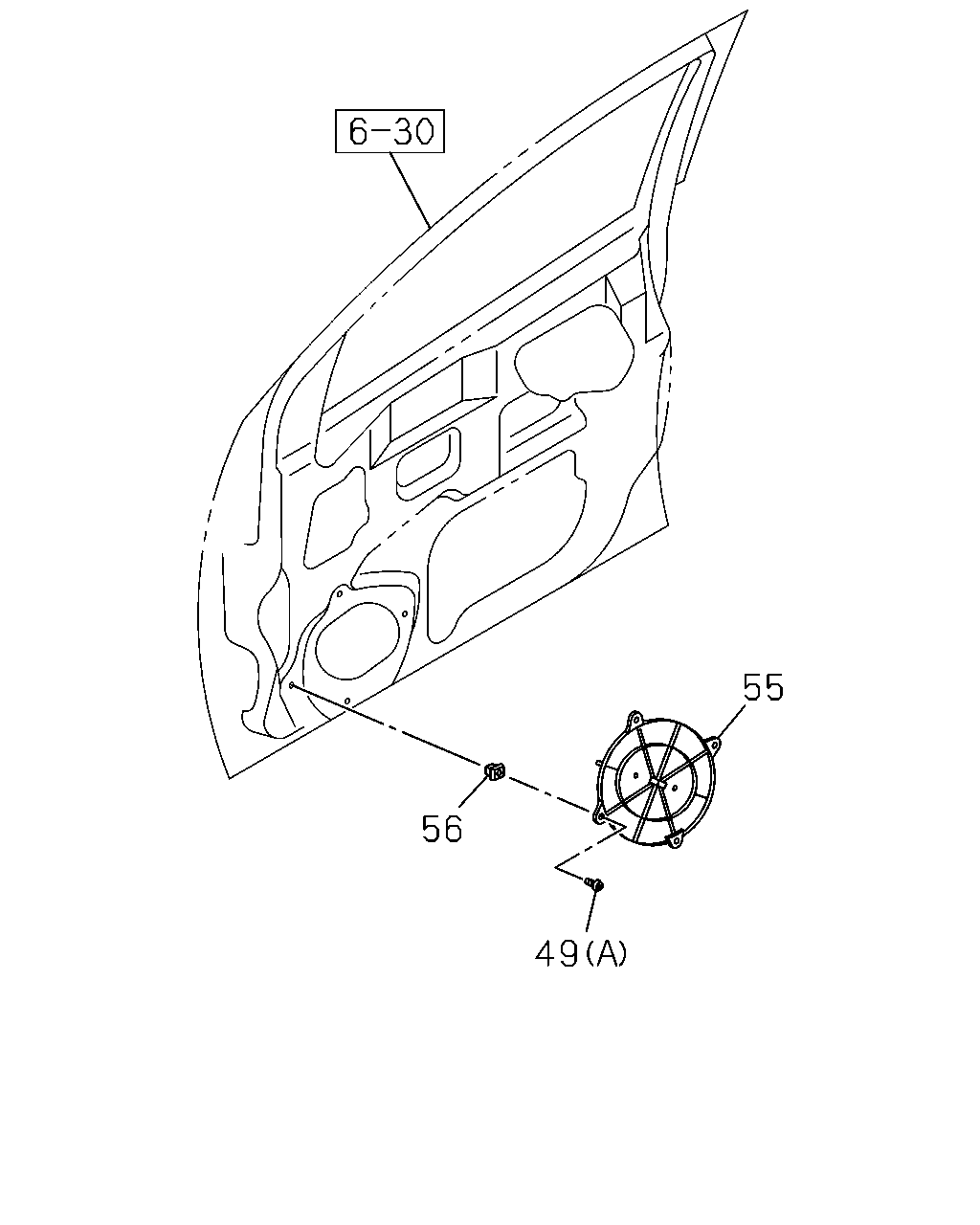

56 55 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
49	SCREW; SPEAKER 6-SPEAKER SYSTEM CUSTOM<UW6> (B) M5X16 TAPPING THA	8-98167-449-0	04	1	1409-	●	●
49	SCREW; SPEAKER 6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87> (B) M5X16 TAPPING THA	8-98167-449-0	04	1	1409-			●	●
49	SCREW; SPEAKER (A) M5X14 TAPPING THA	8-98184-363-0	08	1	1409-	●	●	●	●	●	●
49	SCREW; SPEAKER 8-SPEAKER SYSTEM CUSTOM<U87> (A) M5X14 TAPPING THA	8-98184-363-0	06	1	1409-			●	●
55	COVER; SPEAKER HOLE EXC. 6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87>,2-SPEAKER SYSTEM BASE<U95> THA	8-98102-183-0	02	1	1409-	●	●	●	●	●
56	NUT; SPEAKER,RADIO OR STEREO THA	8-98163-895-0	08	1	1409-	●	●	●	●	●	●
56	NUT; SPEAKER,RADIO OR STEREO 8-SPEAKER SYSTEM CUSTOM<U87> THA	8-98163-895-0	06	1	1409-			●	●

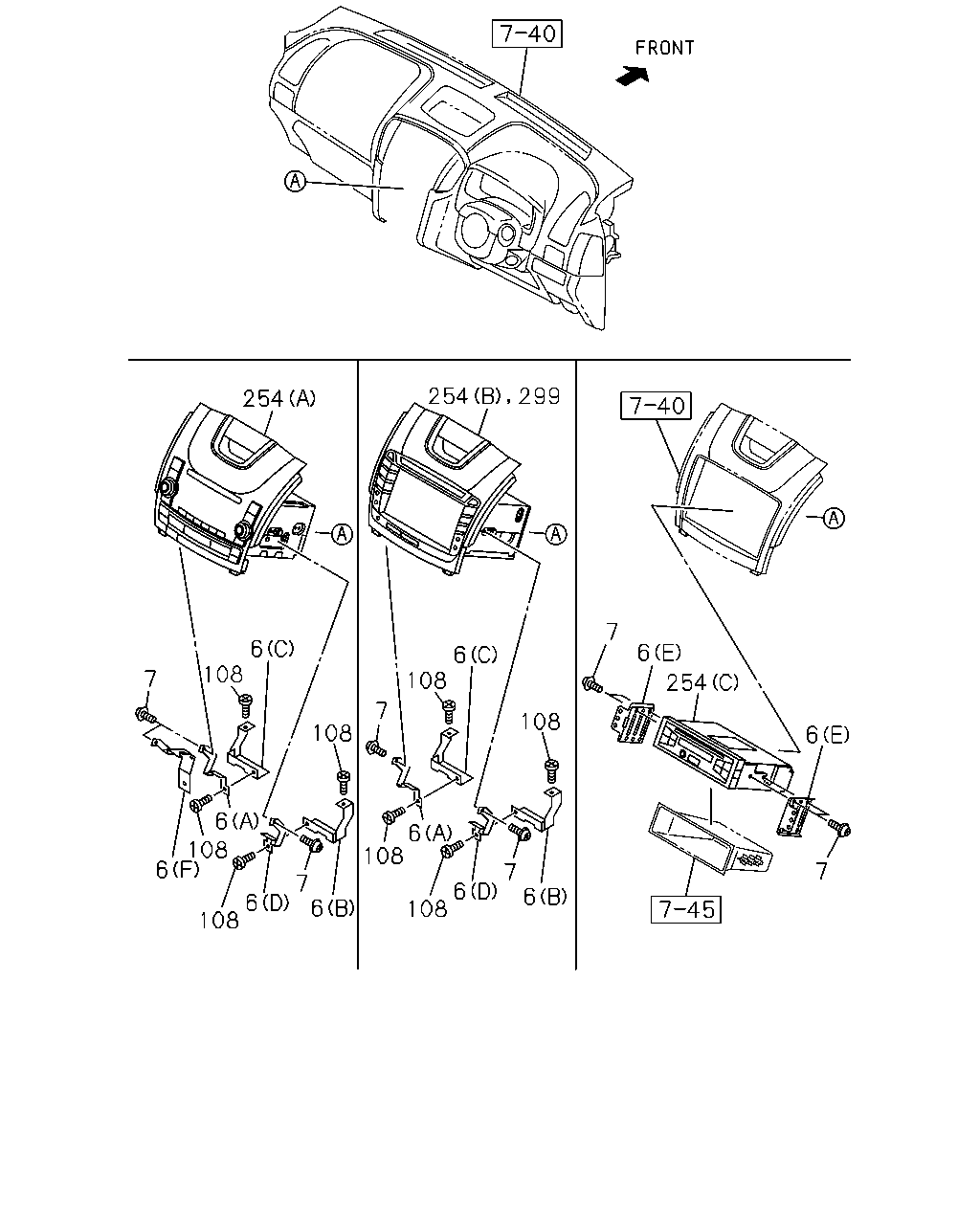

254 254 299 6 108 108 6 7 108 108 6 7 6 6 7 6 108 6 108 6 108 6 108 7 7 6 254 6 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
6	BRACKET; RADIO TO PANEL AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,AM/FM, CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> (C) THA	8-98106-390-3	01	1	1409-	●	●	●	●
6	BRACKET; RADIO TO PANEL AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> (A) THA	8-98102-186-2	01	1	1409-	●	●	●	●
6	BRACKET; RADIO TO PANEL AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> (B) THA	8-98102-187-3	01	1	1409-	●	●	●	●
6	BRACKET; RADIO TO PANEL AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> (D) THA	8-98109-822-2	01	1	1409-	●	●	●	●
6	BRACKET; RADIO TO PANEL AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ> (F) THA	8-98227-139-1	01	1	1409-	●	●	●	●
6	BRACKET; RADIO TO PANEL RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> (E) THA	8-98102-188-2	02	1	1409-	●	●	●		●	●
6	BRACKET; RADIO TO PANEL RADIO DELETE<UL5> (E) THA	8-98102-188-2	02	1	1409-				●
7	SCREW; RADIO AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> M5X10 W/LK+PL WASHER IMA	0-36230-510-0	02	1	1409-	●	●	●	●
7	SCREW; RADIO AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ> M5X10 W/LK+PL WASHER IMA	0-36230-510-0	01	1	1409-	●	●	●	●
7	SCREW; RADIO AM/FM,CLOCK,CD PLAYER<U1C> M5X10 W/LK+PL WASHER IMA	0-36230-510-0	04	1	1409-	●	●	●		●	●
108	SCREW; BRKT AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> M5X16 TAPPING THA	8-98167-449-0	04	1	1409-	●	●	●	●
108	SCREW; BRKT AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ> M5X16 TAPPING THA	8-98167-449-0	02	1	1409-	●	●	●	●
254	RADIO CONTROL ASM; STEREO,AM-FM AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ> 6-SPEAKER SYSTEM CUSTOM<UW6> (A) THA	8-98219-845-3	01	1	1409-	●	●	●	●
254	RADIO CONTROL ASM; STEREO,AM-FM AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> (B) THA	8-98222-317-3	01	1	1409-	●	●	●	●
254	RADIO CONTROL ASM; STEREO,AM-FM AM/FM,CLOCK,CD PLAYER<U1C> (C) THA	8-98219-844-3	01	1	1409-	●	●	●		●	●
299	DISPLAY; MULTI AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> THA	8-98287-430-0	01	1	1409-1504	●	●	●	●
299	DISPLAY; MULTI AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> THA	8-98309-240-0	01	1	1505-1508	●	●	●	●
299	DISPLAY; MULTI AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> THA	8-98322-820-0	01	1	1509-	●	●	●	●

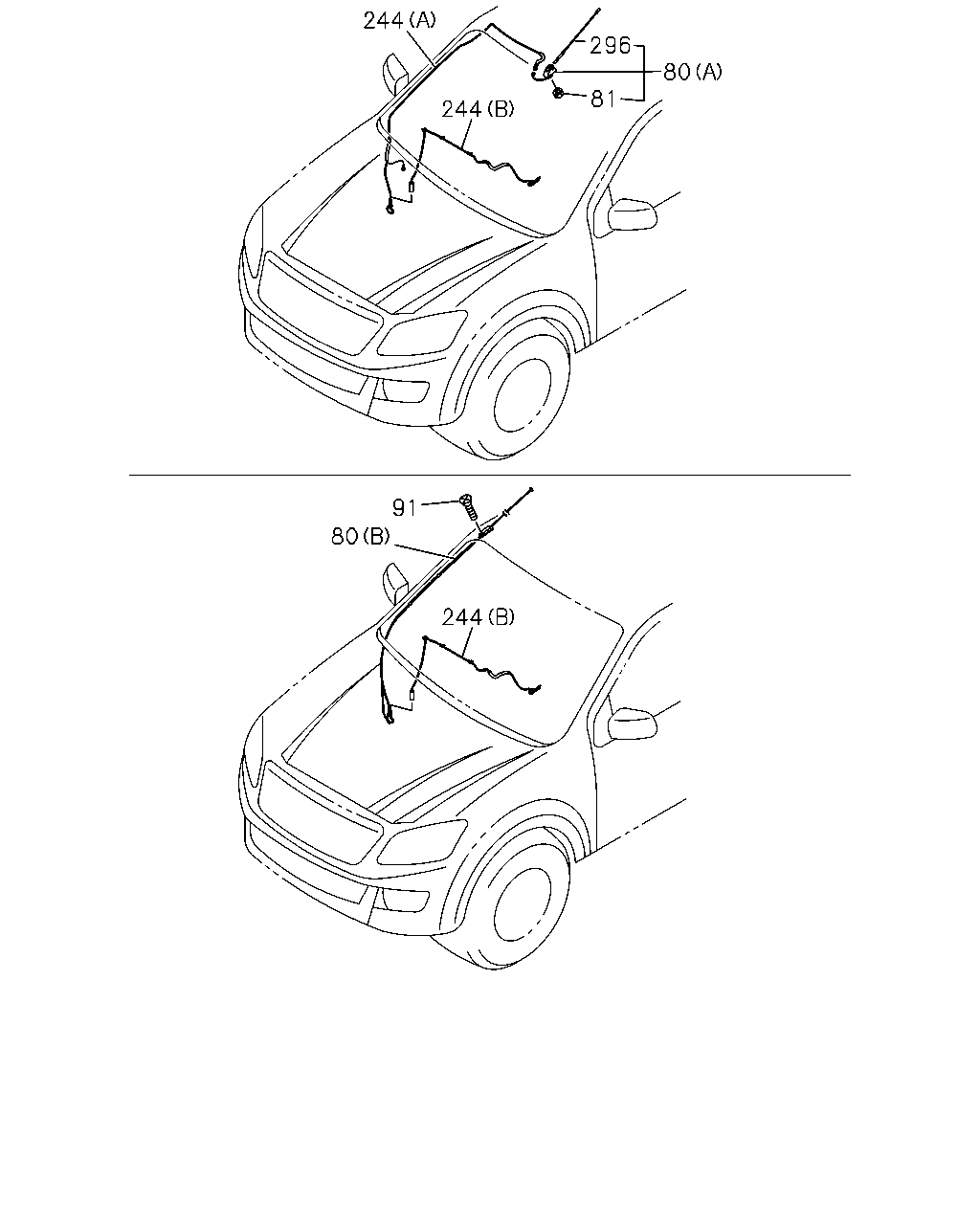

244 244 81 80 296 91 80 244

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
80	ANTENNA ROOF RADIO ANTENNA<U71> (A) THA	8-98053-048-0	01	1	1409-	●	●	●	●
80	ANTENNA EXC. ROOF RADIO ANTENNA<U71> (B) THA	8-98053-047-2	01	1	1409-	●	●	●	●
80	ANTENNA (B) THA	8-98053-047-2	01	1	1409-					●	●
80	ANTENNA BODY COLOR NAUTILUS BLUE MICA<521> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> (C) DARK BLUE THA	8-97429-760-2	01	1	1409-1505	●	●	●	●
80	ANTENNA BODY COLOR NAUTILUS BLUE MICA<521> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> (C) DARK BLUE THA	8-97466-012-0	01	1	1506-	●	●	●	●
80	ANTENNA BODY COLOR COSMIC BLACK MICA<523> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> (C) BLACK THA	8-97429-761-2	01	1	1409-1505	●	●	●	●
80	ANTENNA BODY COLOR COSMIC BLACK MICA<523> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> (C) BLACK THA	8-97466-013-0	01	1	1506-	●	●	●	●
80	ANTENNA BODY COLOR SPLASH WHITE<527> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> (C) WHITE THA	8-97429-762-2	01	1	1409-1505	●	●	●	●
80	ANTENNA BODY COLOR SPLASH WHITE<527> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> (C) WHITE THA	8-97466-014-0	01	1	1506-	●	●	●	●
80	ANTENNA BODY COLOR TITANIUM SILVER MET<529> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> (C) SILVER THA	8-97429-763-2	01	1	1409-1505	●	●	●	●
80	ANTENNA BODY COLOR TITANIUM SILVER MET<529> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> (C) SILVER THA	8-97466-015-0	01	1	1506-	●	●	●	●
80	ANTENNA BODY COLOR MINERAL GRAY MET<530> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> (C) GRAY THA	8-97429-764-2	01	1	1409-1505	●	●	●	●
80	ANTENNA BODY COLOR MINERAL GRAY MET<530> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> (C) GRAY THA	8-97466-016-0	01	1	1506-	●	●	●	●
80	ANTENNA BODY COLOR SILKY WHITE PEARL<531> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> (C) WHITE THA	8-97429-765-2	01	1	1409-1505	●	●	●	●
80	ANTENNA BODY COLOR SILKY WHITE PEARL<531> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> (C) WHITE THA	8-97466-017-0	01	1	1506-	●	●	●	●
80	ANTENNA BODY COLOR ASH BEIGE MET<541> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> (C) LIGHT BEIGE THA	8-97429-766-2	01	1	1409-1505	●	●	●	●
80	ANTENNA BODY COLOR ASH BEIGE MET<541> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> (C) LIGHT BEIGE THA	8-97466-018-0	01	1	1506-	●	●	●	●
80	ANTENNA BODY COLOR FJORD BLUE MET<545> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> (C) LIGHT BLUE THA	8-97429-767-2	01	1	1409-1505	●	●	●	●
80	ANTENNA BODY COLOR FJORD BLUE MET<545> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> (C) LIGHT BLUE THA	8-97466-019-0	01	1	1506-	●	●	●	●
80	ANTENNA BODY COLOR VENETIAN RED MICA<546> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> (C) RED THA	8-97429-768-2	01	1	1409-1505	●	●	●	●
80	ANTENNA BODY COLOR VENETIAN RED MICA<546> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> (C) RED THA	8-97466-020-0	01	1	1506-	●	●	●	●
81	NUT; ANTENNA POLE ROOF RADIO ANTENNA<U71> THA	8-98165-971-0	01	1	1409-	●	●	●	●
91	BOLT; ANTENNA EXC. ROOF RADIO ANTENNA<U71> M5X16 IMA	8-97375-569-0	02	1	1409-	●	●	●	●
91	BOLT; ANTENNA M5X16 IMA	8-97375-569-0	02	1	1409-					●	●
244	CABLE; FEEDER AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> (C) THA	8-98192-896-2	01	1	1409-	●	●	●	●
244	CABLE; FEEDER ROOF RADIO ANTENNA<U71> (A) THA	8-98063-228-0	01	1	1409-	●	●	●	●
244	CABLE; FEEDER AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> (B) THA	8-98053-051-1	01	1	1409-	●	●	●	●	●	●
244	CABLE; FEEDER AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> ROOF RADIO ANTENNA<U71> (B) THA	8-98227-542-0	01	1	1409-	●	●	●	●
296	ROD; ANTENNA ROOF RADIO ANTENNA<U71> THA	8-98165-969-0	01	1	1409-	●	●	●	●

244 80 141 141 298

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
80	ANTENNA ROOF RADIO ANTENNA<U71> (A) THA	8-98053-048-0	01	1	1409-	●	●	●	●
80	ANTENNA EXC. ROOF RADIO ANTENNA<U71> (B) THA	8-98053-047-2	01	1	1409-	●	●	●	●
80	ANTENNA (B) THA	8-98053-047-2	01	1	1409-					●	●
80	ANTENNA BODY COLOR NAUTILUS BLUE MICA<521> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> (C) DARK BLUE THA	8-97429-760-2	01	1	1409-1505	●	●	●	●
80	ANTENNA BODY COLOR NAUTILUS BLUE MICA<521> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> (C) DARK BLUE THA	8-97466-012-0	01	1	1506-	●	●	●	●
80	ANTENNA BODY COLOR COSMIC BLACK MICA<523> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> (C) BLACK THA	8-97429-761-2	01	1	1409-1505	●	●	●	●
80	ANTENNA BODY COLOR COSMIC BLACK MICA<523> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> (C) BLACK THA	8-97466-013-0	01	1	1506-	●	●	●	●
80	ANTENNA BODY COLOR SPLASH WHITE<527> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> (C) WHITE THA	8-97429-762-2	01	1	1409-1505	●	●	●	●
80	ANTENNA BODY COLOR SPLASH WHITE<527> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> (C) WHITE THA	8-97466-014-0	01	1	1506-	●	●	●	●
80	ANTENNA BODY COLOR TITANIUM SILVER MET<529> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> (C) SILVER THA	8-97429-763-2	01	1	1409-1505	●	●	●	●
80	ANTENNA BODY COLOR TITANIUM SILVER MET<529> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> (C) SILVER THA	8-97466-015-0	01	1	1506-	●	●	●	●
80	ANTENNA BODY COLOR MINERAL GRAY MET<530> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> (C) GRAY THA	8-97429-764-2	01	1	1409-1505	●	●	●	●
80	ANTENNA BODY COLOR MINERAL GRAY MET<530> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> (C) GRAY THA	8-97466-016-0	01	1	1506-	●	●	●	●
80	ANTENNA BODY COLOR SILKY WHITE PEARL<531> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> (C) WHITE THA	8-97429-765-2	01	1	1409-1505	●	●	●	●
80	ANTENNA BODY COLOR SILKY WHITE PEARL<531> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> (C) WHITE THA	8-97466-017-0	01	1	1506-	●	●	●	●
80	ANTENNA BODY COLOR ASH BEIGE MET<541> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> (C) LIGHT BEIGE THA	8-97429-766-2	01	1	1409-1505	●	●	●	●
80	ANTENNA BODY COLOR ASH BEIGE MET<541> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> (C) LIGHT BEIGE THA	8-97466-018-0	01	1	1506-	●	●	●	●
80	ANTENNA BODY COLOR FJORD BLUE MET<545> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> (C) LIGHT BLUE THA	8-97429-767-2	01	1	1409-1505	●	●	●	●
80	ANTENNA BODY COLOR FJORD BLUE MET<545> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> (C) LIGHT BLUE THA	8-97466-019-0	01	1	1506-	●	●	●	●
80	ANTENNA BODY COLOR VENETIAN RED MICA<546> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> (C) RED THA	8-97429-768-2	01	1	1409-1505	●	●	●	●
80	ANTENNA BODY COLOR VENETIAN RED MICA<546> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> (C) RED THA	8-97466-020-0	01	1	1506-	●	●	●	●
141	CLIP; ANTENNA CABLE AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> THA	8-98219-154-0	02	1	1409-	●	●	●	●
244	CABLE; FEEDER AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> (C) THA	8-98192-896-2	01	1	1409-	●	●	●	●
244	CABLE; FEEDER ROOF RADIO ANTENNA<U71> (A) THA	8-98063-228-0	01	1	1409-	●	●	●	●
244	CABLE; FEEDER AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> (B) THA	8-98053-051-1	01	1	1409-	●	●	●	●	●	●
244	CABLE; FEEDER AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> ROOF RADIO ANTENNA<U71> (B) THA	8-98227-542-0	01	1	1409-	●	●	●	●
298	NUT; ANTENNA AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> THA	8-98219-125-0	01	1	1409-	●	●	●	●

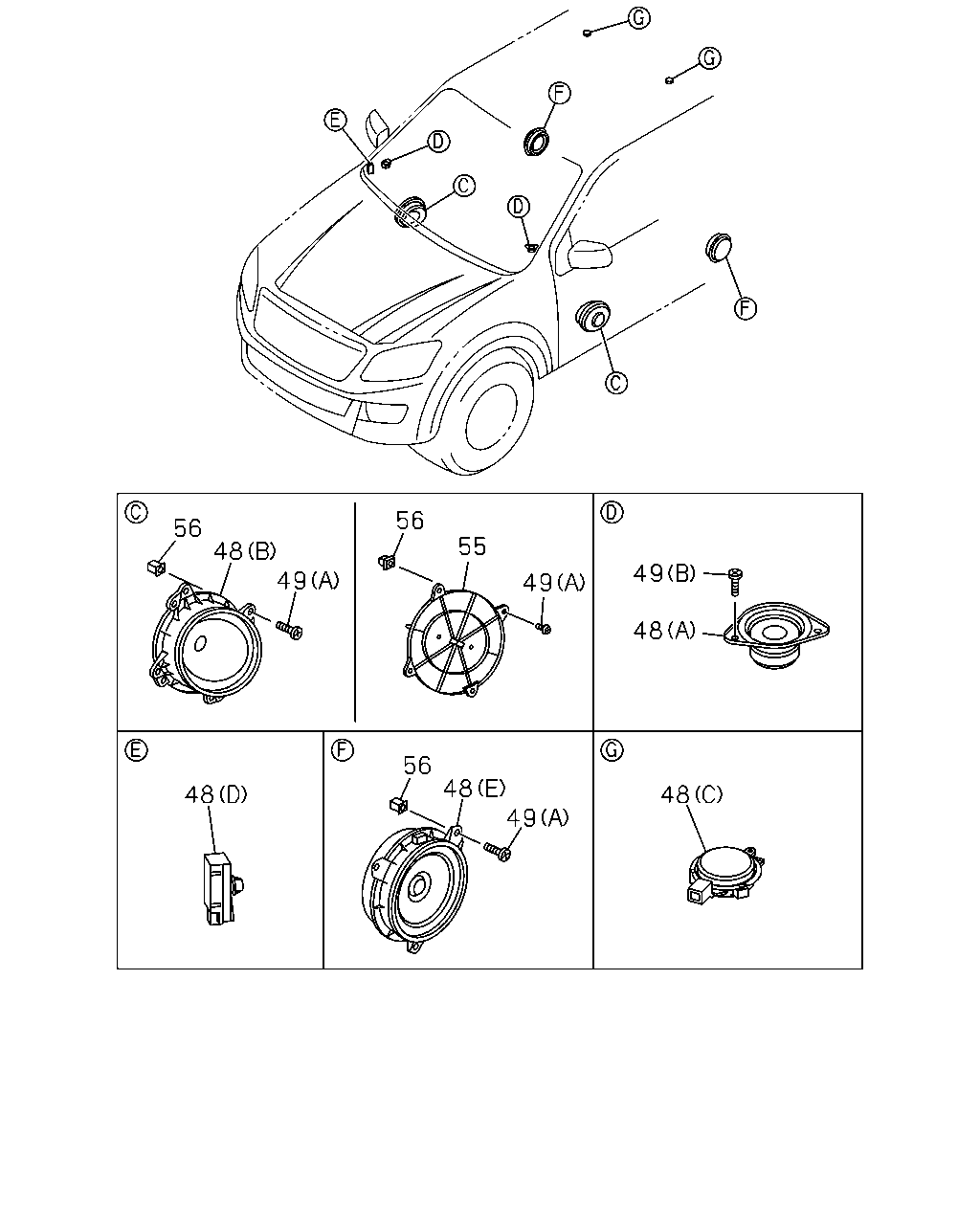

56 48 49 56 55 49 49 48 48 49 48 56 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
48	SPEAKER; AUDIO 6-SPEAKER SYSTEM CUSTOM<UW6> (A) THA	8-98052-940-0	02	1	1409-	●	●
48	SPEAKER; AUDIO 6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87> (A) THA	8-98052-940-0	02	1	1409-			●	●
48	SPEAKER; AUDIO 6-SPEAKER SYSTEM CUSTOM<UW6> (C) THA	8-98052-942-0	02	1	1409-	●	●
48	SPEAKER; AUDIO 6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87> (C) THA	8-98052-942-0	02	1	1409-			●	●
48	SPEAKER; AUDIO 6-SPEAKER SYSTEM CUSTOM<UW6> (D) THA	8-98064-704-0	01	1	1409-	●	●
48	SPEAKER; AUDIO 6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87> (D) THA	8-98064-704-0	01	1	1409-			●	●
48	SPEAKER; AUDIO 6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87>,2-SPEAKER SYSTEM BASE<U95> (B) THA	8-98052-937-0	02	1	1409-	●	●	●	●	●	●
48	SPEAKER; AUDIO 8-SPEAKER SYSTEM CUSTOM<U87> (E) THA	8-98052-941-0	02	1	1409-			●	●
49	SCREW; SPEAKER 6-SPEAKER SYSTEM CUSTOM<UW6> (B) M5X16 TAPPING THA	8-98167-449-0	04	1	1409-	●	●
49	SCREW; SPEAKER 6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87> (B) M5X16 TAPPING THA	8-98167-449-0	04	1	1409-			●	●
49	SCREW; SPEAKER (A) M5X14 TAPPING THA	8-98184-363-0	08	1	1409-	●	●	●	●	●	●
49	SCREW; SPEAKER 8-SPEAKER SYSTEM CUSTOM<U87> (A) M5X14 TAPPING THA	8-98184-363-0	06	1	1409-			●	●
55	COVER; SPEAKER HOLE EXC. 6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87>,2-SPEAKER SYSTEM BASE<U95> THA	8-98102-183-0	02	1	1409-	●	●	●	●	●
56	NUT; SPEAKER,RADIO OR STEREO THA	8-98163-895-0	08	1	1409-	●	●	●	●	●	●
56	NUT; SPEAKER,RADIO OR STEREO 8-SPEAKER SYSTEM CUSTOM<U87> THA	8-98163-895-0	06	1	1409-			●	●
