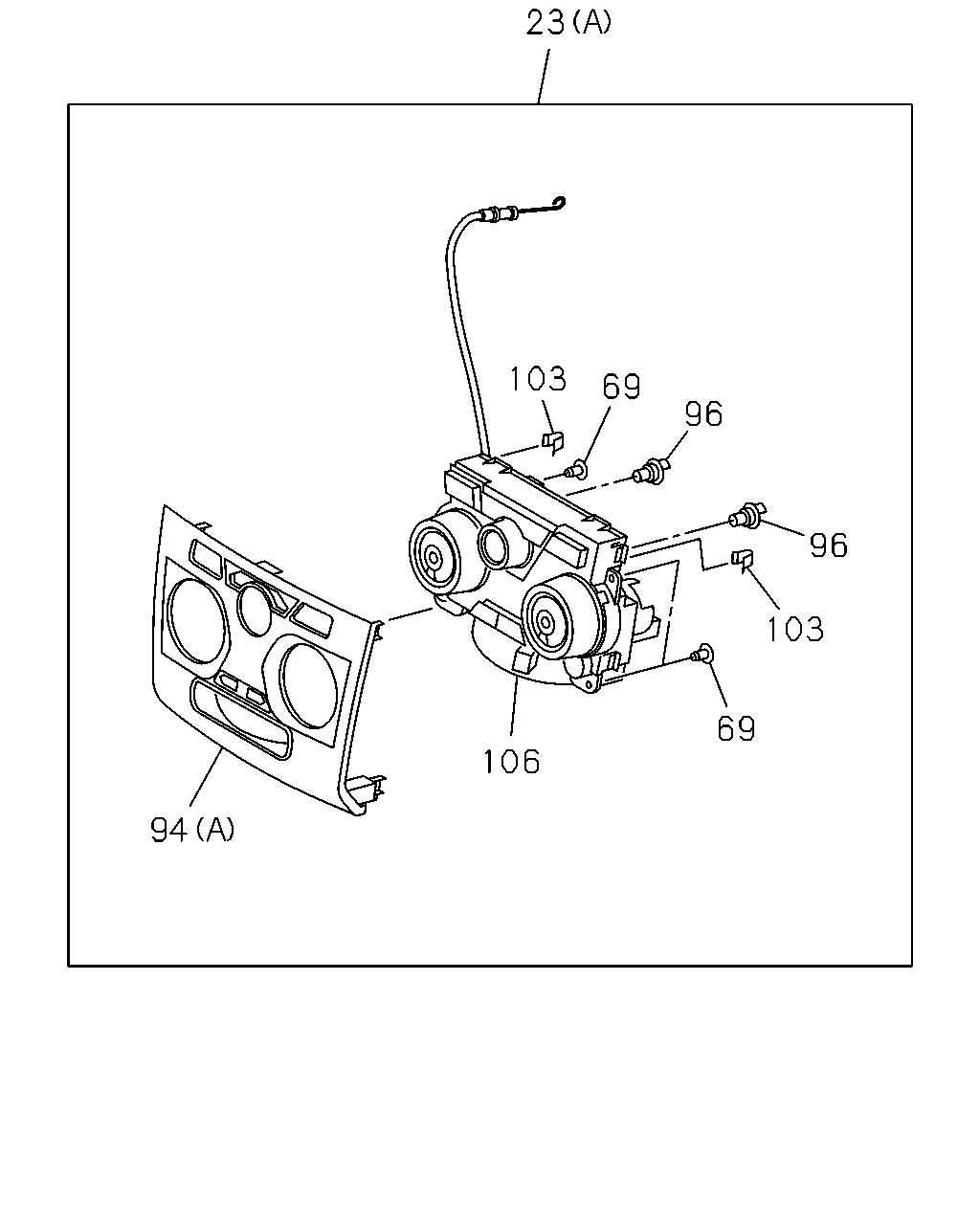

8-65 — CONTROL LEVER; HEATER AND AIR CON (#148381) — 80 parça

23 103 96 69 96 103 69 106 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
23	BEZEL; CONT LEVER INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> COOLER W/FRESH AIR<C65> (A) THA	8-98103-517-4	01	1	1409-	●	●	●
23	BEZEL; CONT LEVER INTERIOR SILVER BEZEL<BY9> COOLER W/FRESH AIR<C65> (A) THA	8-98103-517-4	01	1	1409-				●
23	BEZEL; CONT LEVER INTERIOR SILVER BEZEL<BY9> COOLER W/FRESH AIR<C65> EXC. REAR DEFOGGER<C49> (A) THA	8-98052-645-3	01	1	1409-	●	●	●
23	BEZEL; CONT LEVER AUTO COOLER SYSTEM<CJ2> REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> (B) THA	8-98166-353-4	01	1	1409-	●	●	●
23	BEZEL; CONT LEVER AUTO COOLER SYSTEM<CJ2> EXC. INTERIOR SILVER BEZEL<BY9> (B) THA	8-98166-353-4	01	1	1409-				●
23	BEZEL; CONT LEVER REAR DEFOGGER<C49> COOLER W/FRESH AIR<C65> EXC. INTERIOR SILVER BEZEL<BY9> (A) THA	8-98052-641-4	01	1	1409-	●	●	●
23	BEZEL; CONT LEVER COOLER W/FRESH AIR<C65> EXC. INTERIOR SILVER BEZEL<BY9> (A) THA	8-98052-641-4	01	1	1409-				●
23	BEZEL; CONT LEVER COOLER W/FRESH AIR<C65> EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> (A) THA	8-98052-637-3	01	1	1409-	●	●	●
23	BEZEL; CONT LEVER COOLER W/FRESH AIR<C65> (A) THA	8-98052-637-3	01	1	1409-					●
23	BEZEL; CONT LEVER COOLER WO/FRESH AIR<8NF> (C) THA	8-98052-636-3	01	1	1409-					●
23	BEZEL; CONT LEVER (C) THA	8-98052-636-3	01	1	1409-						●
69	SCREW; BEZEL BRKT M4X10 TAPPING THA	8-98164-986-0	04	1	1409-	●	●	●	●	●	●
94	PANEL; BEZEL AUTO COOLER SYSTEM<CJ2> REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> (B) THA	8-98141-789-0	01	1	1409-	●	●	●
94	PANEL; BEZEL AUTO COOLER SYSTEM<CJ2> EXC. INTERIOR SILVER BEZEL<BY9> (B) THA	8-98141-789-0	01	1	1409-				●
94	PANEL; BEZEL COOLER W/FRESH AIR<C65> (A) THA	8-98164-668-0	01	1	1409-	●	●	●	●	●
94	PANEL; BEZEL COOLER WO/FRESH AIR<8NF> (C) THA	8-98064-614-0	01	1	1409-					●
94	PANEL; BEZEL (C) THA	8-98064-614-0	01	1	1409-						●
96	BULB ASM; BEZEL COOLER W/FRESH AIR<C65> THA	8-98156-188-0	02	1	1409-	●	●	●	●
96	BULB ASM; BEZEL COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> THA	8-98156-188-0	02	1	1409-					●
96	BULB ASM; BEZEL THA	8-98156-188-0	02	1	1409-						●
103	CLIP THA	8-98164-677-0	04	1	1409-	●	●	●	●	●	●
106	CONTROL SUB ASM; HTR & A/C INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> COOLER W/FRESH AIR<C65> THA	8-98142-033-0	01	1	1409-	●	●	●
106	CONTROL SUB ASM; HTR & A/C INTERIOR SILVER BEZEL<BY9> COOLER W/FRESH AIR<C65> THA	8-98142-033-0	01	1	1409-				●
106	CONTROL SUB ASM; HTR & A/C INTERIOR SILVER BEZEL<BY9> COOLER W/FRESH AIR<C65> EXC. REAR DEFOGGER<C49> THA	8-98142-042-0	01	1	1409-	●	●	●
106	CONTROL SUB ASM; HTR & A/C REAR DEFOGGER<C49> COOLER W/FRESH AIR<C65> EXC. INTERIOR SILVER BEZEL<BY9> THA	8-98142-039-0	01	1	1409-	●	●	●
106	CONTROL SUB ASM; HTR & A/C COOLER W/FRESH AIR<C65> EXC. INTERIOR SILVER BEZEL<BY9> THA	8-98142-039-0	01	1	1409-				●
106	CONTROL SUB ASM; HTR & A/C COOLER W/FRESH AIR<C65> EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> THA	8-98142-036-0	01	1	1409-	●	●	●
106	CONTROL SUB ASM; HTR & A/C COOLER W/FRESH AIR<C65> THA	8-98142-036-0	01	1	1409-					●
106	CONTROL SUB ASM; HTR & A/C COOLER WO/FRESH AIR<8NF> THA	8-98142-030-0	01	1	1409-					●
106	CONTROL SUB ASM; HTR & A/C THA	8-98142-030-0	01	1	1409-						●

23 103 69 69 103 105 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
23	BEZEL; CONT LEVER INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> COOLER W/FRESH AIR<C65> (A) THA	8-98103-517-4	01	1	1409-	●	●	●
23	BEZEL; CONT LEVER INTERIOR SILVER BEZEL<BY9> COOLER W/FRESH AIR<C65> (A) THA	8-98103-517-4	01	1	1409-				●
23	BEZEL; CONT LEVER INTERIOR SILVER BEZEL<BY9> COOLER W/FRESH AIR<C65> EXC. REAR DEFOGGER<C49> (A) THA	8-98052-645-3	01	1	1409-	●	●	●
23	BEZEL; CONT LEVER AUTO COOLER SYSTEM<CJ2> REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> (B) THA	8-98166-353-4	01	1	1409-	●	●	●
23	BEZEL; CONT LEVER AUTO COOLER SYSTEM<CJ2> EXC. INTERIOR SILVER BEZEL<BY9> (B) THA	8-98166-353-4	01	1	1409-				●
23	BEZEL; CONT LEVER REAR DEFOGGER<C49> COOLER W/FRESH AIR<C65> EXC. INTERIOR SILVER BEZEL<BY9> (A) THA	8-98052-641-4	01	1	1409-	●	●	●
23	BEZEL; CONT LEVER COOLER W/FRESH AIR<C65> EXC. INTERIOR SILVER BEZEL<BY9> (A) THA	8-98052-641-4	01	1	1409-				●
23	BEZEL; CONT LEVER COOLER W/FRESH AIR<C65> EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> (A) THA	8-98052-637-3	01	1	1409-	●	●	●
23	BEZEL; CONT LEVER COOLER W/FRESH AIR<C65> (A) THA	8-98052-637-3	01	1	1409-					●
23	BEZEL; CONT LEVER COOLER WO/FRESH AIR<8NF> (C) THA	8-98052-636-3	01	1	1409-					●
23	BEZEL; CONT LEVER (C) THA	8-98052-636-3	01	1	1409-						●
69	SCREW; BEZEL BRKT M4X10 TAPPING THA	8-98164-986-0	04	1	1409-	●	●	●	●	●	●
94	PANEL; BEZEL AUTO COOLER SYSTEM<CJ2> REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> (B) THA	8-98141-789-0	01	1	1409-	●	●	●
94	PANEL; BEZEL AUTO COOLER SYSTEM<CJ2> EXC. INTERIOR SILVER BEZEL<BY9> (B) THA	8-98141-789-0	01	1	1409-				●
94	PANEL; BEZEL COOLER W/FRESH AIR<C65> (A) THA	8-98164-668-0	01	1	1409-	●	●	●	●	●
94	PANEL; BEZEL COOLER WO/FRESH AIR<8NF> (C) THA	8-98064-614-0	01	1	1409-					●
94	PANEL; BEZEL (C) THA	8-98064-614-0	01	1	1409-						●
103	CLIP THA	8-98164-677-0	04	1	1409-	●	●	●	●	●	●
105	SWITCH ASM; A/C AUTO COOLER SYSTEM<CJ2> REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> THA	8-98168-138-0	01	1	1409-	●	●	●
105	SWITCH ASM; A/C AUTO COOLER SYSTEM<CJ2> EXC. INTERIOR SILVER BEZEL<BY9> THA	8-98168-138-0	01	1	1409-				●

23 103 94 106 69 103 96 96 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
23	BEZEL; CONT LEVER INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> COOLER W/FRESH AIR<C65> (A) THA	8-98103-517-4	01	1	1409-	●	●	●
23	BEZEL; CONT LEVER INTERIOR SILVER BEZEL<BY9> COOLER W/FRESH AIR<C65> (A) THA	8-98103-517-4	01	1	1409-				●
23	BEZEL; CONT LEVER INTERIOR SILVER BEZEL<BY9> COOLER W/FRESH AIR<C65> EXC. REAR DEFOGGER<C49> (A) THA	8-98052-645-3	01	1	1409-	●	●	●
23	BEZEL; CONT LEVER AUTO COOLER SYSTEM<CJ2> REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> (B) THA	8-98166-353-4	01	1	1409-	●	●	●
23	BEZEL; CONT LEVER AUTO COOLER SYSTEM<CJ2> EXC. INTERIOR SILVER BEZEL<BY9> (B) THA	8-98166-353-4	01	1	1409-				●
23	BEZEL; CONT LEVER REAR DEFOGGER<C49> COOLER W/FRESH AIR<C65> EXC. INTERIOR SILVER BEZEL<BY9> (A) THA	8-98052-641-4	01	1	1409-	●	●	●
23	BEZEL; CONT LEVER COOLER W/FRESH AIR<C65> EXC. INTERIOR SILVER BEZEL<BY9> (A) THA	8-98052-641-4	01	1	1409-				●
23	BEZEL; CONT LEVER COOLER W/FRESH AIR<C65> EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> (A) THA	8-98052-637-3	01	1	1409-	●	●	●
23	BEZEL; CONT LEVER COOLER W/FRESH AIR<C65> (A) THA	8-98052-637-3	01	1	1409-					●
23	BEZEL; CONT LEVER COOLER WO/FRESH AIR<8NF> (C) THA	8-98052-636-3	01	1	1409-					●
23	BEZEL; CONT LEVER (C) THA	8-98052-636-3	01	1	1409-						●
69	SCREW; BEZEL BRKT M4X10 TAPPING THA	8-98164-986-0	04	1	1409-	●	●	●	●	●	●
94	PANEL; BEZEL AUTO COOLER SYSTEM<CJ2> REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> (B) THA	8-98141-789-0	01	1	1409-	●	●	●
94	PANEL; BEZEL AUTO COOLER SYSTEM<CJ2> EXC. INTERIOR SILVER BEZEL<BY9> (B) THA	8-98141-789-0	01	1	1409-				●
94	PANEL; BEZEL COOLER W/FRESH AIR<C65> (A) THA	8-98164-668-0	01	1	1409-	●	●	●	●	●
94	PANEL; BEZEL COOLER WO/FRESH AIR<8NF> (C) THA	8-98064-614-0	01	1	1409-					●
94	PANEL; BEZEL (C) THA	8-98064-614-0	01	1	1409-						●
96	BULB ASM; BEZEL COOLER W/FRESH AIR<C65> THA	8-98156-188-0	02	1	1409-	●	●	●	●
96	BULB ASM; BEZEL COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> THA	8-98156-188-0	02	1	1409-					●
96	BULB ASM; BEZEL THA	8-98156-188-0	02	1	1409-						●
103	CLIP THA	8-98164-677-0	04	1	1409-	●	●	●	●	●	●
106	CONTROL SUB ASM; HTR & A/C INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> COOLER W/FRESH AIR<C65> THA	8-98142-033-0	01	1	1409-	●	●	●
106	CONTROL SUB ASM; HTR & A/C INTERIOR SILVER BEZEL<BY9> COOLER W/FRESH AIR<C65> THA	8-98142-033-0	01	1	1409-				●
106	CONTROL SUB ASM; HTR & A/C INTERIOR SILVER BEZEL<BY9> COOLER W/FRESH AIR<C65> EXC. REAR DEFOGGER<C49> THA	8-98142-042-0	01	1	1409-	●	●	●
106	CONTROL SUB ASM; HTR & A/C REAR DEFOGGER<C49> COOLER W/FRESH AIR<C65> EXC. INTERIOR SILVER BEZEL<BY9> THA	8-98142-039-0	01	1	1409-	●	●	●
106	CONTROL SUB ASM; HTR & A/C COOLER W/FRESH AIR<C65> EXC. INTERIOR SILVER BEZEL<BY9> THA	8-98142-039-0	01	1	1409-				●
106	CONTROL SUB ASM; HTR & A/C COOLER W/FRESH AIR<C65> EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> THA	8-98142-036-0	01	1	1409-	●	●	●
106	CONTROL SUB ASM; HTR & A/C COOLER W/FRESH AIR<C65> THA	8-98142-036-0	01	1	1409-					●
106	CONTROL SUB ASM; HTR & A/C COOLER WO/FRESH AIR<8NF> THA	8-98142-030-0	01	1	1409-					●
106	CONTROL SUB ASM; HTR & A/C THA	8-98142-030-0	01	1	1409-						●
