Isuzu WW
▶
TRUCKS
▶
FVM
▶
11131 - FVM(INDONESIA)6SD1
▶
0 - Engine, Emission, Engine Electrical
▶
0-60 - ENGINE ELECTRICAL CONTROL PARTS
▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS
(#14838) — 31 parça
◀

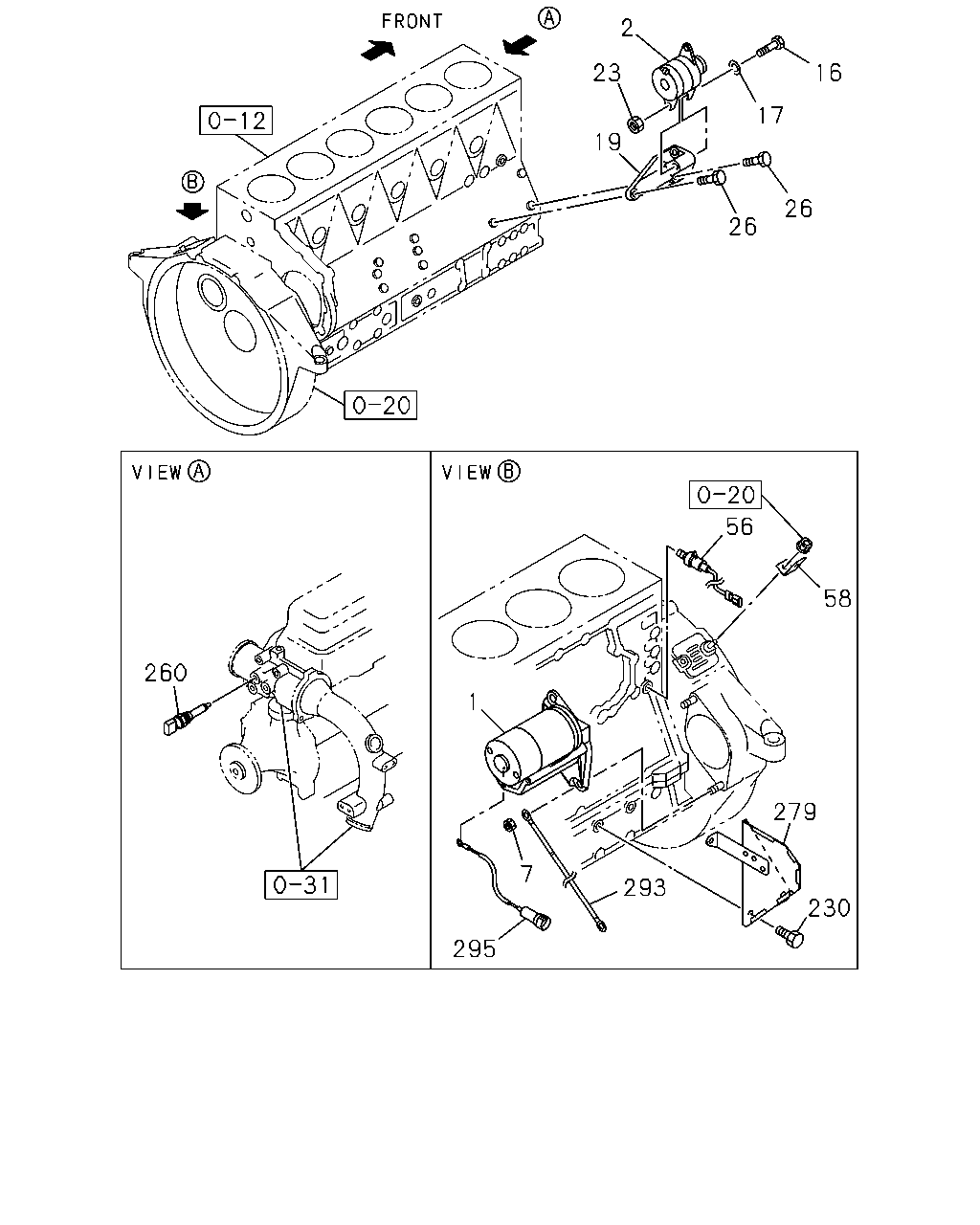

[060A] NO.1 (16 parça)

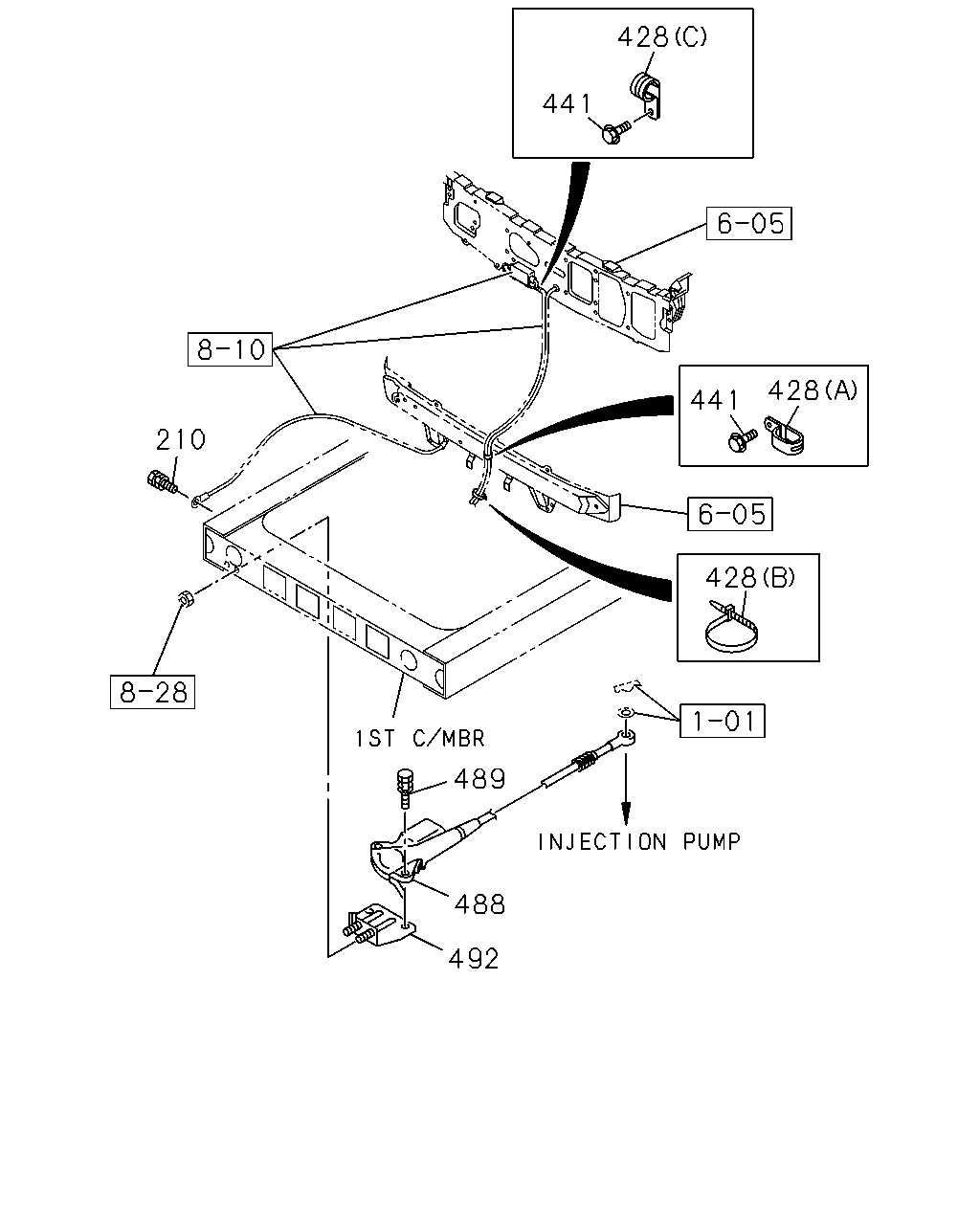

[060A] NO.3 (6 parça)

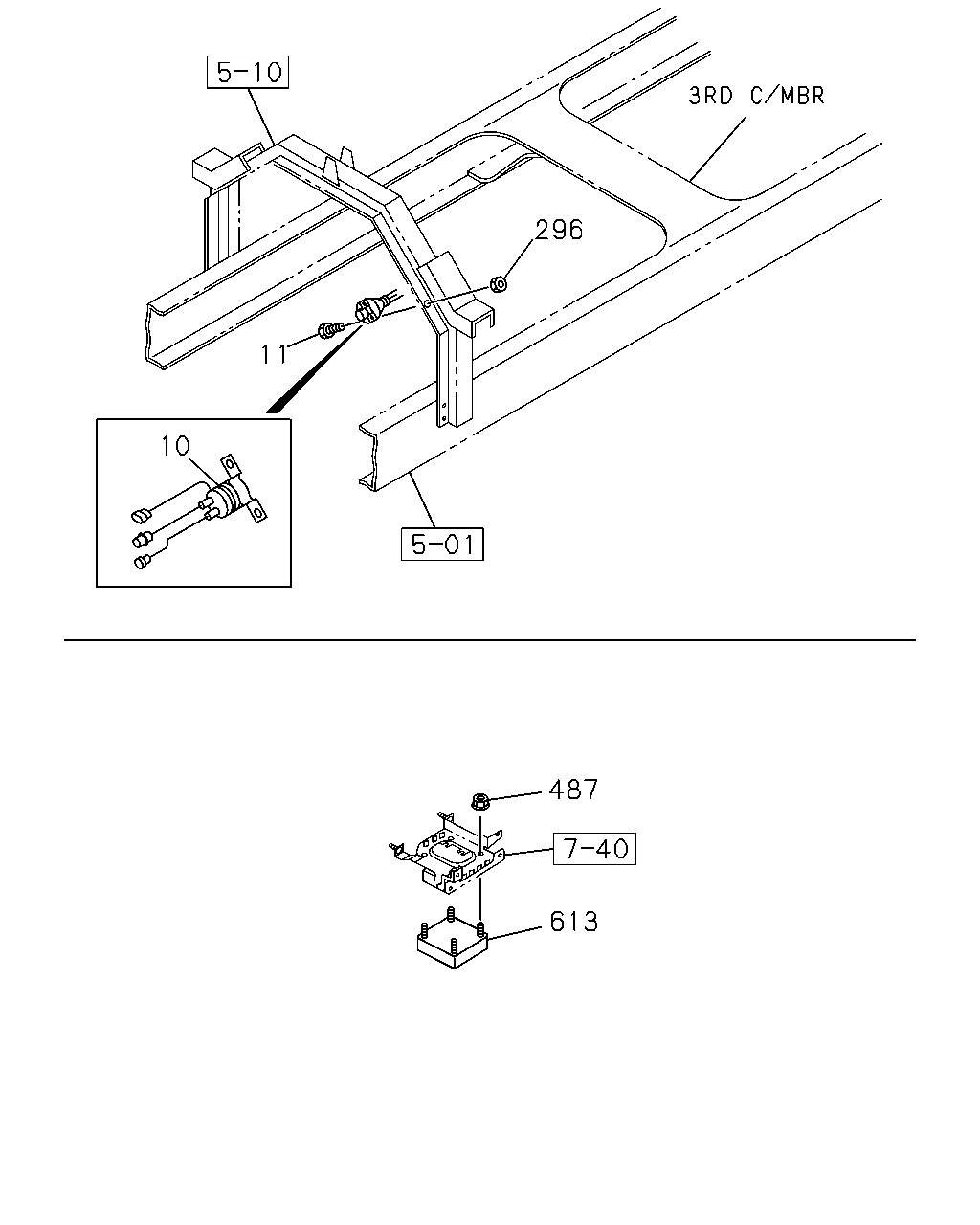

[060A] NO.2 (9 parça)
▶
2
23
16
17
19
26
26
56
58
260
1
279
7
293
230
295
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.5KW DENSO
1-81100-422-0
01
1
0711-
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A DENSO
8-94399-157-1
01
1
0711-
7
NUT; STARTER
M14 FLANGE
0-91150-114-0
02
1
0711-
16
BOLT; GEN
M14X123
9-09801-204-1
01
1
0711-
17
WASHER; PL,GEN
ID=15
0-91610-514-0
01
1
0711-
19
BRACKET; GEN
1-19711-038-0
01
1
0711-
23
NUT; GEN
M14 FLANGE
0-91150-114-0
01
1
0711-
26
BOLT; GEN BRKT
M10X40 FLANGE
0-28151-040-0
01
1
0711-
26
BOLT; GEN BRKT
M10X70 FLANGE
0-28151-070-0
02
1
0711-
56
SWITCH; OIL PRESSURE WARNING
1-82410-170-1
01
1
0711-
58
BRACKET; CLIP
L=55
1-47475-304-0
01
1
0711-
230
BOLT; HEAT PROTECTOR
M10X16 FLANGE
0-28151-016-0
02
1
0711-
260
SENSOR; WATER TEMP
1-80210-004-0
01
1
0711-
279
PROTECTOR; STARTER
1-14181-292-0
01
1
0711-
293
CABLE; STARTER EARTH
L=550
1-82650-239-0
01
1
0711-
295
HARNESS; STARTER
1-82640-527-1
01
1
0711-
296
11
10
487
613
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
RELAY; STARTER
DENSO
1-81171-070-0
01
1
0711-
11
BOLT; RELAY STARTER
M8X20 FLANGE IDN
0-28650-820-0
02
1
0711-
296
NUT; RELAY,STARTER
M8 FLANGE
0-91180-108-0
02
1
0711-
487
NUT
M6 FLANGE
0-91180-106-0
04
1
0711-
613
CONTROL UNIT; ENG
1-80110-441-0
01
1
0711-0811
613
CONTROL UNIT; ENG
1-80110-177-0
01
1
0812-
428
441
428
441
210
428
489
488
492
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
210
BOLT; CABLE FIX
M8X16 W/LK&PL WASHER
8-97087-055-0
01
1
0711-1202
210
BOLT; CABLE FIX
M8X14 W/PL WASHER
8-98164-837-0
01
1
1203-
428
CLIP; HARNESS
(C) ID=35 L=50
1-09701-214-0
01
1
0711-
428
CLIP; HARNESS
(A) ID=30X2 L=28
1-09701-266-0
01
1
0711-
428
CLIP; HARNESS
(B) L=300
1-09707-001-1
03
1
0711-
441
BOLT; HARNESS TO FRAME
M8X25 FLANGE IDN
0-28650-825-0
02
1
0711-
488
STOPPER; ENG
1-82840-150-2
01
1
0711-
489
BOLT; ENG STOPPER
M8X25 W/LK&PL WASHER IDN
0-50640-825-0
02
1
0711-
492
BRACKET; ENG STOPPER
1-82849-089-1
01
1
0711-
