Isuzu WW
▶
PICKUP
▶
TFR
▶
51579 - TFR/TFS THAILAND
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-40 - HEATER SYSTEM
▶

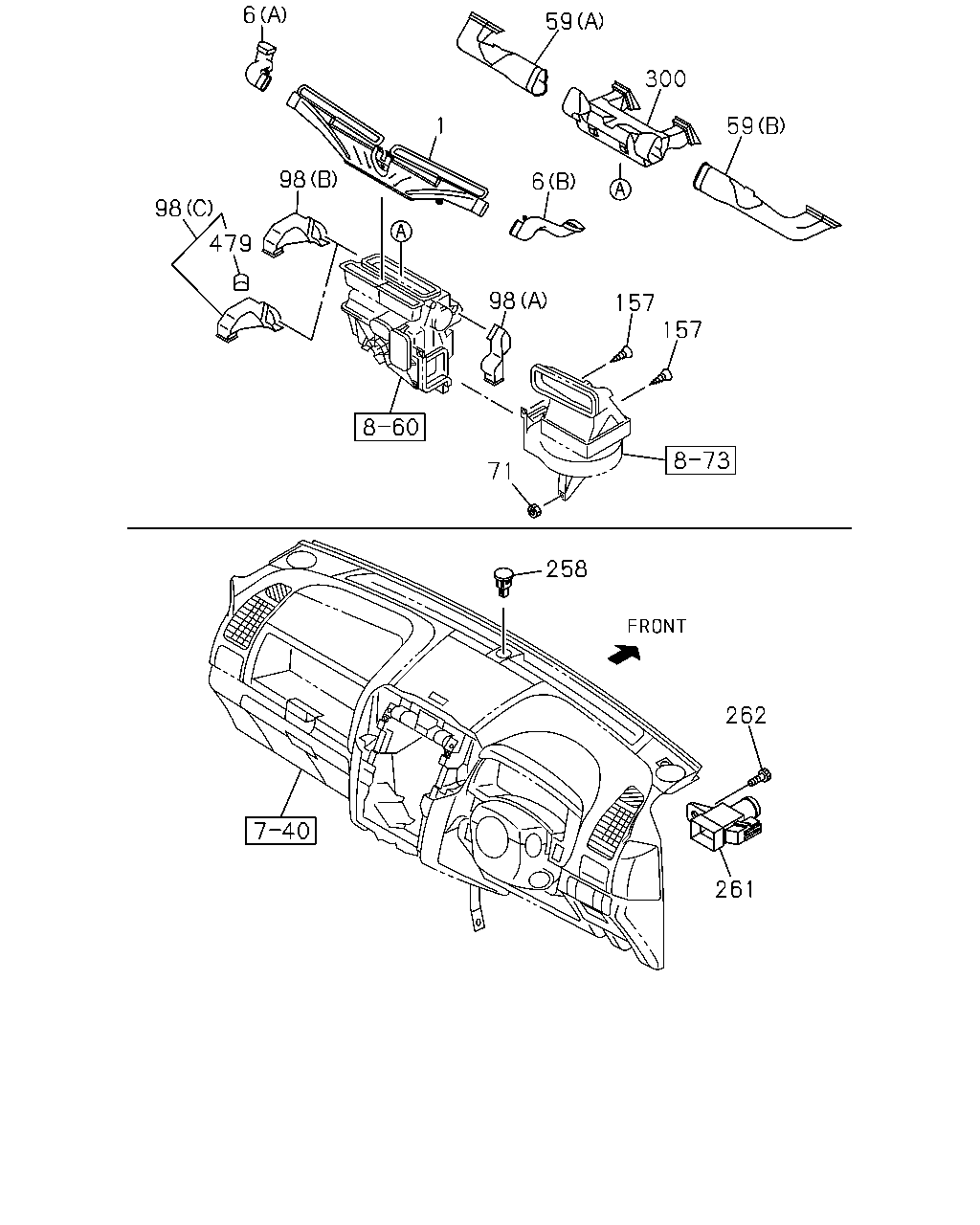

8-40 — HEATER SYSTEM
(#148376) — 22 parça
Tümü
A - TFB5CF
B - TFB5WF
C - TFS5CF
D - TFS5WF
E - TFB5SF
F - TFS5SF
6
59
300
59
98
98
6
479
98
157
157
71
258
262
261
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
1
NOZZLE; DEFROSTER,INST PNL
AUTO COOLER SYSTEM<CJ2> THA
8-98187-101-2
01
1
1409-
●
●
●
●
6
DUCT; SIDE DEFROSTER
AUTO COOLER SYSTEM<CJ2> (A) THA
8-98187-102-0
01
1
1409-
●
●
●
●
6
DUCT; SIDE DEFROSTER
AUTO COOLER SYSTEM<CJ2> (B) THA
8-98187-103-0
01
1
1409-
●
●
●
●
59
DUCT; VENT,ASSIST SIDE
(A) THA
8-98187-099-0
01
1
1409-
●
●
●
●
●
●
59
DUCT; VENT,ASSIST SIDE
(B) THA
8-98187-100-0
01
1
1409-
●
●
●
●
●
●
71
NUT; BLOWER UNIT TO DASH
M6 FLANGE IMA
8-94279-514-0
01
1
1409-
●
●
●
●
●
●
98
DUCT; BLOWER UNIT TO HTR UNIT
AUTO COOLER SYSTEM<CJ2> (C) THA
8-98274-165-0
01
1
1409-
●
●
●
●
98
DUCT; BLOWER UNIT TO HTR UNIT
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> (A) THA
8-98233-054-0
01
1
1409-
●
●
●
●
98
DUCT; BLOWER UNIT TO HTR UNIT
COOLER W/FRESH AIR<C65> (A) THA
8-98233-054-0
01
1
1409-
●
98
DUCT; BLOWER UNIT TO HTR UNIT
COOLER W/FRESH AIR<C65> (B) THA
8-98233-055-0
01
1
1409-
●
●
●
●
●
157
SCREW
M5X16 THA
8-98167-220-0
02
1
1409-
●
●
●
●
●
●
258
SENSOR; SUN
AUTO COOLER SYSTEM<CJ2> REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> THA
8-98103-691-0
01
1
1409-1505
●
●
●
258
SENSOR; SUN
AUTO COOLER SYSTEM<CJ2> EXC. INTERIOR SILVER BEZEL<BY9> THA
8-98103-691-0
01
1
1409-1505
●
258
SENSOR; SUN
AUTO COOLER SYSTEM<CJ2> THA
8-98103-691-0
01
1
1506-
●
●
●
●
261
SENSOR; IN CAR
AUTO COOLER SYSTEM<CJ2> REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> THA
8-98103-694-0
01
1
1409-1505
●
●
●
261
SENSOR; IN CAR
AUTO COOLER SYSTEM<CJ2> EXC. INTERIOR SILVER BEZEL<BY9> THA
8-98103-694-0
01
1
1409-1505
●
261
SENSOR; IN CAR
AUTO COOLER SYSTEM<CJ2> THA
8-98103-694-0
01
1
1506-
●
●
●
●
262
SCREW; IN CAR SENSOR
AUTO COOLER SYSTEM<CJ2> REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> M5X14 TAPPING THA
8-98184-363-0
01
1
1409-1505
●
●
●
262
SCREW; IN CAR SENSOR
AUTO COOLER SYSTEM<CJ2> EXC. INTERIOR SILVER BEZEL<BY9> M5X14 TAPPING THA
8-98184-363-0
01
1
1409-1505
●
262
SCREW; IN CAR SENSOR
AUTO COOLER SYSTEM<CJ2> M5X14 TAPPING THA
8-98184-363-0
01
1
1506-
●
●
●
●
300
DUCT; VENT,CENTER
THA
8-98187-098-0
01
1
1409-
●
●
●
●
●
●
479
SPONGE
AUTO COOLER SYSTEM<CJ2> THA
8-98274-219-0
01
1
1409-
●
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
