◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51579 - TFR/TFS THAILAND ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-27 - SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM ▶
8-27 — SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM (#148374) — 7 parça

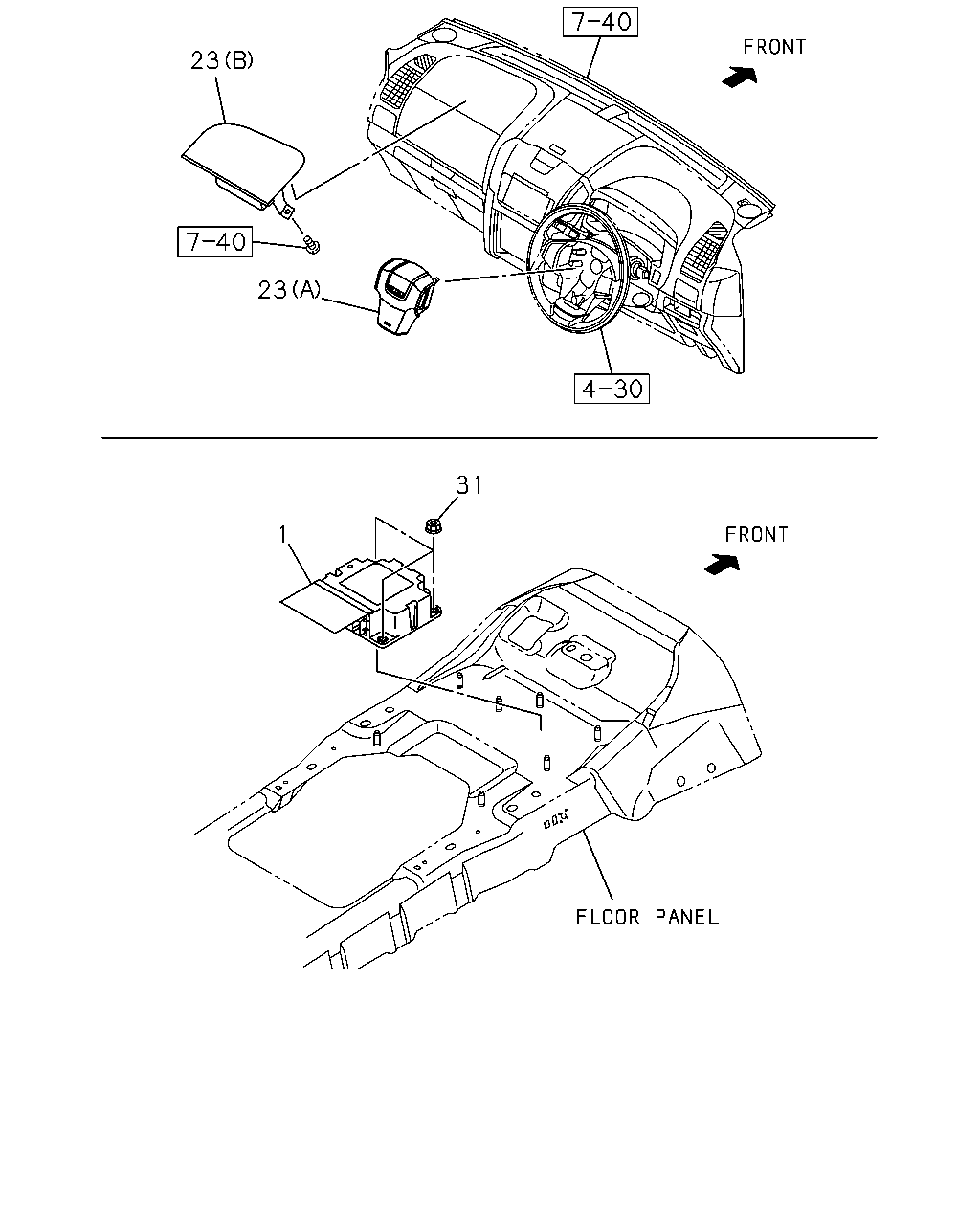

çizim 444465
23 23 31 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 CONTROL UNIT; SIR
THA 		8-98127-250-2 01 1 1409- ● ● ● ● ● ●
23 AIR BAG UNIT
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> EXC. SALES PACKAGE SPORTY<XK0> (A) BLACK THA 		8-97424-332-0 01 1 1409- ● ●
23 AIR BAG UNIT
(A) BLACK THA 		8-97424-332-0 01 1 1409- ● ● ● ●
23 AIR BAG UNIT
INTERIOR COLOR UPR & LWR DARK GRAY<154> SALES PACKAGE SPORTY<XK0> (A) BLACK THA 		8-97429-859-0 01 1 1409- ●
23 AIR BAG UNIT
INTERIOR COLOR UPR & LWR DARK GRAY<154> SALES PACKAGE SPORTY<XK0> HIGH RIDE SUSPENSION<7YC> (A) BLACK THA 		8-97429-859-0 01 1 1409- ●
23 AIR BAG UNIT
(B) BLACK THA 		8-97416-642-7 01 1 1409- ● ● ● ● ● ●
31 NUT
M6 FLANGE THA 		0-91180-206-0 03 1 1409- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
