Sayfa 8-25 - Isuzu EPC

8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#148372) — 65 parça

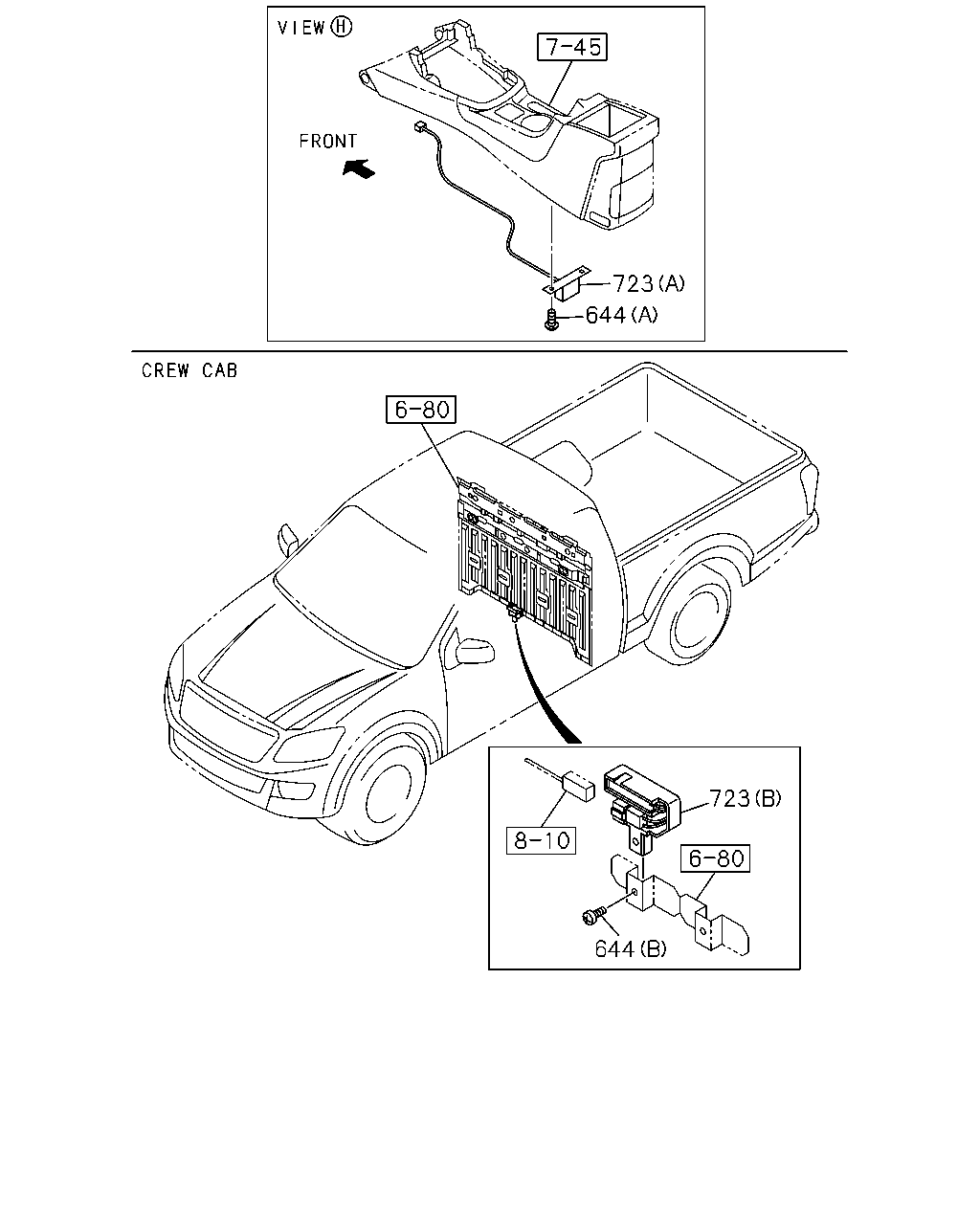

723 644 723 644

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
644	SCREW; TAPPING PASSIVE ENTRY AND START SYSTEM<AP3> (A) M5X16 TAPPING THA	8-98167-449-0	02	1	1409-	●	●	●	●
644	SCREW; TAPPING PASSIVE ENTRY AND START SYSTEM<AP3> (B) M6X12 TAPPING THA	0-71240-612-0	01	1	1409-		●		●
723	ANTENNA; KEYLESS ENTRY PASSIVE ENTRY AND START SYSTEM<AP3> (A) THA	8-98076-332-1	01	1	1409-	●	●	●	●
723	ANTENNA; KEYLESS ENTRY PASSIVE ENTRY AND START SYSTEM<AP3> (B) THA	8-98076-333-0	01	1	1409-		●		●

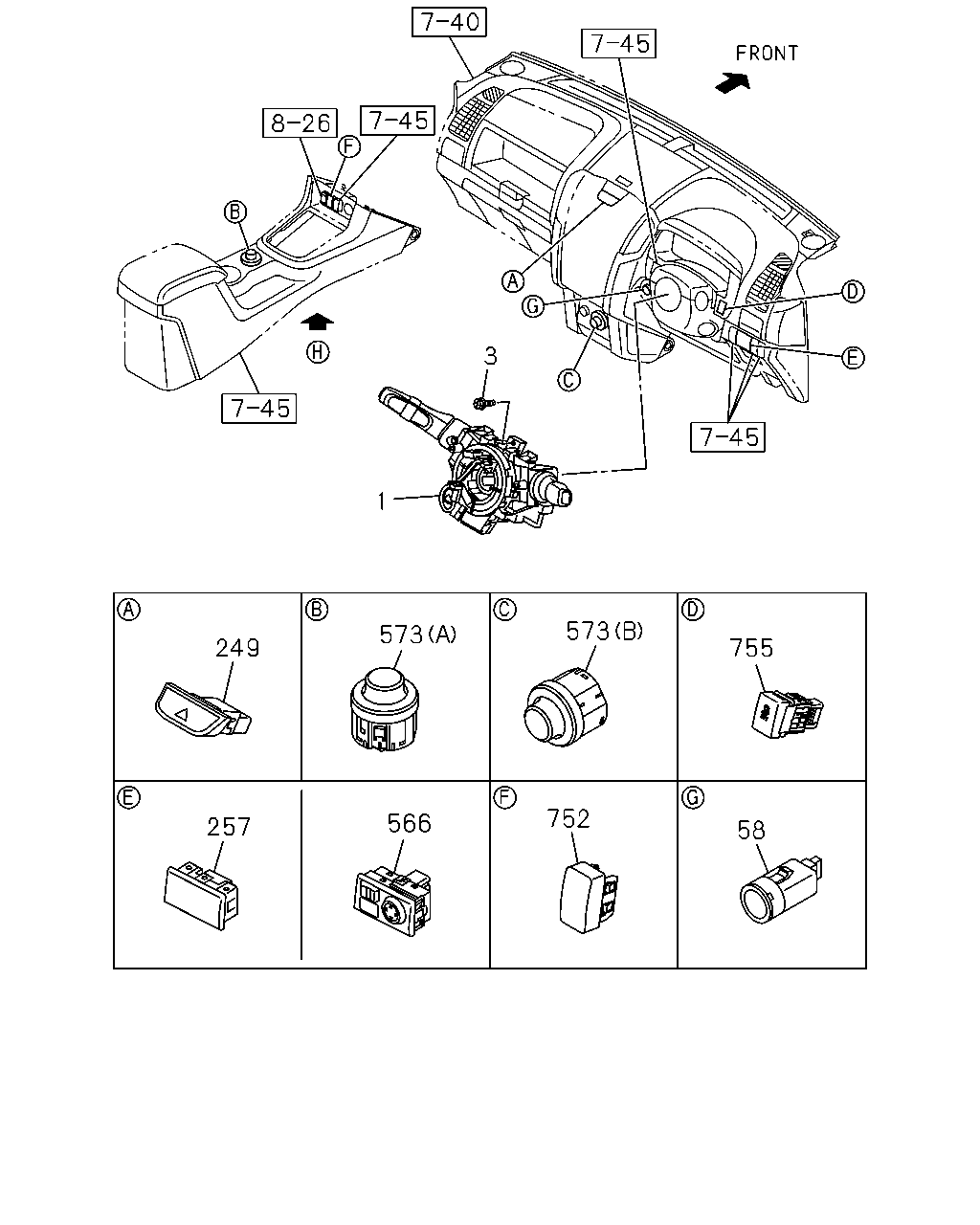

1 3 249 573 573 755 752 566 257 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	SWITCH; COMB ELECTRONIC TRACTION CONTROL<NW9> EXC. VARIABLE INTERMITTENT WIPER<CD4>, INTERMITTENT WIPER<C13>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA	8-98296-352-0	01	1	1410-		●
1	SWITCH; COMB VARIABLE INTERMITTENT WIPER<CD4> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA	8-98194-140-1	01	1	1409-	●		●
1	SWITCH; COMB VARIABLE INTERMITTENT WIPER<CD4> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA	8-98194-140-1	01	1	1409-		●
1	SWITCH; COMB EXC. ELECTRONIC TRACTION CONTROL<NW9> THA	8-98194-140-1	01	1	1409-				●
1	SWITCH; COMB INTERMITTENT WIPER<C13> EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUST ER<UCA> THA	8-98194-134-1	01	1	1409-	●		●
1	SWITCH; COMB INTERMITTENT WIPER<C13> THA	8-98194-134-1	01	1	1409-					●
1	SWITCH; COMB INTERMITTENT WIPER<C13> EXC. ELECTRONIC TRACTION CONTROL<NW9>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA	8-98194-134-1	01	1	1409-		●
1	SWITCH; COMB EXC. VARIABLE INTERMITTENT WIPER<CD4>, INTERMITTENT WIPER<C13>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA	8-98194-139-1	01	1	1409-	●		●
1	SWITCH; COMB EXC. INTERMITTENT WIPER<C13> THA	8-98194-139-1	01	1	1409-					●
1	SWITCH; COMB EXC. VARIABLE INTERMITTENT WIPER<CD4>, INTERMITTENT WIPER<C13>,ELECTRONIC TRACTION CONTROL<NW9>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA	8-98194-139-1	01	1	1409-		●
1	SWITCH; COMB THA	8-98194-139-1	01	1	1409-						●
1	SWITCH; COMB VARIABLE INTERMITTENT WIPER<CD4> ELECTRONIC TRACTION CONTROL<NW9> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA	8-98227-411-1	01	1	1409-		●
1	SWITCH; COMB ELECTRONIC TRACTION CONTROL<NW9> THA	8-98227-411-1	01	1	1409-				●
1	SWITCH; COMB INTERMITTENT WIPER<C13> ELECTRONIC TRACTION CONTROL<NW9> EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUST ER<UCA> THA	8-98194-141-1	01	1	1409-		●
3	SCREW; COMB SW M5X20 W/LK&PL WASHER THA	0-36230-520-0	01	1	1409-	●	●	●	●	●	●
58	SWITCH; IGNITION PASSIVE ENTRY AND START SYSTEM<AP3> KEY REMINDER BUZZER<T48> THA	8-98226-271-1	01	1	1409-1505	●
58	SWITCH; IGNITION PASSIVE ENTRY AND START SYSTEM<AP3> THA	8-98226-271-1	01	1	1409-1505		●		●
58	SWITCH; IGNITION M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> PASSIVE ENTRY AND START SYSTEM<AP3> THA	8-98226-271-1	01	1	1409-1505			●
58	SWITCH; IGNITION PASSIVE ENTRY AND START SYSTEM<AP3> THA	8-98226-271-1	01	1	1506-	●	●	●	●
249	SWITCH; HAZARD BLACK THA	8-97416-805-0	01	1	1409-	●	●	●	●	●	●
257	COVER; HOLE,SW DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2>, DOOR MIRROR BLACK<RT9> THA	8-98106-389-2	01	1	1409-	●				●
257	COVER; HOLE,SW DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2> THA	8-98106-389-2	01	1	1409-		●	●
257	COVER; HOLE,SW THA	8-98106-389-2	01	1	1409-						●
566	SWITCH; MIRROR DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3> THA	8-98058-078-1	01	1	1409-	●	●	●	●
566	SWITCH; MIRROR DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9>, DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> THA	8-98106-392-1	01	1	1409-	●	●
566	SWITCH; MIRROR DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> THA	8-98106-392-1	01	1	1409-			●	●
573	SWITCH; 4WD FLOOR CONSOLE W/LID<D55> (A) THA	8-98065-836-2	01	1	1409-			●			●
573	SWITCH; 4WD FLOOR CONSOLE W/LID & RR CUP HOLDER<D07>, FLOORCONSOLE W/LID<D55> (A) THA	8-98065-836-2	01	1	1409-				●
573	SWITCH; 4WD EXC. FLOOR CONSOLE W/LID<D55> (B) THA	8-98058-076-2	01	1	1409-			●			●
573	SWITCH; 4WD EXC. FLOOR CONSOLE W/LID & RR CUP HOLDER<D07>, FLOOR CONSOLE W/LID<D55> (B) THA	8-98058-076-2	01	1	1409-				●
752	COVER; SEAT HTR INTERIOR CUSTOM<RBD> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5> THA	8-98141-215-1	01	1	1409-	●	●	●
752	COVER; SEAT HTR AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5> THA	8-98141-215-1	01	1	1409-				●
755	SWITCH; ESC OFF ELECTRONIC TRACTION CONTROL<NW9> THA	8-98058-081-1	01	1	1409-		●		●

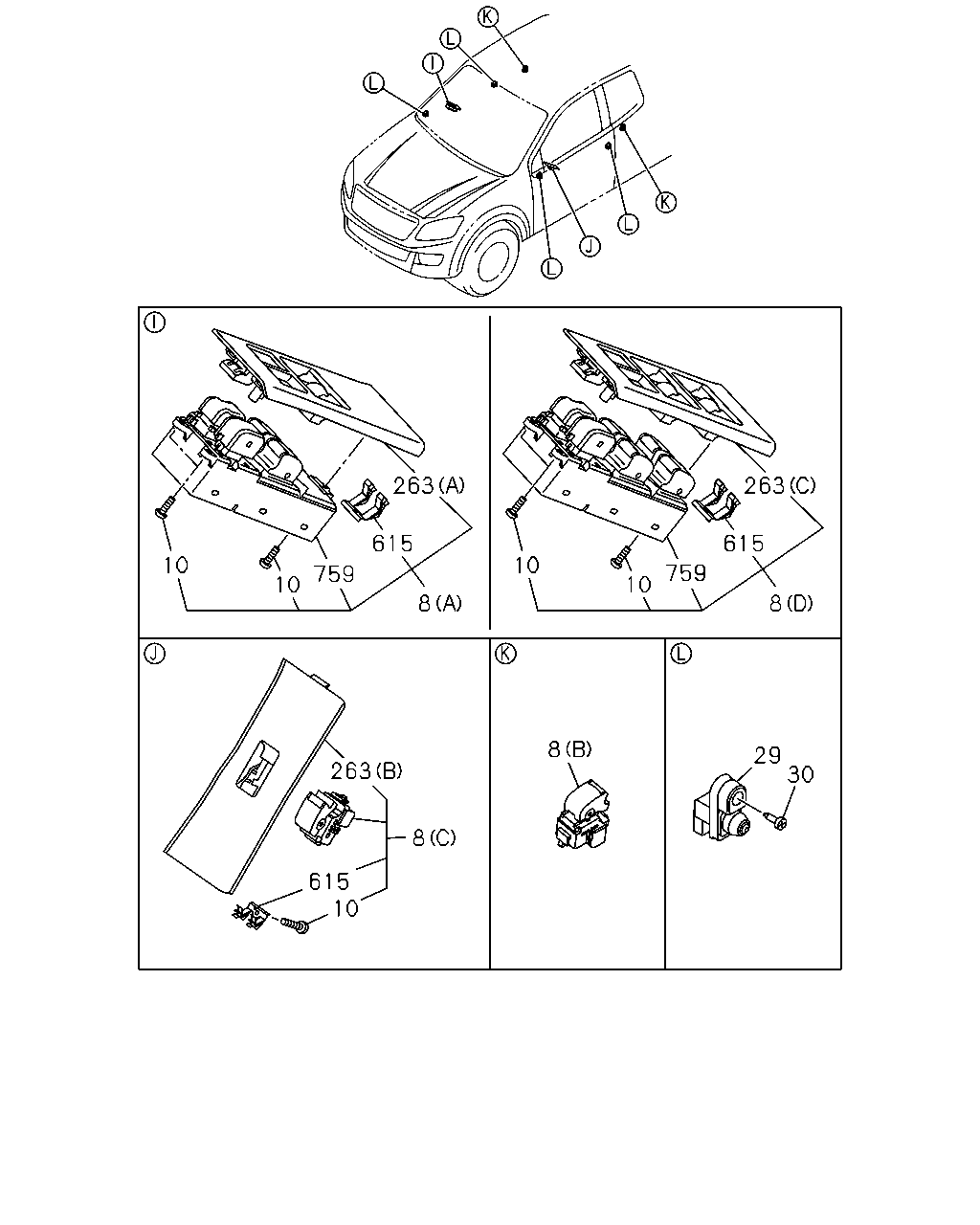

10 10 759 263 8 263 615 10 8 29 30 10 10 615 263 615 759 8 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
8	SWITCH; POWER WINDOW DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ> (A) BLACK THA	8-97416-734-0	01	1	1409-	●		●
8	SWITCH; POWER WINDOW DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (C) BLACK THA	8-97416-810-0	01	1	1409-	●	●	●	●
8	SWITCH; POWER WINDOW DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (C) BLACK THA	8-97416-810-0	01	1	1409-					●
8	SWITCH; POWER WINDOW DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (A) BLACK THA	8-97416-735-0	01	1	1409-	●		●		●
8	SWITCH; POWER WINDOW DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ> (D) BLACK THA	8-97416-975-0	01	1	1409-		●		●
8	SWITCH; POWER WINDOW DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (B) BLACK THA	8-97417-004-0	02	1	1409-		●		●
8	SWITCH; POWER WINDOW DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (D) BLACK THA	8-97416-976-0	01	1	1409-		●		●
10	SCREW; POWER WINDOW SW DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> THA	8-98192-450-0	03	1	1409-	●	●	●	●
10	SCREW; POWER WINDOW SW DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> THA	8-98192-450-0	03	1	1409-	●	●	●	●
10	SCREW; POWER WINDOW SW DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> THA	8-98192-450-0	03	1	1409-					●
10	SCREW; POWER WINDOW SW DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> THA	8-98192-450-0	03	1	1409-					●
29	SWITCH; DOOR THA	8-97313-208-0	02	1	1409-	●	●	●	●	●	●
29	SWITCH; DOOR THA	8-97313-208-0	02	1	1409-		●		●
30	SCREW; DOOR SW M5X14 IMA	8-94120-095-0	02	1	1409-	●	●	●	●	●	●
30	SCREW; DOOR SW M5X14 IMA	8-94120-095-0	02	1	1409-		●		●
263	COVER; SW DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (B) THA	8-98192-247-0	01	1	1409-	●	●	●	●
263	COVER; SW DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (B) THA	8-98192-247-0	01	1	1409-					●
263	COVER; SW DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (A) THA	8-98192-243-0	01	1	1409-	●		●
263	COVER; SW DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (A) THA	8-98192-243-0	01	1	1409-					●
263	COVER; SW DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (C) THA	8-98192-244-0	01	1	1409-		●		●
615	SPRING; POWER WINDOW SW DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> THA	8-98192-268-0	01	1	1409-	●	●	●	●
615	SPRING; POWER WINDOW SW DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> THA	8-98192-268-0	01	1	1409-	●	●	●	●
615	SPRING; POWER WINDOW SW DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> THA	8-98192-268-0	01	1	1409-					●
615	SPRING; POWER WINDOW SW DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> THA	8-98192-268-0	01	1	1409-					●
759	SWITCH ASM; WINDOW DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ> THA	8-98192-249-0	01	1	1409-	●		●
759	SWITCH ASM; WINDOW DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> THA	8-98192-250-0	01	1	1409-	●		●		●
759	SWITCH ASM; WINDOW DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ> THA	8-98192-251-0	01	1	1409-		●		●
759	SWITCH ASM; WINDOW DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> THA	8-98192-252-0	01	1	1409-		●		●
