8-15 — FIXING PARTS; WIRING HARNESS (#148370) — 66 parça

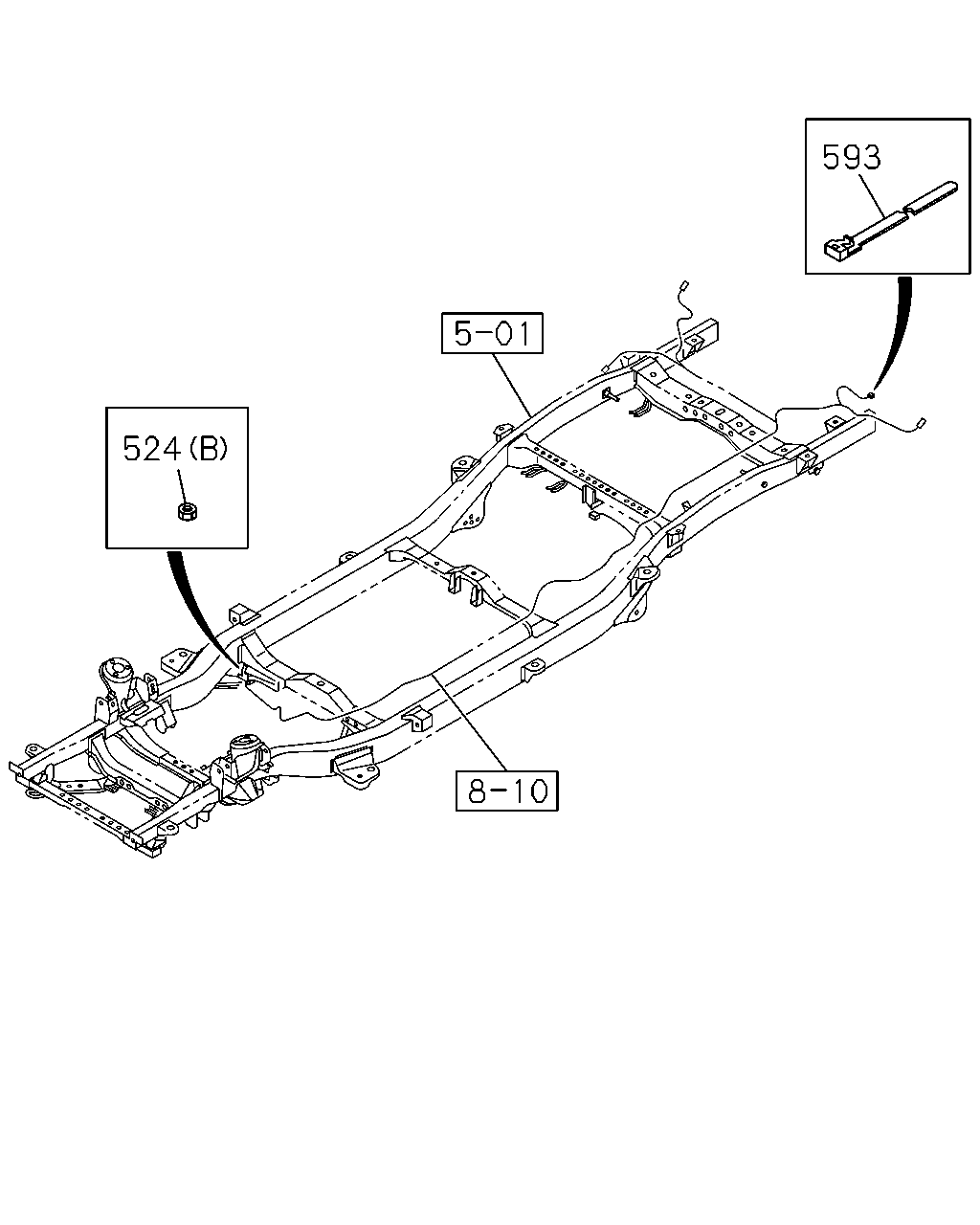

çizim 443912
524 593
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
524 NUT; HARNESS
(B) M6 FLANGE THA 		0-91180-106-0 01 1 1409- ● ● ● ● ● ●
524 NUT; HARNESS
(A) M8 FLANGE THA 		0-91180-108-0 01 1 1409- ● ● ● ● ● ●
593 CLIP
REAR BODY DELETE<8HH> L=250 IMA 		5-09707-030-1 01 1 1409- ● ●

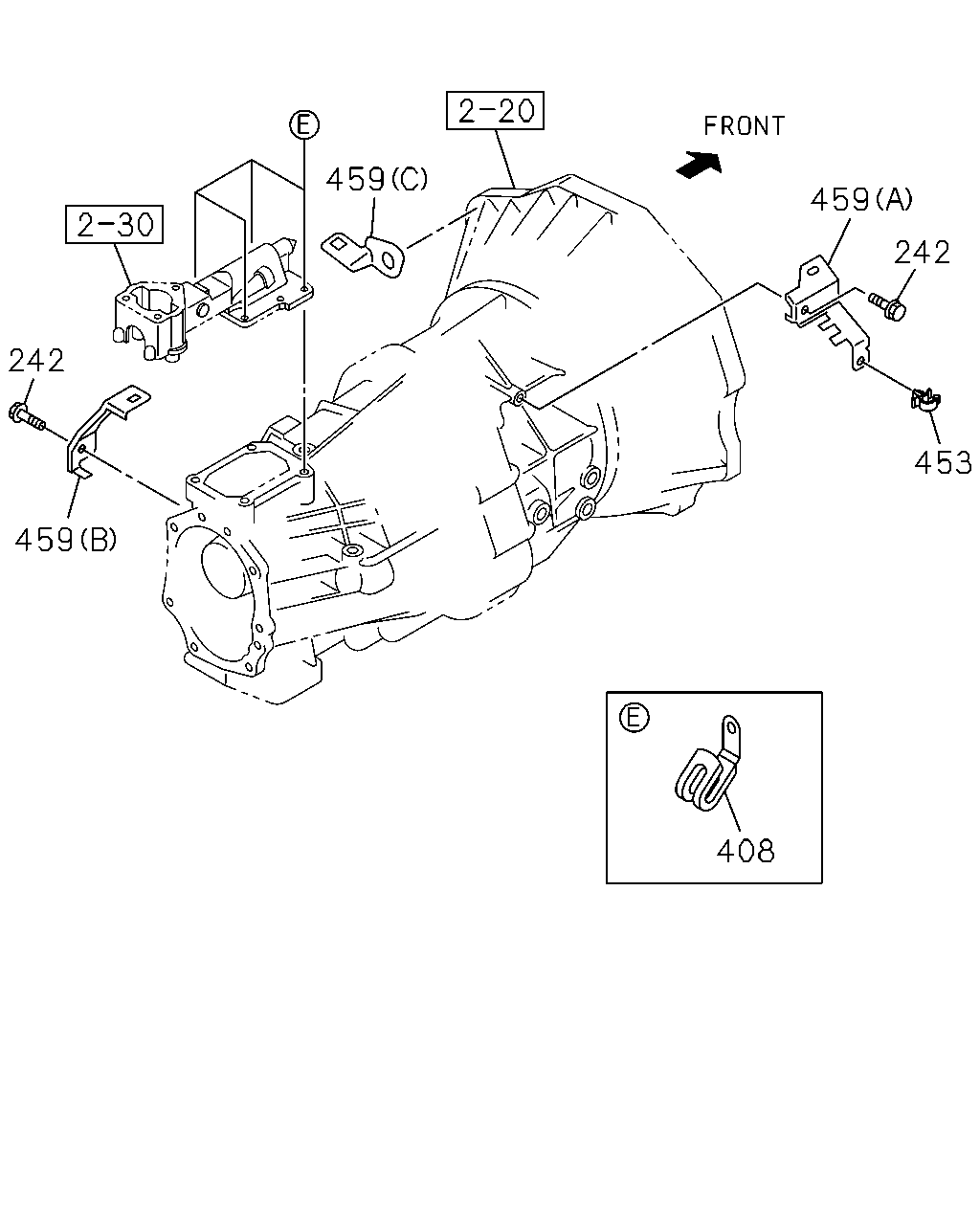

çizim 444068
242 459 459 459 242 453 408
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
242 BOLT; BRKT,HARNESS
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> M8X16 FLANGE THA 		0-28050-816-0 02 1 1409- ● ● ● ● ●
408 CLIP; TRANS HARNESS
M/T MUA 5 SPEED 5H<MWQ> ID=12 VINYL CHLORIDE IMA 		8-97367-984-1 04 1 1409- ● ● ● ● ● ●
408 CLIP; TRANS HARNESS
M/T MUA 5 SPEED 5H<MWQ> ID=12 VINYL CHLORIDE IMA 		8-97367-984-1 04 1 1409- ● ● ●
453 CLIP; CABLE HARNESS
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> ID=6.5 IMA 		5-09709-117-0 01 1 1409- ● ● ● ● ●
459 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> (A) THA 		8-98035-740-0 01 1 1409- ● ● ● ● ●
459 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> (B) THA 		8-98035-741-0 01 1 1409- ● ● ● ● ●
459 BRACKET; SUPPORT,HARNESS
M/T MUA 5 SPEED 5H<MWQ> (C) THA 		8-98050-882-0 01 1 1409- ● ● ● ● ● ●

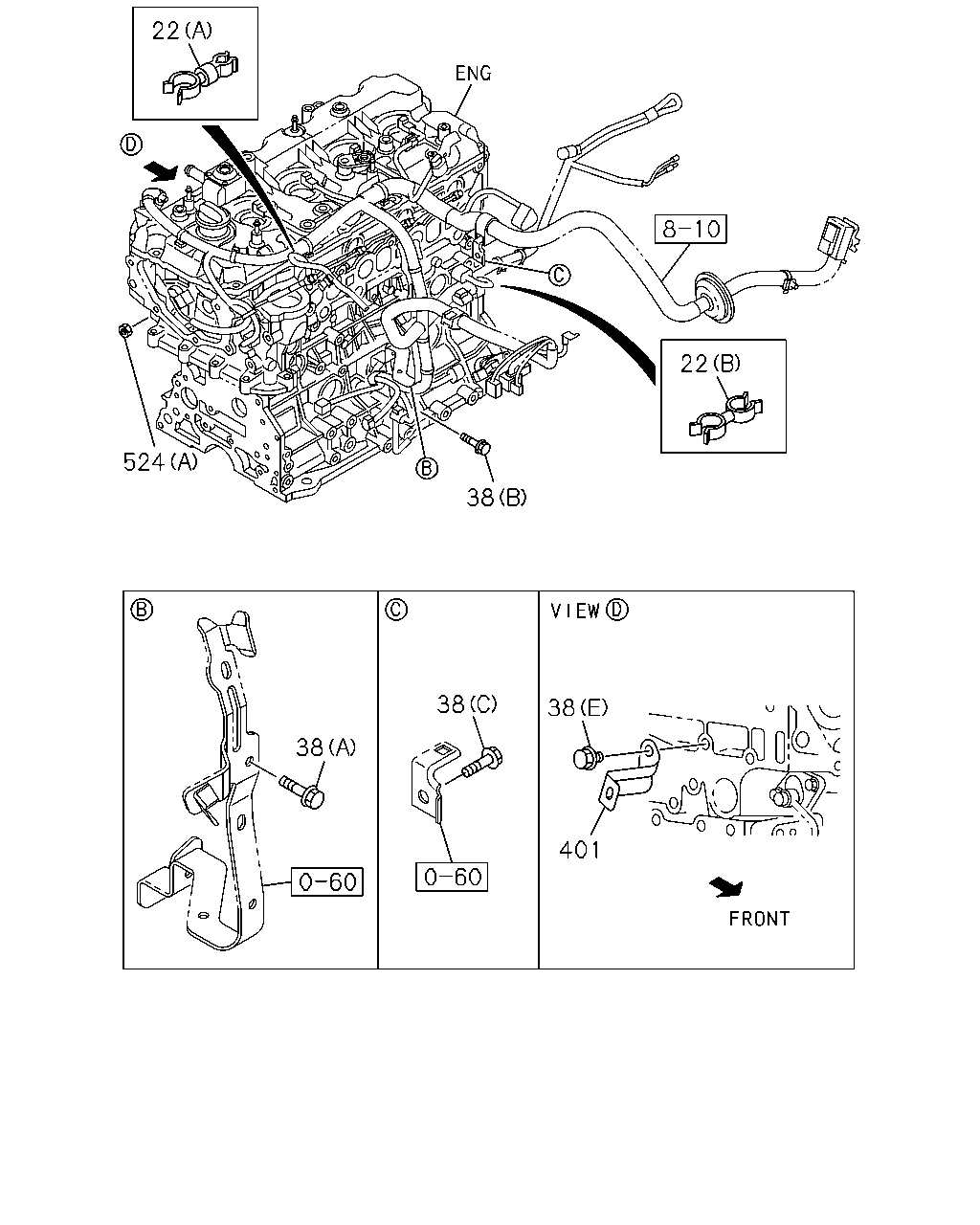

çizim 444261
22 22 38 524 38 38 38 401
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
22 CLIP; ENG HARNESS
(B) ID=7.5 & 7.5 THA 		8-98212-981-0 01 1 1409- ● ● ● ● ● ●
22 CLIP; ENG HARNESS
(A) ID=11.8 & 7.5 THA 		8-98212-982-0 01 1 1409- ● ● ● ● ● ●
38 BOLT; CLIP,HARNESS
BATTERY 75D26L<7TT> (D) M6X16 FLANGE THA 		0-28650-616-0 05 1 1409- ● ● ● ● ● ●
38 BOLT; CLIP,HARNESS
(A) M6X12 FLANGE THA 		0-28050-612-0 02 1 1409- ● ● ● ● ● ●
38 BOLT; CLIP,HARNESS
(B) M8X12 FLANGE THA 		0-28050-812-0 01 1 1409- ● ● ● ● ● ●
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE THA 		0-28050-816-0 01 1 1409- ● ● ● ● ● ●
38 BOLT; CLIP,HARNESS
(E) M10X12 FLANGE IMA 		0-28151-012-0 01 1 1409- ● ● ● ● ● ●
401 BRACKET; HARNESS,GEN
THA 		8-98224-801-0 01 1 1409- ● ● ● ● ● ●
524 NUT; HARNESS
(B) M6 FLANGE THA 		0-91180-106-0 01 1 1409- ● ● ● ● ● ●
524 NUT; HARNESS
(A) M8 FLANGE THA 		0-91180-108-0 01 1 1409- ● ● ● ● ● ●

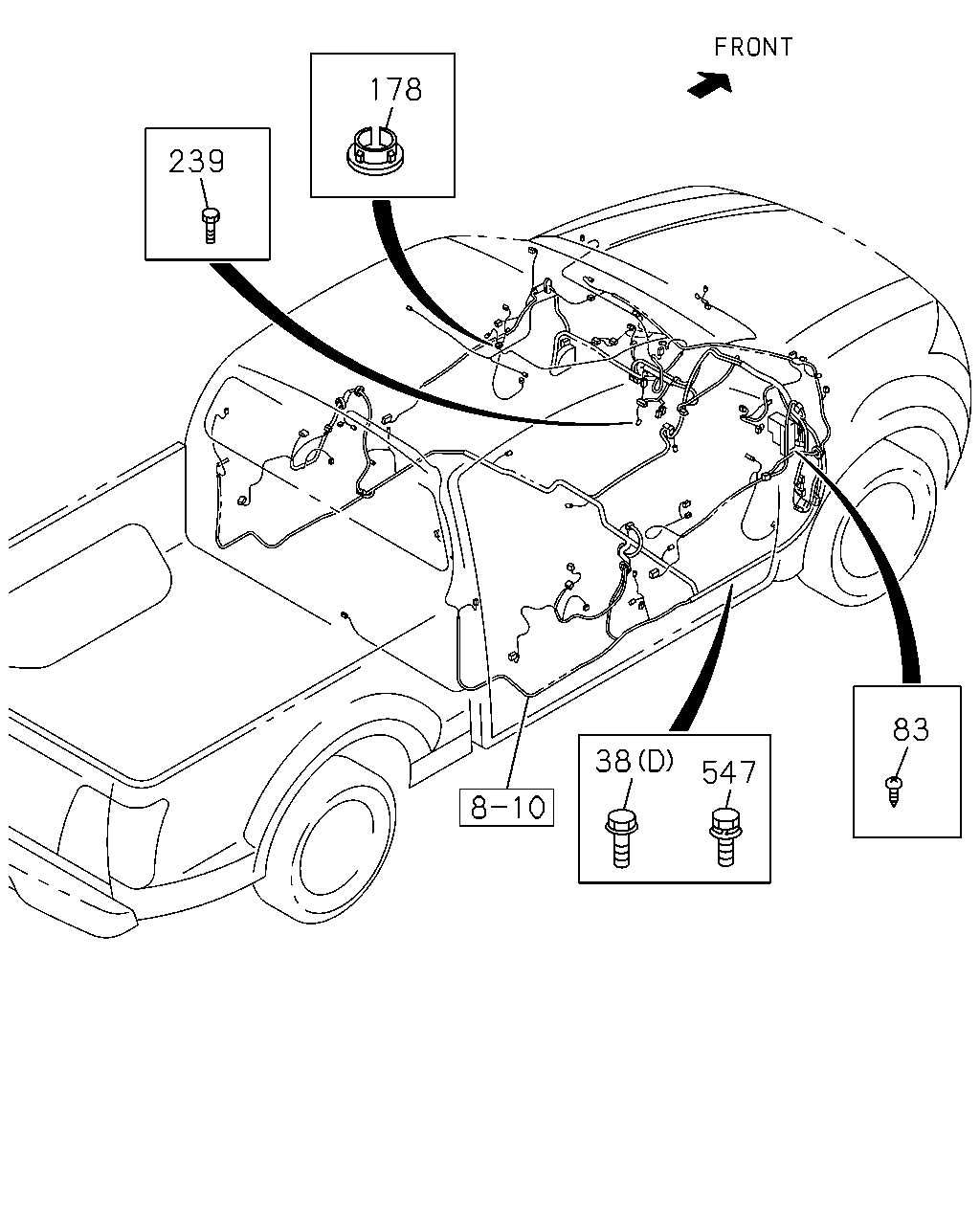

çizim 444475
239 178 38 547 83
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
38 BOLT; CLIP,HARNESS
BATTERY 75D26L<7TT> (D) M6X16 FLANGE THA 		0-28650-616-0 05 1 1409- ● ● ● ● ● ●
38 BOLT; CLIP,HARNESS
(A) M6X12 FLANGE THA 		0-28050-612-0 02 1 1409- ● ● ● ● ● ●
38 BOLT; CLIP,HARNESS
(B) M8X12 FLANGE THA 		0-28050-812-0 01 1 1409- ● ● ● ● ● ●
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE THA 		0-28050-816-0 01 1 1409- ● ● ● ● ● ●
38 BOLT; CLIP,HARNESS
(E) M10X12 FLANGE IMA 		0-28151-012-0 01 1 1409- ● ● ● ● ● ●
83 SCREW; HARNESS
M5X25 TAPPING W/PL WASHER THA 		0-74360-525-0 01 1 1409- ● ● ● ● ● ●
178 GROMMET; HARNESS
THA 		8-97027-381-0 01 1 1409- ● ● ● ● ● ●
239 BOLT; GRAND
M6X14 W/LK&PL WASHER THA 		8-97086-822-0 03 1 1409-1501 ● ● ● ● ● ●
239 BOLT; GRAND
M6X14 W/PL WASHER IMA 		8-98164-836-0 03 1 1502- ● ● ● ● ● ●
239 BOLT; GRAND
M6X14 W/LK&PL WASHER THA 		8-97086-822-0 02 1 1409-1501 ● ● ● ● ● ●
239 BOLT; GRAND
M6X14 W/LK&PL WASHER THA 		8-97086-822-0 02 1 1409-1501 ● ● ● ●
239 BOLT; GRAND
M6X14 W/PL WASHER IMA 		8-98164-836-0 02 1 1502- ● ● ● ● ● ●
239 BOLT; GRAND
M6X14 W/PL WASHER IMA 		8-98164-836-0 02 1 1502- ● ● ● ●
547 BOLT
M6X14 W/LK&PL WASHER THA 		8-97086-822-0 01 1 1409-1501 ● ● ● ● ● ●
547 BOLT
M6X14 W/PL WASHER IMA 		8-98164-836-0 01 1 1502- ● ● ● ● ● ●

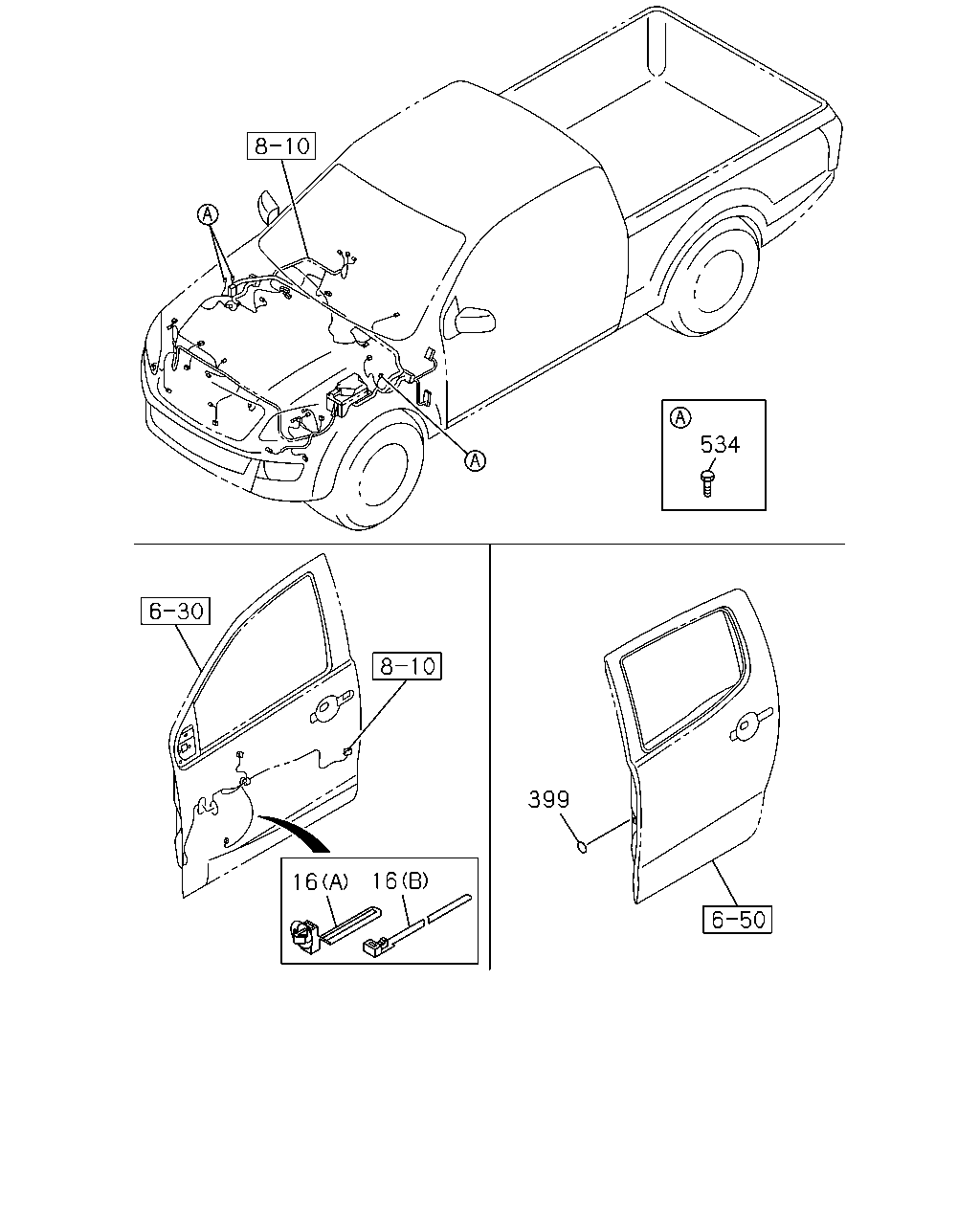

çizim 444507
534 16 16 399
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
16 CLIP; HARNESS
PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9>, DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (B) L=140 THA 		8-97378-707-0 03 1 1409- ● ● ● ●
16 CLIP; HARNESS
DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2>, DOOR MIRROR BLACK<RT9> EXC. AUTO DOOR LOCK<AU4> (A) L=155 THA 		8-97173-307-0 02 1 1409-1502 ● ● ● ● ●
16 CLIP; HARNESS
DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2>, DOOR MIRROR BLACK<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5>,A UTO DOOR LOCK<AU4> (A) L=155 THA 		8-97173-307-0 02 1 1409-1502 ● ● ● ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> (A) L=155 THA 		8-97173-307-0 02 1 1409-1502 ● ● ● ● ●
16 CLIP; HARNESS
PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AUTO DOOR LOCK<AU4> (A) L=155 THA 		8-97173-307-0 02 1 1409-1502 ● ● ● ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5>,R EMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) L=155 THA 		8-97173-307-0 02 1 1409-1502 ● ● ● ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (A) L=155 THA 		8-97173-307-0 02 1 1503- ● ● ● ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) L=155 THA 		8-97173-307-0 02 1 1503- ● ● ● ● ●
16 CLIP; HARNESS
PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9>, DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) L=155 THA 		8-97173-307-0 02 1 1503- ● ● ● ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9>, DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) L=155 THA 		8-97173-307-0 02 1 1503- ● ● ● ● ●
16 CLIP; HARNESS
PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9>, DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> (A) L=155 THA 		8-97173-307-0 02 1 1503- ● ● ● ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2>, DOOR MIRROR BLACK<RT9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (A) L=155 THA 		8-97173-307-0 02 1 1503- ● ● ● ● ●
16 CLIP; HARNESS
DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2>, DOOR MIRROR BLACK<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5>,A UTO DOOR LOCK<AU4> (A) L=155 THA 		8-97173-307-0 02 1 1503- ● ● ● ●
16 CLIP; HARNESS
DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2>, DOOR MIRROR BLACK<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,AUTO DOOR LOCK<AU4> (A) L=155 THA 		8-97173-307-0 02 1 1503- ● ● ● ●
16 CLIP; HARNESS
DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2>, DOOR MIRROR BLACK<RT9> EXC. AUTO DOOR LOCK<AU4> (B) L=140 THA 		8-97378-707-0 01 1 1409-1502 ● ● ● ● ●
16 CLIP; HARNESS
DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2>, DOOR MIRROR BLACK<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5>,A UTO DOOR LOCK<AU4> (B) L=140 THA 		8-97378-707-0 01 1 1409-1502 ● ● ● ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> (B) L=140 THA 		8-97378-707-0 01 1 1409-1502 ● ● ● ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5>,R EMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=140 THA 		8-97378-707-0 01 1 1409-1502 ● ● ● ● ●
16 CLIP; HARNESS
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AUTO DOOR LOCK<AU4> (B) L=140 THA 		8-97378-707-0 01 1 1409-1502 ● ● ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (B) L=140 THA 		8-97378-707-0 01 1 1503- ● ● ● ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=140 THA 		8-97378-707-0 01 1 1503- ● ● ● ● ●
16 CLIP; HARNESS
PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9>, DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=140 THA 		8-97378-707-0 01 1 1503- ● ● ● ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9>, DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=140 THA 		8-97378-707-0 01 1 1503- ● ● ● ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2>, DOOR MIRROR BLACK<RT9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (B) L=140 THA 		8-97378-707-0 01 1 1503- ● ● ● ● ●
16 CLIP; HARNESS
DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2>, DOOR MIRROR BLACK<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,AUTO DOOR LOCK<AU4> (B) L=140 THA 		8-97378-707-0 01 1 1503- ● ● ● ●
16 CLIP; HARNESS
DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2>, DOOR MIRROR BLACK<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5>,A UTO DOOR LOCK<AU4> (B) L=140 THA 		8-97378-707-0 01 1 1503- ● ● ● ●
399 COVER; HOLE,HARNESS,RR DOOR
EXC. AUTO DOOR LOCK<AU4>,8-SPEAKER SYSTEM CUSTOM<U87> OD=44 BLACK THA 		5-76777-037-0 02 1 1409-1502 ● ●
399 COVER; HOLE,HARNESS,RR DOOR
EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,AUTO DOOR LOCK<AU4>,8-SPEAKER SYSTEM CUSTOM<U87> OD=44 BLACK THA 		5-76777-037-0 02 1 1503-1505 ● ●
399 COVER; HOLE,HARNESS,RR DOOR
EXC. AUTO DOOR LOCK<AU4> OD=44 BLACK THA 		5-76777-037-0 02 1 1506- ● ●
534 BOLT; EARTH
M6X14 W/LK&PL WASHER THA 		8-97086-822-0 04 1 1409-1501 ● ●
534 BOLT; EARTH
M6X14 W/PL WASHER IMA 		8-98164-836-0 04 1 1502- ● ●
