8-03 — LAMP; REAR AND REAR SIDE (#148367) — 130 parça

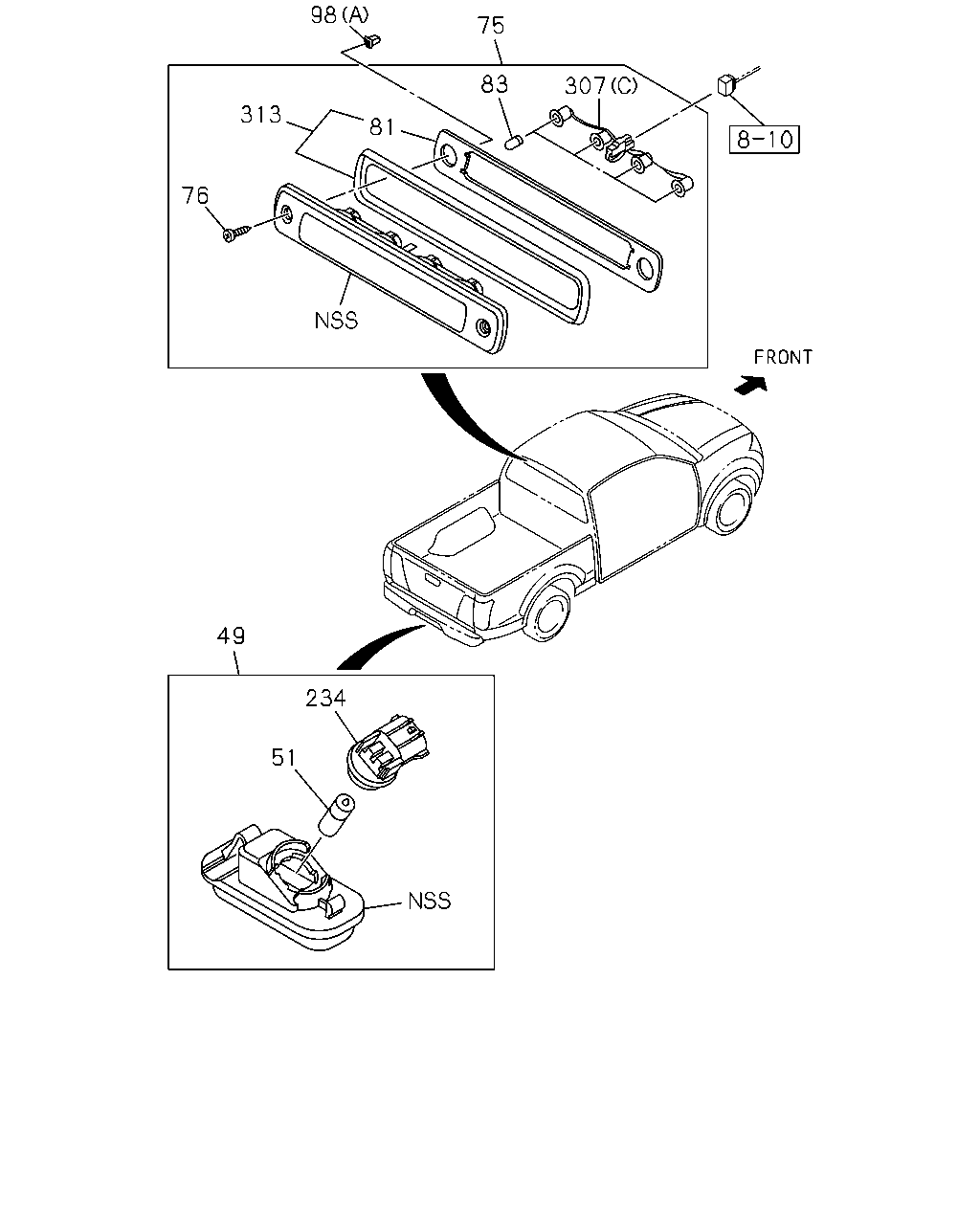

98 313 76 81 83 75 307 49 234 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
49	LAMP; LICENSE PLATE REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> THA	8-98224-482-0	01	1	1409-	●	●	●	●
49	LAMP; LICENSE PLATE EXC. REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> THA	8-98224-482-0	02	1	1409-	●	●
49	LAMP; LICENSE PLATE THA	8-98224-482-0	02	1	1409-					●	●
49	LAMP; LICENSE PLATE EXC. REAR STEP BUMPER CHROME<V42> THA	8-98224-482-0	02	1	1409-			●	●
51	BULB; LICENSE PLATE LAMP REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> 12V 5W THA	8-94124-595-0	01	1	1409-	●	●	●	●
51	BULB; LICENSE PLATE LAMP EXC. REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> 12V 5W THA	8-94124-595-0	02	1	1409-	●	●
51	BULB; LICENSE PLATE LAMP 12V 5W THA	8-94124-595-0	02	1	1409-					●	●
51	BULB; LICENSE PLATE LAMP EXC. REAR STEP BUMPER CHROME<V42> 12V 5W THA	8-94124-595-0	02	1	1409-			●	●
75	LAMP ASM; STOP,HIGHMOUNTED THA	8-98255-655-2	01	1	1409-	●	●	●	●
76	SCREW; STOP LAMP,HIGHMOUNTED THA	8-98193-901-0	02	1	1409-	●	●	●	●
81	GASKET; STOP LAMP THA	8-98257-962-0	01	1	1409-	●	●	●	●
83	BULB; STOP LAMP,HIGHMOUNTED 12V 5W THA	8-98193-898-0	04	1	1409-	●	●	●	●
98	WASHER (B) D=16 THA	8-94427-941-0	04	1	1409-1502	●	●	●	●	●	●
98	WASHER (B) D=16 THA	8-94427-941-0	04	1	1503-	●	●	●	●
98	WASHER REAR BODY DBL WALL CTR PULL<E63> (B) D=16 THA	8-94427-941-0	04	1	1503-					●	●
98	WASHER (A) D=7.8X7.8 L=18 NATURAL IMA	8-94279-043-0	02	1	1409-	●	●	●	●
234	SOCKET ASM; LICENSE PLATE LAMP REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> THA	1-82119-148-0	01	1	1409-	●	●	●	●
234	SOCKET ASM; LICENSE PLATE LAMP EXC. REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> THA	1-82119-148-0	02	1	1409-	●	●
234	SOCKET ASM; LICENSE PLATE LAMP THA	1-82119-148-0	02	1	1409-					●	●
234	SOCKET ASM; LICENSE PLATE LAMP EXC. REAR STEP BUMPER CHROME<V42> THA	1-82119-148-0	02	1	1409-			●	●
307	CORD ASM; LAMP LAMPS TAIL AND STOP DELUXE<T81> (A) THA	8-98250-079-0	01	1	1409-	●	●	●	●
307	CORD ASM; LAMP LAMPS TAIL AND STOP DELUXE<T81> (A) THA	8-98250-079-0	01	1	1409-	●	●	●	●
307	CORD ASM; LAMP (C) THA	8-98193-900-0	01	1	1409-	●	●	●	●
307	CORD ASM; LAMP EXC. LAMPS TAIL AND STOP DELUXE<T81> (B) THA	8-98193-896-0	01	1	1409-	●	●	●	●
307	CORD ASM; LAMP EXC. LAMPS TAIL AND STOP DELUXE<T81> (B) THA	8-98193-896-0	01	1	1409-	●	●	●	●
307	CORD ASM; LAMP REAR BODY DBL WALL CTR PULL<E63> (B) THA	8-98193-896-0	01	1	1409-					●	●
307	CORD ASM; LAMP REAR BODY DBL WALL CTR PULL<E63> (B) THA	8-98193-896-0	01	1	1409-					●	●
313	RUBBER & GASKET THA	8-98250-208-0	01	1	1409-	●	●	●	●

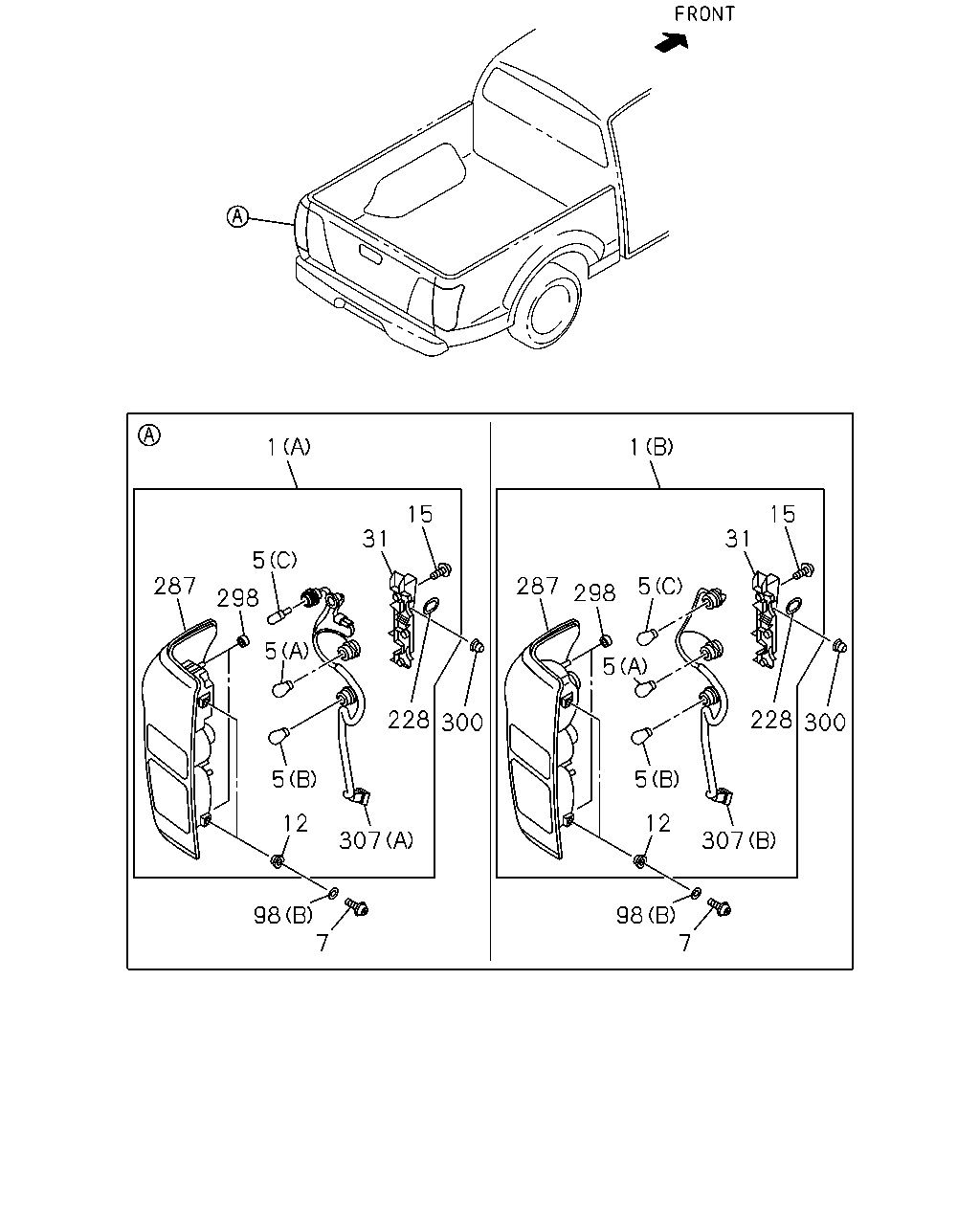

1 287 298 5 31 15 228 300 5 5 12 98 7 307 1 287 298 5 5 5 12 98 7 307 228 300 31 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	LAMP ASM; RR COMB LAMPS TAIL AND STOP DELUXE<T81> (A) THA	8-98222-281-2	01	1	1409-	●	●	●	●
1	LAMP ASM; RR COMB LAMPS TAIL AND STOP DELUXE<T81> (A) THA	8-98222-282-2	01	1	1409-	●	●	●	●
1	LAMP ASM; RR COMB EXC. LAMPS TAIL AND STOP DELUXE<T81> (B) THA	8-98125-402-3	01	1	1409-	●	●	●	●
1	LAMP ASM; RR COMB REAR BODY DBL WALL CTR PULL<E63> (B) THA	8-98125-402-3	01	1	1409-					●	●
1	LAMP ASM; RR COMB EXC. LAMPS TAIL AND STOP DELUXE<T81> (B) THA	8-98125-403-3	01	1	1409-	●	●	●	●
1	LAMP ASM; RR COMB REAR BODY DBL WALL CTR PULL<E63> (B) THA	8-98125-403-3	01	1	1409-					●	●
1	LAMP ASM; RR COMB REAR BODY DELETE<8HH> (C) IMA	8-97137-731-0	01	1	1409-					●	●
1	LAMP ASM; RR COMB REAR BODY DELETE<8HH> (C) IMA	8-97137-732-0	01	1	1409-					●	●
5	BULB; RR COMB LAMP LAMPS TAIL AND STOP DELUXE<T81> (C) TAIL 12V 5W THA	8-94124-595-0	01	1	1409-	●	●	●	●
5	BULB; RR COMB LAMP LAMPS TAIL AND STOP DELUXE<T81> (C) TAIL 12V 5W THA	8-94124-595-0	01	1	1409-	●	●	●	●
5	BULB; RR COMB LAMP (B) BACK-UP AND RR FOG 12V 21W THA	8-94124-074-0	01	1	1409-	●	●	●	●
5	BULB; RR COMB LAMP (B) BACK-UP AND RR FOG 12V 21W THA	8-94124-074-0	01	1	1409-	●	●	●	●
5	BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL<E63> (B) BACK-UP AND RR FOG 12V 21W THA	8-94124-074-0	01	1	1409-					●	●
5	BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL<E63> (B) BACK-UP AND RR FOG 12V 21W THA	8-94124-074-0	01	1	1409-					●	●
5	BULB; RR COMB LAMP (A) TURN SIGNAL 12V 21W THA	8-97179-967-0	01	1	1409-	●	●	●	●
5	BULB; RR COMB LAMP (A) TURN SIGNAL 12V 21W THA	8-97179-967-0	01	1	1409-	●	●	●	●
5	BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL<E63> (A) TURN SIGNAL 12V 21W THA	8-97179-967-0	01	1	1409-					●	●
5	BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL<E63> (A) TURN SIGNAL 12V 21W THA	8-97179-967-0	01	1	1409-					●	●
5	BULB; RR COMB LAMP REAR BODY DELETE<8HH> (D) BACK-UP AND TURN SIGNAL 12V 21W THA	8-94124-074-0	04	1	1409-					●	●
5	BULB; RR COMB LAMP REAR BODY DELETE<8HH> (E) STOP 12V 21/5W THA	8-94125-959-0	02	1	1409-					●	●
5	BULB; RR COMB LAMP EXC. LAMPS TAIL AND STOP DELUXE<T81> (C) TAIL AND STOP 12V 21/5W THA	8-94125-959-0	01	1	1409-	●	●	●	●
5	BULB; RR COMB LAMP EXC. LAMPS TAIL AND STOP DELUXE<T81> (C) TAIL AND STOP 12V 21/5W THA	8-94125-959-0	01	1	1409-	●	●	●	●
5	BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL<E63> (C) TAIL AND STOP 12V 21/5W THA	8-94125-959-0	01	1	1409-					●	●
5	BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL<E63> (C) TAIL AND STOP 12V 21/5W THA	8-94125-959-0	01	1	1409-					●	●
7	SCREW; RR COMB LAMP M5X14 TAPPING W/PL WASHER THA	0-74160-514-0	04	1	1409-1502	●	●	●	●	●	●
7	SCREW; RR COMB LAMP M5X14 TAPPING W/PL WASHER THA	0-74160-514-0	04	1	1503-	●	●	●	●
7	SCREW; RR COMB LAMP REAR BODY DBL WALL CTR PULL<E63> M5X14 TAPPING W/PL WASHER THA	0-74160-514-0	04	1	1503-					●	●
12	GROMMET; RR COMB LAMP THA	8-97349-413-0	02	1	1409-	●	●	●	●
12	GROMMET; RR COMB LAMP THA	8-97349-413-0	02	1	1409-	●	●	●	●
12	GROMMET; RR COMB LAMP REAR BODY DBL WALL CTR PULL<E63> THA	8-97349-413-0	02	1	1409-					●	●
12	GROMMET; RR COMB LAMP REAR BODY DBL WALL CTR PULL<E63> THA	8-97349-413-0	02	1	1409-					●	●
15	SCREW; RR COMB LAMP M4X12 TAPPING THA	8-97376-768-0	03	1	1409-	●	●	●	●
15	SCREW; RR COMB LAMP M4X12 TAPPING THA	8-97376-768-0	03	1	1409-	●	●	●	●
15	SCREW; RR COMB LAMP REAR BODY DBL WALL CTR PULL<E63> M4X12 TAPPING THA	8-97376-768-0	03	1	1409-					●	●
15	SCREW; RR COMB LAMP REAR BODY DBL WALL CTR PULL<E63> M4X12 TAPPING THA	8-97376-768-0	03	1	1409-					●	●
15	SCREW; RR COMB LAMP REAR BODY DELETE<8HH> M4X20 TAPPING STAINLESS IMA	0-71090-420-0	16	1	1409-					●	●
31	BRACKET; RR COMB LAMP THA	8-98193-892-0	01	1	1409-	●	●	●	●
31	BRACKET; RR COMB LAMP REAR BODY DBL WALL CTR PULL<E63> THA	8-98193-892-0	01	1	1409-					●	●
31	BRACKET; RR COMB LAMP THA	8-98193-893-0	01	1	1409-	●	●	●	●
31	BRACKET; RR COMB LAMP REAR BODY DBL WALL CTR PULL<E63> THA	8-98193-893-0	01	1	1409-					●	●
98	WASHER (B) D=16 THA	8-94427-941-0	04	1	1409-1502	●	●	●	●	●	●
98	WASHER (B) D=16 THA	8-94427-941-0	04	1	1503-	●	●	●	●
98	WASHER REAR BODY DBL WALL CTR PULL<E63> (B) D=16 THA	8-94427-941-0	04	1	1503-					●	●
98	WASHER (A) D=7.8X7.8 L=18 NATURAL IMA	8-94279-043-0	02	1	1409-	●	●	●	●
228	CLIP; COVER,RR COMB LAMP THA	8-97376-769-0	01	1	1409-	●	●	●	●
228	CLIP; COVER,RR COMB LAMP THA	8-97376-769-0	01	1	1409-	●	●	●	●
228	CLIP; COVER,RR COMB LAMP REAR BODY DBL WALL CTR PULL<E63> THA	8-97376-769-0	01	1	1409-					●	●
228	CLIP; COVER,RR COMB LAMP REAR BODY DBL WALL CTR PULL<E63> THA	8-97376-769-0	01	1	1409-					●	●
287	LAMP UNIT; RR COMB LAMPS TAIL AND STOP DELUXE<T81> THA	8-98235-560-0	01	1	1409-	●	●	●	●
287	LAMP UNIT; RR COMB LAMPS TAIL AND STOP DELUXE<T81> THA	8-98235-561-0	01	1	1409-	●	●	●	●
287	LAMP UNIT; RR COMB EXC. LAMPS TAIL AND STOP DELUXE<T81> THA	8-98131-706-0	01	1	1409-	●	●	●	●
287	LAMP UNIT; RR COMB REAR BODY DBL WALL CTR PULL<E63> THA	8-98131-706-0	01	1	1409-					●	●
287	LAMP UNIT; RR COMB EXC. LAMPS TAIL AND STOP DELUXE<T81> THA	8-98131-707-0	01	1	1409-	●	●	●	●
287	LAMP UNIT; RR COMB REAR BODY DBL WALL CTR PULL<E63> THA	8-98131-707-0	01	1	1409-					●	●
298	CAP; BREATHER,RR COMB LAMP THA	8-97289-148-0	02	1	1409-	●	●	●	●
298	CAP; BREATHER,RR COMB LAMP THA	8-97289-148-0	02	1	1409-	●	●	●	●
298	CAP; BREATHER,RR COMB LAMP REAR BODY DBL WALL CTR PULL<E63> THA	8-97289-148-0	02	1	1409-					●	●
298	CAP; BREATHER,RR COMB LAMP REAR BODY DBL WALL CTR PULL<E63> THA	8-97289-148-0	02	1	1409-					●	●
300	HOLDER; LAMP THA	8-97372-854-0	02	1	1409-1502	●	●	●	●	●	●
300	HOLDER; LAMP THA	8-97372-854-0	02	1	1503-	●	●	●	●
300	HOLDER; LAMP REAR BODY DBL WALL CTR PULL<E63> THA	8-97372-854-0	02	1	1503-					●	●
307	CORD ASM; LAMP LAMPS TAIL AND STOP DELUXE<T81> (A) THA	8-98250-079-0	01	1	1409-	●	●	●	●
307	CORD ASM; LAMP LAMPS TAIL AND STOP DELUXE<T81> (A) THA	8-98250-079-0	01	1	1409-	●	●	●	●
307	CORD ASM; LAMP (C) THA	8-98193-900-0	01	1	1409-	●	●	●	●
307	CORD ASM; LAMP EXC. LAMPS TAIL AND STOP DELUXE<T81> (B) THA	8-98193-896-0	01	1	1409-	●	●	●	●
307	CORD ASM; LAMP EXC. LAMPS TAIL AND STOP DELUXE<T81> (B) THA	8-98193-896-0	01	1	1409-	●	●	●	●
307	CORD ASM; LAMP REAR BODY DBL WALL CTR PULL<E63> (B) THA	8-98193-896-0	01	1	1409-					●	●
307	CORD ASM; LAMP REAR BODY DBL WALL CTR PULL<E63> (B) THA	8-98193-896-0	01	1	1409-					●	●

1 5 5 15 6 3 5 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	LAMP ASM; RR COMB LAMPS TAIL AND STOP DELUXE<T81> (A) THA	8-98222-281-2	01	1	1409-	●	●	●	●
1	LAMP ASM; RR COMB LAMPS TAIL AND STOP DELUXE<T81> (A) THA	8-98222-282-2	01	1	1409-	●	●	●	●
1	LAMP ASM; RR COMB EXC. LAMPS TAIL AND STOP DELUXE<T81> (B) THA	8-98125-402-3	01	1	1409-	●	●	●	●
1	LAMP ASM; RR COMB REAR BODY DBL WALL CTR PULL<E63> (B) THA	8-98125-402-3	01	1	1409-					●	●
1	LAMP ASM; RR COMB EXC. LAMPS TAIL AND STOP DELUXE<T81> (B) THA	8-98125-403-3	01	1	1409-	●	●	●	●
1	LAMP ASM; RR COMB REAR BODY DBL WALL CTR PULL<E63> (B) THA	8-98125-403-3	01	1	1409-					●	●
1	LAMP ASM; RR COMB REAR BODY DELETE<8HH> (C) IMA	8-97137-731-0	01	1	1409-					●	●
1	LAMP ASM; RR COMB REAR BODY DELETE<8HH> (C) IMA	8-97137-732-0	01	1	1409-					●	●
3	GASKET; RR COMB LAMP REAR BODY DELETE<8HH> IMA	5-82236-001-0	01	1	1409-					●	●
3	GASKET; RR COMB LAMP REAR BODY DELETE<8HH> IMA	5-82236-002-0	01	1	1409-					●	●
5	BULB; RR COMB LAMP LAMPS TAIL AND STOP DELUXE<T81> (C) TAIL 12V 5W THA	8-94124-595-0	01	1	1409-	●	●	●	●
5	BULB; RR COMB LAMP LAMPS TAIL AND STOP DELUXE<T81> (C) TAIL 12V 5W THA	8-94124-595-0	01	1	1409-	●	●	●	●
5	BULB; RR COMB LAMP (B) BACK-UP AND RR FOG 12V 21W THA	8-94124-074-0	01	1	1409-	●	●	●	●
5	BULB; RR COMB LAMP (B) BACK-UP AND RR FOG 12V 21W THA	8-94124-074-0	01	1	1409-	●	●	●	●
5	BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL<E63> (B) BACK-UP AND RR FOG 12V 21W THA	8-94124-074-0	01	1	1409-					●	●
5	BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL<E63> (B) BACK-UP AND RR FOG 12V 21W THA	8-94124-074-0	01	1	1409-					●	●
5	BULB; RR COMB LAMP (A) TURN SIGNAL 12V 21W THA	8-97179-967-0	01	1	1409-	●	●	●	●
5	BULB; RR COMB LAMP (A) TURN SIGNAL 12V 21W THA	8-97179-967-0	01	1	1409-	●	●	●	●
5	BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL<E63> (A) TURN SIGNAL 12V 21W THA	8-97179-967-0	01	1	1409-					●	●
5	BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL<E63> (A) TURN SIGNAL 12V 21W THA	8-97179-967-0	01	1	1409-					●	●
5	BULB; RR COMB LAMP REAR BODY DELETE<8HH> (D) BACK-UP AND TURN SIGNAL 12V 21W THA	8-94124-074-0	04	1	1409-					●	●
5	BULB; RR COMB LAMP REAR BODY DELETE<8HH> (E) STOP 12V 21/5W THA	8-94125-959-0	02	1	1409-					●	●
5	BULB; RR COMB LAMP EXC. LAMPS TAIL AND STOP DELUXE<T81> (C) TAIL AND STOP 12V 21/5W THA	8-94125-959-0	01	1	1409-	●	●	●	●
5	BULB; RR COMB LAMP EXC. LAMPS TAIL AND STOP DELUXE<T81> (C) TAIL AND STOP 12V 21/5W THA	8-94125-959-0	01	1	1409-	●	●	●	●
5	BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL<E63> (C) TAIL AND STOP 12V 21/5W THA	8-94125-959-0	01	1	1409-					●	●
5	BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL<E63> (C) TAIL AND STOP 12V 21/5W THA	8-94125-959-0	01	1	1409-					●	●
6	LENS; RR COMB LAMP REAR BODY DELETE<8HH> IMA	5-82235-001-0	01	1	1409-					●	●
6	LENS; RR COMB LAMP REAR BODY DELETE<8HH> IMA	5-82235-002-0	01	1	1409-					●	●
9	NUT; LAMP,RR COMB REAR BODY DELETE<8HH> M5 FLANGE THA	8-98049-363-0	08	1	1409-					●	●
15	SCREW; RR COMB LAMP M4X12 TAPPING THA	8-97376-768-0	03	1	1409-	●	●	●	●
15	SCREW; RR COMB LAMP M4X12 TAPPING THA	8-97376-768-0	03	1	1409-	●	●	●	●
15	SCREW; RR COMB LAMP REAR BODY DBL WALL CTR PULL<E63> M4X12 TAPPING THA	8-97376-768-0	03	1	1409-					●	●
15	SCREW; RR COMB LAMP REAR BODY DBL WALL CTR PULL<E63> M4X12 TAPPING THA	8-97376-768-0	03	1	1409-					●	●
15	SCREW; RR COMB LAMP REAR BODY DELETE<8HH> M4X20 TAPPING STAINLESS IMA	0-71090-420-0	16	1	1409-					●	●
