◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51579 - TFR/TFS THAILAND ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#148366) — 61 parça

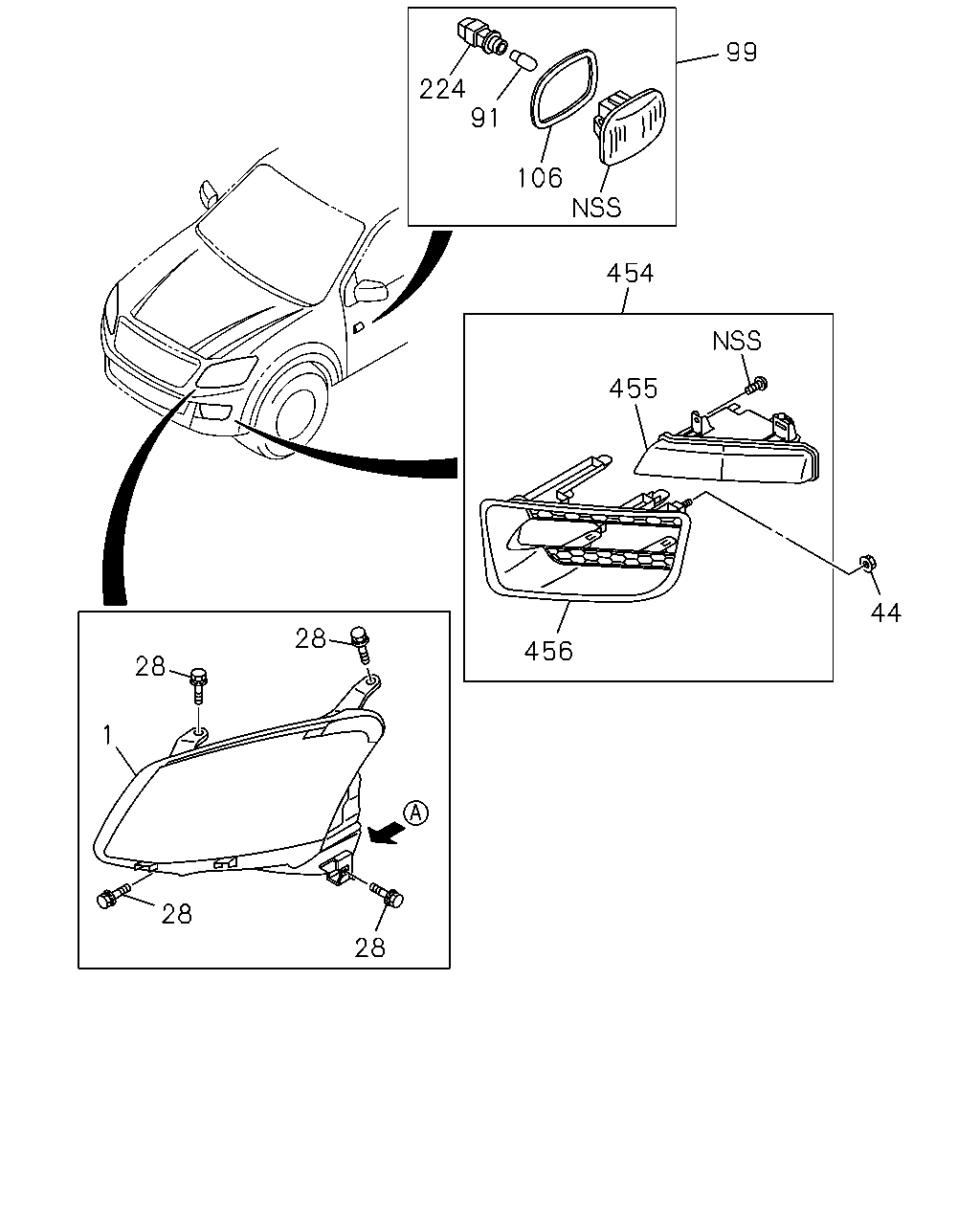

çizim 444412
224 106 91 99 454 455 44 456 28 28 1 28 28
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> THA 		8-98222-275-2 01 1 1409- ● ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> THA 		8-98222-276-2 01 1 1409- ● ● ● ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS PROJECTOR BEAM<8LH> THA 		8-98125-391-6 01 1 1409- ● ● ● ●
1 LAMP ASM; HEAD
THA 		8-98125-391-6 01 1 1409- ● ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS PROJECTOR BEAM<8LH> THA 		8-98125-392-6 01 1 1409- ● ● ● ●
1 LAMP ASM; HEAD
THA 		8-98125-392-6 01 1 1409- ● ●
28 BOLT; HEADLAMP
M6X18 TAPPING W/LK&PL WASHER THA 		8-98062-140-0 08 1 1409- ● ● ● ● ● ●
44 NUT; FOG LAMP
LAMP SYSTEM DAYTIME RUNNING LED TYPE<8PQ> M6 FLANGE IMA 		8-98055-704-0 04 1 1409- ● ● ● ●
91 BULB; SIDE TURN SIGNAL
DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2>, DOOR MIRROR BLACK<RT9> 12V 5W THA 		8-97310-952-0 02 1 1409- ● ●
91 BULB; SIDE TURN SIGNAL
DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2> 12V 5W THA 		8-97310-952-0 02 1 1409- ● ●
91 BULB; SIDE TURN SIGNAL
12V 5W THA 		8-97310-952-0 02 1 1409- ●
99 LAMP; SIDE FLASHER
DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2>, DOOR MIRROR BLACK<RT9> THA 		8-98084-153-0 02 1 1409- ● ●
99 LAMP; SIDE FLASHER
DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2> THA 		8-98084-153-0 02 1 1409- ● ●
99 LAMP; SIDE FLASHER
THA 		8-98084-153-0 02 1 1409- ●
106 GASKET; SIDE TURN SIGNAL
DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2>, DOOR MIRROR BLACK<RT9> THA 		8-97333-420-0 02 1 1409- ● ●
106 GASKET; SIDE TURN SIGNAL
DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2> THA 		8-97333-420-0 02 1 1409- ● ●
106 GASKET; SIDE TURN SIGNAL
THA 		8-97333-420-0 02 1 1409- ●
224 SOCKET; SIDE FLASHER LAMP
DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2>, DOOR MIRROR BLACK<RT9> THA 		8-97310-953-0 02 1 1409- ● ●
224 SOCKET; SIDE FLASHER LAMP
DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2> THA 		8-97310-953-0 02 1 1409- ● ●
224 SOCKET; SIDE FLASHER LAMP
THA 		8-97310-953-0 02 1 1409- ●
454 LAMP ASM; FOG & DRL
LAMP SYSTEM DAYTIME RUNNING LED TYPE<8PQ> THA 		8-98222-285-2 01 1 1409- ● ● ● ●
454 LAMP ASM; FOG & DRL
LAMP SYSTEM DAYTIME RUNNING LED TYPE<8PQ> THA 		8-98222-286-2 01 1 1409- ● ● ● ●
455 LAMP ASM
LAMP SYSTEM DAYTIME RUNNING LED TYPE<8PQ> THA 		8-98240-047-2 01 1 1409- ● ● ● ●
455 LAMP ASM
LAMP SYSTEM DAYTIME RUNNING LED TYPE<8PQ> THA 		8-98240-048-2 01 1 1409- ● ● ● ●
456 BEZEL ASM
LAMP SYSTEM DAYTIME RUNNING LED TYPE<8PQ> THA 		8-98240-049-0 01 1 1409- ● ● ● ●
456 BEZEL ASM
LAMP SYSTEM DAYTIME RUNNING LED TYPE<8PQ> THA 		8-98240-050-0 01 1 1409- ● ● ● ●

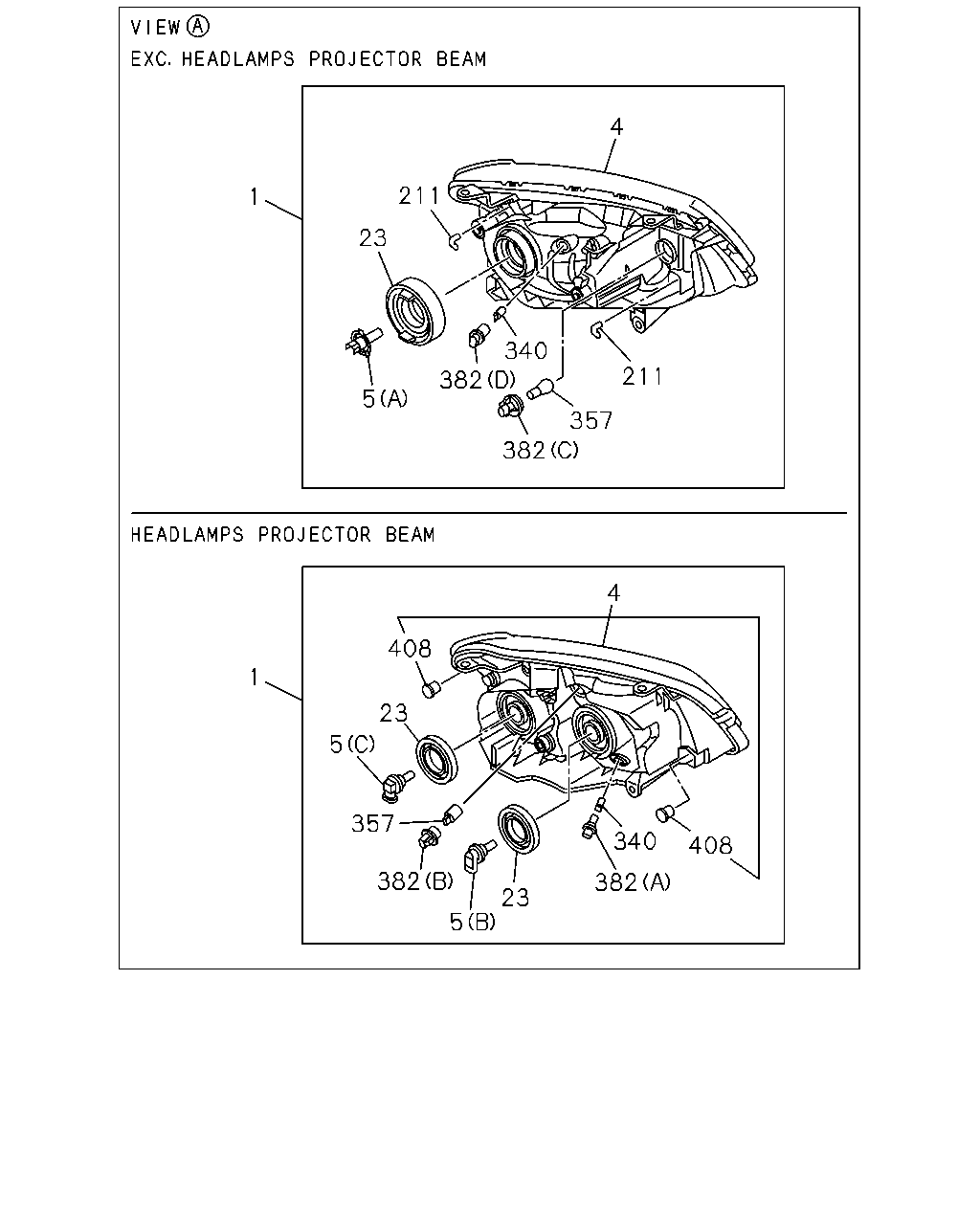

çizim 444444
4 211 23 1 340 382 211 357 382 5 1 408 4 23 5 357 382 5 23 382 408 340
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> THA 		8-98222-275-2 01 1 1409- ● ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> THA 		8-98222-276-2 01 1 1409- ● ● ● ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS PROJECTOR BEAM<8LH> THA 		8-98125-391-6 01 1 1409- ● ● ● ●
1 LAMP ASM; HEAD
THA 		8-98125-391-6 01 1 1409- ● ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS PROJECTOR BEAM<8LH> THA 		8-98125-392-6 01 1 1409- ● ● ● ●
1 LAMP ASM; HEAD
THA 		8-98125-392-6 01 1 1409- ● ●
4 HEADLAMP UNIT
HEADLAMPS PROJECTOR BEAM<8LH> THA 		8-98253-037-1 01 1 1409- ● ● ● ●
4 HEADLAMP UNIT
HEADLAMPS PROJECTOR BEAM<8LH> THA 		8-98253-038-1 01 1 1409- ● ● ● ●
4 HEADLAMP UNIT
EXC. HEADLAMPS PROJECTOR BEAM<8LH> THA 		8-98186-215-0 01 1 1409- ● ● ● ●
4 HEADLAMP UNIT
THA 		8-98186-215-0 01 1 1409- ● ●
4 HEADLAMP UNIT
EXC. HEADLAMPS PROJECTOR BEAM<8LH> THA 		8-98186-216-0 01 1 1409- ● ● ● ●
4 HEADLAMP UNIT
THA 		8-98186-216-0 01 1 1409- ● ●
5 BULB; HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (B) 12V 60W THA 		8-97289-997-0 02 1 1409- ● ● ● ●
5 BULB; HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (C) 12V 55W THA 		8-98160-205-0 02 1 1409- ● ● ● ●
5 BULB; HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (A) 12V 55/60W THA 		8-98186-377-0 02 1 1409- ● ● ● ●
5 BULB; HEADLAMP
(A) 12V 55/60W THA 		8-98186-377-0 02 1 1409- ● ●
23 COVER; BULB,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> THA 		8-97675-961-0 04 1 1409- ● ● ● ●
23 COVER; BULB,HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> THA 		8-97332-448-0 02 1 1409- ● ● ● ●
23 COVER; BULB,HEADLAMP
THA 		8-97332-448-0 02 1 1409- ● ●
211 TUBE; HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> THA 		8-97333-983-0 04 1 1409- ● ● ● ●
211 TUBE; HEADLAMP
THA 		8-97333-983-0 04 1 1409- ● ●
340 BULB; POSITION
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 12V 5W THA 		8-98257-815-0 02 1 1409- ● ● ● ●
340 BULB; POSITION
12V 5W THA 		8-98257-815-0 02 1 1409- ● ●
340 BULB; POSITION
HEADLAMPS PROJECTOR BEAM<8LH> 12V 5W THA 		8-94124-595-0 02 1 1409- ● ● ● ●
357 BULB; TURN SIGNAL
HEADLAMPS PROJECTOR BEAM<8LH> 12V 21W THA 		8-98160-206-0 02 1 1409- ● ● ● ●
357 BULB; TURN SIGNAL
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 12V 21W THA 		8-97179-967-0 02 1 1409- ● ● ● ●
357 BULB; TURN SIGNAL
12V 21W THA 		8-97179-967-0 02 1 1409- ● ●
382 PLUG; SOCKET,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (A) THA 		8-98012-788-0 02 1 1409- ● ● ● ●
382 PLUG; SOCKET,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (B) THA 		8-98160-270-1 02 1 1409- ● ● ● ●
382 PLUG; SOCKET,HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (D) THA 		8-97332-447-0 02 1 1409- ● ● ● ●
382 PLUG; SOCKET,HEADLAMP
(D) THA 		8-97332-447-0 02 1 1409- ● ●
382 PLUG; SOCKET,HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (C) THA 		8-98206-114-0 02 1 1409- ● ● ● ●
382 PLUG; SOCKET,HEADLAMP
(C) THA 		8-98206-114-0 02 1 1409- ● ●
408 CAP; BREATHER,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> THA 		8-98186-375-0 04 1 1409-1410 ● ● ● ●
408 CAP; BREATHER,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> THA 		8-98300-478-0 04 1 1411- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
