◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51579 - TFR/TFS THAILAND ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-43 - SUN VISOR AND ASSIST GRIP ▶
7-43 — SUN VISOR AND ASSIST GRIP (#148361) — 50 parça

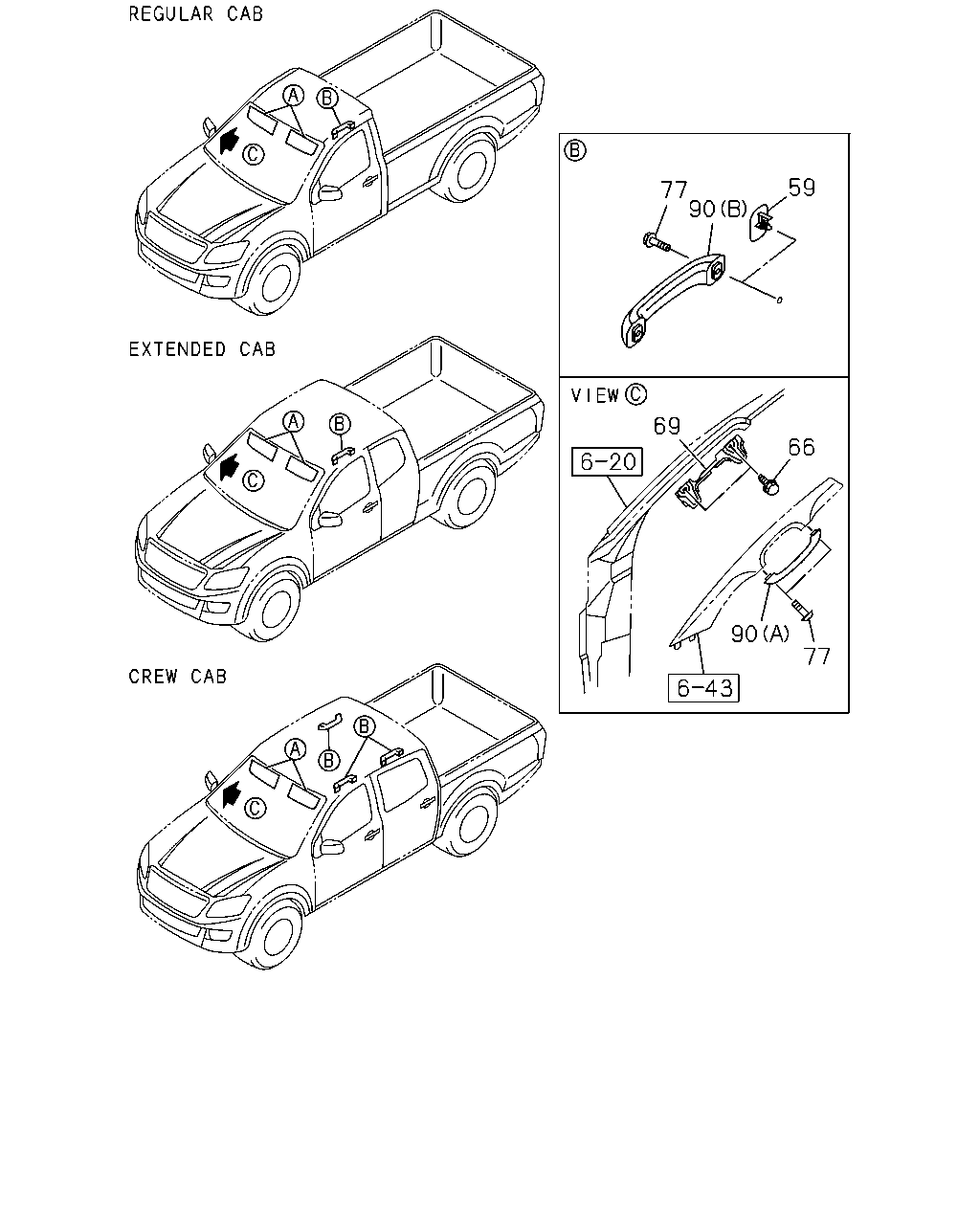

çizim 444141
77 90 59 66 69 90 77
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
59 COVER; ASSIST GRIP
INTERIOR COLOR UPR & LWR DARK GRAY<154> BLACK THA 		8-97423-934-0 02 1 1409- ● ●
59 COVER; ASSIST GRIP
INTERIOR COLOR UPR & LWR DARK GRAY<154> EXC. ASSIST HANDLE<E28> BLACK THA 		8-97423-934-0 02 1 1409- ● ●
59 COVER; ASSIST GRIP
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> GRAY THA 		8-97416-700-0 02 1 1409- ● ●
59 COVER; ASSIST GRIP
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> EXC. ASSIST HANDLE<E28> GRAY THA 		8-97416-700-0 02 1 1409- ● ●
59 COVER; ASSIST GRIP
GRAY THA 		8-97416-700-0 02 1 1409- ● ● ● ●
59 COVER; ASSIST GRIP
EXC. ASSIST HANDLE<E28> GRAY THA 		8-97416-700-0 02 1 1409- ● ● ● ●
66 BOLT; ASSIST GRIP BRKT
HIGH RIDE SUSPENSION<7YC> M6X16 FLANGE THA 		8-98050-320-0 04 1 1409- ● ●
66 BOLT; ASSIST GRIP BRKT
M6X16 FLANGE THA 		8-98050-320-0 04 1 1409- ● ● ●
69 BRACKET; ASSIST GRIP
HIGH RIDE SUSPENSION<7YC> THA 		8-98103-347-3 01 1 1409- ● ●
69 BRACKET; ASSIST GRIP
THA 		8-98103-347-3 01 1 1409- ● ● ●
69 BRACKET; ASSIST GRIP
HIGH RIDE SUSPENSION<7YC> THA 		8-98103-348-3 01 1 1409- ● ●
69 BRACKET; ASSIST GRIP
THA 		8-98103-348-3 01 1 1409- ● ● ●
77 SCREW; ASSIST GRIP
ASSIST HANDLE<E28> M6X25 THA 		0-36230-625-0 02 1 1409- ● ● ● ● ● ●
77 SCREW; ASSIST GRIP
HIGH RIDE SUSPENSION<7YC> M6X25 THA 		0-36230-625-0 04 1 1409- ● ●
77 SCREW; ASSIST GRIP
M6X25 THA 		0-36230-625-0 04 1 1409- ● ● ● ●
77 SCREW; ASSIST GRIP
M6X25 THA 		0-36230-625-0 04 1 1409- ●
90 GRIP; ASSIST,ROOF
INTERIOR COLOR DARK GRAY<117> HIGH RIDE SUSPENSION<7YC> (A) GRAY THA 		8-97416-698-4 02 1 1409- ● ●
90 GRIP; ASSIST,ROOF
(A) GRAY THA 		8-97416-698-4 02 1 1409- ● ● ●
90 GRIP; ASSIST,ROOF
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> ASSIST HANDLE<E28> (B) FRONT GRAY THA 		8-97416-698-4 01 1 1409- ● ●
90 GRIP; ASSIST,ROOF
ASSIST HANDLE<E28> (B) FRONT GRAY THA 		8-97416-698-4 01 1 1409- ● ● ● ●
90 GRIP; ASSIST,ROOF
INTERIOR COLOR UPR & LWR DARK GRAY<154> ASSIST HANDLE<E28> (B) FRONT BLACK THA 		8-97423-931-4 01 1 1409- ● ●
90 GRIP; ASSIST,ROOF
INTERIOR COLOR UPR & LWR DARK GRAY<154> HIGH RIDE SUSPENSION<7YC> (A) BLACK THA 		8-97423-931-4 02 1 1409- ● ●
90 GRIP; ASSIST,ROOF
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> (B) REAR GRAY THA 		8-97418-299-1 01 1 1409- ●
90 GRIP; ASSIST,ROOF
(B) REAR GRAY THA 		8-97418-299-1 01 1 1409- ●
90 GRIP; ASSIST,ROOF
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> (B) REAR GRAY THA 		8-97418-300-1 01 1 1409- ●
90 GRIP; ASSIST,ROOF
(B) REAR GRAY THA 		8-97418-300-1 01 1 1409- ●
90 GRIP; ASSIST,ROOF
INTERIOR COLOR UPR & LWR DARK GRAY<154> (B) REAR BLACK THA 		8-97423-932-1 01 1 1409- ●
90 GRIP; ASSIST,ROOF
INTERIOR COLOR UPR & LWR DARK GRAY<154> (B) REAR BLACK THA 		8-97423-933-1 01 1 1409- ●

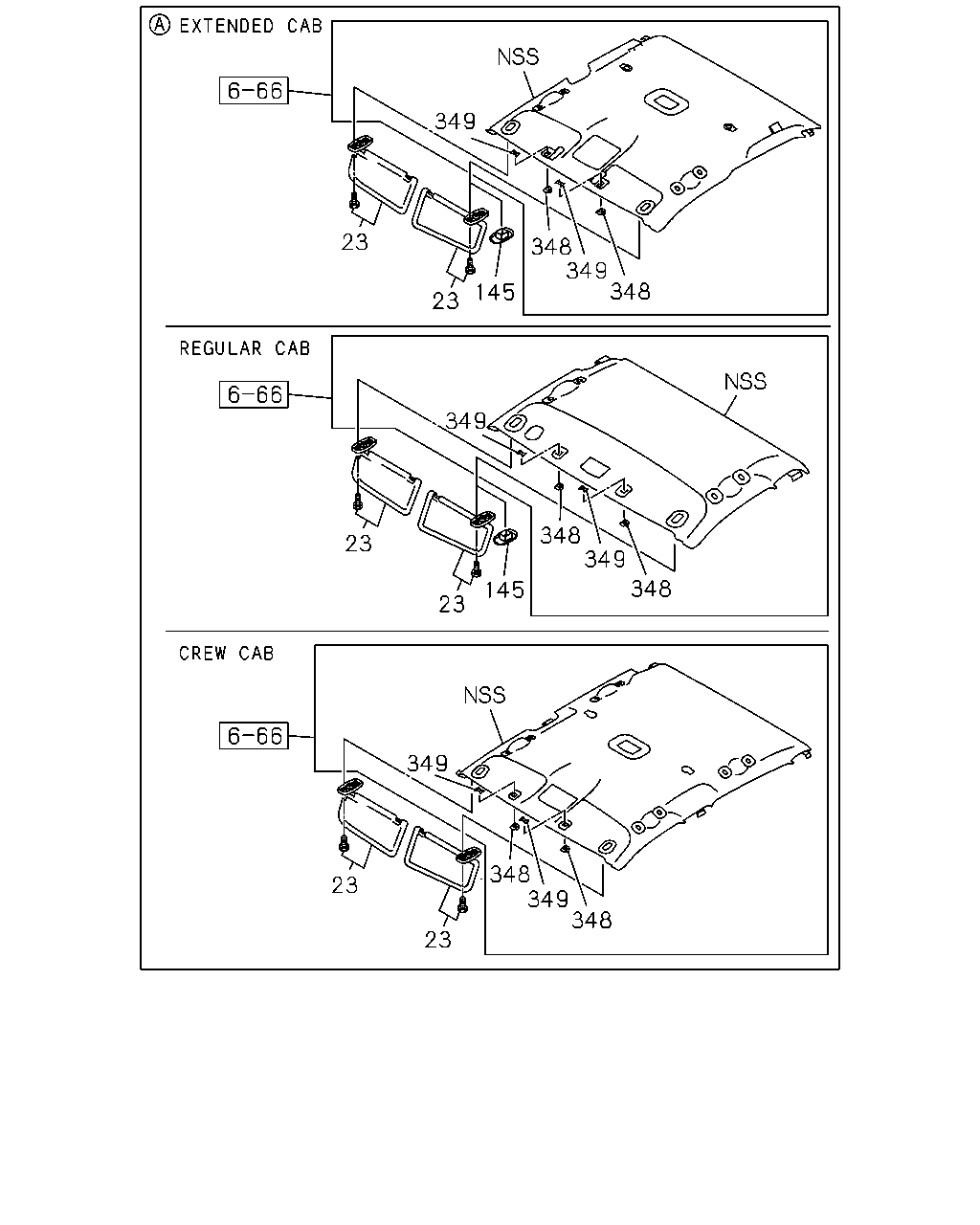

çizim 444167
349 23 23 145 348 349 348 349 23 23 145 348 349 348 349 23 23 348 349 348
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
23 SUN VISOR
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> SUNVISOR PASSENGER SIDE<D20> SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> GRAY THA 		8-97416-686-3 01 1 1409- ● ● ● ●
23 SUN VISOR
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> SUNVISOR PASSENGER SIDE<D20> EXC. SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> GRAY THA 		8-97429-637-0 01 1 1409- ● ● ● ● ●
23 SUN VISOR
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> GRAY THA 		8-97416-683-2 01 1 1409- ● ●
23 SUN VISOR
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> EXC. SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> GRAY THA 		8-97416-682-2 01 1 1409- ● ●
23 SUN VISOR
GRAY THA 		8-97416-682-2 01 1 1409- ●
23 SUN VISOR
INTERIOR COLOR UPR & LWR DARK GRAY<154> SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> BLACK THA 		8-97423-927-3 01 1 1409- ● ●
23 SUN VISOR
INTERIOR COLOR UPR & LWR DARK GRAY<154> SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> BLACK THA 		8-97423-926-2 01 1 1409- ● ●
23 SUN VISOR
GRAY THA 		8-97416-687-2 01 1 1409- ● ● ●
145 PLUG; HOLE
INTERIOR COLOR DARK GRAY<117> EXC. SUNVISOR PASSENGER SIDE<D20> GRAY THA 		8-97416-689-1 01 1 1409- ●
145 PLUG; HOLE
EXC. SUNVISOR PASSENGER SIDE<D20> GRAY THA 		8-97416-689-1 01 1 1409- ●
348 RETAINER; SUNSHADE
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM CUSTOM<UW6> GRAY THA 		8-97403-990-0 02 1 1409- ●
348 RETAINER; SUNSHADE
INTERIOR COLOR DARK GRAY<117> EXC. 6-SPEAKER SYSTEM CUSTOM<UW6> GRAY THA 		8-97403-990-0 02 1 1409- ●
348 RETAINER; SUNSHADE
GRAY THA 		8-97403-990-0 02 1 1409- ● ● ●
348 RETAINER; SUNSHADE
INTERIOR COLOR DARK GRAY<117> HEADER CONSOLE<DK6> EXC. 6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87> GRAY THA 		8-97403-990-0 02 1 1409- ●
348 RETAINER; SUNSHADE
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> EXC. HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87> GRAY THA 		8-97403-990-0 02 1 1409- ●
348 RETAINER; SUNSHADE
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87> GRAY THA 		8-97403-990-0 02 1 1409- ●
348 RETAINER; SUNSHADE
EXC. HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6> GRAY THA 		8-97403-990-0 02 1 1409- ●
348 RETAINER; SUNSHADE
HEADER CONSOLE<DK6> GRAY THA 		8-97403-990-0 02 1 1409- ●
348 RETAINER; SUNSHADE
INTERIOR COLOR UPR & LWR DARK GRAY<154> HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM CUSTOM<UW6> BLACK THA 		8-97423-949-0 02 1 1409-1503 ●
348 RETAINER; SUNSHADE
INTERIOR COLOR UPR & LWR DARK GRAY<154> HEADER CONSOLE<DK6> BLACK THA 		8-97423-949-0 02 1 1409-1503 ●
348 RETAINER; SUNSHADE
INTERIOR COLOR UPR & LWR DARK GRAY<154> HEADER CONSOLE<DK6> BLACK THA 		8-97423-949-0 02 1 1504- ● ●
349 CLIP; RETAINER SUNSHADE
THA 		8-98039-903-0 02 1 1409- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
