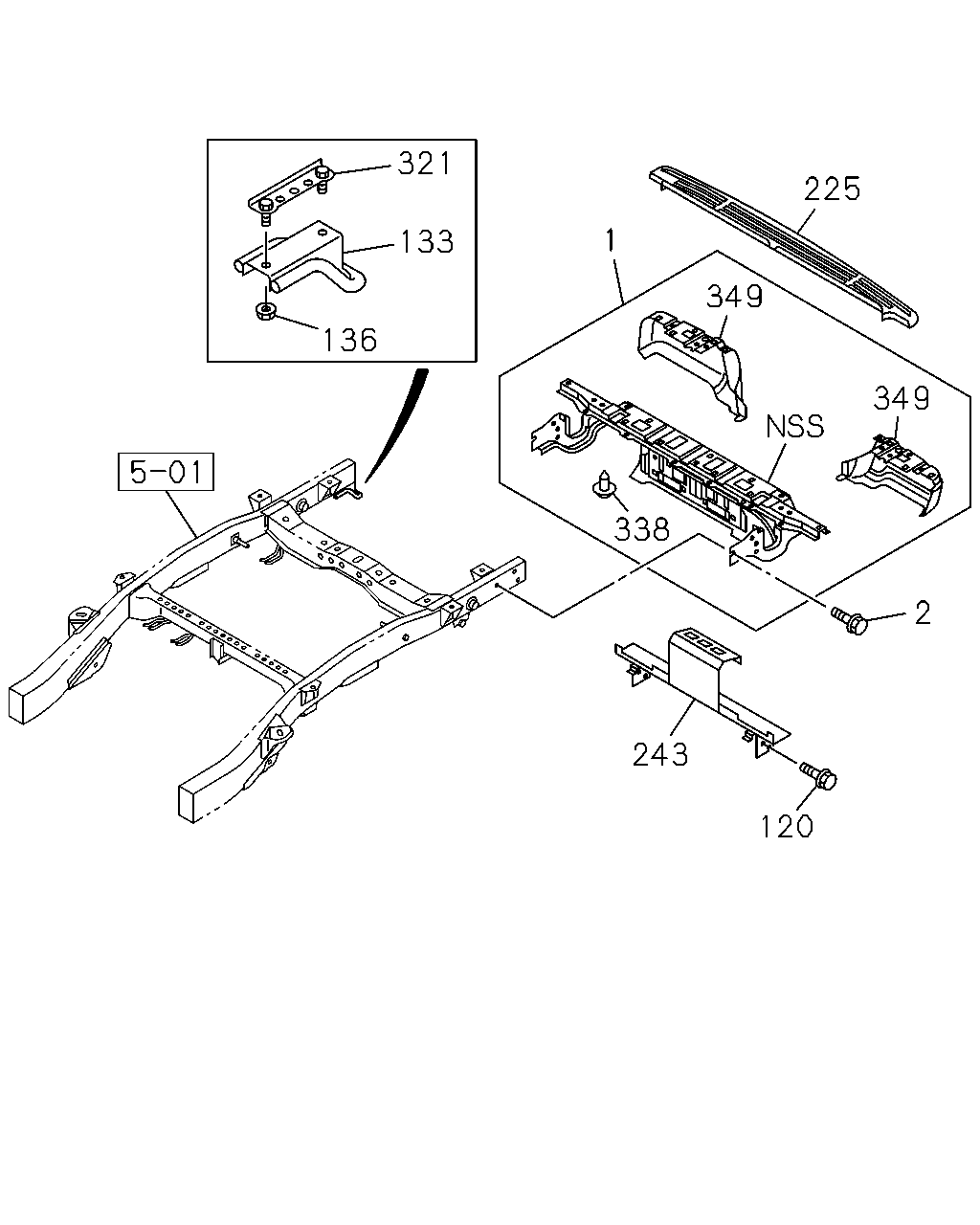

6-90 — REAR BUMPER (#148355) — 14 parça

321 133 136 1 225 349 349 2 120 243 338

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	BUMPER; RR REAR STEP BUMPER CHROME<V42> PLATED THA	8-98153-274-4	01	1	1409-	●	●	●	●
1	BUMPER; RR REAR STEP BUMPER PAINTED<V43> PRIMER THA	8-98223-491-0	01	1	1409-	●	●
2	BOLT; BACK BAR REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> M12X30 THA	8-98062-142-0	06	1	1409-	●	●
2	BOLT; BACK BAR REAR STEP BUMPER CHROME<V42> M12X30 THA	8-98062-142-0	06	1	1409-			●	●
120	BOLT REAR BODY DELETE<8HH> M12X30 FLANGE THA	0-28661-230-0	02	1	1409-					●	●
133	HOOK TOW HOOK RR ONLY<7TK> THA	8-98107-434-0	01	1	1409-	●	●	●	●	●	●
136	NUT; HOOK TOW HOOK RR ONLY<7TK> M10 FLANGE THA	0-91180-210-0	02	1	1409-	●	●	●	●	●	●
225	PAD; STEP,RR BUMPER REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> THA	8-98102-359-2	01	1	1409-	●	●
225	PAD; STEP,RR BUMPER REAR STEP BUMPER CHROME<V42> THA	8-98102-359-2	01	1	1409-			●	●
243	BRACKET REAR BODY DELETE<8HH> THA	8-98202-598-1	01	1	1409-					●	●
321	BRACKET; HOOK TOW HOOK RR ONLY<7TK> THA	8-98123-937-0	01	1	1409-	●	●	●	●	●	●
338	PIN; PUSH BODY COLOR NAUTILUS BLUE MICA<521>,BODY COLOR COSMIC BLACK MICA<523>,BODY COLOR SPLASH WHITE<527>,BODY COLOR TITANIUM SILVER MET<529>,BODY COLOR MINERAL GRAY MET<530>,BODY COLOR SILKY WHITE PEARL<531>,BODY COLOR ASH BEIGE MET<541> ,BODY COLOR FJORD BLUE MET<545>,BODY COLOR VENETIAN RED MICA<546> REAR STEP BUMPER PAINTED<V43> THA	8-97352-595-0	02	1	1409-	●	●
349	SHELL; RR BUMPER REAR STEP BUMPER CHROME<V42> THA	8-98238-273-0	01	1	1409-	●	●	●	●
349	SHELL; RR BUMPER REAR STEP BUMPER CHROME<V42> THA	8-98238-274-0	01	1	1409-	●	●	●	●
