Isuzu WW
▶
PICKUP
▶
TFR
▶
51579 - TFR/TFS THAILAND
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-80 - BACK PANEL
▶

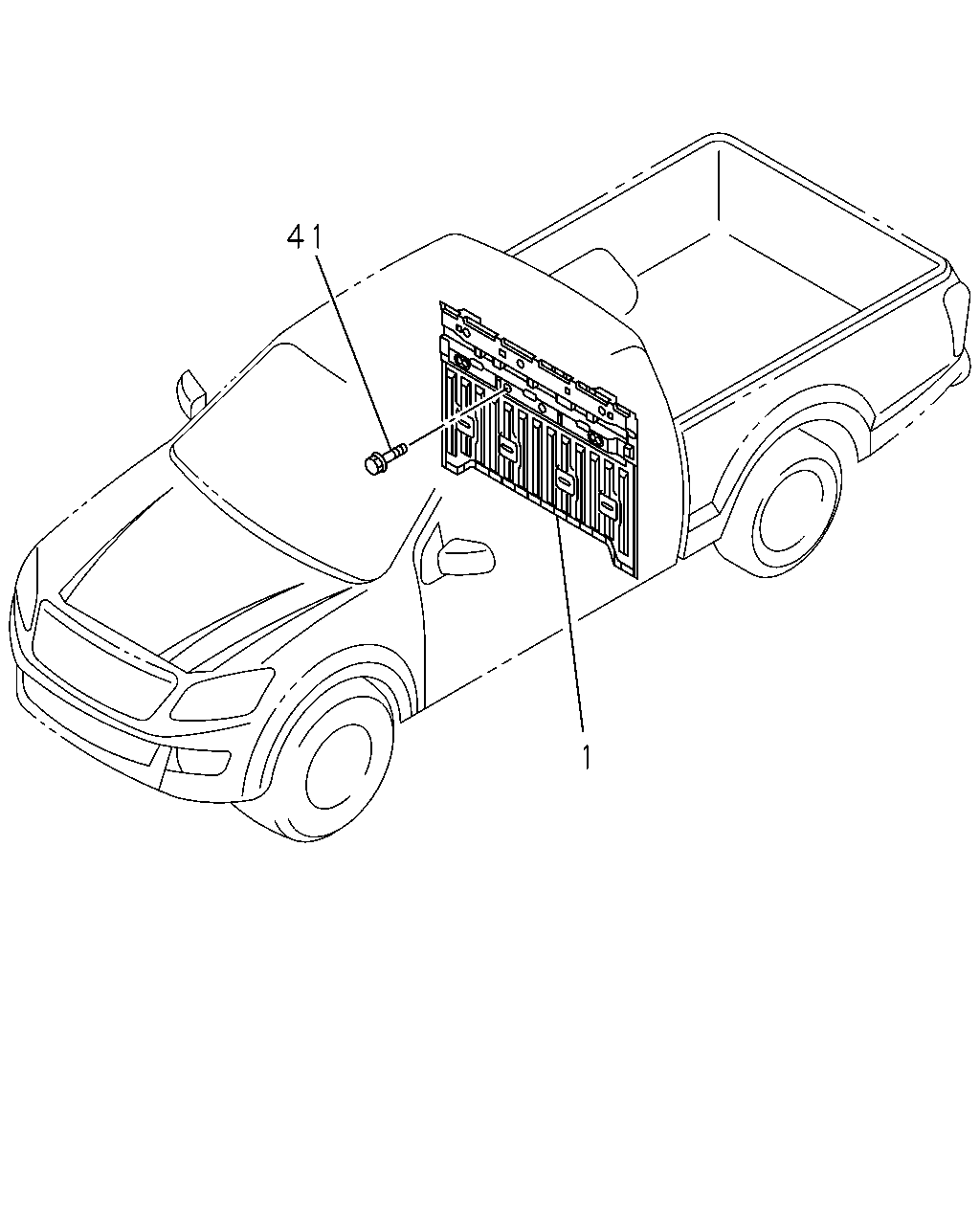

6-80 — BACK PANEL
(#148351) — 9 parça
Tümü
A - TFB5CF
B - TFS5CF
C - TFB5SF
D - TFS5SF
E - TFB5WF
F - TFS5WF
41
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
1
PANEL; BACK OUTER
THA
8-98103-272-1
01
1
1409-
●
●
1
PANEL; BACK OUTER
INTERIOR BASIC<RBA> THA
8-98234-973-0
01
1
1409-
●
1
PANEL; BACK OUTER
THA
8-98234-973-0
01
1
1409-
●
1
PANEL; BACK OUTER
INTERIOR DELUXE<RBB> THA
8-98103-271-2
01
1
1409-
●
1
PANEL; BACK OUTER
INTERIOR DELUXE<RBB>,INTERIOR CUSTOM<RBD> PASSIVE ENTRY AND START SYSTEM<AP3> THA
8-98271-087-1
01
1
1409-
●
1
PANEL; BACK OUTER
PASSIVE ENTRY AND START SYSTEM<AP3> THA
8-98271-087-1
01
1
1409-
●
1
PANEL; BACK OUTER
INTERIOR DELUXE<RBB>,INTERIOR CUSTOM<RBD> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA
8-98271-089-1
01
1
1409-
●
1
PANEL; BACK OUTER
EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA
8-98271-089-1
01
1
1409-
●
41
BOLT
M6X12 FLANGE THA
0-28050-612-0
04
1
1409-
●
●
●
●
