◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51579 - TFR/TFS THAILAND ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#148347) — 99 parça

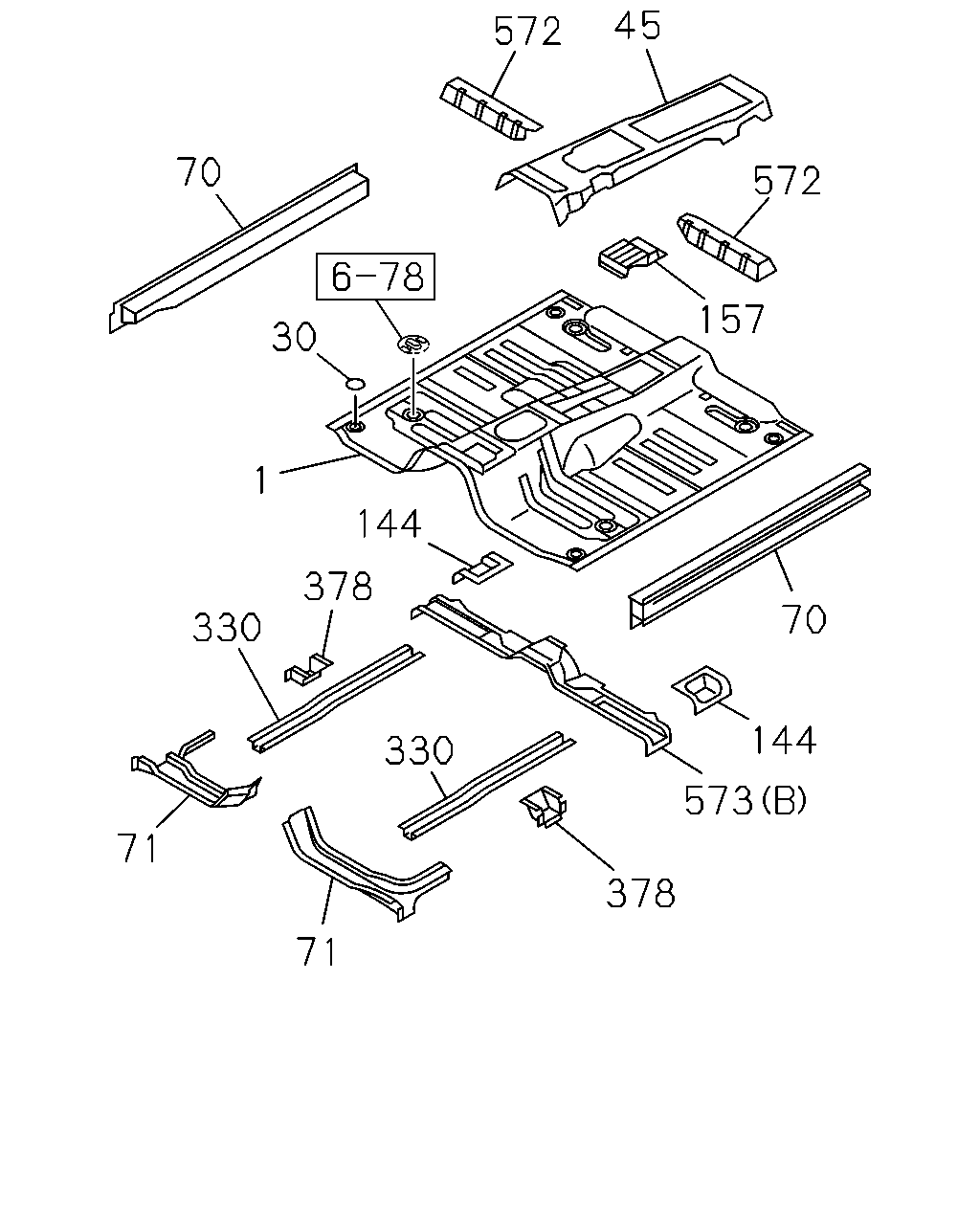

çizim 444096
45 572 157 70 572 30 1 378 330 330 71 71 378 573 70 144 144
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 PANEL; FLOOR
THA 		8-98101-040-6 01 1 1409- ● ●
1 PANEL; FLOOR
THA 		8-98103-921-7 01 1 1409- ● ●
1 PANEL; FLOOR
THA 		8-98199-516-0 01 1 1409- ● ●
30 GROMMET; CAB MTG RAIL
OD=59 T=9 THA 		8-98202-803-0 04 1 1409-1505 ● ● ● ●
30 GROMMET; CAB MTG RAIL
OD=59 T=9 THA 		8-98202-803-0 04 1 1506- ● ● ● ●
30 GROMMET; CAB MTG RAIL
OD=59 T=9 THA 		8-98202-803-0 06 1 1409- ● ●
45 REINFORCEMENT; TUNNEL,FRT
DRIVER SIDE FOOT REST<7NU> THA 		8-98101-035-8 01 1 1409- ● ● ● ●
45 REINFORCEMENT; TUNNEL,FRT
EXC. DRIVER SIDE FOOT REST<7NU> THA 		8-98101-017-6 01 1 1409- ●
45 REINFORCEMENT; TUNNEL,FRT
DRIVER SIDE FOOT REST<7NU> THA 		8-98104-022-7 01 1 1409- ●
45 REINFORCEMENT; TUNNEL,FRT
EXC. DRIVER SIDE FOOT REST<7NU> THA 		8-98104-200-5 01 1 1409- ● ●
70 PANEL; ROCKER INNER
THA 		8-98101-006-5 01 1 1409- ● ●
70 PANEL; ROCKER INNER
THA 		8-98101-982-5 01 1 1409- ● ●
70 PANEL; ROCKER INNER
THA 		8-98162-991-1 01 1 1409- ● ●
70 PANEL; ROCKER INNER
THA 		8-98162-996-1 01 1 1409- ● ●
70 PANEL; ROCKER INNER
THA 		8-98162-994-1 01 1 1409- ● ●
70 PANEL; ROCKER INNER
THA 		8-98162-998-1 01 1 1409- ● ●
71 BRACKET; CAB MTG,CENTER
THA 		8-98101-984-5 01 1 1409- ● ● ● ● ● ●
71 BRACKET; CAB MTG,CENTER
THA 		8-98101-985-8 01 1 1409- ● ● ● ● ● ●
144 BRACKET; MTG,RR
THA 		8-98100-940-3 01 1 1409- ● ●
144 BRACKET; MTG,RR
THA 		8-98104-737-4 01 1 1409- ● ●
144 BRACKET; MTG,RR
THA 		8-98100-940-3 02 1 1409- ● ●
157 BRACKET; TOOL BOX LID
THA 		8-98115-434-6 01 1 1409- ● ●
157 BRACKET; TOOL BOX LID
THA 		8-98115-430-5 01 1 1409- ● ●
330 REINFORCEMENT; FLOOR
THA 		8-98100-938-0 02 1 1409- ● ● ● ● ● ●
378 GASSET; LWR
THA 		8-98101-037-0 02 1 1409- ● ● ● ● ● ●
572 SILL; FLOOR,FRT
THA 		8-98101-019-3 01 1 1409- ● ● ● ● ● ●
572 SILL; FLOOR,FRT
THA 		8-98101-020-3 01 1 1409- ● ● ● ● ● ●
573 SILL; FLOOR,RR
(B) THA 		8-98151-571-2 01 1 1409- ● ● ● ●
573 SILL; FLOOR,RR
FRONT SEAT BUCKET STANDARD<A50> (B) THA 		8-98151-571-2 01 1 1409- ● ●
573 SILL; FLOOR,RR
(A) THA 		8-98101-960-4 01 1 1409- ● ●
573 SILL; FLOOR,RR
FRONT SEAT SPLIT BENCH<AM6> (B) THA 		8-98103-925-4 01 1 1409- ● ●
573 SILL; FLOOR,RR
(C) THA 		8-98104-056-3 01 1 1409- ● ●

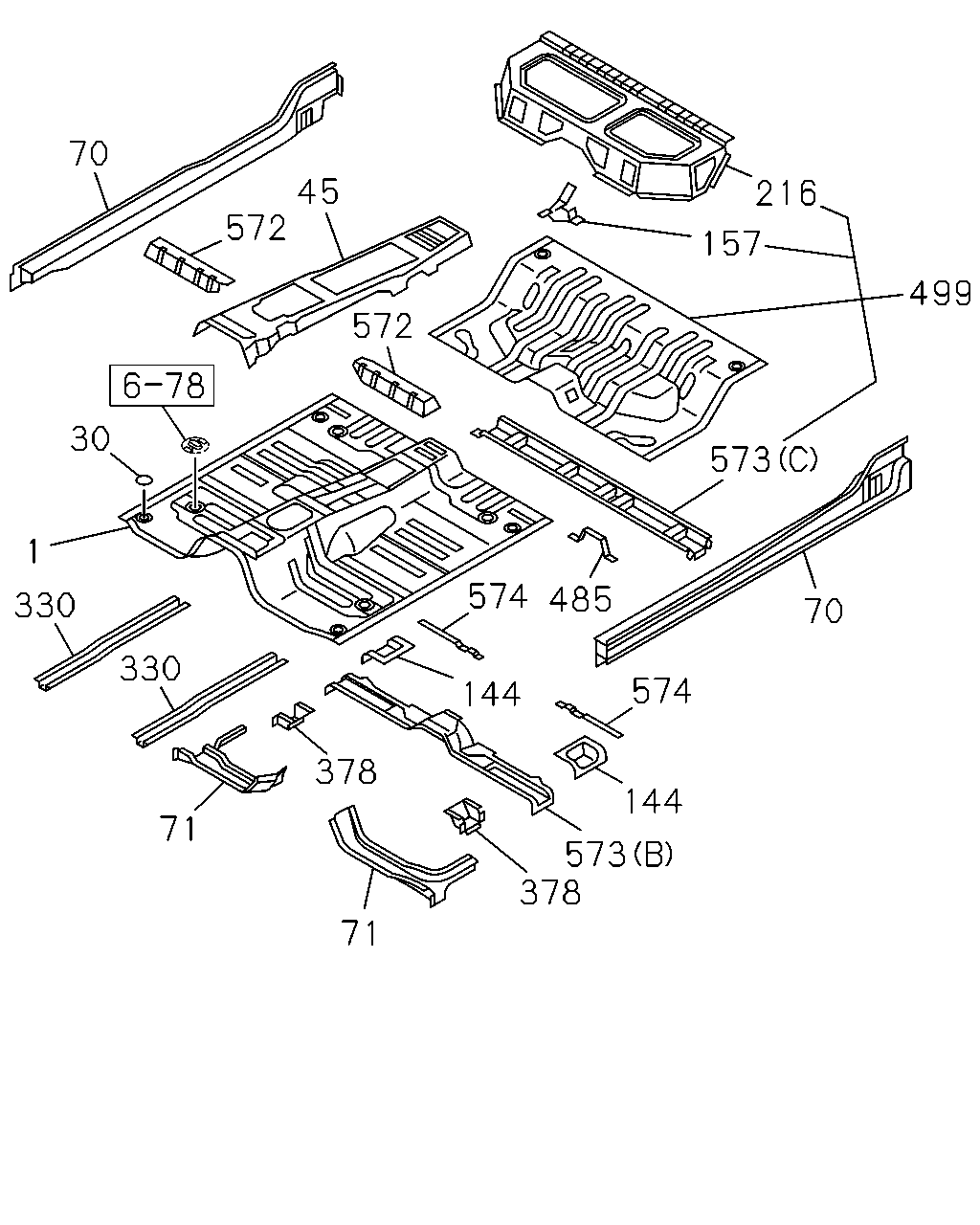

çizim 444114
70 572 45 572 30 1 330 330 71 71 378 378 573 144 574 70 499 157 216 573 485 574 144
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 PANEL; FLOOR
THA 		8-98101-040-6 01 1 1409- ● ●
1 PANEL; FLOOR
THA 		8-98103-921-7 01 1 1409- ● ●
1 PANEL; FLOOR
THA 		8-98199-516-0 01 1 1409- ● ●
30 GROMMET; CAB MTG RAIL
OD=59 T=9 THA 		8-98202-803-0 04 1 1409-1505 ● ● ● ●
30 GROMMET; CAB MTG RAIL
OD=59 T=9 THA 		8-98202-803-0 04 1 1506- ● ● ● ●
30 GROMMET; CAB MTG RAIL
OD=59 T=9 THA 		8-98202-803-0 06 1 1409- ● ●
45 REINFORCEMENT; TUNNEL,FRT
DRIVER SIDE FOOT REST<7NU> THA 		8-98101-035-8 01 1 1409- ● ● ● ●
45 REINFORCEMENT; TUNNEL,FRT
EXC. DRIVER SIDE FOOT REST<7NU> THA 		8-98101-017-6 01 1 1409- ●
45 REINFORCEMENT; TUNNEL,FRT
DRIVER SIDE FOOT REST<7NU> THA 		8-98104-022-7 01 1 1409- ●
45 REINFORCEMENT; TUNNEL,FRT
EXC. DRIVER SIDE FOOT REST<7NU> THA 		8-98104-200-5 01 1 1409- ● ●
70 PANEL; ROCKER INNER
THA 		8-98101-006-5 01 1 1409- ● ●
70 PANEL; ROCKER INNER
THA 		8-98101-982-5 01 1 1409- ● ●
70 PANEL; ROCKER INNER
THA 		8-98162-991-1 01 1 1409- ● ●
70 PANEL; ROCKER INNER
THA 		8-98162-996-1 01 1 1409- ● ●
70 PANEL; ROCKER INNER
THA 		8-98162-994-1 01 1 1409- ● ●
70 PANEL; ROCKER INNER
THA 		8-98162-998-1 01 1 1409- ● ●
71 BRACKET; CAB MTG,CENTER
THA 		8-98101-984-5 01 1 1409- ● ● ● ● ● ●
71 BRACKET; CAB MTG,CENTER
THA 		8-98101-985-8 01 1 1409- ● ● ● ● ● ●
144 BRACKET; MTG,RR
THA 		8-98100-940-3 01 1 1409- ● ●
144 BRACKET; MTG,RR
THA 		8-98104-737-4 01 1 1409- ● ●
144 BRACKET; MTG,RR
THA 		8-98100-940-3 02 1 1409- ● ●
157 BRACKET; TOOL BOX LID
THA 		8-98115-434-6 01 1 1409- ● ●
157 BRACKET; TOOL BOX LID
THA 		8-98115-430-5 01 1 1409- ● ●
216 PANEL; SEAT RISER
THA 		8-98101-953-8 01 1 1409- ● ●
216 PANEL; SEAT RISER
THA 		8-98116-648-4 01 1 1409- ● ●
330 REINFORCEMENT; FLOOR
THA 		8-98100-938-0 02 1 1409- ● ● ● ● ● ●
378 GASSET; LWR
THA 		8-98101-037-0 02 1 1409- ● ● ● ● ● ●
485 SEAL; TAPE TYPE
THA 		8-94336-915-0 01 1 1409- ● ●
499 PANEL; FLOOR,RR
THA 		8-98116-646-9 01 1 1409-1506 ● ●
499 PANEL; FLOOR,RR
THA 		8-98322-482-0 01 1 1507- ● ●
572 SILL; FLOOR,FRT
THA 		8-98101-019-3 01 1 1409- ● ● ● ● ● ●
572 SILL; FLOOR,FRT
THA 		8-98101-020-3 01 1 1409- ● ● ● ● ● ●
573 SILL; FLOOR,RR
(B) THA 		8-98151-571-2 01 1 1409- ● ● ● ●
573 SILL; FLOOR,RR
FRONT SEAT BUCKET STANDARD<A50> (B) THA 		8-98151-571-2 01 1 1409- ● ●
573 SILL; FLOOR,RR
(A) THA 		8-98101-960-4 01 1 1409- ● ●
573 SILL; FLOOR,RR
FRONT SEAT SPLIT BENCH<AM6> (B) THA 		8-98103-925-4 01 1 1409- ● ●
573 SILL; FLOOR,RR
(C) THA 		8-98104-056-3 01 1 1409- ● ●
574 TAPE; ADHESIVE
THA 		8-98178-885-0 02 1 1409- ● ●

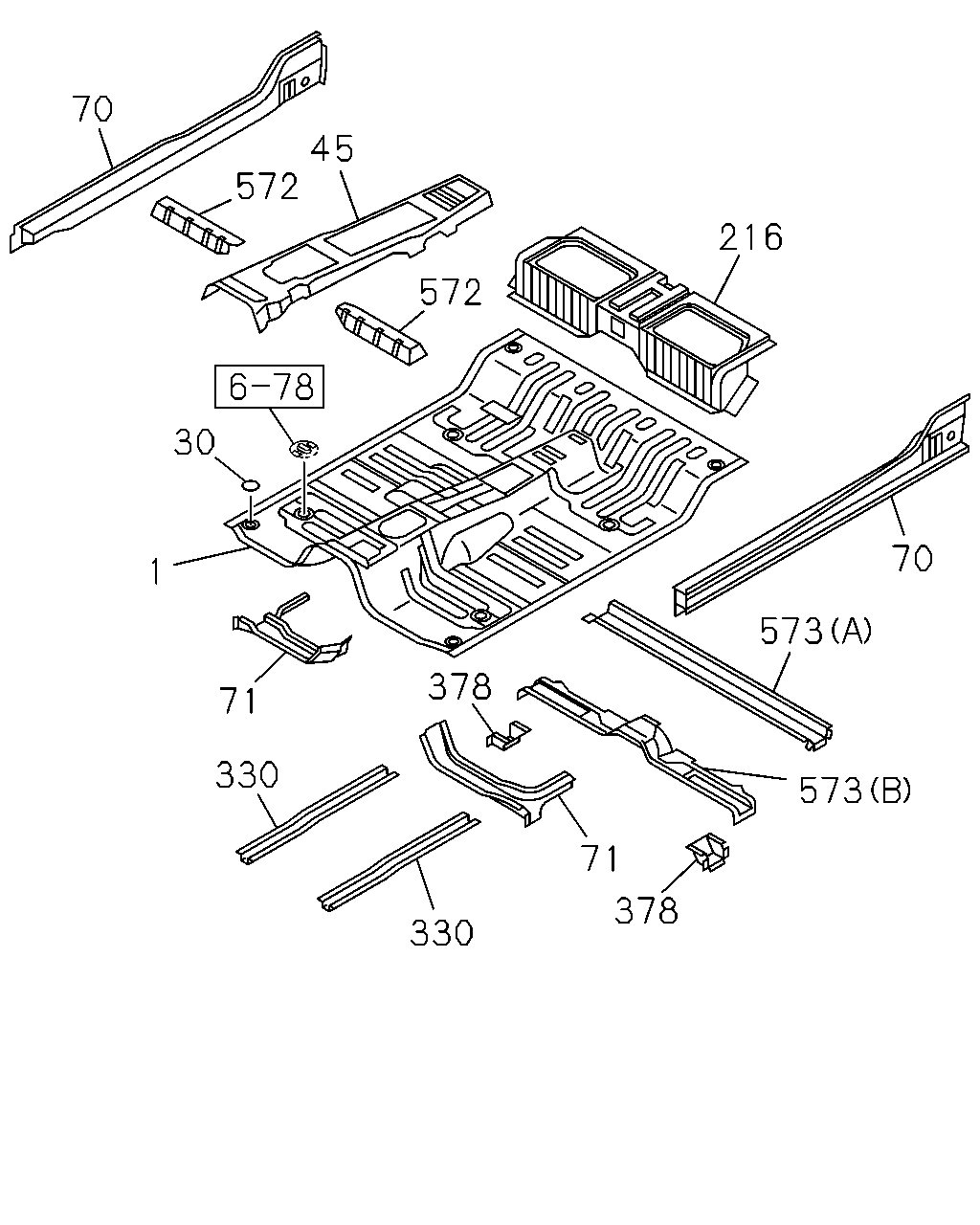

çizim 444252
70 572 45 572 216 70 573 573 378 71 330 330 71 378 1 30
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 PANEL; FLOOR
THA 		8-98101-040-6 01 1 1409- ● ●
1 PANEL; FLOOR
THA 		8-98103-921-7 01 1 1409- ● ●
1 PANEL; FLOOR
THA 		8-98199-516-0 01 1 1409- ● ●
30 GROMMET; CAB MTG RAIL
OD=59 T=9 THA 		8-98202-803-0 04 1 1409-1505 ● ● ● ●
30 GROMMET; CAB MTG RAIL
OD=59 T=9 THA 		8-98202-803-0 04 1 1506- ● ● ● ●
30 GROMMET; CAB MTG RAIL
OD=59 T=9 THA 		8-98202-803-0 06 1 1409- ● ●
45 REINFORCEMENT; TUNNEL,FRT
DRIVER SIDE FOOT REST<7NU> THA 		8-98101-035-8 01 1 1409- ● ● ● ●
45 REINFORCEMENT; TUNNEL,FRT
EXC. DRIVER SIDE FOOT REST<7NU> THA 		8-98101-017-6 01 1 1409- ●
45 REINFORCEMENT; TUNNEL,FRT
DRIVER SIDE FOOT REST<7NU> THA 		8-98104-022-7 01 1 1409- ●
45 REINFORCEMENT; TUNNEL,FRT
EXC. DRIVER SIDE FOOT REST<7NU> THA 		8-98104-200-5 01 1 1409- ● ●
70 PANEL; ROCKER INNER
THA 		8-98101-006-5 01 1 1409- ● ●
70 PANEL; ROCKER INNER
THA 		8-98101-982-5 01 1 1409- ● ●
70 PANEL; ROCKER INNER
THA 		8-98162-991-1 01 1 1409- ● ●
70 PANEL; ROCKER INNER
THA 		8-98162-996-1 01 1 1409- ● ●
70 PANEL; ROCKER INNER
THA 		8-98162-994-1 01 1 1409- ● ●
70 PANEL; ROCKER INNER
THA 		8-98162-998-1 01 1 1409- ● ●
71 BRACKET; CAB MTG,CENTER
THA 		8-98101-984-5 01 1 1409- ● ● ● ● ● ●
71 BRACKET; CAB MTG,CENTER
THA 		8-98101-985-8 01 1 1409- ● ● ● ● ● ●
216 PANEL; SEAT RISER
THA 		8-98101-953-8 01 1 1409- ● ●
216 PANEL; SEAT RISER
THA 		8-98116-648-4 01 1 1409- ● ●
330 REINFORCEMENT; FLOOR
THA 		8-98100-938-0 02 1 1409- ● ● ● ● ● ●
378 GASSET; LWR
THA 		8-98101-037-0 02 1 1409- ● ● ● ● ● ●
572 SILL; FLOOR,FRT
THA 		8-98101-019-3 01 1 1409- ● ● ● ● ● ●
572 SILL; FLOOR,FRT
THA 		8-98101-020-3 01 1 1409- ● ● ● ● ● ●
573 SILL; FLOOR,RR
(B) THA 		8-98151-571-2 01 1 1409- ● ● ● ●
573 SILL; FLOOR,RR
FRONT SEAT BUCKET STANDARD<A50> (B) THA 		8-98151-571-2 01 1 1409- ● ●
573 SILL; FLOOR,RR
(A) THA 		8-98101-960-4 01 1 1409- ● ●
573 SILL; FLOOR,RR
FRONT SEAT SPLIT BENCH<AM6> (B) THA 		8-98103-925-4 01 1 1409- ● ●
573 SILL; FLOOR,RR
(C) THA 		8-98104-056-3 01 1 1409- ● ●
