◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51579 - TFR/TFS THAILAND ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-66 - HEAD LINING AND TRIM ▶
6-66 — HEAD LINING AND TRIM (#148346) — 27 parça

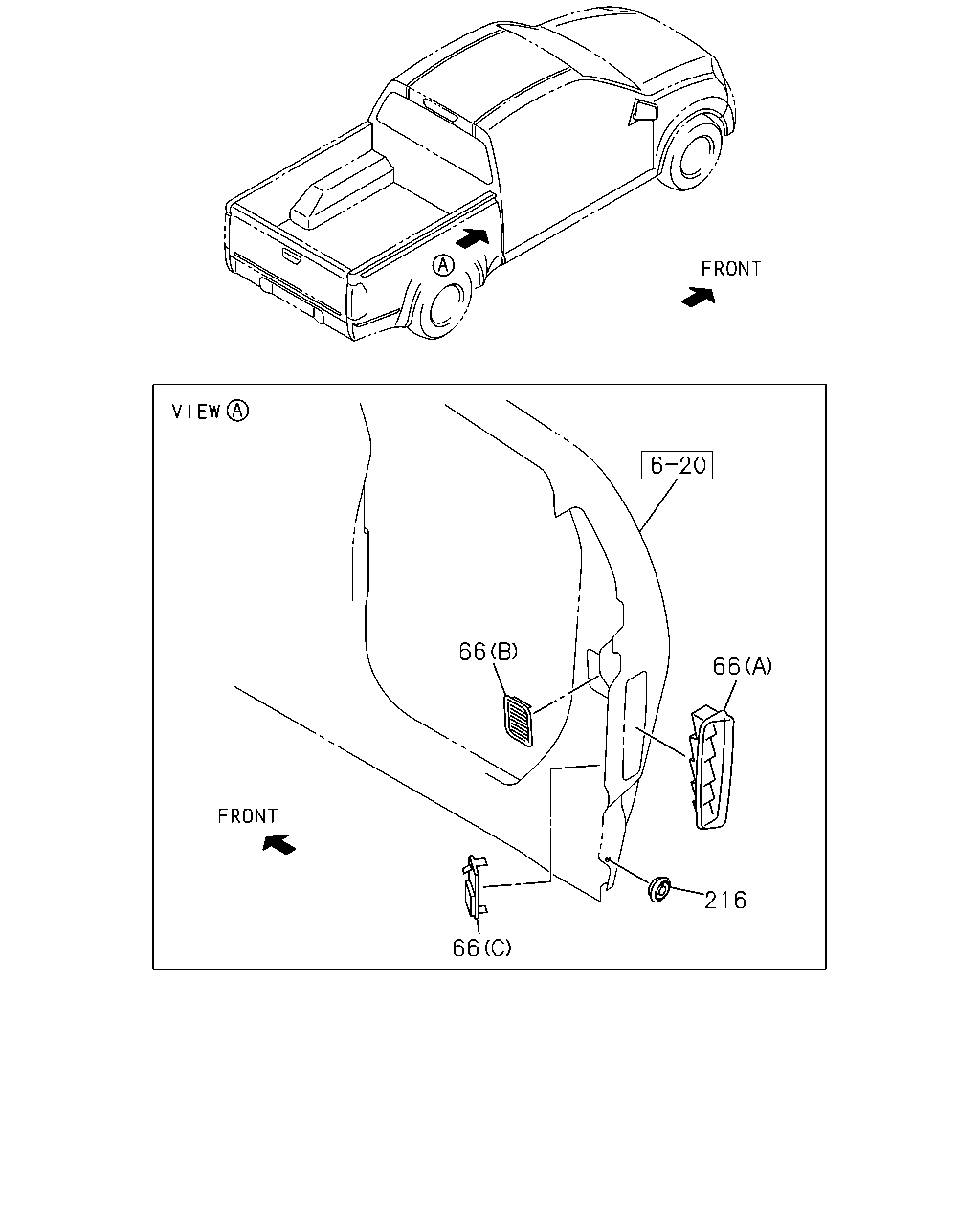

çizim 443706
66 66 216 66
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
66 GRILLE; AIR OUTLET
(A) THA 		8-98164-822-2 01 1 1409- ● ● ● ● ● ●
66 GRILLE; AIR OUTLET
(A) THA 		8-98164-823-2 01 1 1409- ● ● ● ● ● ●
66 GRILLE; AIR OUTLET
(C) THA 		8-97251-682-1 02 1 1409- ● ●
66 GRILLE; AIR OUTLET
(B) THA 		8-97365-208-0 02 1 1409- ● ●
216 GROMMET; HOLE
OD=19 THA 		8-97365-823-0 10 1 1409- ● ●
216 GROMMET; HOLE
OD=30 THA 		8-94107-655-0 02 1 1409- ● ●
216 GROMMET; HOLE
OD=19 THA 		8-97365-823-0 12 1 1409- ● ●
çizim 444161
1 7 1 7 1 7 220
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 LINING; HD
INTERIOR COLOR UPR & LWR DARK GRAY<154> HEADER CONSOLE<DK6> EXC. 6-SPEAKER SYSTEM CUSTOM<UW6> BLACK THA 		8-97465-568-5 01 1 1504- ●
1 LINING; HD
INTERIOR COLOR DARK GRAY<117> HEADER CONSOLE<DK6> EXC. 6-SPEAKER SYSTEM CUSTOM<UW6> GRAY THA 		8-97416-691-5 01 1 1409- ●
1 LINING; HD
HEADER CONSOLE<DK6> EXC. 6-SPEAKER SYSTEM CUSTOM<UW6> GRAY THA 		8-97416-691-5 01 1 1409- ●
1 LINING; HD
INTERIOR COLOR DARK GRAY<117> EXC. HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6> GRAY THA 		8-97416-692-5 01 1 1409- ●
1 LINING; HD
EXC. HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6> GRAY THA 		8-97416-692-5 01 1 1409- ●
1 LINING; HD
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM CUSTOM<UW6> GRAY THA 		8-97416-694-5 01 1 1409- ●
1 LINING; HD
HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM CUSTOM<UW6> GRAY THA 		8-97416-694-5 01 1 1409- ●
1 LINING; HD
INTERIOR COLOR UPR & LWR DARK GRAY<154> HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM CUSTOM<UW6> BLACK THA 		8-97423-929-5 01 1 1409- ●
1 LINING; HD
GRAY THA 		8-97417-113-3 01 1 1409- ● ●
1 LINING; HD
INTERIOR COLOR DARK GRAY<117> HEADER CONSOLE<DK6> EXC. 6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87> GRAY THA 		8-97416-953-5 01 1 1409- ●
1 LINING; HD
EXC. 6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87> GRAY THA 		8-97416-953-5 01 1 1409- ●
1 LINING; HD
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87> GRAY THA 		8-97416-956-5 01 1 1409- ●
1 LINING; HD
6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87> GRAY THA 		8-97416-956-5 01 1 1409- ●
1 LINING; HD
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> EXC. HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87> GRAY THA 		8-97416-954-5 01 1 1409- ●
1 LINING; HD
INTERIOR COLOR UPR & LWR DARK GRAY<154> HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87> BLACK THA 		8-97423-930-5 01 1 1409- ●
1 LINING; HD
INTERIOR COLOR UPR & LWR DARK GRAY<154> HEADER CONSOLE<DK6> EXC. 6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87> BLACK THA 		8-97429-473-5 01 1 1409- ●
7 RETAINER; HEADLINING RAIL
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> GRAY THA 		8-97416-696-0 02 1 1409- ● ●
7 RETAINER; HEADLINING RAIL
GRAY THA 		8-97416-696-0 02 1 1409- ● ● ● ●
7 RETAINER; HEADLINING RAIL
INTERIOR COLOR UPR & LWR DARK GRAY<154> BLACK THA 		8-97416-667-0 02 1 1409- ● ●
220 BRACKET; SPEAKER
HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87> THA 		8-98128-570-0 02 1 1409- ● ● ● ●
