Isuzu WW
▶
PICKUP
▶
TFR
▶
51579 - TFR/TFS THAILAND
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

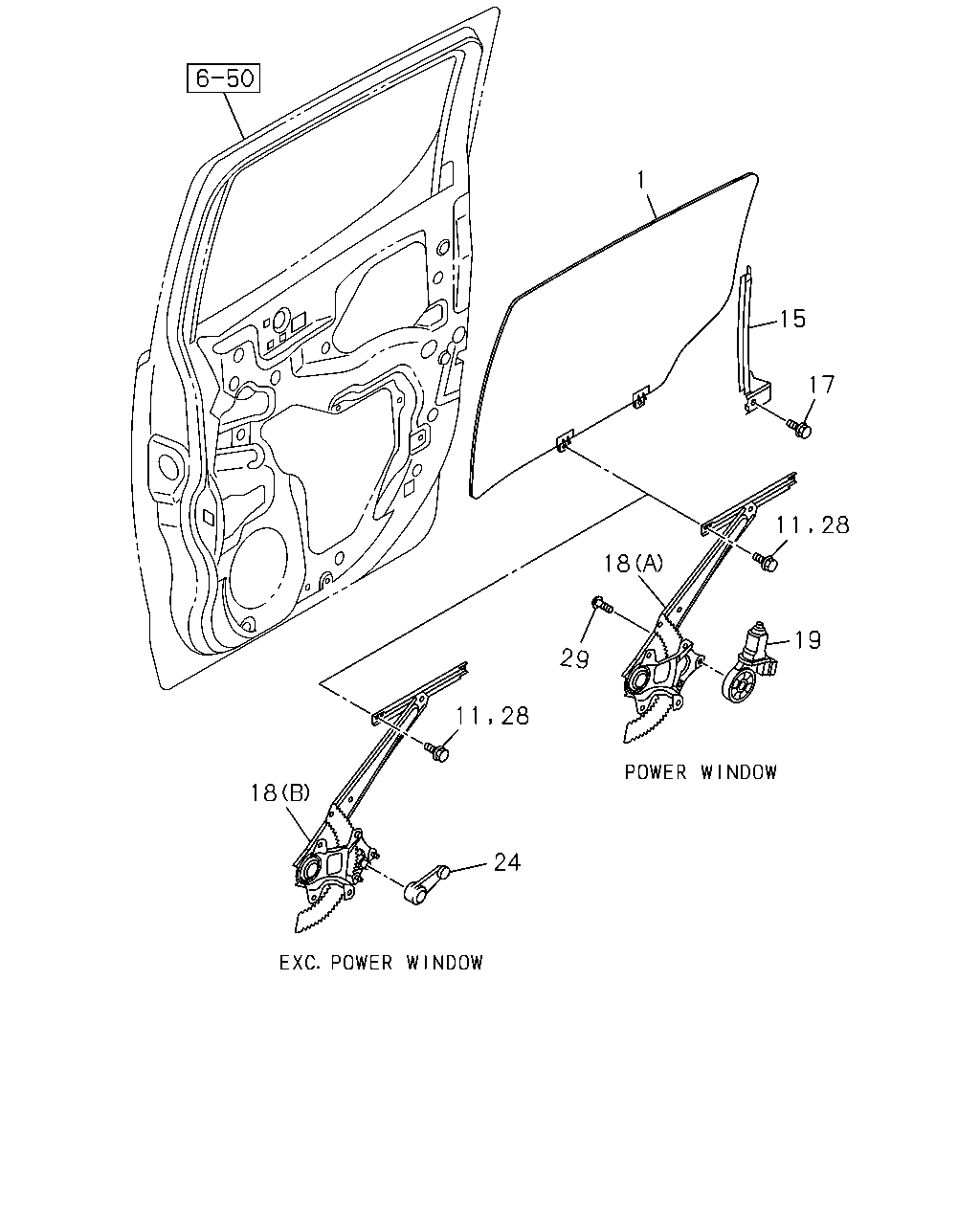

6-51 - REAR DOOR GLASS AND REGULATOR
▶
6-51 — REAR DOOR GLASS AND REGULATOR
(#148342) — 34 parça
Tümü
A - TFB5CF
B - TFS5CF
C - TFB5WF
D - TFS5WF
◀
[651A] CREW CAB (19 parça)
[651A] EXTENDED CAB (15 parça)
▶
1
15
17
11
28
18
19
29
11
28
18
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
GLASS; RR DOOR
BLACK THA
8-97421-858-5
01
1
1409-
●
●
1
GLASS; RR DOOR
BLACK THA
8-97421-859-5
01
1
1409-
●
●
1
GLASS; RR DOOR
THA
8-98073-845-0
01
1
1409-
●
●
1
GLASS; RR DOOR
THA
8-98073-846-0
01
1
1409-
●
●
11
BOLT; GLASS
M6X19 W/WASHER THA
8-98062-136-0
06
1
1409-
●
●
11
BOLT; GLASS
M6X10 FLANGE THA
8-98188-381-0
04
1
1409-
●
●
15
RAIL; RR GUIDE,RR DOOR
THA
8-98100-798-2
01
1
1409-
●
●
15
RAIL; RR GUIDE,RR DOOR
THA
8-98100-799-2
01
1
1409-
●
●
17
BOLT; RR GUIDE RAIL
M6X8 FLANGE THA
8-98048-996-0
02
1
1409-
●
●
18
REGULATOR; WINDOW,RR DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (A) THA
8-98167-089-0
01
1
1409-
●
●
18
REGULATOR; WINDOW,RR DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (A) THA
8-98167-090-0
01
1
1409-
●
●
18
REGULATOR; WINDOW,RR DOOR
EXC. DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (B) THA
8-98093-557-1
01
1
1409-
●
●
18
REGULATOR; WINDOW,RR DOOR
EXC. DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (B) THA
8-98093-558-1
01
1
1409-
●
●
19
MOTOR; POWER WINDOW REG,RR DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> THA
8-98167-091-1
01
1
1409-
●
●
19
MOTOR; POWER WINDOW REG,RR DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> THA
8-98167-092-1
01
1
1409-
●
●
24
HANDLE; WINDOW REG,RR DOOR
INTERIOR COLOR DARK GRAY<117> EXC. DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> BLACK THA
8-97416-724-0
02
1
1409-
●
24
HANDLE; WINDOW REG,RR DOOR
EXC. DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> BLACK THA
8-97416-724-0
02
1
1409-
●
28
BOLT; WINDOW REG
M6X10 FLANGE THA
8-98188-381-0
06
1
1409-
●
●
29
SCREW; WINDOW REG
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> THA
8-98195-236-0
06
1
1409-
●
●
1
11
10
90
89
87
88
91
91
10
87
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
GLASS; RR DOOR
BLACK THA
8-97421-858-5
01
1
1409-
●
●
1
GLASS; RR DOOR
BLACK THA
8-97421-859-5
01
1
1409-
●
●
1
GLASS; RR DOOR
THA
8-98073-845-0
01
1
1409-
●
●
1
GLASS; RR DOOR
THA
8-98073-846-0
01
1
1409-
●
●
10
SCREW; GLASS
(A) M5X16 THA
8-94243-069-0
04
1
1409-
●
●
10
SCREW; GLASS
(B) M5X10 IMA
9-03810-510-0
02
1
1409-
●
●
11
BOLT; GLASS
M6X19 W/WASHER THA
8-98062-136-0
06
1
1409-
●
●
11
BOLT; GLASS
M6X10 FLANGE THA
8-98188-381-0
04
1
1409-
●
●
87
NUT; WINDOW
(A) D=7.8X7.8 L=18 NATURAL IMA
8-94279-043-0
04
1
1409-
●
●
87
NUT; WINDOW
(B) THA
8-97305-953-1
02
1
1409-
●
●
88
HINGE; WINDOW GLASS
THA
8-98140-724-1
01
1
1409-
●
●
88
HINGE; WINDOW GLASS
THA
8-98140-725-1
01
1
1409-
●
●
89
GROMMET; RR
THA
8-94480-192-0
02
1
1409-
●
●
90
FASTENER; RR WINDOW
BLACK THA
8-97423-318-2
02
1
1409-
●
●
91
CLIP; RR WINDOW
THA
8-98194-207-0
04
1
1409-
●
●
