◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51579 - TFR/TFS THAILAND ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-47 - MUD GUARD AND INSULATOR ▶
6-47 — MUD GUARD AND INSULATOR (#148340) — 70 parça

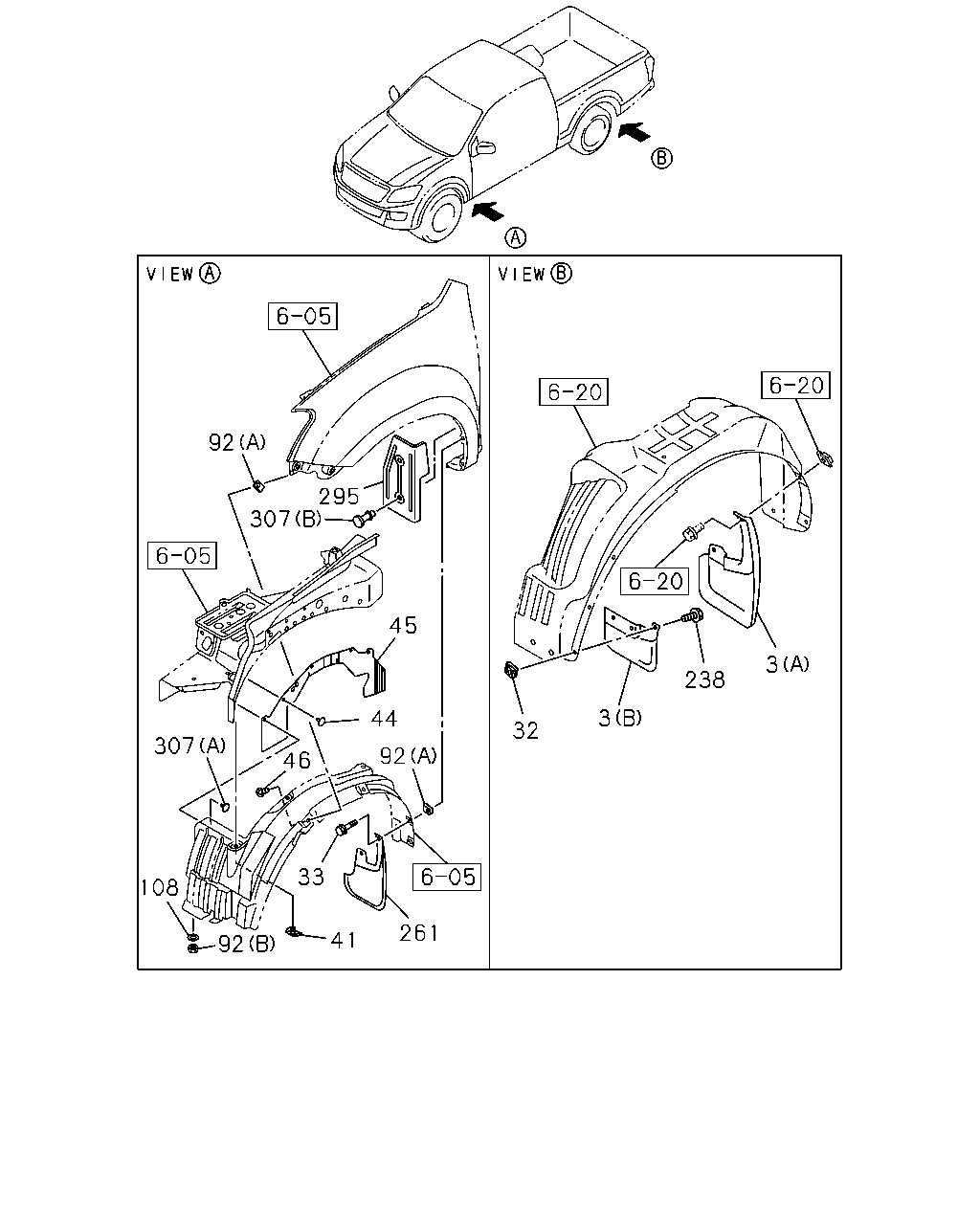

çizim 444154
92 295 307 45 44 46 307 92 261 41 33 92 108 32 3 238 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
3 GUARD; MUD,RR
FORMED MUD FLAP FRT & RR<Q8H> HIGH RIDE SUSPENSION<7YC> EXC. SALES PACKAGE SPORTY<XK0> (A) THA 		8-98077-276-1 01 1 1409- ● ●
3 GUARD; MUD,RR
FORMED MUD FLAP FRT & RR<Q8H> (A) THA 		8-98077-276-1 01 1 1409- ● ●
3 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL<E63> FORMED MUD FLAP FRT & RR<Q8H> (A) THA 		8-98077-276-1 01 1 1409- ●
3 GUARD; MUD,RR
FORMED MUD FLAP FRT & RR<Q8H> HIGH RIDE SUSPENSION<7YC> EXC. SALES PACKAGE SPORTY<XK0> (A) THA 		8-98077-279-1 01 1 1409- ● ●
3 GUARD; MUD,RR
FORMED MUD FLAP FRT & RR<Q8H> (A) THA 		8-98077-279-1 01 1 1409- ● ●
3 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL<E63> FORMED MUD FLAP FRT & RR<Q8H> (A) THA 		8-98077-279-1 01 1 1409- ●
3 GUARD; MUD,RR
FORMED MUD FLAP FRT & RR<Q8H> EXC. SALES PACKAGE SPORTY<XK0>,HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98119-330-2 01 1 1409- ● ●
3 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL<E63> FORMED MUD FLAP FRT & RR<Q8H> (A) THA 		8-98119-330-2 01 1 1409- ●
3 GUARD; MUD,RR
FORMED MUD FLAP FRT & RR<Q8H> EXC. SALES PACKAGE SPORTY<XK0>,HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98119-331-2 01 1 1409- ● ●
3 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL<E63> FORMED MUD FLAP FRT & RR<Q8H> (A) THA 		8-98119-331-2 01 1 1409- ●
3 GUARD; MUD,RR
FORMED MUD FLAP EXTEND FRT & RR<Q8J> HIGH RIDE SUSPENSION<7YC> EXC. SALES PACKAGE SPORTY<XK0> (A) THA 		8-98077-277-1 01 1 1409- ● ●
3 GUARD; MUD,RR
FORMED MUD FLAP EXTEND FRT & RR<Q8J> (A) THA 		8-98077-277-1 01 1 1409- ● ●
3 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL<E63> FORMED MUD FLAP EXTEND FRT & RR<Q8J> (A) THA 		8-98077-277-1 01 1 1409- ●
3 GUARD; MUD,RR
FORMED MUD FLAP EXTEND FRT & RR<Q8J> HIGH RIDE SUSPENSION<7YC> EXC. SALES PACKAGE SPORTY<XK0> (A) THA 		8-98077-280-1 01 1 1409- ● ●
3 GUARD; MUD,RR
FORMED MUD FLAP EXTEND FRT & RR<Q8J> (A) THA 		8-98077-280-1 01 1 1409- ● ●
3 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL<E63> FORMED MUD FLAP EXTEND FRT & RR<Q8J> (A) THA 		8-98077-280-1 01 1 1409- ●
3 GUARD; MUD,RR
FORMED MUD FLAP EXTEND FRT & RR<Q8J> EXC. SALES PACKAGE SPORTY<XK0>,HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98077-275-0 01 1 1409- ● ●
3 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL<E63> FORMED MUD FLAP EXTEND FRT & RR<Q8J> (A) THA 		8-98077-275-0 01 1 1409- ●
3 GUARD; MUD,RR
FORMED MUD FLAP EXTEND FRT & RR<Q8J> EXC. SALES PACKAGE SPORTY<XK0>,HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98077-278-0 01 1 1409- ● ●
3 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL<E63> FORMED MUD FLAP EXTEND FRT & RR<Q8J> (A) THA 		8-98077-278-0 01 1 1409- ●
3 GUARD; MUD,RR
EXC. HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98077-281-2 01 1 1409- ● ●
3 GUARD; MUD,RR
EXC. HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98077-282-2 01 1 1409- ● ●
32 NUT; MUD GUARD
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97125-519-0 06 1 1409- ● ●
33 BOLT; MUD COVER
FORMED MUD FLAP FRT & RR<Q8H>,FORMED MUD FLAP EXTEND FRT & RR<Q8J> M6X20 TAPPING W/PL WASHER THA 		8-98167-444-0 06 1 1409- ● ● ● ● ● ●
41 RIVET; INNER LINER
THA 		8-94221-150-0 10 1 1409- ● ● ● ● ● ●
41 RIVET; INNER LINER
EXC. FORMED MUD FLAP FRT & RR<Q8H>,FORMED MUD FLAP EXTEND FRT & RR<Q8J> THA 		8-94221-150-0 06 1 1409- ● ● ● ● ● ●
44 CLIP; ANCHOR
OD=22 L=10.7 THA 		8-94215-211-0 10 1 1409- ● ● ● ● ● ●
45 COVER; MUD,FENDER SKIRT
HIGH RIDE SUSPENSION<7YC> THA 		8-98077-268-1 01 1 1409- ● ●
45 COVER; MUD,FENDER SKIRT
THA 		8-98077-268-1 01 1 1409- ●
45 COVER; MUD,FENDER SKIRT
4JK1-TCX ENG<LR0> THA 		8-98077-268-1 01 1 1409- ●
45 COVER; MUD,FENDER SKIRT
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> THA 		8-98077-268-1 01 1 1409- ●
45 COVER; MUD,FENDER SKIRT
HIGH RIDE SUSPENSION<7YC> THA 		8-98077-270-0 01 1 1409-1505 ● ●
45 COVER; MUD,FENDER SKIRT
THA 		8-98077-270-0 01 1 1409-1505 ●
45 COVER; MUD,FENDER SKIRT
4JK1-TCX ENG<LR0> THA 		8-98077-270-0 01 1 1409-1505 ●
45 COVER; MUD,FENDER SKIRT
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> THA 		8-98077-270-0 01 1 1409-1505 ●
45 COVER; MUD,FENDER SKIRT
HIGH RIDE SUSPENSION<7YC> THA 		8-98077-270-0 01 1 1506- ● ●
45 COVER; MUD,FENDER SKIRT
THA 		8-98077-270-0 01 1 1506- ● ● ●
45 COVER; MUD,FENDER SKIRT
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98077-267-1 01 1 1409- ● ●
45 COVER; MUD,FENDER SKIRT
THA 		8-98077-267-1 01 1 1409- ●
45 COVER; MUD,FENDER SKIRT
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98077-269-0 01 1 1409- ● ●
45 COVER; MUD,FENDER SKIRT
THA 		8-98077-269-0 01 1 1409- ●
46 SCREW; INNER LINER
M6X20 TAPPING W/PL WASHER THA 		8-98167-444-0 04 1 1409- ● ● ● ● ● ●
92 NUT; MUD COVER
FORMED MUD FLAP FRT & RR<Q8H>,FORMED MUD FLAP EXTEND FRT & RR<Q8J> (A) THA 		8-97125-519-0 06 1 1409- ● ● ● ● ● ●
92 NUT; MUD COVER
(A) THA 		8-97125-519-0 04 1 1409- ● ● ● ● ● ●
92 NUT; MUD COVER
(B) M6 CAP NUT THA 		8-98049-850-0 02 1 1409- ● ● ● ● ● ●
108 WASHER; PL,PANEL TO FRAME
ID=6.5 OD=18 T=1.6 THA 		8-98049-851-0 02 1 1409- ● ● ● ● ● ●
238 SCREW; MUD GUARD
EXC. HIGH RIDE SUSPENSION<7YC> M6X20 TAPPING W/PL WASHER THA 		8-98167-444-0 06 1 1409- ● ●
261 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP FRT & RR<Q8H> HIGH RIDE SUSPENSION<7YC> THA 		8-98077-272-0 01 1 1409- ● ●
261 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP FRT & RR<Q8H> THA 		8-98077-272-0 01 1 1409- ● ● ●
261 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP FRT & RR<Q8H> HIGH RIDE SUSPENSION<7YC> THA 		8-98077-274-0 01 1 1409- ● ●
261 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP FRT & RR<Q8H> THA 		8-98077-274-0 01 1 1409- ● ● ●
261 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP FRT & RR<Q8H> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98184-707-0 01 1 1409- ● ●
261 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP FRT & RR<Q8H> THA 		8-98184-707-0 01 1 1409- ●
261 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP FRT & RR<Q8H> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98184-708-0 01 1 1409- ● ●
261 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP FRT & RR<Q8H> THA 		8-98184-708-0 01 1 1409- ●
261 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP EXTEND FRT & RR<Q8J> HIGH RIDE SUSPENSION<7YC> THA 		8-98122-330-0 01 1 1409- ● ●
261 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP EXTEND FRT & RR<Q8J> THA 		8-98122-330-0 01 1 1409- ● ● ●
261 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP EXTEND FRT & RR<Q8J> HIGH RIDE SUSPENSION<7YC> THA 		8-98122-332-0 01 1 1409- ● ●
261 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP EXTEND FRT & RR<Q8J> THA 		8-98122-332-0 01 1 1409- ● ● ●
261 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP EXTEND FRT & RR<Q8J> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98184-704-1 01 1 1409- ● ●
261 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP EXTEND FRT & RR<Q8J> THA 		8-98184-704-1 01 1 1409- ●
261 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP EXTEND FRT & RR<Q8J> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98184-705-1 01 1 1409- ● ●
261 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP EXTEND FRT & RR<Q8J> THA 		8-98184-705-1 01 1 1409- ●
295 COVER; WHEEL HOUSE
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98187-396-1 01 1 1409- ● ●
295 COVER; WHEEL HOUSE
THA 		8-98187-396-1 01 1 1409- ●
295 COVER; WHEEL HOUSE
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98187-397-1 01 1 1409- ● ●
295 COVER; WHEEL HOUSE
THA 		8-98187-397-1 01 1 1409- ●
307 RETAINER
(A) THA 		8-98050-462-0 02 1 1409- ● ● ● ● ● ●
307 RETAINER
EXC. HIGH RIDE SUSPENSION<7YC> (B) IMA 		8-97372-006-0 04 1 1409- ● ●
307 RETAINER
(B) IMA 		8-97372-006-0 04 1 1409- ●
