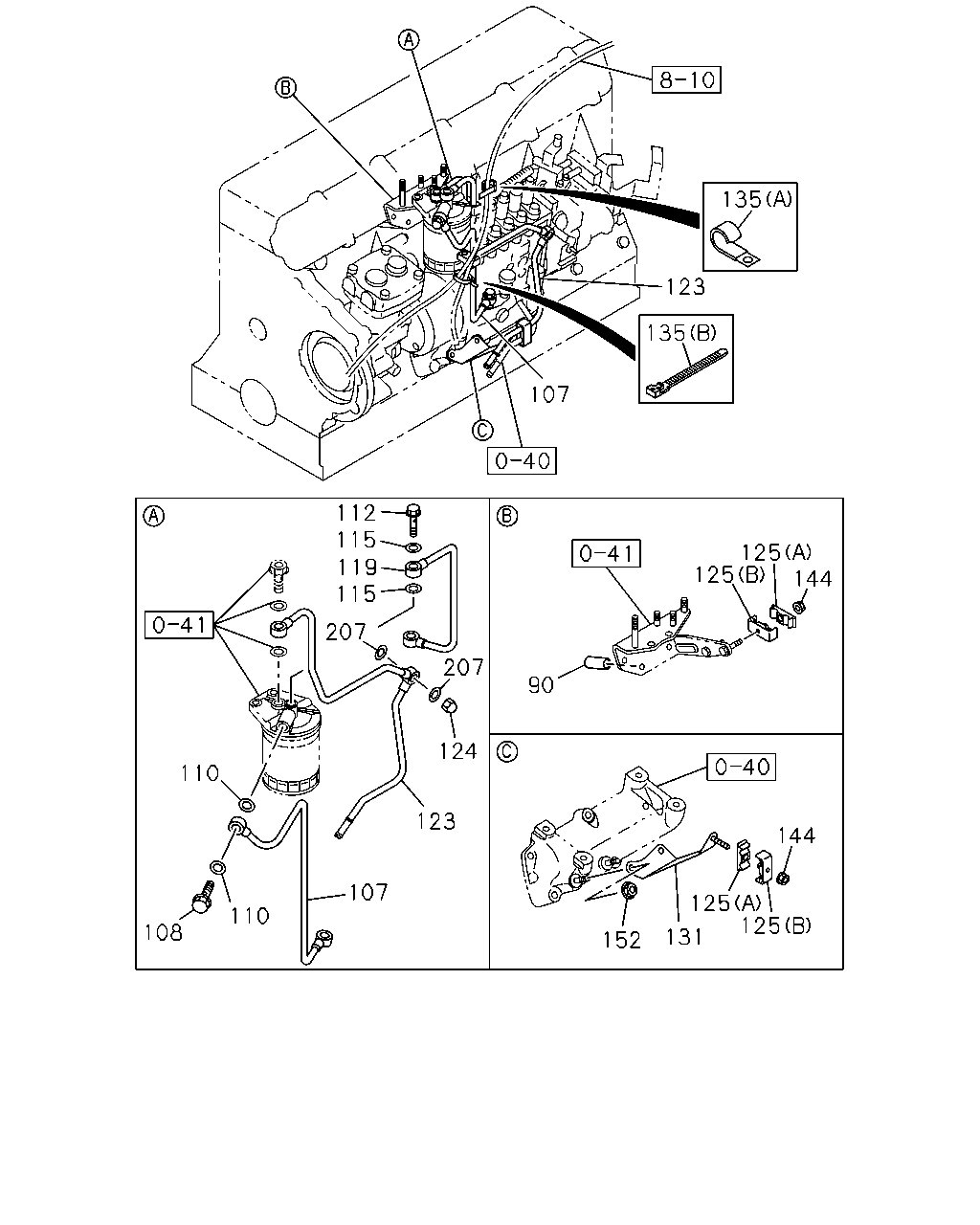

0-42 — FUEL PUMP AND PIPE
(#14834) — 21 parça
135
123
135
107
112
115
119
115
125
125
144
207
207
90
124
110
123
144
107
125
125
110
108
131
152
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
90
TUBE; DIST
L=43
1-14149-048-1
01
1
0711-
107
PIPE; FUEL,FEED PUMP TO FUEL FILTER
1-15415-950-0
01
1
0711-
108
BOLT; JOINT,FUEL FILTER
M14X27 FLANGE
1-09675-086-0
01
1
0711-
110
GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
1-09630-085-0
02
1
0711-1312
110
GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
8-98251-345-0
02
1
1401-
112
BOLT; JOINT,FUEL FILTER
M14X27 FLANGE
1-09675-086-0
01
1
0711-
115
GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
1-09630-085-0
02
1
0711-1312
115
GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
8-98251-345-0
02
1
1401-
119
PIPE; FUEL,FUEL FILTER TO INJ PUMP
1-15415-951-0
01
1
0711-
123
PIPE; FUEL,FUEL FILTER LEAK OFF
1-15415-952-1
01
1
0711-
124
NUT; CAP,FUEL PIPE
M14
1-09468-002-1
01
1
0711-
125
CLIP; FUEL PIPE
(A)
1-09701-180-0
03
1
0711-
125
CLIP; FUEL PIPE
(B) ID=10 & 10 L=25
8-94393-280-3
03
1
0711-
131
BRACKET; FUEL PIPE CLIP
1-15419-437-0
01
1
0711-
135
CLIP; HARNESS
(B) L=140 IDN
5-09707-031-1
01
1
0711-1205
135
CLIP; HARNESS
(B) L=140
8-98216-431-0
01
1
1206-
135
CLIP; HARNESS
(A) L=110
8-94149-419-0
01
1
0711-
144
NUT; CLIP
M6 FLANGE
0-91180-106-0
03
1
0711-
152
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
0711-
207
GASKET; EYE BOLT
ID=14.2 OD=19.2
1-09630-085-0
03
1
0711-1312
207
GASKET; EYE BOLT
ID=14.2 OD=19.2
8-98251-345-0
03
1
1401-
