6-30 — FRONT DOOR AND HINGE (#148334) — 32 parça

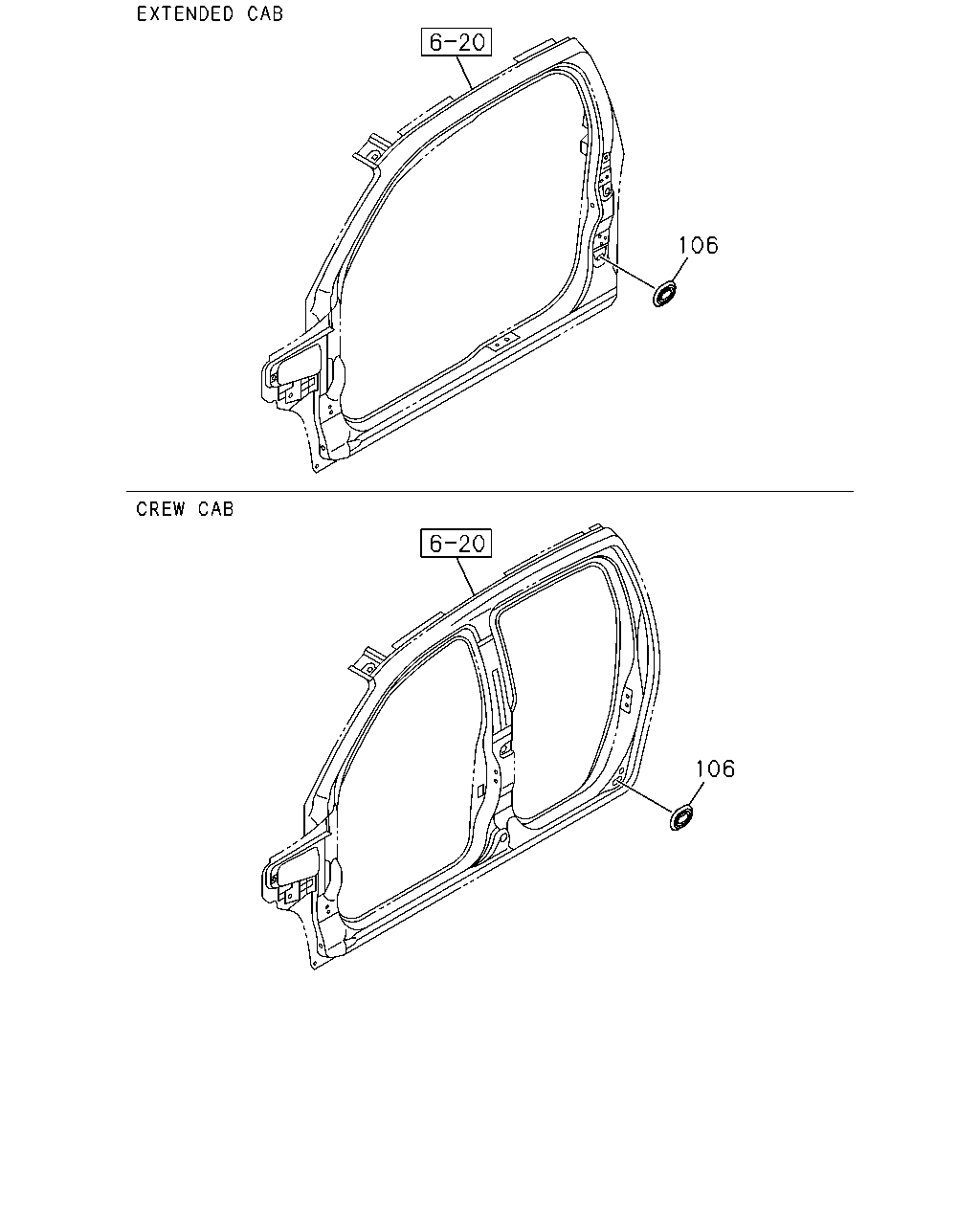

çizim 444001
106 106
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
106 GROMMET; PROTECTOR
THA 		8-94279-724-0 02 1 1409-1505 ● ● ● ●
106 GROMMET; PROTECTOR
THA 		8-94279-724-0 02 1 1506- ● ● ● ●

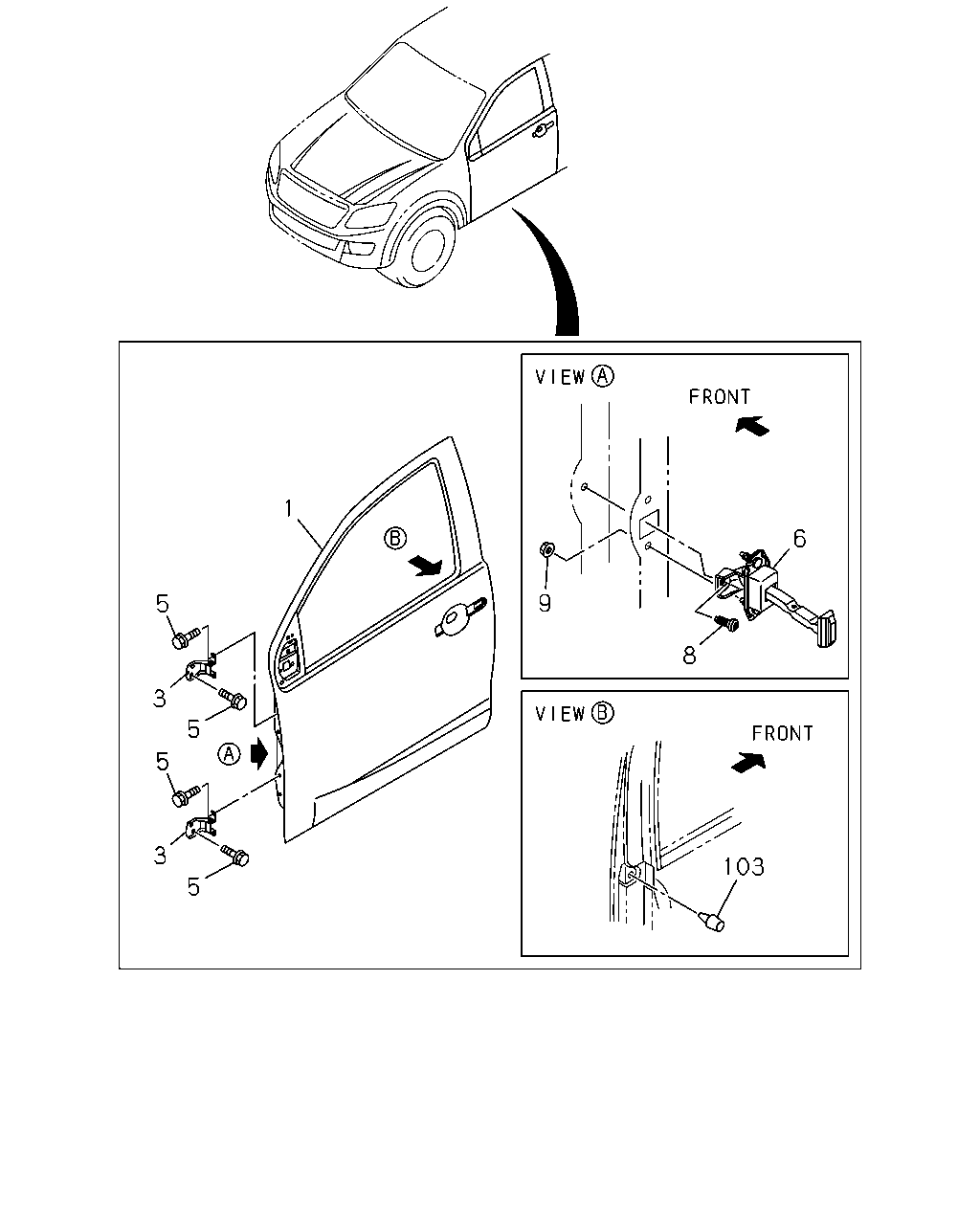

çizim 444087
1 9 8 6 103 5 3 5 3 5 5
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 DOOR ASM; FRT,WO/TRIM
INTERIOR BASIC<RBA> DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2>, DOOR MIRROR BLACK<RT9> THA 		8-98268-842-0 01 1 1409- ●
1 DOOR ASM; FRT,WO/TRIM
INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2>, DOOR MIRROR BLACK<RT9> THA 		8-98268-842-0 01 1 1409- ●
1 DOOR ASM; FRT,WO/TRIM
THA 		8-98268-842-0 01 1 1409- ●
1 DOOR ASM; FRT,WO/TRIM
INTERIOR BASIC<RBA> DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2>, DOOR MIRROR BLACK<RT9> THA 		8-98268-843-0 01 1 1409- ●
1 DOOR ASM; FRT,WO/TRIM
INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2>, DOOR MIRROR BLACK<RT9> THA 		8-98268-843-0 01 1 1409- ●
1 DOOR ASM; FRT,WO/TRIM
THA 		8-98268-843-0 01 1 1409- ●
1 DOOR ASM; FRT,WO/TRIM
INTERIOR DELUXE<RBB>,INTERIOR CUSTOM<RBD> DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2>, DOOR MIRROR BLACK<RT9> THA 		8-98268-846-0 01 1 1409- ●
1 DOOR ASM; FRT,WO/TRIM
INTERIOR DELUXE<RBB>,INTERIOR CUSTOM<RBD> DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2> THA 		8-98268-846-0 01 1 1409- ●
1 DOOR ASM; FRT,WO/TRIM
INTERIOR DELUXE<RBB>,INTERIOR CUSTOM<RBD> DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2>, DOOR MIRROR BLACK<RT9> THA 		8-98268-847-0 01 1 1409- ●
1 DOOR ASM; FRT,WO/TRIM
INTERIOR DELUXE<RBB>,INTERIOR CUSTOM<RBD> DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2> THA 		8-98268-847-0 01 1 1409- ●
1 DOOR ASM; FRT,WO/TRIM
INTERIOR DELUXE<RBB>,INTERIOR CUSTOM<RBD> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9>, DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> THA 		8-98268-844-0 01 1 1409- ●
1 DOOR ASM; FRT,WO/TRIM
INTERIOR DELUXE<RBB>,INTERIOR CUSTOM<RBD> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9>, DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> HIGH RIDE SUSPENSION<7YC> THA 		8-98268-844-0 01 1 1409- ●
1 DOOR ASM; FRT,WO/TRIM
INTERIOR DELUXE<RBB>,INTERIOR CUSTOM<RBD> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> THA 		8-98268-844-0 01 1 1409- ●
1 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> THA 		8-98268-844-0 01 1 1409- ●
1 DOOR ASM; FRT,WO/TRIM
INTERIOR DELUXE<RBB>,INTERIOR CUSTOM<RBD> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9>, DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> THA 		8-98268-845-0 01 1 1409- ●
1 DOOR ASM; FRT,WO/TRIM
INTERIOR DELUXE<RBB>,INTERIOR CUSTOM<RBD> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9>, DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> HIGH RIDE SUSPENSION<7YC> THA 		8-98268-845-0 01 1 1409- ●
1 DOOR ASM; FRT,WO/TRIM
INTERIOR DELUXE<RBB>,INTERIOR CUSTOM<RBD> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> THA 		8-98268-845-0 01 1 1409- ●
1 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> THA 		8-98268-845-0 01 1 1409- ●
1 DOOR ASM; FRT,WO/TRIM
INTERIOR DELUXE<RBB>,INTERIOR CUSTOM<RBD> DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98268-840-0 01 1 1409- ●
1 DOOR ASM; FRT,WO/TRIM
INTERIOR DELUXE<RBB>,INTERIOR CUSTOM<RBD> DOOR MIRROR MANUAL CONT FOLDING COLOR<DE2> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98268-841-0 01 1 1409- ●
1 DOOR ASM; FRT,WO/TRIM
INTERIOR DELUXE<RBB>,INTERIOR CUSTOM<RBD> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9>, DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98268-838-0 01 1 1409- ●
1 DOOR ASM; FRT,WO/TRIM
INTERIOR DELUXE<RBB>,INTERIOR CUSTOM<RBD> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9>, DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98268-839-0 01 1 1409- ●
3 HINGE; DOOR FRT
UPR RH & LWR LH THA 		8-98105-296-0 02 1 1409- ● ● ● ● ● ●
3 HINGE; DOOR FRT
LWR RH & UPR LH THA 		8-98105-297-0 02 1 1409- ● ● ● ● ● ●
5 BOLT; HINGE
M8X23 FLANGE THA 		8-98005-842-0 08 1 1409- ● ● ● ● ● ●
5 BOLT; HINGE
M8X23 FLANGE THA 		8-98005-842-0 08 1 1409- ● ● ● ● ● ●
6 ARM; CHECK,FRT DOOR
THA 		8-98103-030-5 02 1 1409- ● ● ● ● ● ●
8 BOLT; CHECK ARM
M8X23 THA 		8-98166-694-0 02 1 1409- ● ● ● ● ● ●
9 NUT; CHECK ARM
M6 FLANGE THA 		8-98049-362-0 04 1 1409- ● ● ● ● ● ●
103 PROTECTOR; FRT DOOR
THA 		8-98202-864-0 04 1 1409- ● ● ● ● ● ●
