Sayfa 6-20 - Isuzu EPC

6-20 — SIDE PANEL AND STEP (#148333) — 313 parça

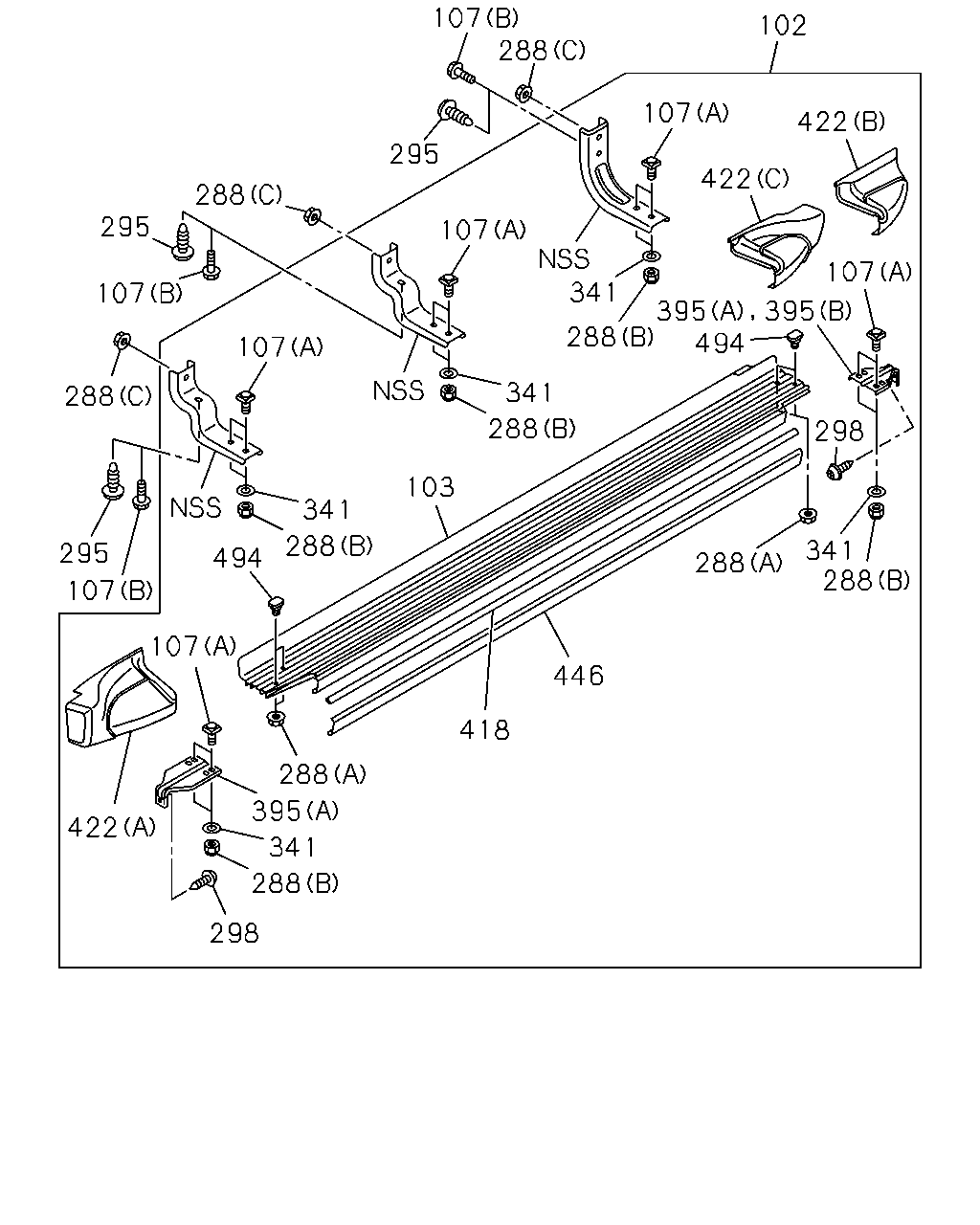

102 288 107 295 288 295 107 295 107 422 298 288 395 288 418 446 288 288 341 298 107 422 422 107 395 494 395 288 341 341 288 107 103 288 341 107 494 107 288 341

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
102	STEP; BODY SIDE BODY COLOR NAUTILUS BLUE MICA<521>,BODY COLOR COSMIC BLACK MICA<523>,BODY COLOR BALTIC BLUE<526>,BODY COLOR SPLASH WHITE<527>,BODY COLOR TITANIUM SILVER MET<529>,BODY COLOR MINERAL GRAY MET<530>,BODY COLOR SILKY WHITE PEARL<531>,B ODY COLOR SAFETY ORANGE<537>,BODY COLOR ASH BEIGE MET<541>,BODY COLOR FJORD BLUE MET<545>,BO DY COLOR VENETIAN RED MICA<546> SIDE STEP FIXED ON BODY<6TC> EXC. SALES PACKAGE SPORTY<XK0> SILVER THA	8-98101-301-5	01	1	1409-	●
102	STEP; BODY SIDE BODY COLOR NAUTILUS BLUE MICA<521>,BODY COLOR BALTIC BLUE<526>,BODY COLOR SPLASH WHITE<527>, BODY COLOR TITANIUM SILVER MET<529>,BODY COLORMINERAL GRAY MET<530>,BODY COLOR SILKY WHITEPEARL<531>,BODY COLOR SAFETY ORANGE<537>,BODY COLOR ASH BEIGE MET<541>,BODY COLOR FJORD BLUEMET<545> SALES PACKAGE SPORTY<XK0> SIDE STEP FIXED ON BODY<6TC> SILVER THA	8-98101-301-5	01	1	1409-	●
102	STEP; BODY SIDE BODY COLOR NAUTILUS BLUE MICA<521>,BODY COLOR COSMIC BLACK MICA<523>,BODY COLOR BALTIC BLUE<526>,BODY COLOR SPLASH WHITE<527>,BODY COLOR TITANIUM SILVER MET<529>,BODY COLOR MINERAL GRAY MET<530>,BODY COLOR SILKY WHITE PEARL<531>,B ODY COLOR SAFETY ORANGE<537>,BODY COLOR ASH BEIGE MET<541>,BODY COLOR FJORD BLUE MET<545>,BO DY COLOR VENETIAN RED MICA<546> SIDE STEP FIXED ON BODY<6TC> SILVER THA	8-98101-301-5	01	1	1409-		●
102	STEP; BODY SIDE BODY COLOR NAUTILUS BLUE MICA<521>,BODY COLOR COSMIC BLACK MICA<523>,BODY COLOR BALTIC BLUE<526>,BODY COLOR SPLASH WHITE<527>,BODY COLOR TITANIUM SILVER MET<529>,BODY COLOR MINERAL GRAY MET<530>,BODY COLOR SILKY WHITE PEARL<531>,B ODY COLOR SAFETY ORANGE<537>,BODY COLOR ASH BEIGE MET<541>,BODY COLOR FJORD BLUE MET<545>,BO DY COLOR VENETIAN RED MICA<546> SIDE STEP FIXED ON BODY<6TC> EXC. SALES PACKAGE SPORTY<XK0> SILVER THA	8-98101-302-5	01	1	1409-	●
102	STEP; BODY SIDE BODY COLOR NAUTILUS BLUE MICA<521>,BODY COLOR BALTIC BLUE<526>,BODY COLOR SPLASH WHITE<527>, BODY COLOR TITANIUM SILVER MET<529>,BODY COLORMINERAL GRAY MET<530>,BODY COLOR SILKY WHITEPEARL<531>,BODY COLOR SAFETY ORANGE<537>,BODY COLOR ASH BEIGE MET<541>,BODY COLOR FJORD BLUEMET<545> SALES PACKAGE SPORTY<XK0> SIDE STEP FIXED ON BODY<6TC> SILVER THA	8-98101-302-5	01	1	1409-	●
102	STEP; BODY SIDE BODY COLOR NAUTILUS BLUE MICA<521>,BODY COLOR COSMIC BLACK MICA<523>,BODY COLOR BALTIC BLUE<526>,BODY COLOR SPLASH WHITE<527>,BODY COLOR TITANIUM SILVER MET<529>,BODY COLOR MINERAL GRAY MET<530>,BODY COLOR SILKY WHITE PEARL<531>,B ODY COLOR SAFETY ORANGE<537>,BODY COLOR ASH BEIGE MET<541>,BODY COLOR FJORD BLUE MET<545>,BO DY COLOR VENETIAN RED MICA<546> SIDE STEP FIXED ON BODY<6TC> SILVER THA	8-98101-302-5	01	1	1409-		●
102	STEP; BODY SIDE BODY COLOR COSMIC BLACK MICA<523>,BODY COLOR VENETIAN RED MICA<546> SALES PACKAGE SPORTY<XK0> SIDE STEP FIXED ON BODY<6TC> DARK GRAY THA	8-97423-993-5	01	1	1409-	●
102	STEP; BODY SIDE BODY COLOR COSMIC BLACK MICA<523>,BODY COLOR VENETIAN RED MICA<546> SALES PACKAGE SPORTY<XK0> SIDE STEP FIXED ON BODY<6TC> DARK GRAY THA	8-97423-994-5	01	1	1409-	●
102	STEP; BODY SIDE BODY COLOR NAUTILUS BLUE MICA<521>,BODY COLOR COSMIC BLACK MICA<523>,BODY COLOR BALTIC BLUE<526>,BODY COLOR SPLASH WHITE<527>,BODY COLOR TITANIUM SILVER MET<529>,BODY COLOR MINERAL GRAY MET<530>,BODY COLOR SILKY WHITE PEARL<531>,B ODY COLOR SAFETY ORANGE<537>,BODY COLOR ASH BEIGE MET<541>,BODY COLOR FJORD BLUE MET<545>,BO DY COLOR VENETIAN RED MICA<546> SIDE STEP FIXED ON BODY<6TC> EXC. SALES PACKAGE SPORTY<XK0> SILVER THA	8-98101-321-5	01	1	1409-			●
102	STEP; BODY SIDE BODY COLOR NAUTILUS BLUE MICA<521>,BODY COLOR BALTIC BLUE<526>,BODY COLOR SPLASH WHITE<527>, BODY COLOR TITANIUM SILVER MET<529>,BODY COLORMINERAL GRAY MET<530>,BODY COLOR SILKY WHITEPEARL<531>,BODY COLOR SAFETY ORANGE<537>,BODY COLOR ASH BEIGE MET<541>,BODY COLOR FJORD BLUEMET<545> SALES PACKAGE SPORTY<XK0> SIDE STEP FIXED ON BODY<6TC> SILVER THA	8-98101-321-5	01	1	1409-			●
102	STEP; BODY SIDE BODY COLOR NAUTILUS BLUE MICA<521>,BODY COLOR COSMIC BLACK MICA<523>,BODY COLOR SPLASH WHITE<527>,BODY COLOR TITANIUM SILVER MET<529>,BODY COLOR MINERAL GRAY MET<530>,BODY COLOR SILKY WHITE PEARL<531>,BODY COLOR ASH BEIGE MET<541> ,BODY COLOR FJORD BLUE MET<545>,BODY COLOR VENETIAN RED MICA<546> SILVER THA	8-98101-321-5	01	1	1409-				●
102	STEP; BODY SIDE BODY COLOR NAUTILUS BLUE MICA<521>,BODY COLOR COSMIC BLACK MICA<523>,BODY COLOR BALTIC BLUE<526>,BODY COLOR SPLASH WHITE<527>,BODY COLOR TITANIUM SILVER MET<529>,BODY COLOR MINERAL GRAY MET<530>,BODY COLOR SILKY WHITE PEARL<531>,B ODY COLOR SAFETY ORANGE<537>,BODY COLOR ASH BEIGE MET<541>,BODY COLOR FJORD BLUE MET<545>,BO DY COLOR VENETIAN RED MICA<546> SIDE STEP FIXED ON BODY<6TC> EXC. SALES PACKAGE SPORTY<XK0> SILVER THA	8-98101-322-5	01	1	1409-			●
102	STEP; BODY SIDE BODY COLOR NAUTILUS BLUE MICA<521>,BODY COLOR BALTIC BLUE<526>,BODY COLOR SPLASH WHITE<527>, BODY COLOR TITANIUM SILVER MET<529>,BODY COLORMINERAL GRAY MET<530>,BODY COLOR SILKY WHITEPEARL<531>,BODY COLOR SAFETY ORANGE<537>,BODY COLOR ASH BEIGE MET<541>,BODY COLOR FJORD BLUEMET<545> SALES PACKAGE SPORTY<XK0> SIDE STEP FIXED ON BODY<6TC> SILVER THA	8-98101-322-5	01	1	1409-			●
102	STEP; BODY SIDE BODY COLOR NAUTILUS BLUE MICA<521>,BODY COLOR COSMIC BLACK MICA<523>,BODY COLOR SPLASH WHITE<527>,BODY COLOR TITANIUM SILVER MET<529>,BODY COLOR MINERAL GRAY MET<530>,BODY COLOR SILKY WHITE PEARL<531>,BODY COLOR ASH BEIGE MET<541> ,BODY COLOR FJORD BLUE MET<545>,BODY COLOR VENETIAN RED MICA<546> SILVER THA	8-98101-322-5	01	1	1409-				●
102	STEP; BODY SIDE BODY COLOR COSMIC BLACK MICA<523>,BODY COLOR VENETIAN RED MICA<546> SALES PACKAGE SPORTY<XK0> SIDE STEP FIXED ON BODY<6TC> DARK GRAY THA	8-97423-995-5	01	1	1409-			●
102	STEP; BODY SIDE BODY COLOR COSMIC BLACK MICA<523>,BODY COLOR VENETIAN RED MICA<546> SALES PACKAGE SPORTY<XK0> SIDE STEP FIXED ON BODY<6TC> DARK GRAY THA	8-97423-996-5	01	1	1409-			●
103	PLATE; STEP SIDE STEP FIXED ON BODY<6TC> THA	8-98292-970-0	01	1	1409-	●	●
103	PLATE; STEP SIDE STEP FIXED ON BODY<6TC> THA	8-98292-971-0	01	1	1409-	●	●
103	PLATE; STEP SIDE STEP FIXED ON BODY<6TC> THA	8-98292-968-0	01	1	1409-			●	●
103	PLATE; STEP SIDE STEP FIXED ON BODY<6TC> THA	8-98292-969-0	01	1	1409-			●	●
107	BOLT; SIDE STEP SIDE STEP FIXED ON BODY<6TC> (A) THA	8-98251-460-0	20	1	1409-	●	●	●	●
107	BOLT; SIDE STEP SIDE STEP FIXED ON BODY<6TC> (B) M8X25 FLANGE THA	8-98048-998-0	06	1	1409-	●	●	●
107	BOLT; SIDE STEP (B) M8X25 FLANGE THA	8-98048-998-0	06	1	1409-				●
288	NUT; STEP SIDE STEP FIXED ON BODY<6TC> (A) M6 FLANGE THA	0-91180-106-0	08	1	1409-	●	●	●	●
288	NUT; STEP SIDE STEP FIXED ON BODY<6TC> (B) M8 FLANGE THA	0-91180-108-0	20	1	1409-	●	●	●	●
288	NUT; STEP SIDE STEP FIXED ON BODY<6TC> (C) M8 FLANGE THA	0-91180-208-0	06	1	1409-	●	●	●
288	NUT; STEP (C) M8 FLANGE THA	0-91180-208-0	06	1	1409-				●
295	CLIP; BODY SIDE STEP EXC. SIDE STEP FIXED ON BODY<6TC> OD=18 THA	8-94269-290-0	06	1	1409-	●	●	●
295	CLIP; BODY SIDE STEP OD=18 THA	8-94269-290-0	04	1	1409-					●	●
298	SCREW; SIDE STEP SIDE STEP FIXED ON BODY<6TC> M5X16 IMA	8-98073-081-0	04	1	1409-	●	●	●	●
341	WASHER; PL,STEP SIDE STEP FIXED ON BODY<6TC> ID=8.4 OD=18 IMA	0-91614-608-0	20	1	1409-	●	●	●	●
395	BRACKET; SIDE STEP SIDE STEP FIXED ON BODY<6TC> (A) THA	8-98292-978-0	02	1	1409-	●	●
395	BRACKET; SIDE STEP SIDE STEP FIXED ON BODY<6TC> (B) THA	8-98292-980-0	02	1	1409-	●	●
395	BRACKET; SIDE STEP SIDE STEP FIXED ON BODY<6TC> (A) THA	8-98292-978-0	04	1	1409-			●	●
418	RUBBER; STEP SIDE STEP FIXED ON BODY<6TC> THA	8-98293-009-0	02	1	1409-	●	●
418	RUBBER; STEP SIDE STEP FIXED ON BODY<6TC> THA	8-98293-008-0	02	1	1409-			●	●
422	COVER; SIDE STEP SIDE STEP FIXED ON BODY<6TC> (A) FRONT PRIMER THA	8-98293-070-0	01	1	1409-	●	●	●	●
422	COVER; SIDE STEP SIDE STEP FIXED ON BODY<6TC> (A) FRONT PRIMER THA	8-98293-069-0	01	1	1409-	●	●	●	●
422	COVER; SIDE STEP SIDE STEP FIXED ON BODY<6TC> (B) REAR PRIMER THA	8-98293-072-0	01	1	1409-	●	●
422	COVER; SIDE STEP SIDE STEP FIXED ON BODY<6TC> (B) REAR PRIMER THA	8-98293-071-0	01	1	1409-	●	●
422	COVER; SIDE STEP SIDE STEP FIXED ON BODY<6TC> (C) REAR PRIMER THA	8-98293-074-0	01	1	1409-			●	●
422	COVER; SIDE STEP SIDE STEP FIXED ON BODY<6TC> (C) REAR PRIMER THA	8-98293-073-0	01	1	1409-			●	●
446	FINISHER; STEP SIDE STEP FIXED ON BODY<6TC> PRIMER THA	8-98293-075-0	02	1	1409-	●	●
446	FINISHER; STEP SIDE STEP FIXED ON BODY<6TC> PRIMER THA	8-98293-076-0	02	1	1409-			●	●
494	STUD; BRKT SIDE STEP FIXED ON BODY<6TC> THA	8-98056-035-0	08	1	1409-	●	●	●	●

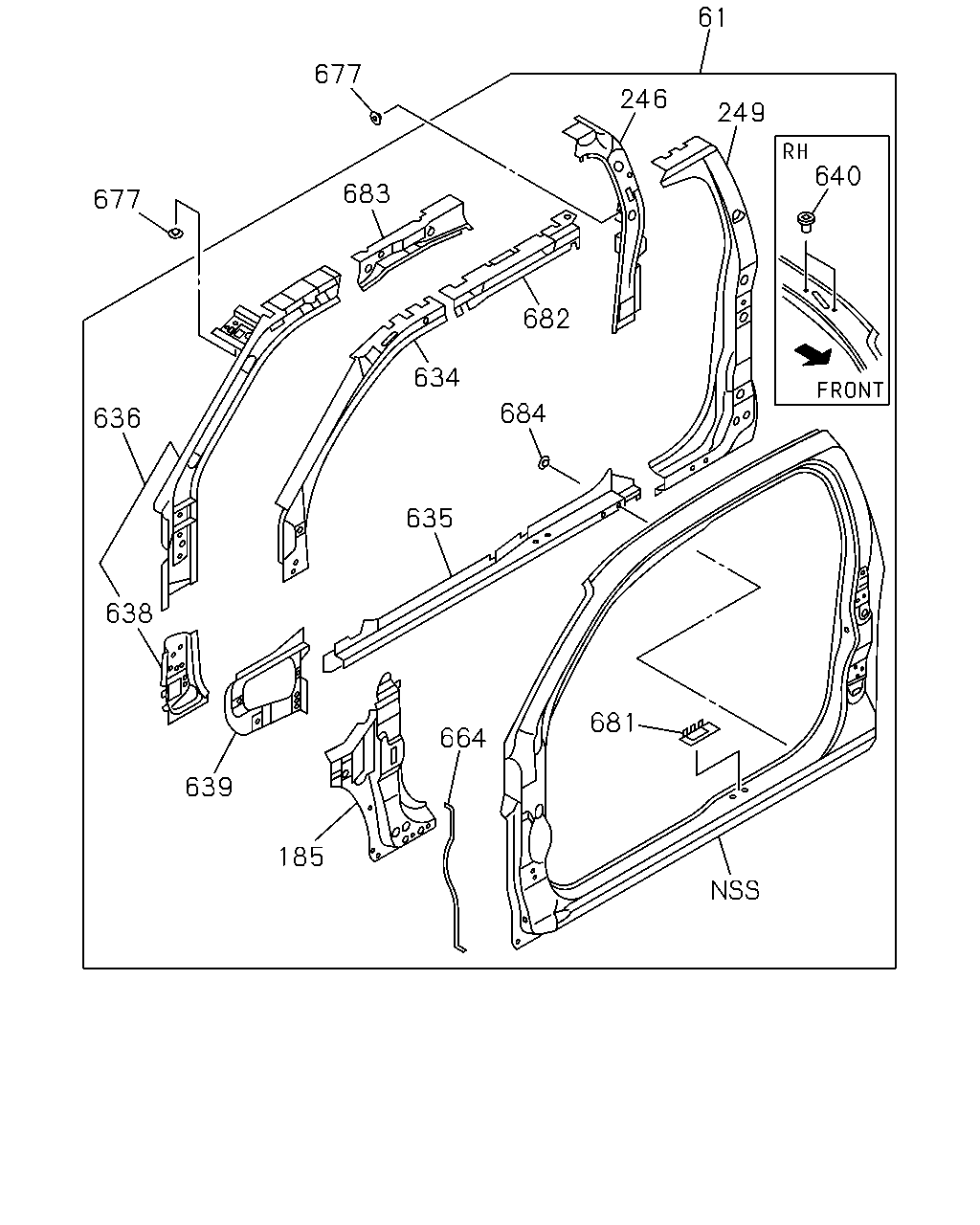

677 677 636 638 639 664 185 681 635 684 634 682 683 246 640 249 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
61	PANEL; SIDE OUTER ROOF RADIO ANTENNA<U71> THA	8-98271-046-1	01	1	1409-	●
61	PANEL; SIDE OUTER AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> EXC. ROOF RADIO ANTENNA<U71> THA	8-98271-046-1	01	1	1409-	●
61	PANEL; SIDE OUTER INTERIOR DELUXE<RBB>,INTERIOR CUSTOM<RBD> ROOF RADIO ANTENNA<U71> THA	8-98271-046-1	01	1	1409-		●
61	PANEL; SIDE OUTER INTERIOR DELUXE<RBB>,INTERIOR CUSTOM<RBD> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> EXC. ROOF RADIO ANTENNA<U71> THA	8-98271-046-1	01	1	1409-		●
61	PANEL; SIDE OUTER AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. ROOF RADIO ANTENNA<U71> THA	8-98271-047-1	01	1	1409-	●
61	PANEL; SIDE OUTER INTERIOR DELUXE<RBB>,INTERIOR CUSTOM<RBD> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. ROOF RADIO ANTENNA<U71> THA	8-98271-047-1	01	1	1409-		●
61	PANEL; SIDE OUTER THA	8-98271-043-1	01	1	1409-	●	●
61	PANEL; SIDE OUTER THA	8-98103-242-6	01	1	1409-					●	●
61	PANEL; SIDE OUTER THA	8-98103-245-6	01	1	1409-					●	●
61	PANEL; SIDE OUTER INTERIOR DELUXE<RBB> THA	8-98156-759-6	01	1	1409-			●
61	PANEL; SIDE OUTER INTERIOR DELUXE<RBB> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. ROOF RADIO ANTENNA<U71> THA	8-98156-770-6	01	1	1409-			●
61	PANEL; SIDE OUTER INTERIOR CUSTOM<RBD> THA	8-98156-763-6	01	1	1409-			●
61	PANEL; SIDE OUTER 4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> THA	8-98156-763-6	01	1	1409-				●
61	PANEL; SIDE OUTER INTERIOR CUSTOM<RBD> ROOF RADIO ANTENNA<U71> THA	8-98156-771-6	01	1	1409-			●
61	PANEL; SIDE OUTER INTERIOR CUSTOM<RBD> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> EXC. ROOF RADIO ANTENNA<U71> THA	8-98156-771-6	01	1	1409-			●
61	PANEL; SIDE OUTER 4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> ROOF RADIO ANTENNA<U71> THA	8-98156-771-6	01	1	1409-				●
61	PANEL; SIDE OUTER 4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> EXC. ROOF RADIO ANTENNA<U71> THA	8-98156-771-6	01	1	1409-				●
185	REINFORCEMENT; SIDE INNER LWR THA	8-98104-094-2	01	1	1409-1409	●	●	●	●
185	REINFORCEMENT; SIDE INNER LWR THA	8-98104-094-2	01	1	1409-	●	●	●	●	●	●
185	REINFORCEMENT; SIDE INNER LWR THA	8-98104-095-2	01	1	1409-1409	●	●	●	●
185	REINFORCEMENT; SIDE INNER LWR THA	8-98104-095-2	01	1	1409-	●	●	●	●	●	●
246	PANEL; RR PILLAR,INNER THA	8-98104-452-5	01	1	1409-	●	●
246	PANEL; RR PILLAR,INNER THA	8-98104-450-5	01	1	1409-	●	●
249	REINFORCEMENT; RR PILLAR THA	8-98104-221-5	01	1	1409-	●	●
249	REINFORCEMENT; RR PILLAR THA	8-98104-218-5	01	1	1409-	●	●
634	REINFORCEMENT; BODY SIDE INNER THA	8-98104-071-2	01	1	1409-1409	●	●	●	●
634	REINFORCEMENT; BODY SIDE INNER THA	8-98104-071-2	01	1	1409-	●	●	●	●	●	●
634	REINFORCEMENT; BODY SIDE INNER THA	8-98104-072-2	01	1	1409-1409	●	●	●	●
634	REINFORCEMENT; BODY SIDE INNER THA	8-98104-072-2	01	1	1409-	●	●	●	●	●	●
635	REINFORCEMENT; ROCKER THA	8-98104-503-2	01	1	1409-					●	●
635	REINFORCEMENT; ROCKER THA	8-98104-504-2	01	1	1409-					●	●
635	REINFORCEMENT; ROCKER THA	8-98104-131-2	01	1	1409-	●	●
635	REINFORCEMENT; ROCKER THA	8-98104-090-2	01	1	1409-	●	●
635	REINFORCEMENT; ROCKER THA	8-98104-794-4	01	1	1409-			●	●
635	REINFORCEMENT; ROCKER THA	8-98104-793-4	01	1	1409-			●	●
636	PANEL; FRONT PILLAR INNER THA	8-98161-090-6	01	1	1409-1409	●	●
636	PANEL; FRONT PILLAR INNER THA	8-98161-090-7	01	1	1409-	●	●			●	●
636	PANEL; FRONT PILLAR INNER THA	8-98161-087-6	01	1	1409-1409	●	●
636	PANEL; FRONT PILLAR INNER THA	8-98161-087-7	01	1	1409-	●	●			●	●
636	PANEL; FRONT PILLAR INNER THA	8-98104-512-9	01	1	1409-1505			●	●
636	PANEL; FRONT PILLAR INNER THA	8-98297-963-0	01	1	1506-			●	●
636	PANEL; FRONT PILLAR INNER THA	8-98104-510-9	01	1	1409-1505			●	●
636	PANEL; FRONT PILLAR INNER THA	8-98297-962-0	01	1	1506-			●	●
638	PANEL; DASH SIDE INNER THA	8-98104-640-4	01	1	1409-1409	●	●	●	●
638	PANEL; DASH SIDE INNER THA	8-98104-640-5	01	1	1409-	●	●	●	●	●	●
638	PANEL; DASH SIDE INNER THA	8-98104-641-4	01	1	1409-1409	●	●	●	●
638	PANEL; DASH SIDE INNER THA	8-98104-641-5	01	1	1409-	●	●	●	●	●	●
639	REINFORCEMENT; COWL SIDE THA	8-98185-421-0	01	1	1409-1409	●	●	●	●
639	REINFORCEMENT; COWL SIDE THA	8-98185-421-0	01	1	1409-	●	●	●	●	●	●
639	REINFORCEMENT; COWL SIDE THA	8-98104-055-0	01	1	1409-1409	●	●	●	●
639	REINFORCEMENT; COWL SIDE THA	8-98104-055-0	01	1	1409-	●	●	●	●	●	●
640	POP NUT AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. ROOF RADIO ANTENNA<U71> M5 POP NUT THA	8-97249-574-0	02	1	1409-1409	●
640	POP NUT INTERIOR DELUXE<RBB> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. ROOF RADIO ANTENNA<U71> M5 POP NUT THA	8-97249-574-0	02	1	1409-1409			●
640	POP NUT INTERIOR DELUXE<RBB>,INTERIOR CUSTOM<RBD> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. ROOF RADIO ANTENNA<U71> M5 POP NUT THA	8-97249-574-0	02	1	1409-1409		●
640	POP NUT AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. ROOF RADIO ANTENNA<U71> M5 POP NUT THA	8-97249-574-0	02	1	1409-	●
640	POP NUT INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> M5 POP NUT THA	8-97249-574-0	02	1	1409-					●
640	POP NUT INTERIOR DELUXE<RBB> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. ROOF RADIO ANTENNA<U71> M5 POP NUT THA	8-97249-574-0	02	1	1409-			●
640	POP NUT INTERIOR DELUXE<RBB>,INTERIOR CUSTOM<RBD> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. ROOF RADIO ANTENNA<U71> M5 POP NUT THA	8-97249-574-0	02	1	1409-		●
640	POP NUT 4JK1-TCX ENG<LR0> RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> M5 POP NUT THA	8-97249-574-0	02	1	1409-						●
664	SEAL; TAPE THA	8-98193-408-2	01	1	1409-1409	●	●	●	●
664	SEAL; TAPE THA	8-98193-408-2	01	1	1409-1409	●	●	●	●
664	SEAL; TAPE THA	8-98193-408-2	01	1	1409-	●	●	●	●	●	●
664	SEAL; TAPE THA	8-98193-408-2	01	1	1409-	●	●	●	●	●	●
677	RIVET; PANEL THA	8-98057-864-0	16	1	1409-	●	●	●	●	●	●
681	REINFORCEMENT; STRIKER THA	8-98104-041-0	01	1	1409-	●	●
681	REINFORCEMENT; STRIKER THA	8-98104-040-0	01	1	1409-	●	●
682	REINFORCEMENT; ROOF SIDE THA	8-98104-563-2	01	1	1409-	●	●
682	REINFORCEMENT; ROOF SIDE THA	8-98104-559-2	01	1	1409-	●	●
683	PANEL; HEADER THA	8-98104-314-4	01	1	1409-	●	●
683	PANEL; HEADER THA	8-98104-310-4	01	1	1409-	●	●
683	PANEL; HEADER INTERIOR DELUXE<RBB> THA	8-98161-124-3	01	1	1409-			●
683	PANEL; HEADER INTERIOR DELUXE<RBB> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. ROOF RADIO ANTENNA<U71> THA	8-98161-128-3	01	1	1409-			●
683	PANEL; HEADER INTERIOR CUSTOM<RBD> THA	8-98161-125-3	01	1	1409-			●
683	PANEL; HEADER 4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> THA	8-98161-125-3	01	1	1409-				●
683	PANEL; HEADER INTERIOR CUSTOM<RBD> ROOF RADIO ANTENNA<U71> THA	8-98161-129-3	01	1	1409-			●
683	PANEL; HEADER INTERIOR CUSTOM<RBD> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> EXC. ROOF RADIO ANTENNA<U71> THA	8-98161-129-3	01	1	1409-			●
683	PANEL; HEADER 4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> ROOF RADIO ANTENNA<U71> THA	8-98161-129-3	01	1	1409-				●
683	PANEL; HEADER 4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> EXC. ROOF RADIO ANTENNA<U71> THA	8-98161-129-3	01	1	1409-				●
684	FASTENER THA	8-98057-864-0	07	1	1409-					●	●
684	FASTENER THA	8-98057-864-0	07	1	1409-					●	●
684	FASTENER THA	8-98057-864-0	11	1	1409-	●	●
684	FASTENER THA	8-98057-864-0	11	1	1409-	●	●
684	FASTENER THA	8-98057-864-0	10	1	1409-			●	●
684	FASTENER THA	8-98057-864-0	10	1	1409-			●	●

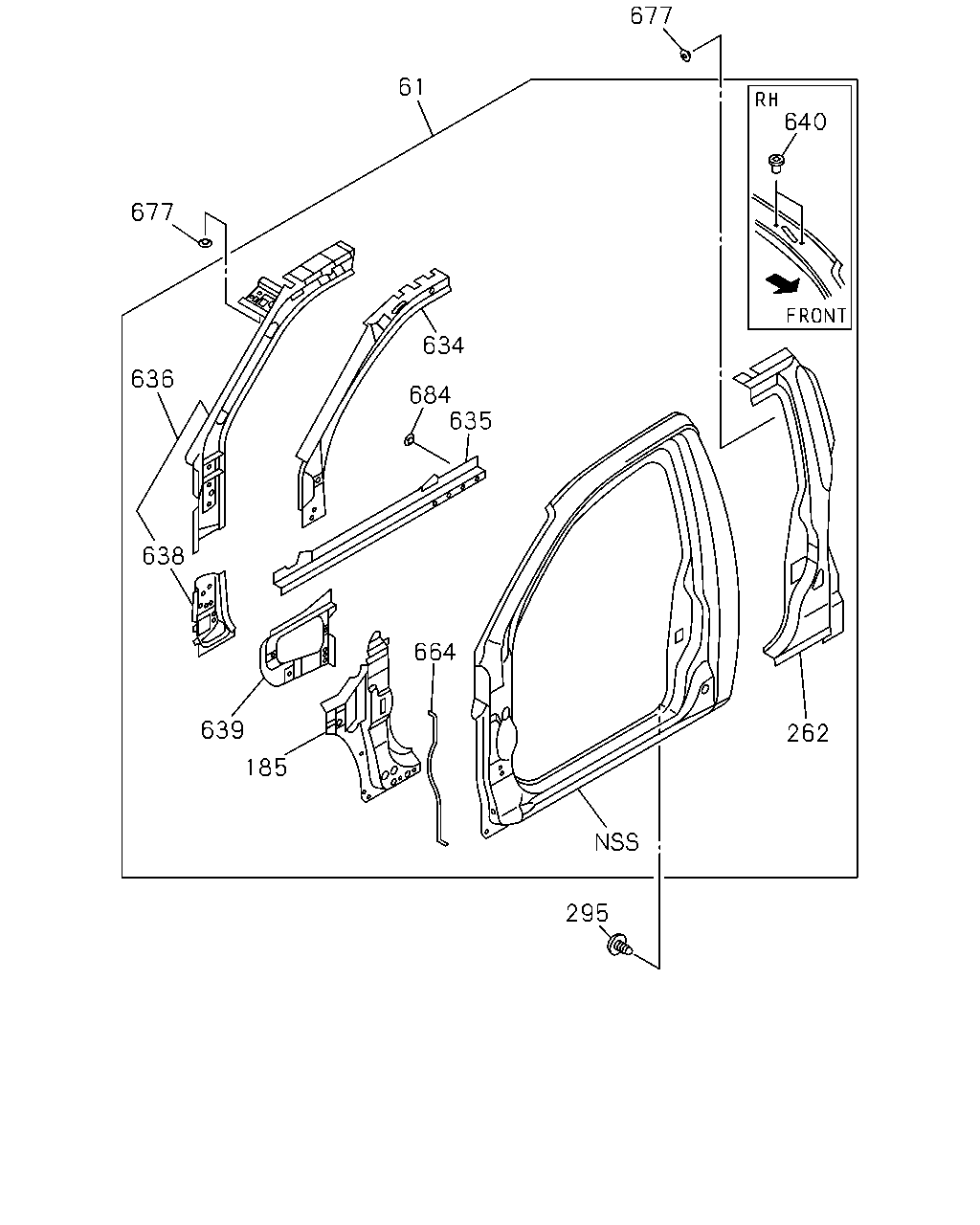

295 262 640 677 61 677 634 684 635 664 185 639 638 636

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
61	PANEL; SIDE OUTER ROOF RADIO ANTENNA<U71> THA	8-98271-046-1	01	1	1409-	●
61	PANEL; SIDE OUTER AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> EXC. ROOF RADIO ANTENNA<U71> THA	8-98271-046-1	01	1	1409-	●
61	PANEL; SIDE OUTER INTERIOR DELUXE<RBB>,INTERIOR CUSTOM<RBD> ROOF RADIO ANTENNA<U71> THA	8-98271-046-1	01	1	1409-		●
61	PANEL; SIDE OUTER INTERIOR DELUXE<RBB>,INTERIOR CUSTOM<RBD> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> EXC. ROOF RADIO ANTENNA<U71> THA	8-98271-046-1	01	1	1409-		●
61	PANEL; SIDE OUTER AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. ROOF RADIO ANTENNA<U71> THA	8-98271-047-1	01	1	1409-	●
61	PANEL; SIDE OUTER INTERIOR DELUXE<RBB>,INTERIOR CUSTOM<RBD> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. ROOF RADIO ANTENNA<U71> THA	8-98271-047-1	01	1	1409-		●
61	PANEL; SIDE OUTER THA	8-98271-043-1	01	1	1409-	●	●
61	PANEL; SIDE OUTER THA	8-98103-242-6	01	1	1409-					●	●
61	PANEL; SIDE OUTER THA	8-98103-245-6	01	1	1409-					●	●
61	PANEL; SIDE OUTER INTERIOR DELUXE<RBB> THA	8-98156-759-6	01	1	1409-			●
61	PANEL; SIDE OUTER INTERIOR DELUXE<RBB> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. ROOF RADIO ANTENNA<U71> THA	8-98156-770-6	01	1	1409-			●
61	PANEL; SIDE OUTER INTERIOR CUSTOM<RBD> THA	8-98156-763-6	01	1	1409-			●
61	PANEL; SIDE OUTER 4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> THA	8-98156-763-6	01	1	1409-				●
61	PANEL; SIDE OUTER INTERIOR CUSTOM<RBD> ROOF RADIO ANTENNA<U71> THA	8-98156-771-6	01	1	1409-			●
61	PANEL; SIDE OUTER INTERIOR CUSTOM<RBD> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> EXC. ROOF RADIO ANTENNA<U71> THA	8-98156-771-6	01	1	1409-			●
61	PANEL; SIDE OUTER 4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> ROOF RADIO ANTENNA<U71> THA	8-98156-771-6	01	1	1409-				●
61	PANEL; SIDE OUTER 4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> EXC. ROOF RADIO ANTENNA<U71> THA	8-98156-771-6	01	1	1409-				●
185	REINFORCEMENT; SIDE INNER LWR THA	8-98104-094-2	01	1	1409-1409	●	●	●	●
185	REINFORCEMENT; SIDE INNER LWR THA	8-98104-094-2	01	1	1409-	●	●	●	●	●	●
185	REINFORCEMENT; SIDE INNER LWR THA	8-98104-095-2	01	1	1409-1409	●	●	●	●
185	REINFORCEMENT; SIDE INNER LWR THA	8-98104-095-2	01	1	1409-	●	●	●	●	●	●
262	PANEL; PILLAR THA	8-98192-993-1	01	1	1409-					●	●
262	PANEL; PILLAR THA	8-98269-897-0	01	1	1409-					●	●
295	CLIP; BODY SIDE STEP EXC. SIDE STEP FIXED ON BODY<6TC> OD=18 THA	8-94269-290-0	06	1	1409-	●	●	●
295	CLIP; BODY SIDE STEP OD=18 THA	8-94269-290-0	04	1	1409-					●	●
634	REINFORCEMENT; BODY SIDE INNER THA	8-98104-071-2	01	1	1409-1409	●	●	●	●
634	REINFORCEMENT; BODY SIDE INNER THA	8-98104-071-2	01	1	1409-	●	●	●	●	●	●
634	REINFORCEMENT; BODY SIDE INNER THA	8-98104-072-2	01	1	1409-1409	●	●	●	●
634	REINFORCEMENT; BODY SIDE INNER THA	8-98104-072-2	01	1	1409-	●	●	●	●	●	●
635	REINFORCEMENT; ROCKER THA	8-98104-503-2	01	1	1409-					●	●
635	REINFORCEMENT; ROCKER THA	8-98104-504-2	01	1	1409-					●	●
635	REINFORCEMENT; ROCKER THA	8-98104-131-2	01	1	1409-	●	●
635	REINFORCEMENT; ROCKER THA	8-98104-090-2	01	1	1409-	●	●
635	REINFORCEMENT; ROCKER THA	8-98104-794-4	01	1	1409-			●	●
635	REINFORCEMENT; ROCKER THA	8-98104-793-4	01	1	1409-			●	●
636	PANEL; FRONT PILLAR INNER THA	8-98161-090-6	01	1	1409-1409	●	●
636	PANEL; FRONT PILLAR INNER THA	8-98161-090-7	01	1	1409-	●	●			●	●
636	PANEL; FRONT PILLAR INNER THA	8-98161-087-6	01	1	1409-1409	●	●
636	PANEL; FRONT PILLAR INNER THA	8-98161-087-7	01	1	1409-	●	●			●	●
636	PANEL; FRONT PILLAR INNER THA	8-98104-512-9	01	1	1409-1505			●	●
636	PANEL; FRONT PILLAR INNER THA	8-98297-963-0	01	1	1506-			●	●
636	PANEL; FRONT PILLAR INNER THA	8-98104-510-9	01	1	1409-1505			●	●
636	PANEL; FRONT PILLAR INNER THA	8-98297-962-0	01	1	1506-			●	●
638	PANEL; DASH SIDE INNER THA	8-98104-640-4	01	1	1409-1409	●	●	●	●
638	PANEL; DASH SIDE INNER THA	8-98104-640-5	01	1	1409-	●	●	●	●	●	●
638	PANEL; DASH SIDE INNER THA	8-98104-641-4	01	1	1409-1409	●	●	●	●
638	PANEL; DASH SIDE INNER THA	8-98104-641-5	01	1	1409-	●	●	●	●	●	●
639	REINFORCEMENT; COWL SIDE THA	8-98185-421-0	01	1	1409-1409	●	●	●	●
639	REINFORCEMENT; COWL SIDE THA	8-98185-421-0	01	1	1409-	●	●	●	●	●	●
639	REINFORCEMENT; COWL SIDE THA	8-98104-055-0	01	1	1409-1409	●	●	●	●
639	REINFORCEMENT; COWL SIDE THA	8-98104-055-0	01	1	1409-	●	●	●	●	●	●
640	POP NUT AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. ROOF RADIO ANTENNA<U71> M5 POP NUT THA	8-97249-574-0	02	1	1409-1409	●
640	POP NUT INTERIOR DELUXE<RBB> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. ROOF RADIO ANTENNA<U71> M5 POP NUT THA	8-97249-574-0	02	1	1409-1409			●
640	POP NUT INTERIOR DELUXE<RBB>,INTERIOR CUSTOM<RBD> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. ROOF RADIO ANTENNA<U71> M5 POP NUT THA	8-97249-574-0	02	1	1409-1409		●
640	POP NUT AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. ROOF RADIO ANTENNA<U71> M5 POP NUT THA	8-97249-574-0	02	1	1409-	●
640	POP NUT INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> M5 POP NUT THA	8-97249-574-0	02	1	1409-					●
640	POP NUT INTERIOR DELUXE<RBB> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. ROOF RADIO ANTENNA<U71> M5 POP NUT THA	8-97249-574-0	02	1	1409-			●
640	POP NUT INTERIOR DELUXE<RBB>,INTERIOR CUSTOM<RBD> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. ROOF RADIO ANTENNA<U71> M5 POP NUT THA	8-97249-574-0	02	1	1409-		●
640	POP NUT 4JK1-TCX ENG<LR0> RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> M5 POP NUT THA	8-97249-574-0	02	1	1409-						●
664	SEAL; TAPE THA	8-98193-408-2	01	1	1409-1409	●	●	●	●
664	SEAL; TAPE THA	8-98193-408-2	01	1	1409-1409	●	●	●	●
664	SEAL; TAPE THA	8-98193-408-2	01	1	1409-	●	●	●	●	●	●
664	SEAL; TAPE THA	8-98193-408-2	01	1	1409-	●	●	●	●	●	●
677	RIVET; PANEL THA	8-98057-864-0	16	1	1409-	●	●	●	●	●	●
684	FASTENER THA	8-98057-864-0	07	1	1409-					●	●
684	FASTENER THA	8-98057-864-0	07	1	1409-					●	●
684	FASTENER THA	8-98057-864-0	11	1	1409-	●	●
684	FASTENER THA	8-98057-864-0	11	1	1409-	●	●
684	FASTENER THA	8-98057-864-0	10	1	1409-			●	●
684	FASTENER THA	8-98057-864-0	10	1	1409-			●	●

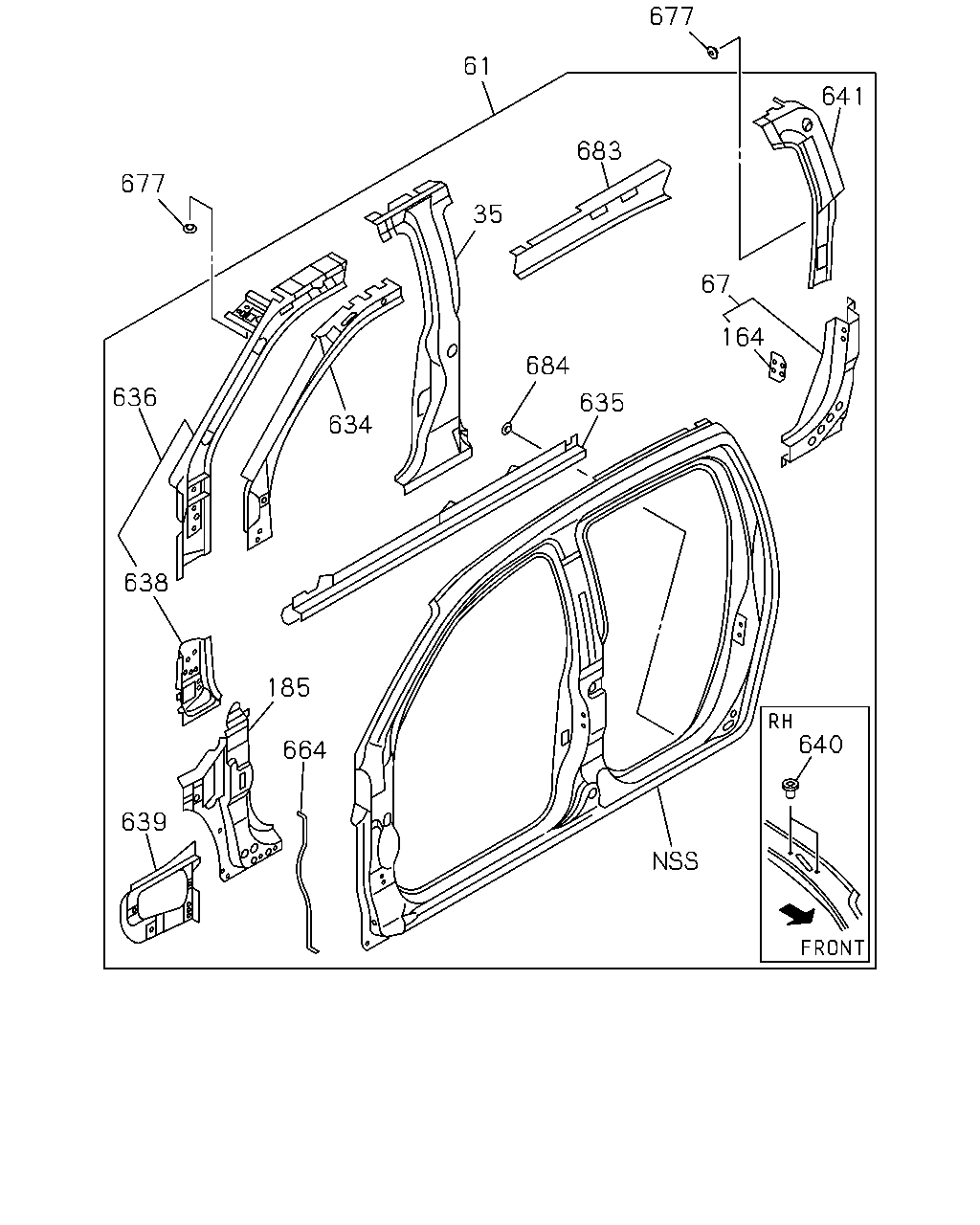

640 164 67 641 677 683 635 684 35 61 634 677 636 638 185 664 639

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
35	PANEL; CENTER PILLAR,INNER THA	8-98104-767-8	01	1	1409-			●	●
35	PANEL; CENTER PILLAR,INNER THA	8-98104-766-7	01	1	1409-			●	●
61	PANEL; SIDE OUTER ROOF RADIO ANTENNA<U71> THA	8-98271-046-1	01	1	1409-	●
61	PANEL; SIDE OUTER AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> EXC. ROOF RADIO ANTENNA<U71> THA	8-98271-046-1	01	1	1409-	●
61	PANEL; SIDE OUTER INTERIOR DELUXE<RBB>,INTERIOR CUSTOM<RBD> ROOF RADIO ANTENNA<U71> THA	8-98271-046-1	01	1	1409-		●
61	PANEL; SIDE OUTER INTERIOR DELUXE<RBB>,INTERIOR CUSTOM<RBD> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> EXC. ROOF RADIO ANTENNA<U71> THA	8-98271-046-1	01	1	1409-		●
61	PANEL; SIDE OUTER AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. ROOF RADIO ANTENNA<U71> THA	8-98271-047-1	01	1	1409-	●
61	PANEL; SIDE OUTER INTERIOR DELUXE<RBB>,INTERIOR CUSTOM<RBD> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. ROOF RADIO ANTENNA<U71> THA	8-98271-047-1	01	1	1409-		●
61	PANEL; SIDE OUTER THA	8-98271-043-1	01	1	1409-	●	●
61	PANEL; SIDE OUTER THA	8-98103-242-6	01	1	1409-					●	●
61	PANEL; SIDE OUTER THA	8-98103-245-6	01	1	1409-					●	●
61	PANEL; SIDE OUTER INTERIOR DELUXE<RBB> THA	8-98156-759-6	01	1	1409-			●
61	PANEL; SIDE OUTER INTERIOR DELUXE<RBB> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. ROOF RADIO ANTENNA<U71> THA	8-98156-770-6	01	1	1409-			●
61	PANEL; SIDE OUTER INTERIOR CUSTOM<RBD> THA	8-98156-763-6	01	1	1409-			●
61	PANEL; SIDE OUTER 4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> THA	8-98156-763-6	01	1	1409-				●
61	PANEL; SIDE OUTER INTERIOR CUSTOM<RBD> ROOF RADIO ANTENNA<U71> THA	8-98156-771-6	01	1	1409-			●
61	PANEL; SIDE OUTER INTERIOR CUSTOM<RBD> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> EXC. ROOF RADIO ANTENNA<U71> THA	8-98156-771-6	01	1	1409-			●
61	PANEL; SIDE OUTER 4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> ROOF RADIO ANTENNA<U71> THA	8-98156-771-6	01	1	1409-				●
61	PANEL; SIDE OUTER 4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> EXC. ROOF RADIO ANTENNA<U71> THA	8-98156-771-6	01	1	1409-				●
67	PANEL; INNER,RR PILLAR LWR THA	8-98104-787-6	01	1	1409-			●	●
67	PANEL; INNER,RR PILLAR LWR THA	8-98104-786-6	01	1	1409-			●	●
164	PLATE; SIDE PNL OUTER THA	8-93297-532-1	01	1	1409-			●	●
164	PLATE; SIDE PNL OUTER THA	8-93297-532-1	01	1	1409-			●	●
185	REINFORCEMENT; SIDE INNER LWR THA	8-98104-094-2	01	1	1409-1409	●	●	●	●
185	REINFORCEMENT; SIDE INNER LWR THA	8-98104-094-2	01	1	1409-	●	●	●	●	●	●
185	REINFORCEMENT; SIDE INNER LWR THA	8-98104-095-2	01	1	1409-1409	●	●	●	●
185	REINFORCEMENT; SIDE INNER LWR THA	8-98104-095-2	01	1	1409-	●	●	●	●	●	●
634	REINFORCEMENT; BODY SIDE INNER THA	8-98104-071-2	01	1	1409-1409	●	●	●	●
634	REINFORCEMENT; BODY SIDE INNER THA	8-98104-071-2	01	1	1409-	●	●	●	●	●	●
634	REINFORCEMENT; BODY SIDE INNER THA	8-98104-072-2	01	1	1409-1409	●	●	●	●
634	REINFORCEMENT; BODY SIDE INNER THA	8-98104-072-2	01	1	1409-	●	●	●	●	●	●
635	REINFORCEMENT; ROCKER THA	8-98104-503-2	01	1	1409-					●	●
635	REINFORCEMENT; ROCKER THA	8-98104-504-2	01	1	1409-					●	●
635	REINFORCEMENT; ROCKER THA	8-98104-131-2	01	1	1409-	●	●
635	REINFORCEMENT; ROCKER THA	8-98104-090-2	01	1	1409-	●	●
635	REINFORCEMENT; ROCKER THA	8-98104-794-4	01	1	1409-			●	●
635	REINFORCEMENT; ROCKER THA	8-98104-793-4	01	1	1409-			●	●
636	PANEL; FRONT PILLAR INNER THA	8-98161-090-6	01	1	1409-1409	●	●
636	PANEL; FRONT PILLAR INNER THA	8-98161-090-7	01	1	1409-	●	●			●	●
636	PANEL; FRONT PILLAR INNER THA	8-98161-087-6	01	1	1409-1409	●	●
636	PANEL; FRONT PILLAR INNER THA	8-98161-087-7	01	1	1409-	●	●			●	●
636	PANEL; FRONT PILLAR INNER THA	8-98104-512-9	01	1	1409-1505			●	●
636	PANEL; FRONT PILLAR INNER THA	8-98297-963-0	01	1	1506-			●	●
636	PANEL; FRONT PILLAR INNER THA	8-98104-510-9	01	1	1409-1505			●	●
636	PANEL; FRONT PILLAR INNER THA	8-98297-962-0	01	1	1506-			●	●
638	PANEL; DASH SIDE INNER THA	8-98104-640-4	01	1	1409-1409	●	●	●	●
638	PANEL; DASH SIDE INNER THA	8-98104-640-5	01	1	1409-	●	●	●	●	●	●
638	PANEL; DASH SIDE INNER THA	8-98104-641-4	01	1	1409-1409	●	●	●	●
638	PANEL; DASH SIDE INNER THA	8-98104-641-5	01	1	1409-	●	●	●	●	●	●
639	REINFORCEMENT; COWL SIDE THA	8-98185-421-0	01	1	1409-1409	●	●	●	●
639	REINFORCEMENT; COWL SIDE THA	8-98185-421-0	01	1	1409-	●	●	●	●	●	●
639	REINFORCEMENT; COWL SIDE THA	8-98104-055-0	01	1	1409-1409	●	●	●	●
639	REINFORCEMENT; COWL SIDE THA	8-98104-055-0	01	1	1409-	●	●	●	●	●	●
640	POP NUT AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. ROOF RADIO ANTENNA<U71> M5 POP NUT THA	8-97249-574-0	02	1	1409-1409	●
640	POP NUT INTERIOR DELUXE<RBB> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. ROOF RADIO ANTENNA<U71> M5 POP NUT THA	8-97249-574-0	02	1	1409-1409			●
640	POP NUT INTERIOR DELUXE<RBB>,INTERIOR CUSTOM<RBD> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. ROOF RADIO ANTENNA<U71> M5 POP NUT THA	8-97249-574-0	02	1	1409-1409		●
640	POP NUT AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. ROOF RADIO ANTENNA<U71> M5 POP NUT THA	8-97249-574-0	02	1	1409-	●
640	POP NUT INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> M5 POP NUT THA	8-97249-574-0	02	1	1409-					●
640	POP NUT INTERIOR DELUXE<RBB> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. ROOF RADIO ANTENNA<U71> M5 POP NUT THA	8-97249-574-0	02	1	1409-			●
640	POP NUT INTERIOR DELUXE<RBB>,INTERIOR CUSTOM<RBD> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. ROOF RADIO ANTENNA<U71> M5 POP NUT THA	8-97249-574-0	02	1	1409-		●
640	POP NUT 4JK1-TCX ENG<LR0> RADIO DELETE<UL5>,AM/FM,CLOCK,CD PLAYER<U1C> M5 POP NUT THA	8-97249-574-0	02	1	1409-						●
641	PANEL; BACK BODY PILLER THA	8-98121-124-6	01	1	1409-			●	●
641	PANEL; BACK BODY PILLER THA	8-98121-123-6	01	1	1409-			●	●
664	SEAL; TAPE THA	8-98193-408-2	01	1	1409-1409	●	●	●	●
664	SEAL; TAPE THA	8-98193-408-2	01	1	1409-1409	●	●	●	●
664	SEAL; TAPE THA	8-98193-408-2	01	1	1409-	●	●	●	●	●	●
664	SEAL; TAPE THA	8-98193-408-2	01	1	1409-	●	●	●	●	●	●
677	RIVET; PANEL THA	8-98057-864-0	16	1	1409-	●	●	●	●	●	●
683	PANEL; HEADER THA	8-98104-314-4	01	1	1409-	●	●
683	PANEL; HEADER THA	8-98104-310-4	01	1	1409-	●	●
683	PANEL; HEADER INTERIOR DELUXE<RBB> THA	8-98161-124-3	01	1	1409-			●
683	PANEL; HEADER INTERIOR DELUXE<RBB> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA>,AM/FM,CLOCK,CD PLAYER<U1C> EXC. ROOF RADIO ANTENNA<U71> THA	8-98161-128-3	01	1	1409-			●
683	PANEL; HEADER INTERIOR CUSTOM<RBD> THA	8-98161-125-3	01	1	1409-			●
683	PANEL; HEADER 4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> THA	8-98161-125-3	01	1	1409-				●
683	PANEL; HEADER INTERIOR CUSTOM<RBD> ROOF RADIO ANTENNA<U71> THA	8-98161-129-3	01	1	1409-			●
683	PANEL; HEADER INTERIOR CUSTOM<RBD> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> EXC. ROOF RADIO ANTENNA<U71> THA	8-98161-129-3	01	1	1409-			●
683	PANEL; HEADER 4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> ,AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,RADIO DELETE<UL5>,AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> ROOF RADIO ANTENNA<U71> THA	8-98161-129-3	01	1	1409-				●
683	PANEL; HEADER 4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> EXC. ROOF RADIO ANTENNA<U71> THA	8-98161-129-3	01	1	1409-				●
684	FASTENER THA	8-98057-864-0	07	1	1409-					●	●
684	FASTENER THA	8-98057-864-0	07	1	1409-					●	●
684	FASTENER THA	8-98057-864-0	11	1	1409-	●	●
684	FASTENER THA	8-98057-864-0	11	1	1409-	●	●
684	FASTENER THA	8-98057-864-0	10	1	1409-			●	●
684	FASTENER THA	8-98057-864-0	10	1	1409-			●	●

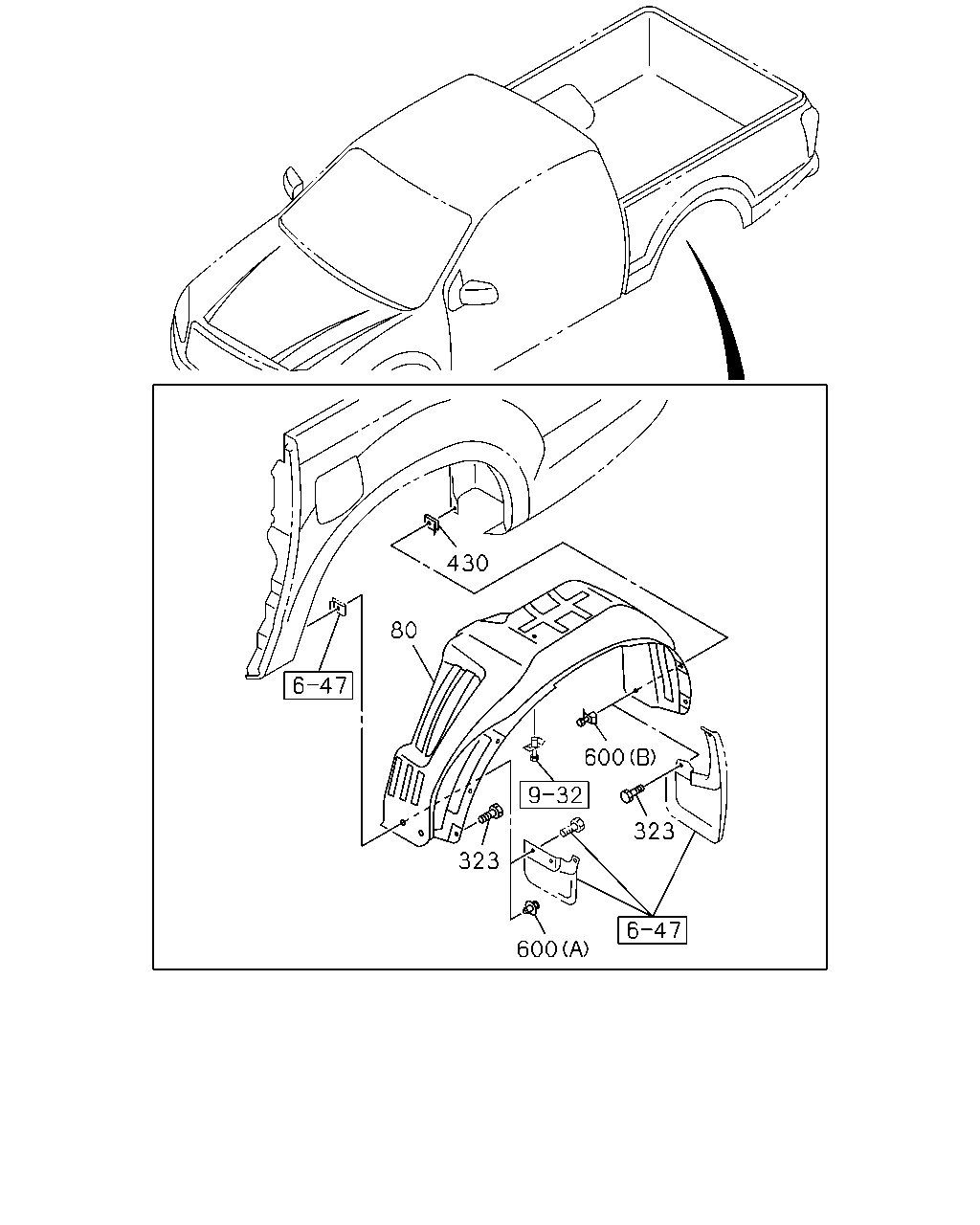

430 80 323 600 323 600

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
80	PANEL; WHEEL HOUSE,INNER HIGH RIDE SUSPENSION<7YC> THA	8-98148-032-4	01	1	1409-	●		●
80	PANEL; WHEEL HOUSE,INNER THA	8-98148-032-4	01	1	1409-		●		●
80	PANEL; WHEEL HOUSE,INNER REAR BODY DBL WALL CTR PULL<E63> THA	8-98148-032-4	01	1	1409-						●
80	PANEL; WHEEL HOUSE,INNER HIGH RIDE SUSPENSION<7YC> THA	8-98148-034-4	01	1	1409-	●		●
80	PANEL; WHEEL HOUSE,INNER THA	8-98148-034-4	01	1	1409-		●		●
80	PANEL; WHEEL HOUSE,INNER REAR BODY DBL WALL CTR PULL<E63> THA	8-98148-034-4	01	1	1409-						●
80	PANEL; WHEEL HOUSE,INNER EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98148-027-2	01	1	1409-	●		●
80	PANEL; WHEEL HOUSE,INNER REAR BODY DBL WALL CTR PULL<E63> THA	8-98148-027-2	01	1	1409-					●
80	PANEL; WHEEL HOUSE,INNER EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98148-028-2	01	1	1409-	●		●
80	PANEL; WHEEL HOUSE,INNER REAR BODY DBL WALL CTR PULL<E63> THA	8-98148-028-2	01	1	1409-					●
323	SCREW; SET HIGH RIDE SUSPENSION<7YC> M6X20 TAPPING W/PL WASHER THA	8-98167-444-0	02	1	1409-	●		●
323	SCREW; SET M6X20 TAPPING W/PL WASHER THA	8-98167-444-0	02	1	1409-		●		●
323	SCREW; SET REAR BODY DBL WALL CTR PULL<E63> M6X20 TAPPING W/PL WASHER THA	8-98167-444-0	02	1	1409-						●
323	SCREW; SET FORMED MUD FLAP FRT & RR<Q8H>,FORMED MUD FLAP EXTEND FRT & RR<Q8J> EXC. SALES PACKAGE SPORTY<XK0> M6X20 TAPPING W/PL WASHER THA	8-98167-444-0	06	1	1409-	●		●
323	SCREW; SET REAR BODY DBL WALL CTR PULL<E63> FORMED MUD FLAP FRT & RR<Q8H>,FORMED MUD FLAP EXTEND FRT & RR<Q8J> M6X20 TAPPING W/PL WASHER THA	8-98167-444-0	06	1	1409-					●	●
323	SCREW; SET FORMED MUD FLAP FRT & RR<Q8H>,FORMED MUD FLAP EXTEND FRT & RR<Q8J> M6X20 TAPPING W/PL WASHER THA	8-98167-444-0	06	1	1409-		●		●
430	NUT; PANEL HIGH RIDE SUSPENSION<7YC> THA	8-97125-519-0	02	1	1409-	●		●
430	NUT; PANEL THA	8-97125-519-0	02	1	1409-		●		●
430	NUT; PANEL REAR BODY DBL WALL CTR PULL<E63> THA	8-97125-519-0	02	1	1409-						●
430	NUT; PANEL FORMED MUD FLAP FRT & RR<Q8H>,FORMED MUD FLAP EXTEND FRT & RR<Q8J> EXC. SALES PACKAGE SPORTY<XK0> THA	8-97125-519-0	06	1	1409-	●		●
430	NUT; PANEL REAR BODY DBL WALL CTR PULL<E63> FORMED MUD FLAP FRT & RR<Q8H>,FORMED MUD FLAP EXTEND FRT & RR<Q8J> THA	8-97125-519-0	06	1	1409-					●	●
430	NUT; PANEL FORMED MUD FLAP FRT & RR<Q8H>,FORMED MUD FLAP EXTEND FRT & RR<Q8J> THA	8-97125-519-0	06	1	1409-		●		●
600	RIVET; EXTENSION EXC. FORMED MUD FLAP FRT & RR<Q8H>,FORMED MUD FLAP EXTEND FRT & RR<Q8J>,SALES PACKAGE SPORTY<XK0> (B) THA	8-94221-150-0	06	1	1409-	●		●
600	RIVET; EXTENSION SALES PACKAGE SPORTY<XK0> (B) THA	8-94221-150-0	06	1	1409-	●		●
600	RIVET; EXTENSION REAR BODY DBL WALL CTR PULL<E63> EXC. FORMED MUD FLAP FRT & RR<Q8H>,FORMED MUD FLAP EXTEND FRT & RR<Q8J> (B) THA	8-94221-150-0	06	1	1409-					●	●
600	RIVET; EXTENSION EXC. FORMED MUD FLAP FRT & RR<Q8H>,FORMED MUD FLAP EXTEND FRT & RR<Q8J> (B) THA	8-94221-150-0	06	1	1409-		●		●
600	RIVET; EXTENSION HIGH RIDE SUSPENSION<7YC> (A) THA	8-98186-355-0	04	1	1409-	●		●
600	RIVET; EXTENSION REAR BODY DBL WALL CTR PULL<E63> (A) THA	8-98186-355-0	04	1	1409-					●	●
600	RIVET; EXTENSION (A) THA	8-98186-355-0	04	1	1409-		●		●
600	RIVET; EXTENSION REAR BODY DBL WALL CTR PULL<E63> (B) THA	8-94221-150-0	02	1	1409-					●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
