6-03 — RADIATOR GRILLE (#148328) — 38 parça

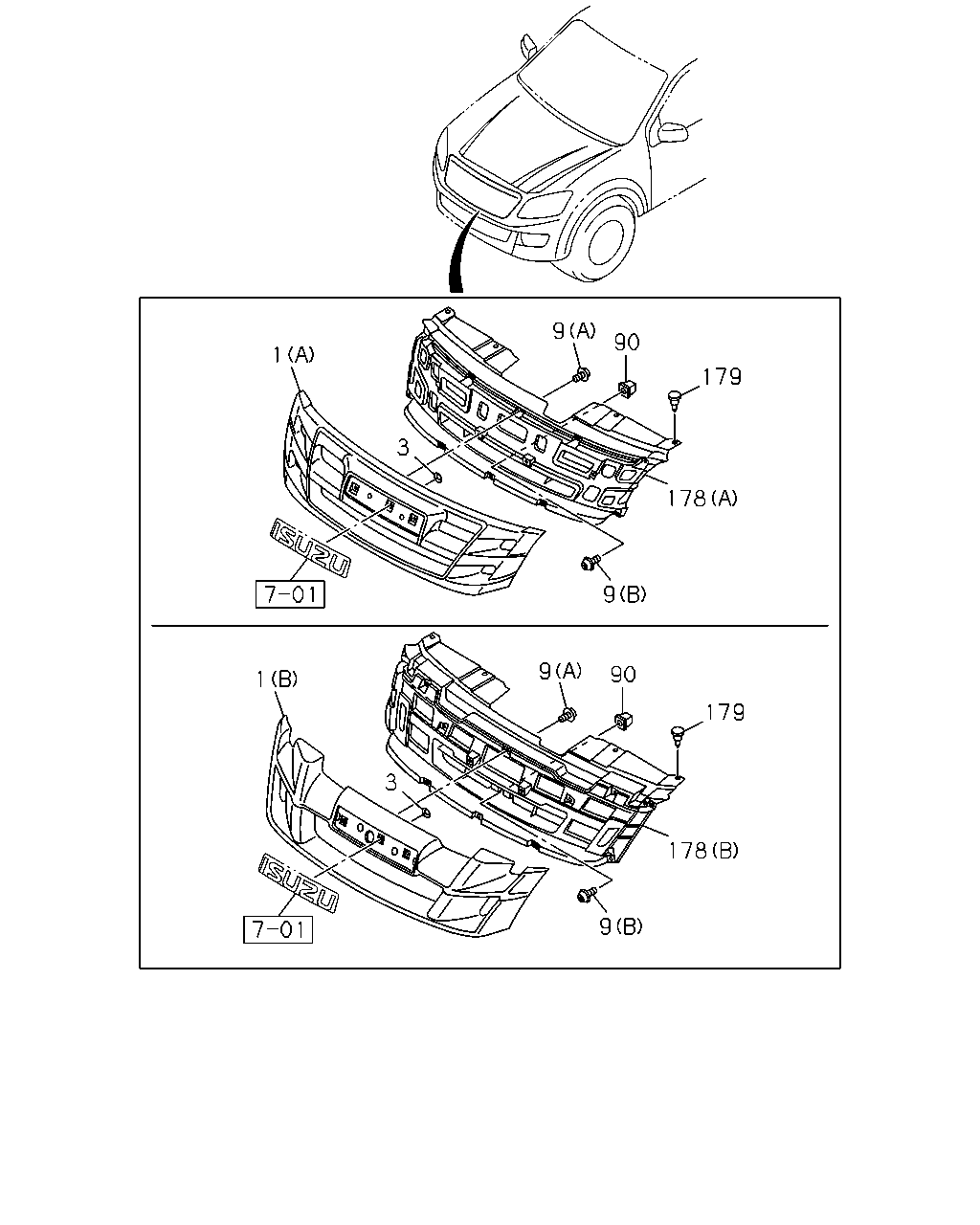

çizim 443389
1 9 179 3 9 178 90 9 90 179 178 9 3 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 GRILLE; RAD
BRIGHT RAD GRILLE<V22> HIGH RIDE SUSPENSION<7YC> EXC. SALES PACKAGE SPORTY<XK0> (B) PLATED THA 		8-98193-869-0 01 1 1409- ● ●
1 GRILLE; RAD
BRIGHT RAD GRILLE<V22> (B) PLATED THA 		8-98193-869-0 01 1 1409- ●
1 GRILLE; RAD
(B) PLATED THA 		8-98193-869-0 01 1 1409- ●
1 GRILLE; RAD
BRIGHT RAD GRILLE<V22> EXC. SALES PACKAGE SPORTY<XK0>,HIGH RIDE SUSPENSION<7YC> (A) PLATED THA 		8-98272-016-0 01 1 1409- ● ●
1 GRILLE; RAD
HIGH RIDE SUSPENSION<7YC> EXC. BODY COLOR KEYED RAD GRILLE<TL1>,BRIGHT RAD GRILLE<V22>,SALES PACKAGE SPORTY<XK0> (B) THA 		8-98193-867-0 01 1 1409- ● ●
1 GRILLE; RAD
EXC. BODY COLOR KEYED RAD GRILLE<TL1>,BRIGHT RAD GRILLE<V22> (B) THA 		8-98193-867-0 01 1 1409- ●
1 GRILLE; RAD
(B) THA 		8-98193-867-0 01 1 1409- ●
1 GRILLE; RAD
EXC. BODY COLOR KEYED RAD GRILLE<TL1>,BRIGHT RAD GRILLE<V22>,SALES PACKAGE SPORTY<XK0>,HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98193-864-0 01 1 1409- ● ●
1 GRILLE; RAD
EXC. BODY COLOR KEYED RAD GRILLE<TL1> (A) THA 		8-98193-864-0 01 1 1409- ●
1 GRILLE; RAD
BODY COLOR KEYED RAD GRILLE<TL1> EXC. HIGH RIDE SUSPENSION<7YC> (A) PLEASE PAINT TO MATCH BODY COLOR THA 		8-98196-513-1 01 1 1409- ● ● ●
1 GRILLE; RAD
BODY COLOR KEYED RAD GRILLE<TL1> SALES PACKAGE SPORTY<XK0> HIGH RIDE SUSPENSION<7YC> (B) PLEASE PAINT TO MATCH BODY COLOR THA 		8-98196-514-1 01 1 1409- ● ●
1 GRILLE; RAD
BODY COLOR KEYED RAD GRILLE<TL1> (B) PLEASE PAINT TO MATCH BODY COLOR THA 		8-98196-514-1 01 1 1409- ●
3 CLIP; GRILLE
THA 		8-98211-687-0 03 1 1409- ● ● ● ● ● ●
9 SCREW; RAD GRILLE
(B) M5X16 THA 		8-98167-352-0 01 1 1409- ● ● ● ● ● ●
9 SCREW; RAD GRILLE
(A) M5X16 TAPPING W/PL WASHER THA 		8-98193-872-0 12 1 1409- ● ● ● ● ● ●
90 NUT; RAD GRILLE
D=7X7 L=7.5 THA 		8-94291-927-0 01 1 1409- ● ● ● ● ● ●
178 GRILLE; INNER,RAD
EXC. HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98193-870-0 01 1 1409- ● ●
178 GRILLE; INNER,RAD
(A) THA 		8-98193-870-0 01 1 1409- ●
178 GRILLE; INNER,RAD
HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98193-871-0 01 1 1409- ● ●
178 GRILLE; INNER,RAD
(B) THA 		8-98193-871-0 01 1 1409- ● ● ●
179 RETAINER; GRILLE,RAD
THA 		8-97301-188-0 04 1 1409- ● ● ● ● ● ●

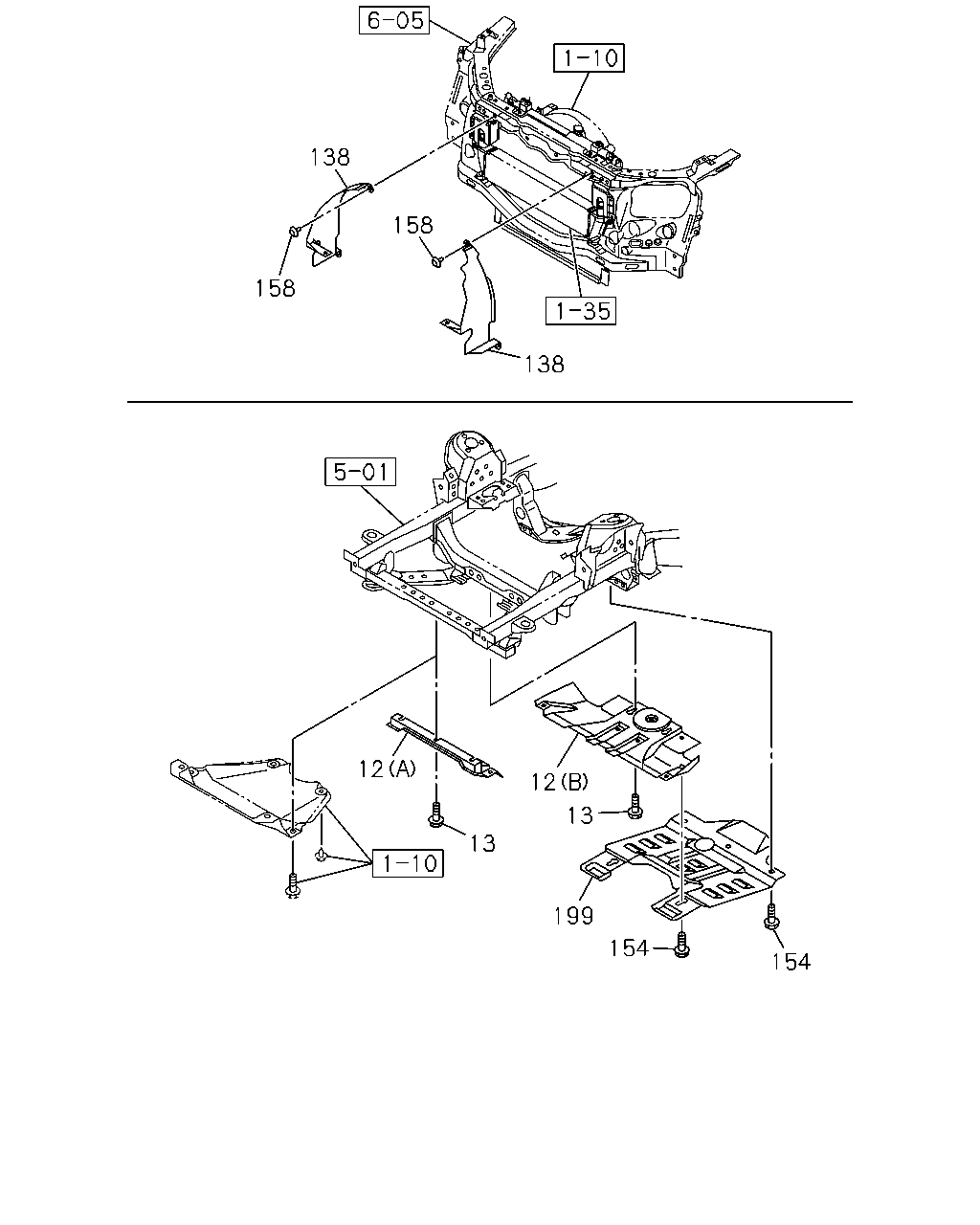

çizim 443393
138 158 138 158 12 13 12 13 199 154 154
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
12 PLATE; SKID,RAD
UNDER FRT GUARD<6RJ> (B) THA 		8-98229-406-0 01 1 1409- ●
12 PLATE; SKID,RAD
4JK1-TCX ENG<LR0> UNDER FRT GUARD<6RJ> (B) THA 		8-98229-406-0 01 1 1409- ●
12 PLATE; SKID,RAD
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> UNDER FRT GUARD<6RJ> (B) THA 		8-98229-406-0 01 1 1409- ●
12 PLATE; SKID,RAD
(A) THA 		8-98102-129-1 01 1 1409- ●
12 PLATE; SKID,RAD
4JK1-TCX ENG<LR0> (A) THA 		8-98102-129-1 01 1 1409- ●
12 PLATE; SKID,RAD
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> (A) THA 		8-98102-129-1 01 1 1409- ●
12 PLATE; SKID,RAD
EXC. UNDER FRT GUARD<6RJ> (B) THA 		8-98102-131-2 01 1 1409- ●
12 PLATE; SKID,RAD
4JK1-TCX ENG<LR0> EXC. UNDER FRT GUARD<6RJ> (B) THA 		8-98102-131-2 01 1 1409- ●
12 PLATE; SKID,RAD
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> EXC. UNDER FRT GUARD<6RJ> (B) THA 		8-98102-131-2 01 1 1409- ●
13 BOLT; RAD SKID PLATE
M10X28 W/LK&PL WASHER THA 		8-97945-706-0 09 1 1409- ●
13 BOLT; RAD SKID PLATE
4JK1-TCX ENG<LR0> M10X28 W/LK&PL WASHER THA 		8-97945-706-0 09 1 1409- ●
13 BOLT; RAD SKID PLATE
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> M10X28 W/LK&PL WASHER THA 		8-97945-706-0 09 1 1409- ●
138 GUIDE; AIR
THA 		8-98137-586-1 01 1 1409- ● ● ● ● ● ●
138 GUIDE; AIR
THA 		8-98137-587-1 01 1 1409- ● ● ● ● ● ●
154 BOLT; COVER
UNDER FRT GUARD<6RJ> M12X25 FLANGE THA 		8-98230-015-0 04 1 1409- ● ● ●
158 CLIP; PROTECTOR
OD=22 L=10.7 THA 		8-94215-211-0 06 1 1409- ● ● ● ● ● ●
199 PLATE; OIL PAN
UNDER FRT GUARD<6RJ> THA 		8-98229-404-0 01 1 1409- ● ● ●
