4-80 — ROAD WHEEL (#148320) — 38 parça

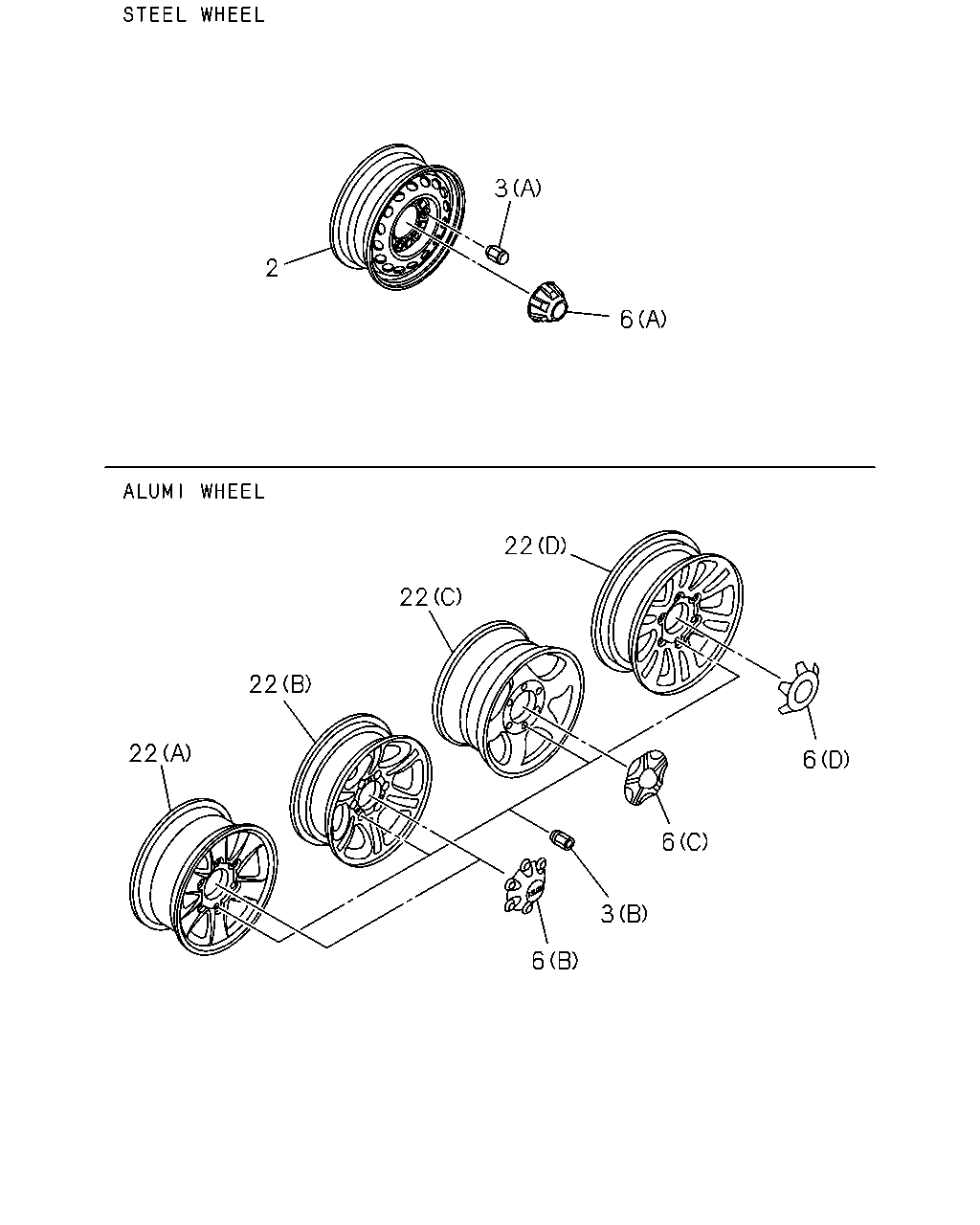

çizim 443484
3 2 6 22 22 22 22 6 3 6 6
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 WHEEL; DISC
FRT&RR 205R16C<CUY> DISC WHEEL 16X6.5 STEEL<QB5> SPARE 16X6.5J OFFSET=33 6-HOLE STEEL WHEEL THA 		8-98218-147-0 01 1 1409-1509 ● ● ● ● ●
2 WHEEL; DISC
FRT&RR 205R16C<CUY> DISC WHEEL 16X6.5 STEEL<QB5> 16X6.5J OFFSET=33 6-HOLE STEEL WHEEL THA 		8-98218-147-0 01 1 1510- ● ● ● ●
2 WHEEL; DISC
FRT&RR 205R16C<CUY> DISC WHEEL 16X6.5 STEEL<QB5> FRONT,REAR 16X6.5J OFFSET=33 6-HOLE STEEL WHEEL THA 		8-98218-147-0 04 1 1409-1509 ● ● ● ● ●
2 WHEEL; DISC
FRT&RR 205R16C<CUY> DISC WHEEL 16X6.5 STEEL<QB5> 16X6.5J OFFSET=33 6-HOLE STEEL WHEEL THA 		8-98218-147-0 04 1 1510- ● ● ● ●
2 WHEEL; DISC
FRT&RR 195R15C(R611)<CWN> DISC WHEEL 15X6-41 STEEL<PG1> SPARE 15X6.0J OFFSET=41 6-HOLE STEEL WHEEL THA 		8-98218-142-0 01 1 1409- ● ● ●
2 WHEEL; DISC
FRT&RR 195R15C(R611)<CWN> DISC WHEEL 15X6-41 STEEL<PG1> FRONT,REAR 15X6.0J OFFSET=41 6-HOLE STEEL WHEEL THA 		8-98218-142-0 04 1 1409- ● ● ●
2 WHEEL; DISC
FRT&RR 215/70R15C DUNLOP TIRE<CWP>,FRT&RR 215/70R15C<QBQ> DISC WHEEL 15X6.5-41 STEEL<BSY> FRONT,REAR 15X6.5J OFFSET=41 6-HOLE STEEL WHEEL THA 		8-98218-140-0 04 1 1409- ● ● ●
2 WHEEL; DISC
FRT&RR 215/70R15C DUNLOP TIRE<CWP>,FRT&RR 215/70R15C<QBQ> DISC WHEEL 15X6.5-41 STEEL<BSY>,DISC WHEEL 15X6.5-41 ALUMI<PF3> SPARE 15X6.5J OFFSET=41 6-HOLE STEEL WHEEL THA 		8-98218-140-0 01 1 1409- ● ● ●
2 WHEEL; DISC
FRT&RR 245/70R16<QCQ> DISC WHEEL 16X7 ALUMI DARK GRAY PAINT<CXL>, DISC WHEEL 16X7 ALUMI BUSH LESS<PF4>,DISC WHEEL 16X7 STEEL<QC1> SPARE 16X7.0J OFFSET=33 6-HOLE STEEL WHEEL THA 		8-98218-148-0 01 1 1409- ● ● ● ● ●
2 WHEEL; DISC
FRT&RR 245/70R16<QCQ> DISC WHEEL 16X7 STEEL<QC1> FRONT,REAR 16X7.0J OFFSET=33 6-HOLE STEEL WHEEL THA 		8-98218-148-0 04 1 1409-1509 ● ● ● ● ●
2 WHEEL; DISC
FRT&RR 245/70R16<QCQ> DISC WHEEL 16X7 STEEL<QC1> 16X7.0J OFFSET=33 6-HOLE STEEL WHEEL THA 		8-98218-148-0 04 1 1510- ● ● ● ●
2 WHEEL; DISC
FRT&RR 255/65R17<QZX> DISC WHEEL 17X7 ALUMI DARK GRAY PAINT<CXK>, DISC WHEEL 17X7 ALUMI<PFE> SPARE 17X7.0J OFFSET=33 6-HOLE STEEL WHEEL THA 		8-98218-149-0 01 1 1409- ● ● ● ● ●
2 WHEEL; DISC
FRT&RR 215/70R16C<QZY> DISC WHEEL 16X6.5 ALUMI DARK GRAY PAINT<CXJ>, DISC WHEEL 16X6.5 ALUMI<PY0> SPARE 16X6.5J OFFSET=41 6-HOLE STEEL WHEEL THA 		8-98218-146-0 01 1 1409- ● ●
3 NUT; WHEEL,FRT AXLE
DISC WHEEL 15X6.5-41 STEEL<BSY>,DISC WHEEL 15X6-41 STEEL<PG1>,DISC WHEEL 16X6.5 STEEL<QB5>, DISC WHEEL 16X7 STEEL<QC1> (A) M12 H=30.5 THA 		8-97333-108-0 24 1 1409-1509 ● ● ● ● ● ●
3 NUT; WHEEL,FRT AXLE
DISC WHEEL 15X6.5-41 STEEL<BSY>,DISC WHEEL 15X6-41 STEEL<PG1>,DISC WHEEL 16X6.5 STEEL<QB5>, DISC WHEEL 16X7 STEEL<QC1> (A) M12 H=30.5 THA 		8-97333-108-0 24 1 1510- ● ● ● ● ●
3 NUT; WHEEL,FRT AXLE
DISC WHEEL 16X6.5 ALUMI DARK GRAY PAINT<CXJ>, DISC WHEEL 17X7 ALUMI DARK GRAY PAINT<CXK>, DISCWHEEL 16X7 ALUMI DARK GRAY PAINT<CXL>,DISC WHEEL 17X7 ALUMI<PFE>,DISC WHEEL 15X6.5-41 ALUMI<PF3>,DISC WHEEL 16X7 ALUMI BUSH LESS<PF4>,DIS C WHEEL 16X6.5 ALUMI<PY0> (B) M12 H=23 THA 		8-98101-983-0 24 1 1409-1412 ● ● ● ● ● ●
3 NUT; WHEEL,FRT AXLE
DISC WHEEL 15X6.5 ALUMI DARK GRAY<CWB>,DISC WHEEL 16X6.5 ALUMI DARK GRAY PAINT<CXJ>,DISC WHEEL 17X7 ALUMI DARK GRAY PAINT<CXK>,DISC WHEEL16X7 ALUMI DARK GRAY PAINT<CXL>,DISC WHEEL 17X7 ALUMI<PFE>,DISC WHEEL 15X6.5-41 ALUMI<PF3>,D ISC WHEEL 16X7 ALUMI BUSH LESS<PF4>,DISC WHEEL16X6.5 ALUMI<PY0> (B) M12 H=23 THA 		8-98101-983-0 24 1 1501- ● ● ● ● ● ●
6 CAP; WHEEL
DISC WHEEL 16X6.5 ALUMI DARK GRAY PAINT<CXJ> (D) ISUZU MARK THA 		8-98214-686-0 04 1 1409- ● ●
6 CAP; WHEEL
DISC WHEEL 17X7 ALUMI DARK GRAY PAINT<CXK> (C) ISUZU MARK THA 		8-98214-687-0 04 1 1409- ● ●
6 CAP; WHEEL
DISC WHEEL 16X7 ALUMI DARK GRAY PAINT<CXL> (B) ISUZU MARK THA 		8-98220-295-0 04 1 1409-1412 ● ●
6 CAP; WHEEL
DISC WHEEL 15X6.5 ALUMI DARK GRAY<CWB>,DISC WHEEL 16X7 ALUMI DARK GRAY PAINT<CXL> (B) ISUZU MARK THA 		8-98220-295-0 04 1 1501- ● ●
6 CAP; WHEEL
DISC WHEEL 17X7 ALUMI<PFE> (C) ISUZU MARK THA 		8-98107-318-3 04 1 1409- ● ● ● ● ●
6 CAP; WHEEL
DISC WHEEL 15X6.5-41 ALUMI<PF3>,DISC WHEEL 16X7 ALUMI BUSH LESS<PF4> (B) ISUZU MARK THA 		8-98102-993-0 04 1 1409- ● ● ● ● ● ●
6 CAP; WHEEL
DISC WHEEL 16X6.5 ALUMI<PY0> (D) ISUZU MARK THA 		8-98102-994-0 04 1 1409- ● ● ●
6 CAP; WHEEL
INTERIOR BASIC<RBA> DISC WHEEL 15X6.5-41 STEEL<BSY>,DISC WHEEL 15X6-41 STEEL<PG1> EXC. HIGH RIDE SUSPENSION<7YC> (A) ISUZU MARK THA 		8-97301-998-1 04 1 1409- ● ●
6 CAP; WHEEL
INTERIOR DELUXE<RBB>,INTERIOR CUSTOM<RBD> DISC WHEEL 15X6.5-41 STEEL<BSY>,DISC WHEEL 15X6-41 STEEL<PG1>,DISC WHEEL 16X6.5 STEEL<QB5>,D ISC WHEEL 16X7 STEEL<QC1> (A) ISUZU MARK THA 		8-98160-806-0 04 1 1409-1509 ● ● ● ●
6 CAP; WHEEL
INTERIOR BASIC<RBA> DISC WHEEL 16X6.5 STEEL<QB5>,DISC WHEEL 16X7 STEEL<QC1> (A) ISUZU MARK THA 		8-98160-806-0 04 1 1409-1509 ●
6 CAP; WHEEL
DISC WHEEL 16X6.5 STEEL<QB5>,DISC WHEEL 16X7 STEEL<QC1> (A) ISUZU MARK THA 		8-98160-806-0 04 1 1409-1509 ● ●
6 CAP; WHEEL
INTERIOR DELUXE<RBB>,INTERIOR CUSTOM<RBD> DISC WHEEL 15X6.5-41 STEEL<BSY>,DISC WHEEL 15X6-41 STEEL<PG1>,DISC WHEEL 16X6.5 STEEL<QB5>,D ISC WHEEL 16X7 STEEL<QC1> (A) ISUZU MARK THA 		8-98160-806-0 04 1 1510- ● ● ● ●
6 CAP; WHEEL
INTERIOR BASIC<RBA> DISC WHEEL 16X6.5 STEEL<QB5>,DISC WHEEL 16X7 STEEL<QC1> (A) ISUZU MARK THA 		8-98160-806-0 04 1 1510- ●
6 CAP; WHEEL
DISC WHEEL 16X6.5 STEEL<QB5>,DISC WHEEL 16X7 STEEL<QC1> (A) ISUZU MARK THA 		8-98160-806-0 04 1 1510- ●
22 WHEEL; DISC,AL
FRT&RR 215/70R15C DUNLOP TIRE<CWP>,FRT&RR 215/70R15C<QBQ> DISC WHEEL 15X6.5-41 ALUMI<PF3> (B) FRONT,REAR 15X6.5J OFFSET=41 6-HOLE THA 		8-98218-150-0 04 1 1409- ● ● ●
22 WHEEL; DISC,AL
FRT&RR 245/70R16<QCQ> DISC WHEEL 16X7 ALUMI DARK GRAY PAINT<CXL> (A) FRONT,REAR 16X7.0J OFFSET=33 6-HOLE THA 		8-98216-554-0 04 1 1409- ● ●
22 WHEEL; DISC,AL
FRT&RR 245/70R16<QCQ> DISC WHEEL 16X7 ALUMI BUSH LESS<PF4> (A) FRONT,REAR 16X7.0J OFFSET=33 6-HOLE THA 		8-98218-151-0 04 1 1409- ● ● ● ● ●
22 WHEEL; DISC,AL
FRT&RR 255/65R17<QZX> DISC WHEEL 17X7 ALUMI DARK GRAY PAINT<CXK> (C) FRONT,REAR 17X7.0J OFFSET=33 6-HOLE THA 		8-98218-158-0 04 1 1409- ● ●
22 WHEEL; DISC,AL
FRT&RR 255/65R17<QZX> DISC WHEEL 17X7 ALUMI<PFE> (C) FRONT,REAR 17X7.0J OFFSET=33 6-HOLE THA 		8-98218-152-0 04 1 1409- ● ● ● ● ●
22 WHEEL; DISC,AL
FRT&RR 215/70R16C<QZY> DISC WHEEL 16X6.5 ALUMI DARK GRAY PAINT<CXJ> (D) FRONT,REAR THA 		8-98219-759-0 04 1 1409- ● ●
22 WHEEL; DISC,AL
FRT&RR 215/70R16C<QZY> DISC WHEEL 16X6.5 ALUMI<PY0> (D) FRONT,REAR 16X6.5J OFFSET=41 6-HOLE THA 		8-98219-758-0 04 1 1409- ● ● ●
