◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51579 - TFR/TFS THAILAND ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-61 - SHOCK ABSORBER; REAR SUSPENSION ▶
4-61 — SHOCK ABSORBER; REAR SUSPENSION (#148318) — 13 parça

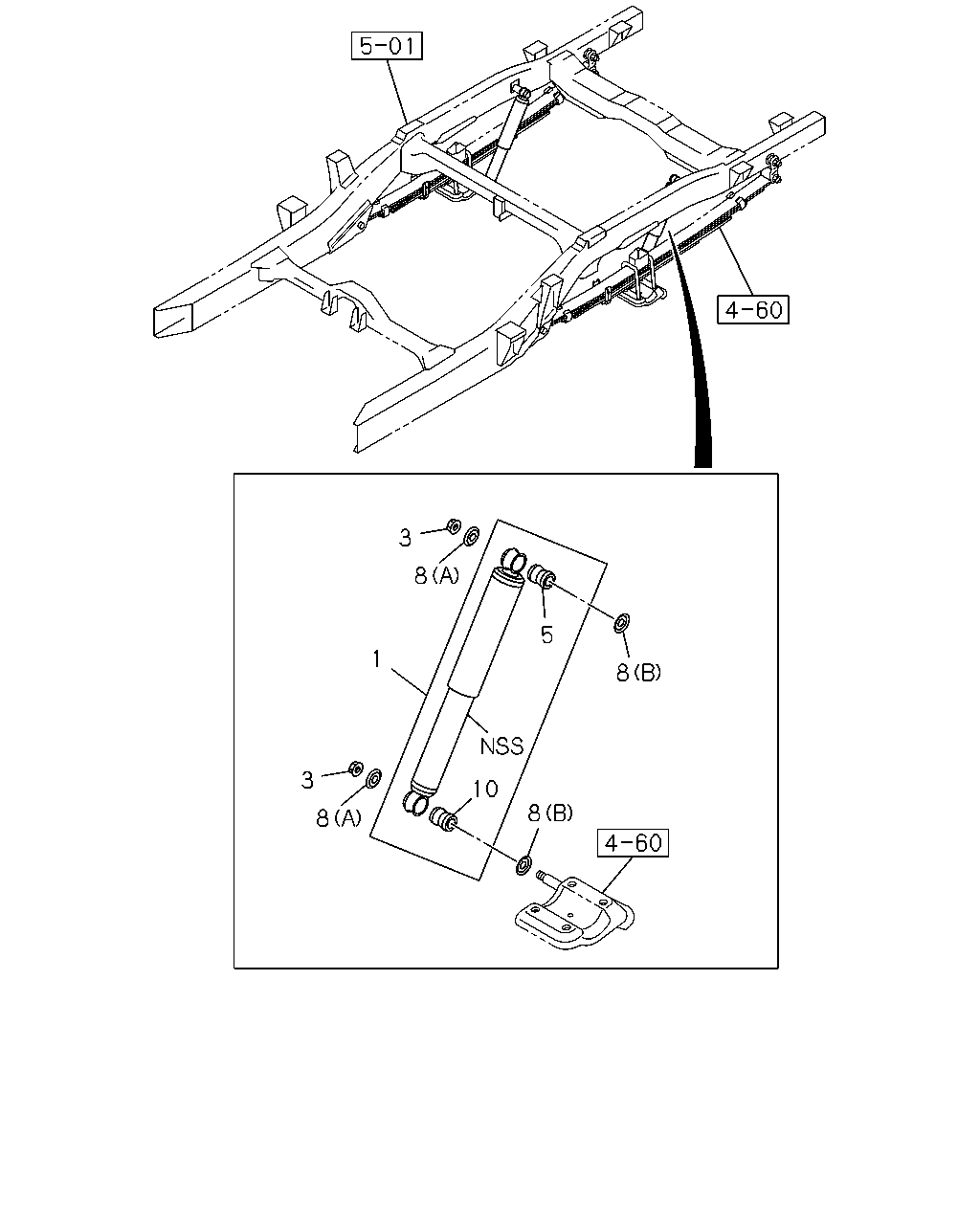

çizim 443388
8 8 5 10 8 3 1 8 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 ABSORBER ASM; SHOCK,RR
HIGH RIDE SUSPENSION<7YC> THA 		8-97947-016-2 02 1 1409- ●
1 ABSORBER ASM; SHOCK,RR
THA 		8-97947-016-2 02 1 1409- ●
1 ABSORBER ASM; SHOCK,RR
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97947-013-2 02 1 1409- ●
1 ABSORBER ASM; SHOCK,RR
THA 		8-98211-979-0 02 1 1409- ●
1 ABSORBER ASM; SHOCK,RR
HIGH RIDE SUSPENSION<7YC> THA 		8-97947-018-2 02 1 1409- ●
1 ABSORBER ASM; SHOCK,RR
THA 		8-97947-018-2 02 1 1409- ●
1 ABSORBER ASM; SHOCK,RR
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98214-030-0 02 1 1409- ●
1 ABSORBER ASM; SHOCK,RR
THA 		8-97947-017-2 02 1 1409- ●
3 NUT; S/ABS
M12 FLANGE THA 		8-97256-670-0 04 1 1409- ● ● ● ● ● ●
5 BUSHING; RUBBER,S/ABS,UPR
THA 		8-97302-810-0 02 1 1409- ● ● ● ● ● ●
8 WASHER; S/ABS
(A) ID=12.5 THA 		8-98005-969-0 04 1 1409- ● ● ● ● ● ●
8 WASHER; S/ABS
(B) ID=16.5 THA 		8-98005-970-0 04 1 1409- ● ● ● ● ● ●
10 BUSHING; RUBBER,S/ABS
THA 		8-97302-810-0 02 1 1409- ● ● ● ● ● ●
