◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51579 - TFR/TFS THAILAND ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-60 - REAR SUSPENSION ▶
4-60 — REAR SUSPENSION (#148317) — 94 parça

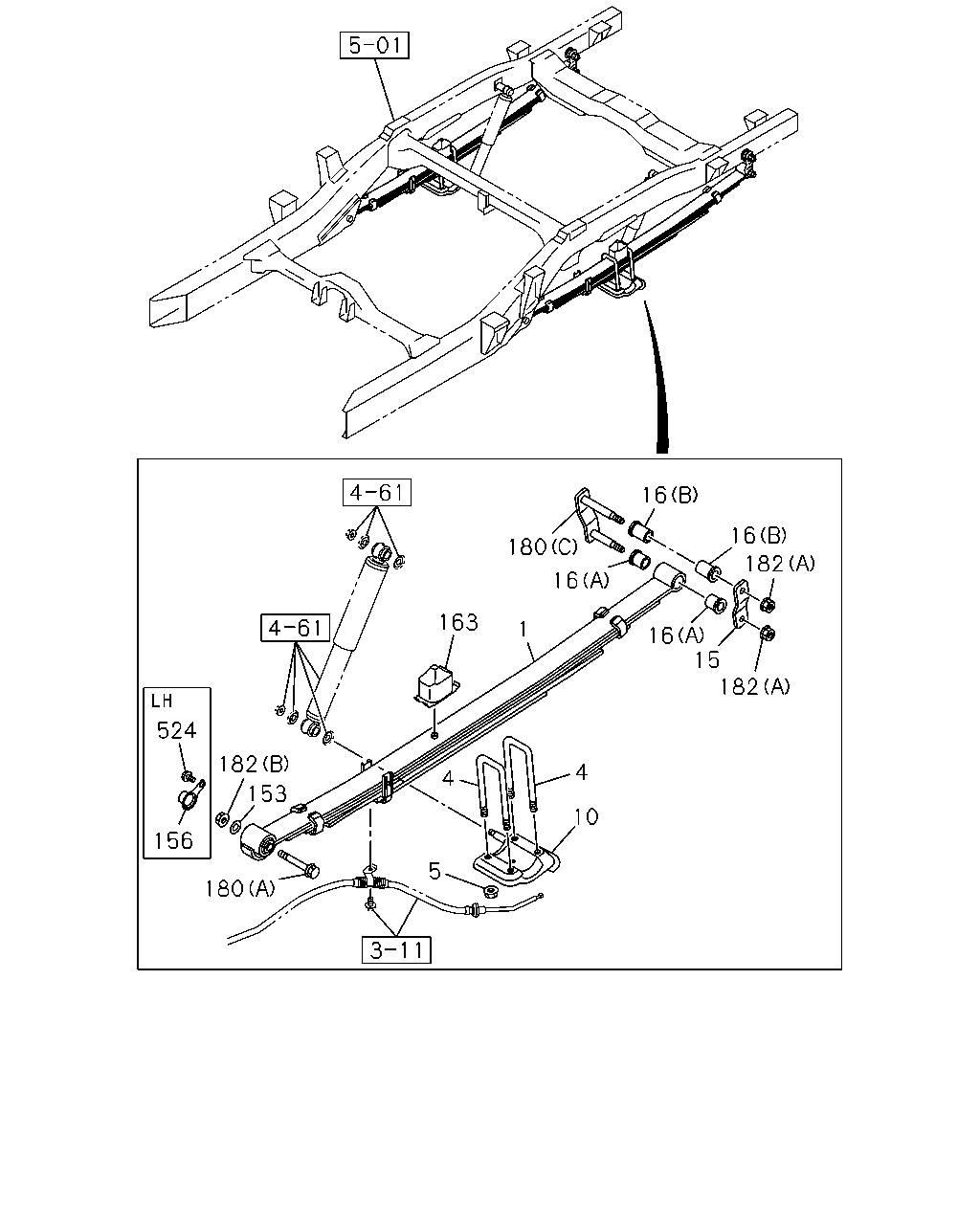

çizim 443370
10 4 4 5 180 156 524 153 182 163 1 180 16 16 15 182 182 16 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. HIGH RIDE SUSPENSION<7YC> 5-LEAF THA 		8-98282-594-1 02 1 1409- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 5-LEAF THA 		8-98282-594-1 02 1 1409- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. HIGH RIDE SUSPENSION<7YC> 4-LEAF THA 		8-98282-595-1 02 1 1409- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 4-LEAF THA 		8-98282-595-1 02 1 1409- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. M/T MUA 5 SPEED 5H<MWQ> 5-LEAF THA 		8-98282-590-1 02 1 1409- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. HIGH RIDE SUSPENSION<7YC> 5-LEAF THA 		8-98201-543-3 02 1 1409- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 6-LEAF THA 		8-98201-544-2 02 1 1409- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. HIGH RIDE SUSPENSION<7YC> 5-LEAF THA 		8-98201-545-2 02 1 1409- ●
4 U-BOLT; RR SPR
HIGH RIDE SUSPENSION<7YC> L=170 THA 		8-97946-550-0 04 1 1409- ● ●
4 U-BOLT; RR SPR
L=170 THA 		8-97946-550-0 04 1 1409- ● ● ●
4 U-BOLT; RR SPR
EXC. HIGH RIDE SUSPENSION<7YC> L=175 THA 		8-97947-045-0 04 1 1409- ● ●
4 U-BOLT; RR SPR
L=187 THA 		8-97248-621-1 04 1 1409- ●
5 NUT; U-BOLT,RR SPR
M14 FLANGE THA 		8-97245-635-0 08 1 1409- ● ● ● ● ● ●
10 CLAMP; LWR,RR SPR
HIGH RIDE SUSPENSION<7YC> THA 		8-98165-850-1 01 1 1409- ● ●
10 CLAMP; LWR,RR SPR
THA 		8-98165-850-1 01 1 1409- ● ● ●
10 CLAMP; LWR,RR SPR
HIGH RIDE SUSPENSION<7YC> THA 		8-98165-851-1 01 1 1409- ● ●
10 CLAMP; LWR,RR SPR
THA 		8-98165-851-1 01 1 1409- ● ● ●
10 CLAMP; LWR,RR SPR
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98160-070-0 01 1 1409- ● ●
10 CLAMP; LWR,RR SPR
THA 		8-98160-070-0 01 1 1409- ●
10 CLAMP; LWR,RR SPR
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98160-083-0 01 1 1409- ● ●
10 CLAMP; LWR,RR SPR
THA 		8-98160-083-0 01 1 1409- ●
15 SHACKLE; RR SPR
HIGH RIDE SUSPENSION<7YC> THA 		8-97946-551-1 02 1 1409- ● ●
15 SHACKLE; RR SPR
THA 		8-97946-551-1 02 1 1409- ● ● ●
15 SHACKLE; RR SPR
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98005-815-0 02 1 1409- ● ●
15 SHACKLE; RR SPR
THA 		8-98005-815-0 02 1 1409- ●
16 BUSHING; SHACKLE,RR SPR
HIGH RIDE SUSPENSION<7YC> (A) THA 		8-97357-492-0 04 1 1409- ● ●
16 BUSHING; SHACKLE,RR SPR
(A) THA 		8-97357-492-0 04 1 1409- ● ● ●
16 BUSHING; SHACKLE,RR SPR
HIGH RIDE SUSPENSION<7YC> (B) THA 		8-97946-545-0 04 1 1409- ● ●
16 BUSHING; SHACKLE,RR SPR
(B) THA 		8-97946-545-0 04 1 1409- ● ● ●
16 BUSHING; SHACKLE,RR SPR
EXC. HIGH RIDE SUSPENSION<7YC> (C) THA 		8-97357-492-0 08 1 1409- ● ●
16 BUSHING; SHACKLE,RR SPR
(C) THA 		8-97357-492-0 08 1 1409- ●
153 WASHER; PL,SPRING PIN
ID=14.5 OD=30 THA 		8-98005-921-0 02 1 1409- ● ● ● ● ● ●
156 PROTECTOR; LEAF SPRING,RR SUSP
THA 		8-97947-363-0 01 1 1409- ● ● ● ● ● ●
163 RUBBER; HELPER,RR SPR
HIGH RIDE SUSPENSION<7YC> THA 		8-97946-549-3 02 1 1409- ● ●
163 RUBBER; HELPER,RR SPR
THA 		8-97946-549-3 02 1 1409- ● ● ●
163 RUBBER; HELPER,RR SPR
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97946-803-1 02 1 1409- ● ●
163 RUBBER; HELPER,RR SPR
THA 		8-97946-803-1 02 1 1409- ●
180 PIN; RR SPR
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-97946-547-1 02 1 1409- ● ●
180 PIN; RR SPR
(C) THA 		8-97946-547-1 02 1 1409- ● ● ●
180 PIN; RR SPR
(A) THA 		8-97947-078-0 02 1 1409- ● ● ● ● ● ●
180 PIN; RR SPR
EXC. HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98005-814-0 02 1 1409- ● ●
180 PIN; RR SPR
(B) THA 		8-98005-814-0 02 1 1409- ●
182 NUT; PIN,RR SPR
(A) M14 FLANGE THA 		0-91180-114-0 04 1 1409- ● ● ● ● ● ●
182 NUT; PIN,RR SPR
(B) M14 FLANGE THA 		8-97245-651-0 02 1 1409- ● ● ● ● ● ●
524 BOLT; RR SPR
M8X20 FLANGE THA 		0-28650-820-0 01 1 1409- ● ● ● ● ● ●

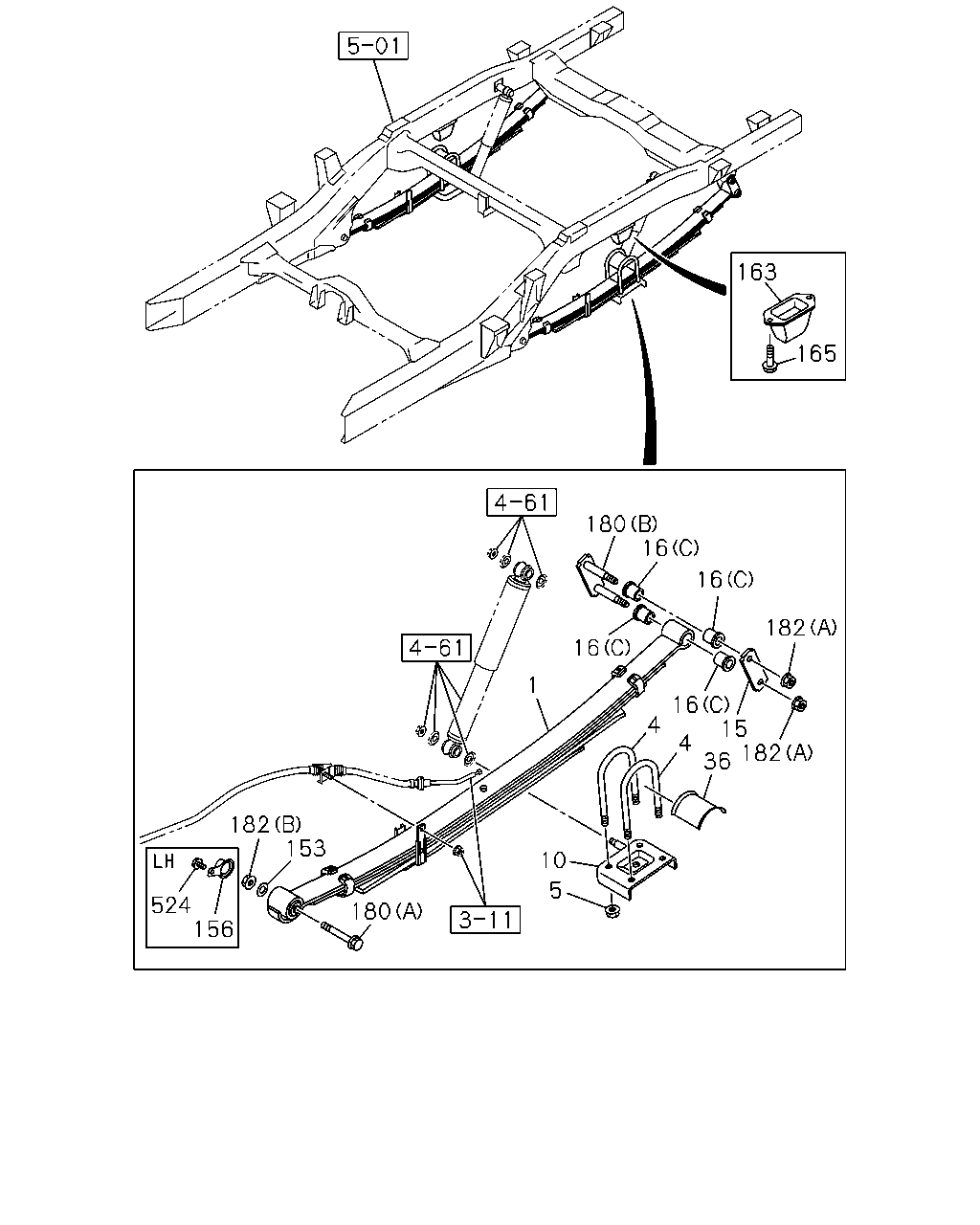

çizim 443566
163 165 16 16 16 16 15 182 182 36 4 4 10 5 180 153 182 156 524 1 180
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. HIGH RIDE SUSPENSION<7YC> 5-LEAF THA 		8-98282-594-1 02 1 1409- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 5-LEAF THA 		8-98282-594-1 02 1 1409- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. HIGH RIDE SUSPENSION<7YC> 4-LEAF THA 		8-98282-595-1 02 1 1409- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 4-LEAF THA 		8-98282-595-1 02 1 1409- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. M/T MUA 5 SPEED 5H<MWQ> 5-LEAF THA 		8-98282-590-1 02 1 1409- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. HIGH RIDE SUSPENSION<7YC> 5-LEAF THA 		8-98201-543-3 02 1 1409- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 6-LEAF THA 		8-98201-544-2 02 1 1409- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. HIGH RIDE SUSPENSION<7YC> 5-LEAF THA 		8-98201-545-2 02 1 1409- ●
4 U-BOLT; RR SPR
HIGH RIDE SUSPENSION<7YC> L=170 THA 		8-97946-550-0 04 1 1409- ● ●
4 U-BOLT; RR SPR
L=170 THA 		8-97946-550-0 04 1 1409- ● ● ●
4 U-BOLT; RR SPR
EXC. HIGH RIDE SUSPENSION<7YC> L=175 THA 		8-97947-045-0 04 1 1409- ● ●
4 U-BOLT; RR SPR
L=187 THA 		8-97248-621-1 04 1 1409- ●
5 NUT; U-BOLT,RR SPR
M14 FLANGE THA 		8-97245-635-0 08 1 1409- ● ● ● ● ● ●
10 CLAMP; LWR,RR SPR
HIGH RIDE SUSPENSION<7YC> THA 		8-98165-850-1 01 1 1409- ● ●
10 CLAMP; LWR,RR SPR
THA 		8-98165-850-1 01 1 1409- ● ● ●
10 CLAMP; LWR,RR SPR
HIGH RIDE SUSPENSION<7YC> THA 		8-98165-851-1 01 1 1409- ● ●
10 CLAMP; LWR,RR SPR
THA 		8-98165-851-1 01 1 1409- ● ● ●
10 CLAMP; LWR,RR SPR
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98160-070-0 01 1 1409- ● ●
10 CLAMP; LWR,RR SPR
THA 		8-98160-070-0 01 1 1409- ●
10 CLAMP; LWR,RR SPR
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98160-083-0 01 1 1409- ● ●
10 CLAMP; LWR,RR SPR
THA 		8-98160-083-0 01 1 1409- ●
15 SHACKLE; RR SPR
HIGH RIDE SUSPENSION<7YC> THA 		8-97946-551-1 02 1 1409- ● ●
15 SHACKLE; RR SPR
THA 		8-97946-551-1 02 1 1409- ● ● ●
15 SHACKLE; RR SPR
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98005-815-0 02 1 1409- ● ●
15 SHACKLE; RR SPR
THA 		8-98005-815-0 02 1 1409- ●
16 BUSHING; SHACKLE,RR SPR
HIGH RIDE SUSPENSION<7YC> (A) THA 		8-97357-492-0 04 1 1409- ● ●
16 BUSHING; SHACKLE,RR SPR
(A) THA 		8-97357-492-0 04 1 1409- ● ● ●
16 BUSHING; SHACKLE,RR SPR
HIGH RIDE SUSPENSION<7YC> (B) THA 		8-97946-545-0 04 1 1409- ● ●
16 BUSHING; SHACKLE,RR SPR
(B) THA 		8-97946-545-0 04 1 1409- ● ● ●
16 BUSHING; SHACKLE,RR SPR
EXC. HIGH RIDE SUSPENSION<7YC> (C) THA 		8-97357-492-0 08 1 1409- ● ●
16 BUSHING; SHACKLE,RR SPR
(C) THA 		8-97357-492-0 08 1 1409- ●
36 SEAT; HELPER RUBBER,RR SPR
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98005-878-0 02 1 1409- ● ●
36 SEAT; HELPER RUBBER,RR SPR
THA 		8-98005-878-0 02 1 1409- ●
153 WASHER; PL,SPRING PIN
ID=14.5 OD=30 THA 		8-98005-921-0 02 1 1409- ● ● ● ● ● ●
156 PROTECTOR; LEAF SPRING,RR SUSP
THA 		8-97947-363-0 01 1 1409- ● ● ● ● ● ●
163 RUBBER; HELPER,RR SPR
HIGH RIDE SUSPENSION<7YC> THA 		8-97946-549-3 02 1 1409- ● ●
163 RUBBER; HELPER,RR SPR
THA 		8-97946-549-3 02 1 1409- ● ● ●
163 RUBBER; HELPER,RR SPR
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97946-803-1 02 1 1409- ● ●
163 RUBBER; HELPER,RR SPR
THA 		8-97946-803-1 02 1 1409- ●
165 BOLT; HELPER RUBBER
EXC. HIGH RIDE SUSPENSION<7YC> M10X30 FLANGE THA 		0-28661-030-0 04 1 1409- ● ●
165 BOLT; HELPER RUBBER
M10X30 FLANGE THA 		0-28661-030-0 04 1 1409- ●
180 PIN; RR SPR
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-97946-547-1 02 1 1409- ● ●
180 PIN; RR SPR
(C) THA 		8-97946-547-1 02 1 1409- ● ● ●
180 PIN; RR SPR
(A) THA 		8-97947-078-0 02 1 1409- ● ● ● ● ● ●
180 PIN; RR SPR
EXC. HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98005-814-0 02 1 1409- ● ●
180 PIN; RR SPR
(B) THA 		8-98005-814-0 02 1 1409- ●
182 NUT; PIN,RR SPR
(A) M14 FLANGE THA 		0-91180-114-0 04 1 1409- ● ● ● ● ● ●
182 NUT; PIN,RR SPR
(B) M14 FLANGE THA 		8-97245-651-0 02 1 1409- ● ● ● ● ● ●
524 BOLT; RR SPR
M8X20 FLANGE THA 		0-28650-820-0 01 1 1409- ● ● ● ● ● ●
