4-50 — FRONT SUSPENSION (#148316) — 198 parça

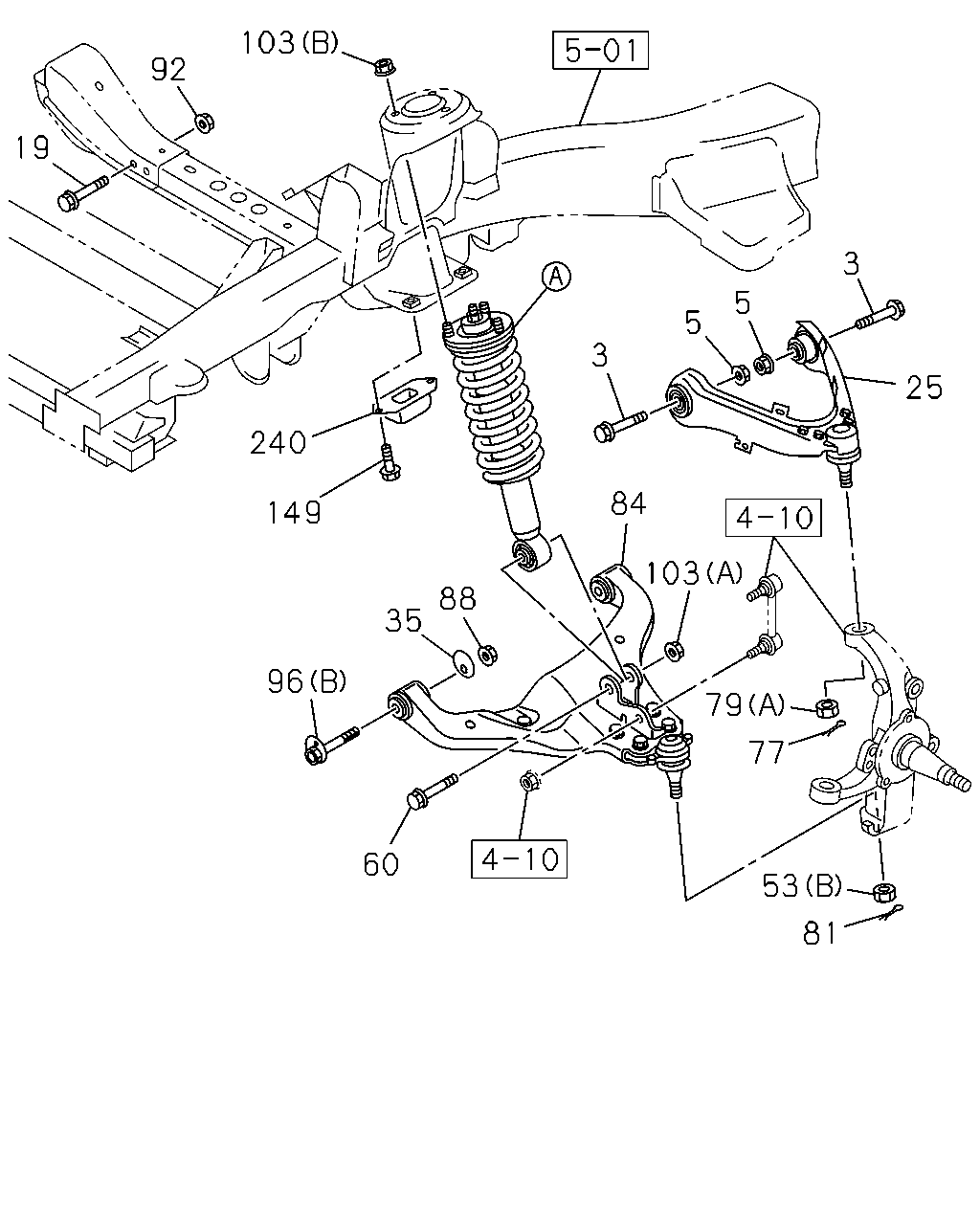

çizim 443346
3 5 5 3 25 84 103 79 77 53 81 88 35 96 60 149 240 103 92 19
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
3 BOLT; UPR LINK TO FRAME
M14X74 THA 		8-97947-455-0 04 1 1409- ● ● ● ● ● ●
5 NUT; UPR LINK TO FRAME
M14 FLANGE THA 		8-97245-635-0 04 1 1409- ● ● ● ● ● ●
19 BOLT; FRT SUSP TO C/MBR
HIGH RIDE SUSPENSION<7YC> M10X100 THA 		0-28061-000-0 04 1 1409- ● ●
19 BOLT; FRT SUSP TO C/MBR
M10X100 THA 		0-28061-000-0 04 1 1409- ● ● ●
19 BOLT; FRT SUSP TO C/MBR
EXC. HIGH RIDE SUSPENSION<7YC> M10X80 FLANGE THA 		0-28061-080-0 04 1 1409- ● ●
19 BOLT; FRT SUSP TO C/MBR
M10X80 FLANGE THA 		0-28061-080-0 04 1 1409- ●
25 ARM; UPR CONT
HIGH RIDE SUSPENSION<7YC> THA 		8-97945-841-2 01 1 1409- ● ●
25 ARM; UPR CONT
THA 		8-97945-841-2 01 1 1409- ● ● ●
25 ARM; UPR CONT
HIGH RIDE SUSPENSION<7YC> THA 		8-97945-842-2 01 1 1409- ● ●
25 ARM; UPR CONT
THA 		8-97945-842-2 01 1 1409- ● ● ●
25 ARM; UPR CONT
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98212-475-0 01 1 1409- ● ●
25 ARM; UPR CONT
THA 		8-98212-475-0 01 1 1409- ●
25 ARM; UPR CONT
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98212-476-0 01 1 1409- ● ●
25 ARM; UPR CONT
THA 		8-98212-476-0 01 1 1409- ●
35 PLATE; BUSHING SUPPORT
THA 		8-97214-814-0 04 1 1409- ● ● ● ● ● ●
53 NUT; LWR LINK
(B) M18 THA 		0-91110-518-0 02 1 1409- ● ● ● ● ● ●
53 NUT; LWR LINK
(A) M12 FLANGE THA 		0-91180-212-0 08 1 1409- ● ● ● ● ● ●
60 BOLT; S/ABS TO LWR LINK
M14X74 THA 		8-97947-455-0 02 1 1409- ● ● ● ● ● ●
77 PIN; SPLIT,LINK END TO KNUCKLE
OD=2.8 L=28 IMA 		0-81123-028-0 02 1 1409- ● ● ● ● ● ●
79 NUT; UPR LINK END TO KNUCKLE
(A) M14 THA 		0-91110-514-0 02 1 1409- ● ● ● ● ● ●
79 NUT; UPR LINK END TO KNUCKLE
(B) M8 FLANGE THA 		0-91180-208-0 08 1 1409- ● ● ● ● ● ●
81 PIN; SPLIT,LWR LINK TO KNUCKLE
OD=2.8 L=28 IMA 		0-81123-028-0 02 1 1409- ● ● ● ● ● ●
84 ARM; LWR CONT
HIGH RIDE SUSPENSION<7YC> THA 		8-97945-843-1 01 1 1409- ● ●
84 ARM; LWR CONT
THA 		8-97945-843-1 01 1 1409- ● ● ●
84 ARM; LWR CONT
HIGH RIDE SUSPENSION<7YC> THA 		8-97945-844-1 01 1 1409- ● ●
84 ARM; LWR CONT
THA 		8-97945-844-1 01 1 1409- ● ● ●
84 ARM; LWR CONT
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98162-164-0 01 1 1409- ● ●
84 ARM; LWR CONT
THA 		8-98162-164-0 01 1 1409- ●
84 ARM; LWR CONT
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98162-165-0 01 1 1409- ● ●
84 ARM; LWR CONT
THA 		8-98162-165-0 01 1 1409- ●
88 NUT; LWR LINK
M16 FLANGE THA 		8-97245-631-0 04 1 1409- ● ● ● ● ● ●
92 NUT; FRT SUSP
M10 FLANGE THA 		0-91180-210-0 04 1 1409- ● ● ● ● ● ●
96 BOLT; LWR LINK
(A) M12X37 FLANGE THA 		8-97245-639-0 08 1 1409- ● ● ● ● ● ●
96 BOLT; LWR LINK
(B) M16X102 W/PLATE THA 		8-98186-404-0 04 1 1409- ● ● ● ● ● ●
103 NUT; S/ABS TO LWR LINK
(A) M14 FLANGE THA 		8-97245-635-0 02 1 1409- ● ● ● ● ● ●
103 NUT; S/ABS TO LWR LINK
(B) M10 FLANGE THA 		8-97245-637-0 06 1 1409- ● ● ● ● ● ●
149 BOLT; ARM TO LWR CONT ARM
EXC. HIGH RIDE SUSPENSION<7YC> M10X25 FLANGE THA 		0-28651-025-0 04 1 1409- ● ●
149 BOLT; ARM TO LWR CONT ARM
M10X25 FLANGE THA 		0-28651-025-0 04 1 1409- ●
240 BUMPER; LWR CONT ARM
HIGH RIDE SUSPENSION<7YC> THA 		8-97946-180-0 02 1 1409- ● ●
240 BUMPER; LWR CONT ARM
THA 		8-97946-180-0 02 1 1409- ● ● ●
240 BUMPER; LWR CONT ARM
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97215-052-0 02 1 1409- ● ●
240 BUMPER; LWR CONT ARM
THA 		8-97215-052-0 02 1 1409- ●

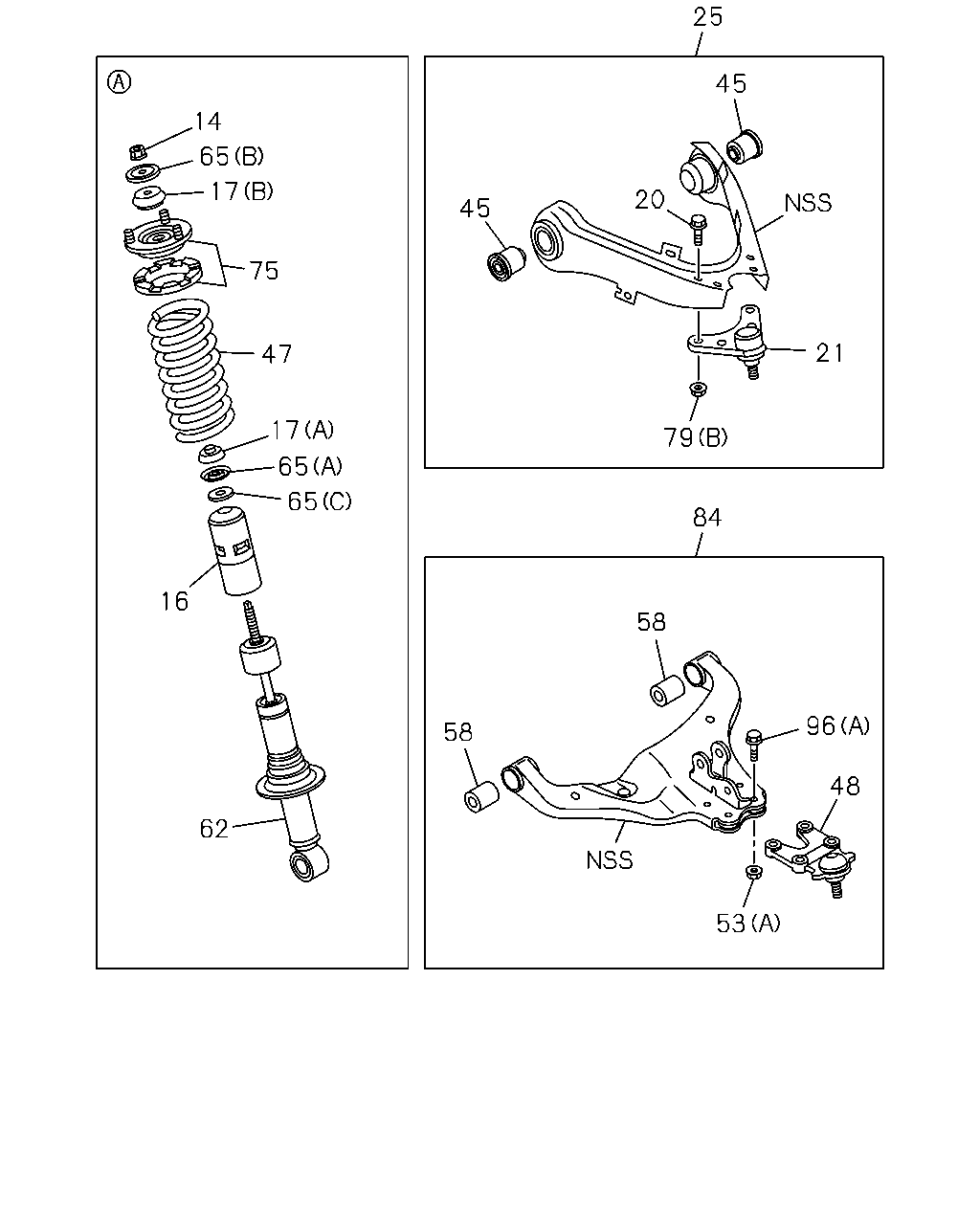

çizim 443407
25 45 21 20 79 45 14 62 16 65 65 17 47 75 17 65 84 58 96 48 58 53
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
14 NUT; S/ABS,UPR
M12 FLANGE THA 		8-97236-304-0 02 1 1409- ● ● ● ● ● ●
16 COVER; DUST,FRT S/ABS
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97944-566-0 02 1 1409- ● ●
16 COVER; DUST,FRT S/ABS
THA 		8-97944-566-0 02 1 1409- ●
16 COVER; DUST,FRT S/ABS
HIGH RIDE SUSPENSION<7YC> THA 		8-97947-100-0 02 1 1409- ● ●
16 COVER; DUST,FRT S/ABS
THA 		8-97947-100-0 02 1 1409- ● ● ●
17 BUSHING; RUBBER,S/ABS
(A) THA 		8-97236-303-0 02 1 1409- ● ● ● ● ● ●
17 BUSHING; RUBBER,S/ABS
(B) THA 		8-97264-184-0 02 1 1409- ● ● ● ● ● ●
20 BOLT; UPR LINK END TO UPR LINK
M8X25 FLANGE IMA 		0-28060-825-0 08 1 1409- ● ● ● ● ● ●
21 JOINT ASM; BALL,UPR CONT ARM
THA 		8-98005-827-0 02 1 1409- ● ● ● ● ● ●
25 ARM; UPR CONT
HIGH RIDE SUSPENSION<7YC> THA 		8-97945-841-2 01 1 1409- ● ●
25 ARM; UPR CONT
THA 		8-97945-841-2 01 1 1409- ● ● ●
25 ARM; UPR CONT
HIGH RIDE SUSPENSION<7YC> THA 		8-97945-842-2 01 1 1409- ● ●
25 ARM; UPR CONT
THA 		8-97945-842-2 01 1 1409- ● ● ●
25 ARM; UPR CONT
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98212-475-0 01 1 1409- ● ●
25 ARM; UPR CONT
THA 		8-98212-475-0 01 1 1409- ●
25 ARM; UPR CONT
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98212-476-0 01 1 1409- ● ●
25 ARM; UPR CONT
THA 		8-98212-476-0 01 1 1409- ●
45 BUSHING; UPR LINK,FRT
HIGH RIDE SUSPENSION<7YC> THA 		8-97947-419-0 04 1 1409- ● ●
45 BUSHING; UPR LINK,FRT
THA 		8-97947-419-0 04 1 1409- ● ● ●
45 BUSHING; UPR LINK,FRT
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97364-173-0 04 1 1409- ● ●
45 BUSHING; UPR LINK,FRT
THA 		8-97364-173-0 04 1 1409- ●
47 SPRING; COIL,FRT SUSP
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97947-184-1 02 1 1409- ●
47 SPRING; COIL,FRT SUSP
THA 		8-97947-184-1 02 1 1409- ●
47 SPRING; COIL,FRT SUSP
HIGH RIDE SUSPENSION<7YC> THA 		8-97947-205-3 02 1 1409- ●
47 SPRING; COIL,FRT SUSP
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97947-115-2 02 1 1409- ●
47 SPRING; COIL,FRT SUSP
HIGH RIDE SUSPENSION<7YC> THA 		8-97947-119-2 02 1 1409- ●
47 SPRING; COIL,FRT SUSP
THA 		8-97947-206-2 02 1 1409- ● ●
47 SPRING; COIL,FRT SUSP
THA 		8-97947-117-2 02 1 1409- ●
48 JOINT ASM; BALL,LWR CONT ARM
THA 		8-98005-875-0 02 1 1409- ● ● ● ● ● ●
53 NUT; LWR LINK
(B) M18 THA 		0-91110-518-0 02 1 1409- ● ● ● ● ● ●
53 NUT; LWR LINK
(A) M12 FLANGE THA 		0-91180-212-0 08 1 1409- ● ● ● ● ● ●
58 BUSHING; LWR LINK
HIGH RIDE SUSPENSION<7YC> THA 		8-97947-087-1 04 1 1409- ● ●
58 BUSHING; LWR LINK
THA 		8-97947-087-1 04 1 1409- ● ● ●
58 BUSHING; LWR LINK
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97364-174-0 04 1 1409- ● ●
58 BUSHING; LWR LINK
THA 		8-97364-174-0 04 1 1409- ●
62 ABSORBER ASM; SHOCK,FRT
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97947-094-3 02 1 1409- ●
62 ABSORBER ASM; SHOCK,FRT
HIGH RIDE SUSPENSION<7YC> THA 		8-97947-098-3 02 1 1409- ●
62 ABSORBER ASM; SHOCK,FRT
THA 		8-98212-126-0 02 1 1409- ●
62 ABSORBER ASM; SHOCK,FRT
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97947-096-2 02 1 1409- ●
62 ABSORBER ASM; SHOCK,FRT
HIGH RIDE SUSPENSION<7YC> THA 		8-98161-915-2 02 1 1409- ●
62 ABSORBER ASM; SHOCK,FRT
THA 		8-97947-097-3 02 1 1409- ● ●
62 ABSORBER ASM; SHOCK,FRT
THA 		8-97947-099-4 02 1 1409- ●
65 WASHER; S/ABS
(C) THA 		8-97944-892-0 02 1 1409- ● ● ● ● ● ●
65 WASHER; S/ABS
(B) THA 		8-98005-971-0 02 1 1409- ● ● ● ● ● ●
65 WASHER; S/ABS
(A) THA 		8-98005-972-0 02 1 1409- ● ● ● ● ● ●
75 BRACKET; FRT S/ABS
THA 		8-98177-899-1 02 1 1409- ● ● ● ● ● ●
79 NUT; UPR LINK END TO KNUCKLE
(A) M14 THA 		0-91110-514-0 02 1 1409- ● ● ● ● ● ●
79 NUT; UPR LINK END TO KNUCKLE
(B) M8 FLANGE THA 		0-91180-208-0 08 1 1409- ● ● ● ● ● ●
84 ARM; LWR CONT
HIGH RIDE SUSPENSION<7YC> THA 		8-97945-843-1 01 1 1409- ● ●
84 ARM; LWR CONT
THA 		8-97945-843-1 01 1 1409- ● ● ●
84 ARM; LWR CONT
HIGH RIDE SUSPENSION<7YC> THA 		8-97945-844-1 01 1 1409- ● ●
84 ARM; LWR CONT
THA 		8-97945-844-1 01 1 1409- ● ● ●
84 ARM; LWR CONT
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98162-164-0 01 1 1409- ● ●
84 ARM; LWR CONT
THA 		8-98162-164-0 01 1 1409- ●
84 ARM; LWR CONT
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98162-165-0 01 1 1409- ● ●
84 ARM; LWR CONT
THA 		8-98162-165-0 01 1 1409- ●
96 BOLT; LWR LINK
(A) M12X37 FLANGE THA 		8-97245-639-0 08 1 1409- ● ● ● ● ● ●
96 BOLT; LWR LINK
(B) M16X102 W/PLATE THA 		8-98186-404-0 04 1 1409- ● ● ● ● ● ●

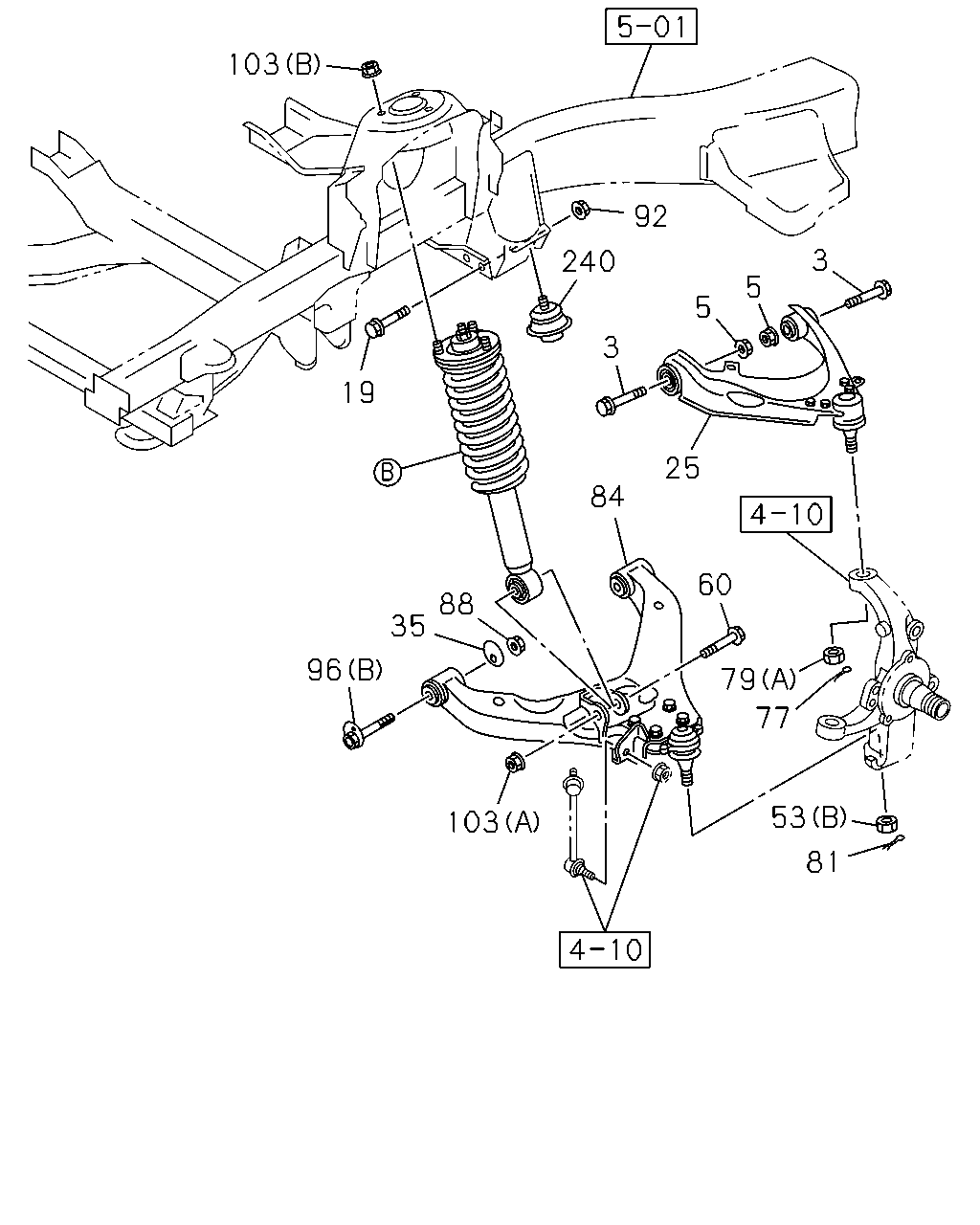

çizim 443431
103 92 240 5 5 3 3 19 88 35 96 103 77 53 81 79 60 84 25
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
3 BOLT; UPR LINK TO FRAME
M14X74 THA 		8-97947-455-0 04 1 1409- ● ● ● ● ● ●
5 NUT; UPR LINK TO FRAME
M14 FLANGE THA 		8-97245-635-0 04 1 1409- ● ● ● ● ● ●
19 BOLT; FRT SUSP TO C/MBR
HIGH RIDE SUSPENSION<7YC> M10X100 THA 		0-28061-000-0 04 1 1409- ● ●
19 BOLT; FRT SUSP TO C/MBR
M10X100 THA 		0-28061-000-0 04 1 1409- ● ● ●
19 BOLT; FRT SUSP TO C/MBR
EXC. HIGH RIDE SUSPENSION<7YC> M10X80 FLANGE THA 		0-28061-080-0 04 1 1409- ● ●
19 BOLT; FRT SUSP TO C/MBR
M10X80 FLANGE THA 		0-28061-080-0 04 1 1409- ●
25 ARM; UPR CONT
HIGH RIDE SUSPENSION<7YC> THA 		8-97945-841-2 01 1 1409- ● ●
25 ARM; UPR CONT
THA 		8-97945-841-2 01 1 1409- ● ● ●
25 ARM; UPR CONT
HIGH RIDE SUSPENSION<7YC> THA 		8-97945-842-2 01 1 1409- ● ●
25 ARM; UPR CONT
THA 		8-97945-842-2 01 1 1409- ● ● ●
25 ARM; UPR CONT
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98212-475-0 01 1 1409- ● ●
25 ARM; UPR CONT
THA 		8-98212-475-0 01 1 1409- ●
25 ARM; UPR CONT
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98212-476-0 01 1 1409- ● ●
25 ARM; UPR CONT
THA 		8-98212-476-0 01 1 1409- ●
35 PLATE; BUSHING SUPPORT
THA 		8-97214-814-0 04 1 1409- ● ● ● ● ● ●
53 NUT; LWR LINK
(B) M18 THA 		0-91110-518-0 02 1 1409- ● ● ● ● ● ●
53 NUT; LWR LINK
(A) M12 FLANGE THA 		0-91180-212-0 08 1 1409- ● ● ● ● ● ●
60 BOLT; S/ABS TO LWR LINK
M14X74 THA 		8-97947-455-0 02 1 1409- ● ● ● ● ● ●
77 PIN; SPLIT,LINK END TO KNUCKLE
OD=2.8 L=28 IMA 		0-81123-028-0 02 1 1409- ● ● ● ● ● ●
79 NUT; UPR LINK END TO KNUCKLE
(A) M14 THA 		0-91110-514-0 02 1 1409- ● ● ● ● ● ●
79 NUT; UPR LINK END TO KNUCKLE
(B) M8 FLANGE THA 		0-91180-208-0 08 1 1409- ● ● ● ● ● ●
81 PIN; SPLIT,LWR LINK TO KNUCKLE
OD=2.8 L=28 IMA 		0-81123-028-0 02 1 1409- ● ● ● ● ● ●
84 ARM; LWR CONT
HIGH RIDE SUSPENSION<7YC> THA 		8-97945-843-1 01 1 1409- ● ●
84 ARM; LWR CONT
THA 		8-97945-843-1 01 1 1409- ● ● ●
84 ARM; LWR CONT
HIGH RIDE SUSPENSION<7YC> THA 		8-97945-844-1 01 1 1409- ● ●
84 ARM; LWR CONT
THA 		8-97945-844-1 01 1 1409- ● ● ●
84 ARM; LWR CONT
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98162-164-0 01 1 1409- ● ●
84 ARM; LWR CONT
THA 		8-98162-164-0 01 1 1409- ●
84 ARM; LWR CONT
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98162-165-0 01 1 1409- ● ●
84 ARM; LWR CONT
THA 		8-98162-165-0 01 1 1409- ●
88 NUT; LWR LINK
M16 FLANGE THA 		8-97245-631-0 04 1 1409- ● ● ● ● ● ●
92 NUT; FRT SUSP
M10 FLANGE THA 		0-91180-210-0 04 1 1409- ● ● ● ● ● ●
96 BOLT; LWR LINK
(A) M12X37 FLANGE THA 		8-97245-639-0 08 1 1409- ● ● ● ● ● ●
96 BOLT; LWR LINK
(B) M16X102 W/PLATE THA 		8-98186-404-0 04 1 1409- ● ● ● ● ● ●
103 NUT; S/ABS TO LWR LINK
(A) M14 FLANGE THA 		8-97245-635-0 02 1 1409- ● ● ● ● ● ●
103 NUT; S/ABS TO LWR LINK
(B) M10 FLANGE THA 		8-97245-637-0 06 1 1409- ● ● ● ● ● ●
240 BUMPER; LWR CONT ARM
HIGH RIDE SUSPENSION<7YC> THA 		8-97946-180-0 02 1 1409- ● ●
240 BUMPER; LWR CONT ARM
THA 		8-97946-180-0 02 1 1409- ● ● ●
240 BUMPER; LWR CONT ARM
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97215-052-0 02 1 1409- ● ●
240 BUMPER; LWR CONT ARM
THA 		8-97215-052-0 02 1 1409- ●

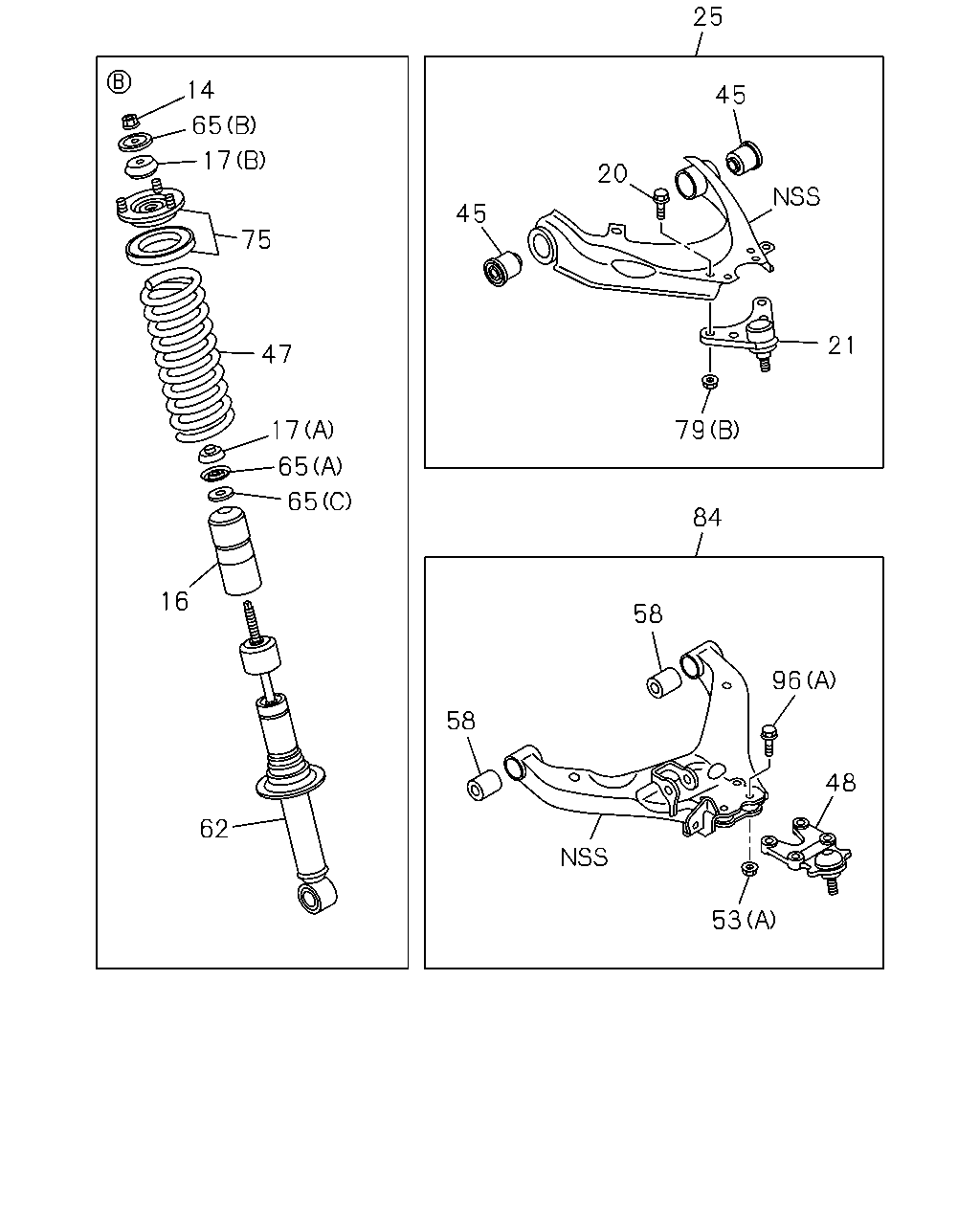

çizim 443491
53 48 96 58 58 84 79 21 45 25 20 45 62 16 65 65 17 47 75 17 65 14
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
14 NUT; S/ABS,UPR
M12 FLANGE THA 		8-97236-304-0 02 1 1409- ● ● ● ● ● ●
16 COVER; DUST,FRT S/ABS
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97944-566-0 02 1 1409- ● ●
16 COVER; DUST,FRT S/ABS
THA 		8-97944-566-0 02 1 1409- ●
16 COVER; DUST,FRT S/ABS
HIGH RIDE SUSPENSION<7YC> THA 		8-97947-100-0 02 1 1409- ● ●
16 COVER; DUST,FRT S/ABS
THA 		8-97947-100-0 02 1 1409- ● ● ●
17 BUSHING; RUBBER,S/ABS
(A) THA 		8-97236-303-0 02 1 1409- ● ● ● ● ● ●
17 BUSHING; RUBBER,S/ABS
(B) THA 		8-97264-184-0 02 1 1409- ● ● ● ● ● ●
20 BOLT; UPR LINK END TO UPR LINK
M8X25 FLANGE IMA 		0-28060-825-0 08 1 1409- ● ● ● ● ● ●
21 JOINT ASM; BALL,UPR CONT ARM
THA 		8-98005-827-0 02 1 1409- ● ● ● ● ● ●
25 ARM; UPR CONT
HIGH RIDE SUSPENSION<7YC> THA 		8-97945-841-2 01 1 1409- ● ●
25 ARM; UPR CONT
THA 		8-97945-841-2 01 1 1409- ● ● ●
25 ARM; UPR CONT
HIGH RIDE SUSPENSION<7YC> THA 		8-97945-842-2 01 1 1409- ● ●
25 ARM; UPR CONT
THA 		8-97945-842-2 01 1 1409- ● ● ●
25 ARM; UPR CONT
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98212-475-0 01 1 1409- ● ●
25 ARM; UPR CONT
THA 		8-98212-475-0 01 1 1409- ●
25 ARM; UPR CONT
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98212-476-0 01 1 1409- ● ●
25 ARM; UPR CONT
THA 		8-98212-476-0 01 1 1409- ●
45 BUSHING; UPR LINK,FRT
HIGH RIDE SUSPENSION<7YC> THA 		8-97947-419-0 04 1 1409- ● ●
45 BUSHING; UPR LINK,FRT
THA 		8-97947-419-0 04 1 1409- ● ● ●
45 BUSHING; UPR LINK,FRT
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97364-173-0 04 1 1409- ● ●
45 BUSHING; UPR LINK,FRT
THA 		8-97364-173-0 04 1 1409- ●
47 SPRING; COIL,FRT SUSP
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97947-184-1 02 1 1409- ●
47 SPRING; COIL,FRT SUSP
THA 		8-97947-184-1 02 1 1409- ●
47 SPRING; COIL,FRT SUSP
HIGH RIDE SUSPENSION<7YC> THA 		8-97947-205-3 02 1 1409- ●
47 SPRING; COIL,FRT SUSP
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97947-115-2 02 1 1409- ●
47 SPRING; COIL,FRT SUSP
HIGH RIDE SUSPENSION<7YC> THA 		8-97947-119-2 02 1 1409- ●
47 SPRING; COIL,FRT SUSP
THA 		8-97947-206-2 02 1 1409- ● ●
47 SPRING; COIL,FRT SUSP
THA 		8-97947-117-2 02 1 1409- ●
48 JOINT ASM; BALL,LWR CONT ARM
THA 		8-98005-875-0 02 1 1409- ● ● ● ● ● ●
53 NUT; LWR LINK
(B) M18 THA 		0-91110-518-0 02 1 1409- ● ● ● ● ● ●
53 NUT; LWR LINK
(A) M12 FLANGE THA 		0-91180-212-0 08 1 1409- ● ● ● ● ● ●
58 BUSHING; LWR LINK
HIGH RIDE SUSPENSION<7YC> THA 		8-97947-087-1 04 1 1409- ● ●
58 BUSHING; LWR LINK
THA 		8-97947-087-1 04 1 1409- ● ● ●
58 BUSHING; LWR LINK
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97364-174-0 04 1 1409- ● ●
58 BUSHING; LWR LINK
THA 		8-97364-174-0 04 1 1409- ●
62 ABSORBER ASM; SHOCK,FRT
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97947-094-3 02 1 1409- ●
62 ABSORBER ASM; SHOCK,FRT
HIGH RIDE SUSPENSION<7YC> THA 		8-97947-098-3 02 1 1409- ●
62 ABSORBER ASM; SHOCK,FRT
THA 		8-98212-126-0 02 1 1409- ●
62 ABSORBER ASM; SHOCK,FRT
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97947-096-2 02 1 1409- ●
62 ABSORBER ASM; SHOCK,FRT
HIGH RIDE SUSPENSION<7YC> THA 		8-98161-915-2 02 1 1409- ●
62 ABSORBER ASM; SHOCK,FRT
THA 		8-97947-097-3 02 1 1409- ● ●
62 ABSORBER ASM; SHOCK,FRT
THA 		8-97947-099-4 02 1 1409- ●
65 WASHER; S/ABS
(C) THA 		8-97944-892-0 02 1 1409- ● ● ● ● ● ●
65 WASHER; S/ABS
(B) THA 		8-98005-971-0 02 1 1409- ● ● ● ● ● ●
65 WASHER; S/ABS
(A) THA 		8-98005-972-0 02 1 1409- ● ● ● ● ● ●
75 BRACKET; FRT S/ABS
THA 		8-98177-899-1 02 1 1409- ● ● ● ● ● ●
79 NUT; UPR LINK END TO KNUCKLE
(A) M14 THA 		0-91110-514-0 02 1 1409- ● ● ● ● ● ●
79 NUT; UPR LINK END TO KNUCKLE
(B) M8 FLANGE THA 		0-91180-208-0 08 1 1409- ● ● ● ● ● ●
84 ARM; LWR CONT
HIGH RIDE SUSPENSION<7YC> THA 		8-97945-843-1 01 1 1409- ● ●
84 ARM; LWR CONT
THA 		8-97945-843-1 01 1 1409- ● ● ●
84 ARM; LWR CONT
HIGH RIDE SUSPENSION<7YC> THA 		8-97945-844-1 01 1 1409- ● ●
84 ARM; LWR CONT
THA 		8-97945-844-1 01 1 1409- ● ● ●
84 ARM; LWR CONT
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98162-164-0 01 1 1409- ● ●
84 ARM; LWR CONT
THA 		8-98162-164-0 01 1 1409- ●
84 ARM; LWR CONT
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98162-165-0 01 1 1409- ● ●
84 ARM; LWR CONT
THA 		8-98162-165-0 01 1 1409- ●
96 BOLT; LWR LINK
(A) M12X37 FLANGE THA 		8-97245-639-0 08 1 1409- ● ● ● ● ● ●
96 BOLT; LWR LINK
(B) M16X102 W/PLATE THA 		8-98186-404-0 04 1 1409- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
