◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51579 - TFR/TFS THAILAND ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-42 - POWER STEERING OIL PUMP ▶
4-42 — POWER STEERING OIL PUMP (#148315) — 39 parça

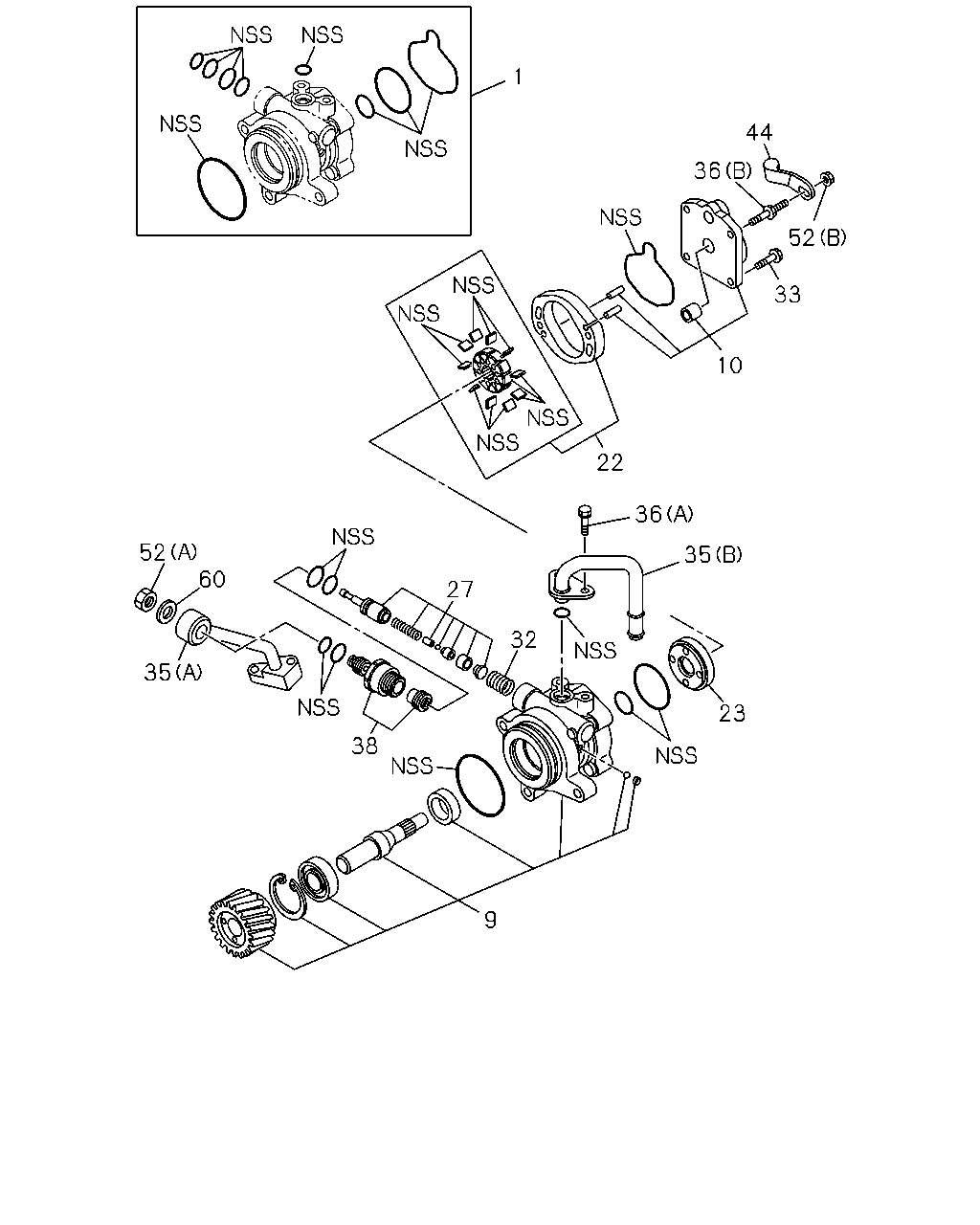

çizim 443511
1 52 35 60 22 10 36 44 33 52 27 32 36 35 38 23 9
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; OIL PUMP
THA ASM PART: B = 8-97946-698-0 		8-98002-698-0 01 1 -
9 BODY ASM; FRT,OIL PUMP
THA ASM PART: B = 8-97946-698-0 		8-98002-697-0 01 1 -
10 BODY ASM; RR,OIL PUMP
THA ASM PART: B = 8-97946-698-0 		8-97946-689-0 01 1 -
22 CARTRIDGE ASM; OIL PUMP
THA ASM PART: B = 8-97946-698-0 		8-97946-615-0 01 1 -
23 PLATE; SIDE,OIL PUMP
THA ASM PART: B = 8-97946-698-0 		8-97184-728-0 01 1 -
27 VALVE ASM; OIL PUMP
THA ASM PART: B = 8-97946-698-0 		8-98034-043-0 01 1 -
32 SPRING; OIL PUMP
THA ASM PART: B = 8-97946-698-0 		8-97184-766-0 01 1 -
33 BOLT; COVER
THA ASM PART: B = 8-97946-698-0 		8-98028-773-0 03 1 -
35 PIPE; HOSE CONN,OIL PUMP
(A), THA ASM PART: B = 8-97946-698-0 		8-97946-174-0 01 1 -
35 PIPE; HOSE CONN,OIL PUMP
(B), THA ASM PART: B = 8-97946-698-0 		8-98033-924-0 01 1 -
35 PIPE; HOSE CONN,OIL PUMP
(C), THA ASM PART: A = 8-97946-164-0 		8-98165-869-0 01 1 -
35 PIPE; HOSE CONN,OIL PUMP
(D), THA ASM PART: A = 8-97946-164-0 		8-98166-383-0 01 1 -
36 BOLT; CONN,PIPE
(A), THA ASM PART: B = 8-97946-698-0 		8-98028-783-0 02 1 -
36 BOLT; CONN,PIPE
(B), THA ASM PART: B = 8-97946-698-0 		8-98034-052-0 01 1 -
36 BOLT; CONN,PIPE
(C), THA ASM PART: A = 8-97946-164-0 		8-98165-884-0 01 1 -
36 BOLT; CONN,PIPE
(D), THA ASM PART: A = 8-97946-164-0 		8-98166-386-0 02 1 -
38 CONNECTOR; OIL PUMP
THA ASM PART: B = 8-97946-698-0 		8-97943-866-0 01 1 -
44 BRACKET; OIL PUMP,P/S & EDS
THA ASM PART: B = 8-97946-698-0 		8-98034-047-0 01 1 -
44 BRACKET; OIL PUMP,P/S & EDS
THA ASM PART: A = 8-97946-164-0 		8-98165-885-0 01 1 -
52 NUT; OIL PUMP
(A), THA ASM PART: B = 8-97946-698-0 		8-98034-050-0 01 1 -
52 NUT; OIL PUMP
(B), THA ASM PART: B = 8-97946-698-0 		8-98034-051-0 01 1 -
52 NUT; OIL PUMP
(C), THA ASM PART: A = 8-97946-164-0 		8-98165-887-0 01 1 -
60 WASHER; LK,OIL PUMP
THA ASM PART: B = 8-97946-698-0 		8-98034-048-0 01 1 -

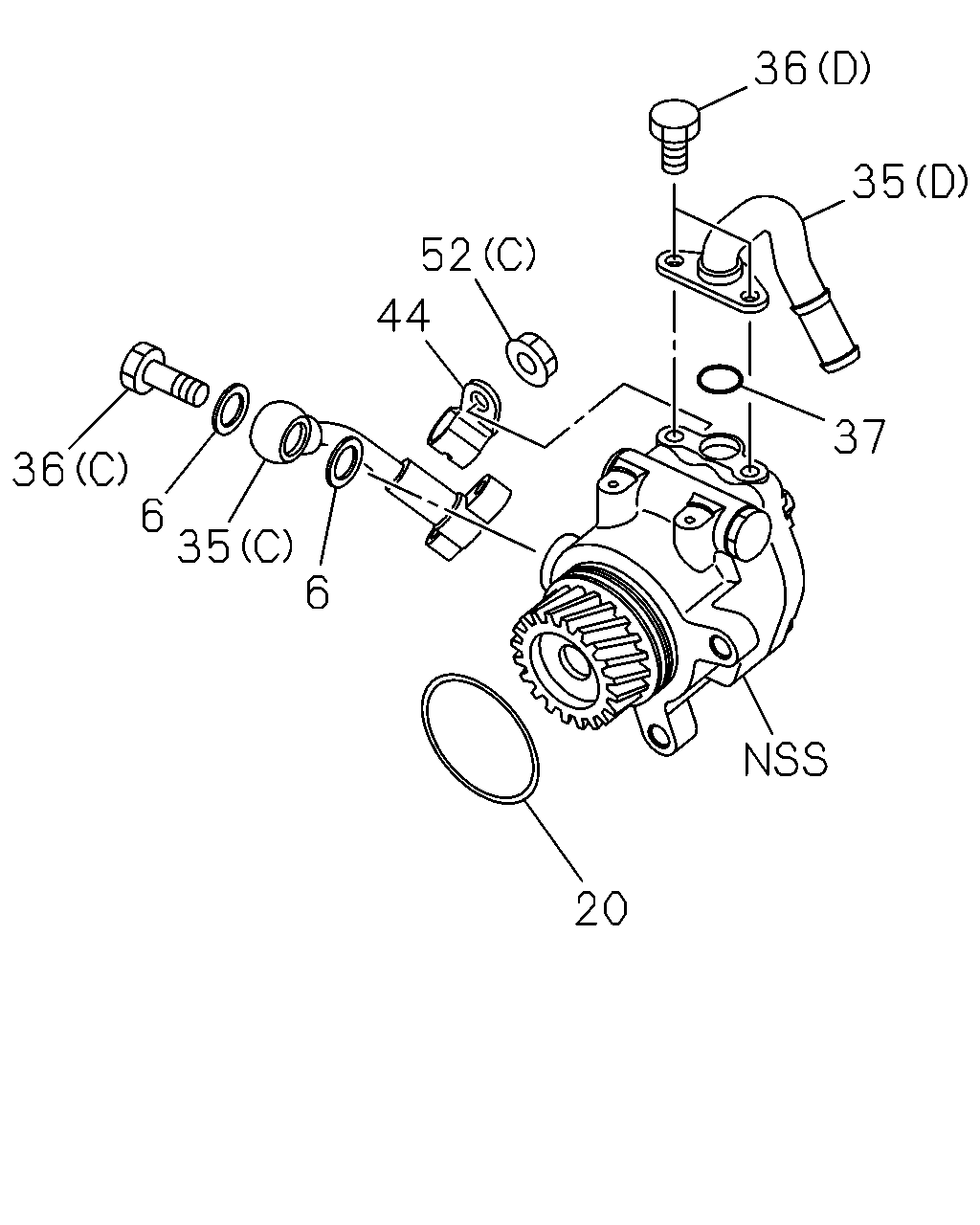

çizim 443538
36 35 37 52 44 20 6 35 6 36
BalonParca AdiParca NoAdetTipApplied Date
6 WASHER; PL,OIL PUMP
THA ASM PART: A = 8-97946-164-0 		8-98165-870-0 02 1 -
20 GASKET; FRT,OIL PUMP
THA ASM PART: A = 8-97946-164-0 		8-98165-868-0 01 1 -
35 PIPE; HOSE CONN,OIL PUMP
(A), THA ASM PART: B = 8-97946-698-0 		8-97946-174-0 01 1 -
35 PIPE; HOSE CONN,OIL PUMP
(B), THA ASM PART: B = 8-97946-698-0 		8-98033-924-0 01 1 -
35 PIPE; HOSE CONN,OIL PUMP
(C), THA ASM PART: A = 8-97946-164-0 		8-98165-869-0 01 1 -
35 PIPE; HOSE CONN,OIL PUMP
(D), THA ASM PART: A = 8-97946-164-0 		8-98166-383-0 01 1 -
36 BOLT; CONN,PIPE
(A), THA ASM PART: B = 8-97946-698-0 		8-98028-783-0 02 1 -
36 BOLT; CONN,PIPE
(B), THA ASM PART: B = 8-97946-698-0 		8-98034-052-0 01 1 -
36 BOLT; CONN,PIPE
(C), THA ASM PART: A = 8-97946-164-0 		8-98165-884-0 01 1 -
36 BOLT; CONN,PIPE
(D), THA ASM PART: A = 8-97946-164-0 		8-98166-386-0 02 1 -
37 GASKET; PIPE CONN,OIL PUMP
THA ASM PART: A = 8-97946-164-0 		8-98166-384-0 01 1 -
44 BRACKET; OIL PUMP,P/S & EDS
THA ASM PART: B = 8-97946-698-0 		8-98034-047-0 01 1 -
44 BRACKET; OIL PUMP,P/S & EDS
THA ASM PART: A = 8-97946-164-0 		8-98165-885-0 01 1 -
52 NUT; OIL PUMP
(A), THA ASM PART: B = 8-97946-698-0 		8-98034-050-0 01 1 -
52 NUT; OIL PUMP
(B), THA ASM PART: B = 8-97946-698-0 		8-98034-051-0 01 1 -
52 NUT; OIL PUMP
(C), THA ASM PART: A = 8-97946-164-0 		8-98165-887-0 01 1 -
