◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51579 - TFR/TFS THAILAND ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40 - STEERING UNIT ▶
4-40 — STEERING UNIT (#148314) — 30 parça

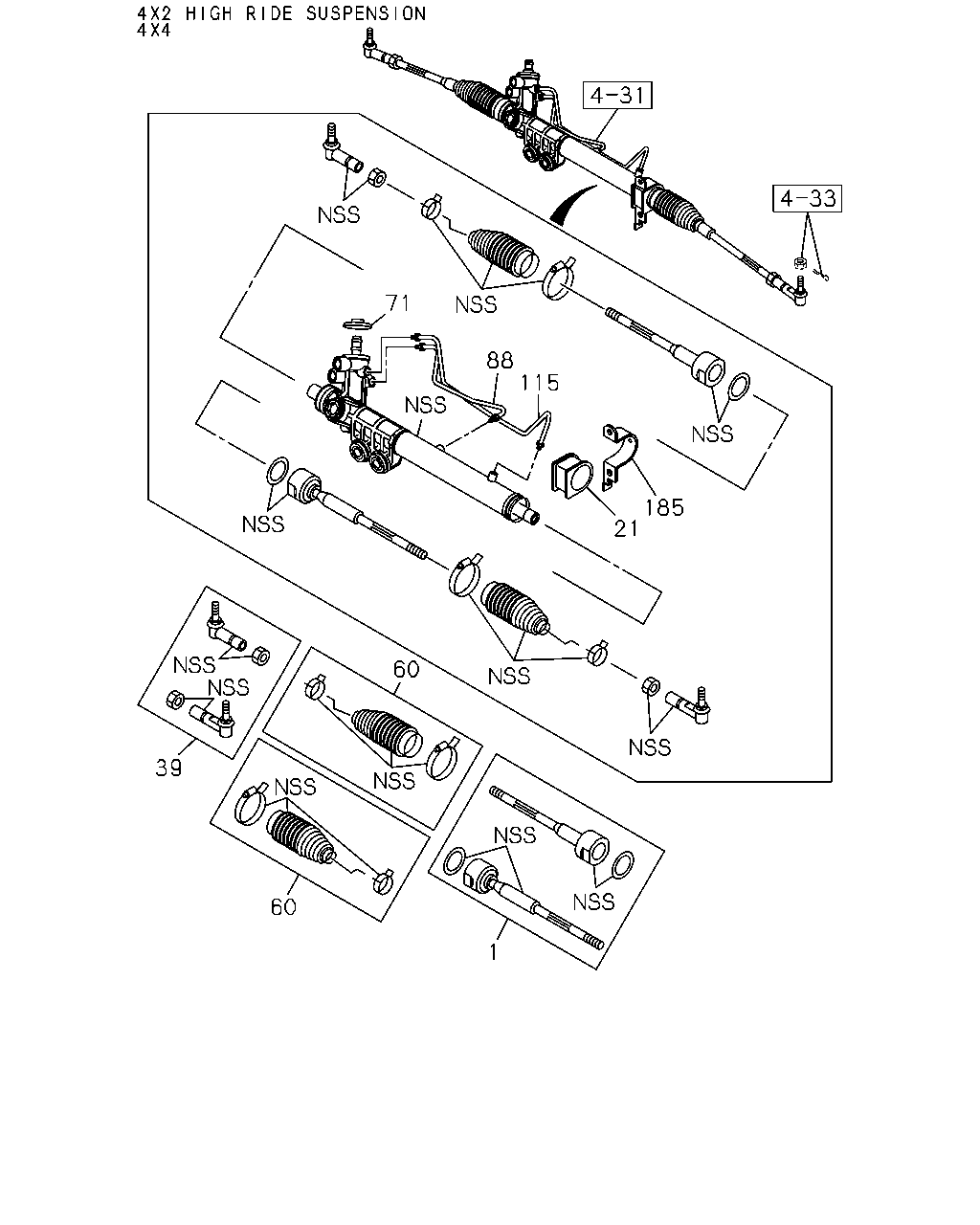

çizim 443357
71 88 115 1 185 39 60 60 1
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; STRG UNIT,1 YEAR
THA ASM PART: B = 8-97946-131-1 		8-98164-967-0 01 1 -
1 REPAIR KIT; STRG UNIT,1 YEAR
THA ASM PART: A = 8-97946-129-1 		8-98165-055-0 02 1 -
39 ROD END ASM; OUTER
THA ASM PART: A = 8-97946-129-1 		8-98055-746-0 02 1 -
39 ROD END ASM; OUTER
THA ASM PART: B = 8-97946-131-1 		8-98056-551-0 01 1 -
60 BOOT KIT; STRG HSG
THA ASM PART: B = 8-97946-131-1 		8-97945-423-0 02 1 -
60 BOOT KIT; STRG HSG
THA ASM PART: A = 8-97946-129-1 		8-98055-745-0 02 1 -
71 COVER; DUST,STRG UNIT
THA ASM PART: B = 8-97946-131-1 		8-98164-972-0 01 1 -
71 COVER; DUST,STRG UNIT
THA ASM PART: A = 8-97946-129-1 		8-98165-054-0 01 1 -
88 PIPE; HSG TO VLV
THA ASM PART: B = 8-97946-131-1 		8-98164-970-0 01 1 -
88 PIPE; HSG TO VLV
THA ASM PART: A = 8-97946-129-1 		8-98165-050-0 01 1 -
115 PIPE; HSG TO VLV
THA ASM PART: B = 8-97946-131-1 		8-98164-969-0 01 1 -
115 PIPE; HSG TO VLV
THA ASM PART: A = 8-97946-129-1 		8-98165-051-0 01 1 -
185 BRACKET; P/S
THA ASM PART: B = 8-97946-131-1 		8-98164-968-0 01 1 -
185 BRACKET; P/S
THA ASM PART: A = 8-97946-129-1 		8-98165-053-0 01 1 -

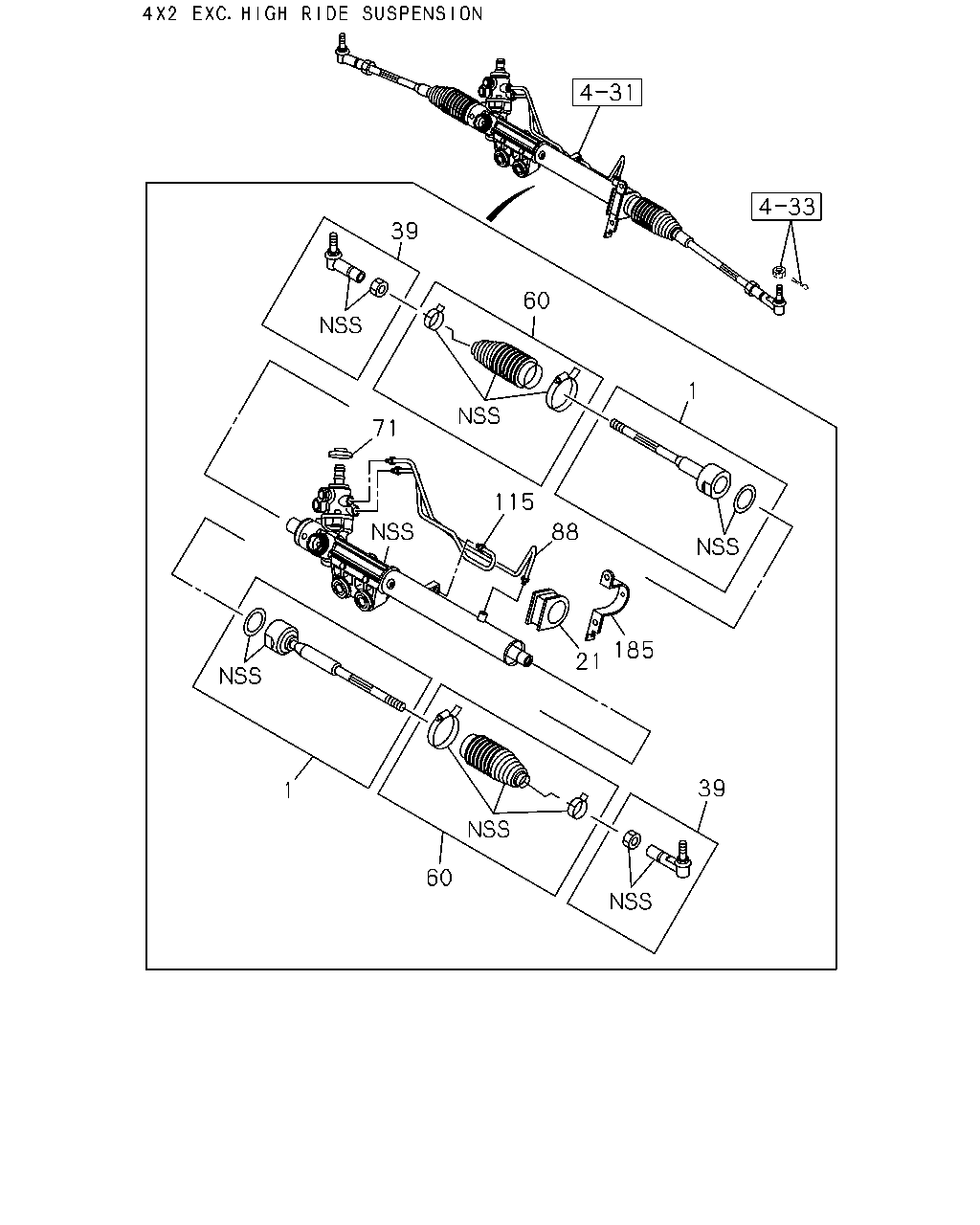

çizim 443489
39 60 1 71 115 88 185 21 1 60 39
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; STRG UNIT,1 YEAR
THA ASM PART: B = 8-97946-131-1 		8-98164-967-0 01 1 -
1 REPAIR KIT; STRG UNIT,1 YEAR
THA ASM PART: A = 8-97946-129-1 		8-98165-055-0 02 1 -
21 RUBBER; MTG,PINION SIDE
THA ASM PART: A = 8-97946-129-1 		8-97304-908-0 01 1 -
21 RUBBER; MTG,PINION SIDE
THA ASM PART: B = 8-97946-131-1 		8-97945-426-0 01 1 -
39 ROD END ASM; OUTER
THA ASM PART: A = 8-97946-129-1 		8-98055-746-0 02 1 -
39 ROD END ASM; OUTER
THA ASM PART: B = 8-97946-131-1 		8-98056-551-0 01 1 -
60 BOOT KIT; STRG HSG
THA ASM PART: B = 8-97946-131-1 		8-97945-423-0 02 1 -
60 BOOT KIT; STRG HSG
THA ASM PART: A = 8-97946-129-1 		8-98055-745-0 02 1 -
71 COVER; DUST,STRG UNIT
THA ASM PART: B = 8-97946-131-1 		8-98164-972-0 01 1 -
71 COVER; DUST,STRG UNIT
THA ASM PART: A = 8-97946-129-1 		8-98165-054-0 01 1 -
88 PIPE; HSG TO VLV
THA ASM PART: B = 8-97946-131-1 		8-98164-970-0 01 1 -
88 PIPE; HSG TO VLV
THA ASM PART: A = 8-97946-129-1 		8-98165-050-0 01 1 -
115 PIPE; HSG TO VLV
THA ASM PART: B = 8-97946-131-1 		8-98164-969-0 01 1 -
115 PIPE; HSG TO VLV
THA ASM PART: A = 8-97946-129-1 		8-98165-051-0 01 1 -
185 BRACKET; P/S
THA ASM PART: B = 8-97946-131-1 		8-98164-968-0 01 1 -
185 BRACKET; P/S
THA ASM PART: A = 8-97946-129-1 		8-98165-053-0 01 1 -
