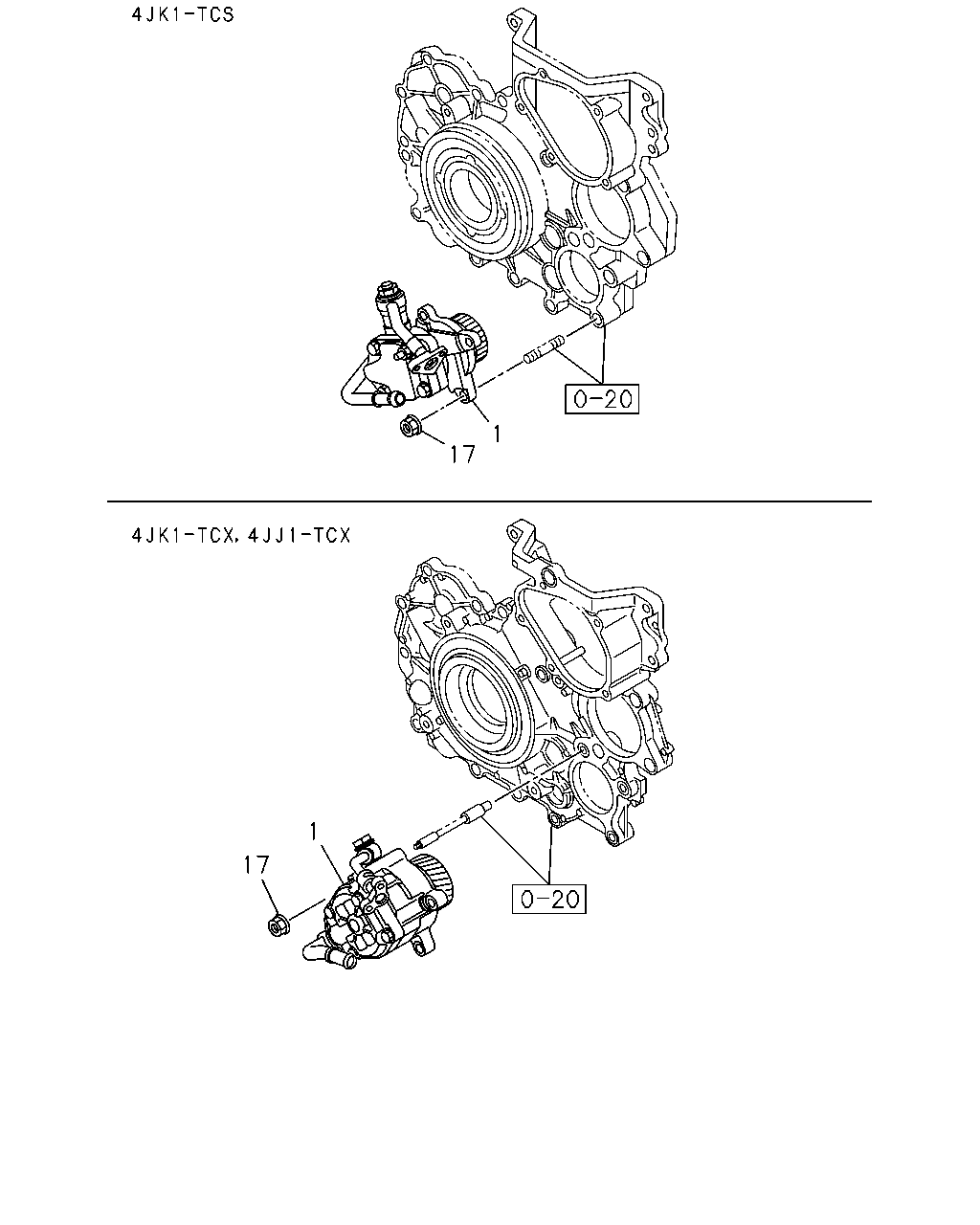

4-36 — POWER STEERING CONTROL; ENGINE SIDE (#148313) — 5 parça

17 1 17 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JK1-TCS ENG<LKZ> THA	8-97946-698-0	01	1	1409-1411	●	●	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JK1-TCS ENG<LKZ> THA	8-97946-698-0	01	1	1501-	●	●	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> THA	8-97946-164-0	01	1	1409-1411	●	●	●	●	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> THA	8-97946-164-0	01	1	1501-	●	●	●	●	●	●
17	NUT; POWER STRG PUMP M8 FLANGE THA	0-91180-208-0	03	1	1409-	●	●	●	●	●	●
