4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#148312) — 26 parça

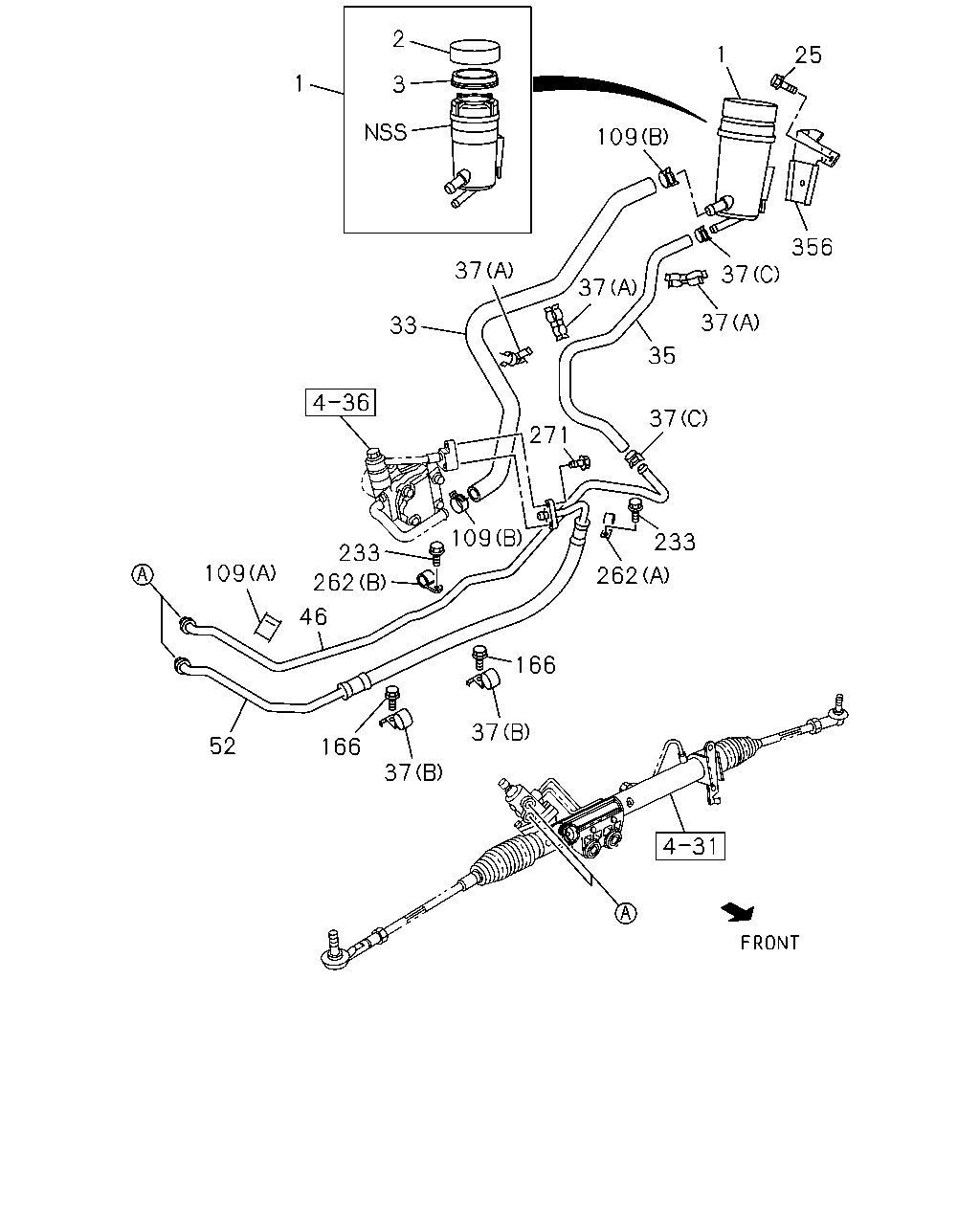

çizim 443383
1 2 3 1 25 109 37 37 37 356 37 35 33 271 37 109 233 109 233 262 262 46 166 52 166 37 37
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 TANK ASM; OIL,P/S
THA 		8-97234-350-0 01 1 1409- ● ● ● ● ● ●
2 CAP; OIL TANK,P/S
THA 		8-97349-476-0 01 1 1409- ● ● ● ● ● ●
3 GASKET; OIL TANK,P/S
THA 		8-97349-477-0 01 1 1409- ● ● ● ● ● ●
25 BOLT; OIL TANK BRKT
M6X16 FLANGE THA 		0-28650-616-0 02 1 1409- ● ● ● ● ● ●
33 HOSE; RUBBER,POWER STRG
THA 		8-97946-138-2 01 1 1409- ● ● ● ● ● ●
35 HOSE; RETURN,P/S TANK
THA 		8-97946-140-1 01 1 1409- ● ● ● ● ● ●
37 CLIP; HOSE,P/S
(A) ID=17.5 & 21 THA 		8-97177-580-0 01 1 1409- ● ● ● ● ● ●
37 CLIP; HOSE,P/S
(A) ID=17.5 & 21 THA 		8-97177-580-0 02 1 1409- ● ● ● ● ● ●
37 CLIP; HOSE,P/S
(C) ID=16 THA 		8-98030-682-0 02 1 1409- ● ● ● ● ● ●
37 CLIP; HOSE,P/S
(B) ID=21.5 L=21 THA 		8-98211-907-0 02 1 1409- ● ● ● ● ● ●
46 PIPE; OIL,P/S UNIT TO OIL TANK
HIGH RIDE SUSPENSION<7YC> THA 		8-98228-468-1 01 1 1409- ● ●
46 PIPE; OIL,P/S UNIT TO OIL TANK
THA 		8-98228-468-1 01 1 1409- ● ● ●
46 PIPE; OIL,P/S UNIT TO OIL TANK
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98228-467-1 01 1 1409- ● ●
46 PIPE; OIL,P/S UNIT TO OIL TANK
THA 		8-98228-467-1 01 1 1409- ●
52 HOSE; FLEX,P/S CONT VLV
HIGH RIDE SUSPENSION<7YC> THA 		8-98228-466-0 01 1 1409- ● ●
52 HOSE; FLEX,P/S CONT VLV
THA 		8-98228-466-0 01 1 1409- ● ● ●
52 HOSE; FLEX,P/S CONT VLV
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98228-465-0 01 1 1409- ● ●
52 HOSE; FLEX,P/S CONT VLV
THA 		8-98228-465-0 01 1 1409- ●
109 CLIP; RUBBER HOSE
(A) ID=10X2 H=22 THA 		8-94252-455-2 01 1 1409- ● ● ● ● ● ●
109 CLIP; RUBBER HOSE
(B) ID=20.8 THA 		8-97944-127-0 02 1 1409- ● ● ● ● ● ●
166 BOLT; CLIP
M6X16 FLANGE THA 		0-28650-616-0 02 1 1409- ● ● ● ● ● ●
233 BOLT; PIPE CLIP,P/S
M6X16 FLANGE THA 		0-28650-616-0 02 1 1409- ● ● ● ● ● ●
262 CLIP; P/S PIPE
(A) ID=11 H=20 L=20 IMA 		0-95207-310-0 01 1 1409- ● ● ● ● ● ●
262 CLIP; P/S PIPE
(B) ID=11 L=20 IMA 		0-95235-032-0 01 1 1409- ● ● ● ● ● ●
271 BOLT; P/S OIL PIPE FIX
M6X16 FLANGE THA 		0-28650-616-0 02 1 1409- ● ● ● ● ● ●
356 BRACKET; P/S,RESERVOIR
THA 		8-97946-163-0 01 1 1409- ● ● ● ● ● ●
