◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51579 - TFR/TFS THAILAND ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-20 - REAR AXLE CASE AND SHAFT ▶
4-20 — REAR AXLE CASE AND SHAFT (#148307) — 60 parça

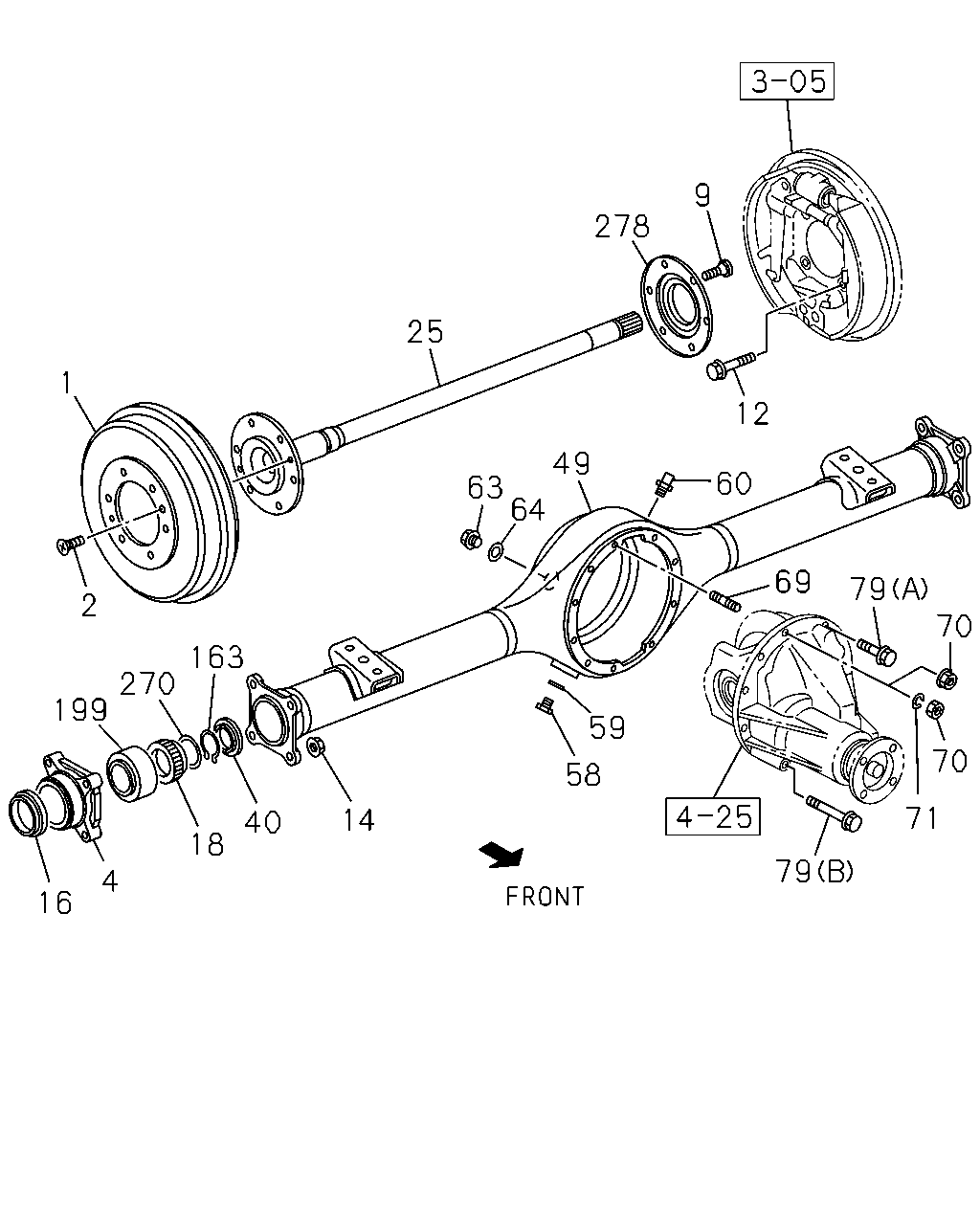

çizim 443425
70 71 70 79 69 60 12 49 64 63 9 278 79 59 58 25 1 2 163 14 270 40 199 4 16 18
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 DRUM; BRK,RR
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98136-491-1 02 1 1409- ● ●
1 DRUM; BRK,RR
THA 		8-98136-491-1 02 1 1409- ●
1 DRUM; BRK,RR
HIGH RIDE SUSPENSION<7YC> AISIN TAKAOKA THA 		8-97948-038-1 02 1 1409- ● ●
1 DRUM; BRK,RR
AISIN TAKAOKA THA 		8-97948-038-1 02 1 1409- ● ● ●
1 DRUM; BRK,RR
HIGH RIDE SUSPENSION<7YC> SOMBOON THA 		8-98061-813-1 02 1 1409- ● ●
1 DRUM; BRK,RR
SOMBOON THA 		8-98061-813-1 02 1 1409- ● ● ●
2 BOLT; BRK DRUM
M6X16 CK-HEAD THA 		0-36410-616-0 02 1 1409- ● ● ● ● ● ●
4 HOLDER; BRG,AXLE SHAFT
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98103-449-2 02 1 1409- ● ●
4 HOLDER; BRG,AXLE SHAFT
THA 		8-98103-449-2 02 1 1409- ●
4 HOLDER; BRG,AXLE SHAFT
HIGH RIDE SUSPENSION<7YC> THA 		8-98103-450-3 02 1 1409- ● ●
4 HOLDER; BRG,AXLE SHAFT
THA 		8-98103-450-3 02 1 1409- ● ● ●
9 PIN; WHEEL,RR AXLE
M12X42.5 RH THREAD THA 		8-97944-831-1 12 1 1409- ● ● ● ● ● ●
12 BOLT; BRG HOLDER TO CASE
EXC. HIGH RIDE SUSPENSION<7YC> M12X84 FLANGE THA 		8-98107-913-2 08 1 1409- ● ●
12 BOLT; BRG HOLDER TO CASE
M12X84 FLANGE THA 		8-98107-913-2 08 1 1409- ●
12 BOLT; BRG HOLDER TO CASE
HIGH RIDE SUSPENSION<7YC> M12X59 FLANGE THA 		8-98107-914-2 08 1 1409- ● ●
12 BOLT; BRG HOLDER TO CASE
M12X59 FLANGE THA 		8-98107-914-2 08 1 1409- ● ● ●
14 NUT; BRG HOLDER TO CASE
M12 FLANGE THA 		0-91180-212-0 08 1 1409- ● ● ● ● ● ●
16 SEAL; OIL,RR HUB,OUTER
THA 		8-98134-394-0 02 1 1409- ● ● ● ● ● ●
18 RETAINER; RR AXLE
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97239-868-0 02 1 1409-1507 ● ●
18 RETAINER; RR AXLE
THA 		8-97239-868-0 02 1 1409-1507 ●
18 RETAINER; RR AXLE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-97239-868-0 02 1 1508- ● ● ● ●
18 RETAINER; RR AXLE
THA 		8-97239-868-0 02 1 1508- ● ●
18 RETAINER; RR AXLE
HIGH RIDE SUSPENSION<7YC> THA 		8-98009-341-0 02 1 1409-1507 ● ●
18 RETAINER; RR AXLE
THA 		8-98009-341-0 02 1 1409-1507 ● ● ●
18 RETAINER; RR AXLE
4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98009-341-0 02 1 1508- ● ● ● ●
25 SHAFT; AXLE,RR
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98080-677-2 02 1 1409- ● ●
25 SHAFT; AXLE,RR
THA 		8-98080-677-2 02 1 1409- ●
25 SHAFT; AXLE,RR
HIGH RIDE SUSPENSION<7YC> THA 		8-98080-678-2 02 1 1409- ● ●
25 SHAFT; AXLE,RR
THA 		8-98080-678-2 02 1 1409- ● ● ●
40 SEAL; OIL,REAR AXLE
THA 		8-97323-297-0 02 1 1409- ● ● ● ● ● ●
49 CASE; RR AXLE
HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98080-420-2 01 1 1409- ● ●
49 CASE; RR AXLE
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98080-420-2 01 1 1409- ● ● ●
49 CASE; RR AXLE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION<7YC> THA 		8-98080-391-2 01 1 1409- ● ●
49 CASE; RR AXLE
THA 		8-98080-391-2 01 1 1409- ●
49 CASE; RR AXLE
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDE SUSPENSION<7YC> THA 		8-98080-392-2 01 1 1409- ● ●
49 CASE; RR AXLE
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98080-421-2 01 1 1409- ● ●
49 CASE; RR AXLE
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98080-421-2 01 1 1409- ● ●
49 CASE; RR AXLE
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION<7YC> THA 		8-98080-423-2 01 1 1409- ●
49 CASE; RR AXLE
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98080-423-2 01 1 1409- ●
49 CASE; RR AXLE
A/T 5 SPEED-AISIN<MA1> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98173-630-0 01 1 1409- ●
49 CASE; RR AXLE
A/T 5 SPEED-AISIN<MA1> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98173-631-0 01 1 1409- ●
49 CASE; RR AXLE
A/T 5 SPEED-AISIN<MA1> 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98173-633-0 01 1 1409- ●
58 PLUG; DRAIN,AXLE CASE
M16X12.5 IMA 		8-97307-060-0 01 1 1409- ● ● ● ● ● ●
59 GASKET; DRAIN PLUG
ID=16.2 OD=24 THA 		9-09571-416-0 01 1 1409- ● ● ● ● ● ●
60 BREATHER; RR AXLE CASE
L=29 IMA 		8-98006-960-0 01 1 1409- ● ● ● ● ● ●
63 PLUG; OIL FILLER,AXLE CASE
THA 		8-97307-059-1 01 1 1409- ● ● ● ● ● ●
64 GASKET; OIL FILLER,AXLE CASE
ID=20 OD=30 THA 		8-94462-734-0 01 1 1409- ● ● ● ● ● ●
69 STUD; AXLE CASE
M10X31 L=43 THA 		8-98022-413-0 02 1 1409- ● ● ● ● ● ●
70 NUT; CARRIER
M10 THA 		0-91110-510-0 02 1 1409-1509 ● ● ● ● ● ●
70 NUT; CARRIER
M10 FLANGE THA 		0-91180-210-0 02 1 1510- ● ● ● ● ● ●
71 WASHER; LK,FINAL DRIVE SETTING
ID=10.2 IMA 		0-91510-810-0 02 1 1409-1509 ● ● ● ● ● ●
79 BOLT; COVER TO CASE
(A) M10X30 W/LK WASHER THA 		0-50561-030-0 07 1 1409-1509 ● ● ● ● ● ●
79 BOLT; COVER TO CASE
(A) M10X30 FLANGE THA 		0-28061-030-0 07 1 1510- ● ● ● ● ● ●
79 BOLT; COVER TO CASE
(B) M10X90 W/LK WASHER THA 		0-50561-090-0 01 1 1409-1509 ● ● ● ● ● ●
79 BOLT; COVER TO CASE
(B) M10X90 THA 		0-28061-090-0 01 1 1510- ● ● ● ● ● ●
163 RING; SNAP,AXLE SHAFT
ID=38.5 T=1.75 IMA 		9-09180-042-0 AR 1 1409- ● ● ● ● ● ●
163 RING; SNAP,AXLE SHAFT
ID=38.5 T=2.00 IMA 		9-09952-253-0 AR 1 1409- ● ● ● ● ● ●
199 BEARING; RR AXLE
THA 		8-97216-797-2 02 1 1409- ● ● ● ● ● ●
270 SHIM; RETAINER
T=0.24 IMA 		9-41519-109-0 AR 1 1409- ● ● ● ● ● ●
278 CATCHER; OIL
THA 		8-98103-447-2 02 1 1409- ● ● ● ● ● ●
