◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51579 - TFR/TFS THAILAND ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-15 - FRONT FINAL DRIVE ▶
4-15 — FRONT FINAL DRIVE (#148306) — 52 parça

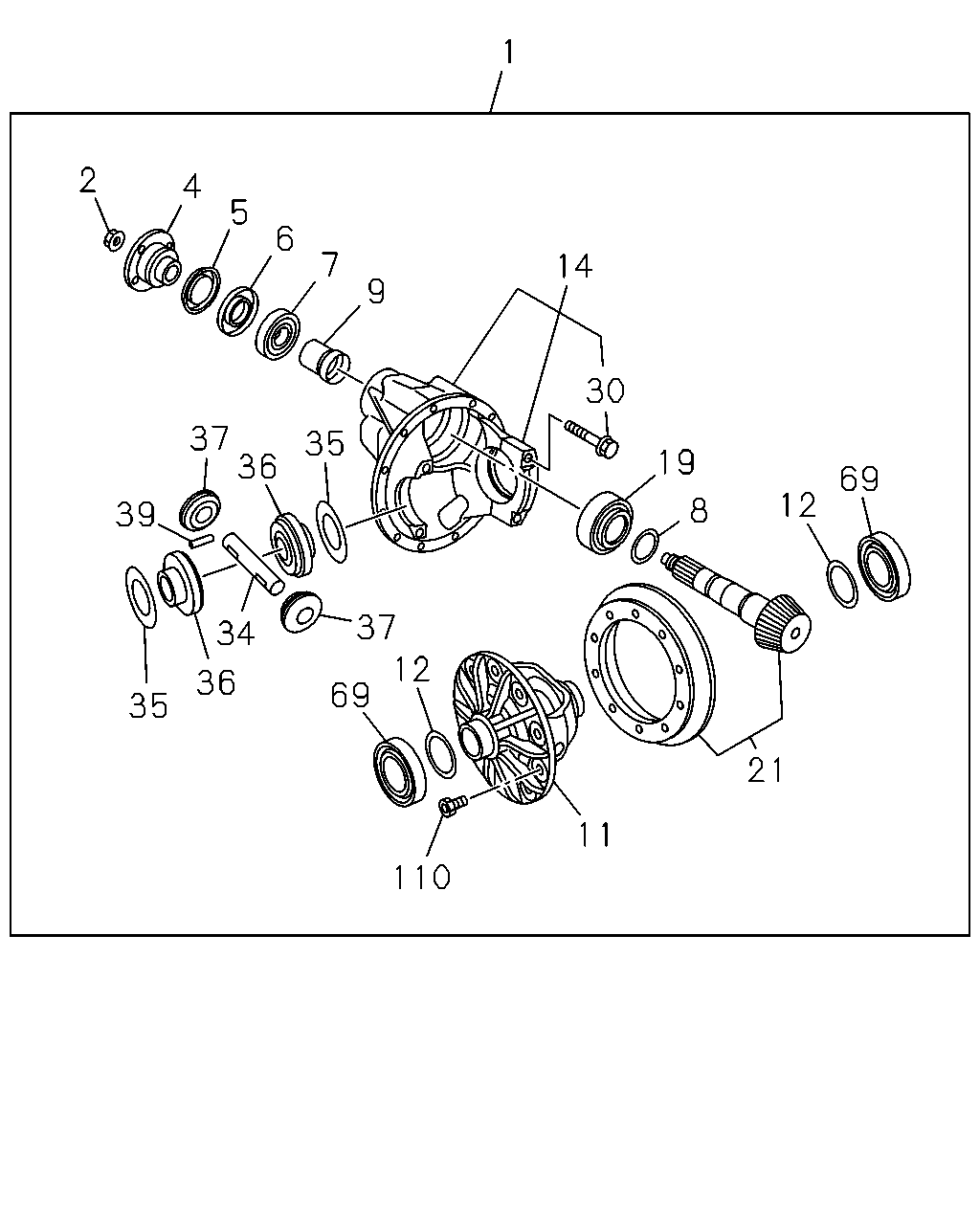

çizim 443583
1 2 4 5 6 7 9 14 30 19 8 12 69 21 11 110 69 12 37 34 36 35 39 37 36 35
BalonParca AdiParca NoAdetTipApplied Date A B C
1 DRIVE ASM; FINAL,FRT
FINAL GEAR RATIO 43/12<GM0> 43/12 THA 		8-98104-900-0 01 1 1409- ● ●
1 DRIVE ASM; FINAL,FRT
FINAL GEAR RATIO 41/11<GT4> 41/11 THA 		8-98104-901-0 01 1 1409- ● ●
1 DRIVE ASM; FINAL,FRT
FINAL GEAR RATIO 41/10<GT5> 41/10 THA 		8-98104-903-0 01 1 1409- ● ● ●
1 DRIVE ASM; FINAL,FRT
FINAL GEAR RATIO 43/11<GW1> 43/11 THA 		8-98104-902-0 01 1 1409- ● ● ●
2 NUT; FINAL DRIVE PINION
M18 LOCK NUT IMA 		8-94376-262-0 01 1 1409- ● ● ●
4 COUPLING; FINAL DRIVE PINION
IMA 		8-94318-527-6 01 1 1409- ● ● ●
5 COVER; DUST,PINION,FINAL DRIVE
IMA 		8-94318-409-1 01 1 1409- ● ● ●
6 SEAL; OIL,FINAL PINION
IMA 		8-94318-520-2 01 1 1409- ● ● ●
7 BEARING; PINION,OUTER
NSK THA 		8-94472-099-0 01 1 1409- ● ● ●
7 BEARING; PINION,OUTER
JTEKT IMA 		8-94472-100-1 01 1 1409- ● ● ●
8 SHIM; PINION,FINAL DRIVE
T=2.18 IMA 		9-41519-153-1 AR 1 1409- ● ● ●
8 SHIM; PINION,FINAL DRIVE
T=2.20 IMA 		9-41519-154-1 AR 1 1409- ● ● ●
8 SHIM; PINION,FINAL DRIVE
T=2.22 IMA 		9-41519-155-1 AR 1 1409- ● ● ●
8 SHIM; PINION,FINAL DRIVE
T=2.24 IMA 		9-41519-156-1 AR 1 1409- ● ● ●
8 SHIM; PINION,FINAL DRIVE
T=2.26 IMA 		9-41519-157-1 AR 1 1409- ● ● ●
8 SHIM; PINION,FINAL DRIVE
T=2.28 IMA 		9-41519-158-1 AR 1 1409- ● ● ●
8 SHIM; PINION,FINAL DRIVE
T=2.30 IMA 		9-41519-159-1 AR 1 1409- ● ● ●
8 SHIM; PINION,FINAL DRIVE
T=2.32 IMA 		9-41519-160-1 AR 1 1409- ● ● ●
8 SHIM; PINION,FINAL DRIVE
T=2.34 IMA 		9-41519-161-1 AR 1 1409- ● ● ●
8 SHIM; PINION,FINAL DRIVE
T=2.36 IMA 		9-41519-162-1 AR 1 1409- ● ● ●
8 SHIM; PINION,FINAL DRIVE
T=2.38 IMA 		9-41519-163-1 AR 1 1409- ● ● ●
8 SHIM; PINION,FINAL DRIVE
T=2.40 IMA 		9-41519-164-1 AR 1 1409- ● ● ●
8 SHIM; PINION,FINAL DRIVE
T=2.42 IMA 		9-41519-165-1 AR 1 1409- ● ● ●
8 SHIM; PINION,FINAL DRIVE
T=2.44 IMA 		9-41519-166-1 AR 1 1409- ● ● ●
8 SHIM; PINION,FINAL DRIVE
T=2.46 IMA 		9-41519-167-1 AR 1 1409- ● ● ●
8 SHIM; PINION,FINAL DRIVE
T=2.48 IMA 		9-41519-168-1 AR 1 1409- ● ● ●
8 SHIM; PINION,FINAL DRIVE
T=2.50 IMA 		9-41519-169-1 AR 1 1409- ● ● ●
8 SHIM; PINION,FINAL DRIVE
T=2.52 IMA 		9-41519-170-1 AR 1 1409- ● ● ●
8 SHIM; PINION,FINAL DRIVE
T=2.54 IMA 		9-41519-171-1 AR 1 1409- ● ● ●
8 SHIM; PINION,FINAL DRIVE
T=2.56 IMA 		9-41519-172-1 AR 1 1409- ● ● ●
9 COLLAR; DIST,PINION
IMA 		8-94472-118-0 01 1 1409- ● ● ●
11 CAGE; FINAL PINION
IMA 		8-97038-515-1 01 1 1409- ● ● ●
12 SHIM; FINAL PINION CAGE
T=0.10 IMA 		8-97130-386-0 AR 1 1409- ● ● ●
12 SHIM; FINAL PINION CAGE
T=0.50 IMA 		8-97130-387-0 AR 1 1409- ● ● ●
12 SHIM; FINAL PINION CAGE
T=0.24 IMA 		9-41519-109-0 AR 1 1409- ● ● ●
12 SHIM; FINAL PINION CAGE
T=0.15 IMA 		9-41519-111-0 AR 1 1409- ● ● ●
14 CARRIER ASM; FINAL DRIVE,FRT AXLE
IMA 		8-98104-910-2 01 1 1409- ● ● ●
19 BEARING; PINION,INNER
NSK IMA 		9-00093-621-1 01 1 1409- ● ● ●
21 GEAR SET; FINAL DRIVE,FRT
FINAL GEAR RATIO 43/12<GM0> 43/12 IMA 		8-98104-915-1 01 1 1409- ● ●
21 GEAR SET; FINAL DRIVE,FRT
FINAL GEAR RATIO 41/11<GT4> 41/11 IMA 		8-98104-929-1 01 1 1409- ● ●
21 GEAR SET; FINAL DRIVE,FRT
FINAL GEAR RATIO 41/10<GT5> 41/10 IMA 		8-98104-945-1 01 1 1409- ● ● ●
21 GEAR SET; FINAL DRIVE,FRT
FINAL GEAR RATIO 43/11<GW1> 43/11 IMA 		8-98104-933-1 01 1 1409- ● ● ●
30 BOLT; DIFF CAGE SETTING
M12X62 IMA 		8-94376-322-0 04 1 1409- ● ● ●
34 PIN; CROSS,DIFF PINION
IMA 		9-41521-044-1 01 1 1409- ● ● ●
35 WASHER; THRUST,SIDE GEAR
T=1.00 IMA 		5-41562-005-1 02 1 1409- ● ● ●
35 WASHER; THRUST,SIDE GEAR
T=1.05 IMA 		5-41562-006-1 02 1 1409- ● ● ●
35 WASHER; THRUST,SIDE GEAR
T=1.10 IMA 		5-41562-007-1 02 1 1409- ● ● ●
36 GEAR; SIDE,DIFF
Z=17 IMA 		8-97079-519-2 02 1 1409- ● ● ●
37 GEAR; PINION DIFF
Z=10 IMA 		8-97079-518-0 02 1 1409- ● ● ●
39 PIN; LK,CROSS PIN
OD=5 L=35 IMA 		9-09878-096-0 01 1 1409- ● ● ●
69 BEARING; DIFF SIDE
NSK THA 		9-00093-074-1 02 1 1409- ● ● ●
110 BOLT; DIFF BOX
M10X17 IMA 		8-97038-065-0 10 1 1409- ● ● ●
