4-12 — FRONT DRIVE SHAFT (#148305) — 83 parça

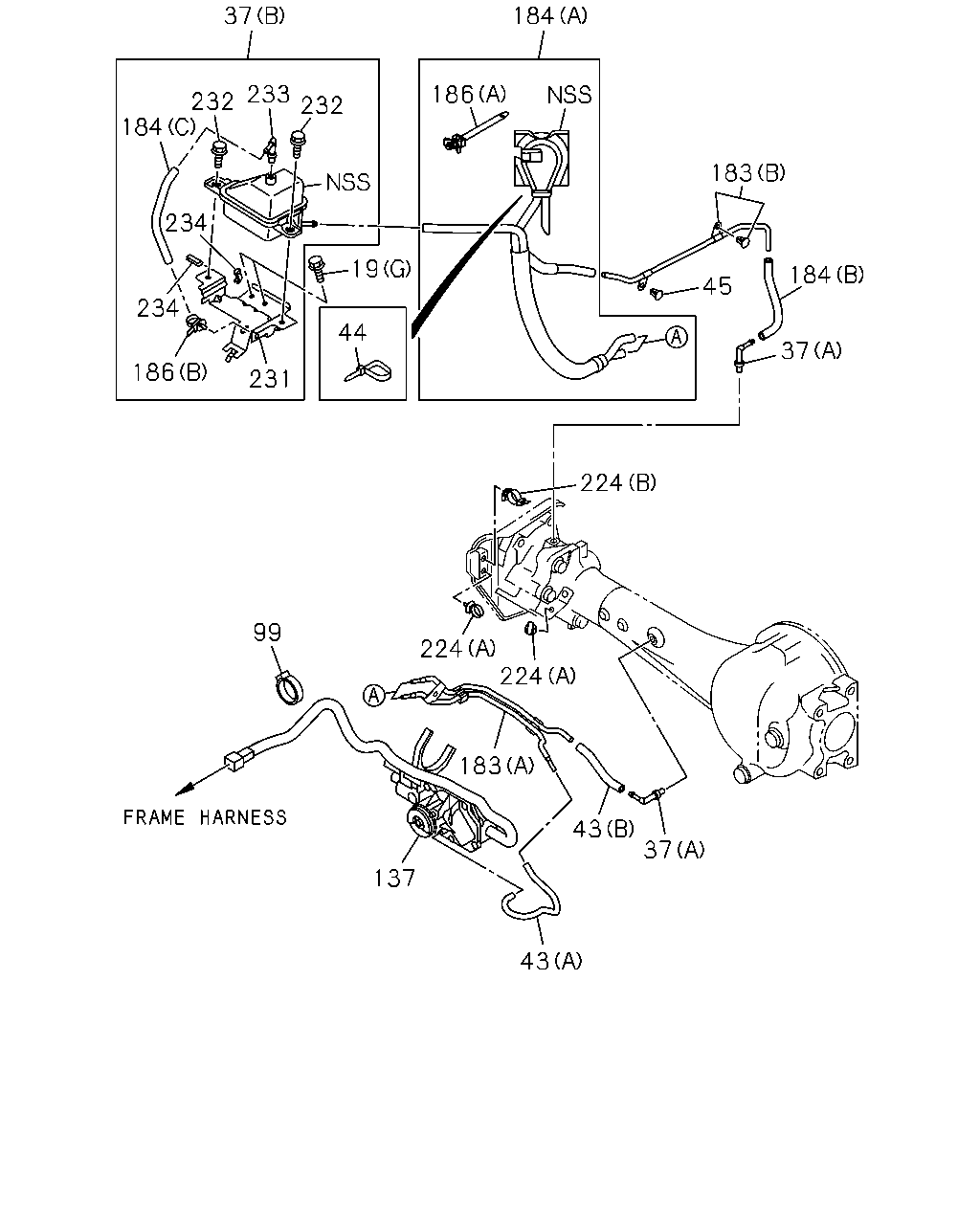

çizim 443529
183 184 37 45 184 186 19 44 232 233 37 232 184 234 234 186 231 224 224 224 37 43 43 137 99 183
BalonParca AdiParca NoAdetTipApplied Date A B C
19 BOLT; FRT AXLE
(C) M12X30 FLANGE IMA 		0-28051-230-0 04 1 1409- ● ● ●
19 BOLT; FRT AXLE
(B) M8X25 FLANGE THA 		0-28650-825-0 01 1 1409- ● ● ●
19 BOLT; FRT AXLE
(A) M8X40 FLANGE THA 		0-28650-840-0 03 1 1409- ● ● ●
19 BOLT; FRT AXLE
(D) M8X28.5 W/SP WASHER THA 		8-97947-579-0 03 1 1409- ● ● ●
19 BOLT; FRT AXLE
(E) M8X40 W/SP WASHER THA 		8-97947-580-0 05 1 1409- ● ● ●
19 BOLT; FRT AXLE
(F) M8X95 W/SP WASHER THA 		8-97947-581-0 02 1 1409- ● ● ●
19 BOLT; FRT AXLE
(G) M6X16 FLANGE THA 		0-28650-616-0 02 1 1409- ● ● ●
37 BREATHER; FRT AXLE CASE
(A) IMA 		8-94226-943-0 02 1 1409- ● ● ●
37 BREATHER; FRT AXLE CASE
(B) THA 		8-98166-418-4 01 1 1409- ● ● ●
43 HOSE; RUBBER,AIR BREATHER
(A) L=250 SERVICED BY L=3000 IMA 		0-04740-300-0 01 1 1409- ● ● ●
43 HOSE; RUBBER,AIR BREATHER
(B) L=120 SERVICED BY L=3000 THA 		0-04950-300-0 01 1 1409- ● ● ●
44 CLIP; AIR BREATHER HOSE
L=129.5 THA 		8-94368-493-0 01 1 1409- ● ● ●
45 CLIP
OD=14 HOLE ID=6 THA 		8-97031-632-0 01 1 1409- ● ● ●
99 CLIP; RUBBER HOSE
ID=34 THA 		8-98069-482-0 01 1 1409- ● ● ●
137 ACTUATOR; AXLE
IMA 		8-98140-853-1 01 1 1409- ● ● ●
183 PIPE; BREATHER
(A) THA 		8-98125-294-1 01 1 1409- ● ● ●
183 PIPE; BREATHER
(B) THA 		8-98177-662-1 01 1 1409- ● ● ●
184 HOSE; BREATHER
(C) L=190 SERVICED BY L=3000 IMA 		0-04750-300-0 01 1 1409- ● ● ●
184 HOSE; BREATHER
PROVISIONAL PACKAGE SPEC<BCC> (A) THA 		8-98234-652-1 01 1 1409- ●
184 HOSE; BREATHER
(A) THA 		8-98234-652-1 01 1 1409- ● ●
184 HOSE; BREATHER
(B) THA 		8-98177-663-0 01 1 1409- ● ● ●
184 HOSE; BREATHER
EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) THA 		8-98166-421-5 01 1 1409- ●
186 CLIP; HOSE,BREATHER
(B) L=155 THA 		8-97173-307-0 01 1 1409- ● ● ●
186 CLIP; HOSE,BREATHER
(A) L=172 THA 		8-94232-620-0 01 1 1409- ● ● ●
224 CLIP; HARNESS
(B) L=172 THA 		8-94232-620-0 01 1 1409- ● ● ●
224 CLIP; HARNESS
(A) L=150 IMA 		8-97811-150-1 02 1 1409- ● ● ●
231 BRACKET; CATCH TANK,OIL
THA 		8-98165-859-2 01 1 1409- ● ● ●
232 BOLT; TANK TO BRKT
M6X16 FLANGE THA 		0-28650-616-0 02 1 1409- ● ● ●
233 BREATHER; AIR,OIL TANK
IMA 		8-94226-943-0 01 1 1409- ● ● ●
234 FINISHER; BRKT
L=50 IMA 		8-94270-377-1 02 1 1409- ● ● ●

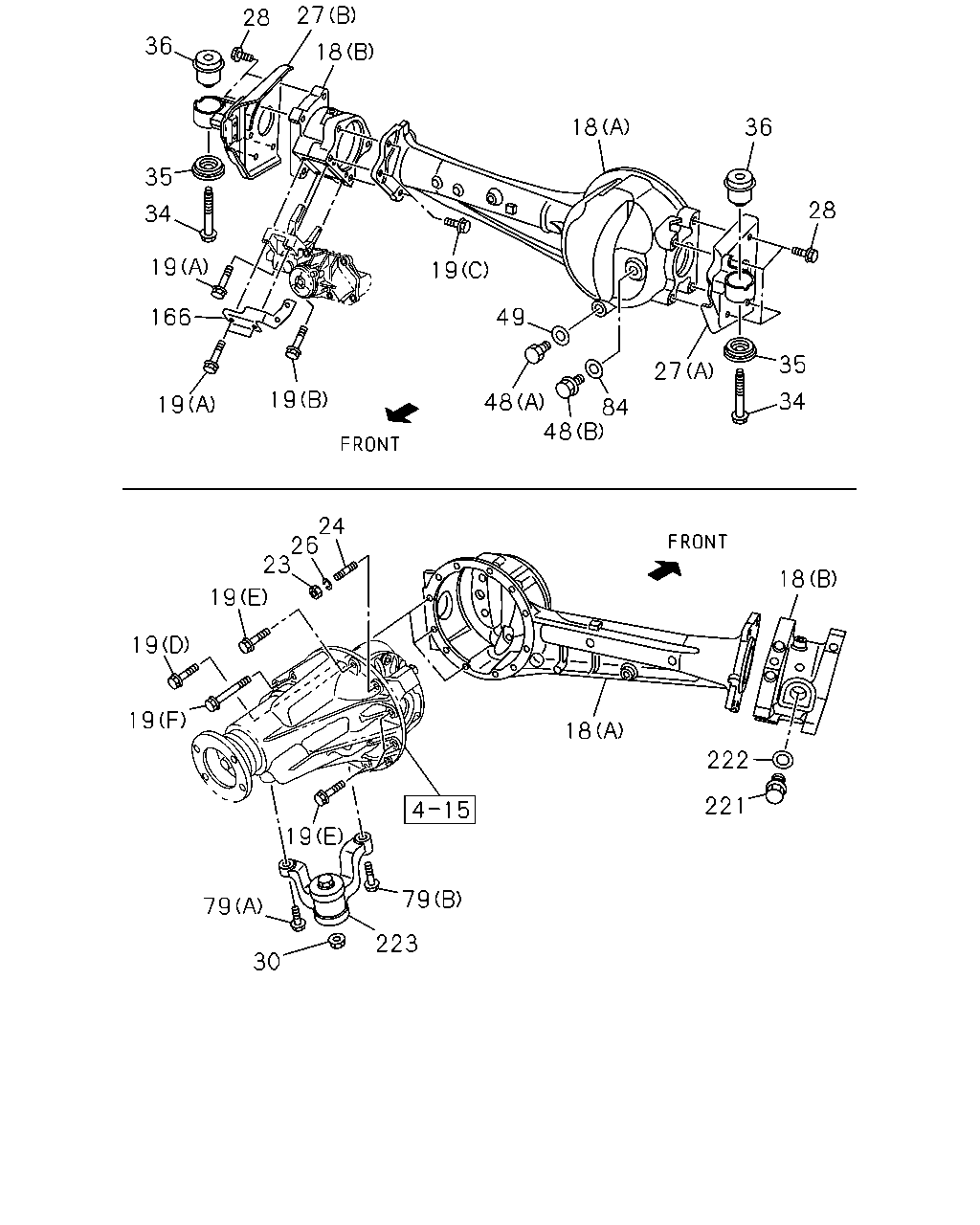

çizim 443593
27 18 28 36 35 34 19 166 19 19 19 49 48 48 84 27 34 35 28 36 18 18 222 221 18 79 223 30 79 19 19 19 19 23 26 24
BalonParca AdiParca NoAdetTipApplied Date A B C
18 CASE; FRT AXLE
(A) THA 		8-98084-280-8 01 1 1409- ● ● ●
18 CASE; FRT AXLE
(B) THA 		8-98084-292-3 01 1 1409- ● ● ●
19 BOLT; FRT AXLE
(C) M12X30 FLANGE IMA 		0-28051-230-0 04 1 1409- ● ● ●
19 BOLT; FRT AXLE
(B) M8X25 FLANGE THA 		0-28650-825-0 01 1 1409- ● ● ●
19 BOLT; FRT AXLE
(A) M8X40 FLANGE THA 		0-28650-840-0 03 1 1409- ● ● ●
19 BOLT; FRT AXLE
(D) M8X28.5 W/SP WASHER THA 		8-97947-579-0 03 1 1409- ● ● ●
19 BOLT; FRT AXLE
(E) M8X40 W/SP WASHER THA 		8-97947-580-0 05 1 1409- ● ● ●
19 BOLT; FRT AXLE
(F) M8X95 W/SP WASHER THA 		8-97947-581-0 02 1 1409- ● ● ●
19 BOLT; FRT AXLE
(G) M6X16 FLANGE THA 		0-28650-616-0 02 1 1409- ● ● ●
23 NUT; FRT AXLE
M8 IMA 		0-91110-508-0 02 1 1409- ● ● ●
24 STUD; CASE,FRT AXLE
M8X25 L=41 THA 		0-40210-825-0 02 1 1409- ● ● ●
26 WASHER; LK,CASE,FRT AXLE
ID=8.2 THA 		0-91510-808-0 02 1 1409- ● ● ●
27 BRACKET; AXLE CASE
(A) THA 		8-98103-425-0 01 1 1409- ● ● ●
27 BRACKET; AXLE CASE
(B) THA 		8-98103-434-0 01 1 1409- ● ● ●
28 BOLT; BRKT TO AXLE CASE
M12X22 FLANGE THA 		8-98270-578-0 08 1 1409- ● ● ●
30 NUT; FRT AXLE MTG
M14 FLANGE THA 		0-91180-214-0 01 1 1409- ● ● ●
34 BOLT; FRT AXLE MTG
M14X85 FLANGE THA 		8-97259-306-0 02 1 1409- ● ● ●
35 WASHER; FRT AXLE MTG
ID=14.2 OD=50 IMA 		8-98008-020-0 02 1 1409- ● ● ●
36 BUSHING; RUBBER,FRT AXLE MTG
IMA 		8-97364-319-0 01 1 1409- ● ● ●
36 BUSHING; RUBBER,FRT AXLE MTG
IMA 		8-97364-323-0 01 1 1409- ● ● ●
48 PLUG; DRAIN,AXLE CASE
(A) M16X12.5 IMA 		8-97307-060-0 01 1 1409- ● ● ●
48 PLUG; DRAIN,AXLE CASE
(B) M20X10.5 IMA 		8-98009-333-0 01 1 1409- ● ● ●
49 GASKET; DRAIN PLUG
ID=16.2 OD=24 THA 		9-09571-416-0 01 1 1409- ● ● ●
79 BOLT; BRKT
(A) M12X30 FLANGE IMA 		0-28061-230-0 01 1 1409- ● ● ●
79 BOLT; BRKT
(B) M12X40 FLANGE THA 		0-28061-240-0 01 1 1409- ● ● ●
84 GASKET; PLUG,OIL FILLER
ID=20 OD=30 THA 		8-94462-734-0 01 1 1409- ● ● ●
166 BRACKET; CLIP
THA 		8-98125-310-3 01 1 1409- ● ● ●
221 PLUG; FILLER
M20X10.5 IMA 		8-98009-333-0 01 1 1409- ● ● ●
222 GASKET; FILLER PLUG
ID=20 OD=30 THA 		8-94462-734-0 01 1 1409- ● ● ●
223 BRACKET; HSG
THA 		8-98103-437-0 01 1 1409- ● ● ●

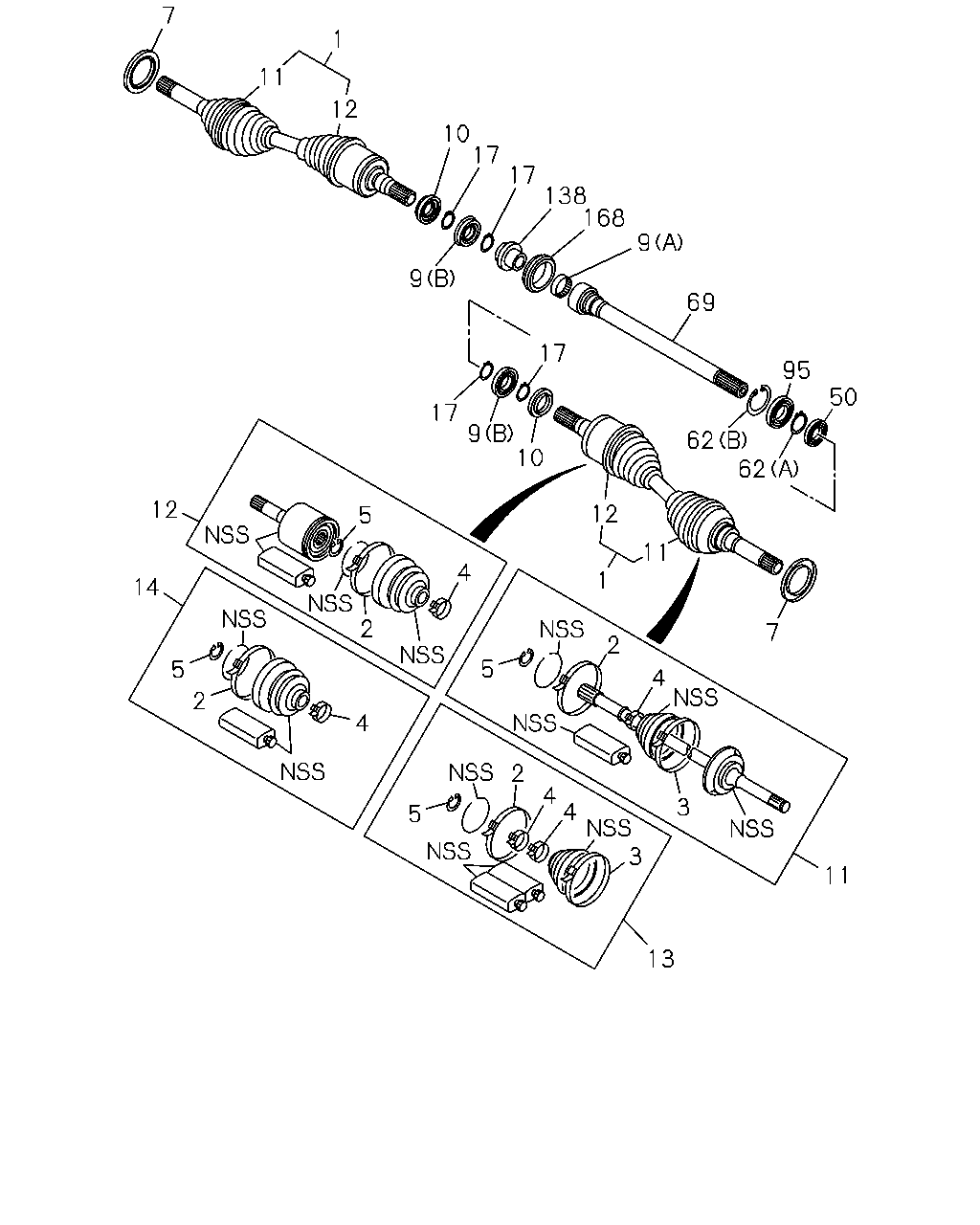

çizim 443611
1 12 11 7 10 17 17 138 168 9 69 95 50 62 62 10 9 17 17 9 12 11 1 7 2 4 36 11 5 2 4 4 13 3 5 4 2 4 5 12 14 5 2
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT ASM; FRT DRIVE
THA 		8-98147-245-2 02 1 1409- ● ● ●
2 BAND; "A",FRT DRIVE SHAFT
THA 		8-98147-676-0 02 1 1409- ● ● ●
3 BAND; "B",FRT DRIVE SHAFT
THA 		8-97349-959-1 02 1 1409- ● ● ●
4 BAND; "C",FRT DRIVE SHAFT
THA 		8-97222-152-1 04 1 1409- ● ● ●
5 RING; RET,FRT DRIVE SHAFT
THA 		8-97131-402-0 02 1 1409- ● ● ●
7 SEAL; DUST,DRIVE SHAFT
THA 		8-98036-560-0 02 1 1409- ● ● ●
9 BEARING; AXLE SHAFT,INNER
(A) IMA 		8-97101-878-0 01 1 1409- ● ● ●
9 BEARING; AXLE SHAFT,INNER
(B) IMA 		8-94407-724-0 02 1 1409- ● ● ●
10 SEAL; OIL,AXLE SHAFT,INNER
IMA 		8-97373-555-0 02 1 1409- ● ● ●
11 JOINT ASM; OUTSIDE,FRT DRIVE SHAFT
THA 		8-98147-681-1 02 1 1409- ● ● ●
12 JOINT ASM
THA 		8-98147-680-2 02 1 1409- ● ● ●
13 BOOT KIT; OUTSIDE,FRT DRIVE SHAFT
THA 		8-98147-678-1 02 1 1409- ● ● ●
14 BOOT KIT; IN SIDE,FRT DRIVE SHAFT
THA 		8-98147-677-1 02 1 1409- ● ● ●
17 RING; SNAP,DRIVE SHAFT TO TRANS AXLE
ID=27.9 IMA 		9-09180-030-0 04 1 1409- ● ● ●
36 BUSHING; RUBBER,FRT AXLE MTG
IMA 		8-97364-319-0 01 1 1409- ● ● ●
36 BUSHING; RUBBER,FRT AXLE MTG
IMA 		8-97364-323-0 01 1 1409- ● ● ●
50 SEAL; OIL,SHAFT,FRT AXLE
IMA 		8-97084-507-0 01 1 1409- ● ● ●
62 RING; SNAP,AXLE SHAFT
(A) ID=37.0 IMA 		9-09180-040-0 01 1 1409- ● ● ●
62 RING; SNAP,AXLE SHAFT
(B) ID=57.9 IMA 		9-09180-162-0 01 1 1409- ● ● ●
69 SHAFT; AXLE,FRT INNER
IMA 		8-97188-174-1 01 1 1409- ● ● ●
95 BEARING; AXLE SHAFT,FRT
IMA 		8-97103-392-0 01 1 1409- ● ● ●
138 GEAR; CLUTCH
Z=17 IMA 		8-97134-857-1 01 1 1409- ● ● ●
168 SLEEVE; FRT AXLE
IMA 		8-97130-567-1 01 1 1409- ● ● ●
